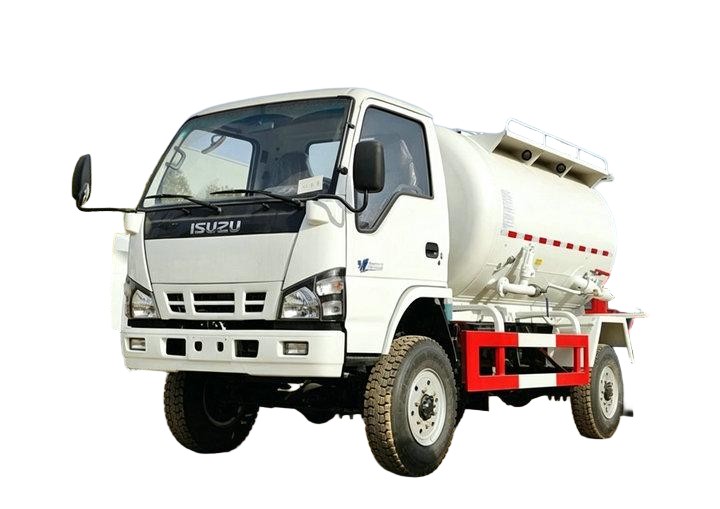

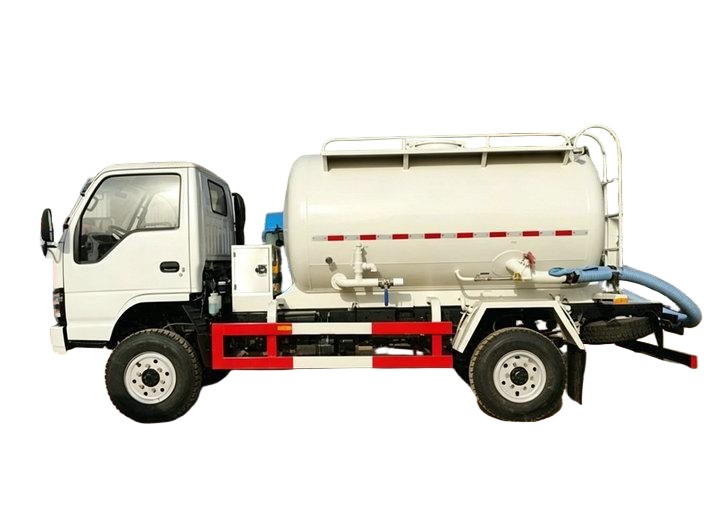

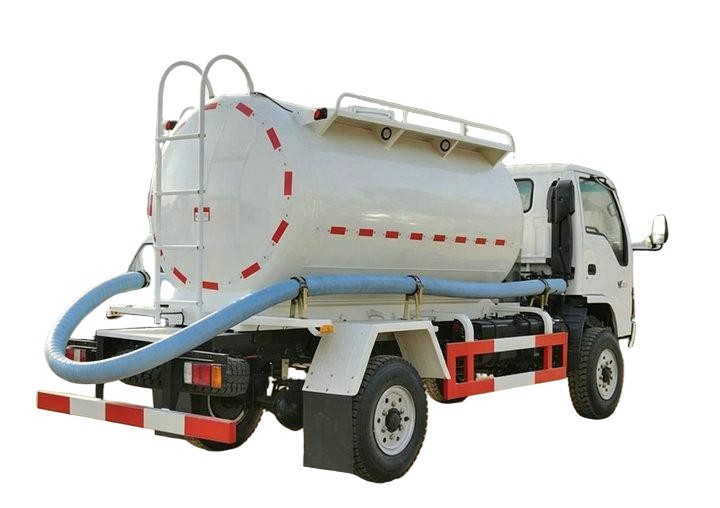

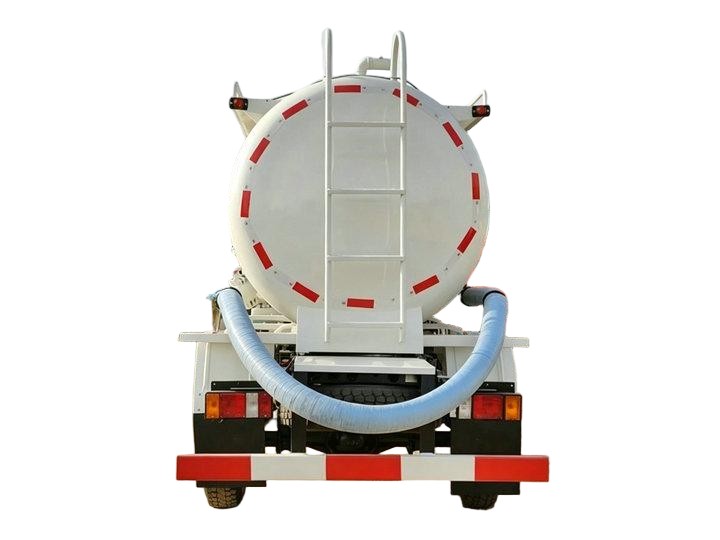

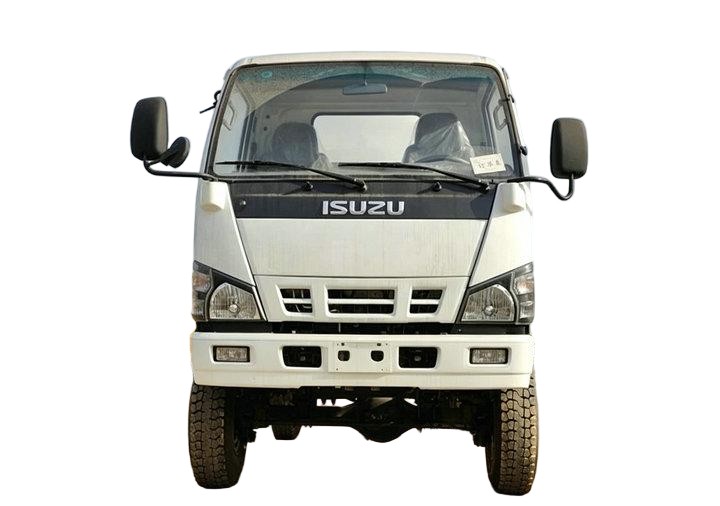

ISUZU 4x4 Off Road 3KL Sewer Septic Sewage Vacuum Tanker Truck

ISUZU 4x4 Off Road 3KL Sewer Septic Sewage Vacuum Tanker Truck
Tank capacity can be customized 2KL- 3KL
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
Price: $ 33800
Discount Price: $ 32800
Availability:
Quantity:

  • DRZ5044XWQL

  • DRZ

  • 8705909990



Isuzu 4x4 Off Road Vacuum Tanker Truck | 3000L Isuzu NKR Septic Sewage Suction Truck

customized Isuzu 4x4 off road vacuum tanker truck based on Isuzu NKR chassis, 3000L carbon steel tank, 120HP 4KH1 Euro 6 engine. All-wheel drive septic suction truck for sewage, waste sludge collection, suitable for complex terrain. Direct supplier of Isuzu NPR sewage pump vacuum trucks.

Isuzu 4x4 Off Road Vacuum Tanker Truck

Isuzu Off Road 3000L Vacuum Tanker Truck

Customized Isuzu NKR septic tank suction truck for sale. Original Japan Isuzu NPR single cabin sewage pump truck direct supplier.
The Isuzu vacuum tanker truck is fitted with complete multi-stage filtration systems to separate solid waste and wastewater efficiently. The filtration unit screens reusable materials and minimizes environmental pollution. Besides daily sewage collection, this vacuum suction truck plays a vital role in emergency rescue and disaster relief. It rapidly cleans flood sewage, chemical leakage waste and other polluted media after disasters.
Model: DRZ5044XWQL | Tank Capacity: 3,000 Liters | Drive Mode: 4×4 | Engine: 4KH1CN6LB 120 HP

Product Description

The Isuzu 4x4 off road vacuum tanker truck is a heavy-duty industrial vehicle built for rugged, variable terrain. Mounted on the reliable ISUZU NKR 4x4 offroad chassis, it adopts the 4KH1CN6LB inline four-cylinder turbo intercooled direct injection diesel engine. Displacement reaches 2999ml with maximum output of 120HP, complying with Euro VI emission standards, balancing powerful performance and eco-friendly operation.
The Isuzu NKR vacuum tanker hits a top travelling speed of 90 km/h. It comes with MSB 5-forward+1-reverse transmission, reinforced diaphragm clutch and hydraulic power steering system to deliver effortless driving experience.
Reasonable overall dimension layout and optimized weight distribution enable stable handling and reliable performance under diverse working scenarios. The onboard 3000L vacuum tank is fabricated from 5mm thick Q235A carbon steel, safely transporting media with density up to 800kg/m³. Supported by heavy-duty vacuum pump and matched piping system, the tank can be fully filled within 5 minutes, drastically boosting operating efficiency.

Products Specification

Description Parameters
Product Name Isuzu 4x4 off road vacuum tanker truck
Drive Model 4X4
Chassis Brand ISUZU 4X4 NKR
Number of axles 2
Overall Dimensions(L×W×H)(mm) 5695×2000×2480
Wheel base (mm) 3360
Front/Rear Overhang (mm) 1032/1663
Front/Rear Wheel track (mm) 1506/1466
Approach/Departure Angle(°) 19/14
GVW 5495kg
Curb Weight 2800kg
Max. Driving Speed 90km/h
Engine Model 4KH1CN6LB
Engine Type 4-stroke direct injection, inline 4-cylinder water-cooled, turbocharged & intercooled
Rated Horsepower 120HP
Displacement 2999ml
Emission Standard Euro 6
Gearbox MSB 5 forwards & 1 reverse
Clutch Reinforced diaphragm clutch
Steering System Hydraulic power steering
Fuel Tank Volume 100L
Tyre 7.00 R16, 6 tyres + 1 spare tyre
Braking System Dual circuit compressed air brake
Tank Material Q235A Carbon steel
Adapted Medium Density 800kg/m³
Effective Capacity 3000L
Tank Thickness 5mm
Core Equipment Industrial vacuum pump
Rated rotate speed:1400r/m
Minimum rotate speed>800r/m
Max suction lift>6m, Vacuum>500mmHg
Supporting PTO, transmission shaft, sewage tank, pipeline network, observation pipeline and cleaning accessories
Fully suction time<5min

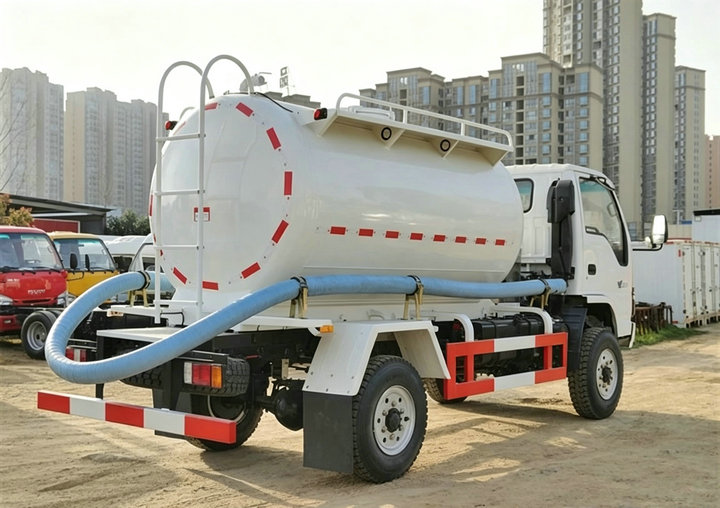

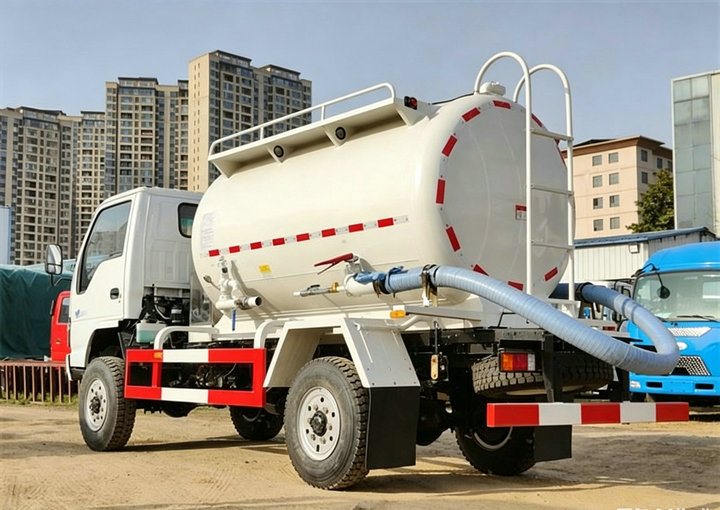

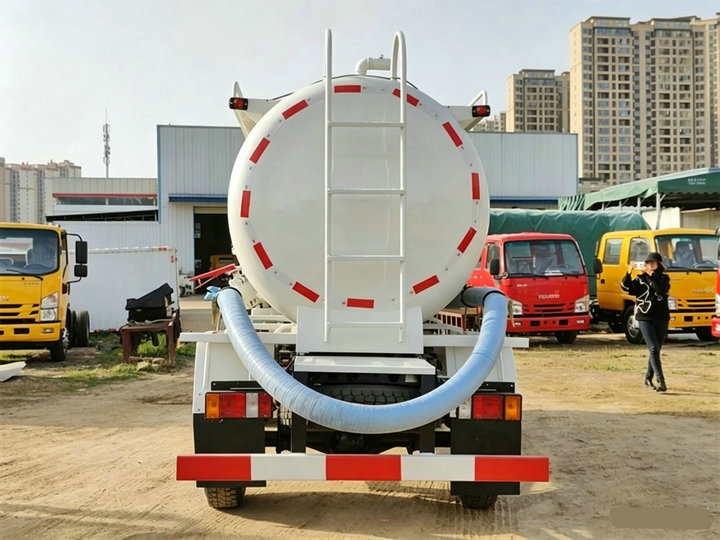

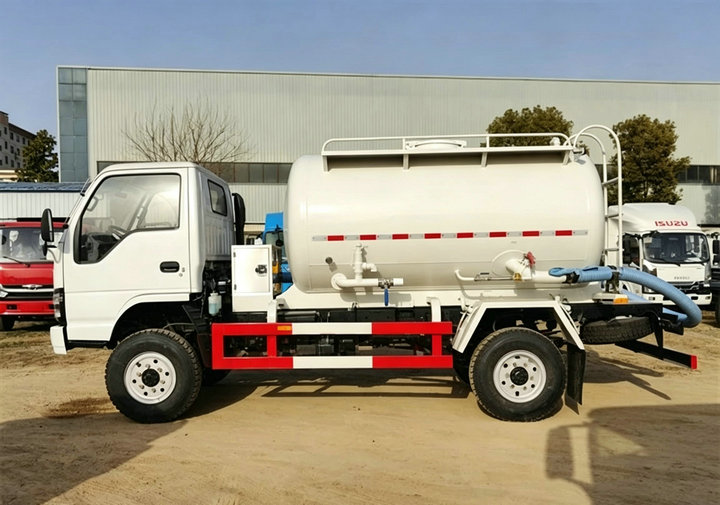

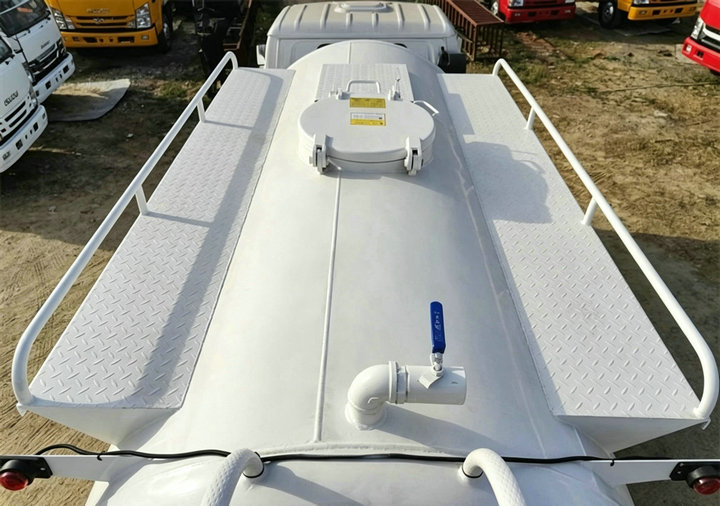

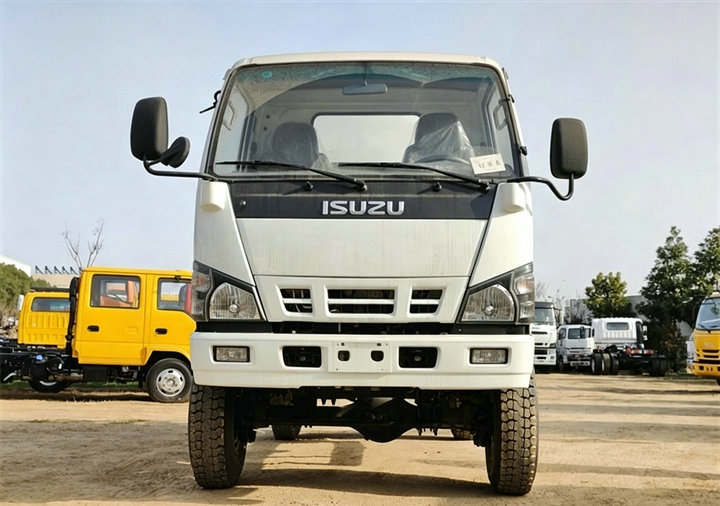

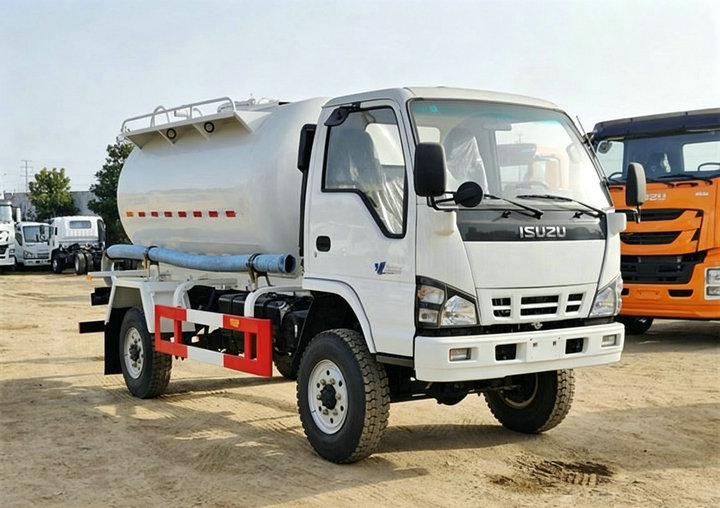

Isuzu 4x4 Off Road Septic Sewage Vacuum Tanker Truck (10)Isuzu 4x4 Off Road Septic Sewage Vacuum Tanker Truck (11)Isuzu 4x4 Off Road Septic Sewage Vacuum Tanker Truck (2)Isuzu 4x4 Off Road Septic Sewage Vacuum Tanker Truck (1)Isuzu 4x4 Off Road Septic Sewage Vacuum Tanker Truck (13)Isuzu 4x4 Off Road Septic Sewage Vacuum Tanker Truck (5)Isuzu 4x4 Off Road Septic Sewage Vacuum Tanker Truck (7)

Core Advantages of Isuzu 4x4 Off Road Vacuum Tanker Truck

  1. Powerful All-wheel Drive System
    The Isuzu NKR off road vacuum tanker features genuine 4×4 all-wheel drive structure, delivering superior traction and outstanding cross-country capability. It works steadily on slippery, muddy, bumpy and uneven terrain, perfectly adapting to complicated working conditions for sewage collection.
  2. Optimized Tank Structure & Loading Capacity
    Equipped with a cylindrical 3000L vacuum tank, designed for optimal space utilization and balanced weight distribution. Stable body structure prevents roll risks during liquid waste transportation.
  3. Reliable Power & High Working Efficiency
    Matched with proven Isuzu 4KH1 diesel engine. It guarantees sufficient power for heavy-duty suction tasks while maintaining competitive fuel consumption and low exhaust emissions. The vacuum system realizes rapid suction within 5 minutes.
  4. Humanized Safety & Operation Design
    Original Isuzu cabin provides wide sightlines through large windshields and optimized rearview mirrors. Easy-access control layout lowers operation difficulty, ideal for narrow urban roads and confined construction sites.
  5. Wide Application Range
    The Isuzu NKR vacuum suction truck is widely used for urban sewer cleaning, municipal sewage treatment and industrial wastewater disposal. Thanks to its 4x4 off-road performance, it can access remote rural zones, muddy construction sites and undeveloped working areas inaccessible for ordinary 2-wheel drive vacuum trucks.

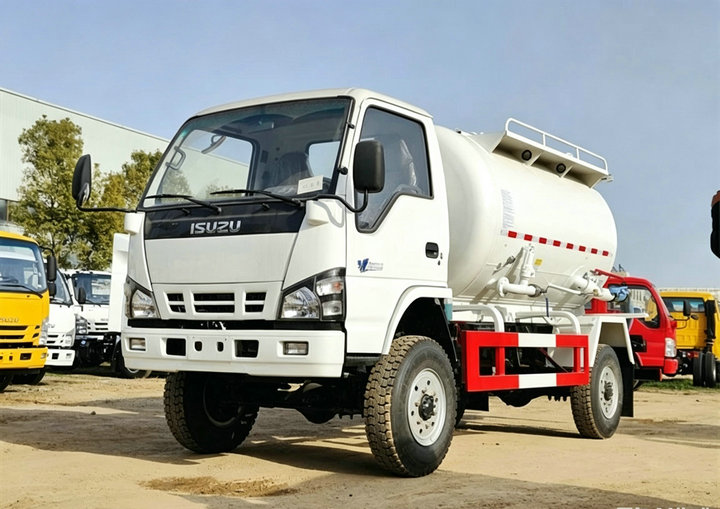

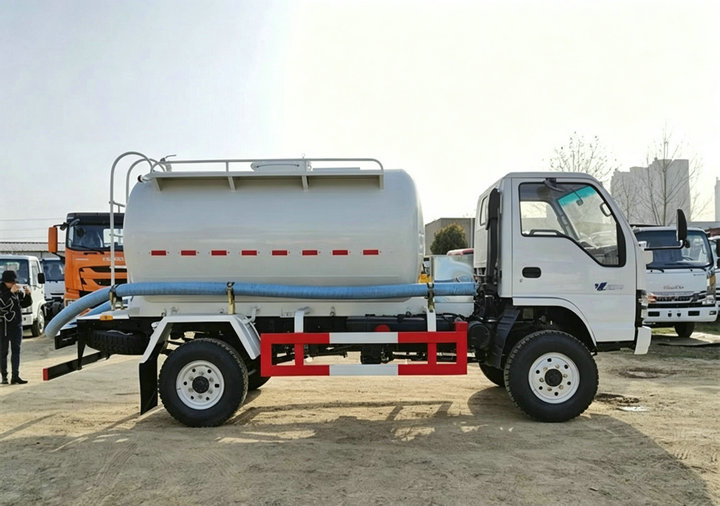

Isuzu 4x4 Off Road Septic Sewage Vacuum Tanker Truck (12)Isuzu 4x4 Off Road Septic Sewage Vacuum Tanker Truck (6)
