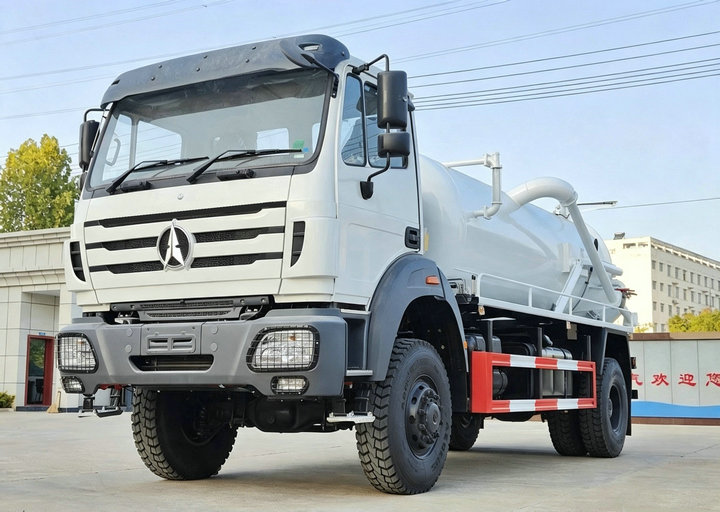

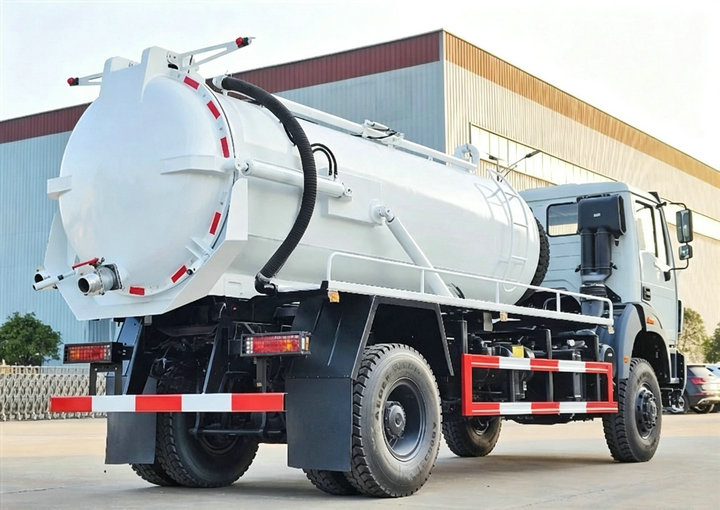

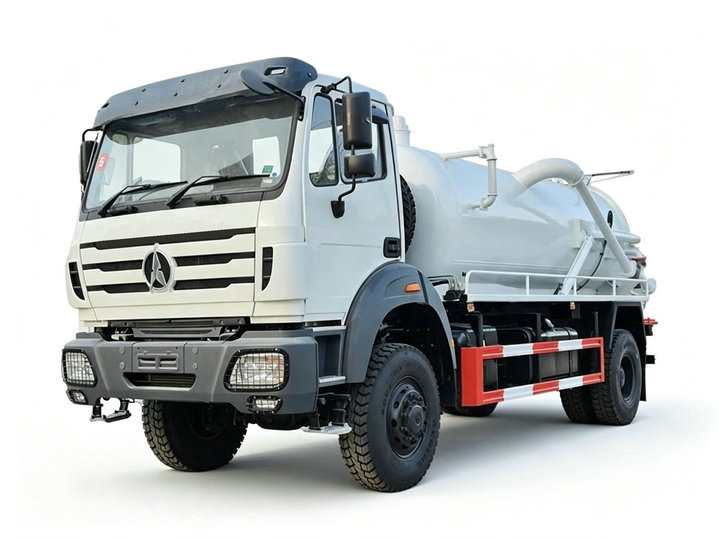

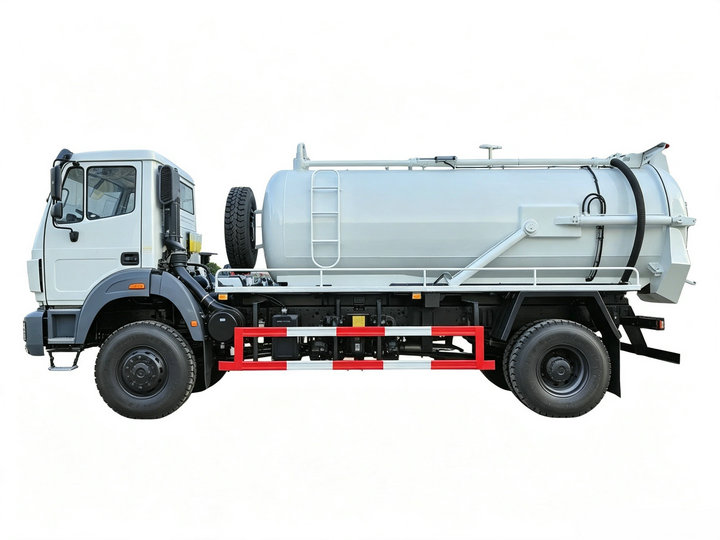

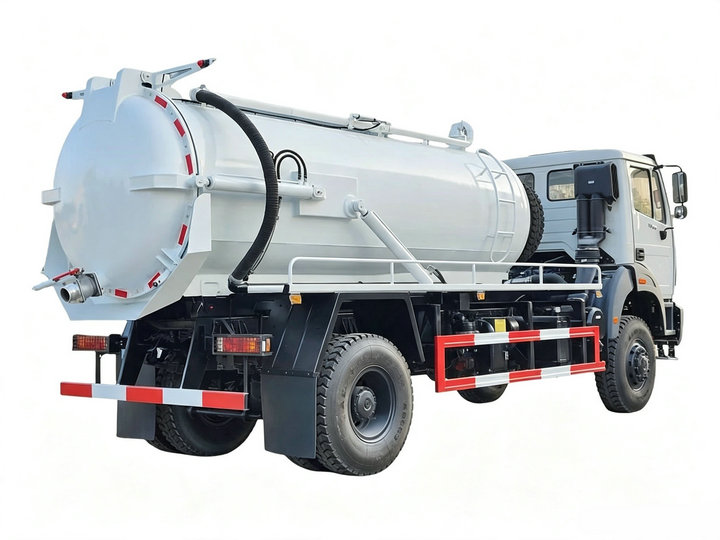

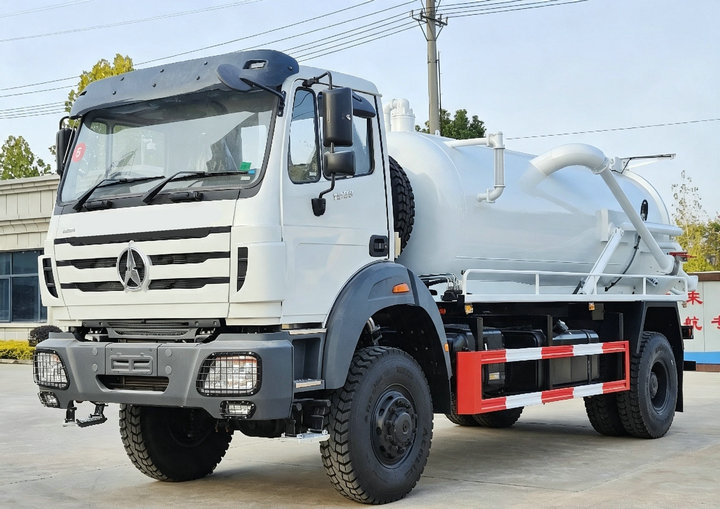

Beiben 4x4 Offroad Vacuum Suction Septic Tank Truck RHD 8KL
BEIBEN 4x4 Offroad 1929 8000L Vacuum Sucker Pumper Truck | Military Septic Tanker
8000L / 8CBM BEIBEN 4x4 Offroad 1929 Military Vacuum Sucker Pumper Truck is a heavy-duty all-terrain sanitation vehicle specially developed for harsh road conditions, widely exported and purchased by African customers. Also known as vacuum tanker, cesspit emptier, sewer suction truck and vactor truck, this Beiben 4x4 vacuum truck is equipped with professional vacuum pumping system and sealed storage tank, capable of pneumatically sucking sewage, fecal sludge, slurry, sediment and other wastes from underground pipelines, septic tanks and pit latrines.
Adopting advanced vacuum negative pressure working principle, the truck can independently complete suction, transportation and discharge operations. It efficiently collects various liquid and solid wastes and transports them to sewage treatment plants or disposal sites. Supported by original Beiben 1929 4×4 all-wheel drive military chassis, the vehicle features excellent cross-country performance, perfectly adapting to deserts, muddy roads, rugged mountain roads and complex mining areas, becoming the preferred sanitation equipment for military operations, African remote area construction and mining project waste treatment.
Complete Vehicle Technical Parameters
Item | Specification |
Model | DRZ5160GXWND |
Tank Capacity | 8000L (8CBM) |
Drive Mode | 4×4 All Wheel Drive, RHD/LHD Optional |

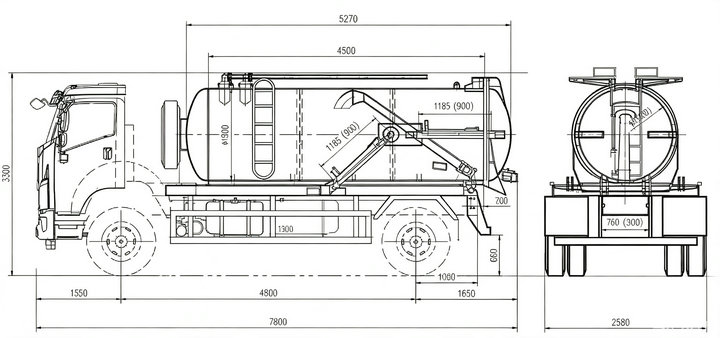

Overall Dimension | 7800*2500*3300mm |
GVW | 18000kg |
Curb Weight | 10500kg |
Chassis Brand & Model | BEIBEN 1929, ND2161E48 |
Wheelbase | 4800mm |
Tire Specification | 12.00R20 (6+1 units with spare tire) |
Fuel Tank Capacity | 400L |
Chassis & Power System Configuration
Cab System

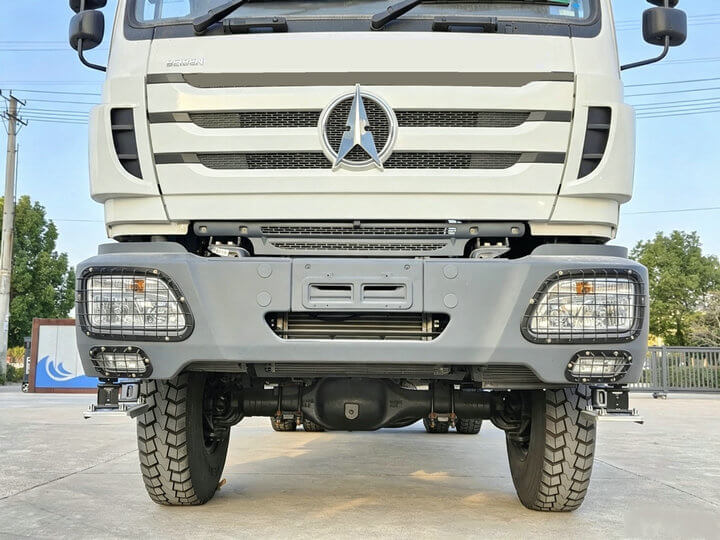

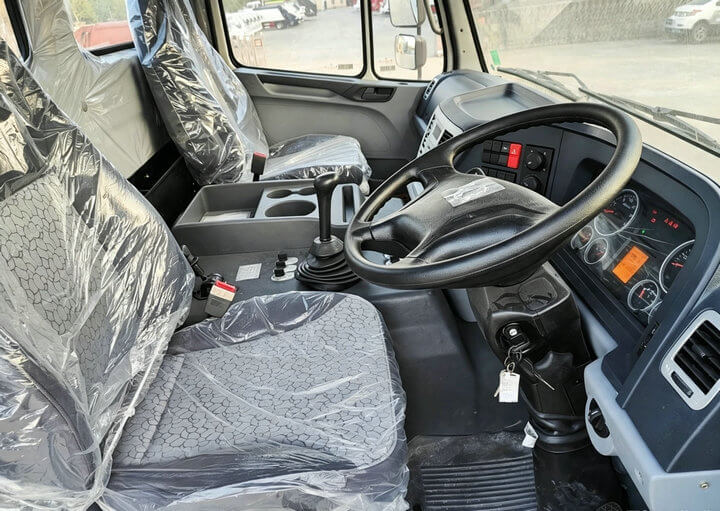

Equipped with classic BEIBEN NG80B single-row short cab without sleeper bed, adopting all-steel welded tilt structure with mechanical tilting device and rear mechanical suspension. The cab is fitted with adjustable driver seat, manual windows, manual door lock and original air conditioner. Customized white painting and right-hand drive (RHD) modification are available to meet African and Middle East market standards.
Engine & Transmission
Powered by top-ranking Chinese WEICHAI WP10.290E32 diesel engine, with 9726cc displacement, 209KW (290HP) power output and Euro 3 emission standard. The engine features stable power, strong durability and excellent adaptability to high-dust and high-temperature desert environments. Matched with FAST 9JS150A 9-speed manual gearbox (9 forward gears & 2 reverse gears), professional VG1400 transfer gearbox and 8098 heavy-duty steering machine, ensuring smooth and stable power transmission under off-road conditions.
Axle, Suspension & Brake System

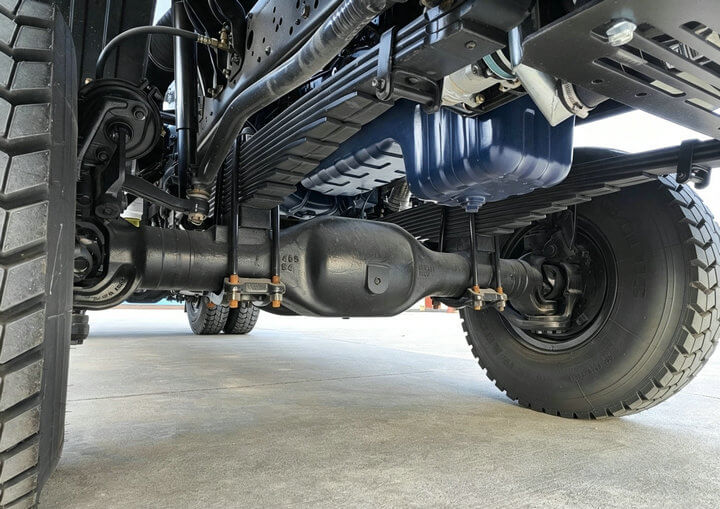

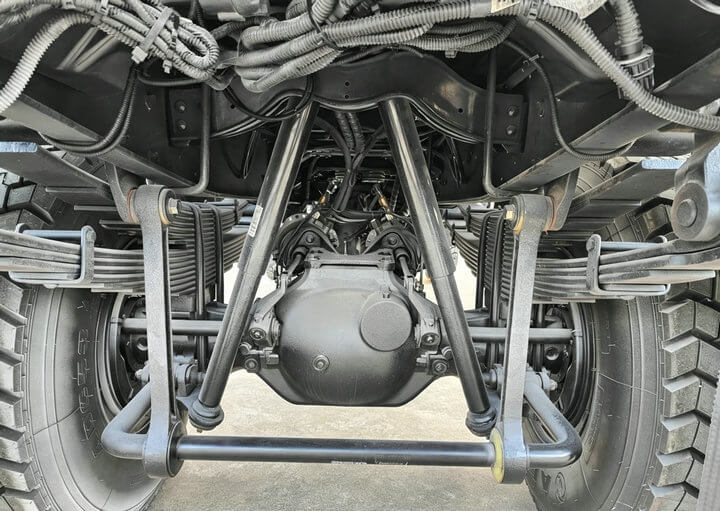

Front axle adopts 7-ton Elliot I-beam off-road axle, and rear axle is 13-ton double reduction heavy-duty axle. The suspension system uses 7-leaf spring with shock absorber at the front and 10/8+6 reinforced leaf spring at the rear, with strong load-bearing and shock resistance. The full air brake system with split pneumatic circuit is equipped with spring parking brake for rear axles and exhaust auxiliary brake, ensuring safe driving on complex roads.
8000L Vacuum Tank & Working System
The vacuum tank body is made of high-strength Q355B steel (upgraded from ordinary Q235/Q345 steel), with 6mm thickness for both tank body and shell. The integrated cylindrical welding structure is equipped with built-in anti-sloshing baffles to avoid tank deformation and ensure driving safety under full load. Both internal and external surfaces of the tank are treated with professional anti-rust and anti-corrosion painting, effectively resisting corrosion of sewage, sludge and chemical waste, greatly extending the service life.
Standard Full Configuration

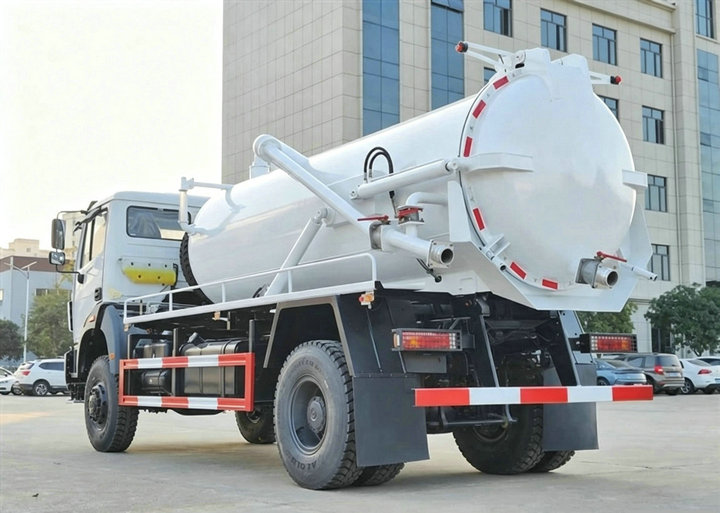

• Hydraulic lifting rear door and lockable discharge cover for easy unloading and cleaning
• Original PTO power take-off, matched with professional suction and discharge pipelines
• 10m wear-resistant green suction pipeline, observation window and liquid level alarm device
• Complete water circulation pump and high-pressure cleaning equipment
• Independent oil-gas separator, water-gas separator and silencer protection system

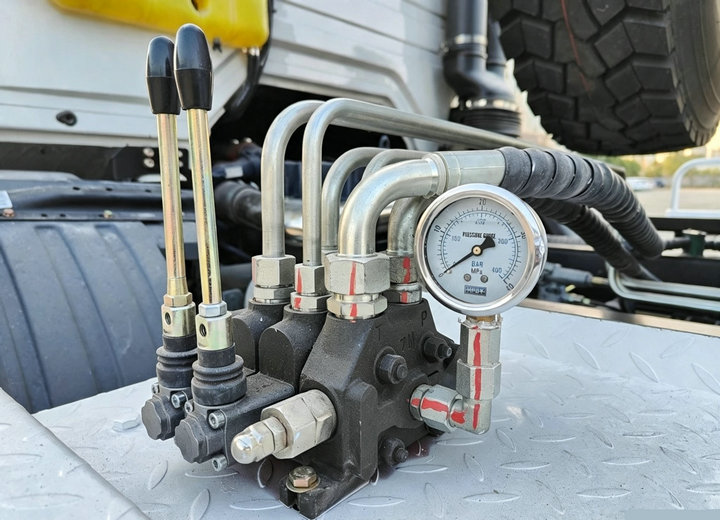

• Hydraulic control valve with English identification marks for convenient operation
Core Separation Device Working Principle
Oil-Gas Separator: Adopts gravity and centrifugal double separation technology to filter oil mist and waste gas generated during operation, purify exhaust gas to meet environmental protection standards, and protect the vacuum pump core from oil contamination.
Water-Gas Separator: Effectively removes water vapor from compressed air and waste gas, preventing water from entering the vacuum pump to cause rusting and failure, ensuring long-term stable continuous operation.
Product Advantages & Core Technologies
1. High-Strength Q355 Steel Tank
Different from ordinary Q235 steel tanks in the market, our Beiben vacuum tanker adopts Q355 low-alloy high-strength steel, which has stronger tensile resistance, impact resistance and corrosion resistance. The thickened 6mm tank body and internal anti-wave structure adapt to long-term off-road transportation and harsh working environments.
2. High-Efficiency Weilong Vacuum Suction System
Equipped with China top-brand Weilong vacuum pump, matched with complete four-way valve control and double separation protection system. It forms strong negative pressure suction, which can quickly suck not only conventional sewage and sludge, but also solid impurities such as sediment, stones and broken bricks, with large suction range and high working efficiency.
3. Military-Grade 4×4 All-Terrain Chassis
The 4x4 full-time all-wheel drive chassis can distribute engine torque to all four wheels in real time according to road conditions. It has super strong traction and passability, capable of adapting to desert sandy land, muddy dirt roads, rugged mountain roads and no-pavement mining areas. It is far more adaptable to harsh environments than ordinary 4x2 vacuum trucks.
Application Scenarios
• Military base sewage and fecal waste centralized cleaning and transportation
• Sludge and industrial waste liquid suction treatment in African desert mining areas
• Septic tank and pit latrine cleaning in rural and remote areas
• Municipal sewer pipeline sludge cleaning and underground hydro-excavation operation
• Animal manure slurry collection and transportation for large livestock farms
BEIBEN 4x4 offroad 8000L vacuum tank truck DRZ5160GXWND | |||
| Overall dimension | 7800x2500x3300mm | ||
| GVW | 18000kg | ||
| Curb weight | 10500kg | ||
| Chassis brand | BEIBEN 1929 | ||
| Traction type | 4x4, Right Hand Drive | ||
| Chassis Description | |||
| Chassis model | ND2161E48 | ||
| Cab | Classical NG80B single row cab, forward control type, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver seat, manual windows, manual lock, air conditioner. | ||
| Wheelbase | 4800mm | ||
| Tire specification | 12.00R20 | ||
| Tire quantity | 6+1 units | ||
| Engine | Engine model | WP10.290E32 | |
| Emission level | Euro 3 | ||
| Displacement/output | 9726ml/209kw | ||
| Horse power | 290hp | ||
| Gear box | Type | FAST 9-shift 9JS150A | |
| Number of gears | 9 forward gears& 1 reverse | ||
| Brake system | Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake | ||
| Axle | Front | 7T- Elliot type, I beam section | |
| Rear | 13T-Double reduction | ||
| Suspension | Front | 7- Leaf spring with shock absorber | |
| Rear | 10/8+6-Leaf spring | ||
| Fuel tanker | Type | Steel fuel tank, with lockable cap | |
| Capacity | 400L | ||
| Up-part description | |||
| Tanker | Capacity | 8000 L | |
| Material | Q235B, 6mm thickness | ||
| Structure | Welding vacuum tank, cylindrical | ||
| Standard configuration | Equipped with hydraulic lifting rear door and lock discharge cover; | ||
| Equipped with PTO, fecal tank, suction tube and discharging pipe, observing area, clean-out equipment, liquid-alarm device; | |||
| Equipped with water-cycle pump; | |||
| Anti-corrosive treatment inside tanker. | |||
FAQ
Q1: What material is the vacuum tank made of?
A1: We adopt high-strength Q355B steel with 6mm thickness, better durability and corrosion resistance than ordinary Q235 steel, with full anti-corrosion treatment inside and outside.
Q2: Do you support RHD modification for African markets?
A2: Yes. We provide professional right-hand drive (RHD) conversion, fully compliant with the traffic standards of Nigeria, Kenya, Tanzania, Ghana and other African countries.
Q3: Can this truck suck solid impurities such as stones and sediment?
A3: Absolutely. Equipped with high-power Weilong vacuum pump and enhanced suction system, it can suck sludge, sand, stones and brick fragments, meeting complex cleaning needs.
Q4: Is this truck suitable for desert and mining area operation?
A4: Yes. The original Beiben 4x4 military off-road chassis has excellent cross-country performance, specially designed for desert, muddy and rugged mining road conditions.
