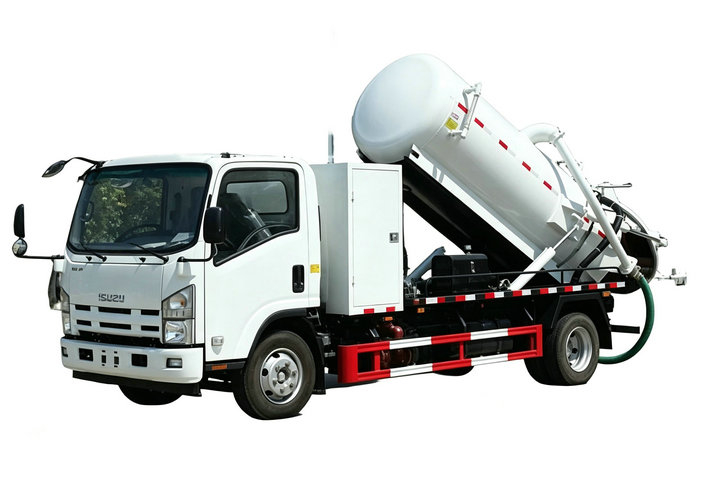

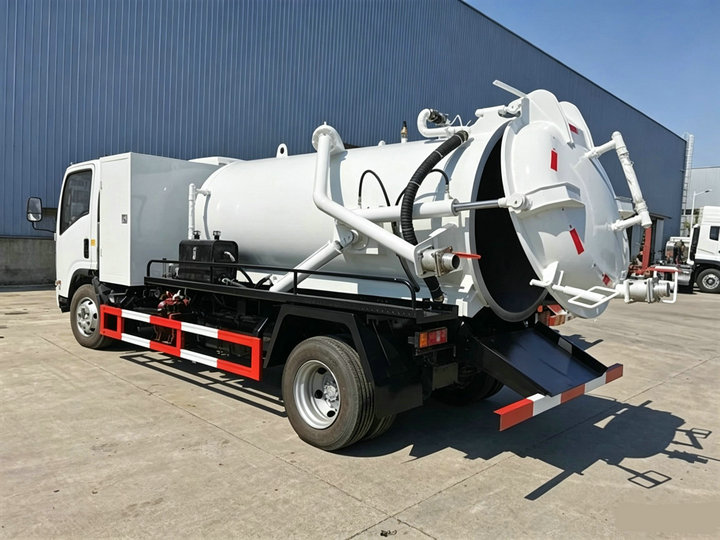

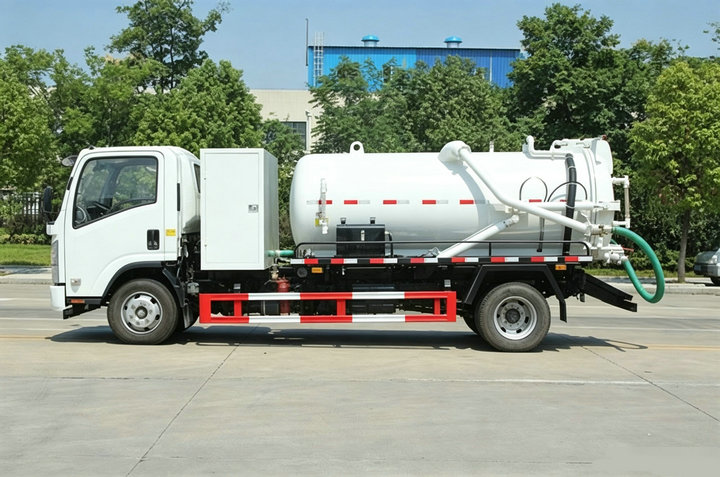

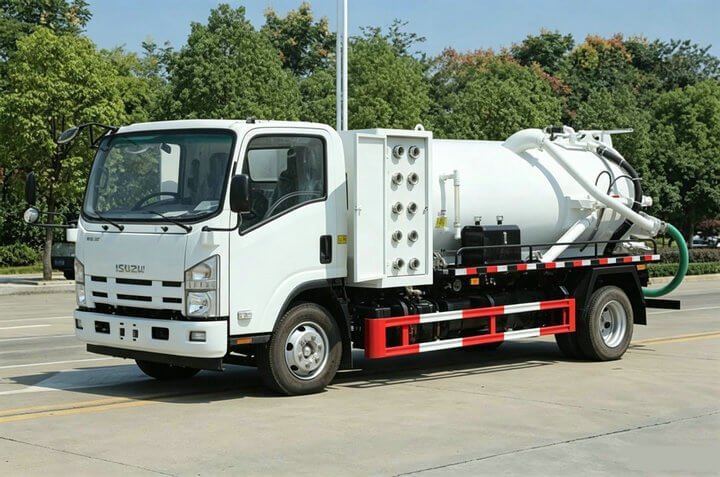

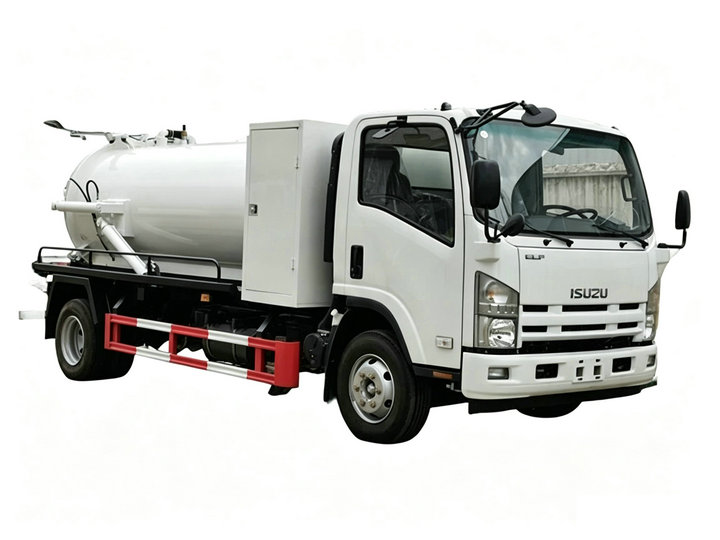

700P 7000L Isuzu Waste Water Suction Sewage Truck with Battioni Pump MEC6500P
Tank capacity can be customized 6KL- 7KL
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
| Quantity: | |
|---|---|
|
| |
-
DRZ5107XWQL
-
DRZ
-
8705909990
700P 7000L Isuzu Waste Water Suction Sewage Truck with Battioni Pump MEC6500P
Product Overview
Core Competitive Advantages
Powerful Suction Capacity

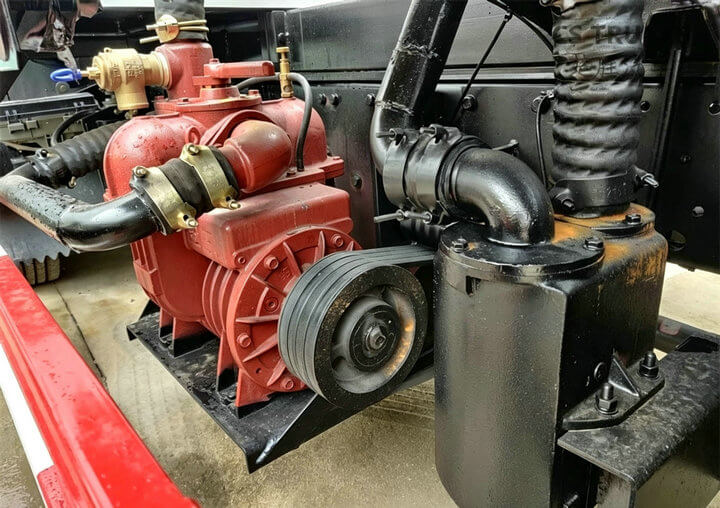

Equipped with original Italy Battioni Pagani MEC6500 rotary vane vacuum pump, suction efficiency is 30% higher than domestic standard pumps; max self-suction height reaches 7 meters, full tank filling only takes 250 seconds.
World-Class Imported Vacuum System
100% genuine Battioni Pagani vacuum pump, famous European brand with robust anti-corrosion structure, stable vacuum pressure, low failure rate, suitable for long-hour heavy-duty continuous operation. Multiple pump models optional: MEC1000 / MEC2000 / MEC3000 / MEC4000 / MEC5000 / MEC6500 / MEC8000 / MEC9000.
Compact & Flexible Chassis

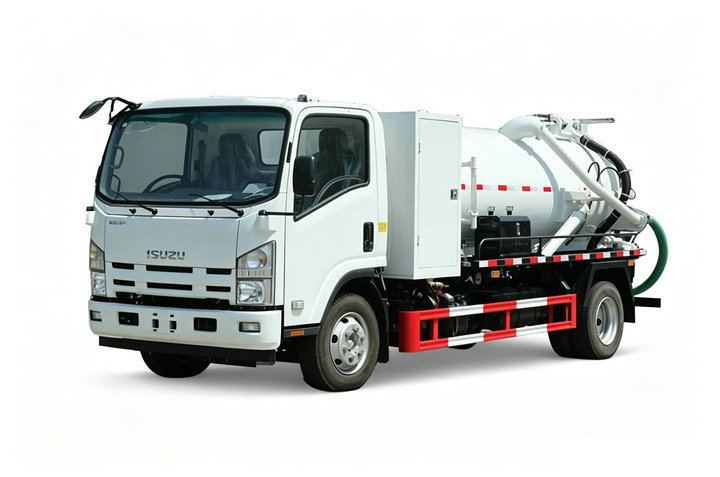

Isuzu ELF 700P 4×2 wheelbase design with 7800mm overall length, excellent maneuverability to work in narrow alleys, residential communities and small construction sites where large sanitation trucks cannot access.
Energy-Saving & Eco-Friendly Design
Low-consumption engine matched energy-saving vacuum pump technology, reduces fuel cost and exhaust emissions, meets global environmental emission standards.
Heavy-Duty Corrosion-Resistant Tank Body

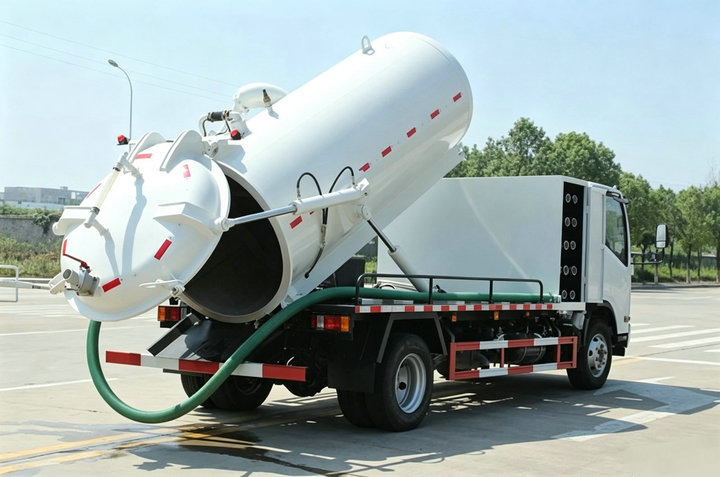

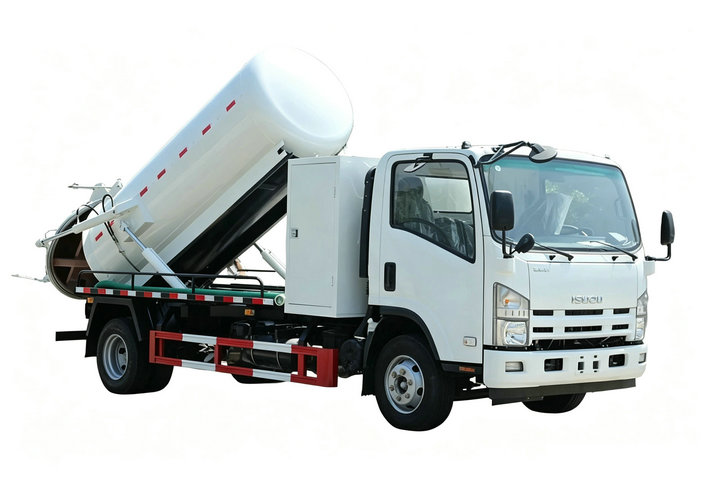

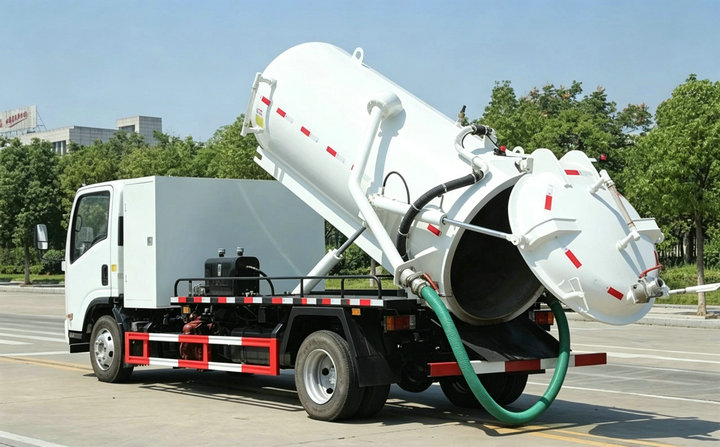

7000L tank made of 5mm thick Q345A carbon steel with complete anti-rust & anti-corrosion coating; optional stainless steel or aluminum alloy tank for chemical wastewater transport. Hydraulic tank lifting angle ≥45°, gravity discharge & pump-out dual discharge modes.
Humanized & Export Standard Configuration

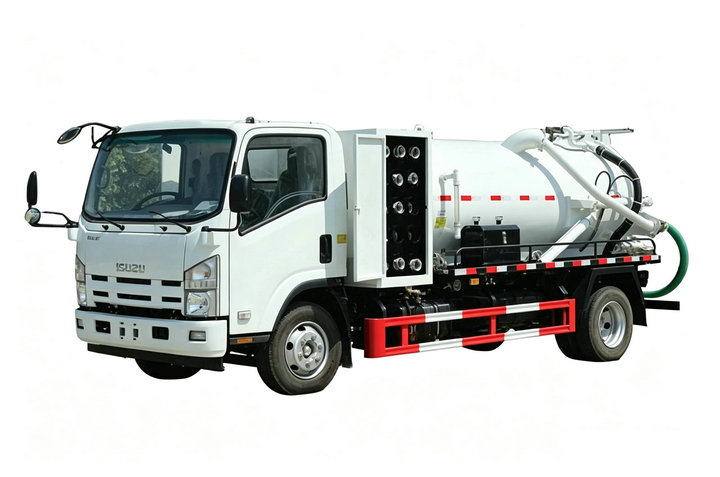

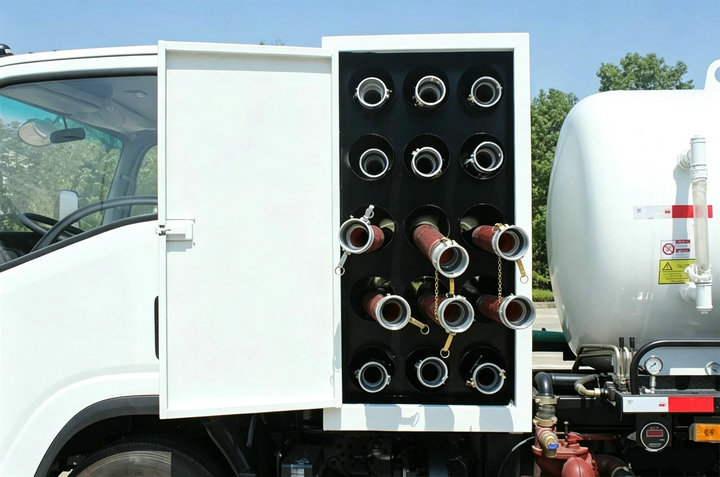

English control panel, hydraulic rear cover, 7m DN100 suction hose, large side storage box for 50m spare pipeline, anti-corrosion pipe couplings, rotating warning lamp, working lamp, reinforced U-shaped subframe, full safety protection devices. All export documents, English operation manuals and spare parts catalogs are supplied together.
Complete Technical Specification
1. Whole Vehicle Basic Parameters
| Item | Specification |
|---|---|
| Model | DRZ5107XWQL |
| Tank Volume | 7,000 Liters (7 CBM) |
| Drive Form | 4×2 Rear Wheel Drive |
| Overall Dimension | 7800x2300x2560 mm |
| Gross Vehicle Weight | 11,000 KG |
| Kerb Weight | 4,760 KG |
| Wheelbase | 4175 mm |
| Tire Size | 8.25-20 |
| Cab Capacity | 3 Persons |
2. Chassis Power System
| Item | Specification |
|---|---|
| Chassis Brand & Model | Isuzu ELF 700P QL1110ANLAY |
| Engine Model | 4HK1-TC51 / 4KH1CN5HS |
| Fuel Type | Diesel |
| Rated Power | 190 HP |
| Transmission | Isuzu MLD 6-speed Manual Gearbox |
Euro 6 Standard Engine: Isuzu 4HK1-TCG61 Diesel Engine Emission Standard: Euro VI
Rated Power: 190 HP
Rated Power: 205 HP
Compliant with Euro VI emission regulations
3. Upper Vacuum Tank Equipment
| Item | Specification |
|---|---|
| Tank Material | 5mm Q345A Carbon Steel, Full Anti-Corrosion Treatment; Stainless Steel / Aluminum Alloy Optional |
| Core Vacuum Pump | Original Italy Battioni Pagani MEC 6500 Rotary Vane Vacuum Pump (Euro Premium Brand) |
| Full Tank Suction Time | 250 Seconds |
| Max Tank Lifting Angle | ≥45° |
| Maximum Self-Suction Height | 7 Meters |
| Standard Suction Hose | 7m Length, DN100 Diameter |
| Rear Cover Control | Full Hydraulic Opening & Closing |
| Operation Panel | English Version Control Panel |
| Discharge Mode | Gravity Self-Discharge + Pump Forced Discharge |
| Surface Painting | Two Primer Layers + One Top Finish Coat |
| Color & Logo | Fully Customizable per Client’s Request |

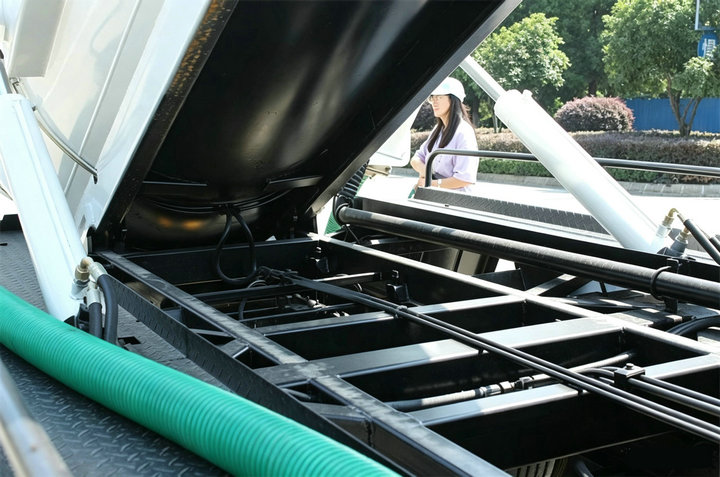

| Standard Factory Fittings | U-type Reinforced Subframe, Hydraulic Assembly, Safety Protective Parts, Warning Rotating Lamp, Working Lamp, Handrails, Mudguards, Rubber Splash Guards, Anti-Corrosion Pipe Joints, 50m Pipeline Storage Box |
| Supporting Documents | English Operator Manual, Complete Spare Parts List, Full Set Export Customs Documents |
4. Optional Extra Equipment
Stainless steel / aluminum alloy wastewater storage tank
Widened side operation platform + fire water cannon
Independent electric control sprinkler system
Salt water & snow melting agent spreading device
Battioni Pagani MEC Series Vacuum Pump Introduction
Standard MEC Series Pump Models Available
Standard accessories: 4-way control valve, non-return check valve
Hose connection sizes: Ø27mm / Ø45mm / G1” / G1 1/4”
Battioni Pagani MEC Series Vacuum Pump Technical Parameter
Model | Geometrical capacity – m³/h | Geometrical capacity – l/min | Geometrical capacity – cfm | Max rpm M/HM | Max rpm P/D/H | Max abs pressure Bar/PSI | Max vacuum % (inHg) | Max continuous vacuum % (inHg) | Power at max vacuum kW (HP) | Weight M (kg) | Weight P (kg) | Weight D (kg) | Weight H (kg) | Weight HM (kg) |
MEC5000 | 369 | 6150 | 217 | 600 | 1400 | 2,5 (36) | 94% (28,0') | 60% (18'') | 11 (14,7) | 130 | 121 | 121 | 136 | 132 |
MEC6500 | 420 | 7000 | 247 | 600 | 1400 | 2,5 (36) | 94% (28,0') | 60% (18'') | 12,5 (16,7) | 148 | 139 | 139 | 154 | 150 |
MEC8000 | 486 | 8100 | 286 | 600 | 1400 | 2,5 (36) | 94% (28,0') | 60% (18'') | 16 (21,4) | 160 | 151 | 151 | 167 | 162 |
Five Core Advantages of Battioni Pagani Vacuum Pumps
High Efficient Performance
Adopts proprietary Italian rotary vane technology, stable high flow & vacuum pressure, fast liquid/gas conveying speed, meets high-frequency continuous suction work demand.
Super Long Service Life & Durability
Made of wear-resistant alloy raw materials, excellent anti-corrosion, high temperature and high pressure resistance, stable operation under heavy load harsh working conditions, low wearing loss.
Low Energy Consumption & Eco-Friendly
Optimized internal fluid structure reduces power loss, cuts vehicle fuel consumption, low noise and low emission, conforms international environmental protection standards, lowers long-term operation cost.
Simple Operation & Intelligent Control
Humanized valve control system, intuitive operation interfaces, supports automatic constant vacuum pressure control; operators can easily monitor and adjust working status.
High Customization Compatibility
Flexible matching for light, medium and heavy-duty vacuum trucks; adjustable flow and vacuum pressure according to clients’ actual working scenarios, compatible with sewage, sludge, oily wastewater, organic waste liquid transport.
Product Application Scenarios
Municipal urban sewer dredging & sewage collection
Residential & commercial building septic tank cleaning
Industrial park chemical wastewater & sludge transportation
Rural livestock breeding waste suction treatment
Road construction muddy water cleaning
Environmental remediation waste liquid recovery
Factory Customization & After-Sales Service
Full one-stop customization: chassis brand, tank capacity, pump brand, body color, logo, extra functional devices all support personalized customization (Your name it, We make it)
Strict production inspection: every Isuzu waste water suction truck and Battioni vacuum pump will pass full vacuum test, tightness test and road test before delivery
Global online support: 24-hour online technical & sales service
Reliable warranty policy: 12-month spare parts global warranty, free supply of vulnerable spare parts within warranty period
Fast delivery: standard model production cycle only 25 working days
FAQ
Outstanding high-efficiency suction: delivers stable high flow and vacuum pressure, fills 7000L tank within 250 seconds, suction capacity far exceeds ordinary domestic vacuum pumps.
Ultra strong durability: wear-resistant alloy internal structure, anti-corrosion and anti-high pressure performance, long-term heavy-duty operation without easy damage, low maintenance frequency.
Energy-saving low consumption: optimized internal design minimizes power loss, effectively reduces vehicle fuel consumption and daily operation costs, eco-friendly.
Simple and safe operation: equipped with complete control valves and English operation panel, operators can quickly master daily operation and routine maintenance; supports automatic pressure protection to avoid equipment damage.
Wide universal versatility: perfectly matched with all types of Isuzu light-duty sanitation trucks, applicable for sewage, sludge, oily waste liquid and multi-scenario sanitation cleaning work.
