DRZ5250GXWSX
DRZ
8705909990

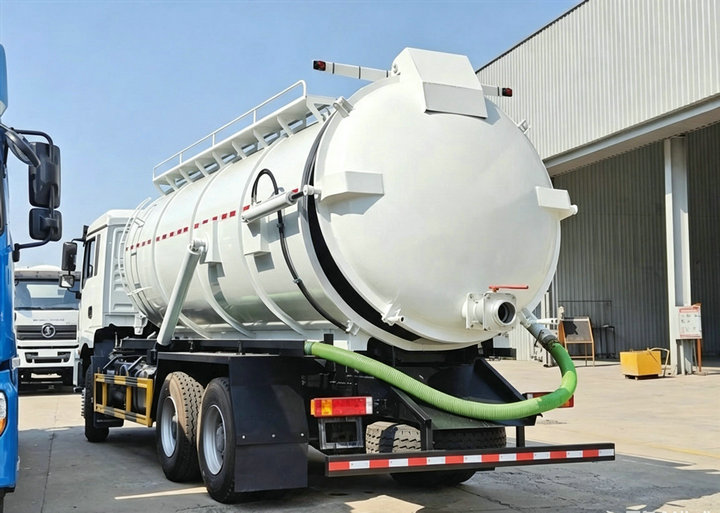

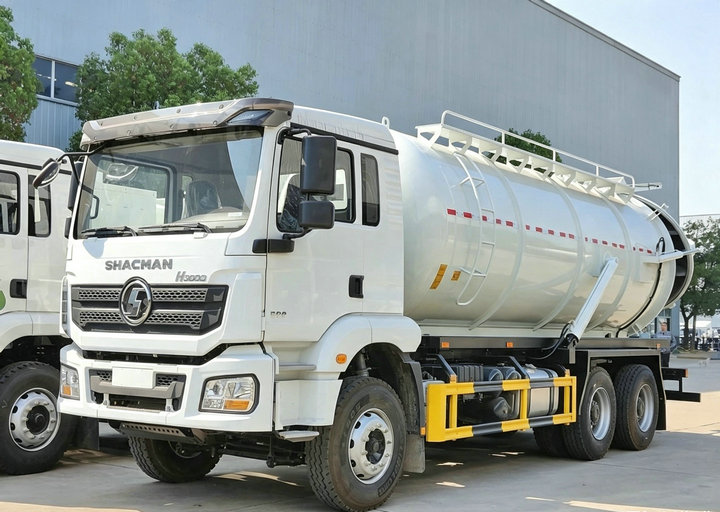

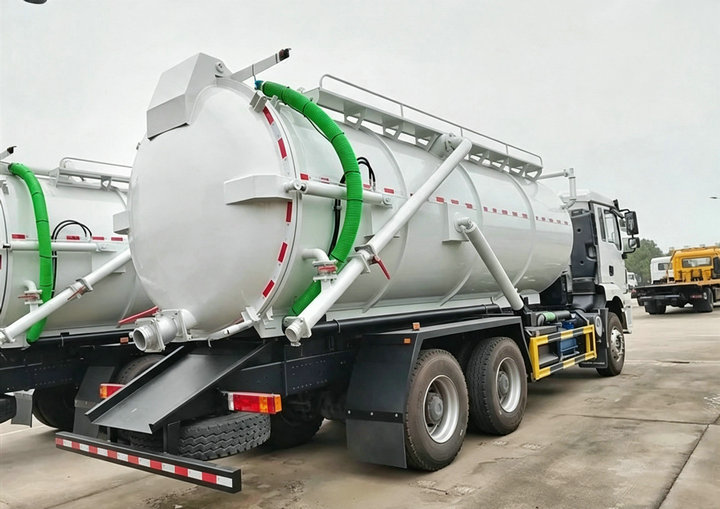

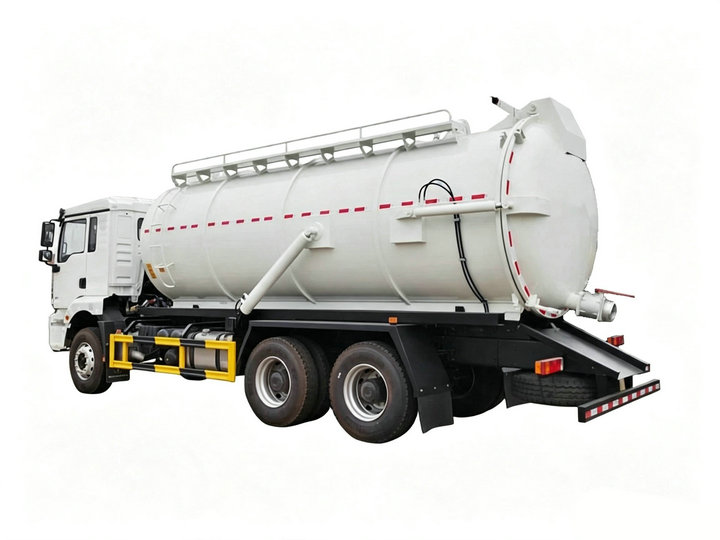

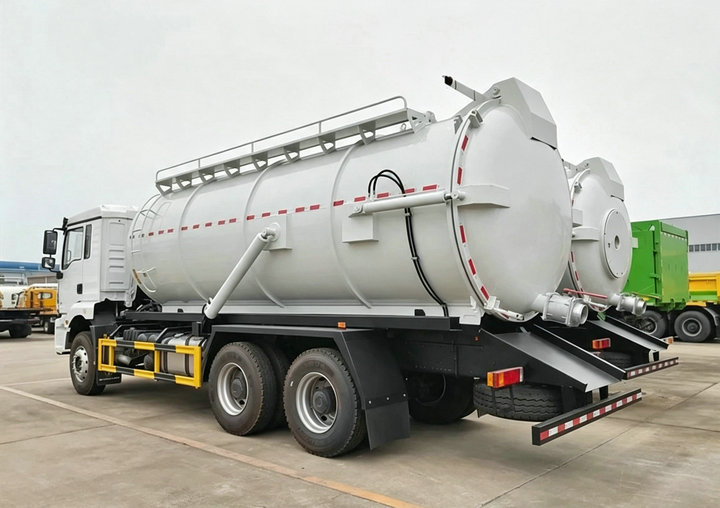

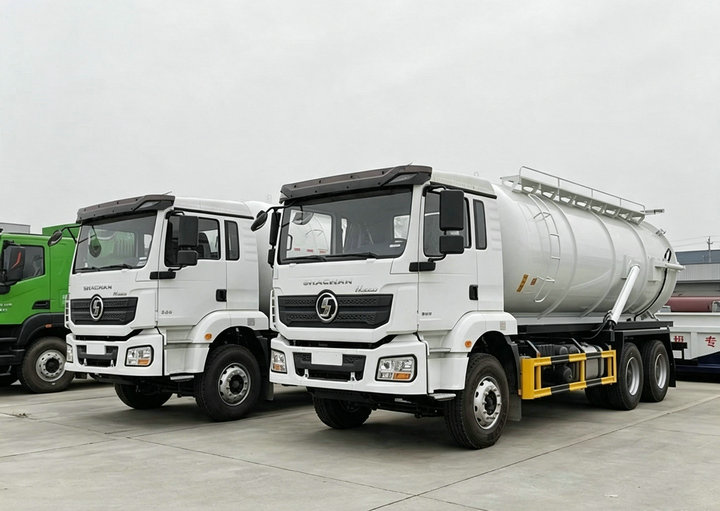

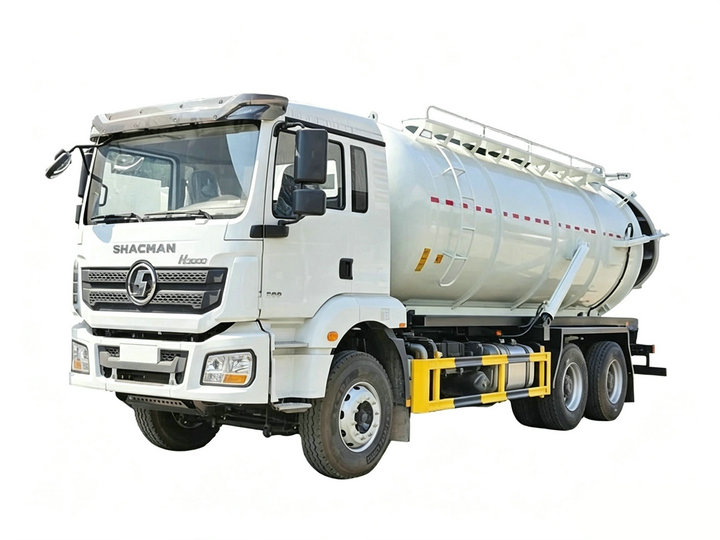

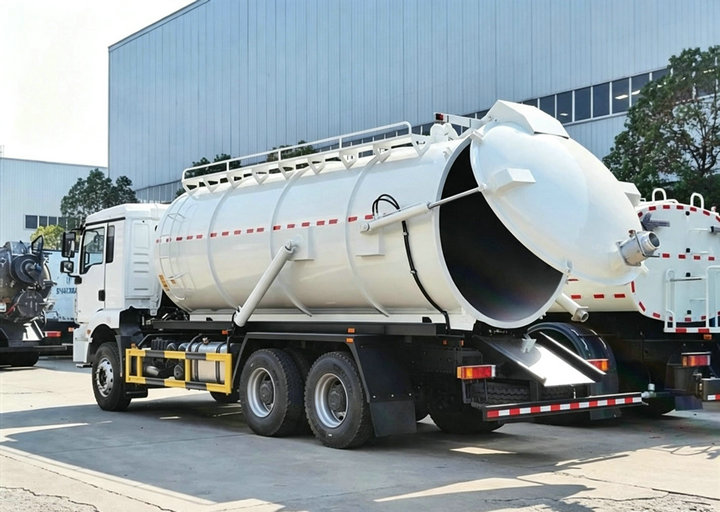

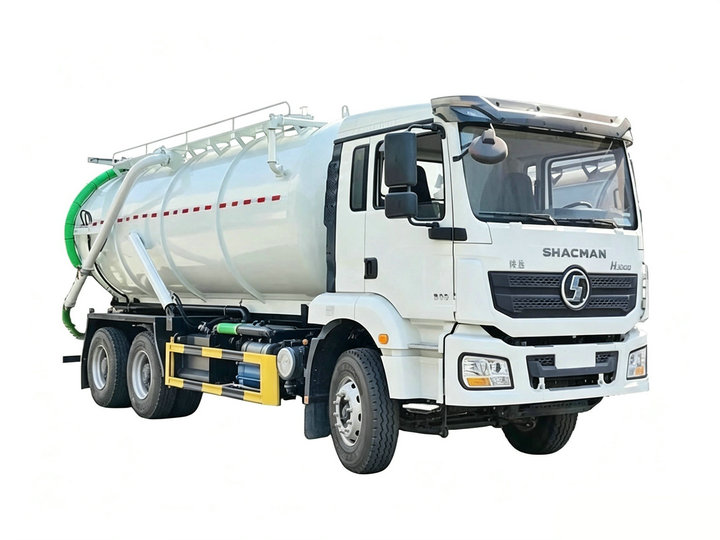

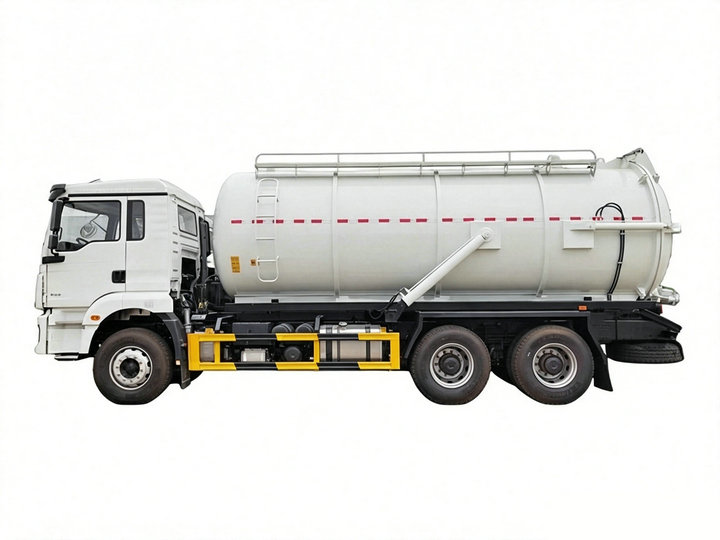

Shacman Sewer Suction Vacuum Cesspit Emptier Tank Truck
Shacman H3000 6x4 20000L Sewer Suction Truck | 20CBM Septic Vacuum Tanker Factory Price For Africa
1. Product Overview

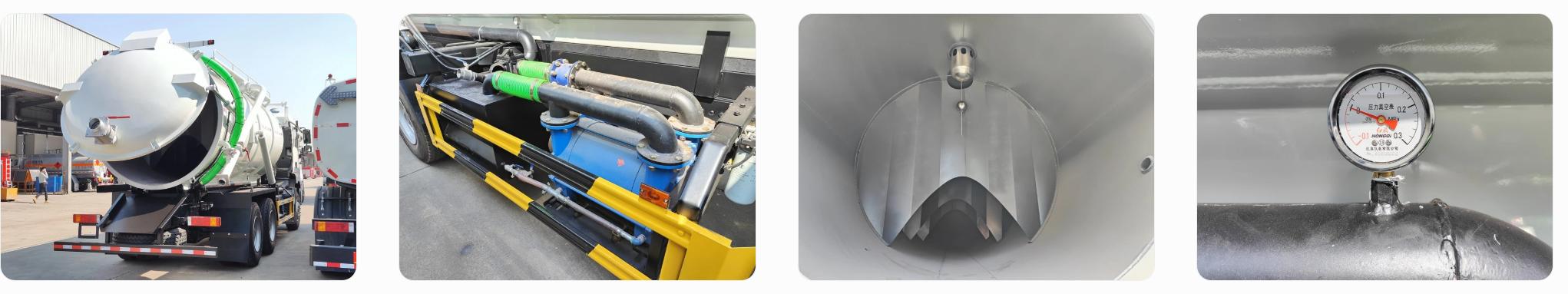

PTO power take-off + transmission shaft for pump driving
High-efficiency vacuum sewage suction pump (vacuum rate up to 93%)
Integrated high-pressure forming vacuum tank
Moisture separator & gas-oil separation device to protect pump
Multi-way directional hydraulic control valve
Hydraulic lifting tank, self-discharging rear valve
Suction fecal gun, reinforced suction pipe & complete pipe network system
Pressure gauge, liquid level inspection window, hydraulic rear door opening system
Full tool set, English operation maintenance manual
| Classification | Item | Specification |
|---|---|---|
| Basic General Data | Chassis Brand | Shacman H3000 / F3000 / M3000 |
| Complete Vehicle Model | DRZ5250GXWSX | |

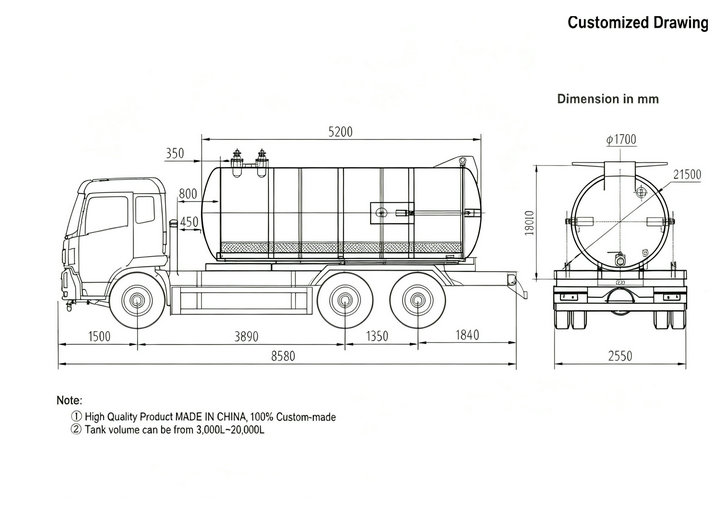

| Overall Dimension | 8255×2460×3020 mm | |
| Gross Vehicle Weight (GWW) | 25000 KG | |
| Cab | Cab Type | H3000 two-person cab with sleeping berth |
| Standard Configuration | Factory air conditioner | |
| Engine System | Fuel Type | Diesel |
| Engine Model | Weichai WP10.340E22 | |
| Rated Power | 340 HP | |
| Chassis Running Gear | Drive Mode | 6×4 (3 axles) |
| Gearbox | FAST 10JSD180, 10 forward + 2 reverse gears | |
| Wheelbase | 4575+14000 mm | |
| Tire Spec | 12R22.5 heavy-duty tires | |
| Tire Quantity | 10 pcs | |
| Max Travel Speed | 100 km/h | |
| Vacuum Superstructure | Tank Effective Capacity | 20,000 Liters / 20 CBM |
| Standard Tank Material | Q235 carbon steel | |
| Vacuum Pump Performance | High efficiency rotary vane pump, vacuum rate ≥93%, fast suction & discharge | |
| Suction Pipeline | Steel wire reinforced wear-resistant suction hose | |
| Standard Auxiliary Systems | Power driving: Engine PTO + transmission shaftHydraulic system: Multi-way control valve, hydraulic tank lifting & rear door opening Protection devices: Water-gas separator, oil-gas separator, pressure gauge, liquid observation window Supplies: Complete tool kit, English operation manual | |
| Optional Upgrades | 1. Tank material: Stainless steel anti-corrosion tank2. Imported Italy brand high-performance vacuum pump | |

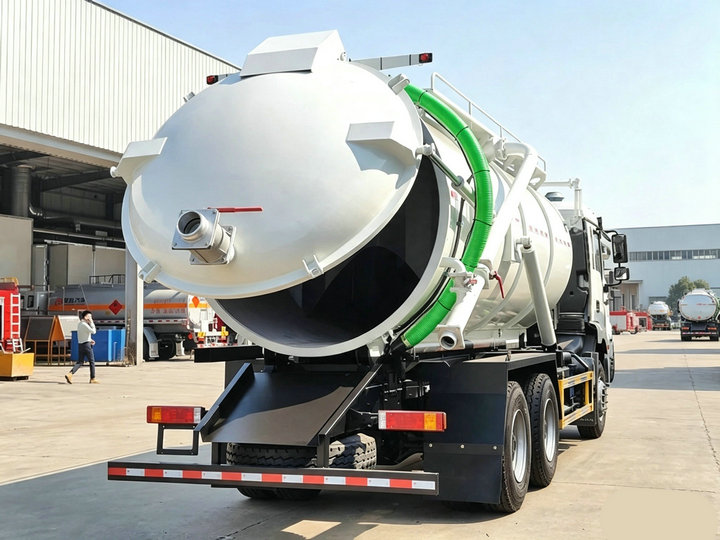

Hydraulic automatic opening/closing rear door for fast waste unloading
Water recycling vacuum pump cooling system to extend pump service life
Internal tank anti-wave baffles to stabilize liquid during transportation
Real-time pressure monitoring gauge for safe vacuum operation







The vacuum pump driven by engine PTO continuously extracts air inside the sealed tank to form strong negative pressure vacuum environment.
Operators open primary & secondary shut-off valves on the suction pipeline, pressure difference between tank and external environment generates powerful suction force.
Liquid sewage, sludge, solid-liquid mixed waste will be quickly sucked into the vacuum tank through the suction hose.
After transportation to waste disposal station, hydraulic system lifts the tank and opens the rear door to realize self-discharging of waste sludge.
Powerful suction capacity: 93% vacuum rate realizes fast tank filling, high daily operation efficiency
Complete separation protection system: Water & oil separation prevents sewage from entering the vacuum pump, reducing pump damage rate
Heavy-duty Shacman chassis: 340HP Weichai engine adapts to rough African road conditions, stable climbing & load bearing performance
Full hydraulic control: One-button tank lifting, rear door opening, easy operation for single driver
Customizable solution: Tank volume (16/18/20 cubic meters), tank material, pump brand, painting color & logo fully customizable
Standard LHD layout conforms to most African countries traffic rules, ready for local registration
Clarify daily operation purpose: Distinguish residential septic tank cleaning, industrial chemical sludge transport or public toilet waste collection
Confirm waste medium characteristics: Liquid sewage, thick sludge or corrosive industrial wastewater to select matching tank material
Determine required tank capacity: 16/18/20CBM according to your daily transport workload
Match pump specification: Domestic high-efficiency pump for regular sewage; imported Italian pump for high-frequency heavy-duty work
Inspect chassis performance: Choose 6x4 heavy-duty chassis for full-load long-distance transportation
Request factory complete maintenance records, spare parts list and official warranty policy
Conduct full vehicle performance test before delivery, check vacuum suction power, hydraulic system and sealing performance
Collect complete export customs documents for African import clearance
For second-hand vacuum trucks: Check previous maintenance history, tank corrosion condition and modified custom parts
