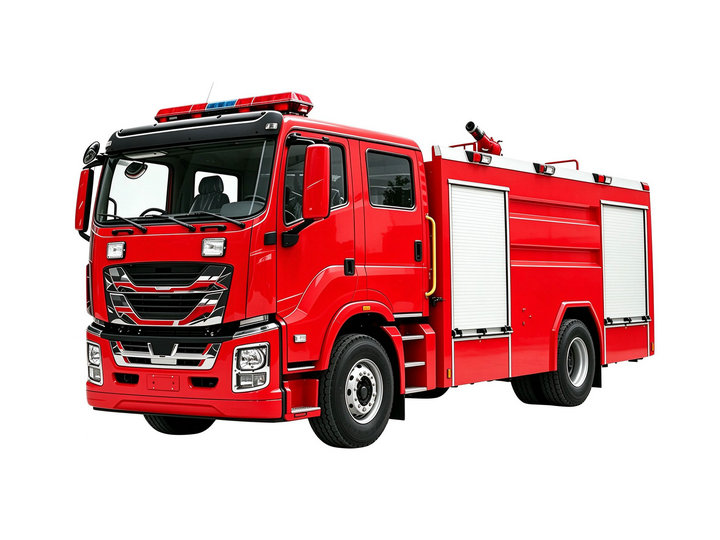

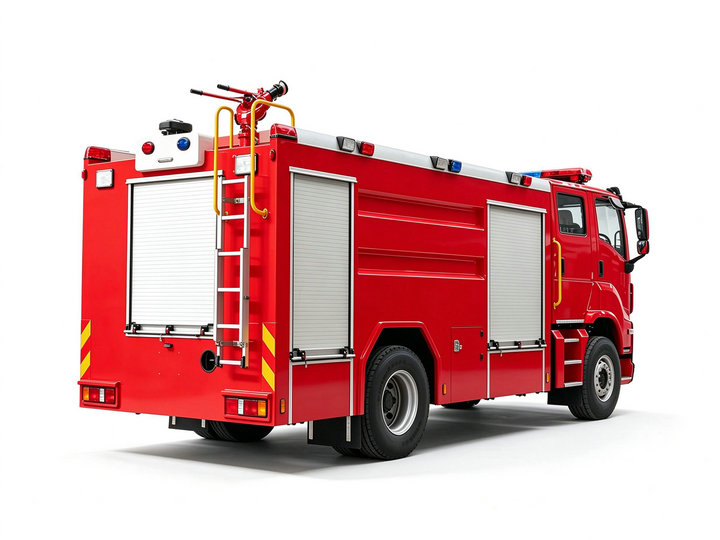

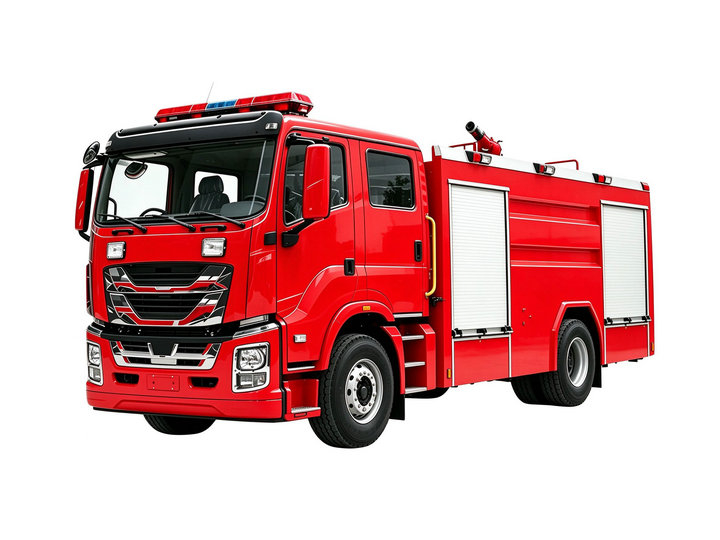

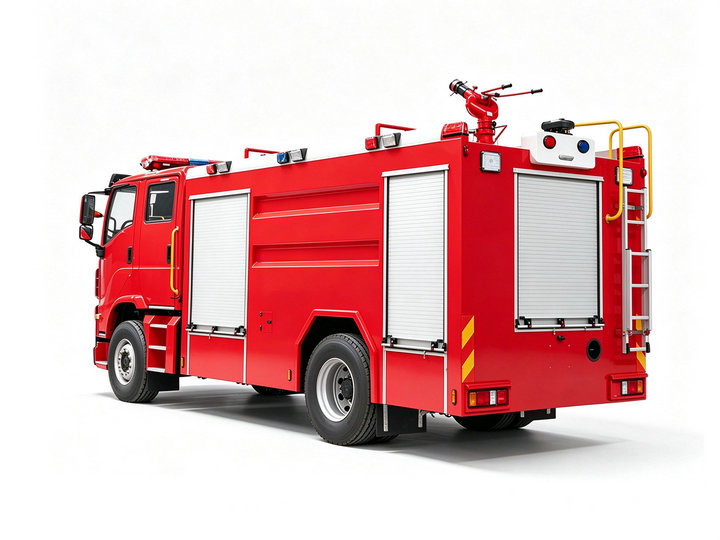

ISUZU GIGA 380HP Fire Tender Water Foam Fire Fighting Truck 6000L Water + 2000L Foam
Tanker Capacity: 6000L water + 2000L foam (8000L total)
Engine Power: 380 HP (279 kW) / 6UZ1-TCG50
Fire Pump: CB10/60
Pump Flow: 60 L/s
Monitor Range:Water ≥70 m , Foam ≥60 m
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
| Quantity: | |
|---|---|
|
| |
-
DRZ5180XFQL
-
DRZ
-
8705309000
ISUZU GIGA 380HP Fire Tender Water Foam Fire Fighting Truck 6000L Water + 2000L Foam
| Truck Chassis: | ISUZU GIGA 4x2 |
| Tanker Capacity: | 6000L water + 2000L foam (8000L total) |
| Engine Power: | 380 HP (279 kW) / 6UZ1-TCG50 |
| Fire Pump: | CB10/60 |
| Pump Flow: | 60 L/s |
| Work Pressure: | 1.0 MPa |
| Fire Monitor: | PL8/48 |
| Monitor Flow: | 48 L/s |
| Monitor Range: | Water ≥70 m , Foam ≥60 m |

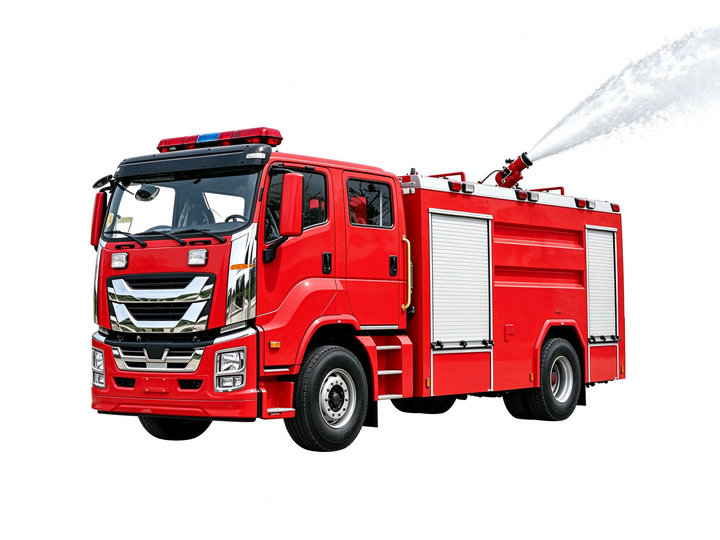

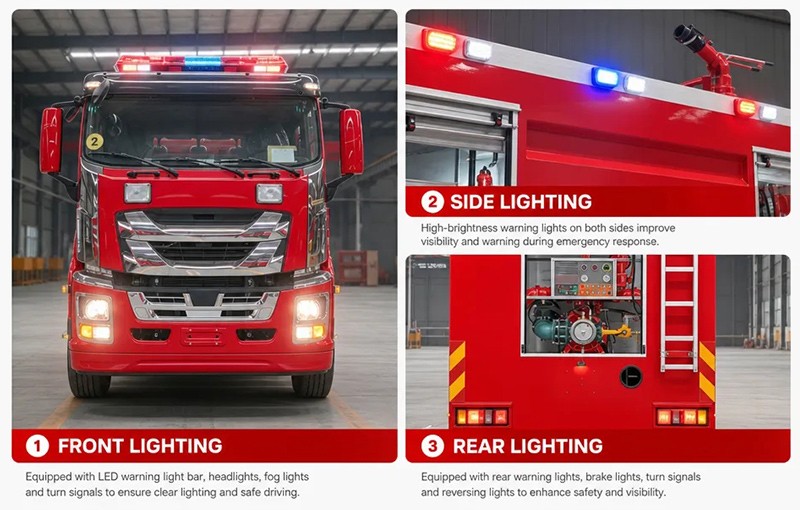

ISUZU GIGA 8000L fire tender is built on a 4×2 chassis with a 380HP 6UZ1-TCG50 engine. 6000L water tank, a 2000L foam tank, a CB10/60 pump (60 L/s), and a PL8/48 monitor (48 L/s, water ≥70m, foam ≥60m). Standard gear includes roll-up aluminum doors, LED lights, flip pedals, and a full set of fire hoses and nozzles—a solid choice for municipal fire protection, oil depot safety, and industrial emergency.
8000L GIGA Fire Tender Truck
Working Capacity | Engine Model | Wheelbase | Superstructure |
6000L water + 2000L foam | 380 HP / 6UZ1-TCG50 | 3900/4600/5600 mm | ★ Tank carbon steel, 8000L capacity ★ CB10/60 fire pump, 60 L/s flow at 1.0 MPa ★ PL8/48 roof monitor, 48 L/s flow with water ≥70 m, foam ≥60 m |
»Ⅰ. Main Features :
★ 6UZ1-TCG50 engine, 380 HP for dual agent fire suppression and industrial emergency response
★ ISUZU GIGA 4×2 chassis with 6000L water tank, 2000L foam tank, and CB10/60 fire pump (60 L/s)
★ PL8/48 foam/water monitor (48 L/s, water ≥70m, foam ≥60m) for Class A and B fire fighting
★ 7m suction height, ≤50s priming time, and 1.251 MPa max working pressure for reliable water supply
★ Full firefighting equipment including hoses, nozzles, foam gun, and basic tool kit for Class A & B fire fighting
» Ⅱ.Product Parameter :
8000L GIGA Fire Tender Philippines | |||
General | Work Capacity | 6000L water+2000L foam | |
Truck Chassis | ISUZU GIGA 4x2 | ||
Engine Power | 380 HP/ 6UZ1-TCG50 | ||
Fire Pump | CB10/60 | ||
Fire Monitor | PL8/48 | ||
Maximum Speed | 100 km/h | ||

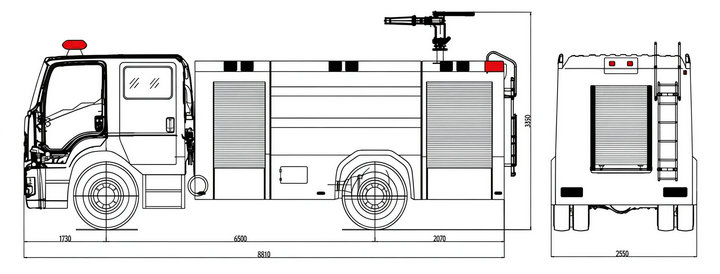

Overall Dimensions LxWxH | 7800x2500x3500 mm | ||
Gross Vehicle Weight | 22000 kg | ||
Curb Weight | 10700 kg | ||
Engine | Engine Model | 6UZ1-TCG50 | |
Fuel Type | Diesel | ||
Power | 380 HP（279KW） | ||
Emission Standard | Euro 6 | ||
Displacement | 9839 ml | ||
Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
Chassis | Drive Type | 4x2 | |
Wheelbase | 3900/4600/5600 mm | ||
Tire | 295/80R22.5 | ||
Tire No. | 6 tires and 1 spare tire | ||
Tanker Capacity Configuration | Water Tanker | 6cbm, carbon steel | |
Foam Tanker | 2cbm, carbon steel | ||
1 set manhole with quick lock and open device; | |||
Fire Pump | Model | CB10/60 | |
Flux | 60L/s | ||
Pressure | 1MPa | ||
Max Working Pressure | 1.251MPa | ||
Max Allowable Inlet Pressure | 0.4MPa | ||
Max Suction Height | 7m | ||
Rated Speed | 3200±50r/min | ||
Speed Ratio | 1:1.4 | ||
Water Diversion Time | ≤50s | ||
Fire Monitor | Model | PL8/48 | |
Flow | 48L/s | ||
Rated Working Pressure | 0.8MPa | ||
Max Working Pressure | 1.2MPa | ||
Range | Water | ≥70m | |
Foam | ≥60m | ||
Pitch Rotation | - 35～+70° | ||
Horizontal Rotation | 0～360° | ||
Standard Configuration | Equipped with sandwich PTO, pipeline system; | ||
» Ⅲ.Mast Lighting System :
★ 15kVA gasoline generator (220V/380V, 50Hz), electric start, V-twin engine for reliable power supply at fire scenes
★ 8m aluminum alloy mast with 4×500W LED lamps, providing high-intensity 360° illumination for night rescue and emergency operations
★ Horizontal rotation ≥420° and tilt rotation ≥420° for flexible lighting positioning; one-key auto-reset function for quick retraction
★ Multiple control options: panel control, wired remote (5m), and wireless remote (≥50m) for convenient operation from safe distance
Mast Lighting System | |
Generator： | ≥15 kVA, 50Hz, 220V/380V, electric start, gasoline, V-twin |
Mast： | Aluminum alloy, max height ≥8 m |
Lighting： | 4×500W LED |
Rotation： | Horizontal ≥420°, tilt ≥420° |
Control： | Panel + wired (5m) + wireless (≥50m), one-key auto-reset |
Position: | Front of the equipment box |
» Ⅳ.Foam Monitor System :
The PL8/48 fire monitor is mounted on the superstructure. It delivers a flow rate of 48 L/s with a water range of ≥70 m and a foam range of ≥60 m. The monitor supports both straight stream and spray patterns for flexible firefighting operations on Class A and Class B fires.
Fire Monitor Model | Flow | Range | Rated Pressure | Pitch Rotation | Horizontal rotation |
PL8/48 | 48L/s | Water≥70m Foam ≥60 m | 0.8MPa | -35°～+70° | 0～360° |

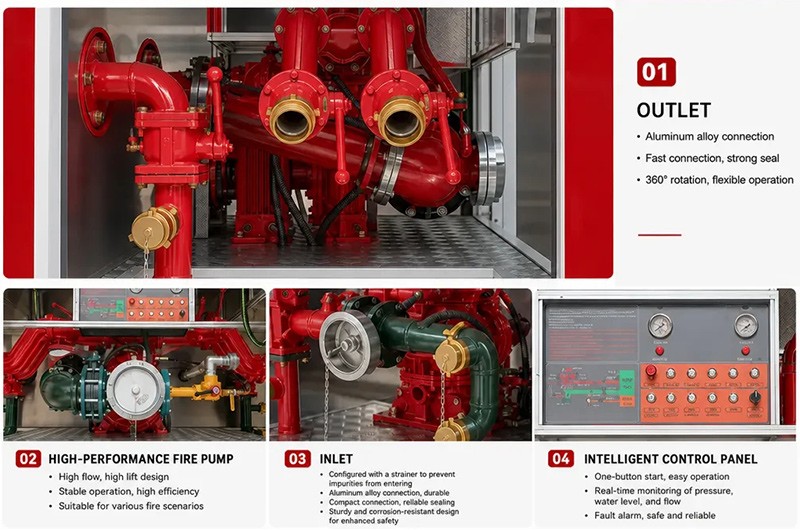

» Ⅴ.Fire Pump System :
Fire Pump:

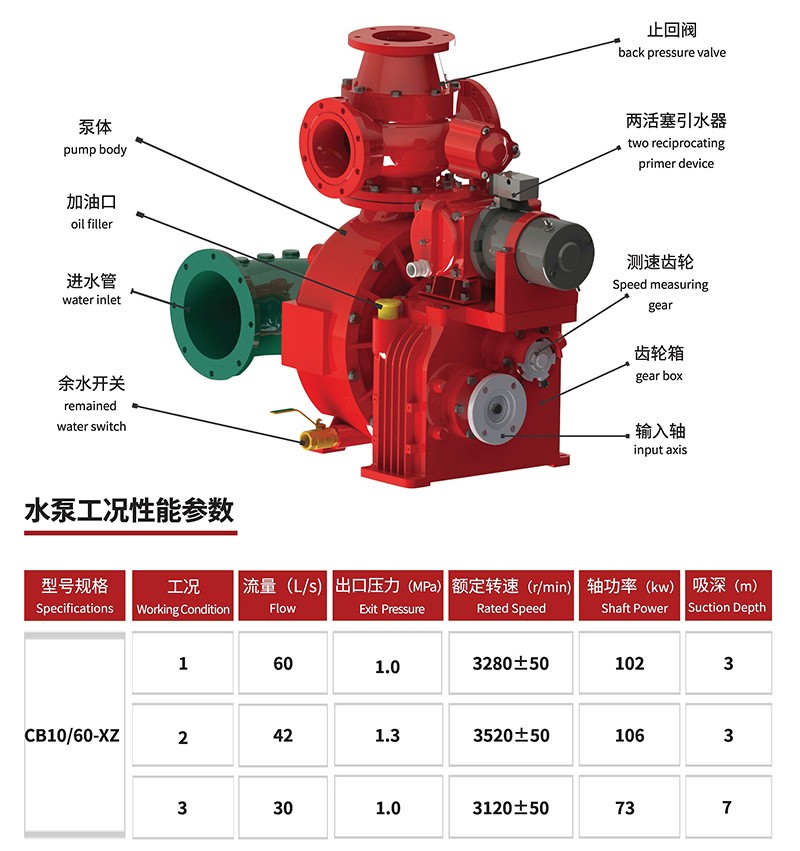

A CB10/60 fire pump with a rated flow of 60 L/s at 1.0 MPa is installed in the rear pump room. This pump delivers steady water pressure for both the PL8/48 foam/water monitor and the dry powder system, ensuring effective fire suppression for Class A, B, and C fires.
Fire Pump Model | Flow | Pressure | Max Working Pressure | Max Allowable Inlet Pressure |
CB10/60 | 60L/s | 1.0MPa | 1.251 MPa | 0.4MPa |

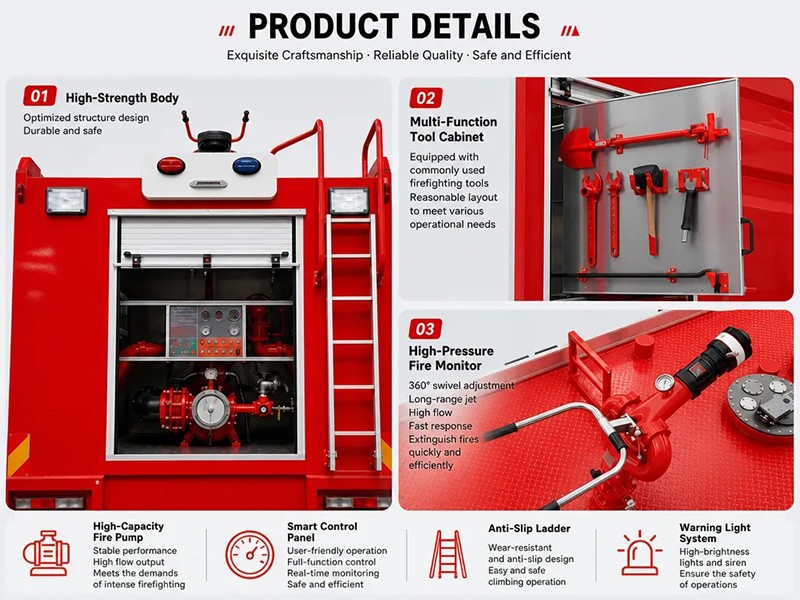

» Ⅵ.Fire Fighting Equipment :
• Equipment Room
Located on both sides of the vehicle, these compartments are equipped with equipment racks and storage trays. The racks keep fire hoses, suction tubes, and foam guns neatly organized. The storage trays provide quick access to tools like wrenches, axes, and crowbars, improving rescue efficiency.
The ISUZU GIGA 8000L fire tender comes with a rear-mounted CB10/60 fire pump and a PL8/48 foam/water monitor. The water tank holds 6,000 liters, and the foam tank holds 2,000 liters, sitting on a sturdy ISUZU GIGA 4×2 chassis powered by a 380 HP 6UZ1-TCG50 engine. Standard gear includes fire hoses, suction tubes, couplings, a foam gun, and a complete tool kit. An 8m mast lighting system with 4×500W LED and a 15kVA generator is also available for night operations.
Full specifications are listed below:
NO | Item | Unit |
1 | Water Suction Pipe (Suction hose Ø 125 mm, length: 4 m) | 2 PC |
2 | Water strainer (Ø 125) | 1 PC |
3 | Water segregator (Ø 80-65-65 mm) | 1 PC |
4 | Water collector (Ø 125-65-65 mm) | 1 PC |
5 | Soft-wall fire hose (Water hose Ø 65 mm, length: 20 m) | 6 SET |
6 | Soft-wall fire hose (Water hose Ø 80 mm, length: 20 m) | 4 SET |
7 | Fast conversion joint (80X65 mm) | 2 PC |
8 | Hose protector | 4 PC |
9 | Hose Hoist | 4 PC |
10 | Ground Hydrant-wrench | 1 PC |
11 | Underground Hydrant-wrench | 1 PC |
12 | Suction Wrench | 2 PC |
13 | Dry Powder Extinguisher | 1 PC |
14 | Fire Fighting Barrel | 1 PC |
15 | Straight flow switch water gun (Ø 65 mm) | 1 PC |
16 | Multi-purpose switch water gun | 1 PC |
17 | Fire Fighting Axe | 1 PC |
18 | Fire Fighting Shovel/Spade | 1 PC |
19 | Fire Axe | 1 PC |
20 | 4M Aluminum Ladder (Optional 10M Aluminum Ladder) | 1 PC |
21 | Original Chassis Tools | 1 PC |
22 | Protective (safety) spectacles | 1 PC |
Isuzu firefighting trucks list
Model | Engine model | Water | Foam | Fire Pump | Fire Monitor |
Isuzu Pick Up | 4KH1CT6H1 / 143HP | 500L | 100L | Independent Fire Pump | PL8/20W |
Isuzu mini ELF / NKR / 100P | 4KH1CN6LB / 120HP 4KB1-TCG61 / 130HP | 1000L 2000L | 1000L 500L | CB10/20 (20L/s) CB10/30 (30L/s) | PL8/24W (24L/S) |
Isuzu NPR / ELF | 4KH1N6MD / 140 HP 4KH1N6HD / 150HP | 2000L | 1000L |
CB10/30 (30L/s) | PL8/24W (24L/S) |
Isuzu ELF / 700P | 4HK1-TCG61 / 190HP 4HK1-TCG60 / 205HP | 3000L 4000L | 1500L 500L | CB10/30 (30L/s) CB10/40 (40L/s) | PL8/24W (24L/S) PL8/32W (32L/S) |
Isuzu GIGA 4X | 4HK1-TCG60 / 205HP | 5000L | 1000L | CB10/40 (40L/s) | PL8/32W (32L/S) |
Isuzu GIGA 5X | 6HK1-TCG61 / 240HP 6HK1-TCG60 / 300HP | 5000L 6500L | 1000L 500L | CB10/40 (40L/s) CB10/60 (60L/s) | PL8/32W (32L/S) PL8/48W (48L/S) |
Isuzu GIGA (4x2) | 6UZ1-TCG61 / 350HP 6UZ1-TCG60 / 380HP 6WG1-TCG61 / 460HP | 5000L 5000L 6000L | 1000L 2000L 2000L | CB10/60 (60L/s) CB10/80 (80L/s) CB10/100 (100L/s) | PL8/48W (48L/S) PL8/64W (64L/S) PL8/80W (80L/S) |
Isuzu GIGA (6x4) | 6UZ1-TCG61 / 350HP 6UZ1-TCG60 / 380HP 6WG1-TCG60 / 420HP 6WG1-TCG61 / 460HP 6WG1-TCG62 / 520HP | 9000L 10000L 12000L | 1000L 2000L 2000L | CB10/60 (60L/s) CB10/80 (80L/s) CB10/100 (100L/s) | PL8/48W (48L/S) PL8/64W (64L/S) PL8/80W (80L/S) |
Isuzu GIGA (8x4) | 6WG1-TCG60 / 420HP 6WG1-TCG61 / 460HP 6WG1-TCG62 / 520HP | 10000L 12000L 14000L | 4000L 4000L 2000L | CB10/60 (60L/s) CB10/80 (80L/s) CB10/100 (100L/s) | PL8/48W (48L/S) PL8/64W (64L/S) PL8/80W (80L/S) |
ISUZU Chassis list:
Chassis Model | Horsepower | Wheelbase | Engine Model | Transmission Option | Cab Configuration |
ISUZU FVR (4x2) | 240 HP | 4500/5550/5800 /6300/7150 | 6HK1-TCG61 | FAST 8-speed Transmission | New ISUZU VC61 Series Cab |
ISUZU FVZ (4x2 /6x4) | 300 HP | 4500/ 7150 4350+1370/4650+1370 5100+1370/5800+1370 1850+2980+1370 1850+4575+1370 | 6HK1-TCG60 | FAST 9-speed Transmission | New ISUZU VC61 Series Cab |
ISUZU VC66 Series 6x4 | 350 HP | 1850+4575+1370 | 6UZ1-TCG61 | ZF 8-speed (ZF8) / FAST 12-speed | New ISUZU VC61 Series Cab |
ISUZU VC66 Series (4x2 /6x4/8x4) | 380 HP | 3900/4600/5600 3900+1370 3985+1370 4600+1370 1850+3000+1370 1850+2980+1370 | 6UZ1-TCG61 | ZF 8-speed (ZF8) / FAST 12-speed | New ISUZU VC61 Series Cab |
ISUZU VC66 Series(6x4 ) | 420 HP | 4800+1370 5200+1370 | 6WG1-TCG60 | ZF 8-speed (ZF8) / FAST 12-speed | New ISUZU VC61 Series Cab |
ISUZU VC66 Series | 460 HP | 4600 4600+1370 4800+1370 5200+1370 5400+1370 2100+4325+1370 1850+4575+1370 | 6WG1-TCG61 | ZF 8-speed (ZF8) / FAST 12-speed | New ISUZU VC61 Series Cab |
ISUZU VC66 Series( 6x4/8x4) | 520 HP | 4800+1370 5400+1370 2100+4325+1370 | 6WG1-TCG62 | ZF 8-speed (ZF8) / FAST 12-speed | New ISUZU VC61 Series Cab |
