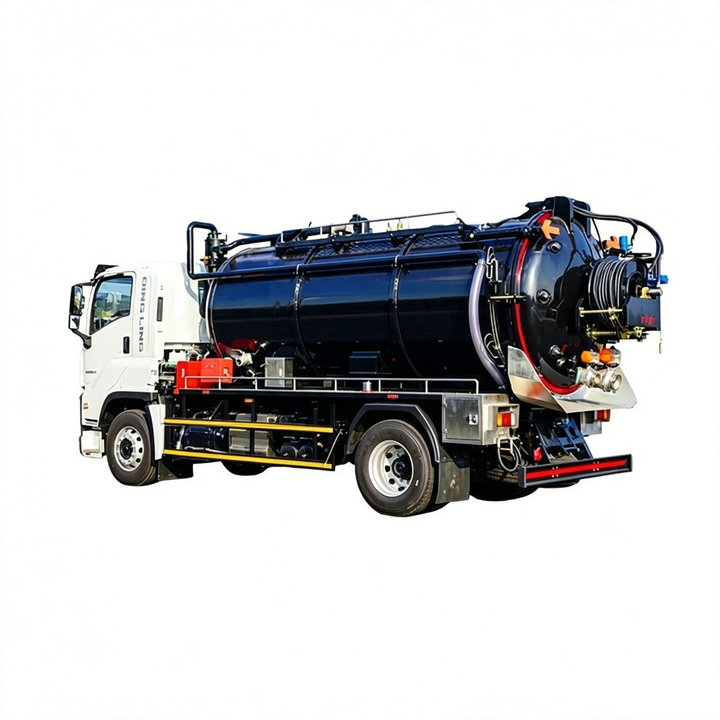

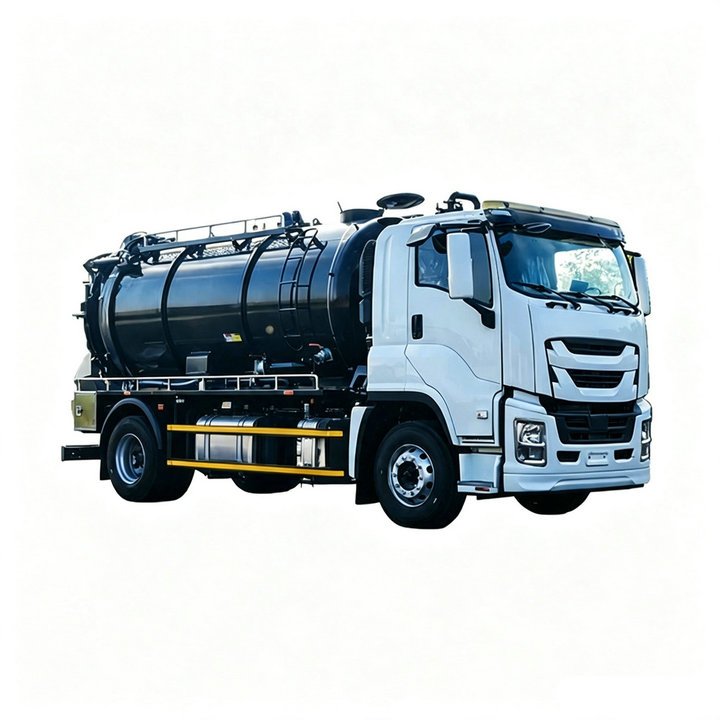

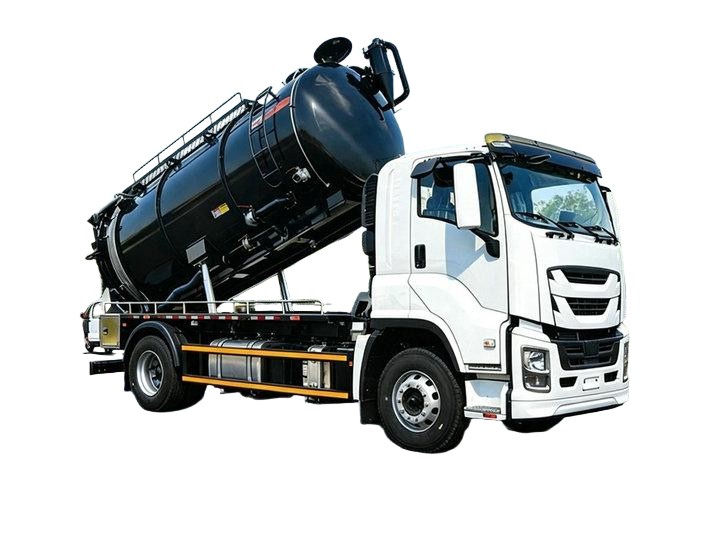

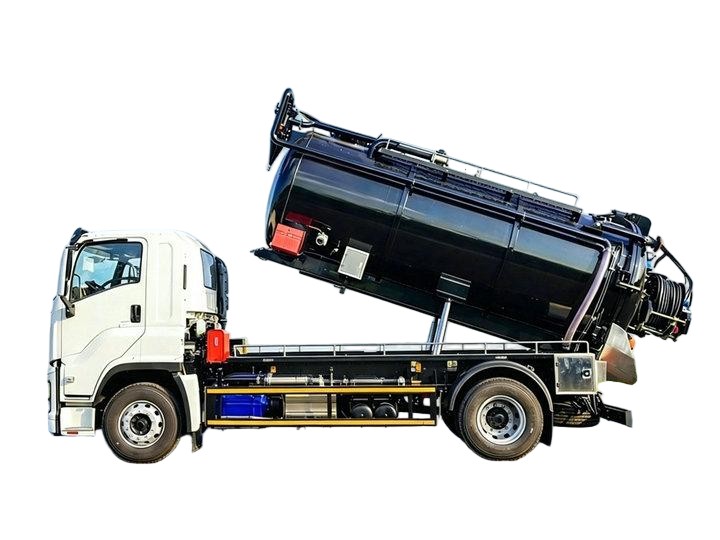

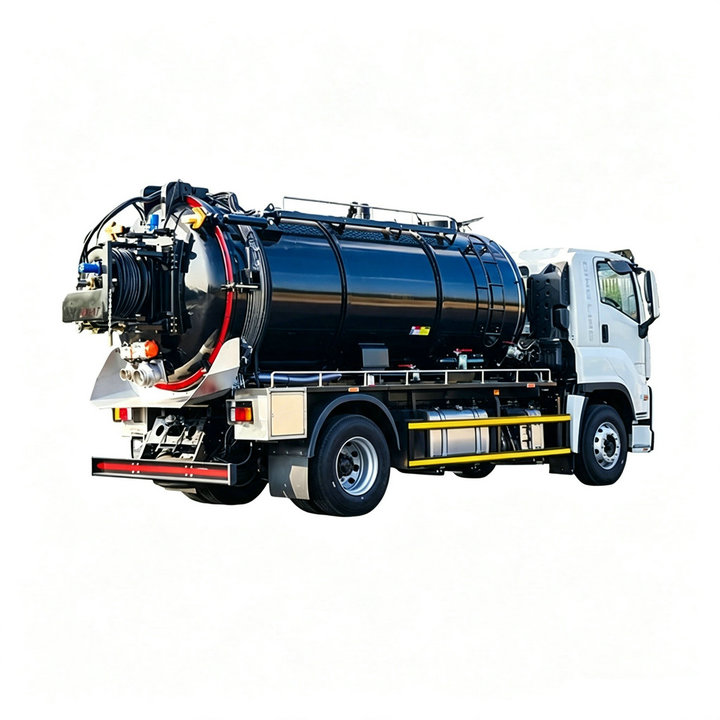

ISUZU FVR Combination Jetting Vacuum Tanker Truck 10m3 Sewage and 3m3 Clean Water

ISUZU FVR Combination Jetting Vacuum Tanker Truck 10m3 Sewage and 3m3 Clean Water
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
Price: $ 78300
Availability:
Quantity:

  • DRZ5180GXWQL

  • Dong Run Ze

  • 8705909990

 ISUZU FVR Combination Jetting Vacuum Tanker Truck 10m3 Sewage and 3m3 Clean Water

ISUZU Drainage Truck Mounted 10 CBM Jetting Tanker | Africa ISUZU 10 CBM Sewer Vacuum Pump Truck

The ISUZU Drainage Truck Mounted 10 CBM Jetting Tanker integrates high-pressure jet washing system and heavy-duty vacuum suction unit on genuine ISUZU 4×2 GIGA chassis, equipped with 13 CBM split composite tank. Designed for sewage transportation, sewer flushing, sludge collection and emergency drainage. With 15,200 L/min vacuum flow rate and 215 bar jetting pressure, this sewer vacuum truck offers stable performance for municipal sanitation, factory wastewater treatment and flood rescue projects.

Effective Sewage Tank: 10 CBM | Clean Water Tank:3 CBM

Drive: 4×2 | Engine: 6HK1-TCG61 240HP | Emission: Euro 6

Full Description

ISUZU Drainage Truck Mounted Jetting Tanker Overview

Also named sewer cleaning truck, sewage suction truck, vacuum sucker truck, combined jetting & suction tanker. This ISUZU vacuum tanker completes one-stop pipeline dredging, sludge pumping and wastewater collection. Powered by 240 HP ISUZU original engine and FAST 8-speed gearbox, the 4×2 single axle chassis adapts to urban roads, industrial zones and construction sites widely.
All sanitation vehicles are brand new with complete factory inspection and export certification.

1. Core Product Features

✅ Chassis: Genuine ISUZU 4×2 GIGA chassis, 6HK1-TCG61 240HP diesel engine

✅ Tank Capacity: Total 13 CBM split tank (3 CBM clean water tank + 10 CBM sewage tank)

✅ Tank Material: 6mm WISCO high strength steel, stainless steel lining, internal asphalt anti-corrosion coating

✅ Working System: Max 215 bar high pressure jetting; 15,200 L/min vacuum suction flow

✅ Main Application: Municipal sewer maintenance, industrial sludge extraction, pipeline dredging, emergency flood drainage

2. Complete Technical Parameters

Item Specification
Product Name

ISUZU Drainage Truck Mounted 10 CBM Jetting Tanker

ISUZU FVR Combination Jetting Vacuum Tanker Truck 10m3 Sewage and 3m3 Clean Water

Vehicle Model DRZ5180GXWQL
Drive Type 4×2
GVW / Curb Weight 18000 kg / 10800 kg
Front Axle / Rear Axle 6.3 Ton / 13 Ton
Max Speed 100 km/h
Overall Dimension (L×W×H) 8350×2540×3540 mm
Engine Model 6HK1-TCG61
Power 240 HP (176 KW)
Emission Standard Euro 5
Displacement 15681 ml
Engine Type Inline 6-cylinder, water-cooled, turbocharged intercooled diesel
Tire Size 295/80R22.5 18PR
Wheelbase 4500 mm
Transmission FAST 8-speed manual gearbox
Cab Tiltable cab, A/C, power window, central lock, ABS, air brake

High-Pressure Jetting System

  • Clean Water Tank: 3 CBM

  • High-pressure pump working pressure: 215 bar, flow:215 L/min

  • Powered by chassis PTO; simultaneous jetting & suction support

  • Standard: 100m Φ22 PVC high pressure hose, hose reel, multi-type nozzles, remote control

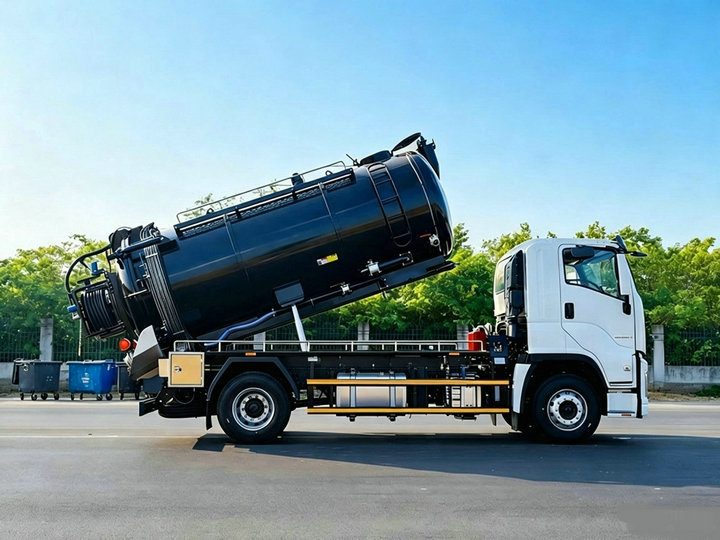

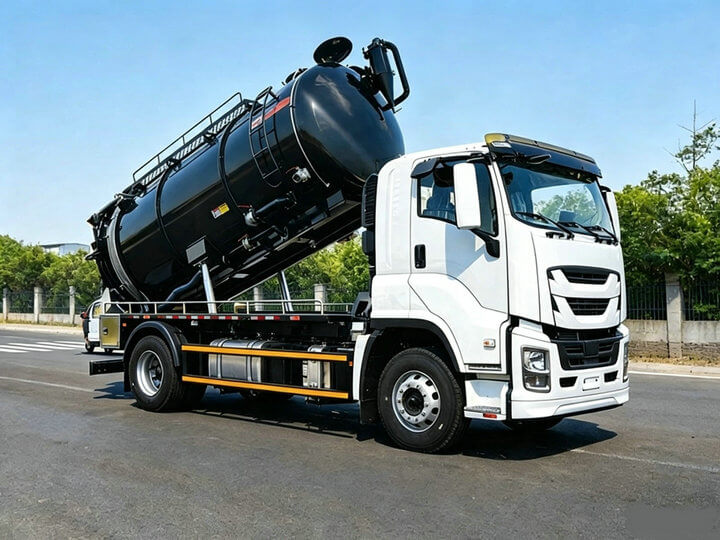

    ISUZU Sewer Combination Jetting Vacuum Tanker Truck 10T (17)ISUZU Sewer Combination Jetting Vacuum Tanker Truck 10T (19)

Sewage Vacuum Suction System

  • Sewage Tank Volume:10 CBM

  • Tank: 6mm WISCO steel plate, fully sealed pressure vessel, stainless steel lining, electrostatic spraying + asphalt anti-corrosion coating

  • Vacuum Pump: SK-15 water circulation vacuum pump, self-priming & self-discharging

  • Hydraulic tilting tank, rear door hydraulic opening, maximum 75° dumping angle

  • Fittings: Stainless steel pneumatic ball valves, sight glass, pressure gauge, wash device

  • Safety: Full load alarm, automatic pressure relief, anti-overflow protection

  • Accessories: 2 pcs Φ102mm ×10m transparent suction hoses, stainless steel toolbox

  • Optional: Water tank heater, digital liquid level display, top cement filling port

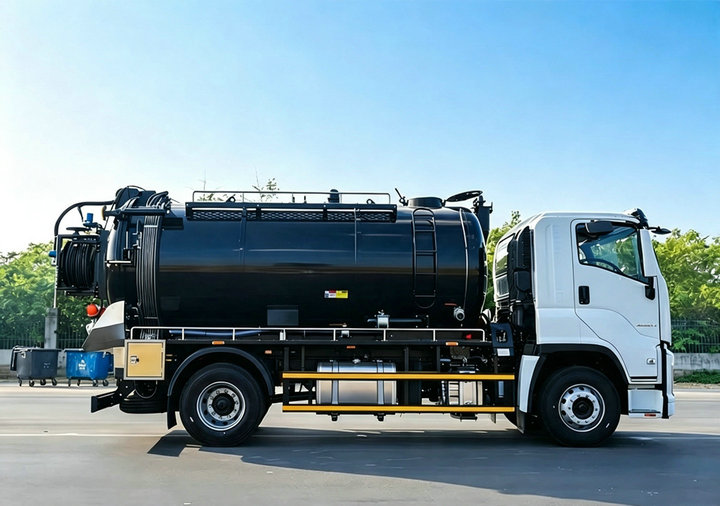

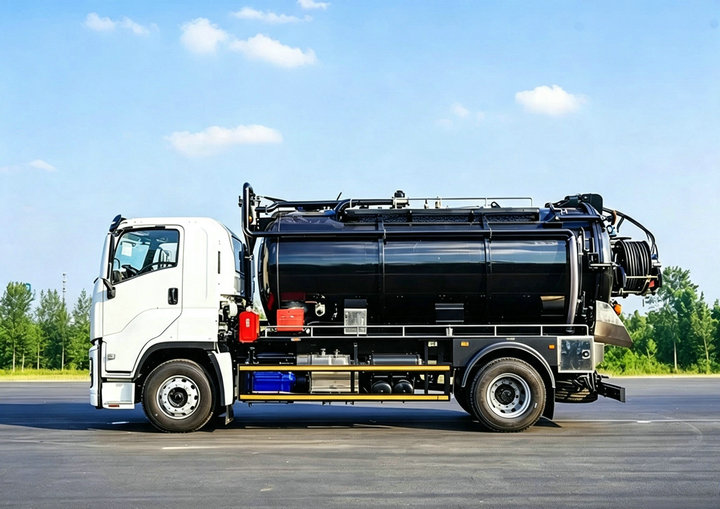

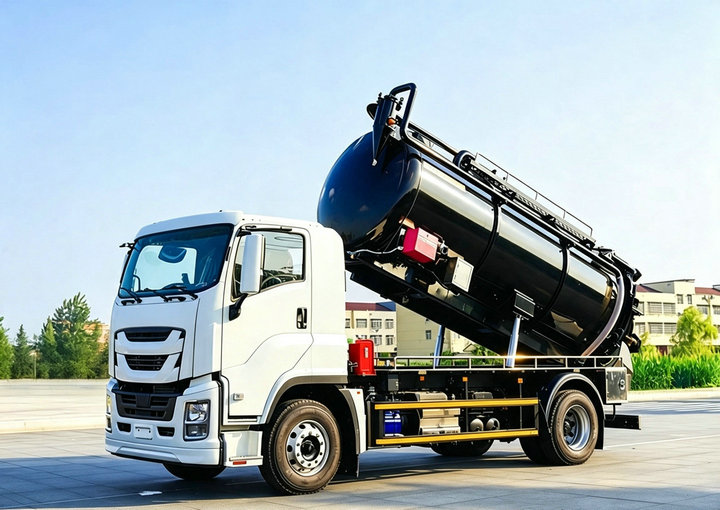

    ISUZU Sewer Combination Jetting Vacuum Tanker Truck 10T (28)ISUZU Sewer Combination Jetting Vacuum Tanker Truck 10T (21)ISUZU Sewer Combination Jetting Vacuum Tanker Truck 10T (27)ISUZU Sewer Combination Jetting Vacuum Tanker Truck 10T (22)

3. Main Assembly Introduction

3.1 ISUZU Chassis & Powertrain18-ton rated chassis with optimized load-bearing structure, stable during high-pressure washing and vacuum operation. The 6HK1-TCG61 engine meets Euro 5 emission standards, matched with FAST 8-speed transmission, delivering steady power under heavy working conditions.
3.2 Integrated Hydraulic Control SystemCentral hydraulic station realizes centralized control for tank lifting, rear door unlocking, suction and discharging. Operators can monitor vacuum pressure and hydraulic pressure in real time.

3.3 Automatic High Pressure Hose ReelStores 100m high-pressure pipeline. Remote control retract & extend, convenient for deep pipeline cleaning within long distance.

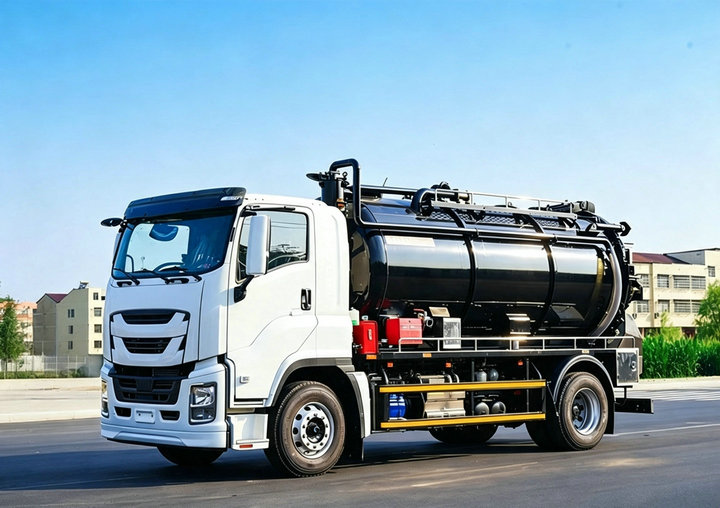

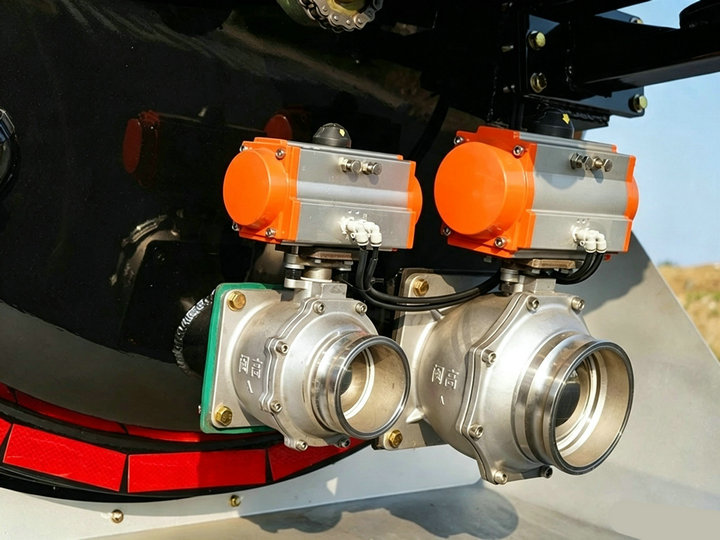

ISUZU Sewer Combination Jetting Vacuum Tanker Truck 10T (15)ISUZU Sewer Combination Jetting Vacuum Tanker Truck 10T (25)ISUZU Sewer Combination Jetting Vacuum Tanker Truck 10T (11)ISUZU Sewer Combination Jetting Vacuum Tanker Truck 10T (33)ISUZU Sewer Combination Jetting Vacuum Tanker Truck 10T (32)

4. Working Principle

Equipped with large-capacity hydraulic oil tank as power source for jetting, lifting and vacuum systems. Liquid level indicator supports real-time oil checking. Built-in precision filter protects hydraulic pumps and cylinders, lowering maintenance costs. The system runs stably under continuous cyclic suction and flushing operations.

5. Typical Application Scenarios

✔ Municipal urban sewer dredging & pipeline cleaning✔ Construction site sewage and mud collection✔ River silt cleaning & flood emergency drainage✔ Industrial park wastewater & sludge transportation✔ Septic tank waste suction and disposal

6. Product Advantages Summary

  1. Reliable ISUZU Platform: ISUZU 4×2 GIGA chassis, 240HP 6HK1 engine, durable and easy to source spare parts in Africa.

  2. Split 13 CBM Tank: Separated clean water and sewage cabin, 6mm anti-corrosion steel tank, long service life.

  3. Two-in-one Function: Combined high-pressure jet flushing + vacuum sludge suction, one truck completes multiple sanitation tasks.

  4. Complete Safety Configuration: Anti-overflow, pressure relief, full-tank alarm, hydraulic safety locking.

  5. Customization Available: Hose length, heater, pump brands and painting color can be adjusted according to customer demands.

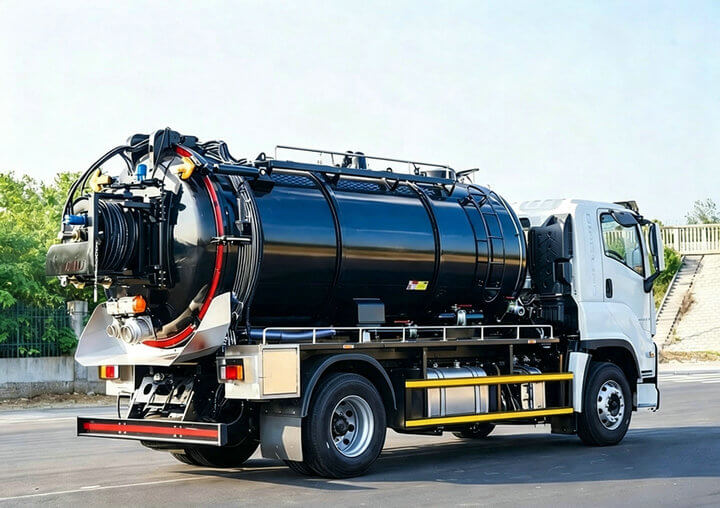

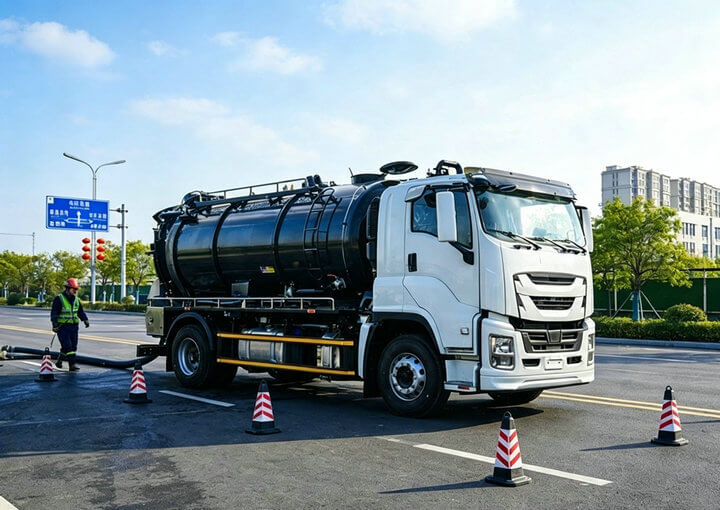

    ISUZU Sewer Combination Jetting Vacuum Tanker Truck 10T (29)ISUZU Sewer Combination Jetting Vacuum Tanker Truck 10T (26)ISUZU Sewer Combination Jetting Vacuum Tanker Truck 10T (23)

  6. Product Name ISUZU Drainage Truck  Sewer Jetting Tanker
    Overall Vehicle Model DRZ5180GXWQL
    Drive Type 4*2
    Gross Vehicle Weight 18000 kg
    Curb Weight 10800kg
    Front Axle 6.3 tons
    Rear Axle 13 tons
    Maximum Speed 100 km/h
    Overall Dimensions L*W*H 8350*2540*3540 mm
    Engine Engine Model 6HK1-TCG61
    Fuel Type Diesel
    Power 240 HP(176KW)
    Emission Standard Euro 5
    Displacement 15681 ml
    Engine Type 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling
    Chassis Chassis Brand ISUZU
    Tire No. 6+1
    Tire Specification 295/80R22.5 18PR
    Wheelbase 4500 mm
    Gear Box FAST 8-speed
    Cab Tilting cab
    Chassis Configuration Air conditioning
    Steering assist
    Central lock
    Electric glass
    Multi-function steering wheel
    ABS(Anti-lock Braking System)
    Air brake
    High-Pressure Jetting System Clean Water Tank Capacity 3 CBM
    Tank Construction Butt-joint welding
    6mm premium steel plate(WISCO)
    High-pressure Pump Pressure 215 bar
    Flow rate 215 L/min
    Drive System Driven by the power take-off (PTO), operable simultaneously.
    Accessories 10 specialized nozzles for different scenarios
    100mφ22PVC high-pressure hose 100mφ22PVC
    Remote control operation
    Sewage Vacuum System Sewage Tank Capacity 10 CBM
    Tank 6mm premium steel plate(WISCO)
    Fully sealed pressure tank
    Stainless steel lining
    Electrostatic powder painting
    Asphalt coating inside
    Vacuum Pump China-made SK-15 Water Circulation Pump
    Self-priming & self-discharging
    Hydraulic System The tank can be hydraulically lifted and tilted for rear-dump discharge, with 75° rear-door opening angle.
    The rear head features hydraulic opening/closing and integrated hydraulic locking
    Discharge Components Outlet: Stainless steel pneumatic ball valve (100N+150N)
    Accessories: Sight glass, pressure gauge, hand-washing device
    Safety Features Full-tank alarm
    Auto pressure relief
    Secondary anti-overflow
    Additional Equipment 2x transparent suction hoses,φ102mm x 10m
    Stainless steel tool box
    Coil hose reel
    Clean water tank with heater & digital display
    Special Functions Cement filler port on top
    Internal supports
    Washing machine integrated

We supply 100% brand new genuine ISUZU sanitation trucks directly from China factory.

✅ Fast global sea transportation✅ Professional export documentation✅ 24/7 online technical after-sales support

Isuzu vacuum suction truck, municipal sanitation truck, sewer dredging vehicle supplier

Chassis Model

Horsepower

Wheelbase

Engine Model

Transmission Option

Cab Configuration

ISUZU FVR (4x2)

240 HP

4500/5550/5800

/6300/7150

6HK1-TCG61

FAST 8-speed Transmission

New ISUZU VC61 Series Cab

ISUZU FVZ (4x2 /6x4)

300 HP

4500/   7150

4350+1370/4650+1370

5100+1370/5800+1370

1850+2980+1370

1850+4575+1370

6HK1-TCG60

FAST 9-speed Transmission

New ISUZU VC61 Series Cab

ISUZU VC66 Series 6x4

350 HP

1850+4575+1370

6UZ1-TCG61

ZF 8-speed (ZF8) / FAST 12-speed

New ISUZU VC61 Series Cab

ISUZU VC66 Series (4x2 /6x4/8x4)

380 HP

3900/4600/5600

3900+1370

3985+1370

4600+1370

1850+3000+1370

1850+2980+1370

6UZ1-TCG61

ZF 8-speed (ZF8) / FAST 12-speed

New ISUZU VC61 Series Cab

ISUZU VC66 Series(6x4 )

420 HP

4800+1370

5200+1370

6WG1-TCG60

ZF 8-speed (ZF8) / FAST 12-speed

New ISUZU VC61 Series Cab

ISUZU VC66 Series

460 HP

4600

4600+1370

4800+1370

5200+1370

5400+1370

2100+4325+1370 1850+4575+1370

6WG1-TCG61

ZF 8-speed (ZF8) / FAST 12-speed

New ISUZU VC61 Series Cab

ISUZU VC66 Series( 6x4/8x4)

520 HP

4800+1370

5400+1370

2100+4325+1370

6WG1-TCG62

ZF 8-speed (ZF8) / FAST 12-speed

New ISUZU VC61 Series Cab

ISUZU Vac tanker truck
