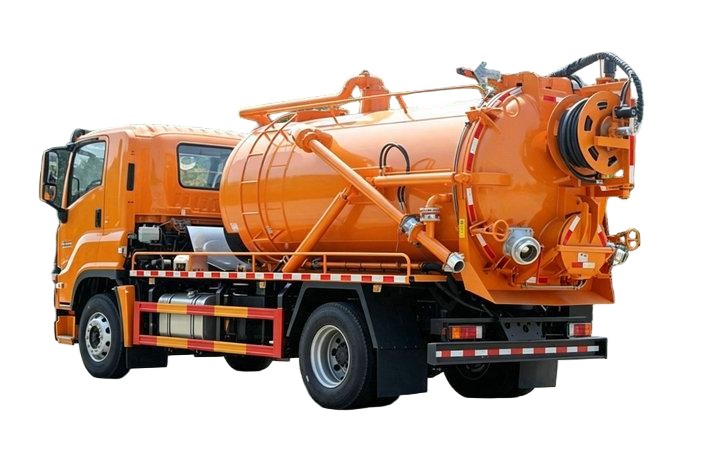

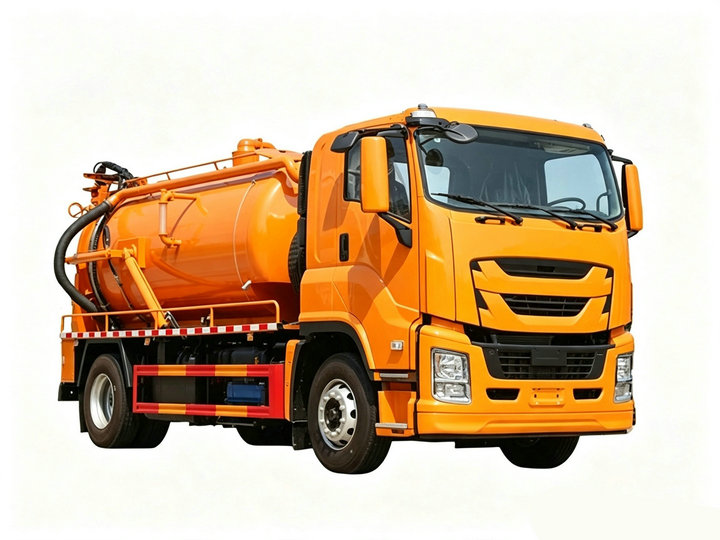

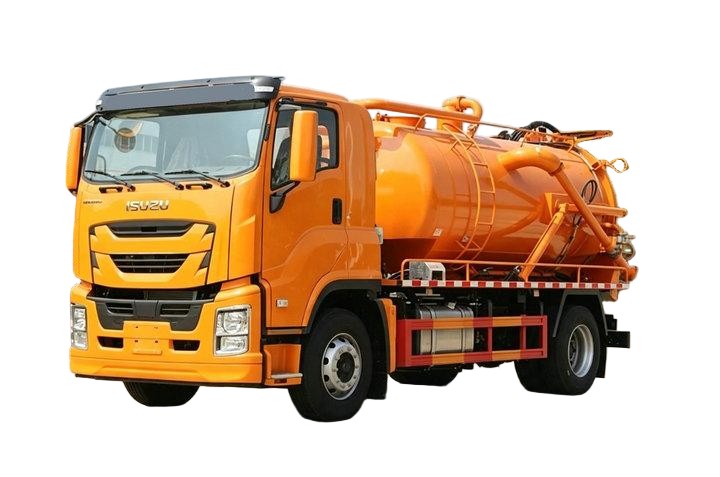

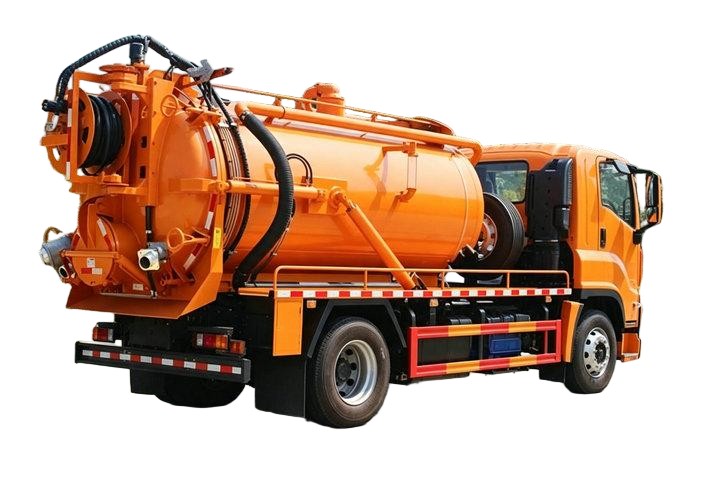

ISUZU FVR Combination Sewer Jet Vacuum Truck 6000L Sewage+2500L Clean Water

ISUZU FVR Combination Sewer Jet Vacuum Truck 6000L Sewage+2500L Clean Water
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
Price: $ 62000
Discount Price: $ 60000
Availability:
Quantity:

  • DRZ5220GXWQL

  • Dong Run Ze

  • 8705909990

 ISUZU FVR Combination Sewer Jet Vacuum Truck 6000L Sewage+2500L Clean Water

ISUZU FVR Combination Sewer Jet Vacuum Truck

10,000L Total Capacity ISUZU FVR Truck Mounted Sewer Jetter Vacuum SystemModel No.: DRZ5220GXWQL | 4×2 Drive | Euro 6 Emission Standard
The ISUZU FVR integrated sewer cleaning truck combines high-pressure water jetting and vacuum sewage suction functions in one unit, specially engineered for municipal sewer pipeline dredging, drain blockage removal, culvert cleaning, sewage suction and wastewater disposal. Equipped with premium ISUZU chassis, powerful vacuum pump and PINFL high-pressure plunger pump, this combo sewer truck delivers stable heavy-duty performance for sanitation bureaus, municipal engineering teams and environmental service companies.

 Vehicle Chassis Configuration

Cabin

Adopt brand-new ISUZU GIGA 5X single-row cabin, layout with 2 passenger seats + 1 sleeper berth, factory air conditioning fitted as standard. Spacious cab space creates comfortable long-hour working environment, stable temperature control adapts to all-season outdoor operation and improves work efficiency.

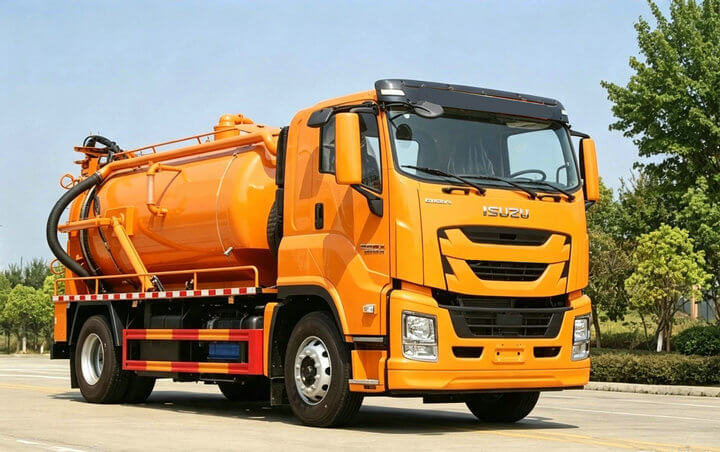

ISUZU FTR Combined Sewer Jetting and Vacuum Truck (3)

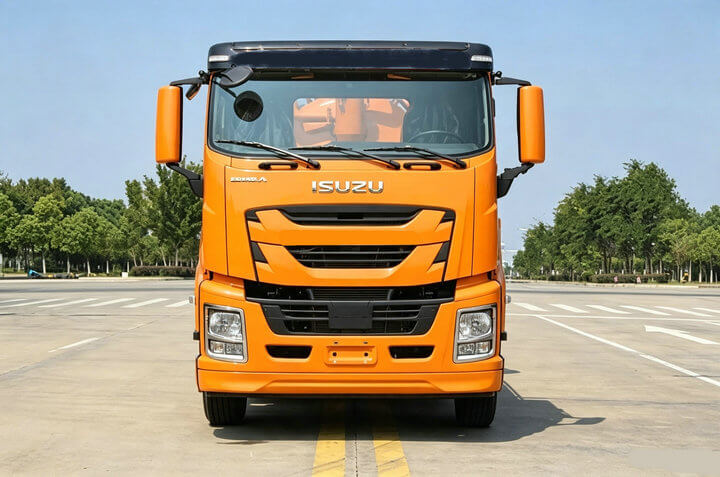

ISUZU FTR Combined Sewer Jetting and Vacuum Truck (11)


Chassis Basic Parameters

Item Specification
Overall Dimension (L×W×H) 8200×2500×3400 mm
Wheelbase 4500 mm
Front/Rear Wheel Track 1960 / 1855 mm
Approach / Departure Angle 12° / 20°
Gross Vehicle Weight 18,000 KG
Rated Payload 10,000 KG
Front Axle Load 6,300 KG
Rear Axle Load 13,000 KG
Max Travel Speed 95 km/h
Drive Form 4×2, Left Hand Drive
Tire Spec 295/80R22.5, 6 main tires + 1 spare tire

Power Assembly

  • Engine Brand & Model: ISUZU 6HK1-TCG61

  • Rated Horsepower: 240 HP (175 KW)

  • Displacement: 7790 ml

  • Rated Speed: 2400 rpm

  • Emission Standard: Euro 6

  • Gearbox: FAST manual transmission, 8 forward gears + 1 reverse gear

This ISUZU original diesel engine outputs sufficient torque under low rotation speed, meets strict European emission regulations, low fuel consumption and long service life, balancing powerful dredging performance and eco-friendly urban operation demands.

 Upper Body Tank & Core Equipment

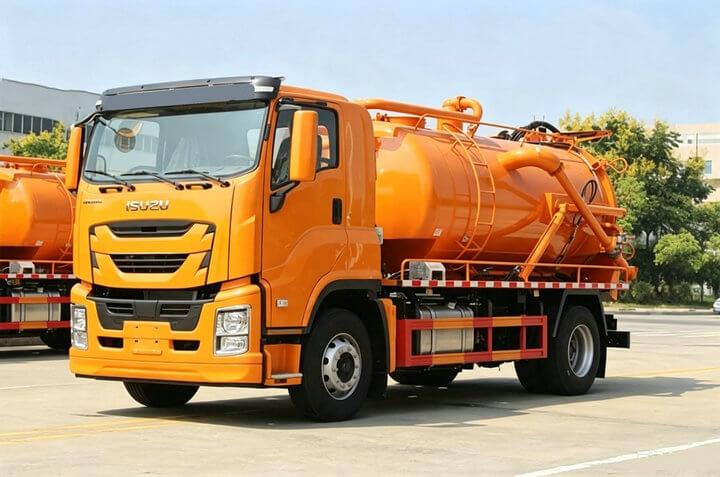

ISUZU FTR Combined Sewer Jetting and Vacuum Truck (6)


Tank Body

  • Vacuum Sewage Tank Volume: 6000 L

  • High-Pressure Clean Water Tank Volume: 2500 L

  • Tank Material: Q235 carbon steel, wall thickness 6mm, anti-corrosion treatment inside & outside

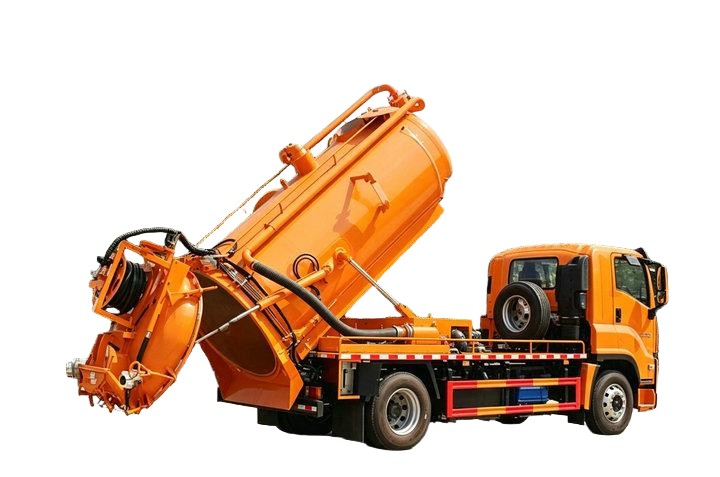

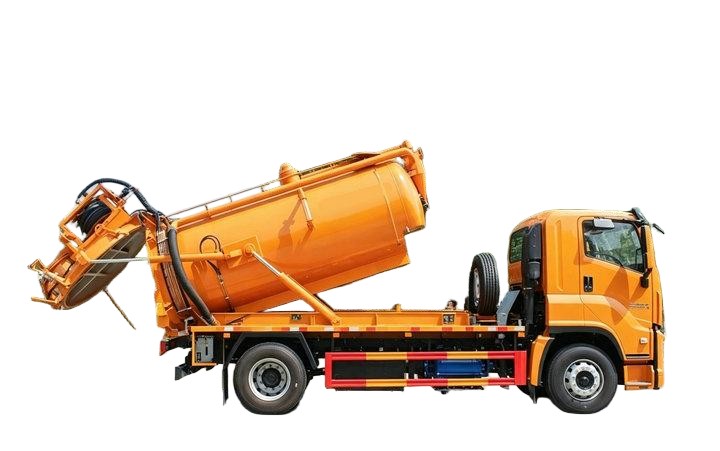

  • Tank Tilting Angle: ≥45°, fully self-dumping for quick sewage discharge

  • Rear Tank Cover: Hydraulic automatic opening & closing, good sealing to prevent sewage leakage

Vacuum Suction System

  • Vacuum Pump Model: 2BE-204 water circulation vacuum pump

  • Ultimate Vacuum Degree: 3300 Pa

  • Working Rotation Speed: 980 rpm

  • Max Pumping Flow Rate: 21 m³/min

  • Sewage Suction Pipe: 8m wear-resistant suction hose

High-Pressure Jetting Cleaning System

  • High Pressure Water Pump: PINFL PF36 plunger pump

  • Rated Flow: 122 L/min

  • Working Pressure: 16 Mpa

  • Matched Power: 37 KW

  • Hydraulic Hose Reel: Built-in 60m high-pressure jet hose, equipped with 10 types of cleaning nozzles for different pipe blockage types

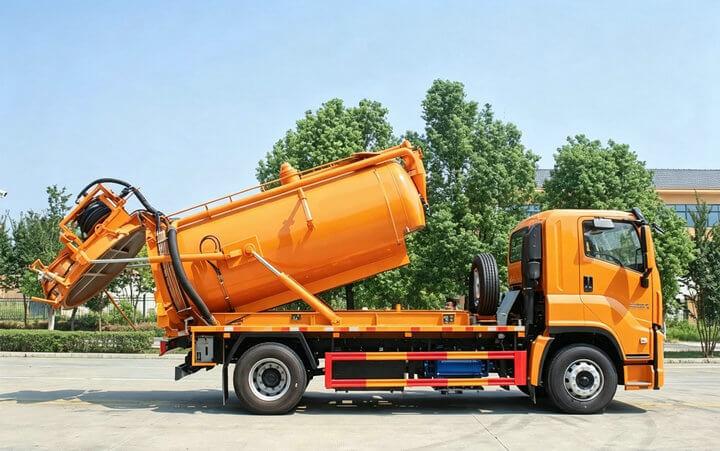

  • ISUZU FTR Combined Sewer Jetting and Vacuum Truck (2)

Auxiliary Standard Accessories

Oil-gas separator, water-gas separator, four-way reversing valve, anti-backflow protection valve, pipeline washing device, pressure gauge, control ball valves, hydraulic control assembly.

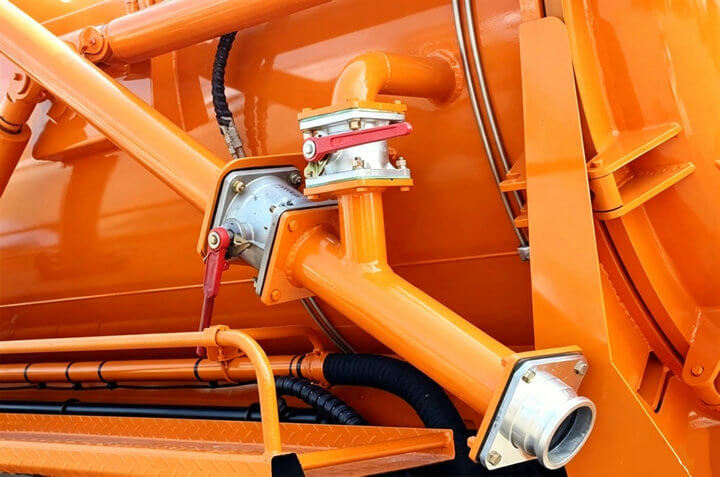

ISUZU FTR Combined Sewer Jetting and Vacuum Truck (9)

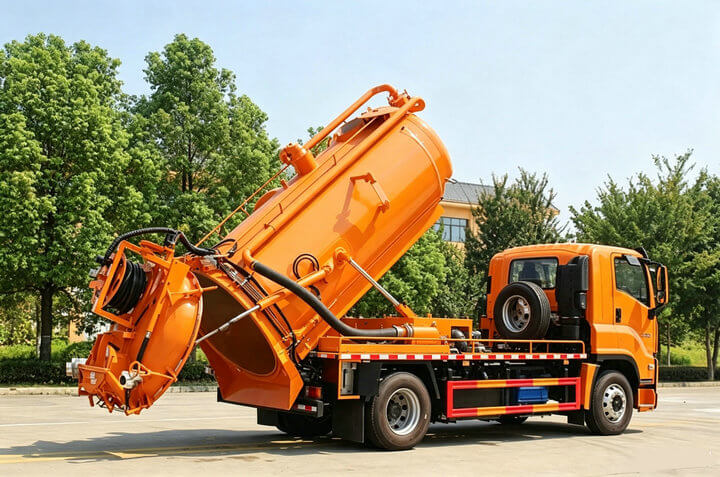

ISUZU FTR Combined Sewer Jetting and Vacuum Truck (5)


 Core Working Performance Advantages

  1. Fast Sewage Suction: Full tank suction time ≤ 5 minutes, high work throughput

  2. Deep Suction Capacity: Effective vertical suction depth ≥ 8 meters, handles deep underground sewer wells

  3. Dual-Function Integration: One truck realizes sewer jet washing + sewage suction transport, cuts procurement cost vs two separate single-function trucks

  4. All-Round Pipeline Adaptability: 60m long high-pressure hose reaches long-distance buried pipelines; multiple dedicated nozzles clear mud, grease, stone and root blockages

  5. Hydraulic Automatic Control: Hose reel retraction, tank tipping, rear cover opening all hydraulic-driven, low labor intensity for operators

  6. Safe Anti-Leak Design: Multi-stage separation & anti-backflow devices avoid sewage backflow damage to pumps and chassis

Application Scenarios

  • Municipal urban sewer pipeline dredging & maintenance

  • Rainwater drain, culvert, underground sewage well blockage cleaning

  • Community, industrial park sewage sludge suction & transportation

  • Road drainage ditch, septic tank cleaning & waste collection

  • Environmental sanitation engineering, municipal sanitation department daily operation

Cabin ISUZU GIGA 5X new model cabin, single row, with 2 seats and one sleeper, with A/C
Vehicle Main Dimensions Overall dimensions (L x W x H) mm 8200×2500×3400
Wheelbase (mm) 4500
Wheel track (front/rear) (mm) 1960/1855
Approach/Departure angle (°) 12月20日
Weight in KGS Gross Vehicle Weight 18000
Payload 10000
Front axle loading capacity 6300
Rear axle loading capacity 13000
Max. driving speed(km/h) 95
Engine Brand ISUZU
Model 6HK1-TCG61
Horse power (HP) 240HP
Emission standard Euro 6
Output (KW) 175 KW
Rated speed 2400 rpm
Emission standard 7790 ml
Gearbox FAST, manual, 8 forwards & 1 reverse
Steering Left hand drive
Tire 295/80R22.5, 6 tires with one spare
Upper-body specifications
Vacuum tank volume 6000 liters
Water tank volume 2500 liters
Tank material Carbon steel Q235, thickness 6mm
Tank lifting angle ≥45°
Rear cover Open and closed by hydraulic cylinders
Vacuum Pump Type Water circulation pump
Model 2BE-204
Ultimate vacuum 3300 pa
Rotation speed 980 rpm
Maximum pumping speed 21 m3/min
Water Pump Model PF36
Type High pressure plunger pump
Brand PINFL
Flow rate 122 L/min
Pressure 16 Mpa
Speed 1000 rpm
Power 37 kw
Sewage suction pipe 8M
Hose reel Hydraulic reel, with 60m high pressure hose and 10 nozzles
Main Performance Suction time ≤ 5min,
Effective suction depth ≥ 8m
Other equipment Oil-gas separator, water-gas separator, four-way valve, anti-flow valve, washing device, pressure gauge, ball valve
Painting Customized painting color as required.

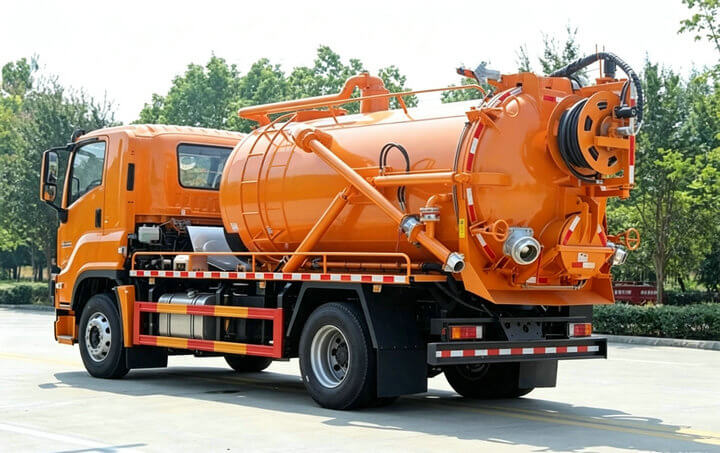

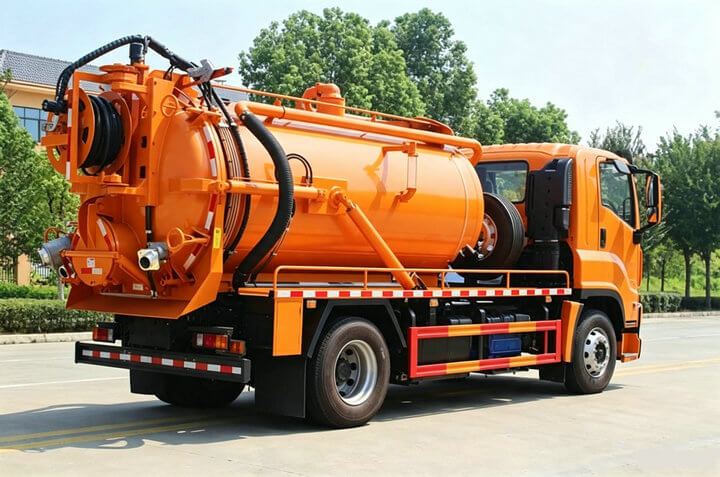

ISUZU FTR Combined Sewer Jetting and Vacuum Truck (8)ISUZU FTR Combined Sewer Jetting and Vacuum Truck (7) Customization Service

  • Body painting color: Custom orange, white, blue, green or other corporate color as customer requirements

  • Chassis optional upgrade: ISUZU FTR / ISUZU GIGA series alternative chassis

  • Tank volume adjustment: Modify vacuum/water tank capacity per project demand

  • Right-hand drive available for overseas markets

  • Optional auxiliary equipment: CCTV pipeline detection camera, sludge crushing device

Hot Tags

isuzu fvr combination sewer truck, isuzu fvr sewer jet vacuum truck, 10000L isuzu sewer cleaning truck, isuzu combination sewer jetting truck, isuzu sewer dredge truck, euro 6 isuzu sewage suction jet combo truck

China isuzu fvr combination sewer truck manufacturers, wholesale isuzu sewer jet vacuum truck factory, municipal sewer cleaning truck ISUZU chassis, combined sewer cleaner with high pressure jetter, ISUZU FTR combination sewer truck, HOWO sewer jetter cleaning truck, 12000L HOWO combined sewer jetting vacuum truck, sewer dredging vehicle for municipal sanitation

Isuzu vacuum suction truck, municipal sanitation truck, sewer dredging vehicle supplier

Chassis Model

Horsepower

Wheelbase

Engine Model

Transmission Option

Cab Configuration

ISUZU FVR (4x2)

240 HP

4500/5550/5800

/6300/7150

6HK1-TCG61

FAST 8-speed Transmission

New ISUZU VC61 Series Cab

ISUZU FVZ (4x2 /6x4)

300 HP

4500/   7150

4350+1370/4650+1370

5100+1370/5800+1370

1850+2980+1370

1850+4575+1370

6HK1-TCG60

FAST 9-speed Transmission

New ISUZU VC61 Series Cab

ISUZU VC66 Series 6x4

350 HP

1850+4575+1370

6UZ1-TCG61

ZF 8-speed (ZF8) / FAST 12-speed

New ISUZU VC61 Series Cab

ISUZU VC66 Series (4x2 /6x4/8x4)

380 HP

3900/4600/5600

3900+1370

3985+1370

4600+1370

1850+3000+1370

1850+2980+1370

6UZ1-TCG61

ZF 8-speed (ZF8) / FAST 12-speed

New ISUZU VC61 Series Cab

ISUZU VC66 Series(6x4 )

420 HP

4800+1370

5200+1370

6WG1-TCG60

ZF 8-speed (ZF8) / FAST 12-speed

New ISUZU VC61 Series Cab

ISUZU VC66 Series

460 HP

4600

4600+1370

4800+1370

5200+1370

5400+1370

2100+4325+1370 1850+4575+1370

6WG1-TCG61

ZF 8-speed (ZF8) / FAST 12-speed

New ISUZU VC61 Series Cab

ISUZU VC66 Series( 6x4/8x4)

520 HP

4800+1370

5400+1370

2100+4325+1370

6WG1-TCG62

ZF 8-speed (ZF8) / FAST 12-speed

New ISUZU VC61 Series Cab

ISUZU Vac tanker truck
