Isuzu Sewer Vacuum Jetting Flushing And Cleaning Truck 2000L Sewage+1500L Clean Water
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
| Quantity: | |
|---|---|
|
| |
-
DRZ5070GQWQL
-
Dong Run Ze
-
8705909990
Isuzu Sewer Vacuum Jetting Flushing And Cleaning Truck 2000L Sewage+1500L Clean Water
ISUZU NKR Light Vacuum Jetting Truck | Combined Sewer Jet Vacuum Truck Factory Supply
1. Product Overview

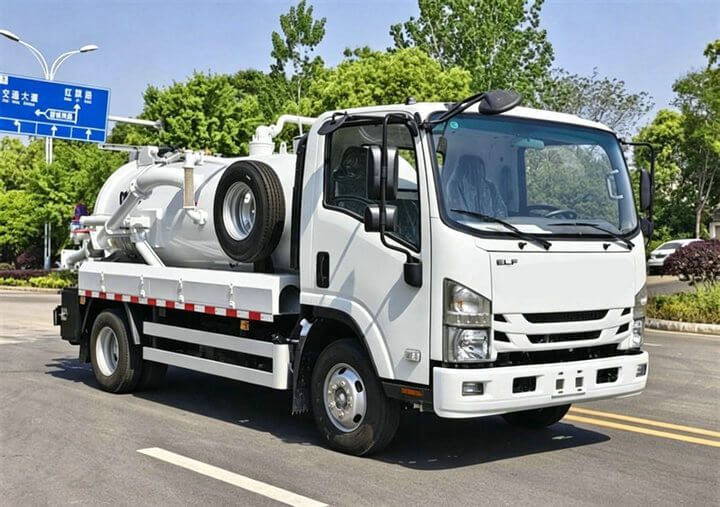

ISUZU mini sewer jetting truck – Compact Multi-Purpose Sanitation Vehicle
2. Core Advantages of ISUZU NKR Vacuum Jetting Truck
Ultra-Compact Maneuverable Chassis
ISUZU KV100 4×2 light truck chassis, 3360mm short wheelbase, minimum turning radius only 6.5 meters, freely pass narrow alleys, community lanes and downtown restricted roads, unmatched by large sanitation trucks.

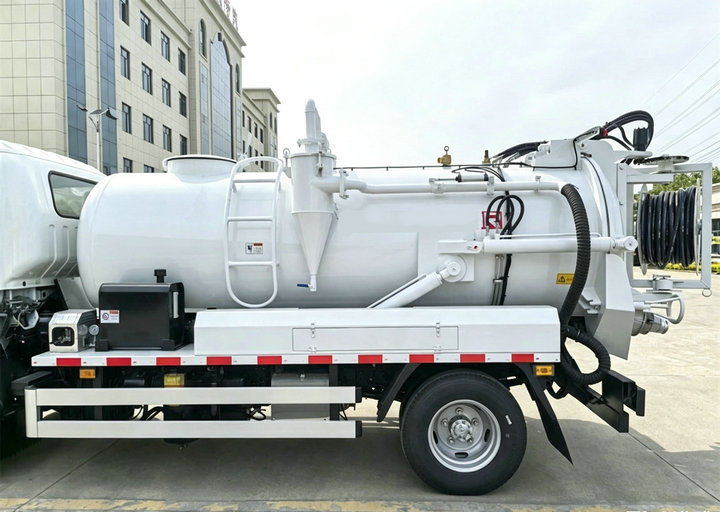

Dual Independent Tank Design

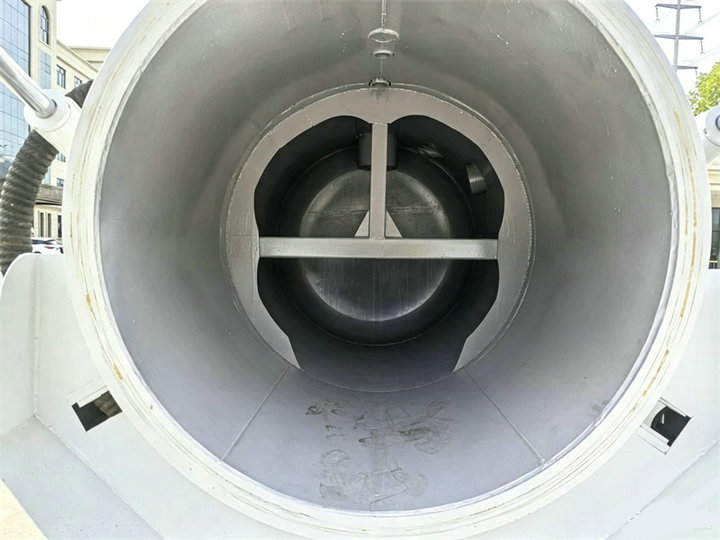

Separate 2000L sewage tank and 1500L clean water tank, both made of 6mm thick Q235 carbon steel with anti-corrosion treatment, equipped with internal anti-wave baffles and liquid level gauges to avoid liquid sloshing during driving.
German Imported High-Pressure Jetting System
Original PINFL PF36 high-pressure water pump, max 16MPa working pressure, 122L/min large flow, matched with 60m long high-pressure reinforced hose and 10 multi-angle jet nozzles, thoroughly clear blockages in all kinds of sewer pipelines.
High-Efficiency Vacuum Suction Unit
93% high vacuum degree, 45L/s large suction flow under 7000Pa working pressure, quickly suck septic tank sludge, construction sediment and viscous sewage without clogging.

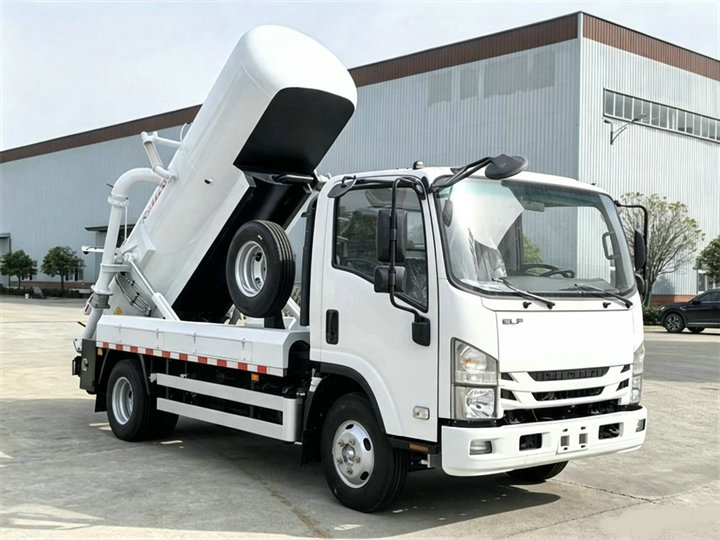

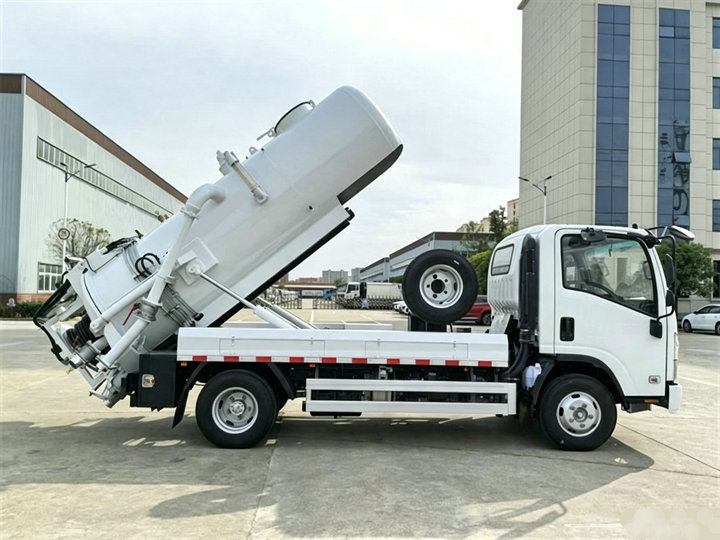

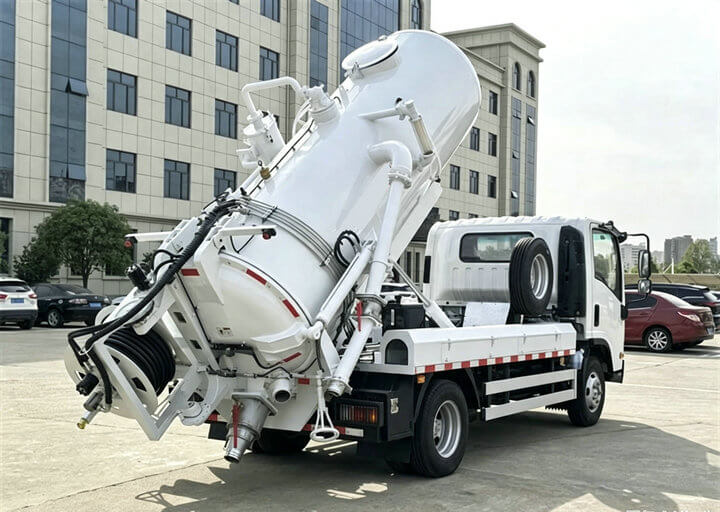

Full Hydraulic Discharging Structure
Hydraulic cylinder tilts the tank body over 45 degrees, fast automatic sludge unloading, no manual shoveling, greatly improve operation efficiency.
Reliable ISUZU Power Assembly
Original ISUZU 4KH1CN6LB 120HP Euro 6 engine, stable power output, low fuel consumption, long service life, meets global vehicle emission standards for export.
3. Full Technical Specifications
3.1 Chassis Specifications
| Item | Parameter |
|---|---|
| Chassis Model | ISUZU KV100 (NKR Series) |
| Drive Form | 4×2, Left-hand drive (RHD optional) |
| Wheelbase | 3360 mm |
| Overall Dimension | 5900×2200×2550 mm |
| Front/Rear Tread | 1504mm / 1425mm |
| Front/Rear Suspension Length | 1160mm / 1375mm |
| Front/Rear Axle Load | 2580kg / 4720kg |
| Leaf Spring Quantity | Front 8 pieces, Rear 6+5 pieces |
| Tire Standard | 7.00R16LT 8PR |
| Tire Quantity | 6 tires + 1 spare tire |
| Cabin | ISUZU 3-wide single row cabin, 3 seats, factory air conditioner |
| Transmission | ISUZU MSB 5-speed manual gearbox (5 forward, 1 reverse) |
| Max Driving Speed | 90 km/h |
3.2 Engine Specifications
| Item | Parameter |
|---|---|
| Brand | ISUZU Original |
| Engine Model | 4KH1CN6LB |
| Rated Power | 120HP / 88KW |
| Structure | 4-cylinder inline, turbocharged, intercooled |
| Fuel Type | Diesel |
| Emission Standard | Euro 6 (Euro 5 optional) |
| Displacement | 2999 ml |
| Rated Rotation Speed | 2900 rpm |
| Max Torque | 290 N.m |
3.3 Tank Body Specifications
| Item | Parameter |
|---|---|
| Total Tank Capacity | 3500 Liters |
| Sewage Tank Volume | 2000 L |
| Sewage Tank Material & Thickness | Q235 carbon steel, 6mm |
| Clean Water Tank Volume | 1500 L |
| Clean Water Tank Material & Thickness | Q235 carbon steel, 6mm |
| Auxiliary Fittings | Anti-wave baffle, liquid level observation gauge, manhole maintenance port |
3.4 High-Pressure Jetting System
| Item | Parameter |
|---|---|
| Water Pump Brand | PINFL (Germany Imported) |
| Pump Model | PF36 |
| Flow Rate | 122 L/min |
| Rated Working Pressure | 16 Mpa |
| Matching Rotating Speed | 800 r/min |
| Supporting Power | 50 kw |

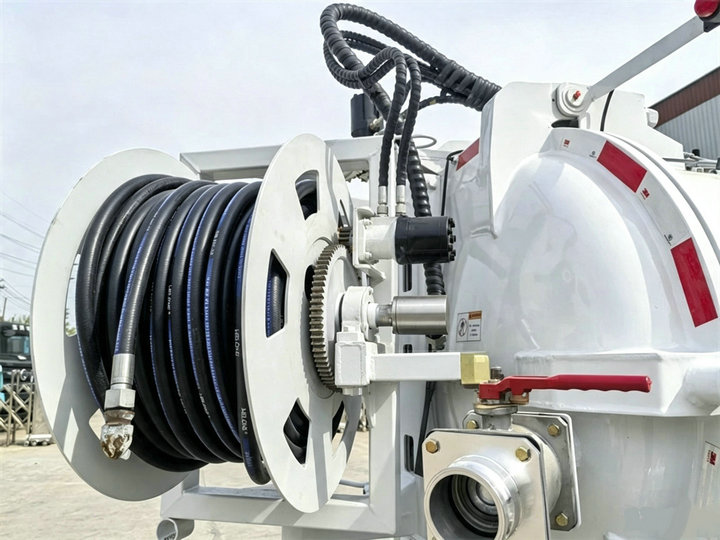

| Hose Reel | Rear hydraulic hose reel, with 60m × Φ19mm high-pressure steel wire reinforced hose |
| Jet Nozzles | 10pcs multi-direction carbon steel sewer cleaning nozzles |
3.5 Vacuum Suction Pump System
| Item | Parameter |
|---|---|
| Vacuum Pump Model | 45/7000 |
| Working RPM | 800 r/min |
| Suction Flow | 45 L/s |
| Working Pressure | 7000 Pa |
| Max Vacuum Degree | 93% |
| Supporting Power | 5 kw |
3.6 Standard Auxiliary Configurations
Tank Discharging Mode: Hydraulic cylinder lifting tilting
Max Lifting Angle: ≥45°
Sewage Suction Pipe: 7m steel wire reinforced suction hose
Operation Control: Central manual control panel
Hydraulic Components: Domestic famous brand gear pump, multi-way valve, hydraulic cylinder
Standard Accessories: Toolbox, connecting pipe, quick couplings, cleaning tools
-
Chassis Specifications Model ISUZU KV100 Driving type 4×2, left hand drive Wheelbase 3360 mm Overall dimensions 5900×2200×2550mm Front/Rear Tread (mm) 1504/1425mm Front/Rear suspension (mm) 1160/1375mm Front/Rear axle load 2580/4720 kg Number of leaf springs 8/6+5 Tires 7.00R16LT 8PR Tire number 6+1 (one spare tyre) Cabin ISUZU 3X wide cabin, single row, 3 seats, with air condition Transmissions ISUZU MSB, 5 speed forward 1 reverse. Max speed (km/h) 90 Engine Specifications Manufacturer ISUZU Model 4KH1CN6LB Rated Power 120HP/88KW Engine type 4 cylinders, in-line, turbocharged, inter-cooling Fuel type Diesel Emission standard Euro 6 Displacement 2999 ml Rated speed 2900 rpm Max. torqued 290 N.m Tanker Specifications Sewage tank volume 2,000 liters Sewage tank material Carbon steel Q235 Sewage tank thickness 6 mm Water tank volume 1,500 liters Water tank material Carbon steel Q235 Water tank thickness 6 mm Water Jetting System Specifications Water pump brand PINFL (German brand) Model PF36 Flow rate 122 L/min Rated pressure 16 Mpa Speed 800 r/min Power 50kw Hose reel Rear-mounted hose reel with 60m φ19 high pressure hose Jetting spraying nozzles 10 pcs carbon steel spraying nozzles Vacuum pump Specifications Model 45/7000 RPM 800 r/min Flow 45 L/s Working pressure 7000Pa Vacuum degree 93% Power 5kw Other configurations Tank lifting type Lifting by hydraulic cylinders Tank lifting angle ≥45° Sewage suction hose 7m wire reinforced hose Control way Manual control Gear pump Chinese famous brand Multi valve Chinese famous brand Hydraulic cylinder Chinese famous brand
4. Application Scenarios
Municipal Engineering: Urban sewer pipeline dredging, rainwater pipe blockage removal, drainage system maintenance
Property & Community: Residential septic tank sludge extraction, community public pipeline cleaning, courtyard road flushing
Industrial Park: Factory wastewater pipeline cleaning, sediment tank waste suction, industrial sewage treatment
Road Maintenance: Street surface high-pressure washing, roadside drainage ditch sludge cleaning
Hotel & Catering: Grease trap cleaning, sewage pipeline deoiling and unclogging
5. Product Detailed Features
Dual-Function Integration, Cost Saving
One truck realizes high-pressure jet cleaning and vacuum sludge suction, no need to purchase separate sewer jet truck and sewage suction truck, greatly reduce procurement and labor costs for sanitation companies.

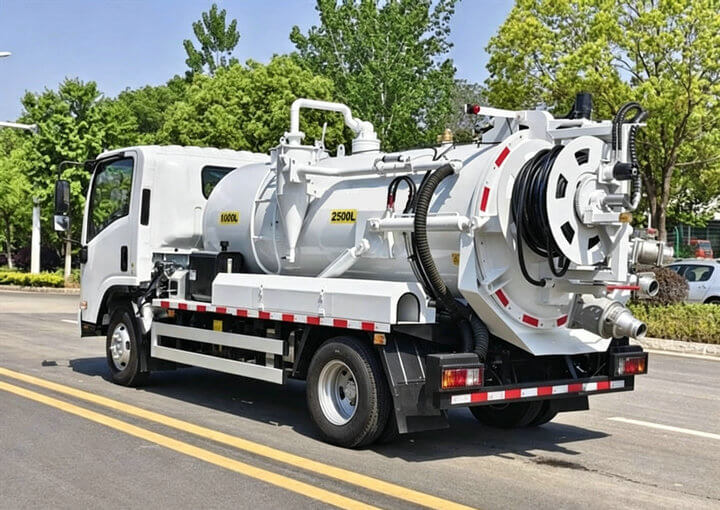

Rear Integrated Operation Structure

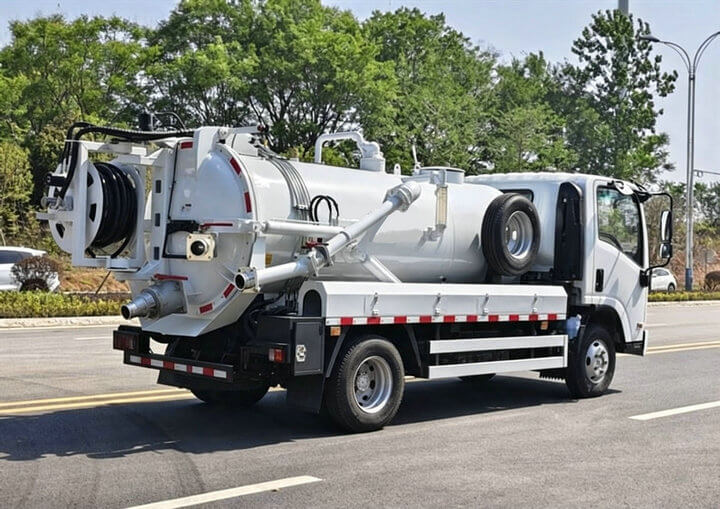

Rear-mounted hose reel, suction interface and control valves, all operation points concentrate at the vehicle tail, single operator can complete all cleaning and suction work independently.
Corrosion-Resistant Tank Body
Q235 thick carbon steel tank with internal anti-rust coating, resistant to sludge, sewage and grease corrosion, long service life under harsh working conditions.
Stable Hydraulic Control System
Matching mature hydraulic valve group and hydraulic cylinder, stable lifting, no leakage, low failure rate, easy daily maintenance.
Export Standard Assembly
All core power and hydraulic parts adopt international well-known brands, suitable for global overseas market export.
ISUZU NKR KV100 Light Vacuum Jetting Truck 3500L Combined Sewer Jetter | Euro 6 120HP Sewer Cleaning Truck ManufacturerISUZU NKR light vacuum jetting truck with 3500L dual tank (2000L sewage +1500L clean water), German PINFL high-pressure pump, 93% high-efficiency vacuum system. Compact ISUZU KV100 4×2 chassis for urban sewer dredging, septic tank cleaning, municipal pipeline maintenance. Direct factory supply, customized configurations available.ISUZU NKR Light Vacuum Jetting Truck (ISUZU KV100 Chassis) – Compact Combined Sewer Jet Vacuum Truck for Urban Sanitation
