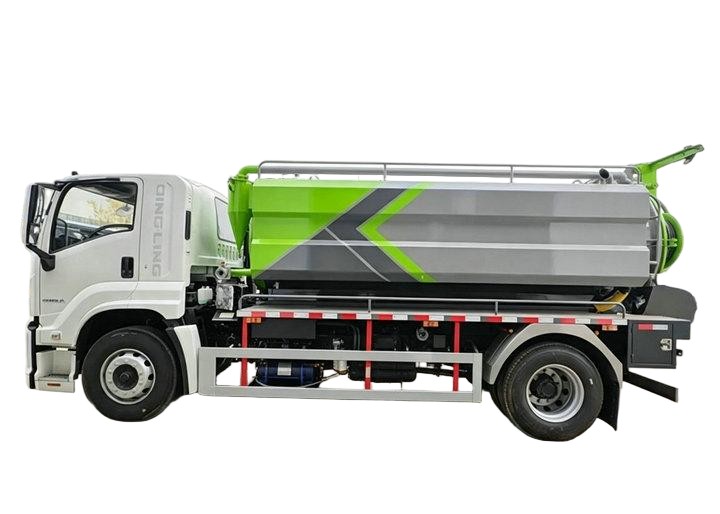

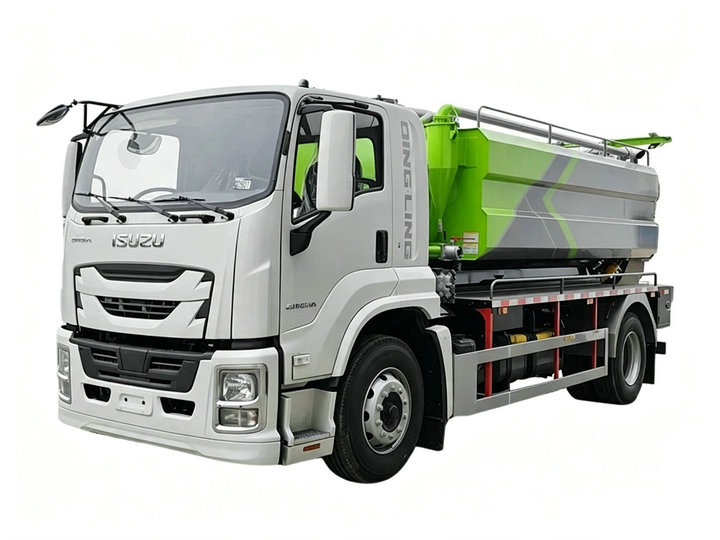

ISUZU FTR Combined Sewer Jetting and Vacuum Truck 8000L Sewage+4000L Clean Water

ISUZU FTR Combined Sewer Jetting and Vacuum Truck 8000L Sewage+4000L Clean Water
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
Price: $ 63000
Discount Price: $ 60000
Availability:
Quantity:

  • DRZ5180GQWQL

  • Dong Run Ze

  • 8705909990

 ISUZU FTR Combined Sewer Jetting and Vacuum Truck 8000L Sewage+4000L Clean Water

ISUZU FTR Combination Sewer Jetting Vacuum Truck | 12000L Dual Tank Sewage Suction & High Pressure Cleaning Truck Euro 6

ISUZU FTR integrated sewer cleaner combines high-pressure jet washing and vacuum sewage suction. Powered by 205HP 4HK1-TCG60 Euro 6 engine, matched with SK-15 vacuum pump & German PINFL PF36 high-pressure water pump. 8000L sewage tank + 4000L clean water tank, dual-function all-in-one sanitation vehicle for municipal drainage, sewer dredging & industrial wastewater cleaning. High efficiency, low maintenance, eco-friendly.Model No.: DRZ5180GQWQL | Total Tank Volume: 12000L | Drive: 4×2 | LHD

Products Description

ISUZU FTR Combination Jetting Vacuum Sewer Cleaner – All-in-One Municipal Sanitation Vehicle

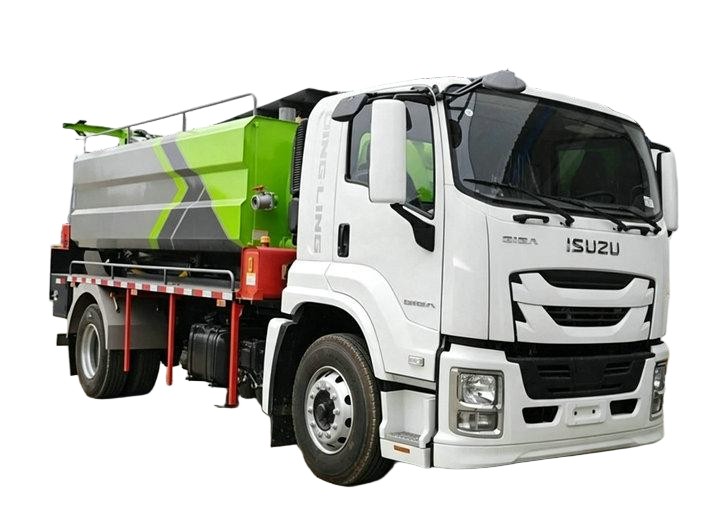

Our ISUZU FTR combination sewer truck is professionally refitted on genuine ISUZU FTR 4×2 chassis, integrating two core functions: high-pressure sewer jet washing and vacuum sewage suction. Equipped with upgraded ISUZU GIGA 4X-level wide cabin, the vehicle delivers spacious, noise-reduced and comfortable driving experience for long-hour municipal operation.Overall dimension reaches 9010×2500×3500mm with 4500mm wheelbase, well-balanced weight distribution ensures stable driving and reliable load capacity on urban roads, narrow streets and suburban construction sites. This dual-purpose sanitation truck is widely adopted for municipal pipeline dredging, urban sewage network maintenance, septic tank cleaning, industrial chemical waste suction, community sanitation renovation and flood residue removal, becoming a cost-effective core equipment for urban environmental governance.

Dual Core Working Systems

  1. Vacuum Sewage Suction System

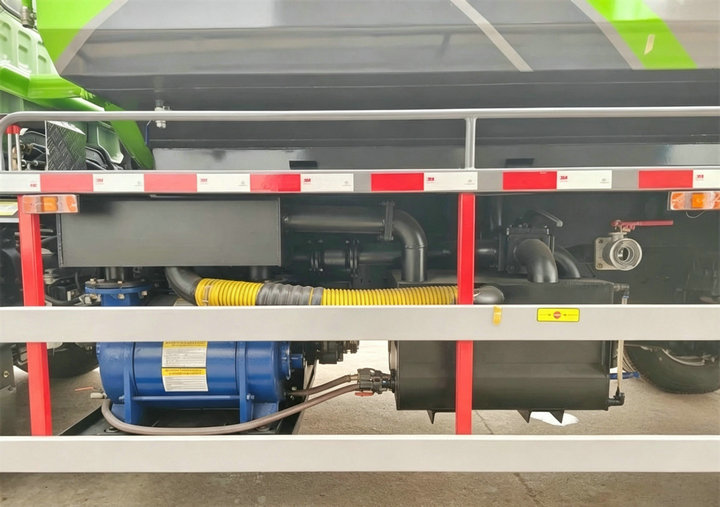

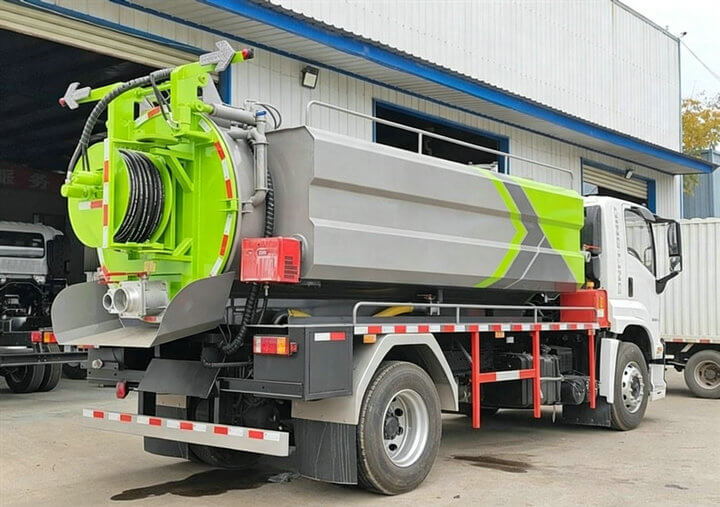

    ISUZU FTR Combined Sewer Jetting and Vacuum Truck 8000L Sewage+4000L Clean Water (5)ISUZU FTR Combined Sewer Jetting and Vacuum Truck 8000L Sewage+4000L Clean Water (8)

Adopts domestic top-tier SK-15 water-circulating vacuum pump, maximum free airflow up to 15m³/min, ultimate vacuum degree hits 93%, supporting suction depth over 6 meters for deep underground sewage, sludge and blockage extraction.
  • Sewage tank volume: 8000L, elliptical structure

  • Tank material: 6mm thick Q235 carbon steel with anti-corrosion passivation treatment, anti-rust and impact resistant for long service life

  • Complete safety configurations: primary & secondary anti-overflow alarm device, positive & negative pressure safety relief valve, liquid level real-time monitoring gauge

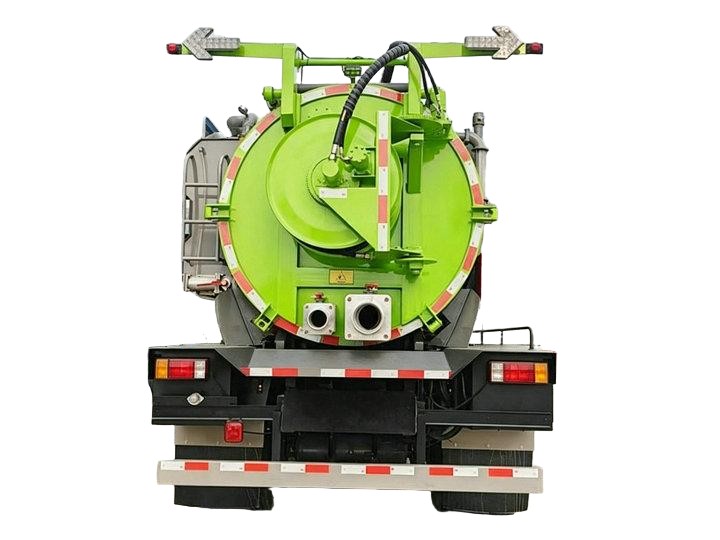

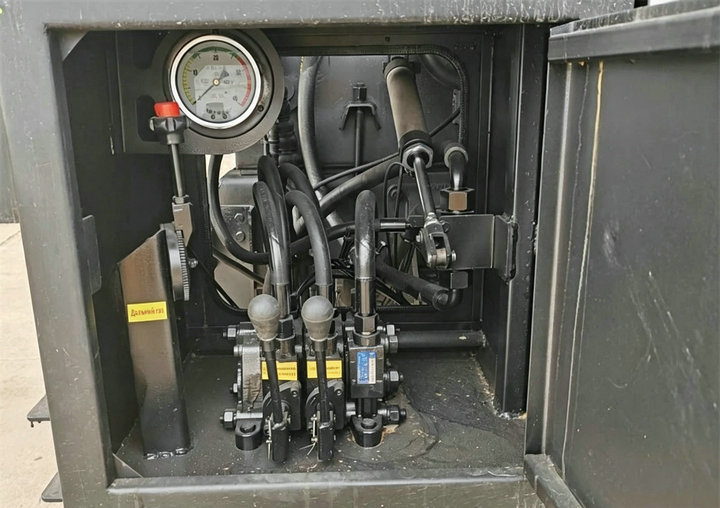

  • Hydraulic tipping tank design: tipping angle over 45°, hydraulic rear swing door for fast sludge unloading without residual waste ISUZU FTR Combined Sewer Jetting and Vacuum Truck 8000L Sewage+4000L Clean Water (9)

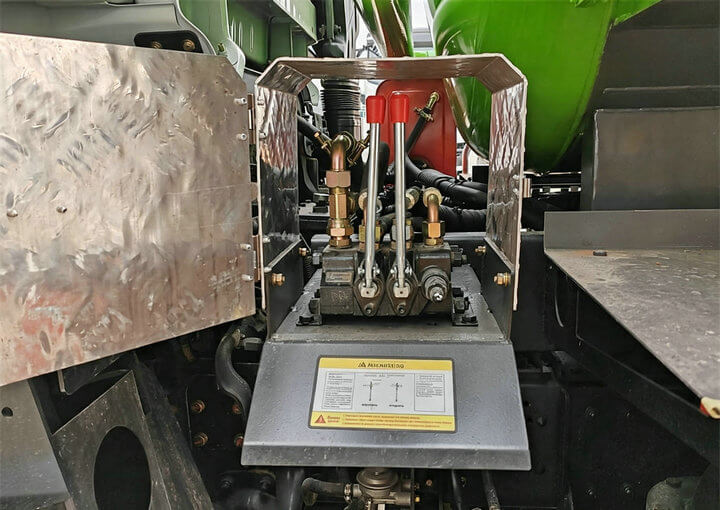

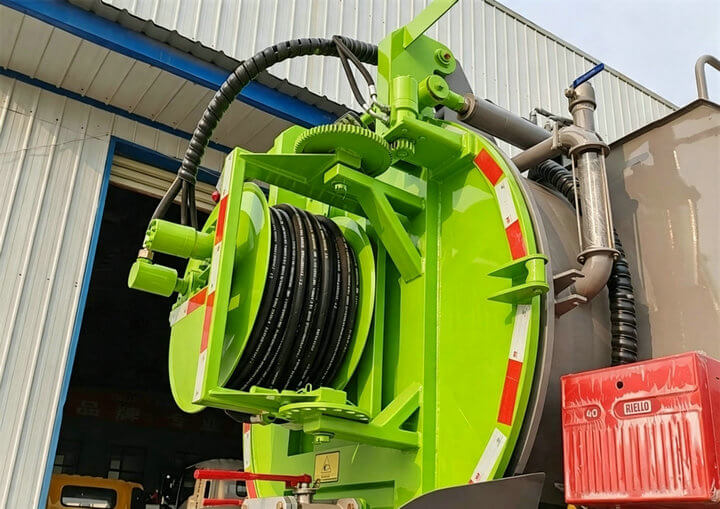

ISUZU FTR Combined Sewer Jetting and Vacuum Truck 8000L Sewage+4000L Clean Water (11)ISUZU FTR Combined Sewer Jetting and Vacuum Truck 8000L Sewage+4000L Clean Water (14)

2. High-Pressure Jet Cleaning System

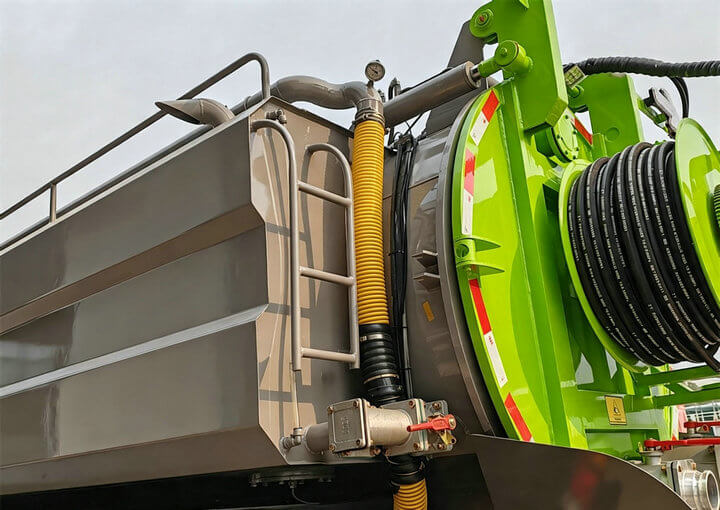

Fitted with imported German PINFL PF36 high-pressure plunger water pump, rated working pressure 16MPa, rated flow 122L/min at 800rpm rotation speed. Powerful high-pressure water jet instantly breaks hard sludge, grease blockages, tree root congestion and sediment inside sewer pipelines.Supporting hydraulic hose reel with adjustable retraction speed 0~30m/min, equipped with steel wire reinforced PVC high-pressure hose – wear-resistant, burst-proof and adaptable to complex underground construction environments.  ISUZU FTR Combined Sewer Jetting and Vacuum Truck 8000L Sewage+4000L Clean Water (6)

Humanized Auxiliary & Chassis Advantages

  • Genuine ISUZU FTR 4×2 LHD chassis, Euro 6 emission standard, meets global environmental access standards

  • 4HK1-TCG60 5.193L diesel engine, 205HP (151kW) maximum output, matched with MLD 6-speed manual transmission; max speed 90km/h, fuel-efficient and durable

  • Standard 2-person passenger cabin, 295/89R22.5 heavy-duty tires; front axle load 6500kg, rear axle load 11500kg with stable passability (20° approach angle / 18° departure angle)

  • All hydraulic operation system, simple control logic, low failure rate and easy daily maintenance

  • Customizable exterior paint color according to client’s municipal corporate standard requirements

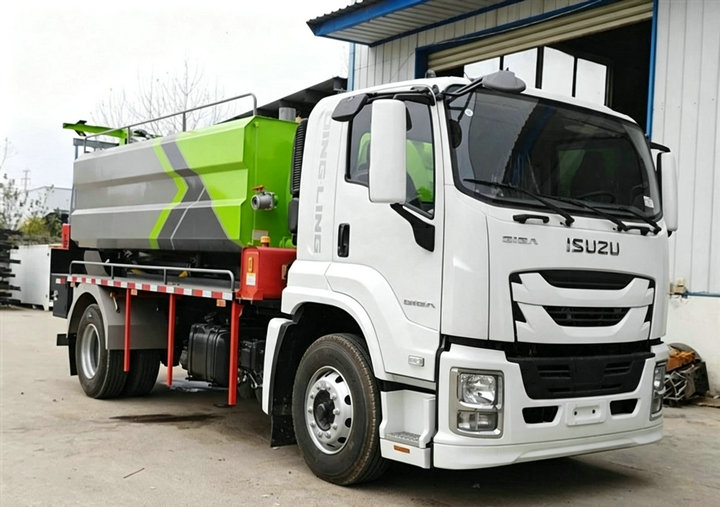

    ISUZU FTR Combined Sewer Jetting and Vacuum Truck 8000L Sewage+4000L Clean Water (4)

Complete Technical Specification

Technical Specifications – ISUZU FTR Combination Jet Vacuum Sewer Truck

Category Item Parameter
Overall Vehicle Parameters Overall Dimension (L×W×H) 9010×2500×3500 mm

Cabin Type ISUZU GIGA 4X-level Wide Cabin

Drive Mode 4×2 Left Hand Drive (LHD)

Seating Capacity 2 persons

Max Driving Speed 90 km/h
Chassis Configuration Chassis Model ISUZU FTR

Wheelbase 4500 mm

Front/Rear Overhang 1160 mm / 1475 mm

Front/Rear Wheel Track 1605 mm / 1520 mm

Approach / Departure Angle 20° / 18°

Tire Size 295/89R22.5

Emission Standard Euro 6

Gearbox MLD 6-speed Manual Transmission

Front Axle Load 6500 kg

Rear Axle Load 11500 kg
Engine System Engine Model 4HK1-TCG60

Rated Horsepower 205 HP (151 kW)

Displacement 5.193 L
Superstructure Tank & Equipment Tank Combination 8000L Sewage Tank + 4000L Clean Water Tank (Total 12000L)

Tank Material & Thickness 6mm Q235 Carbon Steel, Anti-corrosion Treatment

Tank Shape Elliptical Sewage Tank, Square Clean Water Tank
Vacuum Pump Unit Pump Model SK-15 Water Circulation Vacuum Pump

Ultimate Vacuum Degree 93%

Max Air Flow 15 m³/min
High Pressure Water Pump Brand & Model Germany PINFL PF36

Working Pressure 16 MPa

Rated Flow 122 L/min

Rated Rotation Speed 800 rpm
Safety & Functional Accessories Liquid Level Gauge Standard Equipped

Maximum Suction Depth ≥6 m

Anti-overflow Protection Primary + Secondary Dual Anti-overflow Devices

Safety Valve Positive & Negative Pressure Relief Valve

Tank Tipping Angle ≥45°

Rear Discharge Door Hydraulic Opening & Closing
Customizable Item Vehicle Paint Color Customized as Client’s Requirement

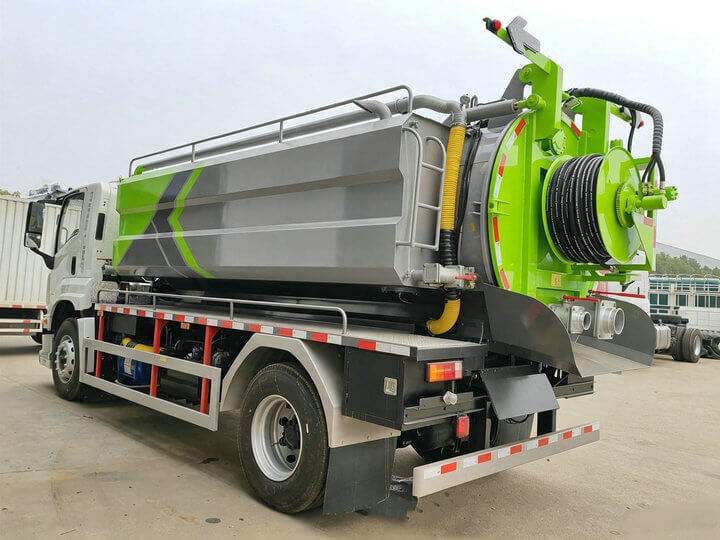

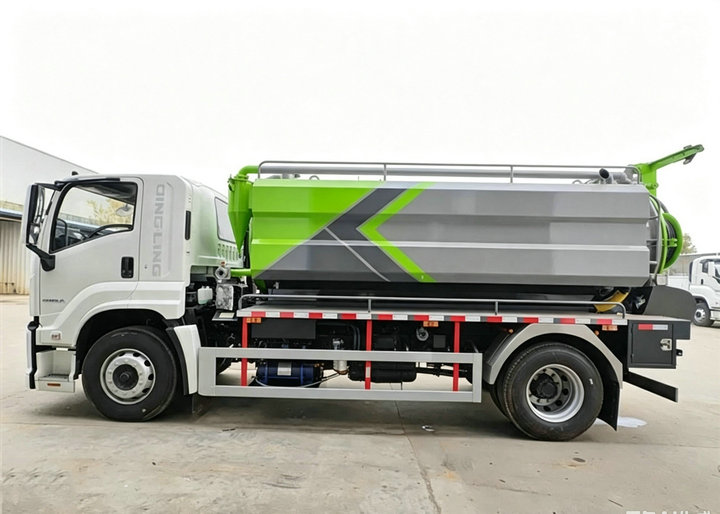

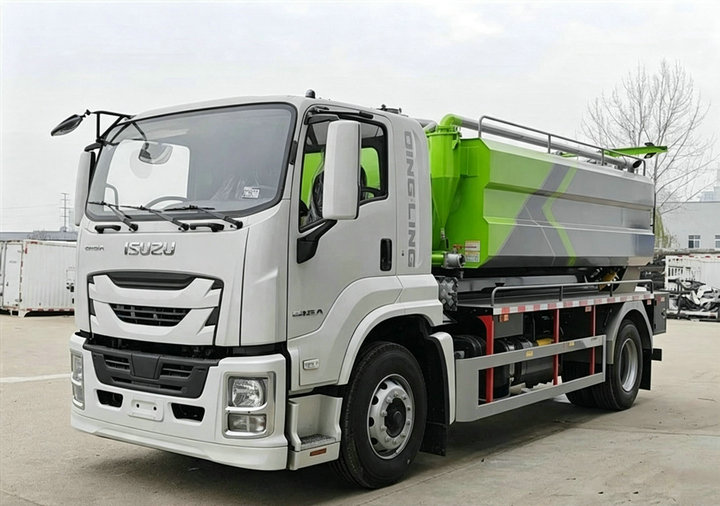

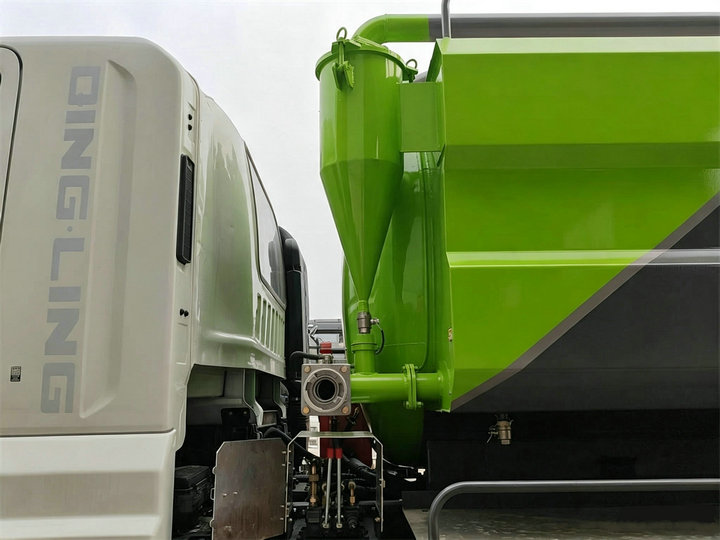

ISUZU FTR Combined Sewer Jetting and Vacuum Truck 8000L Sewage+4000L Clean Water (12)ISUZU FTR Combined Sewer Jetting and Vacuum Truck 8000L Sewage+4000L Clean Water (7)ISUZU FTR Combined Sewer Jetting and Vacuum Truck 8000L Sewage+4000L Clean Water (3)ISUZU FTR Combined Sewer Jetting and Vacuum Truck 8000L Sewage+4000L Clean Water (2)

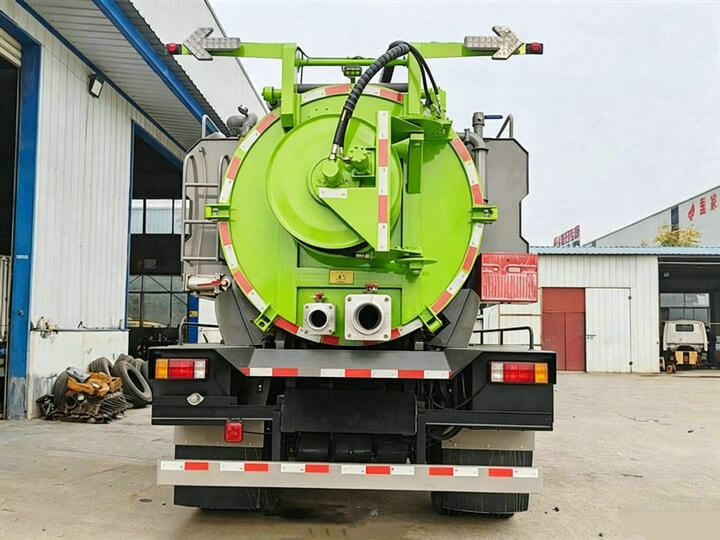

ISUZU FTR Combined Sewer Jetting and Vacuum Truck 8000L Sewage+4000L Clean Water (12)ISUZU FTR Combined Sewer Jetting and Vacuum Truck 8000L Sewage+4000L Clean Water (10)




Hot Tags

isuzu ftr combination sewer truck, isuzu ftr sewer jet vacuum truck, 12000L combination sewer cleaner, isuzu dual tank sewage suction truck, municipal sewer dredging truck

China isuzu ftr combination sewer truck manufacturer, wholesale isuzu sewer jetting vacuum truck, factory price isuzu sanitation sewer cleaner, euro 6 isuzu ftr sewer suction truck

 HOWO combination sewer jetting vacuum truck, 12000L HOWO sewer cleaner, heavy duty sewer jetter truck, industrial sewage suction cleaning truck

Core Selling Points Summary

  1. Genuine ISUZU FTR Euro 6 chassis, stable power, global after-sales support

  2. 2-in-1 design: high-pressure jet cleaning + vacuum sludge suction, one vehicle for multiple working scenarios

  3. German imported PINFL high-pressure pump + SK-15 large flow vacuum pump, outstanding working efficiency

  4. 12000L total dual tank, thick anti-corrosion carbon steel tank body, long service life

  5. Full set safety devices: anti-overflow, pressure relief valve, liquid level meter for safe operation

  6. Hydraulic automatic reel & tipping unloading, labor-saving & easy maintenance

  7. Wide application: municipal engineering, urban sanitation, chemical factory, septic tank cleaning
