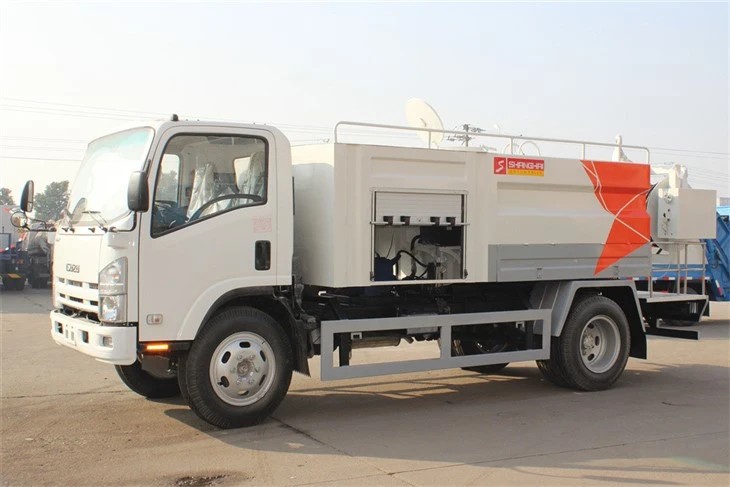

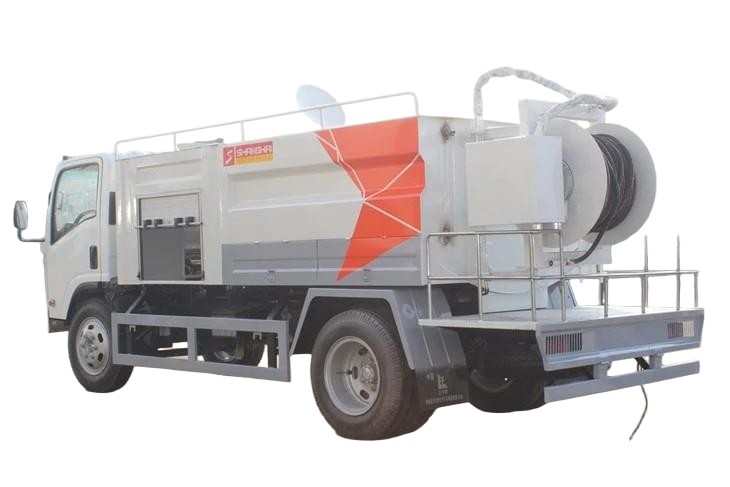

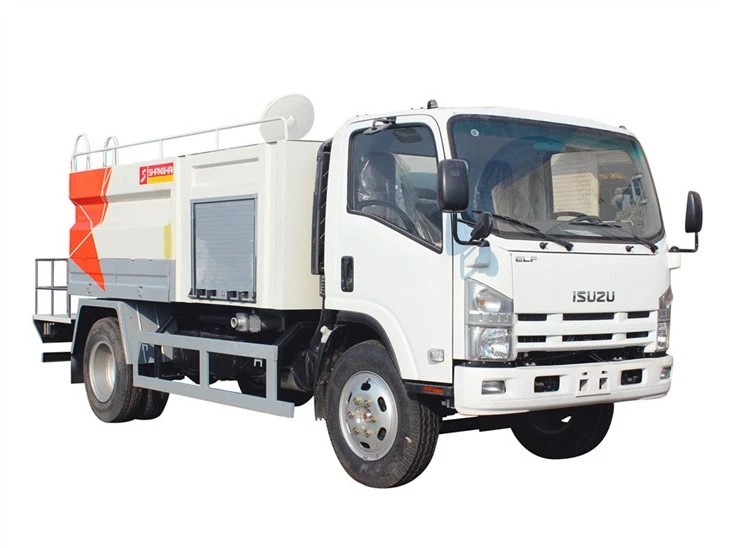

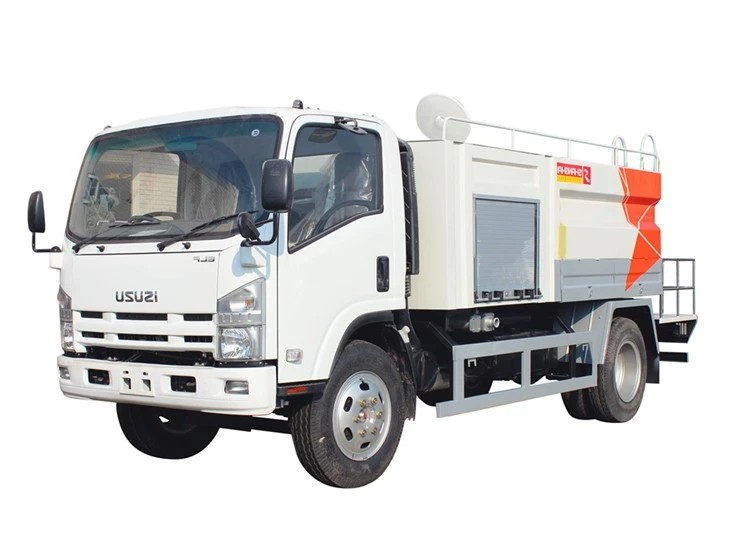

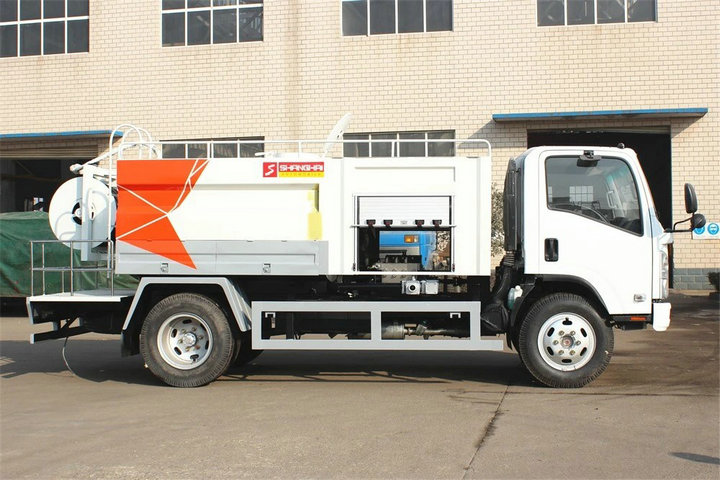

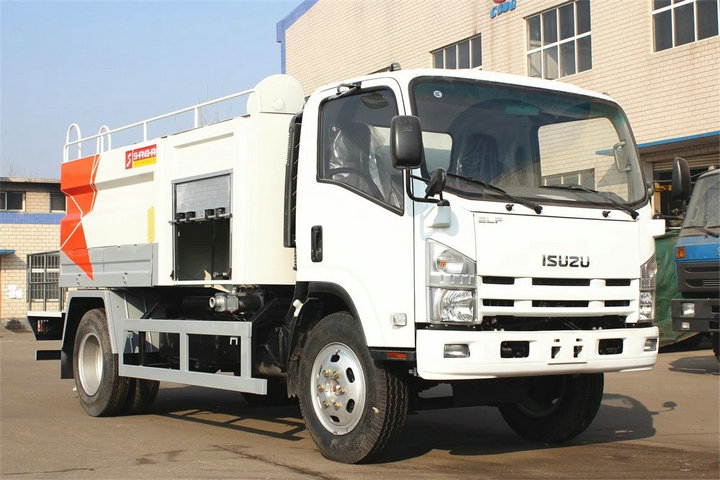

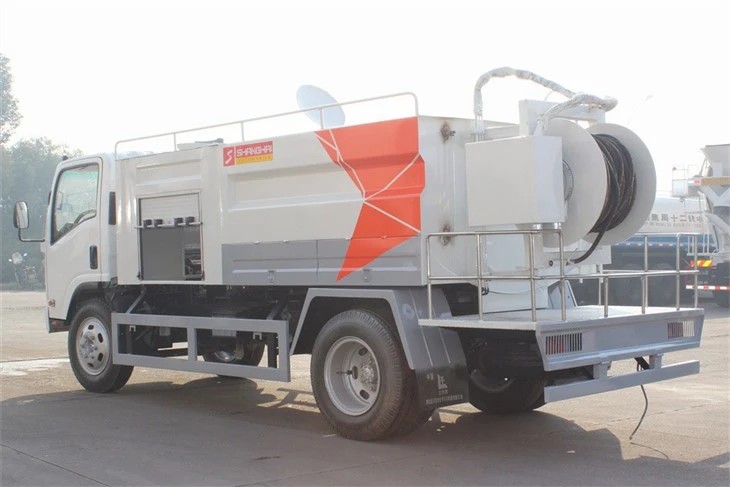

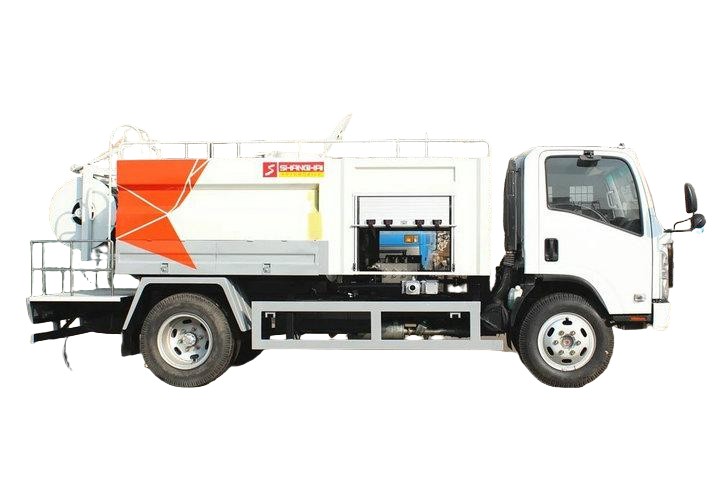

Isuzu Stainless Steel Sewer Jettting Trucks 5T
Isuzu Sewer Jet Truck – 5000L High Pressure Sewage Cleaning Vehicle
Complete Chassis Technical Parameters
Basic Vehicle Dimensions & Weight
| Item | Specification |
|---|---|
| Overall Dimension (L×W×H) | 6500×2470×3000 mm |
| Sewage Vacuum Tank Volume | 5000L / 5 m³ |
| Gross Vehicle Weight | 10500 KG |
| Curb Weight | 5100 KG |
| Rated Payload | 5400 KG |
| Wheelbase | 3815 mm |
| Max Travel Speed | 95 km/h |
| Drive Form | 4×2 Left Hand Drive |
| Tire Spec | 235/75R17.5, 6 main tires + 1 spare tire |
Cabin Configuration
Power Assembly
Engine Brand & Model: Isuzu 4HK1-TC
Rated Horsepower: 190 HP
Engine Type: 6-cylinder turbocharged diesel engine
Displacement: 5193 ml
Emission Standard: Euro 5 / Euro 6 (customizable)
Gearbox: Manual transmission, 6 forward gears + 1 reverse gear
Superstructure Vacuum Tank & Equipment Specs
Tank Body Core Configurations
Tank Material: High-quality Stainless steel, tank wall and head thickness 6mm, cylindrical shape for uniform pressure bearing
Hydraulic Tipping System: Tank lifting angle ≥45°, fully self-discharge sludge & sewage; hydraulic automatic opening/closing rear cover with reliable sealing
Sewage Suction Pipe: 7-meter wear-resistant integrated suction & discharge pipeline
Standard PTO power take-off to drive vacuum pump
Standard auxiliary accessories: Oil-water separator, overflow anti-backflow valve, sewage observation window, manual washing device, discharge ball valve, safety overflow alarm system
Working Performance Indicators
Vertical effective suction depth: ≥7 meters
Pumping flow rate: 68 L/s
Pipeline inlet & outlet diameter: 50 mm
Full tank filling time: ≤5 minutes
Tank sludge emptying time: ≤4 minutes
Product Highlights & Competitive Advantages
Powerful Vacuum Suction System
Optional imported Italy/Spain brand vacuum pumps or domestic high-efficiency dual vacuum pumps, driven by hydraulic motor or independent auxiliary engine, stable high suction power for thick sludge, sand and grease blockages.
Full Safety Protection Design
Equipped with overflow sound alarm horn; automatically cuts off pump operation when tank reaches full capacity, effectively prevents sewage backflow damage to vacuum pump and chassis.
Hydraulic Automatic Operation
Hydraulic control for tank tipping and rear door opening, reduces manual labor, improves working efficiency and avoids sewage leakage during dumping.
Durable Corrosion Resistant Tank
Optional internal anti-rust coating treatment for long-term service under harsh sewage, septic tank and chemical wastewater working conditions.
Compact & Flexible Chassis
Isuzu light-duty 4×2 chassis with small overall size, easy to drive into narrow urban alleys, residential communities and small industrial parks where heavy trucks cannot pass.
ISUZU vacuum sewage truck specifications Vehicle ISUZU vacuum sewage truck Overall dimension (mm) 6500×2470×3000 Sewage tank (m3) 5m3 / 5000L Gross vehicle weight (kg) Appro×10500 Curb weight (kg) Appro×5100 Payload (kg) Appro×5400 Chassis brand ISUZU brand Wheel base (mm) 3815 Max speed (km/h) 95 Chassis Parameters Cabin Flat top roof cabin, single row, power steering, with air conditioner, 3 passengers,left hand drive, tilting cabin Drive form 4×2 Engine Brand: ISUZU Model: 4HK1-TC51, 190hp Type: diesel, turbocharged, 6 cylinders. Displacement: 5193ml Emission standard: Euro 4, euro 5 Transmission 6 forward,1 reverse, manual operated Tire model 235/75R17.5 No.of tires 6pcs, with 1pc spare tire Superstructure Parameters Characteristic 1. Sewage tank volume 5000 liters. 2. Sewage tank material is high quality carbon steel, wall & head thickness 6mm. 3. Sewage suction pipe 1pcs, length 7m. Suction and discharge pipe. 4. Hydraulic lifting sewage tank,rear cover can open. 5. Equipped with PTO. 6. Equipped with vacuum pump. 7. Equipped with oil water separator, overflow valve, Inspect window, looking sewage window, discharge valve, self flow exit, discharge valve, hand washing device, etc. 8. Sewage tank shape: Cylindricle Performance (1) Vertical suction ≥ 7m. (2) Pumping speed : 68L/s. (3) Intake and exhaust diameter: 50mm. (4) Full tank pumping time ≤ 5min. (5) Sewage tank emptying time ≤ 4min. (6) Sewage tank emptying time ≤ 4min. Features (6) Cylinder vacuum tank can be lifted hydraulically to ≥ 45 degree. Rear door can be opened and closed hydraulically. Optional configuration Optional configuration Vacuum pump : Italy or Spain vacuum pumps. Anti-rust coating inside tank
Working Principle of Sewer Jet Vacuum Trucks
High-pressure jet system: Pressurized water blasts sludge, tree roots, grease and solid debris stuck inside sewer pipelines, breaking down stubborn blockages thoroughly.
Vacuum suction system: Creates strong negative pressure inside the cylindrical tank to suck all diluted sewage, sludge and waste residues into the storage tank.
After on-site cleaning is finished, the hydraulic tank tilts up over 45 degrees to discharge all waste at designated waste treatment stations.
Wide Application Scenarios
Municipal urban sewer pipeline dredging & routine maintenance
Septic tank cleaning, biogas digester sludge extraction
Residential community drainage ditch & rainwater culvert unclogging
Factory park industrial wastewater & sediment collection
Road drainage well, underground sewage manhole cleaning
Environmental sanitation service & municipal sanitation department daily operations
Customization Options
Vacuum pump upgrade: Imported Italy/Spain brand vacuum pump
Tank internal anti-corrosion anti-rust coating
Right-hand drive chassis for overseas markets
Custom body painting color (orange, blue, white, green etc.)
Extra auxiliary high-pressure jet washing system
Sound & light overflow warning upgrade
