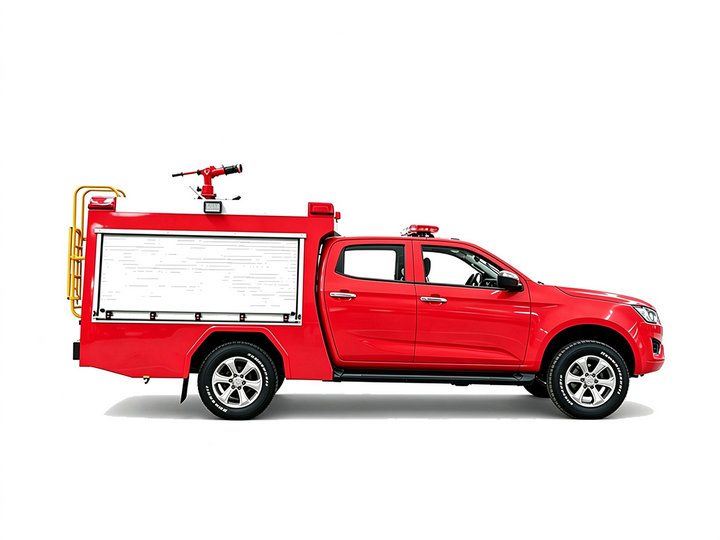

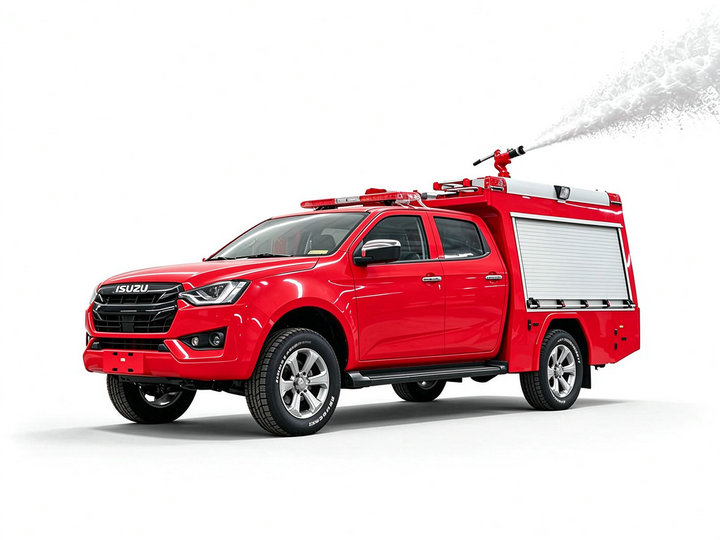

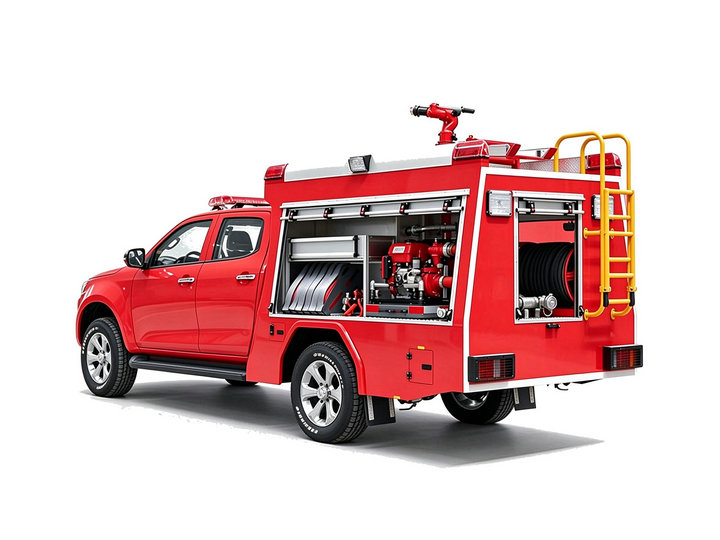

ISUZU AWD 4x4 Drive Emergency Fire Pickup Attack Fire Truck 600L Water + 200L Foam
600L Water + 200L Foam
143 HP (105 kW) / 4KH1CT6H1
Fire Pump: JBQ 5.5/10
Fire Monitor: PL8/24
Monitor Flow: 24L/s
Monitor Range: Water ≥42 m, Foam ≥55 m
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
| Quantity: | |
|---|---|
|
| |
-
DRZ5050XFQL
-
DRZ
-
8705309000
ISUZU 4x2 Compact Urban Rapid (Fast Quick) Attack Fire Truck
4000L Water + 1000L Foam
| Truck Chassis: | ISUZU 4x4 AWD pickup |
| Tanker Capacity: | 600L water + 200L foam (800L total) |
| Engine Power: | 143 HP (105 kw) / 4KH1CT6H1 |
| Fire Pump: | JBQ 5.5/10 |
| Pump Flow: | 10 L/s |
| Work Pressure: | 0.55 MPa |
| Fire Monitor: | PL8/24 |
| Monitor Flow: | 24 L/s |
| Monitor Range: | Water ≥42 m, Foam ≥55 m |

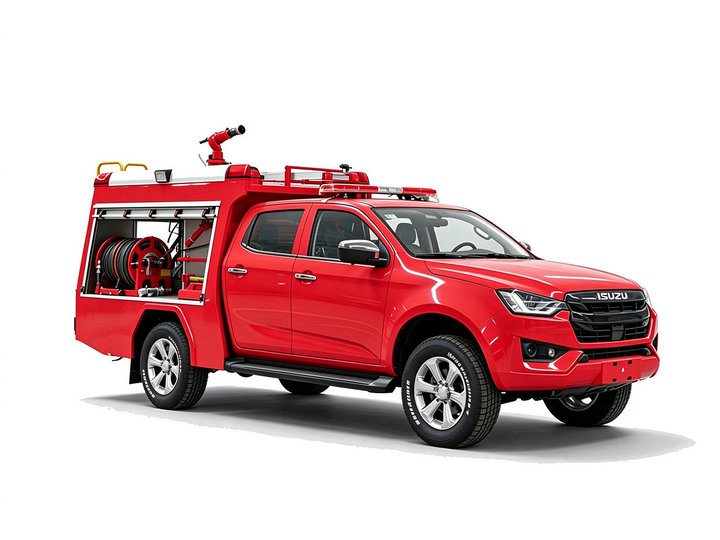

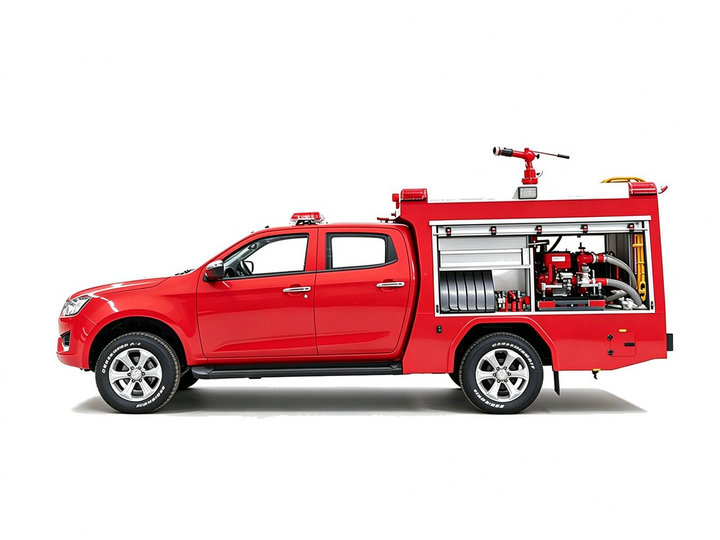

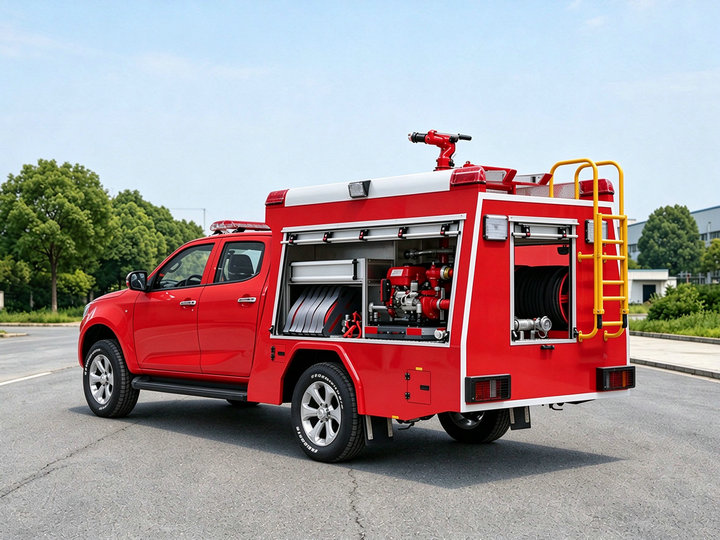

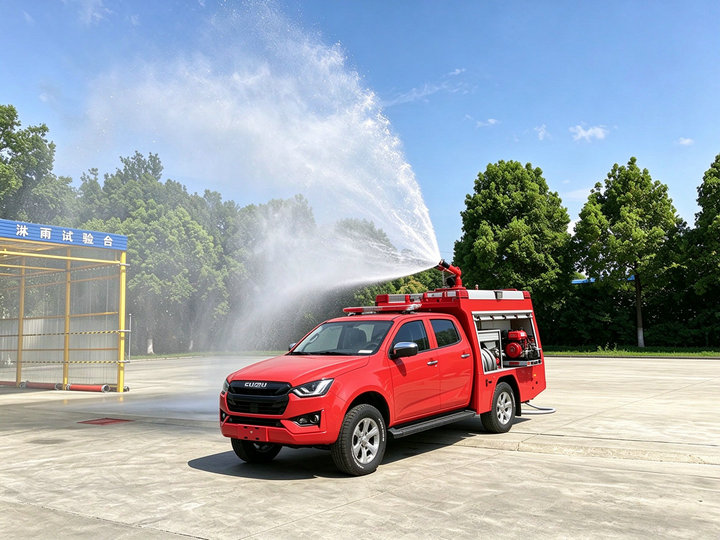

ISUZU 4×4 fire pickup is built around a 143 HP 4KH1CT6H1 diesel engine and a lightweight 4×4 chassis that fits narrow trails and unpaved roads with ease. This compact 4×4 fire rescue vehicle carries 800L total—600L water and 200L foam. A JBQ 5.5/10 pump moves 10 L/s at 0.55 MPa, and the PL8/24 monitor on the roof throws water up to 42m and foam up to 55m. This ISUZU 4x4 drive foam fire truck comes with standard gear: hoses, suction line, couplings, foam gun, and tool kit. Compact size and 4×4 capability make it a solid option for rural fire response, forest patrols, and quick industrial intervention where larger trucks can't reach.
Working Capacity | Engine Model | Wheelbase | Superstructure |
600L water + 200L foam | 143 HP / 4KH1CT6H1 | 3025 mm | ★ Tank carbon steel, 800L capacity ★ JBQ 5.5/10 fire pump, 10 L/s flow at 0.55 MPa ★ PL8/24 roof monitor, 24 L/s flow; water ≥42 m, foam ≥55 m ★ 2+3 crew cab with heating/cooling A/C |
» Ⅰ.Main Features :
❶ 143 HP 4KH1CT6H1 diesel engine delivers ample low-end torque, enabling the 4×4 fire pickup to negotiate steep gradients and sustain stable pump operation during fireground deployment.
❷ 4×4 ISUZU fire rescue pickup is equipped with a 600L water tank and a 200L foam tank, paired with a JBQ 5.5/10 pump rated at 10 L/s and 0.55 MPa for rapid initial fire attack.

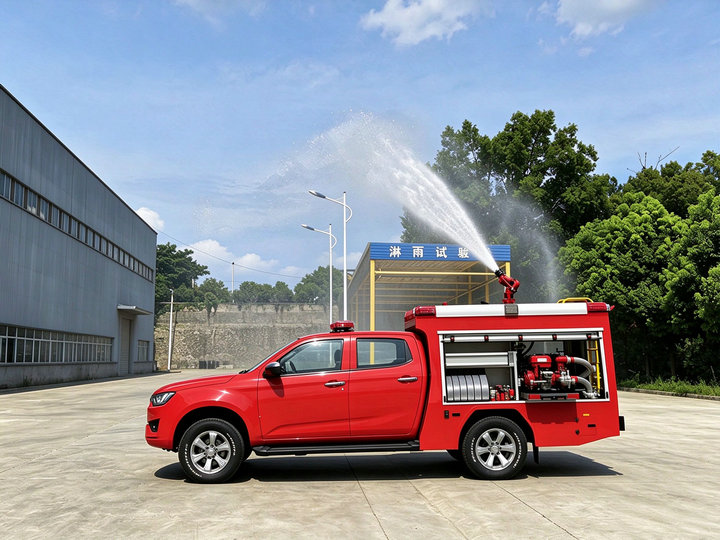

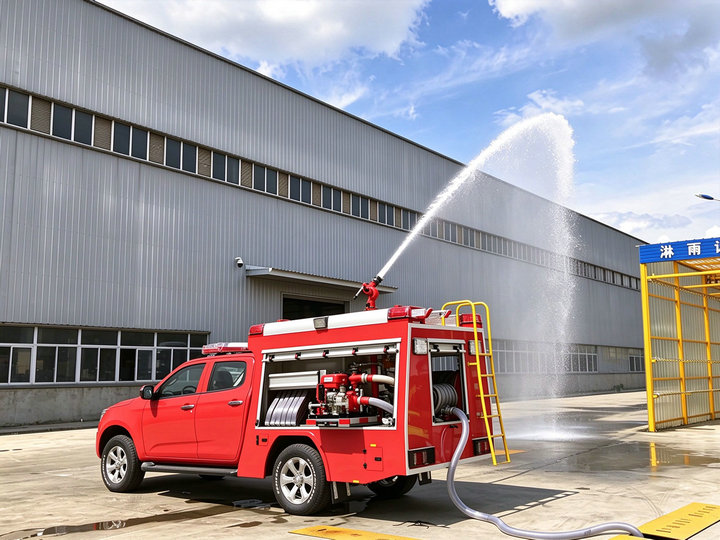

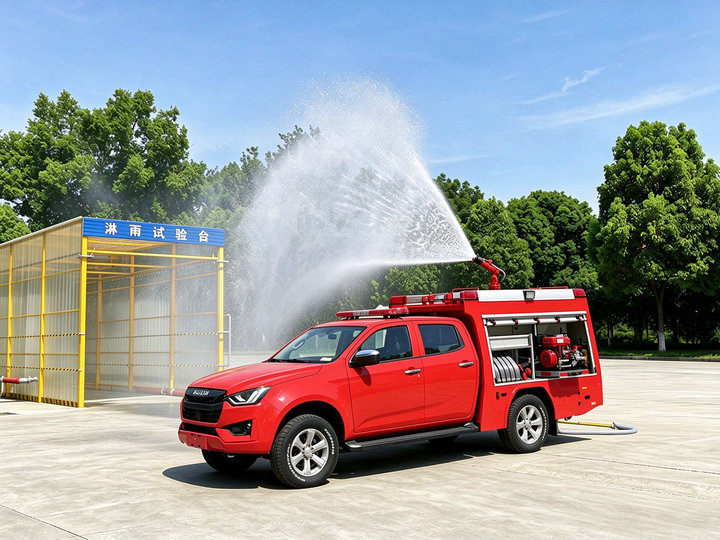

❸ PL8/24 monitor provides a water range of 42m and a foam range of 55m, allowing crews to engage fires from a safe distance while the 4×4 chassis maintains stability on uneven or soft ground.
❹ With a 3025 mm wheelbase and 265/60R18 tires, this compact 4×4 fire apparatus navigates narrow trails, tight corners, and challenging terrain that conventional fire trucks cannot access.

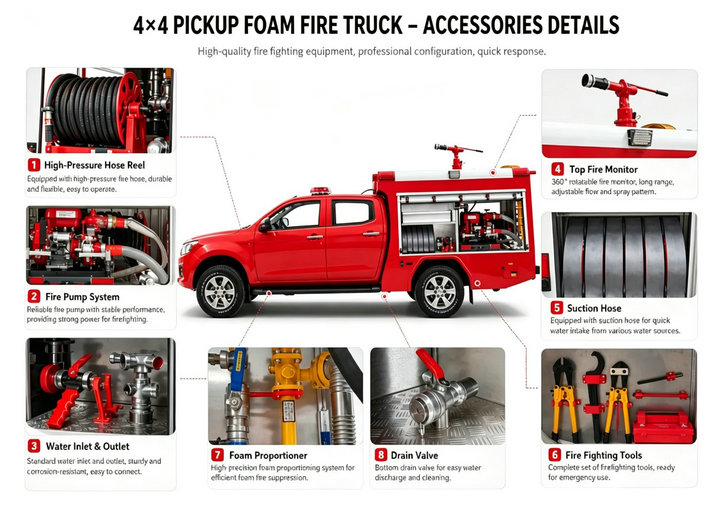

❺ Standard equipment includes hoses, suction line, couplings, foam gun, and tool kit, ready for immediate deployment. Its compact dimensions and genuine 4×4 capability make it a practical solution for rural fire services, forestry operations, and industrial sites with restricted access.
» Ⅱ.Product Parameter :
ISUZU 4x4 Drive Emergency Fire Pick Up | |||
General | Work capacity | 600L water+ 200L foam | |
Truck chassis | ISUZU AWD 4x4 | ||
Engine Power | 143 HP/ 4KH1CT6H1 | ||
Fire pump | JBQ 5.5/10 | ||
Fire Monitor | PL8/24 | ||
Maximum Speed | 105 km/h | ||

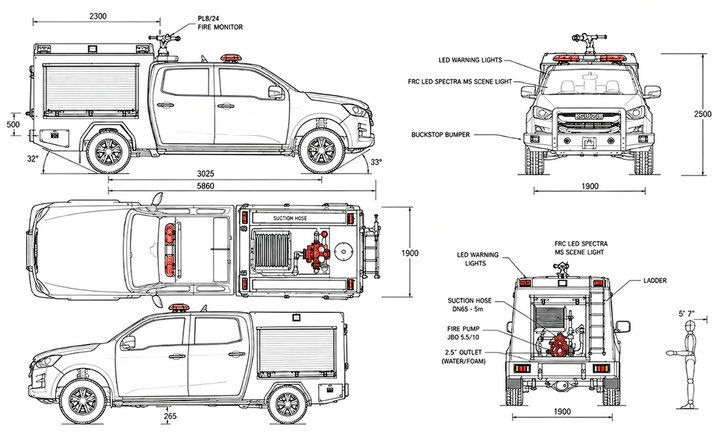

Overall Dimensions L*W*H | 5860x1900x2500 mm | ||
Gross Vehicle Weight | 3460 kg | ||
Curb Weight | 2000 kg | ||
Engine | Engine Model | 4KH1CT6H1 | |
Fuel Type | Diesel | ||
Power | 143 HP（105KW） | ||
Emission Standard | Euro 6 | ||
Displacement | 2999 ml | ||
Engine Type | 4 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
Chassis | Drive Type | 4x4 | |
Transmission | 5-shift speed levers with 1 reverse | ||
Wheelbase | 3025 mm | ||
Tire | 265/60R18 | ||
Tire No. | 6 tires and 1 spare tire | ||
Cabin | Cab Capacity | 2+3 persons allowed | |
Air Conditioner | Heating/cooling air conditioner | ||
Fire Pump | Model | JBQ 5.5/10 | |
Flux | 10L/s | ||
Pressure | 0.55MPa | ||
Max working pressure | 0.75MPa | ||
Max suction height | 7m | ||
Rated speed | 3600±50r/min | ||

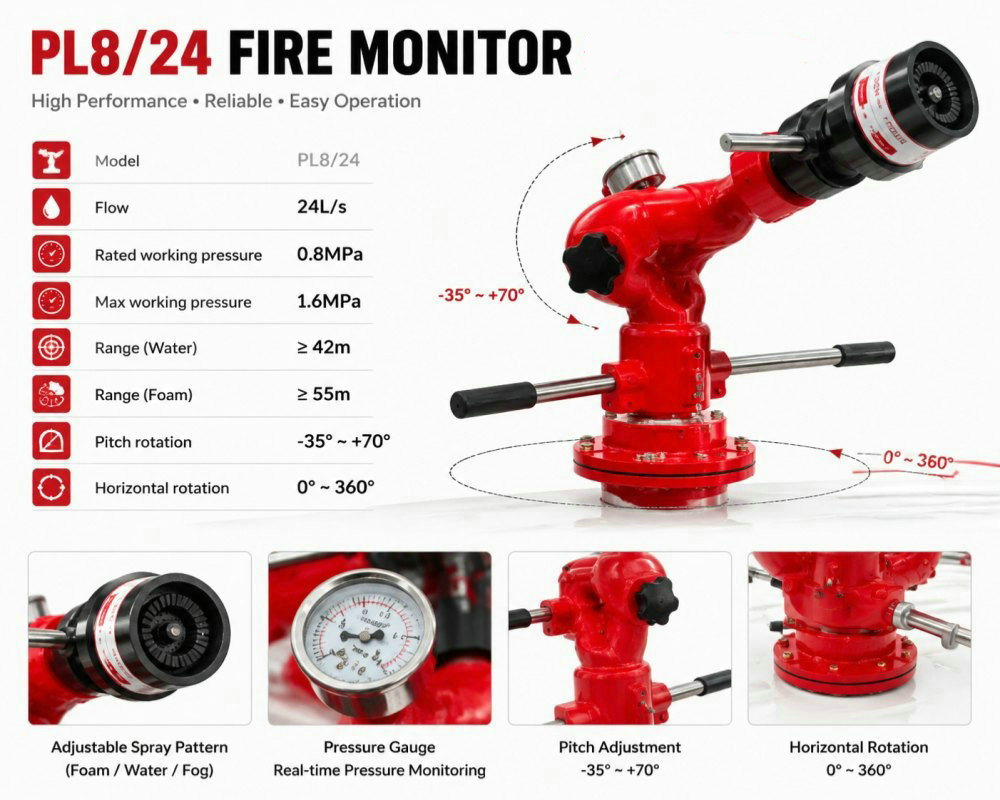

Fire Monitor | Model | PL8/24 | |
Flow | 24L/s | ||
Rated working pressure | 0.8MPa | ||
Max working pressure | 1.6MPa | ||
Range | Water | ≥42m | |
Foam | ≥55m | ||
Pitch rotation | - 35～+70° | ||
Horizontal rotation | 0～360° | ||
Standard Configuration | All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual…… | ||
» Ⅲ.Products Description :
1. Chassis & Powertrain
♦ Chassis: ISUZU 4×4 pickup frame, 3025 mm wheelbase, optimized for tight maneuvering and soft-ground mobility
♦ Engine: 4KH1CT6H1 turbo diesel, 143 HP (105 kW), good low-end torque for off-road response and pump drive
♦ Transmission: 5-speed manual with 1 reverse, simple and reliable for field operations
2. Fire Suppression System
♦ Tank: 600L water + 200L foam (800L total), carbon steel, baffled for stable handling on uneven trails
♦ Pump: JBQ 5.5/10, 10 L/s at 0.55 MPa, PTO-driven, 7m suction lift, quick priming for immediate use
♦ Fire Monitor: PL8/24, 24 L/s flow, water ≥42m, foam ≥55m, 360° horizontal rotation, -35° to +70° pitch
» Ⅳ .Foam Fire Truck Working Principle :
• Suction Intake
Equipped with a DN50 suction port for drawing water from open sources such as ponds, streams, or hydrants when municipal supply is not available.
• Fill Connection
External water inlet allows connection to a standard hydrant or auxiliary pump for quick tank refill in urban environments.
• Discharge Ports
DN65 outlets on both sides of the vehicle support multiple hose connections, adapting to various pressure and flow demands for efficient fire suppression.
• Foam Circuit
Independent closed-loop foam proportioning system manages concentrate suction, mixing, and discharge automatically. Switches between water and foam modes while maintaining a consistent mix ratio for Class B fires.
» Ⅴ.Fire Pump System :
Fire Pump:

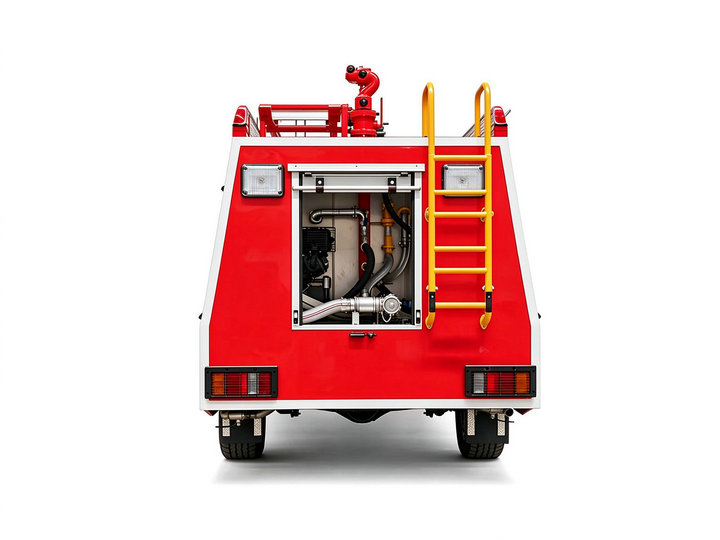

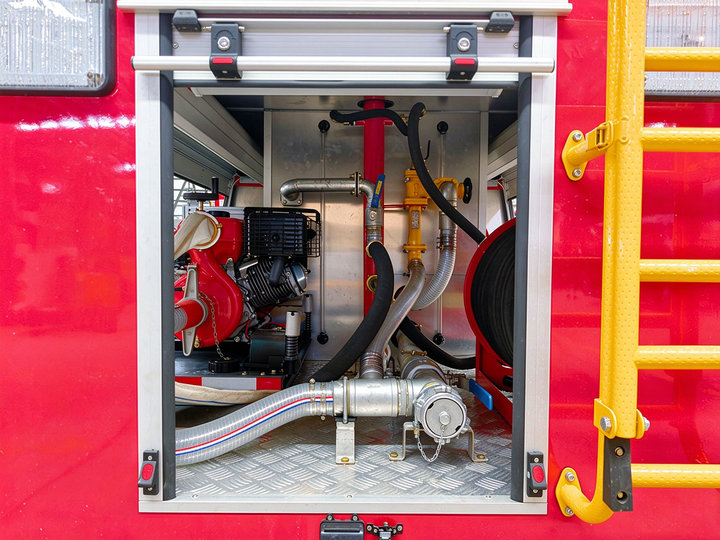

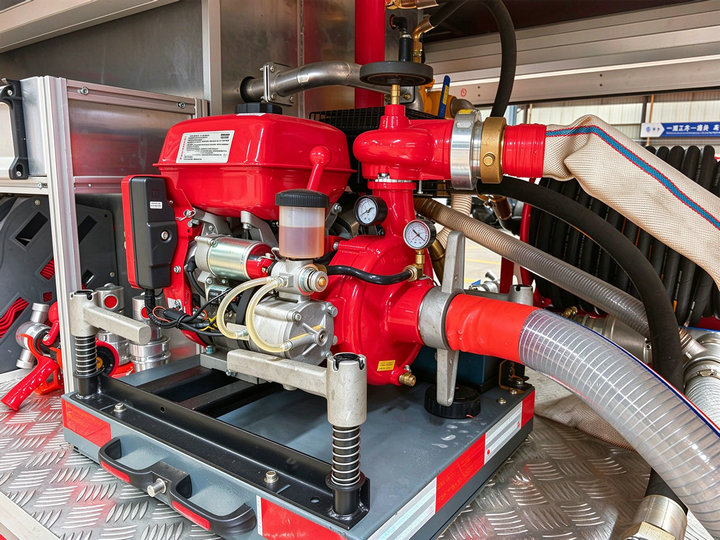

A JBQ 5.5/10 fire pump rated at 10 L/s and 0.55 MPa is mounted in the rear equipment bay. This compact pump delivers consistent flow and pressure, supporting both hose lines and the roof monitor for effective water or foam application during fire attack.
Full specs are listed below：
NO | Item | Unit |
1 | Water Suction Pipe (Suction hose Ø 125 mm, length: 4 m) | 2 PC |
2 | Water strainer (Ø 125) | 1 PC |
3 | Water segregator (Ø 80-65-65 mm) | 1 PC |
4 | Water collector (Ø 125-65-65 mm) | 1 PC |
5 | Soft-wall fire hose (Water hose Ø 65 mm, length: 20 m) | 6 SET |
6 | Soft-wall fire hose (Water hose Ø 80 mm, length: 20 m) | 4 SET |
7 | Fast conversion joint (80X65 mm) | 2 PC |
8 | Hose protector | 4 PC |
9 | Hose Hoist | 4 PC |
10 | Ground Hydrant-wrench | 1 PC |
11 | Underground Hydrant-wrench | 1 PC |
12 | Suction Wrench | 2 PC |
13 | Dry Powder Extinguisher | 1 PC |
14 | Fire Fighting Barrel | 1 PC |
15 | Straight flow switch water gun (Ø 65 mm) | 1 PC |
16 | Multi-purpose switch water gun | 1 PC |
17 | Fire Fighting Axe | 1 PC |
18 | Fire Fighting Shovel/Spade | 1 PC |
19 | Fire Axe | 1 PC |
20 | 4M Aluminum Ladder (Optional 10M Aluminum Ladder) | 1 PC |
21 | Original Chassis Tools | 1 PC |
22 | Protective (safety) spectacles | 1 PC |
Isuzu firefighting trucks list
Model | Engine model | Water | Foam | Fire Pump | Fire Monitor |
Isuzu Pick Up | 4KH1CT6H1 / 143HP | 500L | 100L | Independent Fire Pump | PL8/20W |
Isuzu mini ELF / NKR / 100P | 4KH1CN6LB / 120HP 4KB1-TCG61 / 130HP | 1000L 2000L | 1000L 500L | CB10/20 (20L/s) CB10/30 (30L/s) | PL8/24W (24L/S) |
Isuzu NPR / ELF | 4KH1N6MD / 140 HP 4KH1N6HD / 150HP | 2000L | 1000L |
CB10/30 (30L/s) | PL8/24W (24L/S) |
Isuzu ELF / 700P | 4HK1-TCG61 / 190HP 4HK1-TCG60 / 205HP | 3000L 4000L | 1500L 500L | CB10/30 (30L/s) CB10/40 (40L/s) | PL8/24W (24L/S) PL8/32W (32L/S) |
Isuzu GIGA 4X | 4HK1-TCG60 / 205HP | 5000L | 1000L | CB10/40 (40L/s) | PL8/32W (32L/S) |
Isuzu GIGA 5X | 6HK1-TCG61 / 240HP 6HK1-TCG60 / 300HP | 5000L 6500L | 1000L 500L | CB10/40 (40L/s) CB10/60 (60L/s) | PL8/32W (32L/S) PL8/48W (48L/S) |

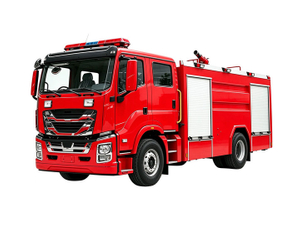

Isuzu GIGA (4x2) | 6UZ1-TCG61 / 350HP 6UZ1-TCG60 / 380HP 6WG1-TCG61 / 460HP | 5000L 5000L 6000L | 1000L 2000L 2000L | CB10/60 (60L/s) CB10/80 (80L/s) CB10/100 (100L/s) | PL8/48W (48L/S) PL8/64W (64L/S) PL8/80W (80L/S) |
Isuzu GIGA (6x4) | 6UZ1-TCG61 / 350HP 6UZ1-TCG60 / 380HP 6WG1-TCG60 / 420HP 6WG1-TCG61 / 460HP 6WG1-TCG62 / 520HP | 9000L 10000L 12000L | 1000L 2000L 2000L | CB10/60 (60L/s) CB10/80 (80L/s) CB10/100 (100L/s) | PL8/48W (48L/S) PL8/64W (64L/S) PL8/80W (80L/S) |
Isuzu GIGA (8x4) | 6WG1-TCG60 / 420HP 6WG1-TCG61 / 460HP 6WG1-TCG62 / 520HP | 10000L 12000L 14000L | 4000L 4000L 2000L | CB10/60 (60L/s) CB10/80 (80L/s) CB10/100 (100L/s) | PL8/48W (48L/S) PL8/64W (64L/S) PL8/80W (80L/S) |
