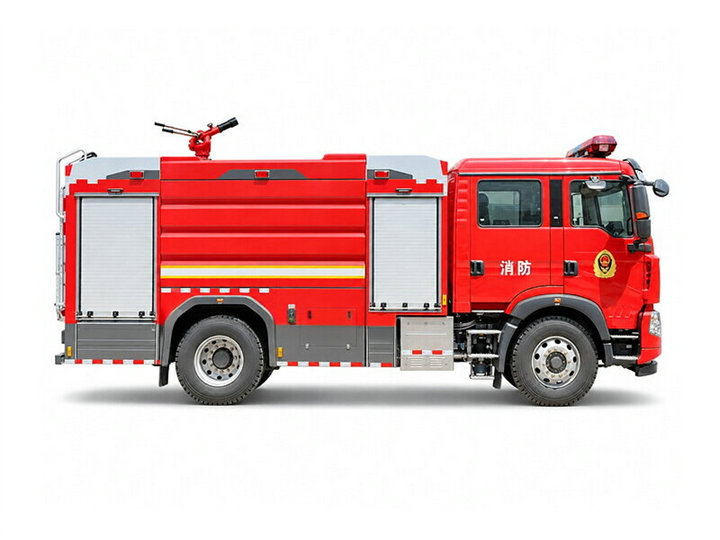

HOWO Rescue Fire Pumper Trucks 8000L Water
| Truck Chassis: | SINOTRUK HOWO 4x2 |
| Tanker Capacity: | 8000L water |
| Engine Power: | 350 HP (254 kw) / MC07H.35-60 |
| Fire Pump: | CB10/80 |
| Pump Flow: | 80 L/s |
| Work Pressure: | 1.0 MPa |
| Fire Monitor: | PS80 |
| Monitor Flow: | 80 L/s |
| Monitor Range: | Water ≥70 m |

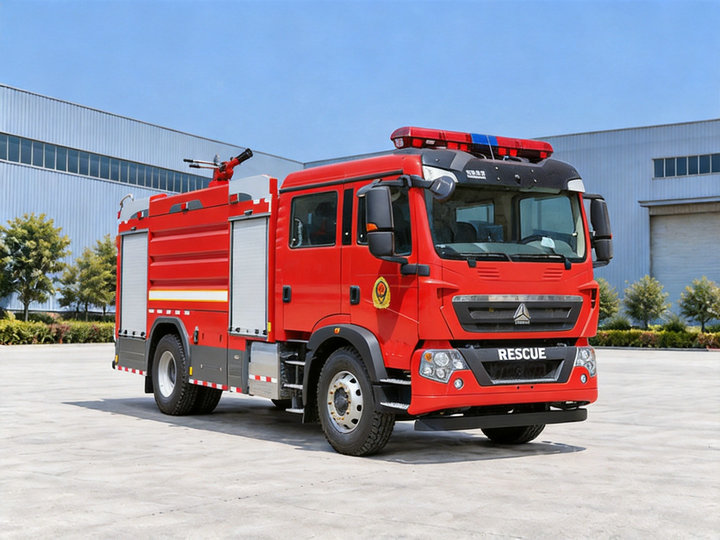

SINOTRUK HOWO rescue pumper truck is designed for fire suppression and emergency water delivery.
HOO 350HP 4x2 water fire truck comes with an 8000L water tank, a CB10/80 fire pump rated at 80 L/s and 1.0 MPa, and a roof-mounted PS80 monitor reaching 70 meters with water.

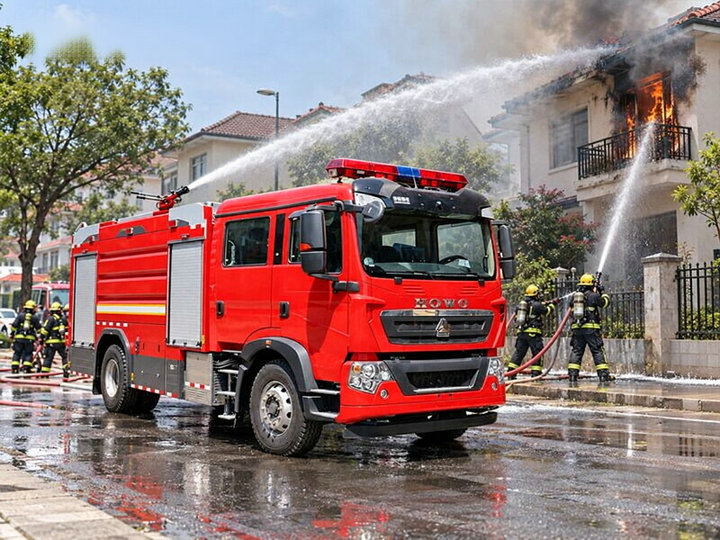

The vehicle is supplied with a complete set of standard firefighting accessories, including hoses, suction tubes, couplings, and a water gun. It performs effectively on Class A fires involving wood, paper, and textiles. It is suitable for firefighting operations at industrial facilities, warehouses, residential areas, and airports.
Working Capacity | Engine Model | Wheelbase | SINOTRUK HOWO 8 CBM Water Pumper Fire Truck Superstructure |
8000L water | 350 HP / MC07H.35-60 | 4600 mm | ★ CB10/80 fire pump, 80 L/s flow at 1.0 MPa ★ PS80 roof monitor, 80 L/s flow with water ≥70 m ★ Full set of national standard firefighting equipment |
» Ⅰ.Main Features :
✦ MC07H.35-60 engine rated at 350 HP for water fire suppression and emergency response
✦ SINOTRUK HOWO 4×2 chassis with 8000L water tank and CB10/80 fire pump (80 L/s at 1.0 MPa)
✦ Roof mounted PS80 monitor with 80 L/s flow and water range ≥70 m for long distance fire attack
✦ 23000 kg GVW with 1400 N.m maximum torque for stable and powerful operation
✦ Full firefighting equipment including hoses, nozzles, water gun, and basic tool kit for Class A fire fighting
» Ⅱ.Product Parameter :
Togo HOWO Rescue Pumper Fire Trucks | |||
General | Work capacity | 8000L water tank | |
Truck chassis | SINOTRUK HOWO 4×2 | ||
Engine Power | 350 HP / MC07H.35-60 | ||
Fire pump | CB10/80 | ||
Fire Monitor | PS80 | ||
Maximum Speed | 100 km/h | ||

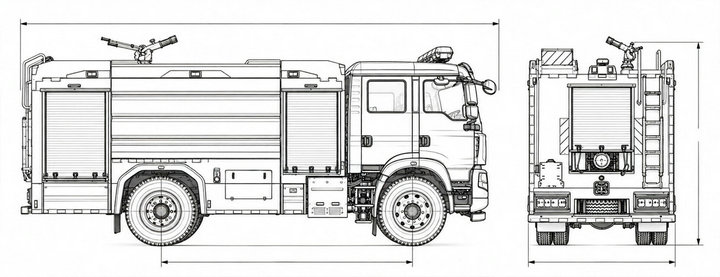

Overall Dimensions L*W*H | 8405×2500×3540 mm | ||
Gross Vehicle Weight | 23000 kg | ||
Curb Weight | 10800 kg | ||
Engine | Engine Model | MC07H.35-60 | |
Fuel Type | Diesel | ||
Power | 350 HP (254 kW) | ||
Emission Standard | Euro 6 | ||
Displacement | 7360 ml | ||
Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
Maximum Torque | 1400 N.m | ||
Chassis | Drive Type | 4x2 | |
Wheelbase | 4600 mm | ||
Tire | 12.00R20 | ||
Tire No. | 6 tires and 1 spare tire | ||
Transmission | HW19710, 10 forward, 2 reverse | ||
RHD or LHD | Optional | ||
Cabin | SINOTRUK newly cab, double row, new type seat, adjustable steering wheel, EURO new type heating & ventilating system, German VDO instruments, safety belts, exterior sun visor, stereo radio/cassette recorder, air conditioner | ||
Fire Pump | Model | CB10/80 | |
Flux | 80 L/s | ||
Pressure | 1MPa | ||
Max working pressure | 1.3 MPa | ||
Max suction height | 7m | ||
Rated speed | 2575±50 r/min | ||
Fire Monitor | Model | PS80 | |
Flow | 80 L/s | ||
Range | Water | ≥70m | |
Pitch rotation | - 35～+70° | ||
Horizontal rotation | 0～360° | ||
Standard Configuration | National standard equipment box, full units national standard fire-fighting equipment, fire pump, fire gun, fire power take off, sliding gate, row type lights, reel, common tools, rear climbing ladder, water tank | ||
» Ⅲ.Products Description :
1. Chassis & Powertrain
♦ SINOTRUK HOWO 4×2 chassis with 4600 mm wheelbase, engineered for stable handling on municipal streets, industrial facilities, and emergency access roads.
♦ MC07H.35-60 diesel engine, rated at 350 HP, producing dependable torque for rapid deployment, continuous pump operation, and extended water firefighting missions.
♦ Manual transmission for simple operation and convenient servicing.
2. Fire Suppression System
♦ 8000L water tank, carbon steel construction with internal baffles to minimize liquid movement during transport.
♦ CB10/80 fire pump, 80 L/s flow at 1.0 MPa, PTO driven, 7m suction height, ≤50s priming time.
♦ PS80 roof monitor, 80 L/s flow, water range ≥70 m, horizontal 360° rotation, pitch -35° to +70°.
» Ⅳ.Fire Pump System :
Fire Pump:
A CB10/80 fire pump with a rated flow of 80 L/s at 1.0 MPa is installed in the rear pump room. This pump is designed for dependable operation, delivering consistent water pressure to support fire hoses and the roof monitor in reaching long-distance targets during firefighting operations.
Fire Pump Model | Flow | Pressure | Max Working Pressure | Max Allowable Inlet Pressure |
CB10/80 | 80 L/s | 1.0MPa | 1.251 MPa | 0.4MPa |
» Ⅴ.Fire Monitor System :
The PS80 fire monitor is mounted on the cab roof. It delivers a flow rate of 80 L/s with a water range of ≥70 m. The monitor supports both straight stream and spray patterns for flexible firefighting operations.
Fire Monitor Model | Flow | Range | Rated Pressure | Pitch Rotation | Horizontal rotation |
PS80 | 80L/s | Water≥70m | 0.8MPa | -35°～+70° | 0～360° |

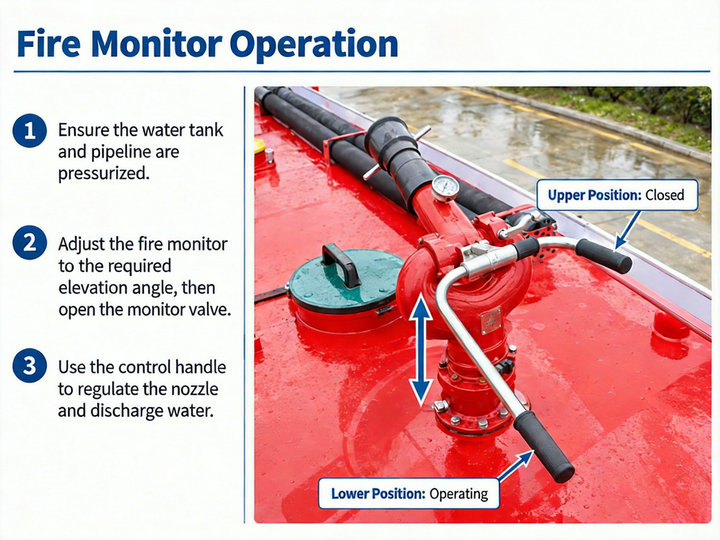

How to Operate Fire Truck Fire Monitor:
1. Ensure the water tank and pipeline are pressurized.
2. Adjust the fire monitor to the required elevation angle, then open the monitor valve.
3. Use the control handle to adjust the nozzle and control water discharge.
» Ⅵ.Firefighting Equipment :

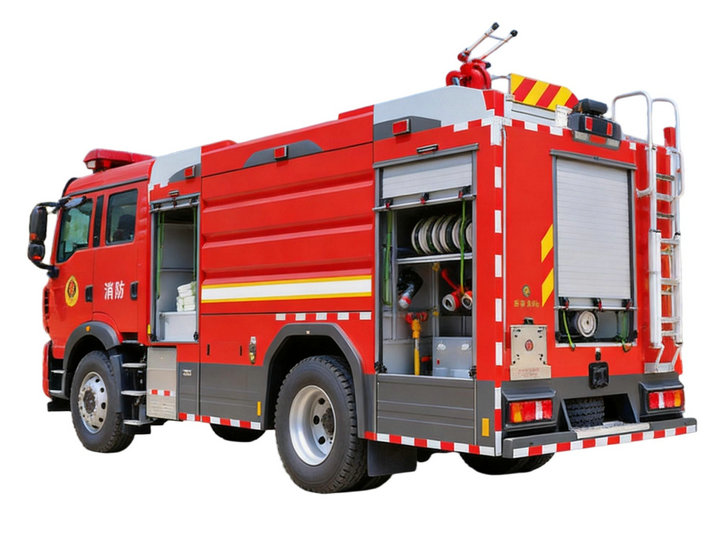

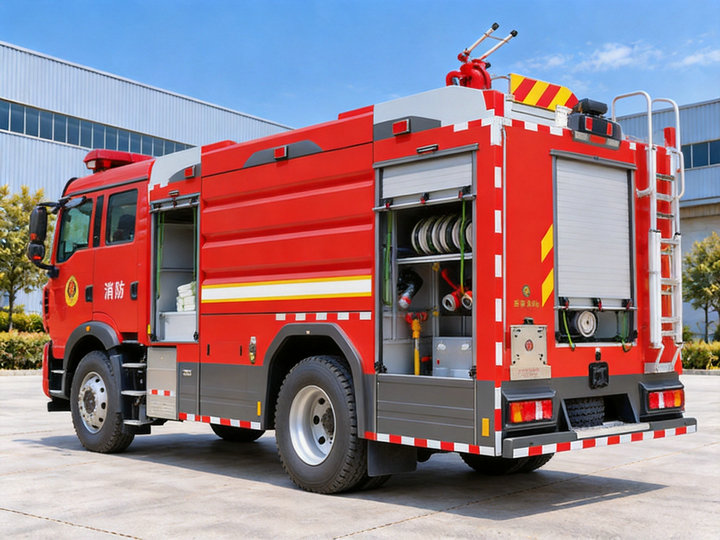

Equipment Room
Located on both sides of the vehicle, these compartments are equipped with equipment racks and storage trays. The racks keep fire hoses, suction tubes, and foam guns neatly organized. The storage trays provide quick access to tools like wrenches, axes, and crowbars, improving rescue efficiency.
SINOTRUK HOWO rescue pumper truck runs on a 350 HP MC07H.35-60 engine paired with a 4×2 chassis. It carries an 8000L water tank, a CB10/80 fire pump delivering 80 L/s at 1.0 MPa, and a PS80 monitor rated at 80 L/s with water range ≥70m. Standard delivery includes fire hoses, suction tubes, couplings, water gun, and basic tool kit. With a 23000 kg GVW and 1400 N.m maximum torque, it is engineered for sustained firefighting operations at petrochemical plants, oil depots, and industrial facilities.
