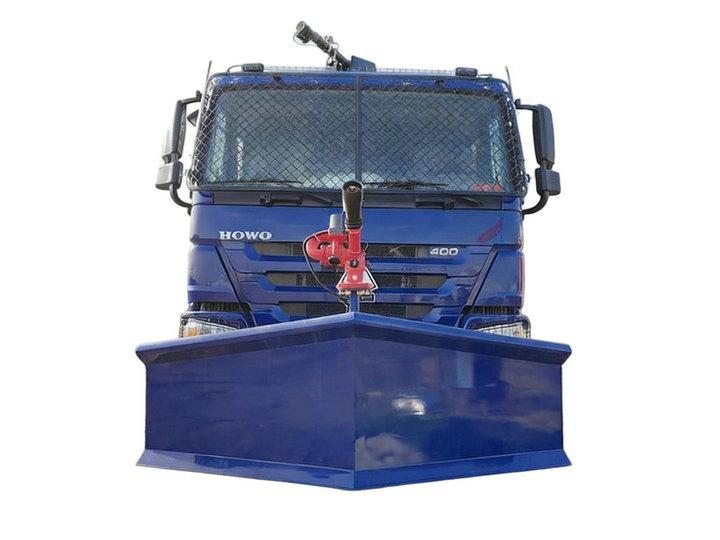

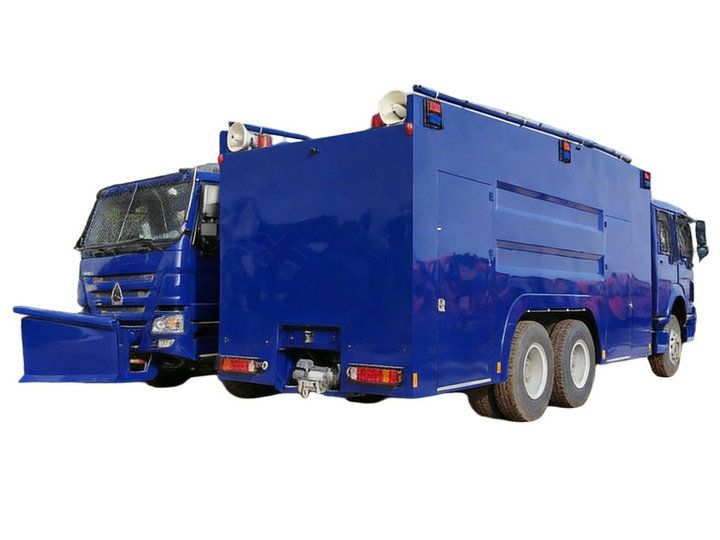

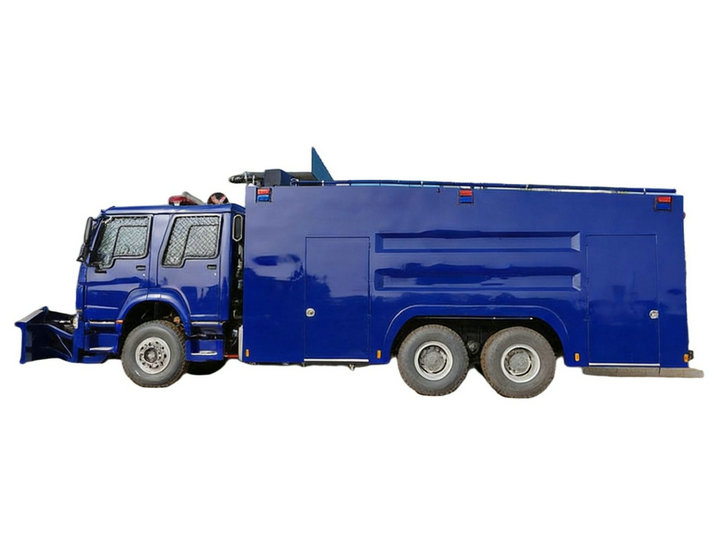

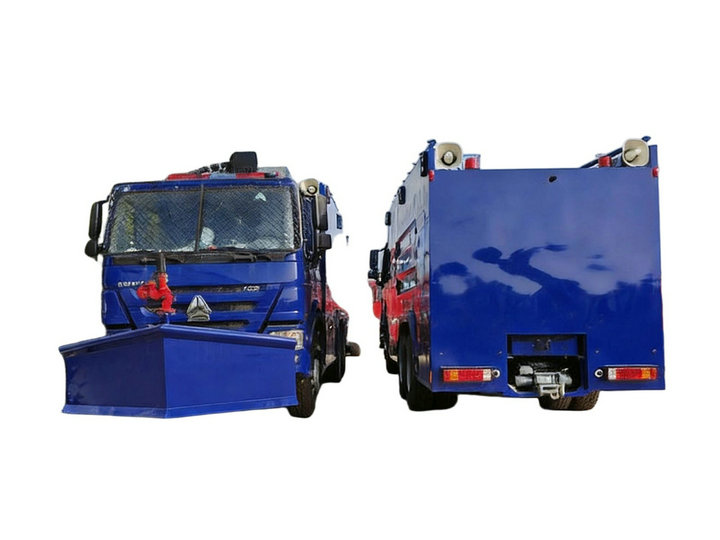

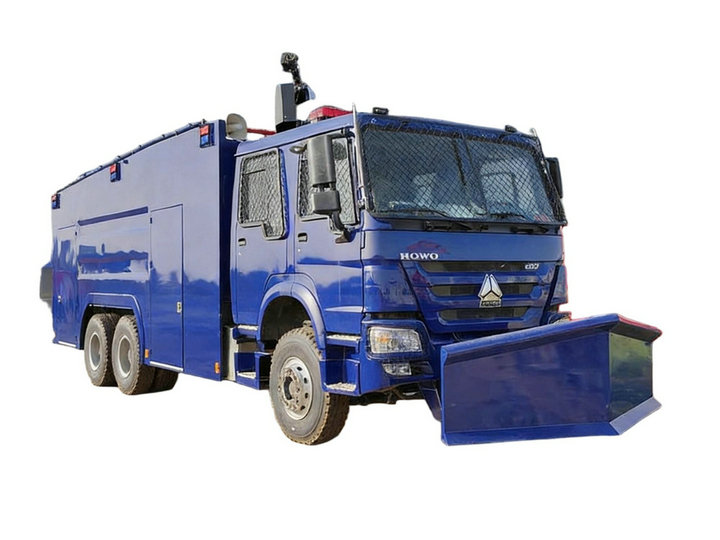

HOWO Anti Riot Water Cannon Vehicle 12000 Water +400 L Foam+ 100L Pepper Water

HOWO Anti Riot Water Cannon Vehicle 12000 Water +400 L Foam+ 100L Pepper Water
Riot Control with or Without Fatal Blow
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
Price: $ 220000
Discount Price: $ 210000
Availability:
Quantity:

  • 5251GFB6F1

  • DRZ

  • 8705909990

HOWO Anti Riot Water Cannon Vehicle 12000 Water +400 L Foam+ 100L Pepper Water

Tanker Capacity: 12000 water +400 L foam+ 100L pepper water
Engine Power: 400 HP
Fire Pump: CB10/60
Pump Flow: 60 L/s
Work Pressure: 1.0 Mpa
Fire Monitor: China PL10/48
Monitor Flow: 48 L/s
Monitor Range: 70 m

HOWO anti riot water cannon vehicle is built on the HOWO HW76 double-row cab chassis, with a wheelbase of 4600+1350mm, equipped with a 400-horsepower WP10H400E60 engine and a HW15710 10-speed gearbox. It is powerful and flexible. The vehicle is equipped with a 12000L clean water tank and 100L special tanks for foam, pepper water, and dye, which can realize multi-functional tactical switching such as clean water riot control, foam fire extinguishing, dye marking, and pepper water uniforms.

HOWO 6X4 Anti-Riot Vehicle

General

Truck Model

SINOTRUK HOWO

Overall dimension

10500*2550*3950mm

GVW/Curb weight

25000/14450kg

Chassis parameters

Cab

SINOTRUK HW76 double-row cabin. It can accommodate 2+4 people, With Air conditioner

Drive type

6x4,LHD

Wheelbase

4600+1350mm

Axle loading

Front/Rear

7000/18000kg

Tire

12.00R20,10+1tire

Transmission

HW15710 gearbox,10 forward and 2 reverse, with PTO

Engine

Model

WP10H400E60

Emission

EURO 6

Upper & Equipment

Water Cannon

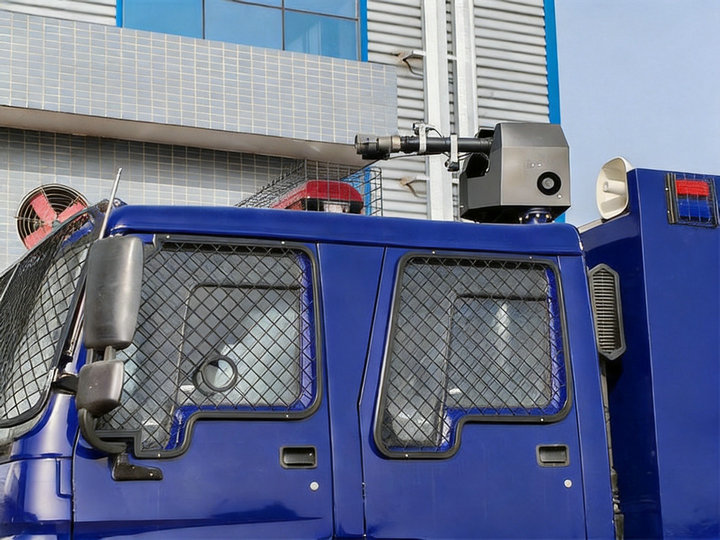

Roof riot water cannon

One, top of the pump room

Range

≥70m

Threat Range

≥40m

Pitch Angle

-5°~ +45°

Horizontal rotation angle

-90°~ +90°

Front-firing water cannon

On the front of the truck, with direct current blooming water jet function

Water tanker

Volume

12000L

Liquid inlet

Quantity(pcs)

2

Size(mm)

DN65

Loading water

Water pump self-suction water

From fire hydrant directly

Remarks

1.Equipped with buffers inside of the tanker.

2.Equipped with access window for future inspection and after sales service.

3.Equipped with overflow, exhaust vent.

4.Equipped with electronic water level gauge.

Foam tanker

Volume

100L

Material

Stainless steel

Dye tanker

Volume

100L

Material

Stainless steel

Pepper water tank

Volume

100L

Material

Stainless steel

Fire pump

Model

CB10/60

Pressure

1MPa

Max working pressure

1.082MPa

Max allowable inlet pressure

0.4MPa

Flux

60L/s

Max suction height

7m

Rated speed

3280±50r/min

Optional configuration:

Remote control driving system, strong light lighting lifting system

Tear gas launcher, PTZ camera

Special network communication, single-soldier equipment package shelf

Two water cannons can be installed on the top of the pump room, one on each side

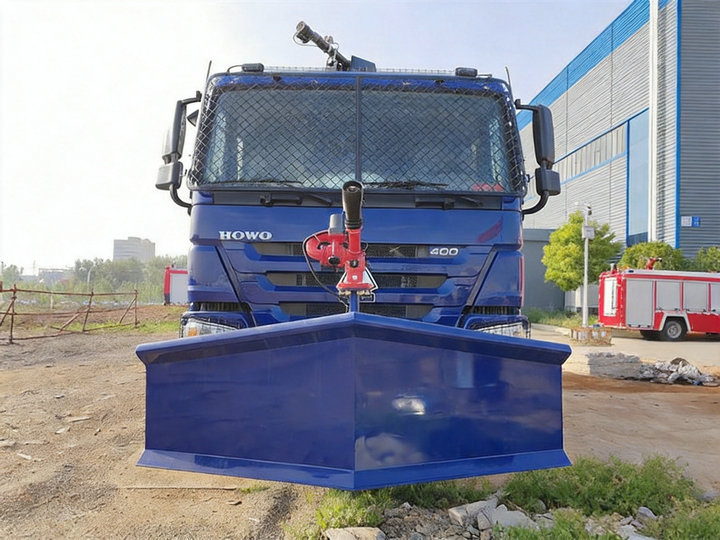

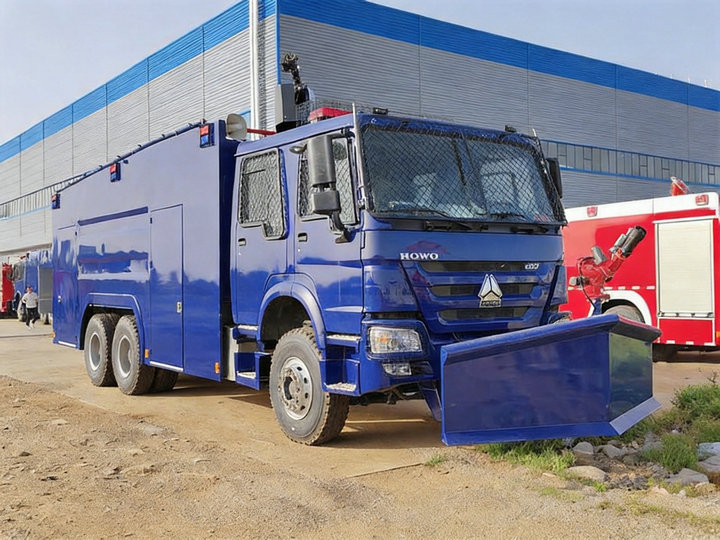

HOWO Anti Riot Water Cannon Vehicle 12000 Water (3)HOWO Anti Riot Water Cannon Vehicle 12000 Water (9)HOWO Anti Riot Water Cannon Vehicle 12000 Water (11)

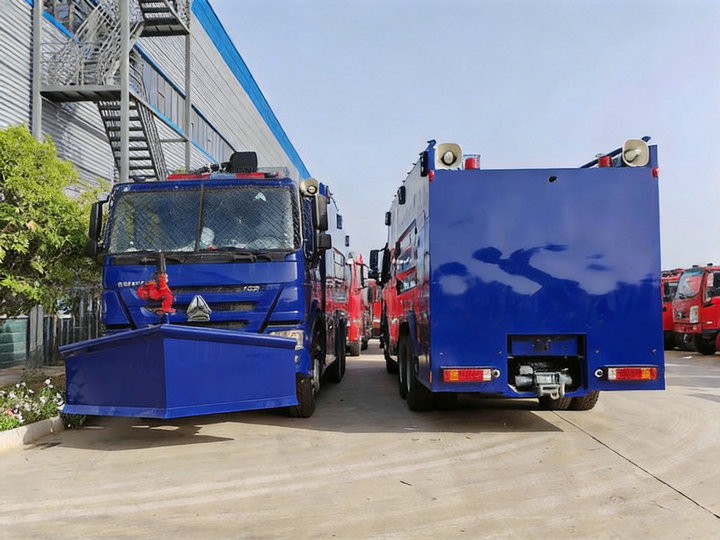

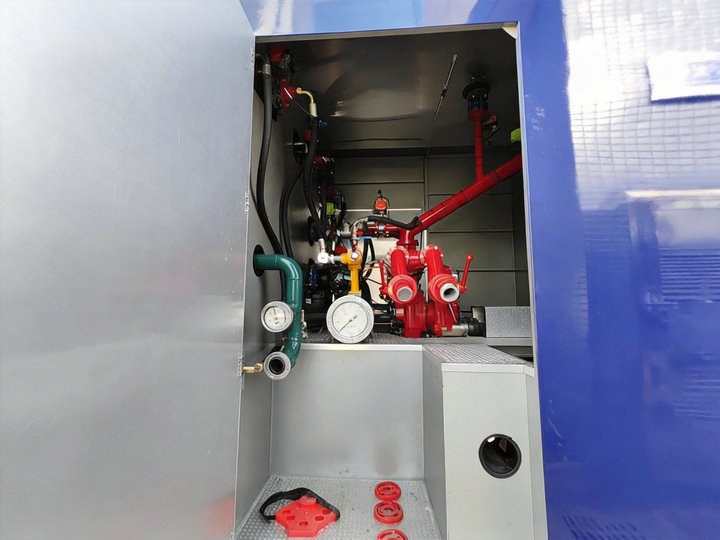

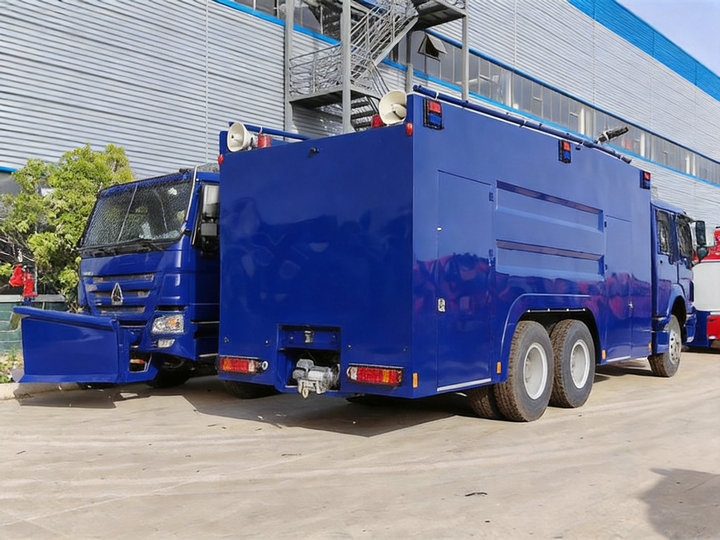

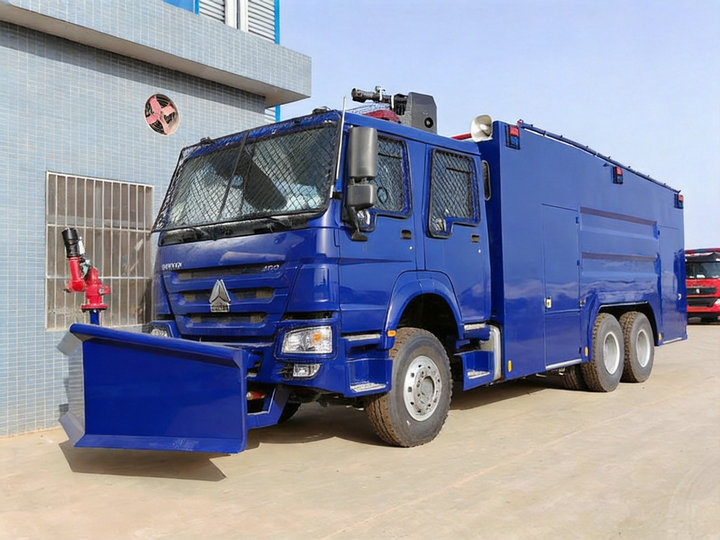

HOWO 6x4 explosion-proof water cannon truck is modified on the basis of HOWO HW76 cabin truck chassis. The vehicle is equipped with an explosion-proof box, a main gun on the top and a front water auxiliary gun on the head, which can achieve all-round, large-flow and long-distance riot control; double-row cab, 6 passengers; equipped with CB10/60 fire pump, the front of the vehicle is equipped with riot-proof steel plate and strong hydraulic obstacle clearing steel shovel; lamps and window glass are protected by stainless steel mesh.HOWO Anti Riot Water Cannon Vehicle 12000 Water (5)HOWO Anti Riot Water Cannon Vehicle 12000 Water (14)HOWO Anti Riot Water Cannon Vehicle 12000 Water (1)HOWO Anti Riot Water Cannon Vehicle 12000 Water (16)
