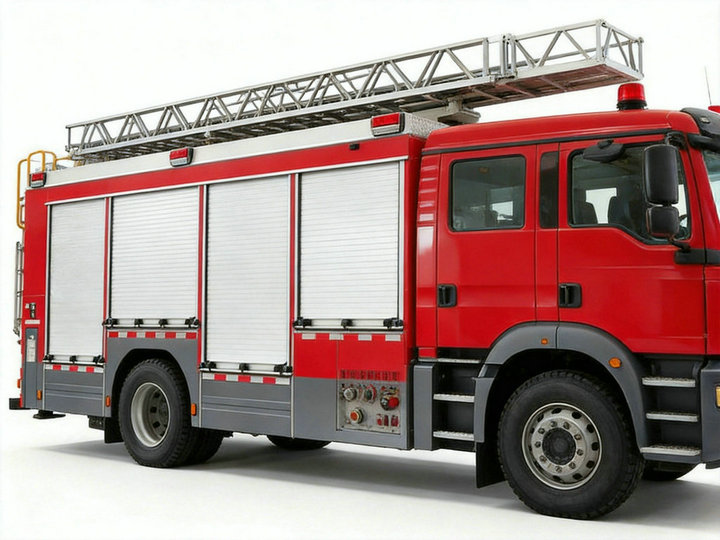

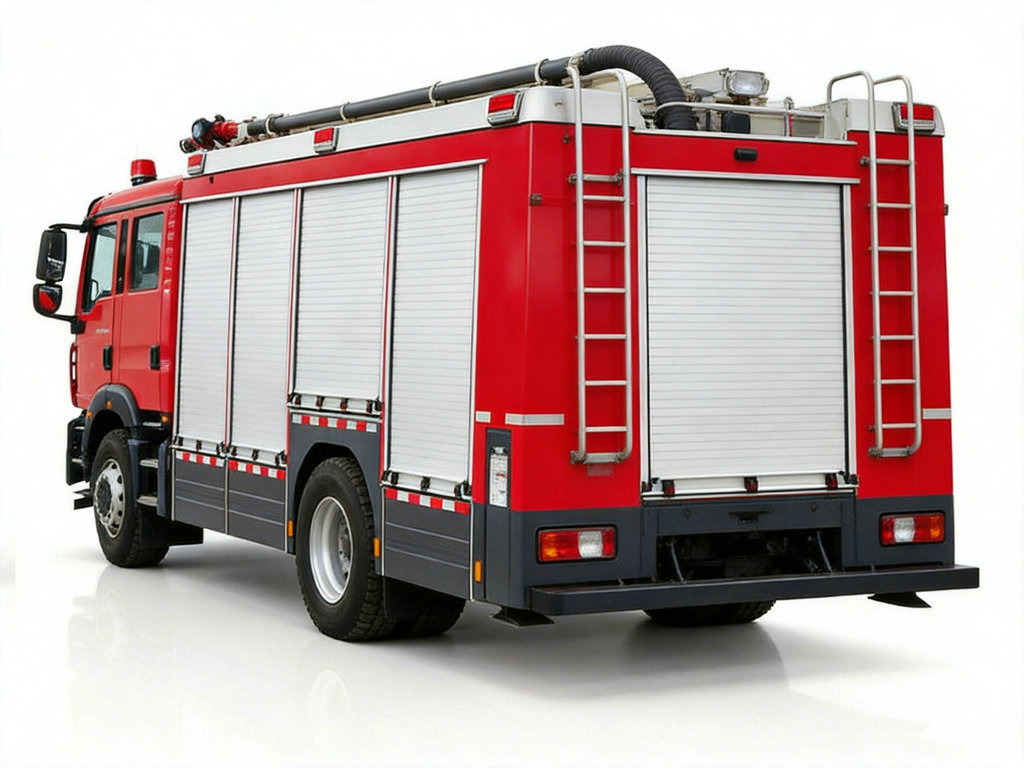

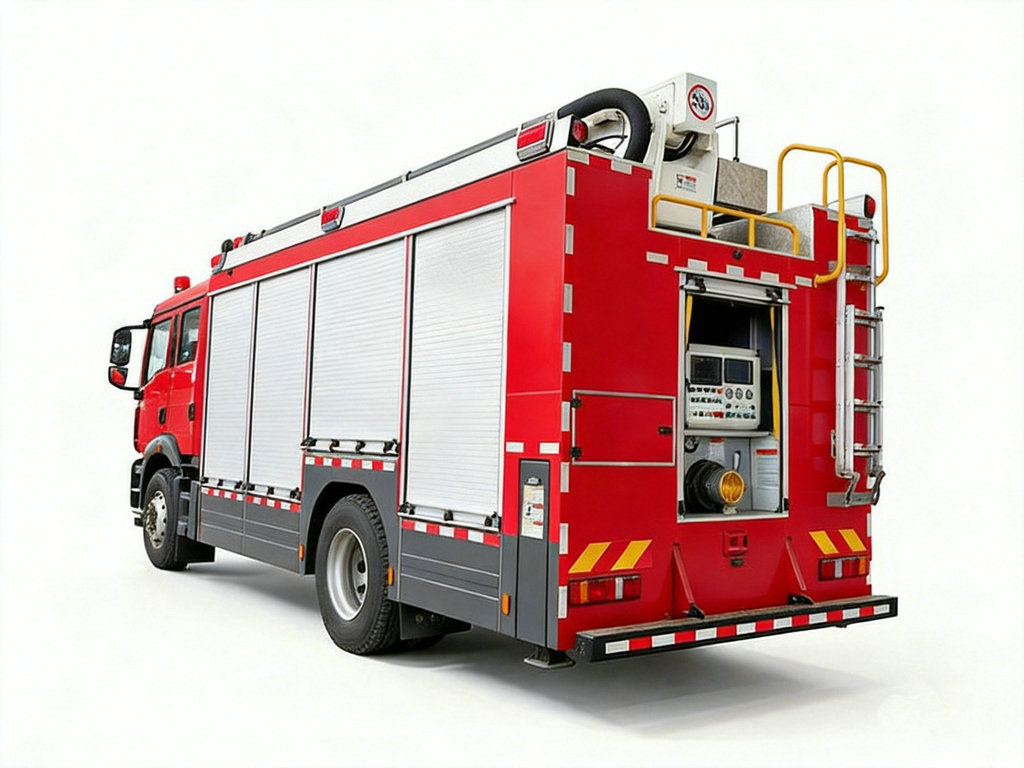

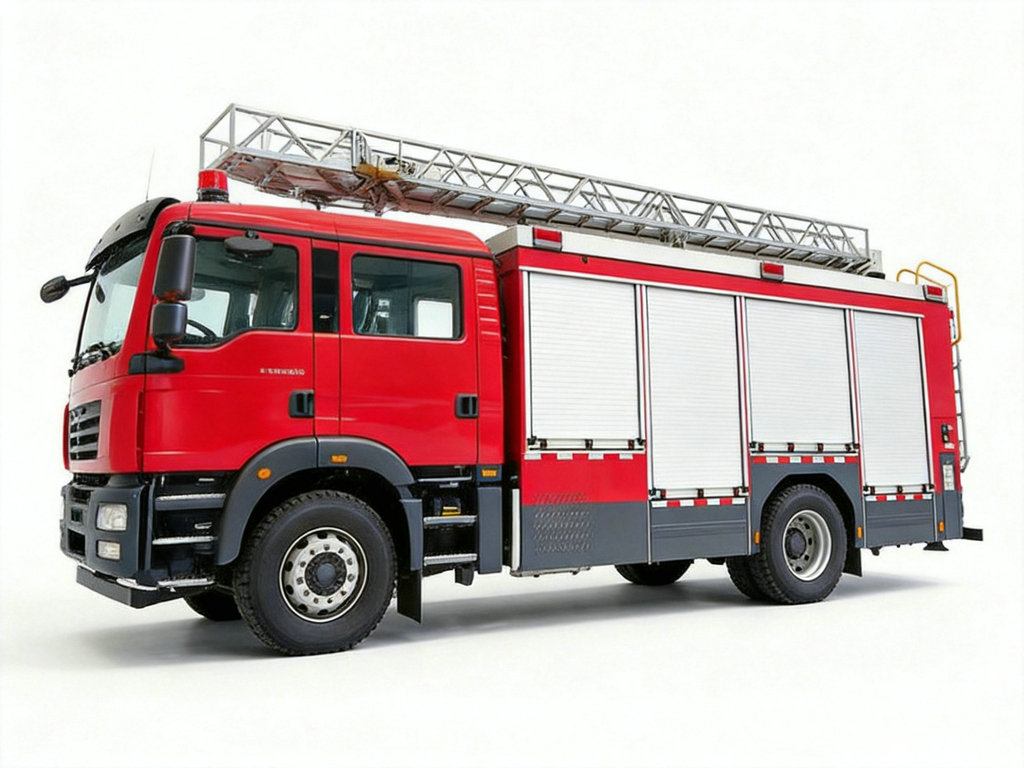

SITRAK HOWO 18M Ladder Fire Engine Trucks 2500L Water + 600L Foam
Tanker Capacity:2500L water + 600L foam (3140L total)
Engine :350 HP (257 kW) / MC07H.35-60
Fire Pump: CB10/60
Pump Flow:60 L/s
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
| Quantity: | |
|---|---|
|
| |
-
5192JXFYT18/ASXF
-
DRZ
-
8705309000

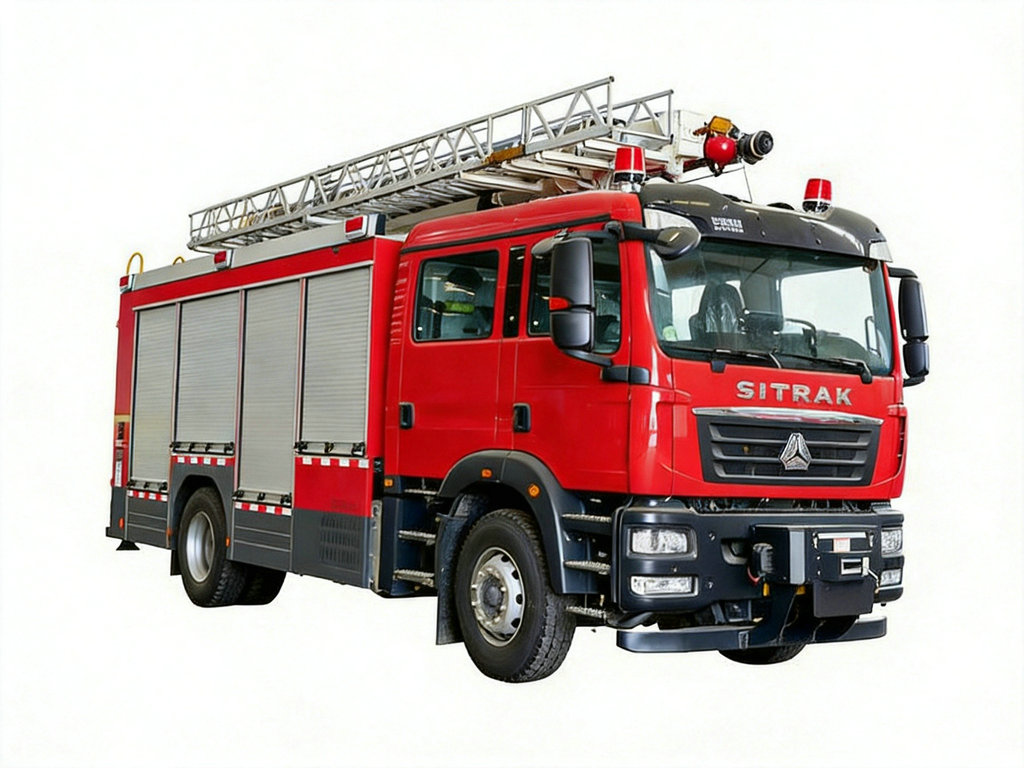

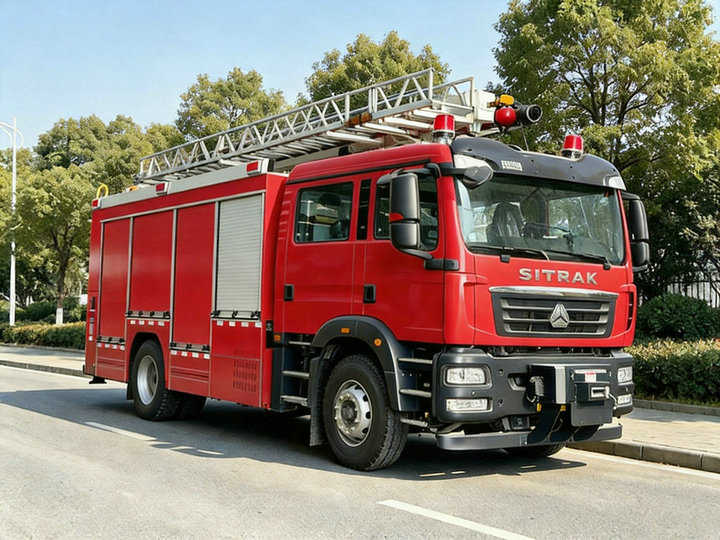

SITRAK HOWO 18m Aerial Ladder Fire Truck
Description: Discover the SITRAK HOWO 18m Aerial Ladder Fire Truck. Featuring a 350HP MC07H engine, 60L/s CB10/60 pump, and PS60 roof monitor, this 4x2 foam fire truck is engineered for mid-rise building firefighting and aerial rescue operations.
| Truck Chassis: | SINOTRUK HOWO 4x2 |
| Tanker Capacity: | 2500L water + 640L foam (3140L total) |
| Engine Power: | 350 HP (257 kw) / MC07H.35-60 |
| Fire Pump: | CB10/60 |
| Pump Flow: | 60 L/s |
| Work Pressure: | 1.0 MPa |
| Fire Monitor: | PS60 |
| Monitor Flow: | 60 L/s |
| Monitor Range: | Water ≥60 m , Foam ≥55 m |
| Max. working height: | 18 m |
Product Overview
The SITRAK HOWO 18m Aerial Ladder Fire Truck is a specialized firefighting solution designed for urban emergency response and mid-rise building operations. Built on a robust SITRAK HOWO 4×2 chassis, this vehicle is powered by a 350HP MC07H.35-60 engine (Euro 6 compliant), ensuring reliable performance in critical situations.
This aerial ladder foam fire truck integrates an 18m telescopic ladder with a front-mounted electric winch (≥7000 kg tension) for versatile rescue capabilities. Fire suppression is handled by a high-capacity CB10/60 fire pump delivering 60 L/s, paired with a roof-mounted PS60 monitor that achieves water ranges of ≥60m and foam ranges of ≥55m. With a total work capacity of 2500L water and 640L foam, roll-up aluminum doors, LED lighting, and comprehensive firefighting accessories, this truck is a solid choice for municipal fire departments and industrial safety units.

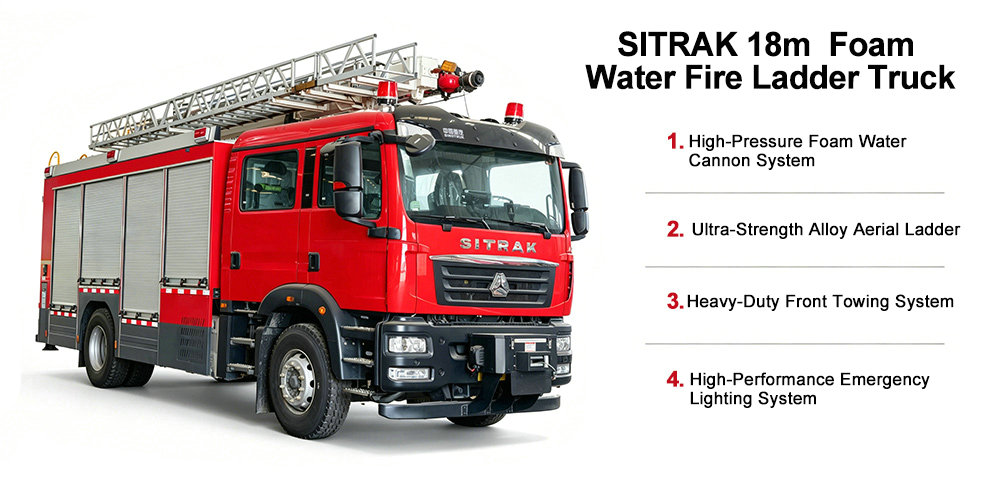

Key Features
Powerful Drivetrain & Chassis
• Engine: MC07H.35-60, 6-cylinder inline, turbo-charged diesel with inter-cooling.
• Power Output: 350 HP (257 kW) at Euro 6 emission standard.
• Chassis: SITRAK HOWO 4×2 with 4700mm wheelbase and 315/80R22.5 tires.
• Winch System: Front-mounted electric winch with ≥7000 kg max tension and 36m wire rope length, ideal for vehicle recovery and rescue anchoring.
Advanced Aerial Ladder System

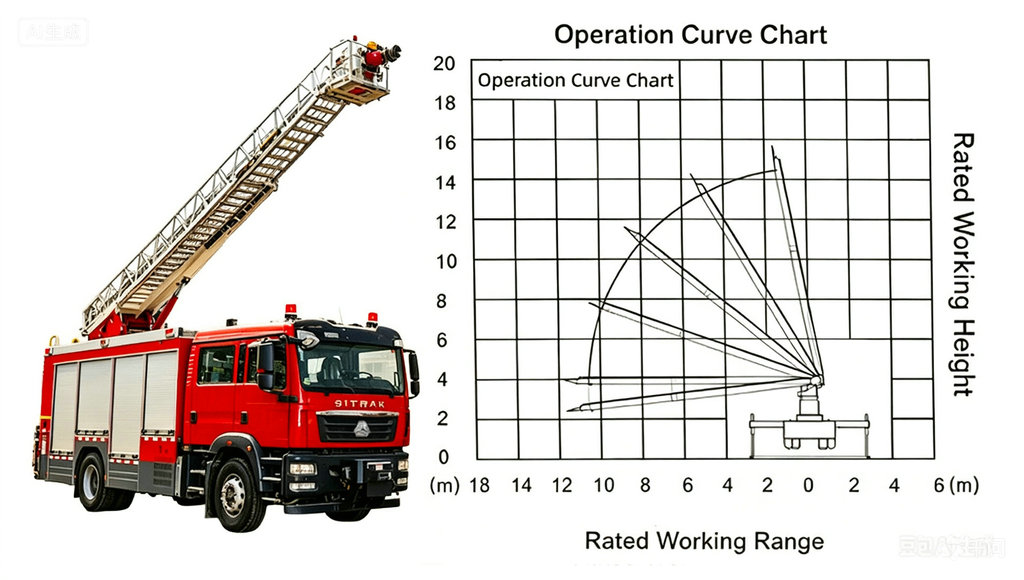

• Working Height: Maximum 18 meters telescopic reach.
• Ladder Tip Monitor: Integrated PS60 monitor (60 L/s) for precise aerial fire attack.
• Rotation: Continuous 360° turntable rotation.
• Safety Protections: Equipped with overload warning, tilt cutoff, collision avoidance, and outrigger interlock systems.

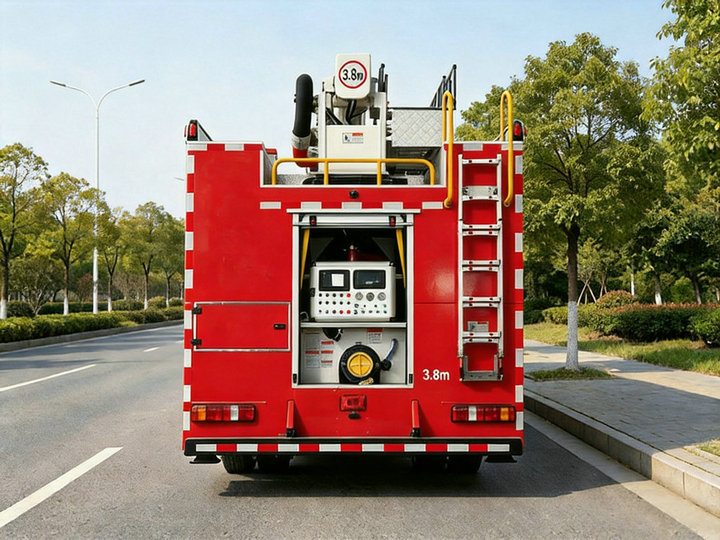

• Access: Rear aluminum ladder on the right side for roof access.
High-Efficiency Fire Suppression

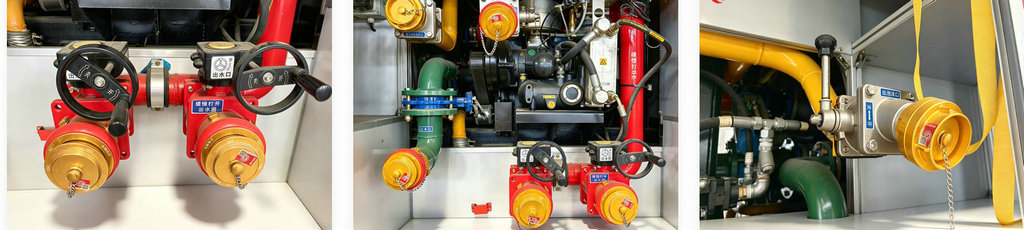

• Fire Pump: CB10/60 model with rated flow of 60 L/s at 1.0 MPa.
• Fire Monitor: PS60 roof monitor supporting straight stream and spray patterns.
• Capacity: 2500L Water Tank + 640L Foam Tank.
• Decontamination System: Mobile high-pressure cleaner and hot water unit (≥10 L/min) with full tent and suction pump kit.
Illumination & Equipment Storage
• Mast Lighting: 8m aluminum mast with 4×500W LED lights, 420° horizontal/tilt rotation, and wireless remote control (≥50m).
• Equipment Box: Oxidized aluminum frame with 3 lockable roller shutters per side, linked LED strips, and anti-slip fold-down steps (load ≥150kg).
• Standard Gear: Complete kit including fire hoses, nozzles, foam guns, suction wrenches, and basic tool kit.
Technical Specifications
General Parameters
Parameter | Specification |
Truck Chassis | SITRAK HOWO 4x2 |
Overall Dimensions (L×W×H) | 9190 × 2540 × 3770 mm |
Gross Vehicle Weight | 18,800 kg |
Curb Weight | 14,750 kg |
Work Capacity | 2500L Water + 640L Foam |
Maximum Speed | 110 km/h |
Max Working Height | 18 m |
Engine & Chassis Details
Component | Specification |
Engine Model | MC07H.35-60 |
Engine Type | 6-cylinder inline, water-cooled, turbo-charged, inter-cooled |
Power | 350 HP (257 kW) |
Displacement | 7360 ml |
Fuel Type | Diesel |
Emission Standard | Euro 6 |
Wheelbase | 4700 mm |
Tire Specification | 315/80R22.5 (6 tires + 1 spare) |
Fire Pump & Monitor System
Parameter | Fire Pump (CB10/60) | Fire Monitor (PS60) |
Rated Flow | 60 L/s | 60 L/s |
Rated Pressure | 1.0 MPa | 0.8 MPa |
Max Working Pressure | 1.251 MPa | 1.2 MPa |
Range (Water) | - | ≥ 60 m |
Range (Foam) | - | ≥ 55 m |
Rotation | - | Horizontal: 0~360° / Pitch: -35°~+70° |
Suction Height | 3 m | - |
Water Diversion Time | ≤ 50s | - |
Winch & Lighting System
System | Key Specification |
Front Winch | Electric control, Max Tension ≥7000 kg, Rope ≥36m (Φ11.5mm) |
Lighting Generator | ≥15 kVA, 220V/380V, Gasoline V-twin, Electric Start |
Lighting Mast | Aluminum alloy, Max Height ≥8m, 4×500W LED |
Mast Rotation | Horizontal ≥420°, Tilt ≥420° |
Control Mode | Panel + Wired (5m) + Wireless (≥50m) |
Applications
The SITRAK HOWO 18m Aerial Ladder Fire Truck is engineered for diverse emergency scenarios:
• Mid-Rise Building Firefighting: Optimal 18m reach for residential and commercial structures up to 6 stories.
• Aerial Rescue Operations: Front winch and telescopic ladder facilitate personnel evacuation and equipment lifting.
• Industrial Fire Suppression: High-flow CB10/60 pump and foam capacity handle Class B fires in factories and warehouses.
• Urban Emergency Response: Compact 4×2 chassis ensures maneuverability in city traffic while providing comprehensive decontamination and lighting support.
Standard Configuration & Accessories
SITRAK HOWO 18m Aerial Ladder Fire Truck is delivered with a complete operational kit:
• Pump Room: Fire hoses, water collectors, filters, fire nozzles, foam guns, suction hose wrenches, reducers.
• Equipment Room: Roll-up aluminum doors with storage trays and racks for organized gear access.
• Decontamination Kit: Public decontamination tent, manual diaphragm suction pump, electric inflator, sewage pump, warm air generator, and toxic substance sealing barrels.
• Documentation: Full English manual and basic tool kit.
Request a Quote
For pricing, customization options, or technical consultation regarding the SITRAK HOWO 18m Aerial Ladder Fire Truck, please contact our sales team directly.
Note: Specifications are subject to change without notice. Please contact us for the latest configuration details and export documentation.
Full specifications are listed below:
NO | Item | Unit |
1 | Water Suction Pipe (Suction hose Ø 125 mm, length: 4 m) | 2 PC |
2 | Water strainer (Ø 125) | 1 PC |
3 | Water segregator (Ø 80-65-65 mm) | 1 PC |
4 | Water collector (Ø 125-65-65 mm) | 1 PC |
5 | Soft-wall fire hose (Water hose Ø 65 mm, length: 20 m) | 6 SET |
6 | Soft-wall fire hose (Water hose Ø 80 mm, length: 20 m) | 4 SET |
7 | Fast conversion joint (80X65 mm) | 2 PC |
8 | Hose protector | 4 PC |
9 | Hose Hoist | 4 PC |
10 | Ground Hydrant-wrench | 1 PC |
11 | Underground Hydrant-wrench | 1 PC |
12 | Suction Wrench | 2 PC |
13 | Dry Powder Extinguisher | 1 PC |
14 | Fire Fighting Barrel | 1 PC |
15 | Straight flow switch water gun (Ø 65 mm) | 1 PC |
16 | Multi-purpose switch water gun | 1 PC |
17 | Fire Fighting Axe | 1 PC |
18 | Fire Fighting Shovel/Spade | 1 PC |
19 | Fire Axe | 1 PC |
20 | 4M Aluminum Ladder (Optional 10M Aluminum Ladder) | 1 PC |
21 | Original Chassis Tools | 1 PC |
22 | Protective (safety) spectacles | 1 PC |
