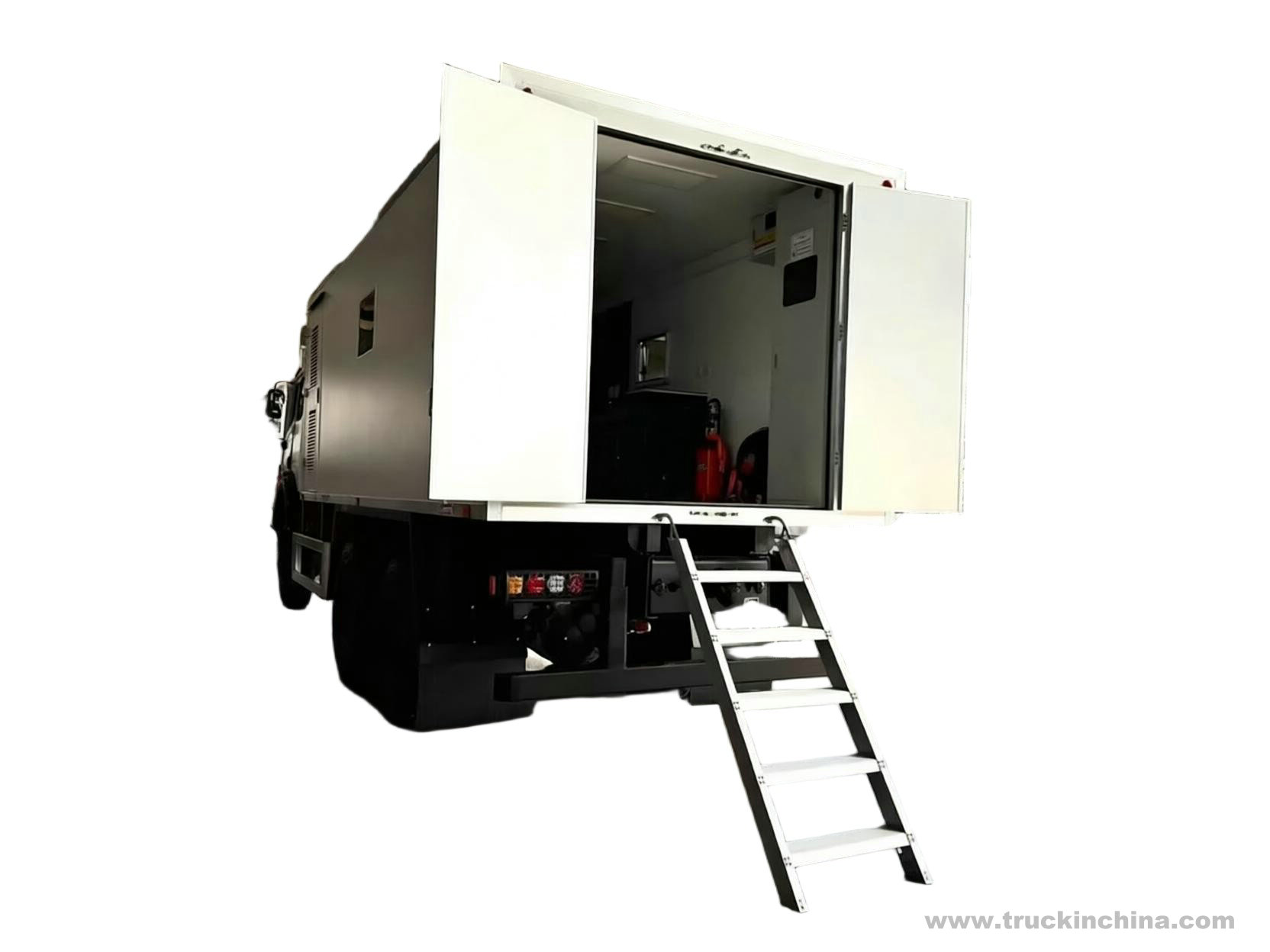

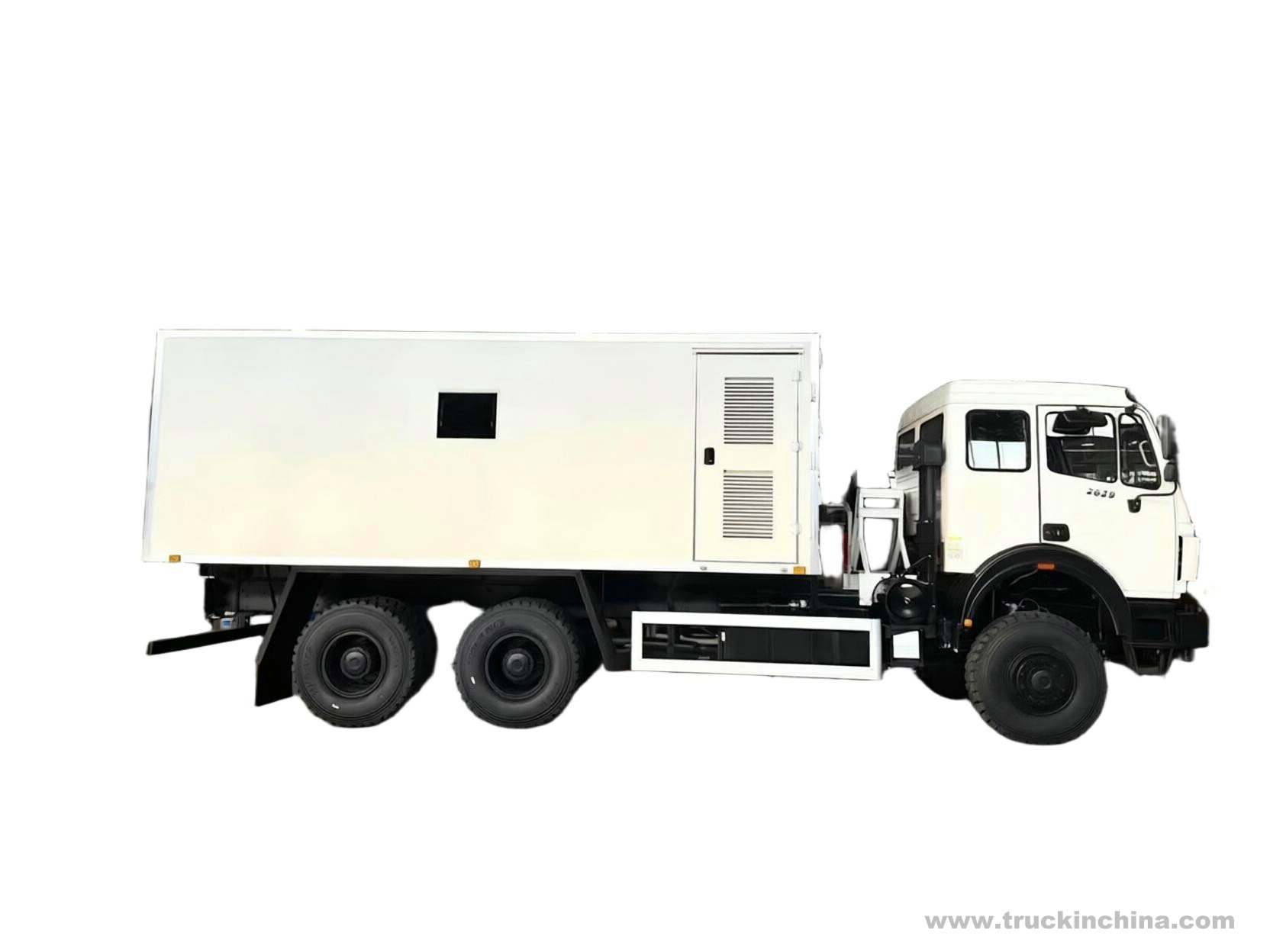

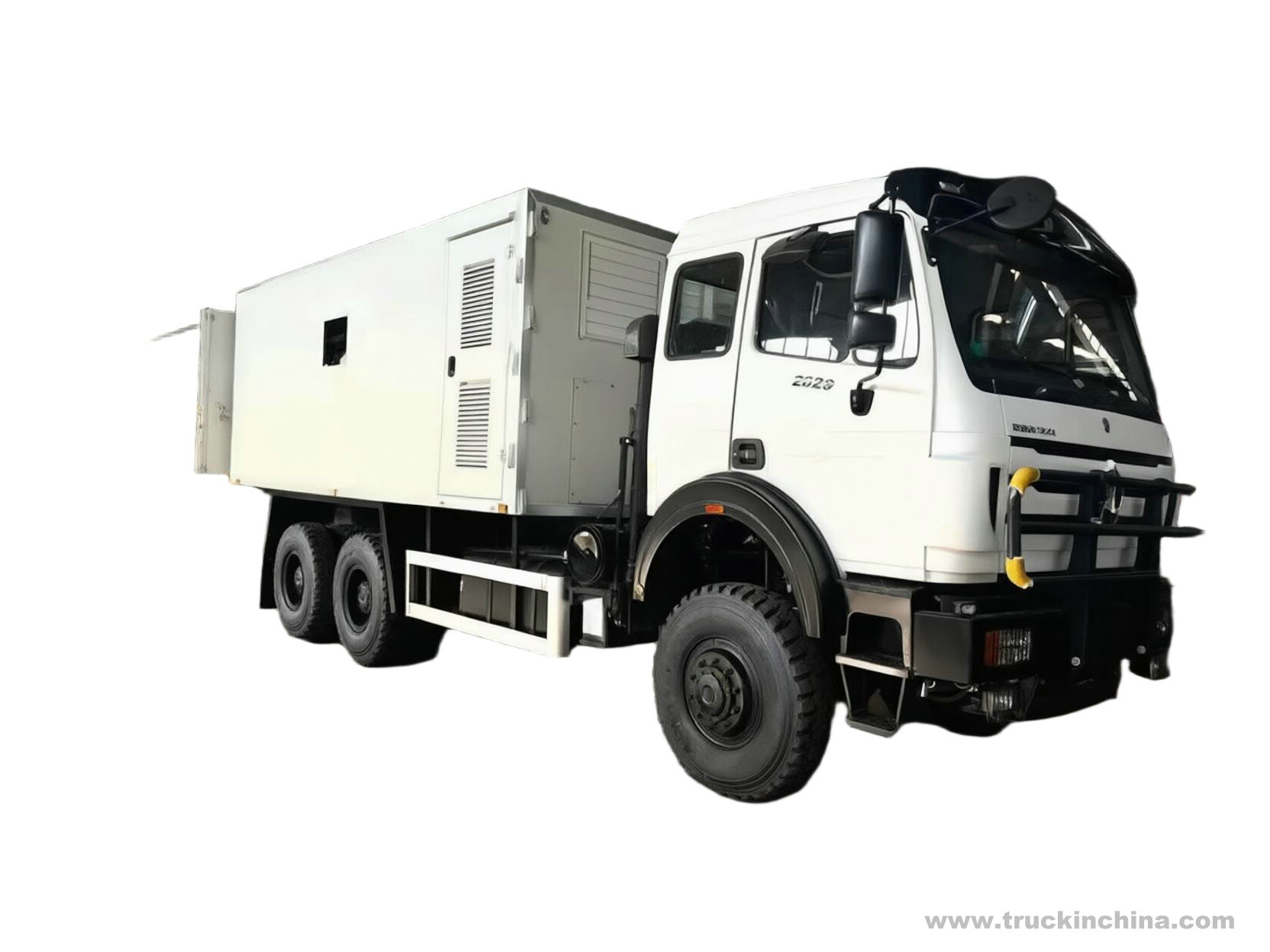

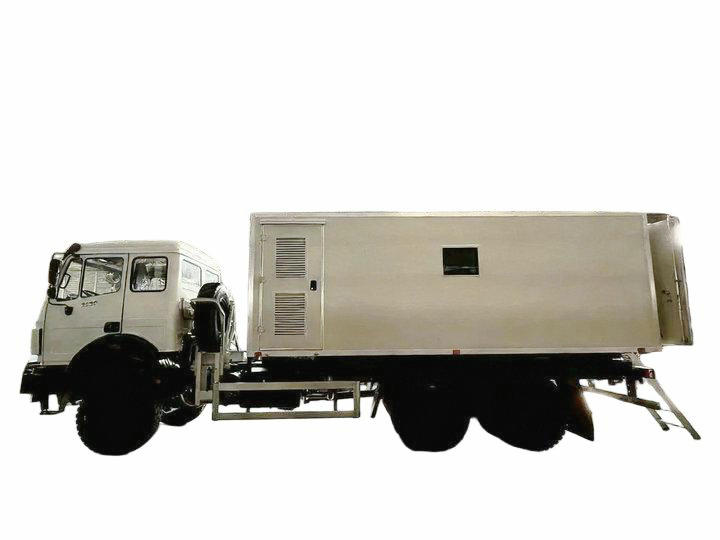

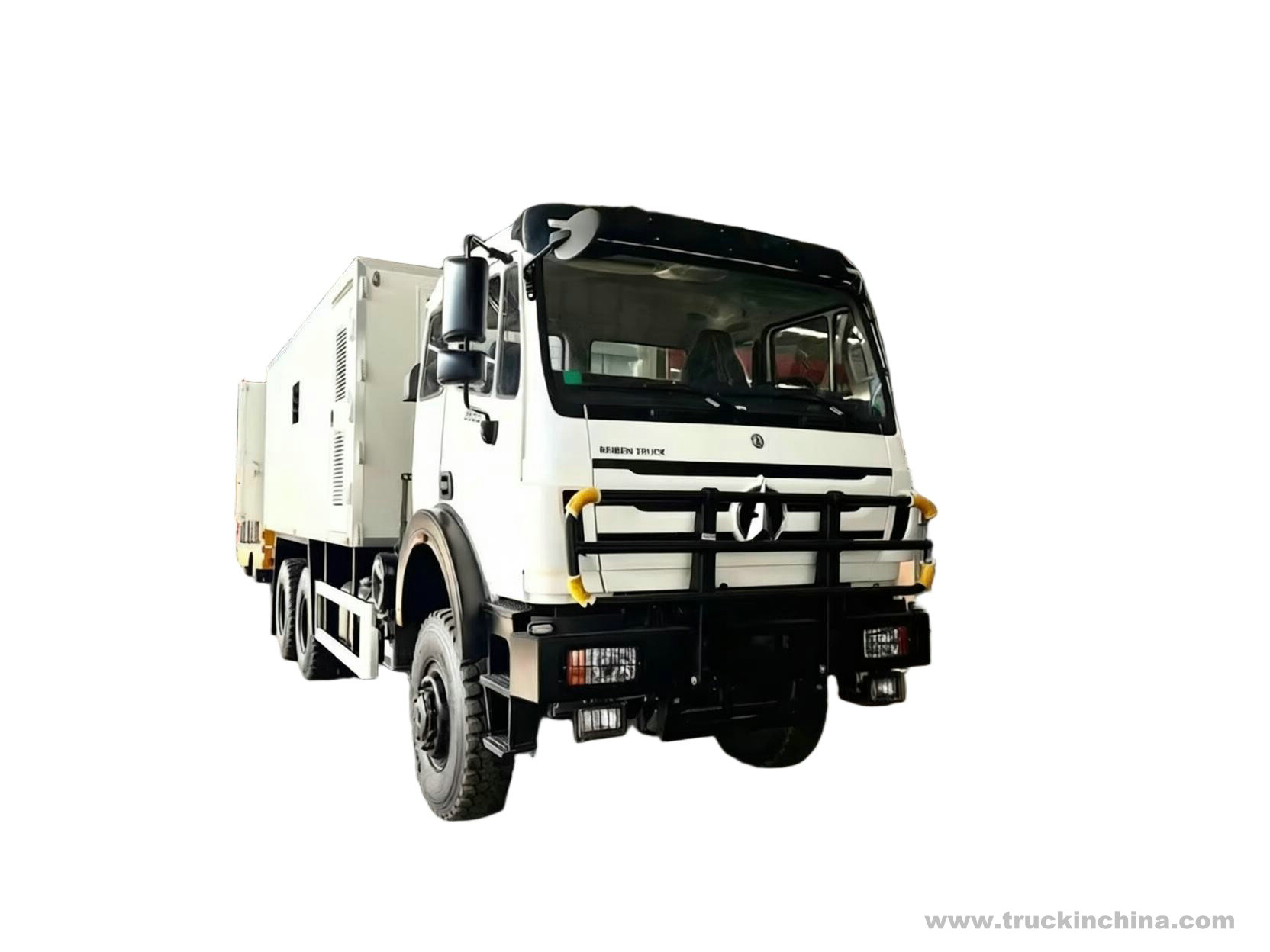

Beiben 6x6 Off-road Mobile Maintenance Truck

Beiben 6x6 Off-road Mobile Maintenance Truck
with Separated Diesel Engine Compressor
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
Availability:
Quantity:
  • 8705909990

  • Shanghai, China

  • 1000

  • T/T

 Beiben 6x6 Off-road Mobile Maintenance Truck

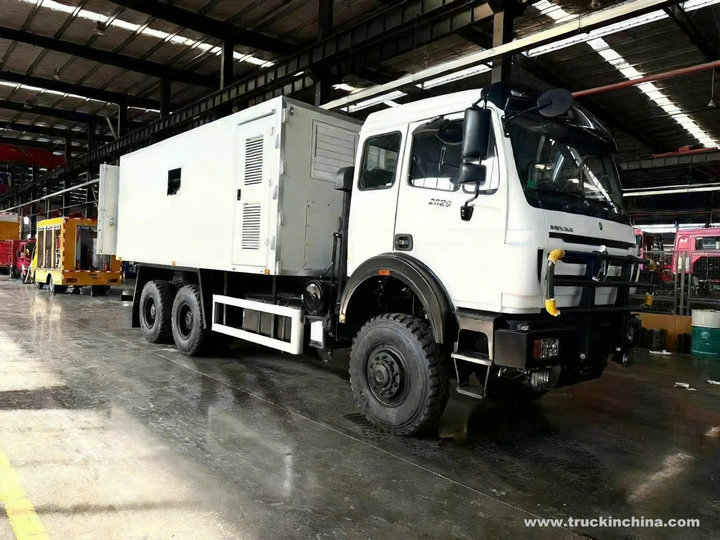

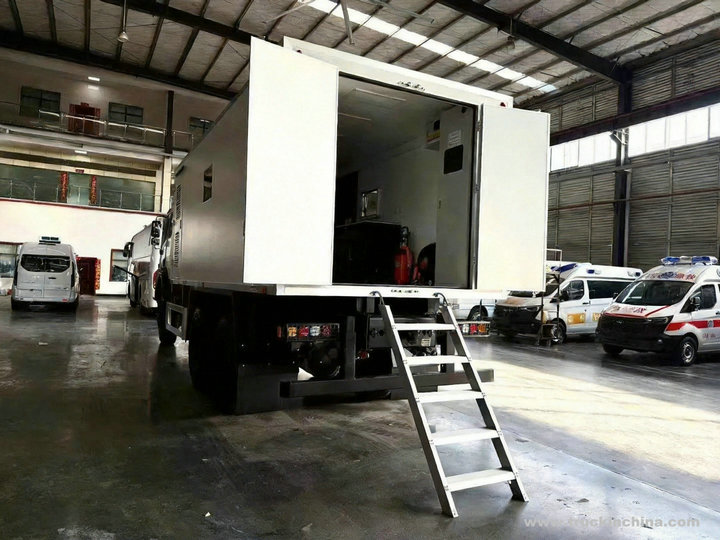

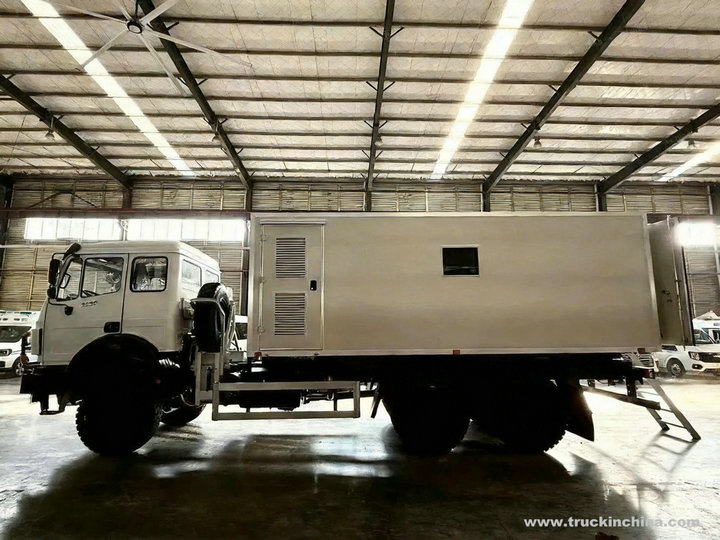

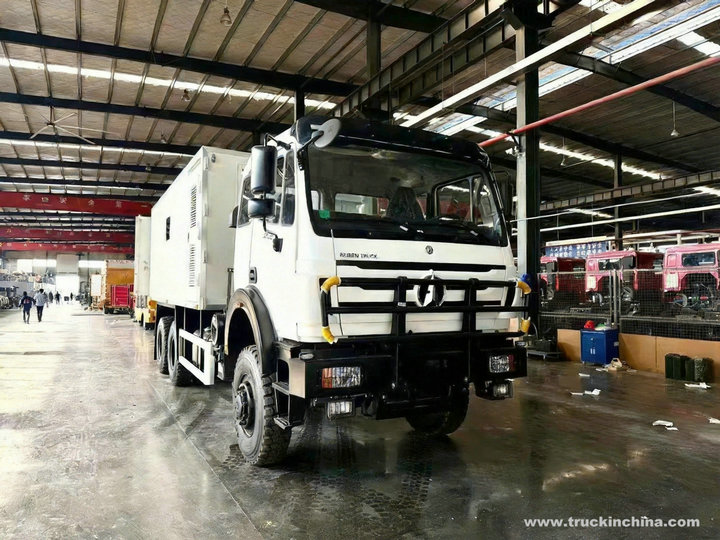

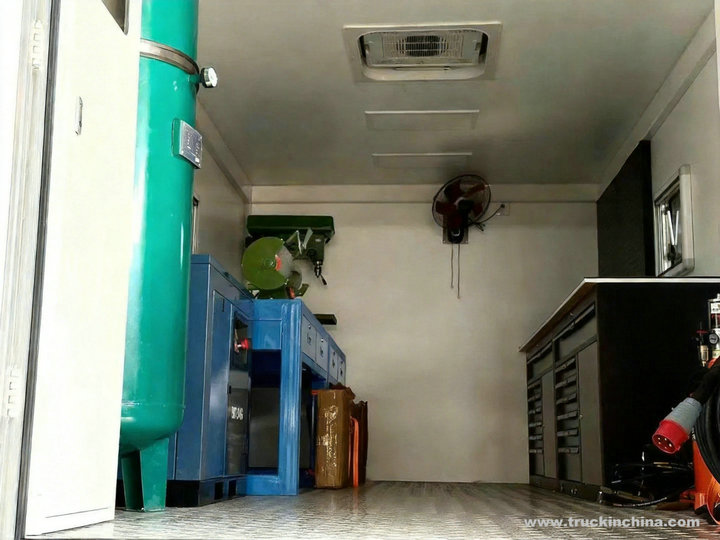

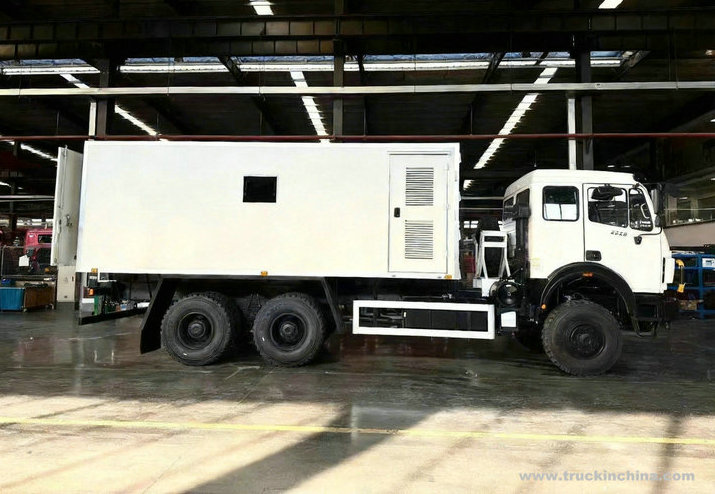

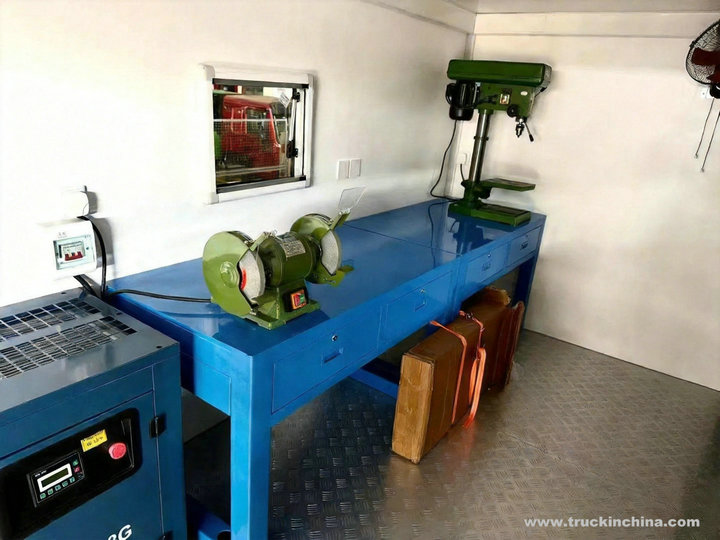

Mechanical Emergency Repair Maintenance Service Tool Van TruckBeiben_Truck_ Mobile Maintenance trucks (6)Beiben_Truck_ Mobile Maintenance trucks (1)Beiben_Truck_ Mobile Maintenance trucks (2)Beiben_Truck_ Mobile Maintenance trucks (3)Beiben_Truck_ Mobile Maintenance trucks (11)Beiben_Truck_ Mobile Maintenance trucks (9)Beiben_Truck_ Mobile Maintenance trucks (8)Beiben_Truck_ Mobile Maintenance trucks (7)Beiben_Truck_ Mobile Maintenance trucks (5)

Mobile Workshop  equipment details

Beiben 2629 2640 Mobile Workshop Maintenance Truck
Vehicle Description
Overall Dimensions 8900*2500*3550mm
Payload 20Ton
Workshop cargo body 6800*2300*2360mm
Truck Chassis
Cabin It adopts 4-point full floating suspension for stable driving and strong shock absorption. Equipped with adjustable seat, air conditioning and wide-view windshield, it ensures comfort and safety. High-strength steel structure meets international crash standards, ideal for engineering and long-haul use.
Drive Type 6x4
Wheelbase 4600+1400mm
Steering Power assisted steering, left hand drive (right hand drive in optional)
Tire 11.00R20 ;12.00R20
10+1 units including a spare tire
Engine Model WP10.290 ;WP12.400E201
Type 6-cylinder inline, 4-stroke, turbocharged and intercooling, directly injection
Max. Output 290 HP; 400HP
Displacement 9.726L :11.596L
Emission Norm Euro II diesel egnine
BrakeSystem Air brake, drum brake
Axle Front 9Ton
Rear 16Ton x2
Suspension Front Leaf springs
Rear Leaf springs
Fuel Tanker Type steel tank, with lockable cap
Capacity 400L
Van Body
Dimension 6800x2300x2400mm
Material High strength steel
Aluminum alloy plate and Glass fiber reinforced plastic (FRP) for optional.
Euipments
Generator 30KW Weifang Yama 380V/220V double joint Weifang Power all copper brushless rated frequency: 50HZ Number of electric starting cylinders: 4 Weight: 500KG Boundary
Air compressor: 7.5KW compressor Air receiver volume: 320L Air displacement: 0.8m ³/ Min Exhaust pressure: 1.25Mpa Crankshaft speed: 950r/min Number of cylinders/cylinder diameter 2 * 100+1 * 80 Piston stroke: 72mm Lubrication method: splash cooling method: air cooling Boundary

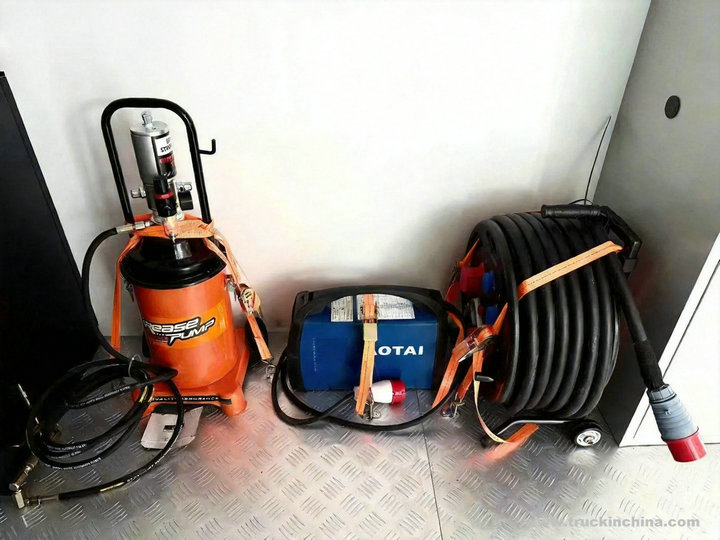

Welding machine 350 dual voltage (380V/220V) (1.2mm welding wire, all day welding) 20KG welding wire capacity, 3m welding gun length, 0.8-1.2mm welding thickness
Grease filling unit 200L hydraulic oil tank
200L Engine Oil tank
200L Grease Barrel tank
200L Residual Oil tank
Crane Fold arm and loading weight 2000kg

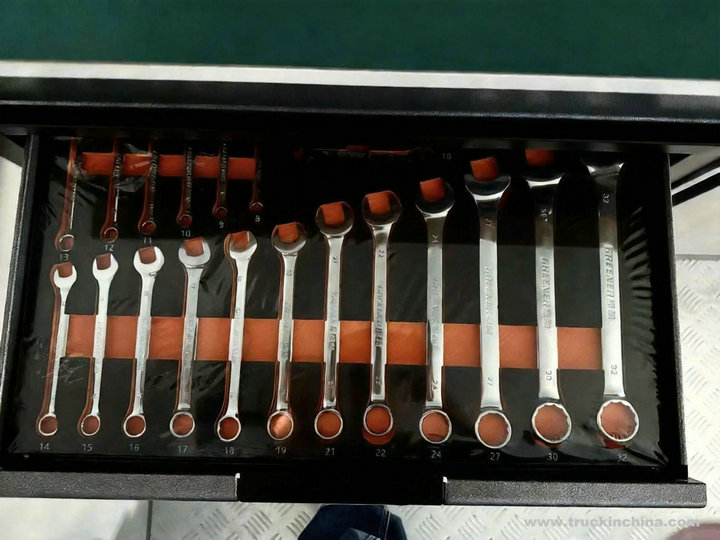

Tool cabinet Multi-functional heavy tool cabinet
1000mm * 500 mm* 1800mm (with tools)
