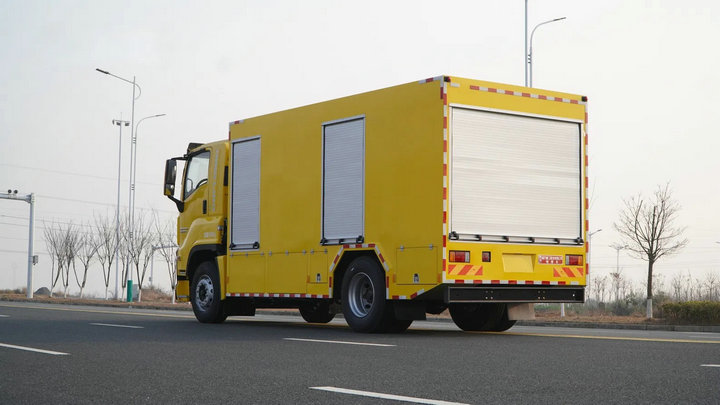

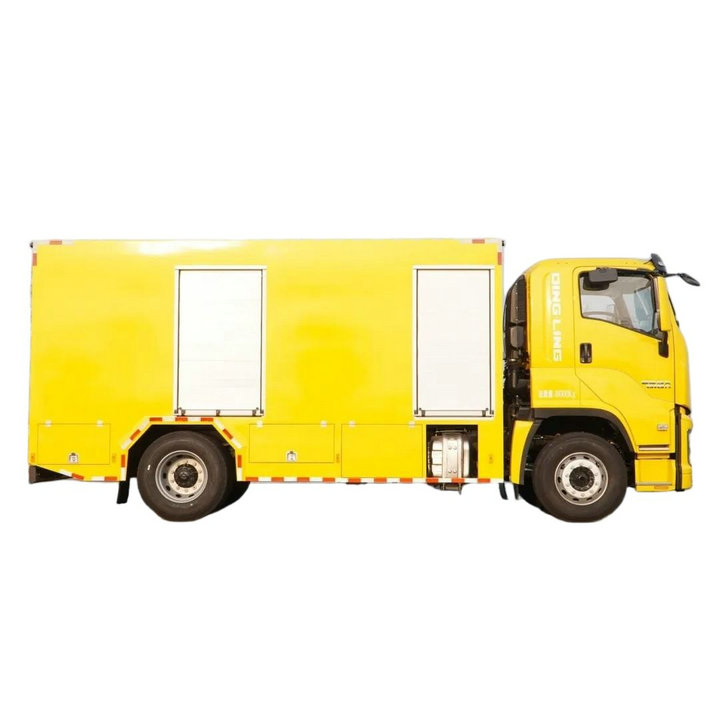

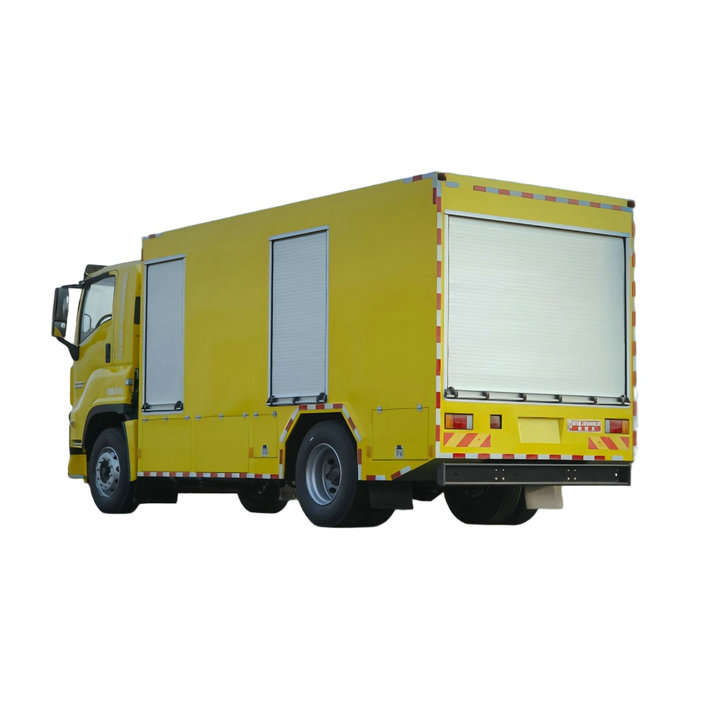

ISUZU GIGA Maintenance Service Mobile Workshop Lube Truck
with Separated Diesel Engine Compressor, Separated Hydraulic Oil, Engine Oil, Transmission Oil, Gear Oil, Grease Tank
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
| Quantity: | |
|---|---|
-
8705909990
-
Shanghai, China
-
1000
-
T/T

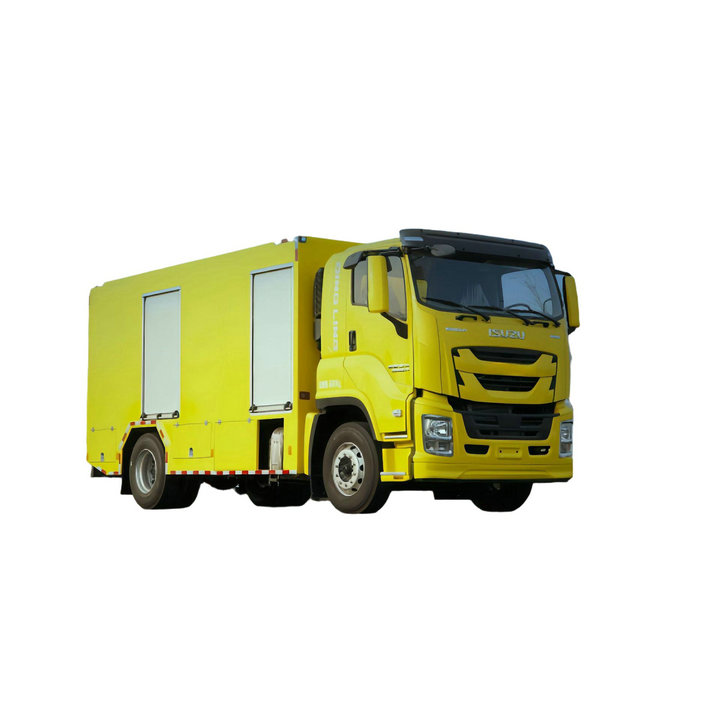

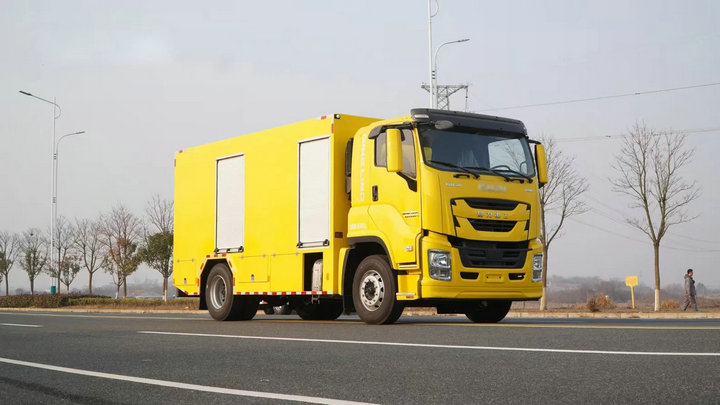

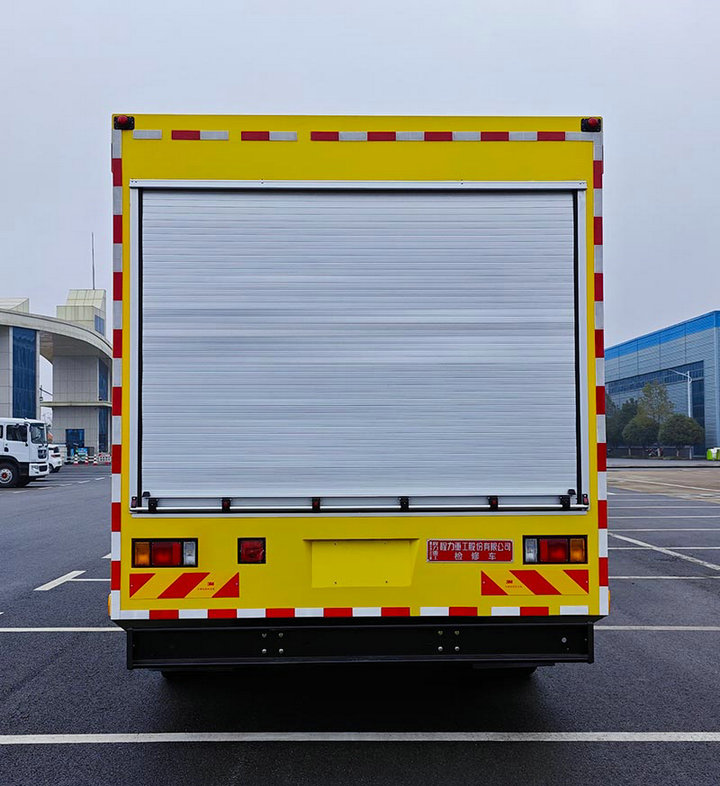

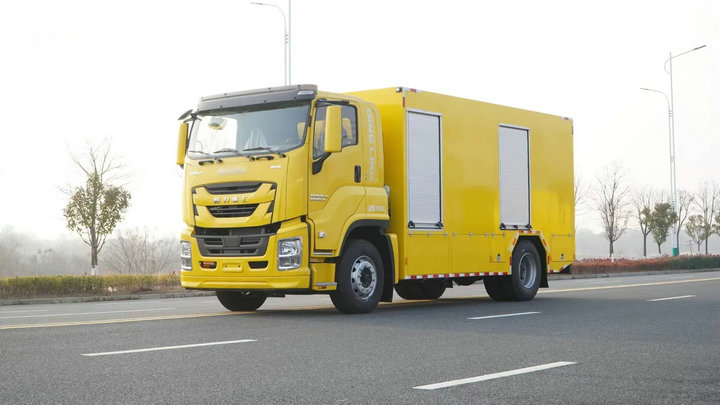

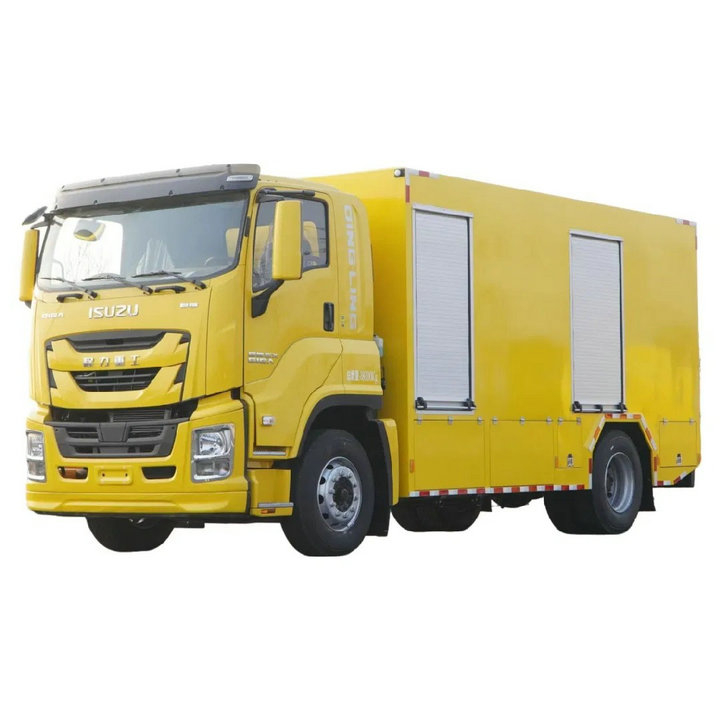

ISUZU GIGA Maintenance Service Mobile Workshop Lube Truck
ISUZU GIGA mobile maintenance service truck (model DRZ5180XJXQL6), 18,000 kg GVW, 240 HP 6HK1-TCG6 engine. Onboard air compressor, generator, oil & grease systems for field repair, mining and fleet maintenance. Request a quote.
ISUZU GIGA Mobile Maintenance Service Truck | Mobile Workshop & Lube Truck
Mobile Workshop – Built for On-Site Emergency Repair

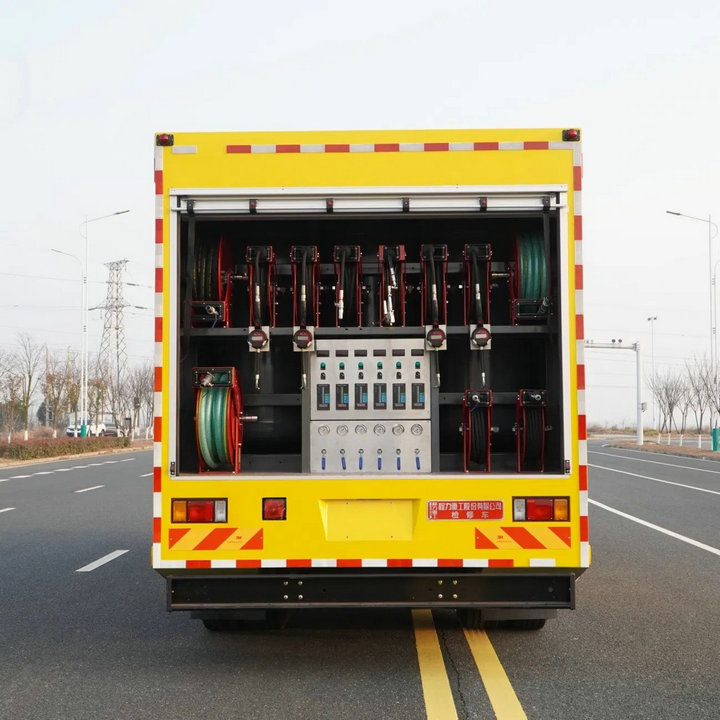

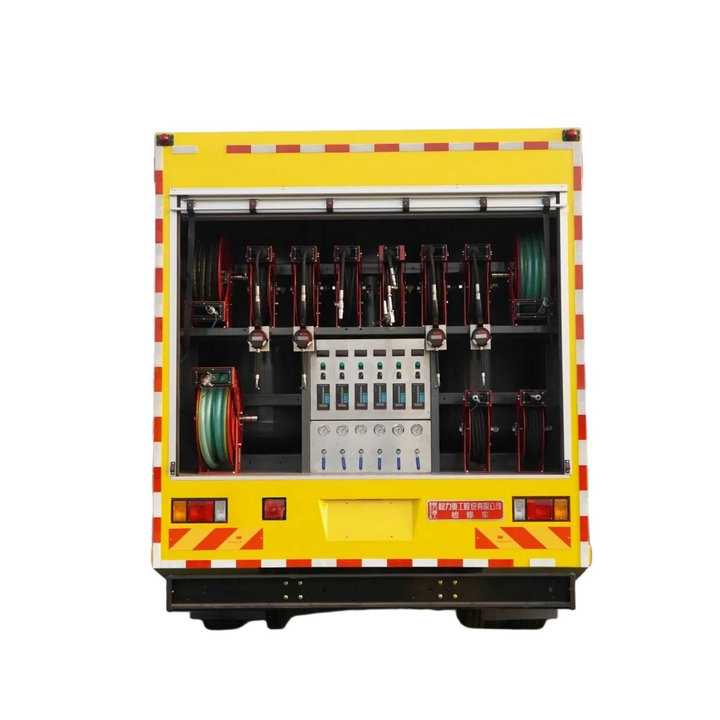

Mobile Lube Truck – Complete Field Lubrication System

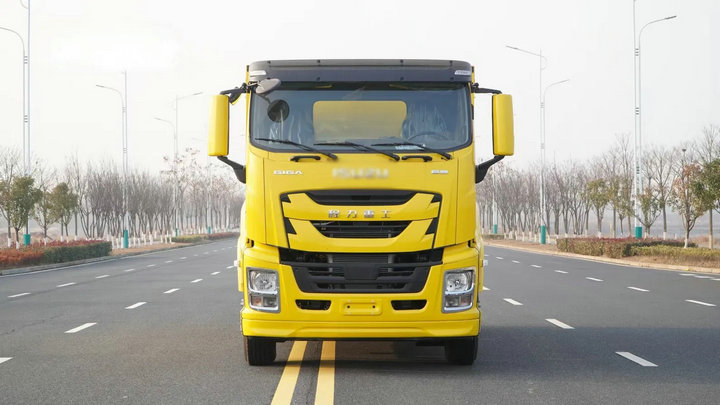

ISUZU GIGA Chassis & Engine Performance
Custom Configurations for Mining, Fleet & Roadside Service
Feature Bullets / Selling Points
ISUZU GIGA base chassis — Model QL1180EQFRY, 2-axle 4×2 drive, built for heavy mobile workshop loads.
240 HP (177 kW) ISUZU 6HK1-TCG6 engine — 7,790 ml displacement, EU Euro 5/6 emission compliant, reliable for long field duty.
Self-contained power & air — 15 p/s diesel air compressor (1.05 m³/min @ 16 bar) and 6.5 kW silent diesel generator let the truck operate independently off-grid.
Complete lubrication package — Pneumatic grease machine (up to 40.5 MPa, 500 g/min) + 4 pneumatic lube oil pumps (14–18 L/min) with digital-display grease/lube guns.
Service convenience — 1T electric manual rotary crane, 1,000 L water tank, 1,800 W car washer with 0–100 bar pressure, 4 oil reel sets, foldable ladder and work/floodlights.
5,550 mm max wheelbase option — stable load distribution for heavy workshop equipment and tooling.
Built for tough sites — 17°/14° approach/departure angles, 295/80R22.5 16PR tires, 6-tire layout, spring suspension (7/6+8).
Export-ready — HS Code 87059090, left/right-hand drive option, max speed 89/105 km/h.
Technical Specifications (cleaned tables)
Vehicle — Mobile Maintenance Service Vehicle
| Parameter | Value |
|---|---|
| Model No. | DRZ5180XJXQL6 / CLH5180XJXQL6 |
| Product Name | Chengli Heavy Industry Mobile Maintenance Vehicle |
| Overall Size (L×W×H) | 7,455 × 2,540 × 3,250 mm |
| Gross Vehicle Weight (GVW) | 18,000 kg |
| Curb Weight | 17,870 kg |
| Rated Payload | Per configuration (confirm with order) |
| Wheelbase | 4,500 / 5,550 mm |
| Front / Rear Track Width | 2,060 / 1,855 mm |
| Front / Rear Overhang | 1,370 / 1,585 mm |
| Approach / Departure Angle | 17° / 14° |
| Front / Rear Axle Load | 6,500 / 11,500 kg |
| Axle Number | 2 |
| Drive Type | 4×2 (Left/Right Hand Drive) |
| Max Speed | 89 / 105 km/h |
| Fuel Type | Diesel |
| Emission Standard | Euro 5 / 6 |
| Transport Package / HS Code | Export packing / 87059090 |
Chassis
| Parameter | Value |
|---|---|
| Chassis Brand | ISUZU |
| Chassis Model | QL1180EQFRY |
| Tire Specification | 295/80R22.5 16PR |
| Tire Number | 6 pcs |
| Gearbox | Fast 8-speed manual |
| Number of Steel Plate Springs | 7/6+8, 7/8+6 |
| ABS / EBS | APG3550500H1 (Asia Pacific) or ABS8.8 ECU 24V (Dongke); optional EBS 5 |
Engine
| Parameter | Value |
|---|---|
| Engine Brand | ISUZU (China) Engine Co., Ltd. |
| Engine Model | 6HK1-TCG61 |
| Horsepower | 240 hp |
| Displacement / Power | 7,790 ml / 177 kW |
| Net Power | 175 kW |

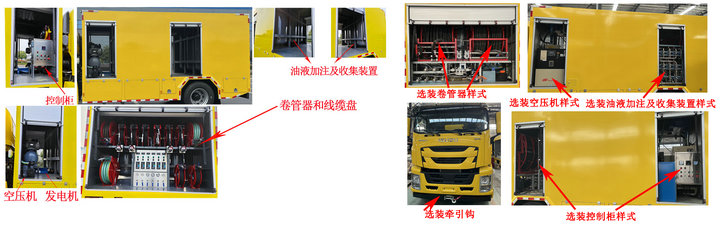

Mobile Lube Truck Equipment
| Item | Spec | Qty |
|---|---|---|
| Diesel Air Compressor | 15 p/s · 130×54×130 cm · 1.05 m³/min @ 16 bar · 300 L | 1 |
| Generator | 6.5 kW / Diesel / 16 L / Silent | 1 |
| Pneumatic Grease Machine | 1/4" pipe · 18.0–40.5 MPa · 500 g/min · 35 L · incl. grease gun | 2 |
| Pneumatic Lube Oil Pump | 3/8" pipe · 14–18 L/min | 4 |
| Lube Oil Gun | With digital display | 4 |
| High-Pressure Air Blow Gun | Removable pipe for interior cleaning | 1 |
| Lube Oil Hose Reel | 3/8" · 15 m | 4 |
| Grease Hose Reel | 1/4" · 15 m with hose & grease gun | 2 |
| Water Tank | 1,000 L · 1,200×1,000×1,150 mm | 1 |
| Car Washing Machine | 1,800 W · 0–100 bar · horizontal | 1 |
| High-Pressure Water Drum Reel | 15 m | 1 |
| 1T Electric Manual Rotary Crane | 1 T lifting · electric hoist · manual rotation | 1 |
| Lube Oil Drum | 200 L | 4 |
| Diesel Drum | 20 L metal | 1 |
| Work Light / Floodlight | Movable working & interior lighting | 1 / 1 |
| Ladder | 3-step foldable | 1 |
