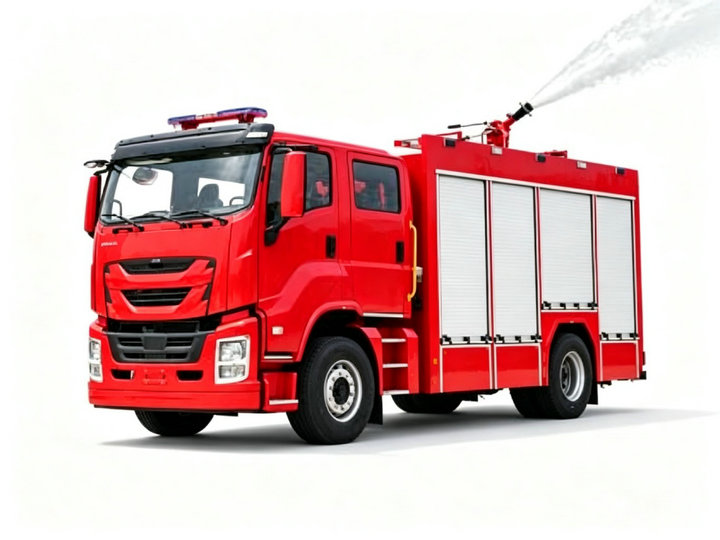

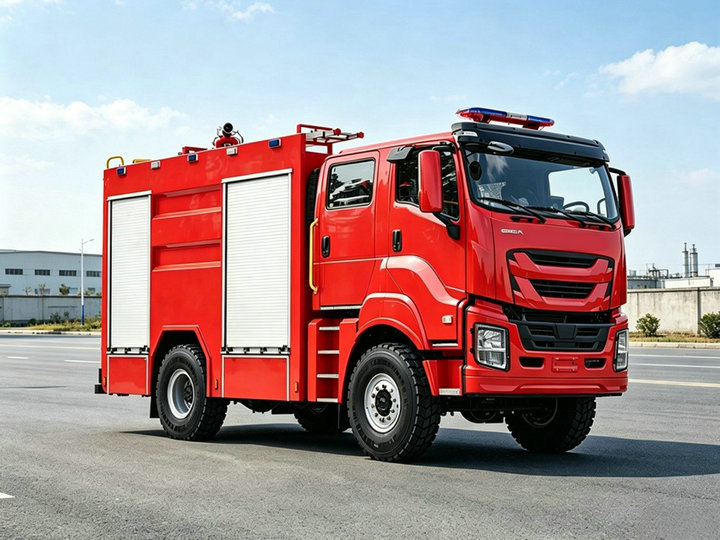

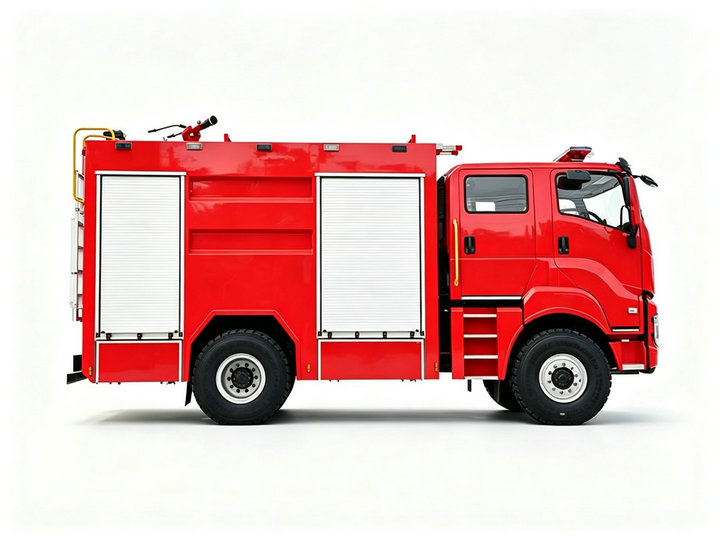

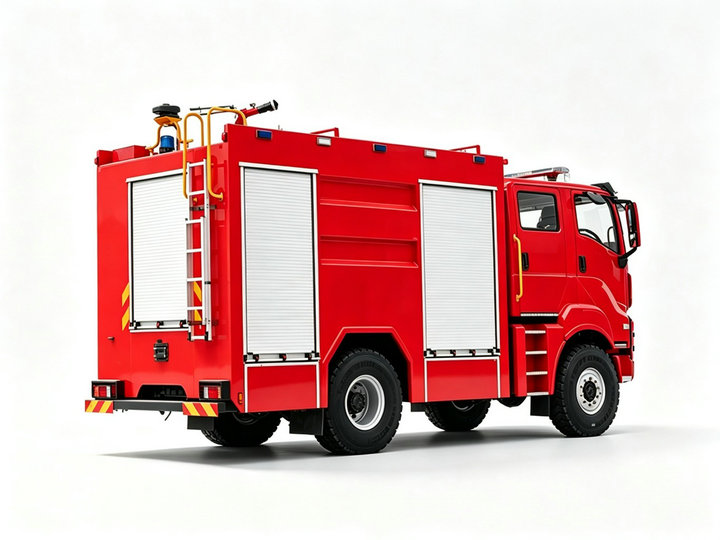

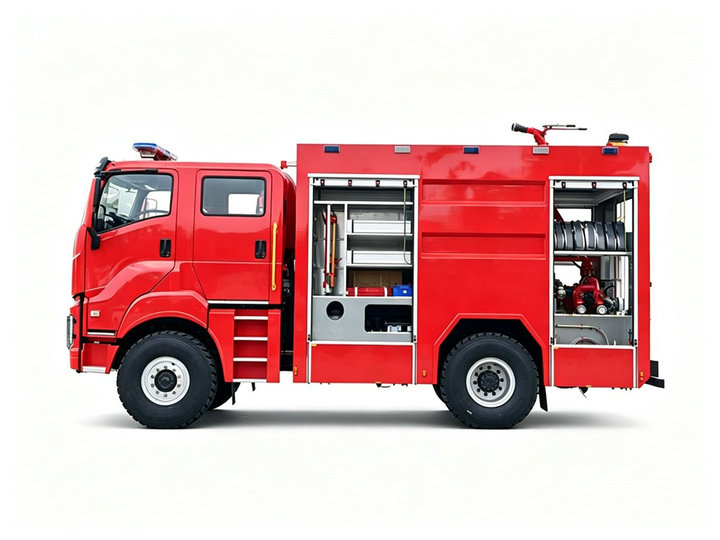

ISUZU FVR 300HP 4X4 Foam Fire Truck 3000L water + 500L foam
| Truck Chassis: | ISUZU GIGA 4x4 |
| Tanker Capacity: | 3000L water + 500L foam (3500L total) |
| Engine Power: | 300 HP (221 kw) / 6HK1-TCG60 |
| Fire Pump: | CB10/40-XZ |
| Pump Flow: | 40 L/s |
| Work Pressure: | 1.0 MPa |
| Fire Monitor: | PL8/32 |
| Monitor Flow: | 32 L/s |
| Monitor Range: | Water ≥60 m , Foam ≥48 m Foam Proportioner PH64, 3%-6% mixing ratio, 64 L/s max flow |
ISUZU
ISUZU 4×4 foam fire truck is powered by a 300 HP 6HK1-TCG60 engine, built on a 4×4 all-wheel-drive chassis with front 385/65R22.5 and rear 315/80R22.5 tires for strong performance on muddy and sandy terrain. This ISUZU foam fire engine carries 3,500 liters total (3,000L water + 500L foam), with a CB10/40-XZ fire pump delivering 40 L/s and a roof-mounted PL8/32 monitor reaching ≥60m water range and ≥48m foam range. The PH64-RS foam proportioner with 6% mixing ratio is designed for Class B oil and chemical fires. Standard equipment includes fire hoses, foam gun, strainer, and full tool kit—making it a reliable choice for fire departments, oil fields, airports, and industrial facilities requiring rapid response.
Working Capacity | Engine Model | Wheelbase | Superstructure |
3000L water + 500L foam | 300 HP / 6HK1-TCG60 | 4500 mm | ★ Tank carbon steel, 3500L capacity ★ CB10/40 fire pump, 40 L/s flow at 1.0 MPa ★ PL8/32 roof monitor, 32 L/s flow with water ≥60 m, foam ≥48 m ★ PH64-RS foam proportioner, 6% mixing ratio |
» Ⅰ.Main Features :
❶ 300 HP 6HK1-TCG60 diesel engine delivers strong torque for rapid acceleration and sustained foam pumping in emergency conditions.
❷ 4×4 ISUZU GIGA FVR chassis carries a 3000L water tank and a 500L foam tank, paired with a CB10/40-XZ pump rated at 40 L/s and 1.0 MPa.

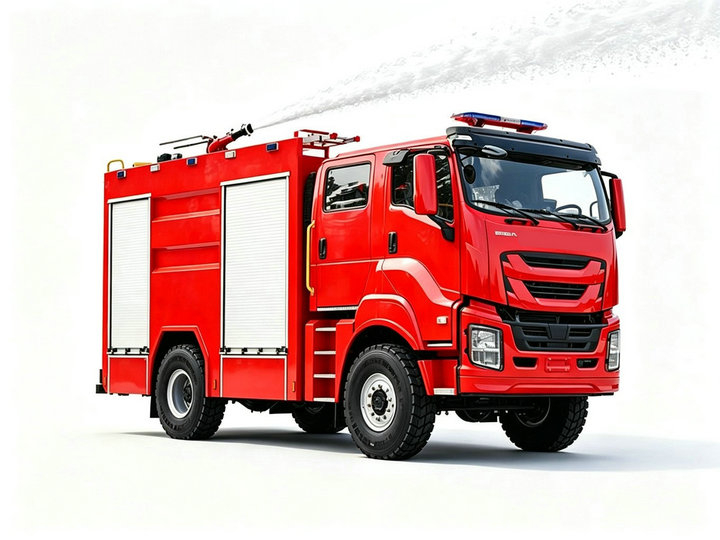

❸ PL8/32 roof monitor provides 60m water range and 48m foam range, giving crews the reach they need for safe, long-distance fire attack.
❹ 4500 mm wheelbase combined with front 385/65R22.5 and rear 315/80R22.5 tires ensures solid footing on rough terrain and muddy job sites.
❺ Standard equipment includes fire hoses, suction hose, couplings, foam gun, and tool kit—everything needed for Class B fire fighting right out of the box.
» Ⅱ.Product Parameter :
ISUZU 4X4 Fire Fighting Foam Fire Truck | |||
General | Work capacity | 3000L water+500L foam | |
Truck chassis | ISUZU GIGA FVR 4x4, double Crew cabins | ||
Engine Power | 300 HP/ ISUZU 6HK1-TCG60 | ||
Fire pump | CB10/40-XZ | ||
Fire Monitor | PL8/32 | ||
Foam Proportioning Mixer | PH64-RS | ||
Maximum Speed | 105 km/h | ||

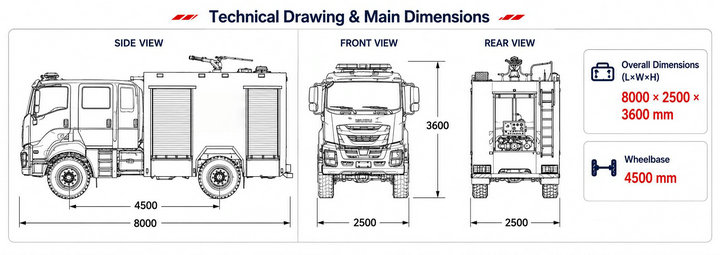

Overall Dimensions L*W*H | 8000*2500*3600 mm | ||
Gross Vehicle Weight | 9900 kg | ||
Curb Weight | 5850 kg | ||
Engine | Engine Model | 6HK1-TCG60 | |
Fuel Type | Diesel | ||
Power | 300 HP（221KW） | ||
Emission Standard | Euro 5 | ||
Displacement | 7790 ml | ||
Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
Chassis | Drive Type | 4x4 | |
Wheelbase | 4500 mm | ||
Tire | Front 385/65R22.5,rear 315/80R22.5,6+1 wheel | ||
Tire No. | 6 tires and 1 spare tire | ||
Fire Pump | Model | CB10/40-XZ | |
Flux | 40L/s | ||
Pressure | 1MPa | ||
Max working pressure | 1.251MPa | ||
Max allowable inlet pressure | 0.4MPa | ||
Max suction height | 7m | ||
Rated speed | 3135±50r/min | ||
Speed ratio | 1:1.4 | ||
Water diversion time | ≤50s | ||
Fire Monitor | Model | PL8/32 | |
Flow | 32L/s | ||
Rated working pressure | 0.8MPa | ||
Max working pressure | 1.2MPa | ||
Range | Water | ≥60m | |
Foam | ≥48m | ||
Pitch rotation | - 35～+70° | ||
Horizontal rotation | 0～360° | ||
Foam Proportioning Mixer | Model | PH64-RS | |
Mixing ratio | 6% | ||
Work pressure range | 0.6～1.4MPa | ||
Flow range | 16～64L/s | ||
Suitable foaming liquid categories | Category B | ||
Standard Configuration | All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual…… | ||
» Ⅲ.Products Description :
1. Chassis & Powertrain
♦ Chassis: ISUZU GIGA FVR 4×4, wheelbase 4500 mm, for off-road and rough terrain stability
♦ Engine: 6HK1-TCG60 diesel, 300 HP (221 kW), strong torque for fast response and extended pump operation
♦ Transmission: Manual 9-speed, precise gear selection for varied road conditions
2. Fire Suppression System
♦ Tank: 3000L water + 500L foam (3500L total), carbon steel, anti-slosh baffles for rough terrain stability
♦ Pump: CB10/40-XZ, 40 L/s at 1.0 MPa, PTO-driven, 7m suction lift, ≤50s priming time
♦ Monitor: PL8/32, 32 L/s flow, water ≥60m, foam ≥48m, 360° horizontal, -35° to +70° pitch
♦ Foam Mixer: PH64-RS, 6% fixed ratio, 16-64 L/s flow range, for Class B liquid fires
» Ⅳ .Foam Fire Truck Working Principle :
• Suction Intake
DN125 large-diameter suction port with quick priming and high flow, draws from natural sources like ponds or rivers when hydrants are unavailable.
• Fill Connection
DN65 external water inlet for hydrant or auxiliary pump hookup, tops up the tank quickly in urban or municipal supply scenarios.
• Discharge Ports
DN65 and DN80 outlets on both sides support simultaneous hose connections, adjusting to different pressure and flow needs for faster water delivery.
• Foam Circuit
Independent closed-loop foam system handles suction, mixing, and pressurized discharge on its own. Switches between water and foam instantly while keeping a steady 6% mix ratio for oil fire fighting.
» Ⅴ.Fire Pump System :

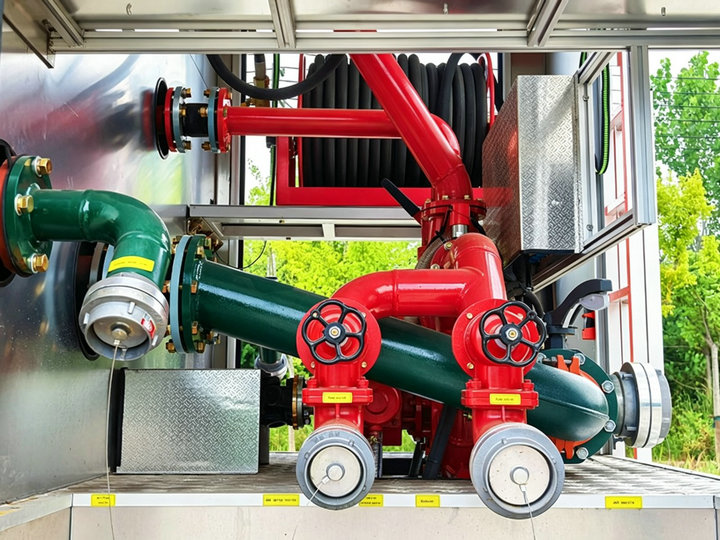

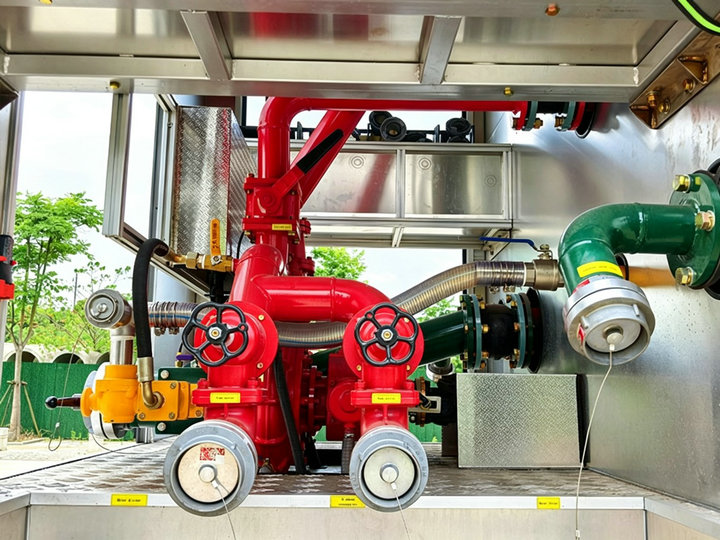

Fire Pump:
A CB10/40 fire pump with a rated flow of 40 L/s at 1.0 MPa is installed in the rear pump room. This pump is built for reliable performance, providing steady water pressure to ensure fire hoses and monitors can deliver water or foam effectively over long distances for fire suppression.
Fire Pump Model | Flow | Pressure | Max Working Pressure | Max Allowable Inlet Pressure |
CB10/40 | 40 L/s | 1.0MPa | 1.251 MPa | 0.4MPa |
Foam Monitor:

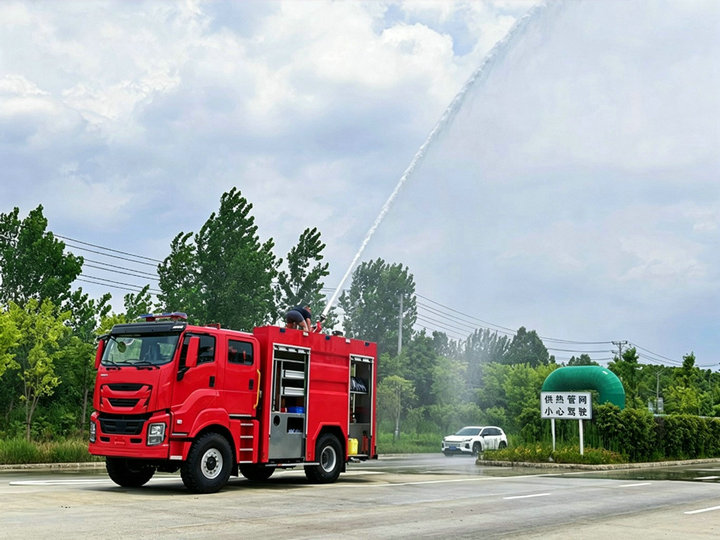

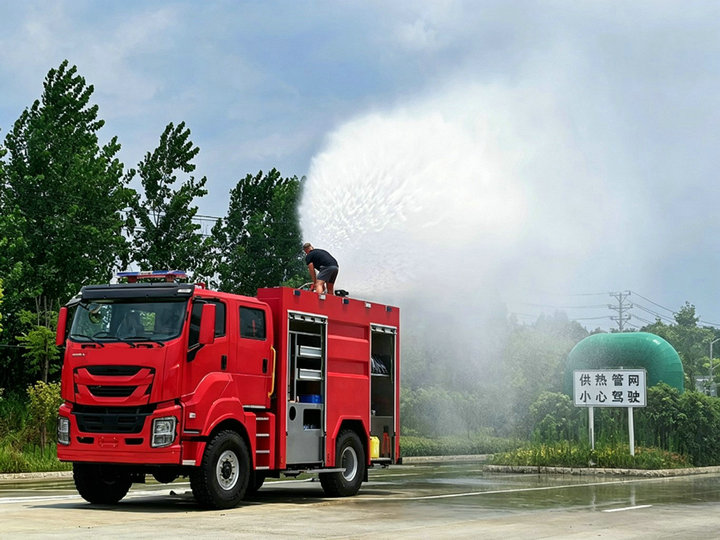

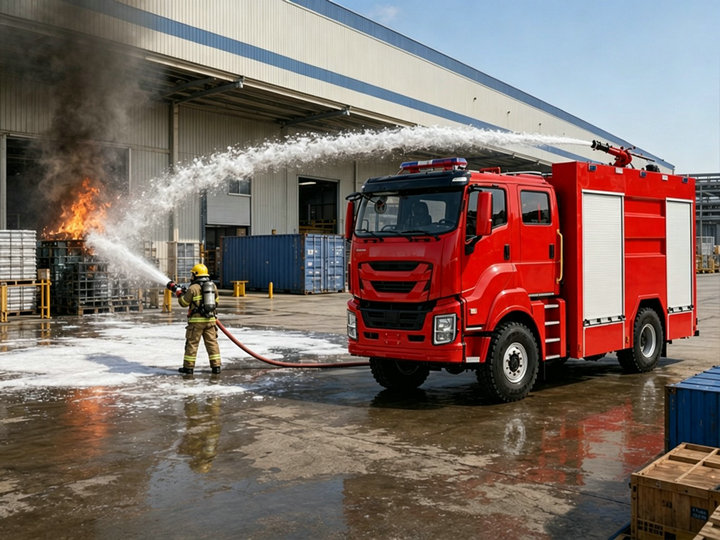

The PL8/32 fire monitor is mounted on the cab roof. It delivers a flow rate of 32 L/s with a water range of ≥60 m and a foam range of ≥48 m. The monitor supports both straight stream and spray patterns for flexible firefighting operations.
Foam Proportioner:
PH64 pump-in-ring type foam proportioner, mixing ratio adjustable from 3% to 6%, max mixing flow rate 64 L/s. Automatically mixes foam concentrate with water for efficient Class B fire suppression. Simple operation with no external power required.
Control panel:
Includes operating instructions, tank piping diagram, pressure gauge, water level gauge, foam level gauge, emergency stop, PTO control, main power switch, pump controls, monitor controls, and compartment lighting. All controls are clearly marked for straightforward operation.

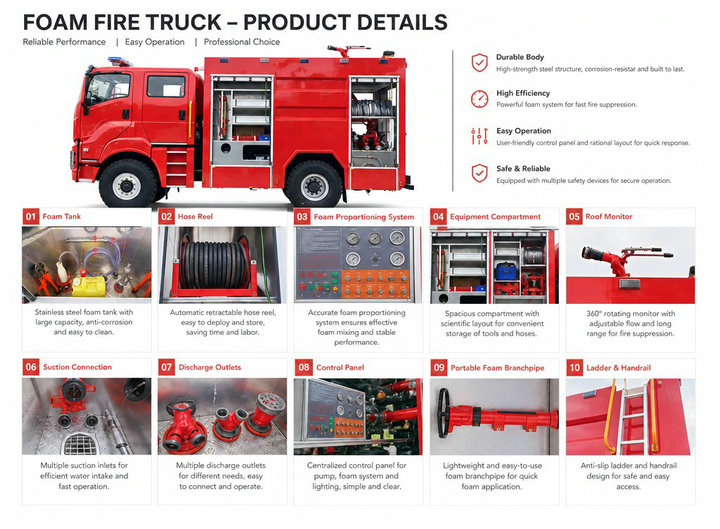

» Ⅵ.Firefighting Equipment :

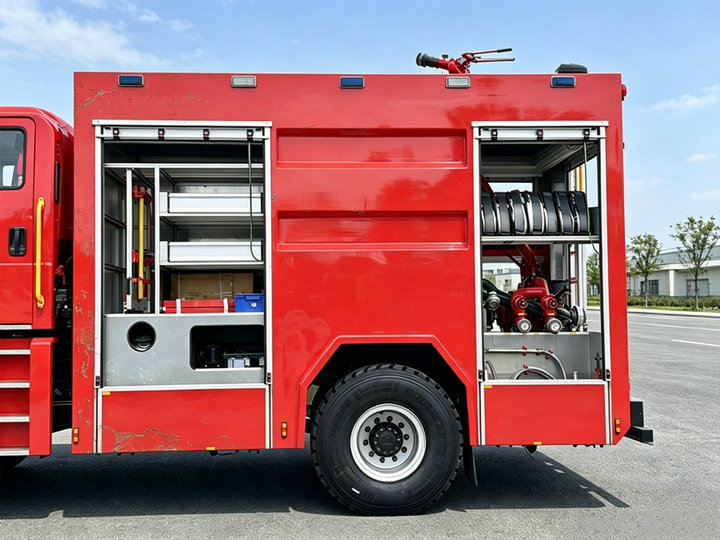

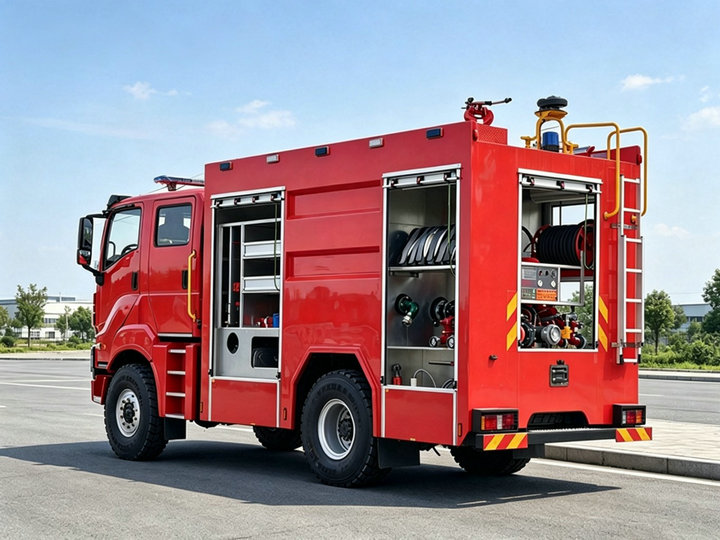

• Equipment Room
Located on both sides of the vehicle, these compartments are equipped with equipment racks and storage trays. The racks keep fire hoses, suction tubes, and foam guns neatly organized. The storage trays provide quick access to tools like wrenches, axes, and crowbars, improving rescue efficiency.
Full specs are listed below：
NO | Item | Unit |
1 | Water Suction Pipe (Suction hose Ø 125 mm, length: 4 m) | 2 PC |
2 | Water strainer (Ø 125) | 1 PC |
3 | Water segregator (Ø 80-65-65 mm) | 1 PC |
4 | Water collector (Ø 125-65-65 mm) | 1 PC |
5 | Soft-wall fire hose (Water hose Ø 65 mm, length: 20 m) | 6 SET |
6 | Soft-wall fire hose (Water hose Ø 80 mm, length: 20 m) | 4 SET |
7 | Fast conversion joint (80X65 mm) | 2 PC |
8 | Hose protector | 4 PC |
9 | Hose Hoist | 4 PC |
10 | Ground Hydrant-wrench | 1 PC |
11 | Underground Hydrant-wrench | 1 PC |
12 | Suction Wrench | 2 PC |
13 | Dry Powder Extinguisher | 1 PC |
14 | Fire Fighting Barrel | 1 PC |
15 | Straight flow switch water gun (Ø 65 mm) | 1 PC |
16 | Multi-purpose switch water gun | 1 PC |
17 | Fire Fighting Axe | 1 PC |
18 | Fire Fighting Shovel/Spade | 1 PC |
19 | Fire Axe | 1 PC |
20 | 4M Aluminum Ladder (Optional 10M Aluminum Ladder) | 1 PC |
21 | Original Chassis Tools | 1 PC |
22 | Protective (safety) spectacles | 1 PC |
Isuzu firefighting trucks list
Model | Engine model | Water | Foam | Fire Pump | Fire Monitor |
Isuzu Pick Up | 4KH1CT6H1 / 143HP | 500L | 100L | Independent Fire Pump | PL8/20W |
Isuzu mini ELF / NKR / 100P | 4KH1CN6LB / 120HP 4KB1-TCG61 / 130HP | 1000L 2000L | 1000L 500L | CB10/20 (20L/s) CB10/30 (30L/s) | PL8/24W (24L/S) |
Isuzu NPR / ELF | 4KH1N6MD / 140 HP 4KH1N6HD / 150HP | 2000L | 1000L |
CB10/30 (30L/s) | PL8/24W (24L/S) |
Isuzu ELF / 700P | 4HK1-TCG61 / 190HP 4HK1-TCG60 / 205HP | 3000L 4000L | 1500L 500L | CB10/30 (30L/s) CB10/40 (40L/s) | PL8/24W (24L/S) PL8/32W (32L/S) |
Isuzu GIGA 4X | 4HK1-TCG60 / 205HP | 5000L | 1000L | CB10/40 (40L/s) | PL8/32W (32L/S) |
Isuzu GIGA 5X | 6HK1-TCG61 / 240HP 6HK1-TCG60 / 300HP | 5000L 6500L | 1000L 500L | CB10/40 (40L/s) CB10/60 (60L/s) | PL8/32W (32L/S) PL8/48W (48L/S) |
Isuzu GIGA (4x2) | 6UZ1-TCG61 / 350HP 6UZ1-TCG60 / 380HP 6WG1-TCG61 / 460HP | 5000L 5000L 6000L | 1000L 2000L 2000L | CB10/60 (60L/s) CB10/80 (80L/s) CB10/100 (100L/s) | PL8/48W (48L/S) PL8/64W (64L/S) PL8/80W (80L/S) |
Isuzu GIGA (6x4) | 6UZ1-TCG61 / 350HP 6UZ1-TCG60 / 380HP 6WG1-TCG60 / 420HP 6WG1-TCG61 / 460HP 6WG1-TCG62 / 520HP | 9000L 10000L 12000L | 1000L 2000L 2000L | CB10/60 (60L/s) CB10/80 (80L/s) CB10/100 (100L/s) | PL8/48W (48L/S) PL8/64W (64L/S) PL8/80W (80L/S) |
Isuzu GIGA (8x4) | 6WG1-TCG60 / 420HP 6WG1-TCG61 / 460HP 6WG1-TCG62 / 520HP | 10000L 12000L 14000L | 4000L 4000L 2000L | CB10/60 (60L/s) CB10/80 (80L/s) CB10/100 (100L/s) | PL8/48W (48L/S) PL8/64W (64L/S) PL8/80W (80L/S) |
ISUZU Chassis list:
Chassis Model | Horsepower | Wheelbase | Engine Model | Transmission Option | Cab Configuration |
ISUZU FVR (4x2) | 240 HP | 4500/5550/5800 /6300/7150 | 6HK1-TCG61 | FAST 8-speed Transmission | New ISUZU VC61 Series Cab |
ISUZU FVZ (4x2 /6x4) | 300 HP | 4500/ 7150 4350+1370/4650+1370 5100+1370/5800+1370 1850+2980+1370 1850+4575+1370 | 6HK1-TCG60 | FAST 9-speed Transmission | New ISUZU VC61 Series Cab |
ISUZU VC66 Series 6x4 | 350 HP | 1850+4575+1370 | 6UZ1-TCG61 | ZF 8-speed (ZF8) / FAST 12-speed | New ISUZU VC61 Series Cab |
ISUZU VC66 Series (4x2 /6x4/8x4) | 380 HP | 3900/4600/5600 3900+1370 3985+1370 4600+1370 1850+3000+1370 1850+2980+1370 | 6UZ1-TCG61 | ZF 8-speed (ZF8) / FAST 12-speed | New ISUZU VC61 Series Cab |
ISUZU VC66 Series(6x4 ) | 420 HP | 4800+1370 5200+1370 | 6WG1-TCG60 | ZF 8-speed (ZF8) / FAST 12-speed | New ISUZU VC61 Series Cab |
ISUZU VC66 Series | 460 HP | 4600 4600+1370 4800+1370 5200+1370 5400+1370 2100+4325+1370 1850+4575+1370 | 6WG1-TCG61 | ZF 8-speed (ZF8) / FAST 12-speed | New ISUZU VC61 Series Cab |
ISUZU VC66 Series( 6x4/8x4) | 520 HP | 4800+1370 5400+1370 2100+4325+1370 | 6WG1-TCG62 | ZF 8-speed (ZF8) / FAST 12-speed | New ISUZU VC61 Series Cab |
