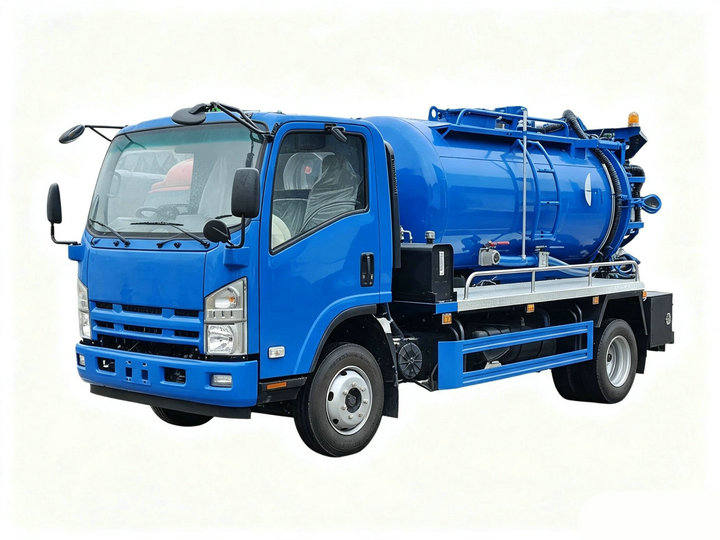

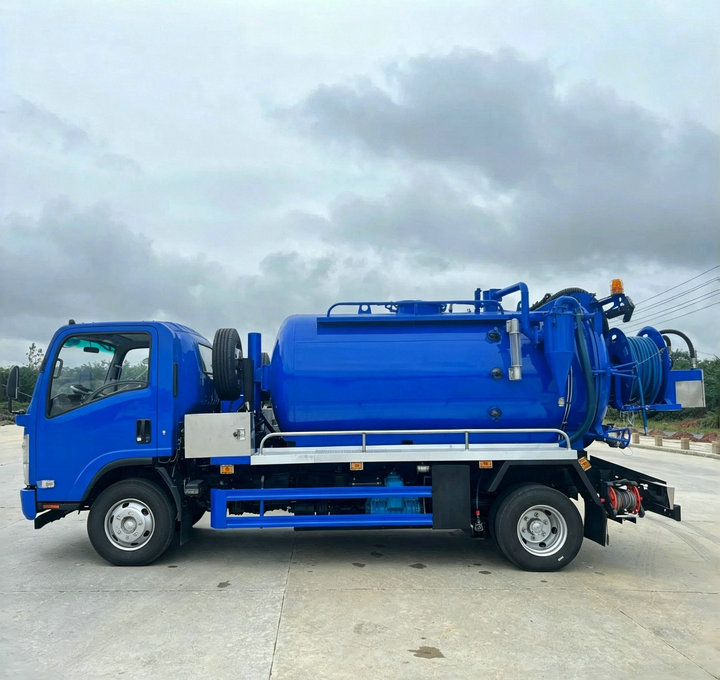

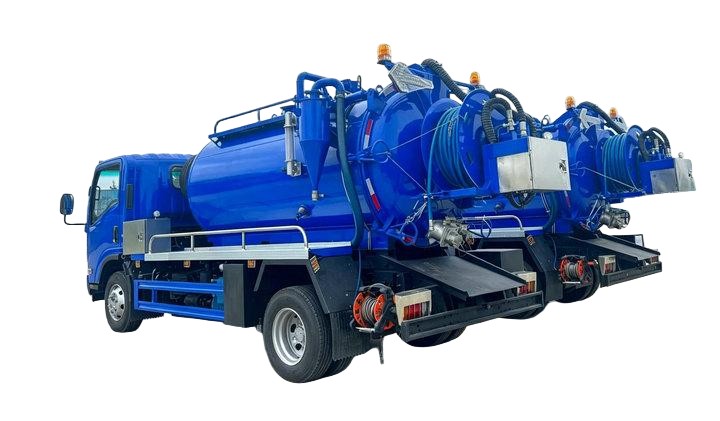

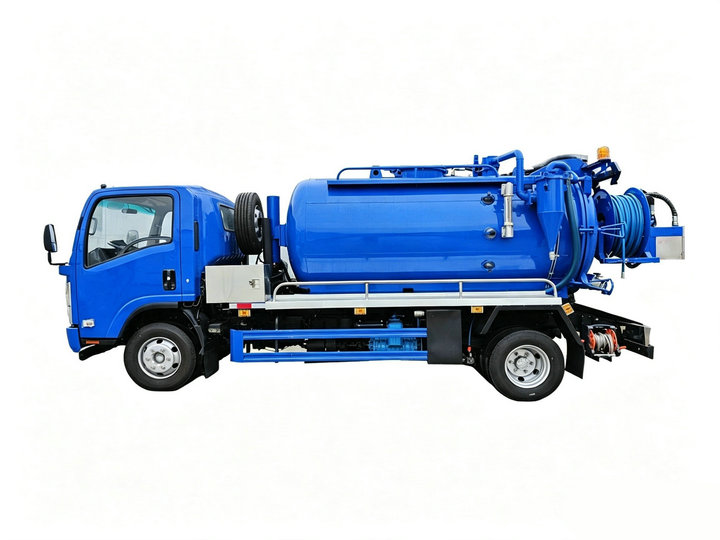

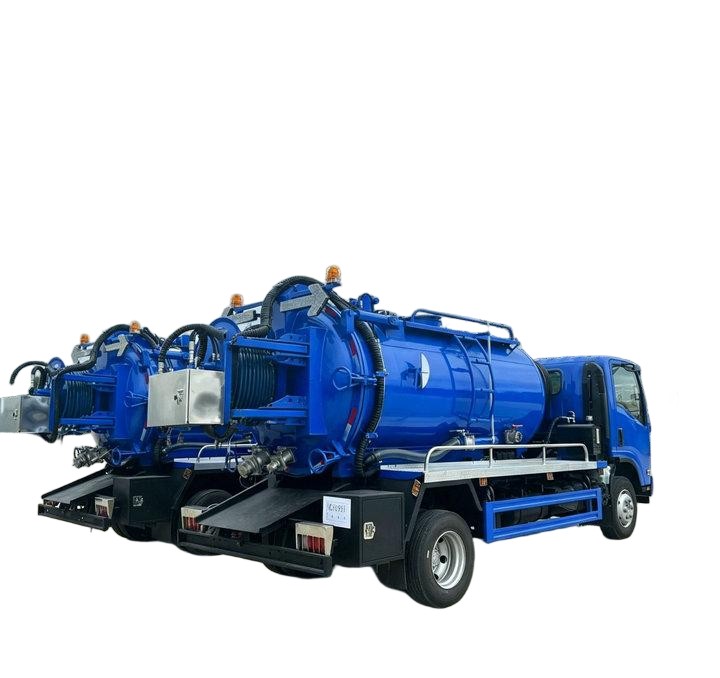

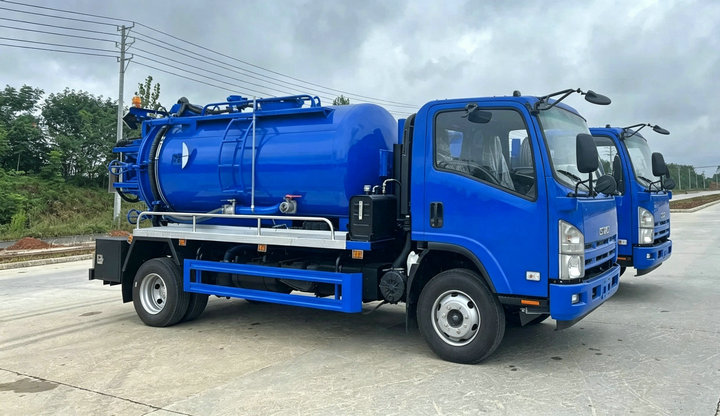

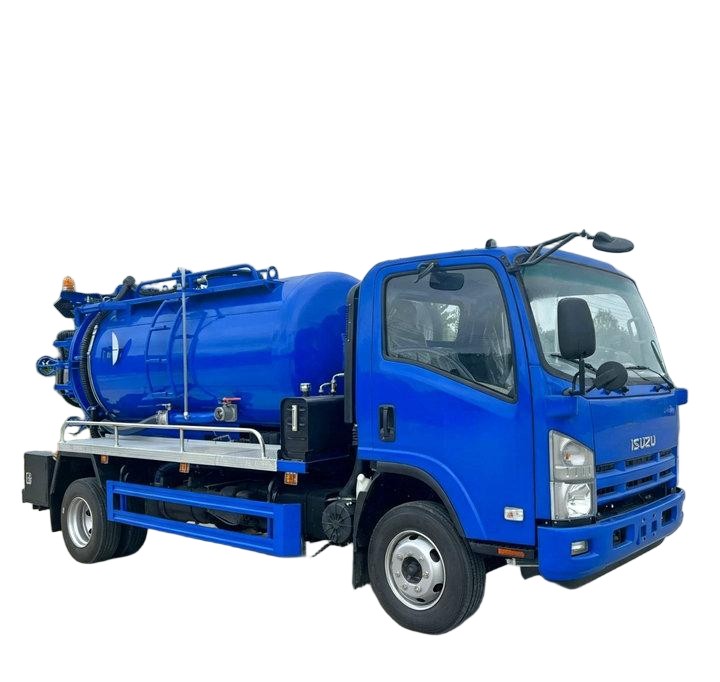

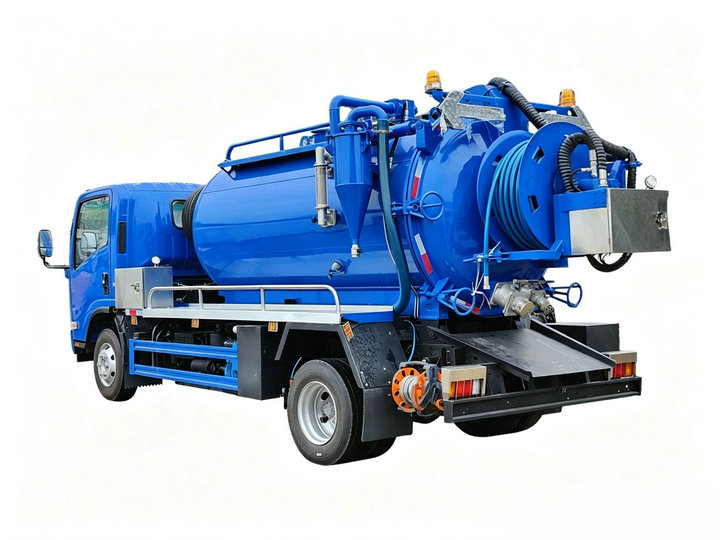

ISUZU Combination Jetting Vacuum Tanker Truck 4000L Sewage+2000L Clean Water
4000L Sewage+2000L Clean Water ( Wheelbase 3815mm)
5000L Sewage+3000L Clean Water( Wheelbase 4170mm)
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
| Quantity: | |
|---|---|
|
| |
-
DRZ5080GQWQL
-
Dong Run Ze
-
8705909990
ISUZU Combination Jetting Vacuum Tanker Truck
700
Product Overview
ISUZU FRR 700P High Pressure Jetting & Sewage Suction Combined Truck — Ideal Solution for Municipal Sanitation & Industrial Waste Treatment
① Sturdy ISUZU Chassis & Durable Powertrain
Built on genuine ISUZU FRR700P high-strength chassis with 4×2 LHD drive layout, stable driving on urban roads, rural lanes and construction sites.
Original ISUZU 4HK1-TCG61 inline 4-cylinder turbo intercooled diesel engine, 190HP (139kW) power, maximum torque 507N·m, meeting Euro 6 emission standards.
The powertrain requires no major overhaul within 500,000 km, effectively reducing long-term maintenance and replacement expenses.
Matched with ISUZU MLD 6-speed manual transmission, smooth gear shifting and reliable power output.
② Integrated Dual-function System, Efficient Pollution-free Operation
Dual independent tank configuration: 2000L clean water tank + 4000L sewage tank, total 6000L storage capacity for continuous cleaning work.
German PINFL PF36 high-pressure jet pump, max working pressure 16MPa, flow rate 122L/min, paired with 60m high-pressure hose to dissolve pipeline blockages, grease and sediment.
Optional Jurop PN155D / Italy MORO PM60A vacuum pump, up to 93% vacuum degree, max horizontal suction distance 60m and vertical suction depth 7m.

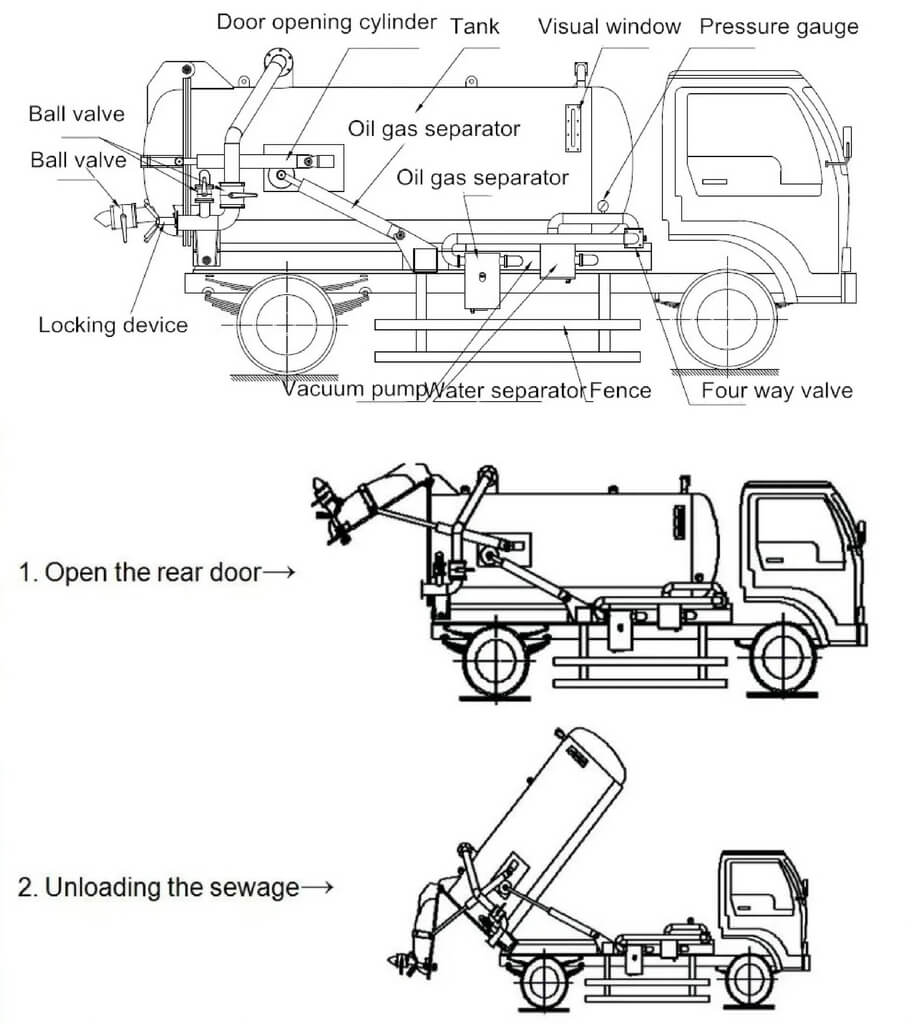

Hydraulic tilting tank design with ≥45° dumping angle; sludge and solid waste can be unloaded fully by gravity without manual shoveling.
Closed sewage storage structure avoids secondary sewage leakage and environmental contamination.
③ Humanized Control & Low Lifecycle Cost
Single-row ISUZU 700P air-conditioned cab with power steering, USB charging ports, comfortable for all-day operation and less driver fatigue.
Central integrated electronic control panel with vacuum pump tachometer, pressure gauge, electric throttle, emergency stop and running hour meter for one-button operation.
Dual operation modes: electric centralized control + backup manual handle for tank lifting and rear door opening.
Multi-layer liquid level monitoring system: transparent float tube + 3 bowl-type level gauges, real-time observation of internal water/sewage volume.
Global after-sales support for ISUZU genuine spare parts; all key superstructure components provide 2-year quality warranty.
3. Wide Application Scenarios
Municipal Sanitation & Urban Sewer Maintenance
Factory & Industrial Site Cleaning
Emergency & Public Area Environmental Treatment
Complete Technical Parameter
Whole Vehicle General Parameters
| Item | Specification |
|---|---|
| Brand | DONG RUNZE |
| Chassis Model | ISUZU FRR 700P |
| Overall Dimension | 5995 × 2350 × 2580 mm |
| Gross Vehicle Weight (GVW) | 10550 kg |
| Kerb Weight | 5650 kg |
| Front / Rear Axle Load | 4000 kg / 7000 kg |
| Drive Mode | 4×2 Left Hand Drive |
| Wheelbase | 3815 mm |
| Max Travel Speed | 110 km/h |
| Fuel Tank Capacity | 100 L |
| Body Paint | Anti-corrosion metallic paint |
Cab & Engine Parameters
| Item | Specification |
|---|---|
| Cab Type | Single-row ISUZU 700P cab, A/C, power steering, USB port |
| Fuel Type | Water-cooled 4-stroke inline 4-cylinder turbo intercooled diesel |
| Engine Model | ISUZU 4HK1-TCG61 |
| Rated Power | 190 HP (139 kW) |
| Rated Speed | 2600 rpm |
| Peak Torque | 507 N·m (1600–2600 rpm) |
| Displacement | 5.193 L |
| Emission Standard | Euro 6 |
| Transmission | ISUZU MLD 6-speed manual gearbox |
| Tire Spec | 235/75R17.5; 6 running tires + 1 spare tire |
Tank Superstructure Parameters
| Item | Standard Configuration | Optional Upgrade |
|---|---|---|
| Tank Volume | 4000L sewage tank + 2000L clean water tank | Stainless steel tank body |
| Tank Material | 5mm thick carbon steel with full anti-corrosion blasting coating | 304 stainless steel |
| Max Tilting Dumping Angle | ≥45° | / |
| Sewage Outlet | 600mm hydraulic quick-opening rear door with 4 locking latches | / |
| Suction Port | DN100 low-level discharge outlet + DN80 high-level feeding inlet | / |
| Liquid Level Monitoring | Transparent float tube + 3 bowl-type visual gauges | / |
Vacuum Pump System
| Standard Pump (Jurop PN155D) | Data | Optional Upgrade Pump (Italy MORO PM60A) |
|---|---|---|
| Pumping Flow Rate | 910 m³/h (15200 L/min) | Higher stable vacuum suction performance |
| Rotational Speed | 1150 r/min | Dual two-stage transmission structure |
| Peak Vacuum Degree | 27.8Hg (93%) | Built-in oil collecting silencer to reduce noise & oil pollution |
| Continuous Working Vacuum | 18Hg (60%) | Auto positive/negative pressure safety valve |
| Max Working Pressure | 2 bar | Anti-overflow primary & secondary protection device |
| Pump Power | 19 kW / 25.5 HP | Reinforced bolted connecting base for easy maintenance |
High-Pressure Jetting Water Pump
| Item | Parameter |
|---|---|
| Brand & Model | German PINFL PF36 Plunger Pump |
| Rated Working Pressure | 16 MPa (160 bar) |
| Water Flow Rate | 122 L/min |
| Rated Rotation Speed | 800 r/min |
| Pump Power | 50 kW |
| Hose Reel | Rear-mounted reel with 60m Φ19 high-pressure resistant hose |
| Jet Nozzles | 10 sets wear-resistant carbon steel multi-angle cleaning nozzles |
Standard & Optional Accessories
Standard Full Accessories
Optional Customization
Stainless steel tank body for corrosive sewage transportation
Domestic brand water circulation vacuum pump for cost-saving selection
Right-hand drive (RHD) chassis for overseas markets
Extra long 80m / 100m high-pressure jet hoses
Unique Structural Design Advantages
- Dual-stage anti-overflow protection deviceBolt-connected reinforced base design, easy disassembly and daily maintenance, effectively preventing sewage backflow into the vacuum pump to extend pump service life.
- Automatic positive-negative pressure safety valveAutomatically release excessive internal pressure or break vacuum to balance tank pressure, eliminate tank deformation risk and ensure full operation safety.
- Italy MORO PM60A high-performance vacuum pump optionAdopts dual two-stage transmission mechanism for stable power transfer, greatly lowers post-operation pump maintenance frequency and repair costs. Equipped with self-developed oil collecting silencer to reduce exhaust noise, separate and recycle lubricating oil, cut down air pollution.

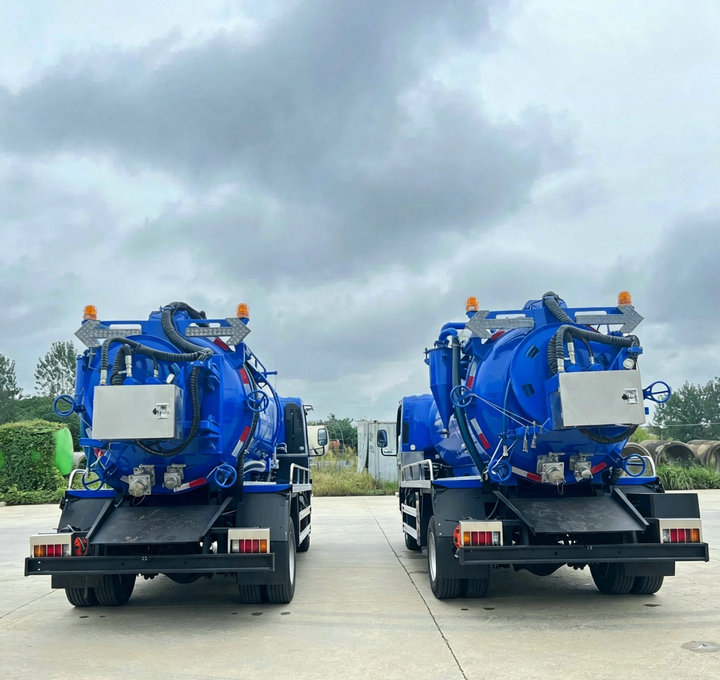

- 4-point reinforced rear door locking systemDifferent from the ordinary 2-lock design on the market, our vehicle adds another two groups of locking mechanisms to achieve full sealing and completely avoid sewage leakage during transportation.
- Multi-point liquid level observation structureCombines rod-type transparent float tube gauge and three independent bowl-type level gauges, allowing operators to check water and sewage volume at any time without opening the tank cover.
- Integrated electronic central control box Equipped with vacuum pump speed meter, pressure gauge, electric accelerator control, vacuum pump start/stop button, emergency stop light, working hour counter for intuitive one-person operation. Backup manual handles for tank lifting and rear door opening are reserved for power failure scenarios, with full English operation warning labels attached.
- All-round Lifecycle After-sales Support
Long-term Win-win Partnership Mechanism
✅ OEM official modification standards fully compliant with global ISUZU technical specifications
✅ Direct cooperation with Qingling ISUZU Chongqing production base for genuine N/F/GIGA series chassis
✅ Complete certifications
✅ 5 independent professional production workshops: Sanitation Vehicle Workshop, Refrigerated Truck Workshop, Construction Machinery Truck Workshop, Tanker Workshop, Custom Modification Workshop
✅ Imported advanced manufacturing equipment: KraussMaffei tank forming equipment, SPX hydraulic comprehensive test bench
✅ Robotic automatic welding stations with ±0.3mm welding precision; tank body anti-corrosion treatment with 10-year service guarantee
| ISUZU Combination Jetting Vacuum Tanker Truck 5000L Sewage+3000L Clean Water Vehicle parameters | |||
| Overall Dimension(mm) | 7400×2300×3300 | Load weight(ton) | 5~8 ton |
| The total mass(kg) | 11000kg | Curb Weight(Kg) | 58000kg |
| Sewage tank volume | 5000 L | Water tank volume | 3000 L |
| Total Tank volume | 8000 L | Chassis | ISUZU |
| Approach / departure angle (°) | 16/15 | Front overhang / rear overhang (mm) | 1110/2060 |
| Unloading sewage mode | Lifting tank to discharge | Negative pressure up to | -0.9 Bar |
| Vertical suction depth | 7 m | Horizontal suction distance | 60 m |
| Outfall | 600mm hydraulic door | Suction inlet | 100mm ball valve |
| Chassis parameters | |||
| Number of axle | 3 | Drive type | 4*2 |
| Tire Specifications | 235/75R17.5 | Number of tires | 6+1 |
| Front track(mm) | 1680 | Rear track(mm) | 1650 |
| Wheelbase(mm) | 4175 | Number of spring | 8/10+6 |
| Maximum speed(km/h) | 90 | Type of fuel | diesel |
| High pressure pump parameters | |||
| Model | PF36 (Brand: Germany PINFL) | Power | 50 kw |
| Pressure | 160 Bar | Flow | 122 L/min |
| Rotation speed | 800 | Weight | 69 kg |
| Water circulating vacuum pump parameters | |||
| Model | SK-12 (China brand) | Ultimate vacuum | -0.0093 Mpa |
| Rotation speed | 980 r/min | Maximum pumping speed | 12 m3/min |
| Power | 18.5 kw | Compressor pressure | 0.15Mpa |
| Diameter | Inlet:80mm outlet:80mm | Flow of supplying water | 40 to 50 L/min |
| Truck engine parameters | |||
| Engine model | ISUZU 4HK1-TC | Emission standard | Euro 6 |
| Rated speed | 2600rpm | Maximum torque | 510N.m |
| Number of cylinders | 4 | Cylinder arrangement | In line |
| Displacement (ml) | 5193 | Horse power (hp) | 190 hp |
