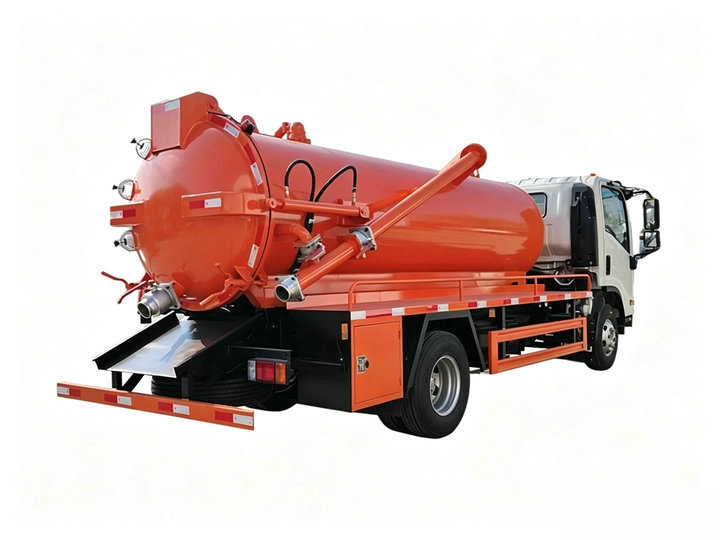

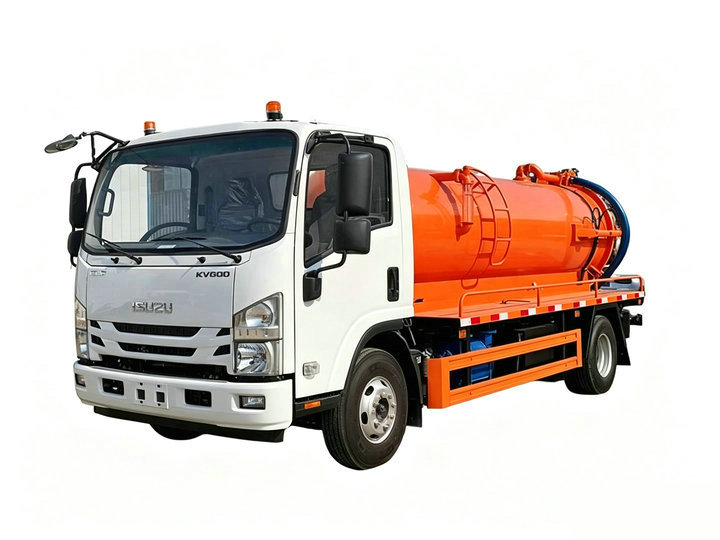

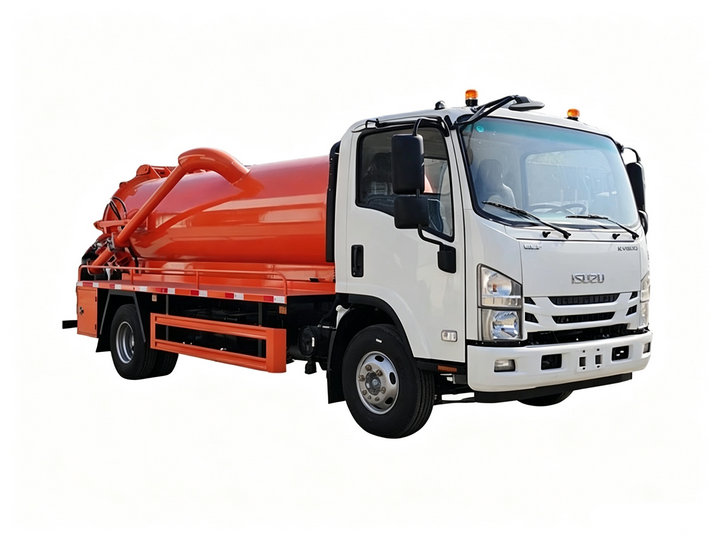

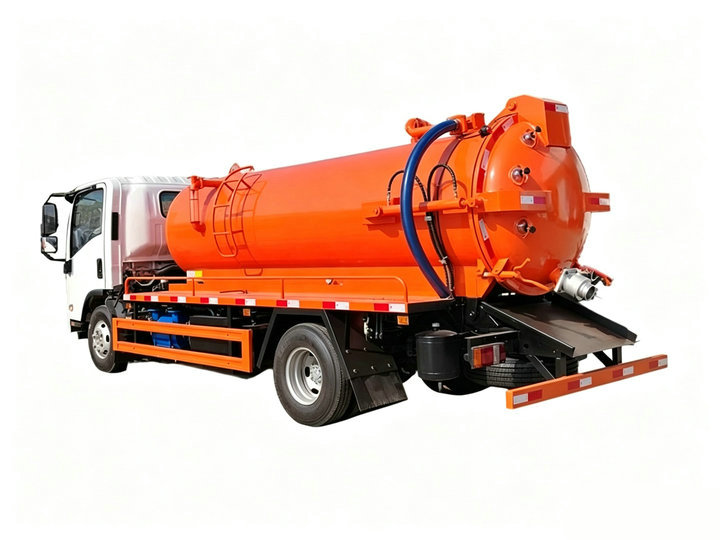

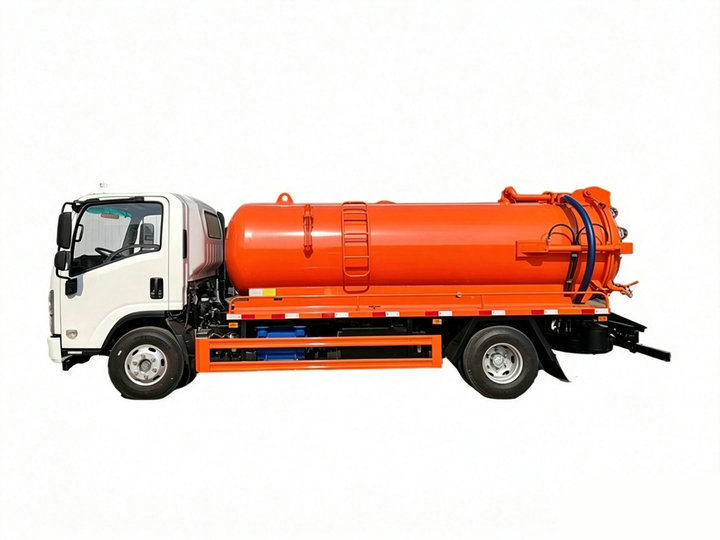

KV600 Isuzu 5KL Sewage Vacuum Suction Truck Septic Tank Cesspit Emptier with SK-12 Vac Pump

KV600 Isuzu 5KL Sewage Vacuum Suction Truck Septic Tank Cesspit Emptier
Lquid Ring Vacuum Pump SK12
Tank capacity can be customized 5KL- 6KL
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
Price: $ 22800
Discount Price: $ 21800
Availability:
Quantity:

  • KV600

  • DRZ

  • 8705909990

 KV600 Isuzu 5KL Sewage Vacuum Suction Truck Septic Tank Cesspit Emptier

Isuzu 5000L Vacuum Sewage Suction Truck | Vactor Cleaner Septic Tank Pump Truck, 4x2 Isuzu KV Sewer Sludge Suction Truck

Product Description

The 5000L Isuzu vacuum sewage suction truck  is a compact vactor cleaner truck built on authentic Isuzu KV chassis. Designed for narrow passages and low-clearance working zones, it perfectly serves residential communities, shopping malls, parking lots and commercial areas.
This sewer pump truck is mainly used to suck, transport and discharge fecal waste, sewage, sludge and liquids containing tiny suspended solids. Equipped with hydraulic tipping tank and hydraulically openable rear cover, the tank can dump waste directly. Fitted with premium water-ring vacuum pump, it features strong suction capacity and long suction distance, effectively avoiding secondary pollution during sludge collection and transportation.
Sewage suction vehicles are essential equipment for regular sewer maintenance, preventing pipeline blockages and keeping urban environments clean. Our Isuzu sewage suction truck combines large loading capacity, high working efficiency and flexible operation. Custom painting, logos and optional vacuum pump brands (Yifeng, Jurop, Moro) are available on request.

Product Specifications

Overall Vehicle

ItemParameter
Product NameIsuzu KV Sewage Suction Truck
ModelDRZ5070GXWQL
Effective Tank Volume5000L (5 CBM)
Overall Dimension (L×W×H)6720 × 2150 × 2500 mm
Gross Vehicle Weight11000 kg
Curb Weight4150 kg
Drive Mode4×2, Left-hand Drive

Vacuum Tank Assembly

ItemParameter
Tank MaterialQ235 High Carbon Steel
Plate Thickness6 mm for tank body & rear cover
ManufacturingAutomatic machine rolling & welding, cylindrical tank
Surface TreatmentAnti-rust primer + topcoat, internal pickling & epoxy anti-corrosion coating
Hydraulic SystemMax tipping angle 45°, hydraulic rear door opening, hydraulic lock with mechanical interlock
CustomizationColor & Logo Available As Customer’s Request

Lquid Ring Vacuum Pump Configuration

ItemParameter
Pump BrandYIFENG
Pump ModelSK-12
Suction Rate12 CBM/min (200 L/S)
Rated Rotation Speed970 r/min
Maximum Vacuum Pressure8000 Pa
Matching Tank Volume5000L

Standard Equipped Accessories

  • Power take-off (PTO)

  • Domestic famous brand gear pump

  • Multi-way hydraulic valve

  • 4 sets hydraulic cylinders

  • Transparent liquid level observation tube

  • Liquid level overflow alarm

  • Anti-overflow safety valve

  • 8m standard suction hose

  • Drain ball valve

Chassis Parameters

ItemParameter
Chassis BrandISUZU
Chassis StatusBrand New
CabinSingle row cabin, 2 doors, 3 seats, factory A/C
Tire Spec7.50R16, 6 tires + 1 spare tire
Engine ModelISUZU 4KH1CN5HS;4KH1CN6HB
Fuel TypeDiesel
Emission StandardEuro 5,6
Displacement3000 cc
Rated Power130 HP (96 kW)
CylinderInline 4-cylinder
Max Torque290 N·m @1500–1900 rpm
GearboxISUZU MSB 5-speed manual transmission (5 forward +1 reverse)
Axle LoadFront axle:2.5 T; Rear axle:4.8 T
Brake SystemHydraulic brake with vacuum booster

KV 100 /KV600 List :

Cab Classification

  • Chassis KV100P / KV600: ISUZU Class 3X Wide Cab

  • Chassis M100 / M600: ISUZU Class 2X Medium Cab

Common Chassis Configuration

Two optional powertrain packages:
  1. 120 HP Euro 6 engine model 4KH1CN6LB, matched with ISUZU 5-speed manual gearbox

  2. 132 HP Euro 6 engine model 4KH1CN6HB, matched with ISUZU 6-speed manual gearbox

Standard Equipment: Factory air conditioner, hydraulic power steering, central locking, electric windows, multi-function LCD dashboard.
Axle capacity: Front axle 2.5–3 tons, Rear axle 4.8–5.5 tons; ABS as standard.
Brake: Air brake or hydraulic brake optional.
Cab: Tiltable cab.

Frame & Tire Specification

  • 700mm subframe: Standard tire 700R16, frame web height: 176 mm

  • 800mm subframe: Standard tire 750R16, frame web height: 216 mm

Note: 700R16 tires are optional for blue-plate light truck models.

Engine Option Remark

Vehicles painted in green are equipped with ISUZU engine 4KK1N6LB (120 HP, displacement 2.5 L).
This engine will be available for further expansion on other blue-plate chassis models starting with code QL104.

Optional Item & Model Coding Rule

  1. Front disc brake: Optional at extra cost of 5000 CNY

  2. Chassis model rule: If the penultimate letter of model code is C, it represents urban dedicated chassis (for sanitation, postal service, public transport); other models are general non-urban chassis.

Euro 6 Chassis Model List (KV Wide Cab / M Medium Cab, 120–132 HP)

Wheelbase(mm)Cab Layout / Subframe WidthGeneral Non-Urban Chassis ModelUrban Dedicated Chassis Model (with suffix C)
2765Single row /700QL1043BUFAYQL1073BUFACY
2795Single row /800QL1043BUFAY
2795Single row /800QL1080BUFAYQL1080BUFACY
3360Single row /700QL1043BUHAYQL1043BUHACY
3360Single row /700QL1073BUHAYQL1073BUHACY
3360Single row /700QL1043MVHAY (2.5L engine)
3365Single row /800QL1043BUHAYQL1043BUHACY
3365Single row /800QL1080BUHAYQL1080BUHACY
3815Single row /700QL1073BUKAYQL1073BUKACY
3815Single row /800QL1080BUKAYQL1080BUKACY

Key Product Features

  1. Tank rolled by 6mm thick high strength carbon steel plate, sturdy and long service life

  2. Adopt automatic robotic welding for tank body, stable sealing performance

  3. Water circulation vacuum pump with powerful suction and long lift distance

  4. Internal tank pickling treatment + epoxy anti-corrosion coating for extended service life

  5. Removable transparent liquid level pipe, convenient for cleaning and maintenance

  6. High-precision domestic multi-way valve, stable continuous operation

5 Cubic Meter Isuzu Sewage Suction Truck, 130HP Euro 5 Isuzu NKR Septic Tank Vacuum Truck for Residential & Commercial Sewer Cleaning Hot Tags

Vactor Cleaner Truck Isuzu, Isuzu NKR Vacuum Suction Truck, Isuzu Septic Tank Pump Truck, 5000L Isuzu Sewage Suction Truck, Isuzu Sewer Cleaning Truck, Waste Water Suction Truck Isuzu, Isuzu Vacuum Tank Truck, Isuzu Sludge Suction Truck, Jurop Pump Isuzu Vacuum Truck, Moro Pump Isuzu Sewer Truck, Isuzu Giga Vacuum Suction Truck, 8000L Isuzu Sewage Truck, 10000L Isuzu Vacuum Suction Truck
