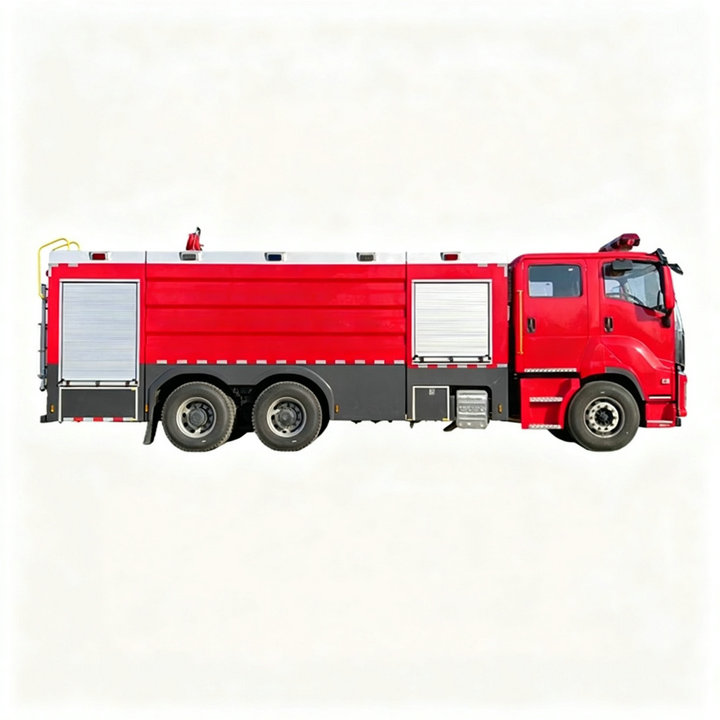

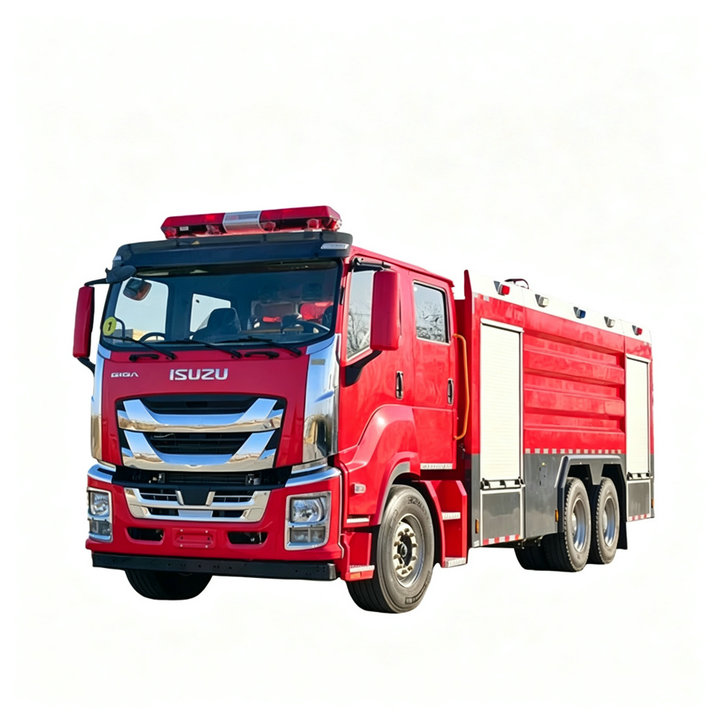

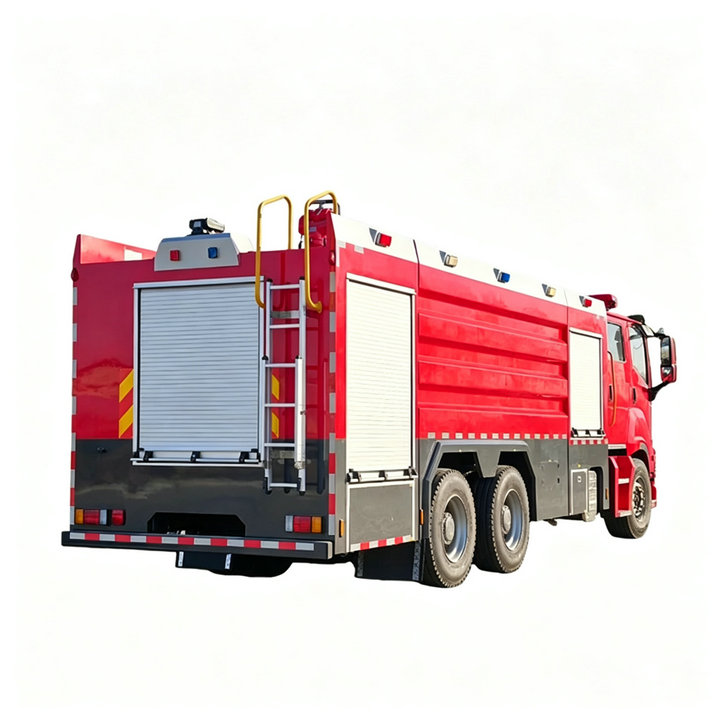

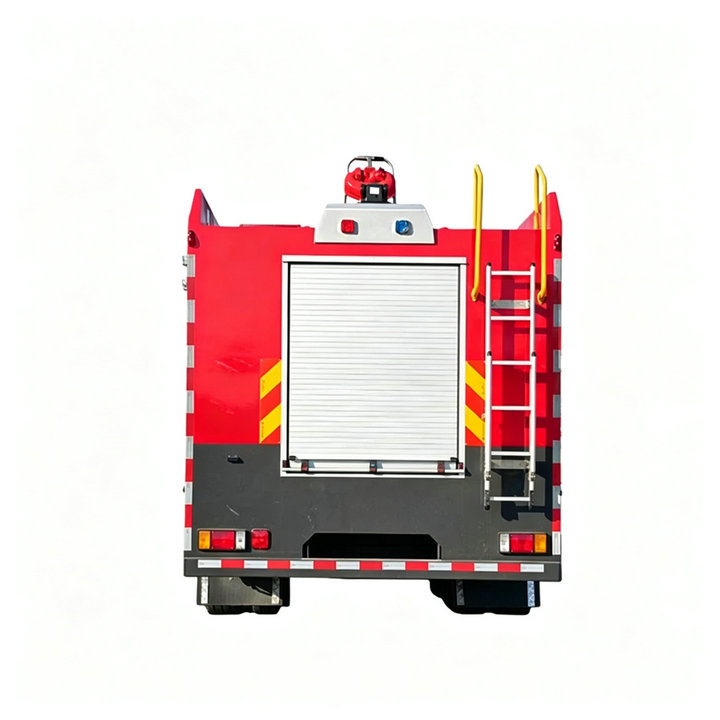

ISUZU GIGA FVZ 12m3 3000 Gallon Water Tanker Fire Fighting Trucks

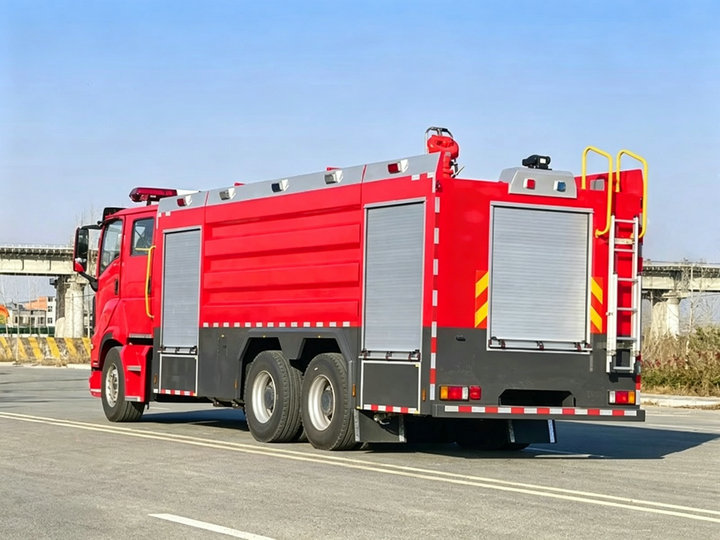

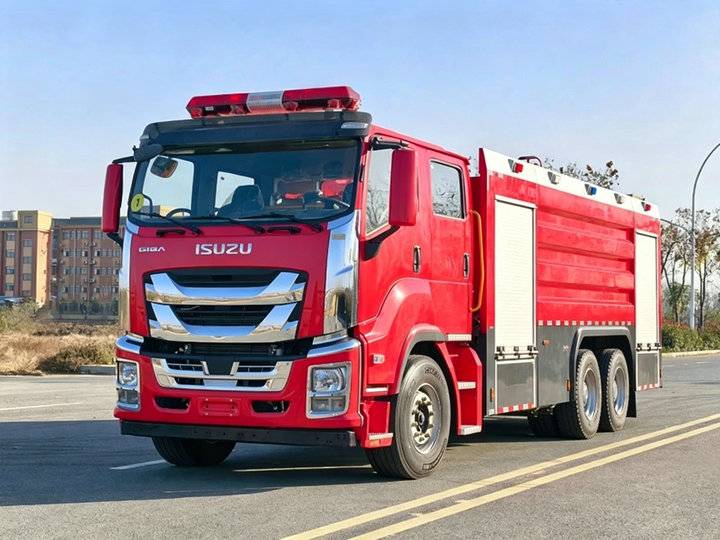

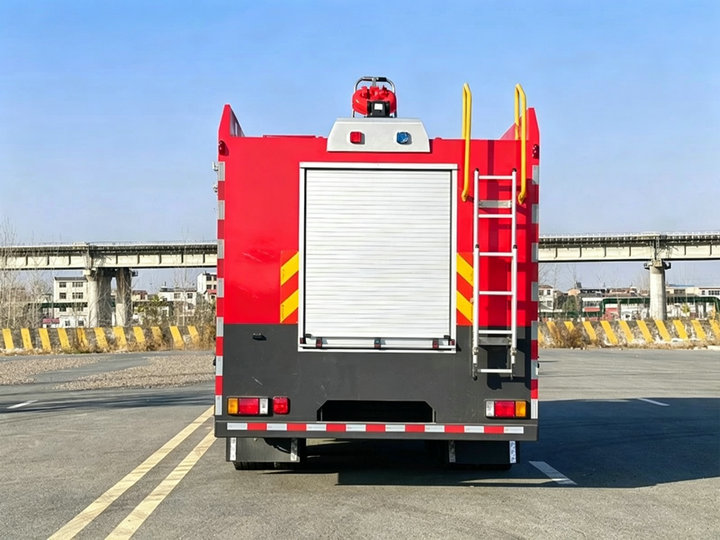

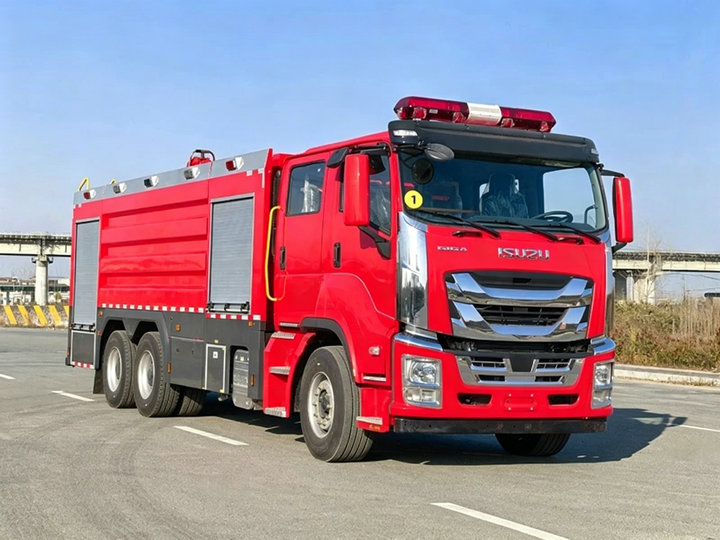

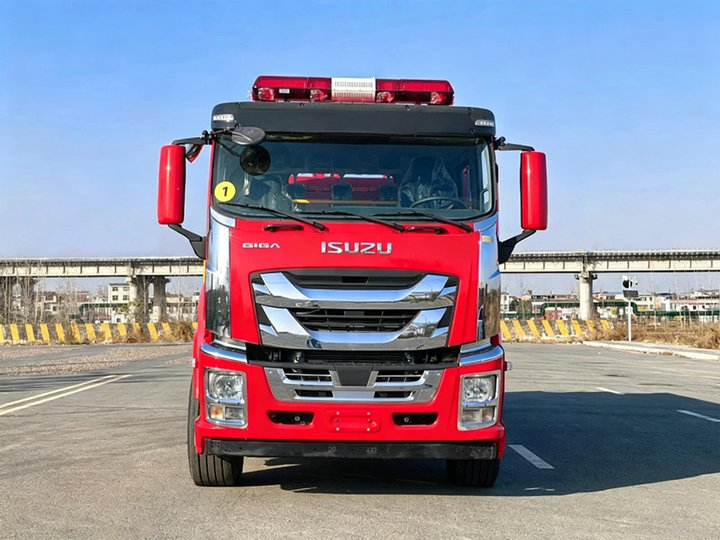

ISUZU FVZ 3000 Gallon Fire Fighting Water Tanker Truck

ISUZU 6x4 3000 Gallon Red Fire Engine Truck
ISUZU FVZ 6×4 Water foam powder combined truck is equipped with a high-efficiency multi-agent fire suppression system and an intelligent discharge control mechanism, engineered as an integrated fire rescue and rapid response platform. This unit is primarily deployed for industrial firefighting, hazardous chemical spill response, and special environment emergency rescue operations. Designed with robust engineering and field-validated technical configurations, this combined firefighting vehicle delivers exceptional operational effectiveness and reliable mission performance.
Model: DRZ5350XFQL
Capacity: 12cbm
Drive: 6×4
Engine power: 520 HP
Engine type: 6WG1-TCG62

ISUZU FVZ 3000 Gallon Fire Tanker Truck | Industrial Fire Apparatus Manufacturer

Overview

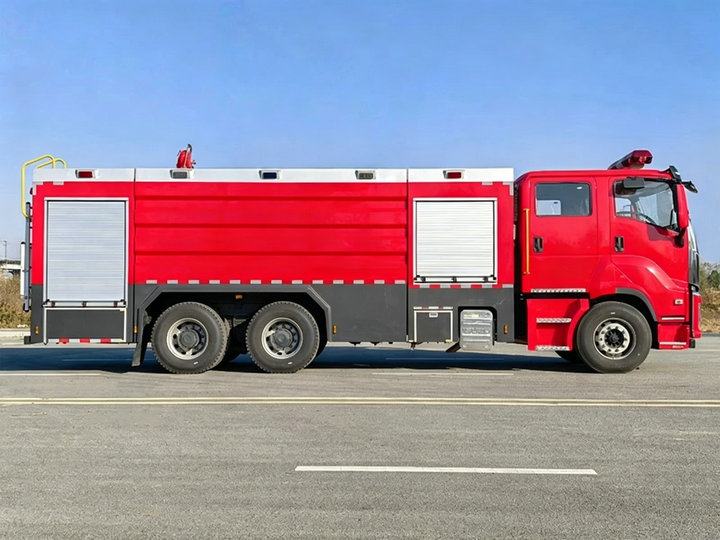

The ISUZU FVZ 3000 Gallon Fire Tanker Truck — also known as a triple-agent firefighting vehicle, foam-powder integrated unit, or industrial fire apparatus — is purpose-built for industrial fire suppression and special disaster response. Engineered for petrochemical complexes, chemical plants, and high-risk industrial facilities, this 6×4 fire tanker delivers a combined 12,000-liter agent capacity and 520 HP of reliable power, ensuring stable performance under the most extreme operating conditions.

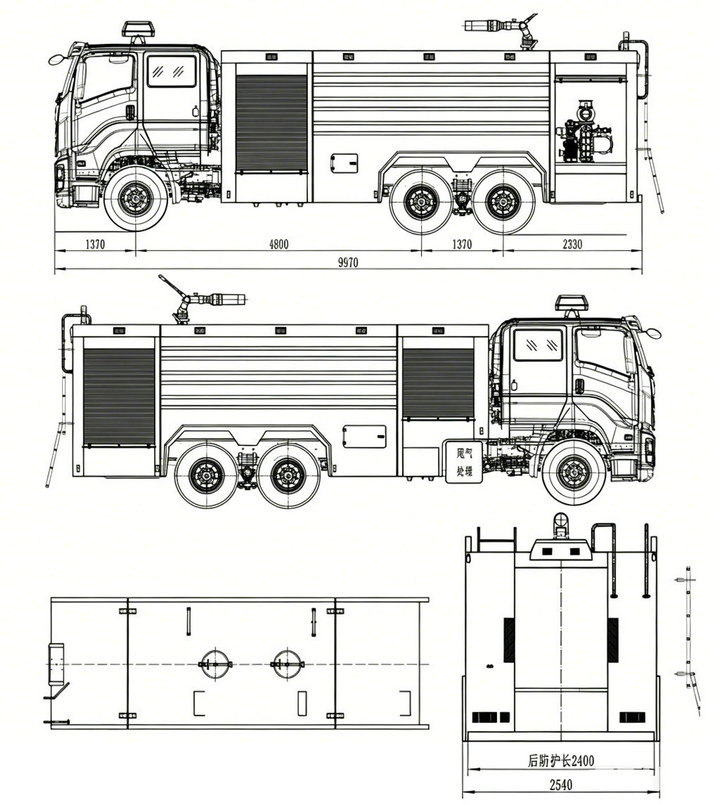

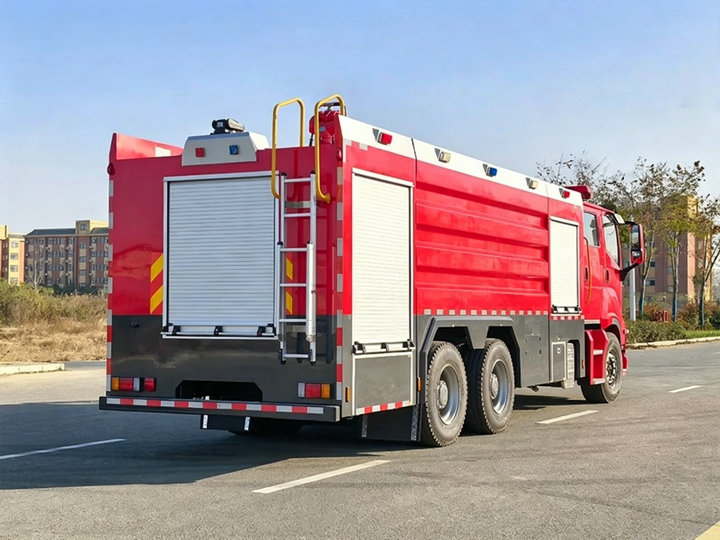

Built on the rugged ISUZU FVZ 6×4 chassis with a 5100mm + 1370mm wheelbase, this fire truck is powered by an Isuzu 6WG1-TCG62 engine mated to a FAST 9-speed transmission. The superstructure integrates a 10,000L stainless steel water tank, a 2,000L stainless steel foam tank, and a 500L HSLA steel dry powder tank. The rear pump compartment houses a CB10/60 fire pump, advanced control system, and comprehensive firefighting gear, while a PL48 fire monitor and PF30 dry powder cannon provide extended-range suppression capability.

I. Product Definition & Introduction

Professional fire truck manufacturer, guaranteeing all products are Brand-New and High-Quality.

Key Features

1. Powerful Performance: Powered by the ISUZU 6WG1-TCG62 engine, delivering 520 HP (381 kW) with superior and stable output.

2. Professional Chassis: Built on the ISUZU FVZ 6×4 chassis, compliant with stringent operational standards and safety regulations.

3. Reliable Fire Pump: Equipped with the renowned CB10/60 fire pump, ensuring highly efficient and dependable operation.

4. Fully Customizable: Water tank, foam tank, and dry powder tank capacities and configurations are fully customizable to meet client requirements.

II. Product Specifications

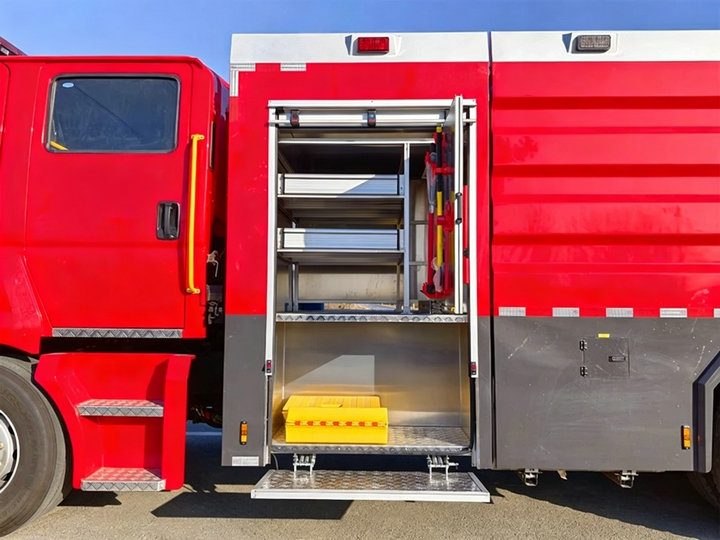

Standard Accessories: Shovel, pike poles, axes and cutting equipment, Halligan bars — a full range of firefighting and rescue tools.

III. Product Details

1. Tank Body

• Tank Material: Optional carbon steel, stainless steel, aluminum alloy, or polypropylene (PP) to meet various medium storage and corrosion resistance requirements.

• Core System: Fire pump can be equipped with international brands such as Darley (USA), selected based on tank specifications and required discharge range.

• Optional Configurations: Customizable pipeline systems, hose reels, aluminum alloy ladders, and Chinese/European/American standard interfaces.

2. Powertrain System

• Engine: Isuzu 6WG1-TCG62 in-line 6-cylinder water-cooled turbocharged intercooled diesel engine — 520 HP (381 kW), Euro 6 compliant, 15,681 ml displacement.

• Transmission & Chassis: FAST 9JS150A 9-speed transmission with 5100+1370 mm wheelbase chassis, providing efficient and stable power delivery for demanding firefighting duties.

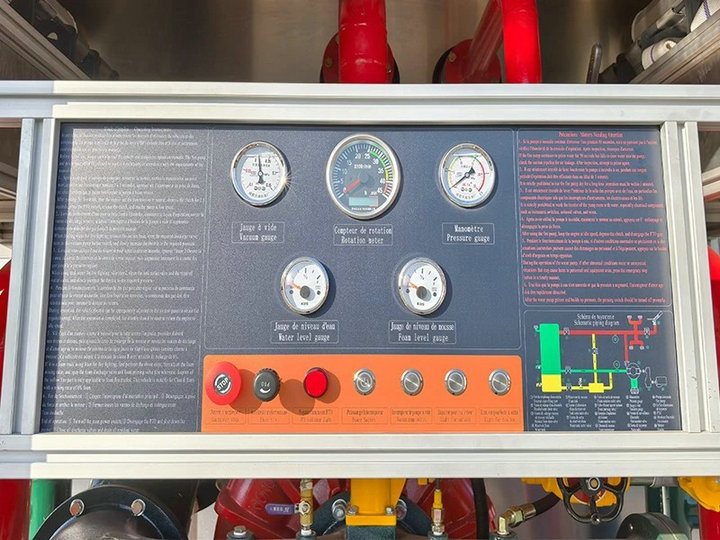

3. Firefighting Control Panel

• Instrument Cluster: Centrally features tachometer, dual-tank level gauges, pressure gauges, and PTO/lighting status indicators.

• Control Zone: Integrates electronic throttle, pump/valve switches, lighting controls, and emergency stop button.

• Safety Indicators: Includes operational guide diagrams, warning labels, and external device ports.

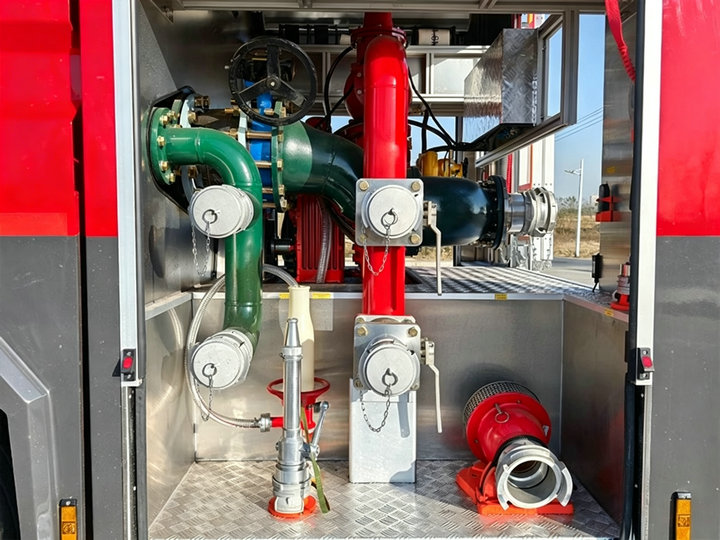

4. Water Supply Control System

• Water Source Connection: Supports onboard water tanks and external fire hydrants, rapidly building pressure through high-pressure pumps.

• Pipeline Distribution Unit: Color-coded pipes (green/red) with multi-function control valves for flow switching and precise pressure adjustment.

• Terminal Output Interfaces: Standard firefighting connections for quick attachment of hoses, water monitors, and foam discharge devices.

IV. Fire Pump Operating Principle

The pump room is equipped with a CB10/60-XZ medium-low pressure fire pump, rated at 60 liters/second @ 1.0 MPa with high outlet pressure. It supports long-distance, high-flow-rate spraying from the vehicle-mounted water cannon and can simultaneously supply water to multiple cannon positions.

V. Application Scenarios

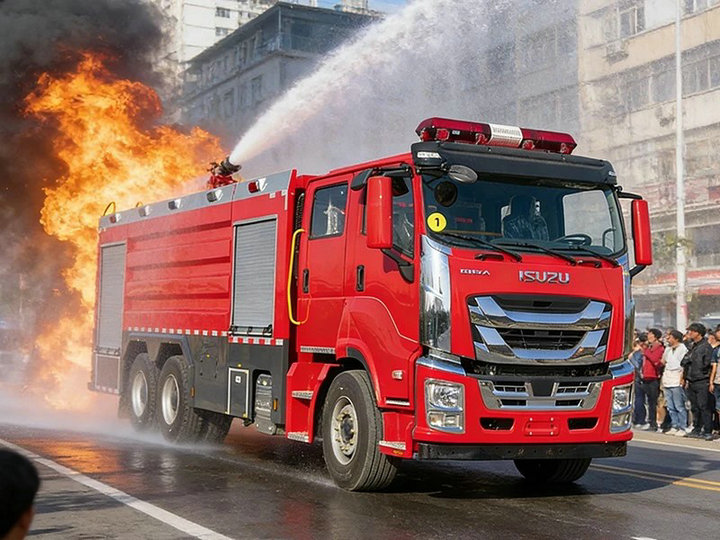

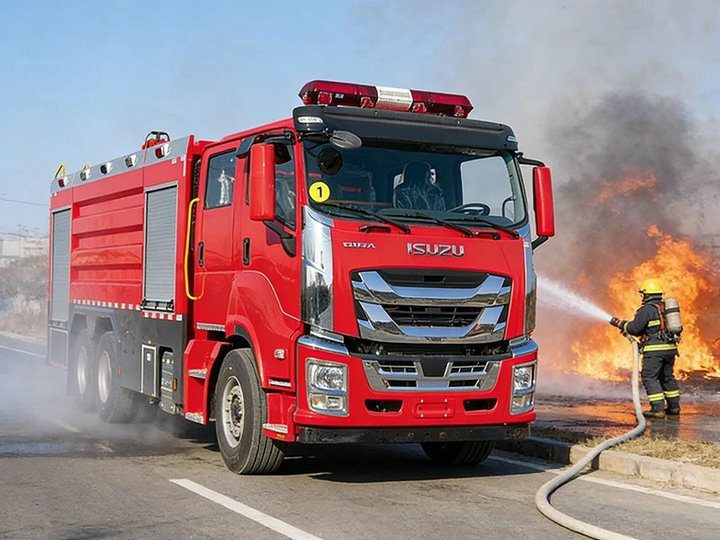

• Wildfire Suppression Operations — Rapid deployment for forest and brush fire containment

• Road Incident & Vehicle Fire Response — Highway and tunnel accident rescue

• Residential Structure Fire Response — Urban and suburban building fire protection

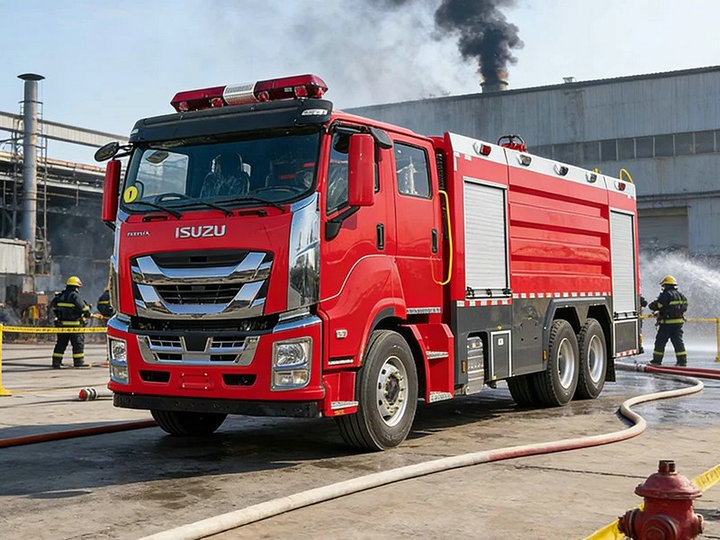

• Industrial Fire Response — Petrochemical plants, refineries, and chemical facility emergencies

VI. Pre-Shipment Testing

Prior to delivery, every ISUZU FVZ 3000 Gallon combined firefighting truck undergoes comprehensive factory inspections, including:

• Whole-vehicle water tightness testing

• Performance verification of the fire pump and fire monitor

• Final quality checks on welding workmanship and painting

• Full functional testing of all systems and accessories

Why Choose US?

• Products: 100% Customized — Built to your exact specifications

• Transportation: 100% Safe, Convenient, and Efficient global shipping

• Service: 7 days + 24 hours dedicated after-sales support

1. Custom designs tailored to your requirements

2. High quality at reasonable prices

3. Reliable after-sales service

4. Skilled professional design team

5. Prompt delivery — all orders welcome

We also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers at discounted prices, ensuring your fleet stays in optimal working condition.

Hot Tags: ISUZU FVZ 3000 gallon fire tanker truck, China ISUZU FVZ fire truck manufacturer, industrial fire apparatus supplier, foam powder fire truck factory, 6×4 fire tanker for sale

Isuzu Fire Rescue Trucks: Complete Series & Specifications

Isuzu Fire Truck Overview

An Isuzu fire truck — also known as an Isuzu fire tender, Isuzu fire engine, or Isuzu fire fighting truck — is a specialized emergency response vehicle engineered for firefighting and rescue operations. Built on Isuzu's proven N-series, F-series, and GIGA heavy-duty truck chassis, these vehicles integrate advanced fire suppression systems for reliable performance in urban and industrial environments.

Isuzu Fire Truck Series

Isuzu fire rescue trucks are categorized into 5 main series:

Engine & Performance

Isuzu fire trucks are powered by turbocharged diesel engines including the 4KH1, 4HK1-TC, 6HK1-TCG, 6UZ1-TCG60, and 6WG1-TCG61, delivering 120 HP to 520 HP while maintaining fuel economy across long operational cycles.

Key Firefighting Systems

• High-capacity water pumps for sustained water delivery

• Foam dispensers for Class B flammable liquid fires

• CAFS (Compressed Air Foam Systems) — ideal for water-scarce regions, maximizing water efficiency

• Extendable aerial ladders reaching 20–70 meters for high-rise building rescue

Dual-Role Disaster Management

Beyond fire suppression, Isuzu firefighting trucks serve dual roles in disaster management — transporting emergency medical teams and functioning as mobile command centers during multi-agency emergency responses.
