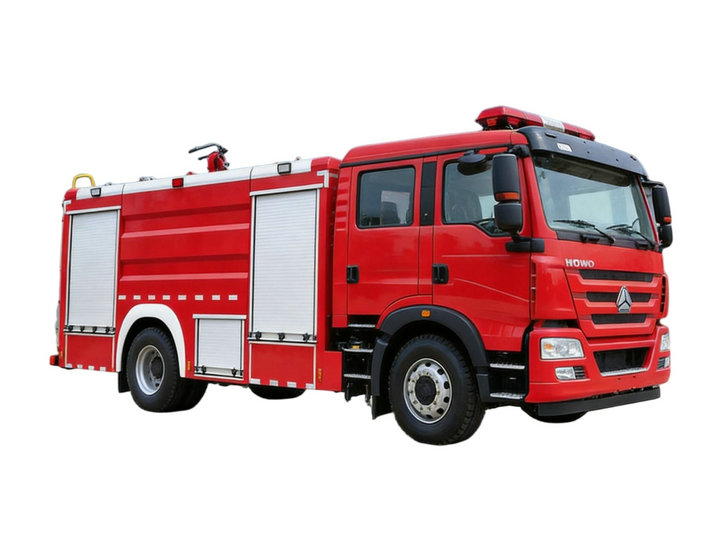

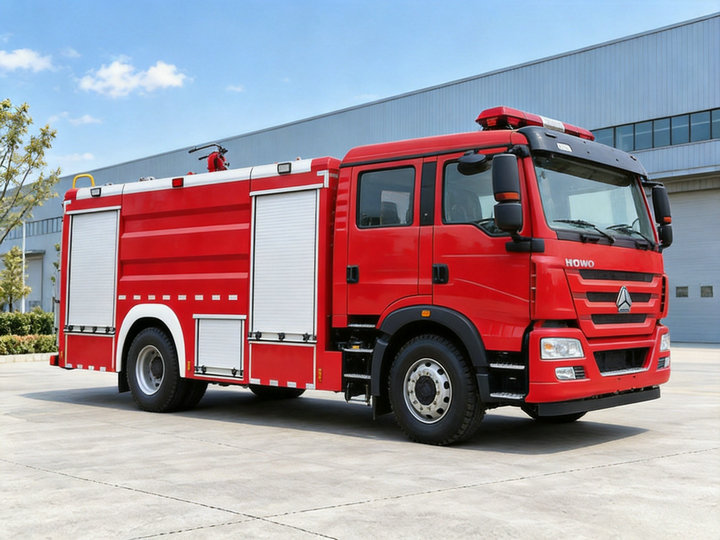

HOWO Rescue Fire Pumper Trucks 6000L Water
| Truck Chassis: | SINOTRUK HOWO TX 350 4x2 |
| Tanker Capacity: | 6000L water tank |
| Engine Power: | 350 HP/ MC07H.35-60 |
| Fire Pump: | CB10/60-RS |
| Pump Flow: | 60L/s |
| Work Pressure: | 1.0 Mpa |
| Fire Monitor: | PS8/40W / Range:≥65m |
| Monitor Flow: | 40L/s |

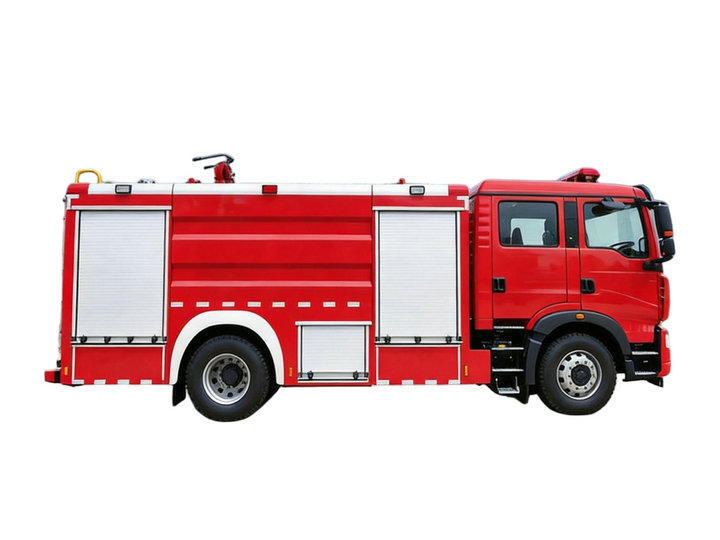

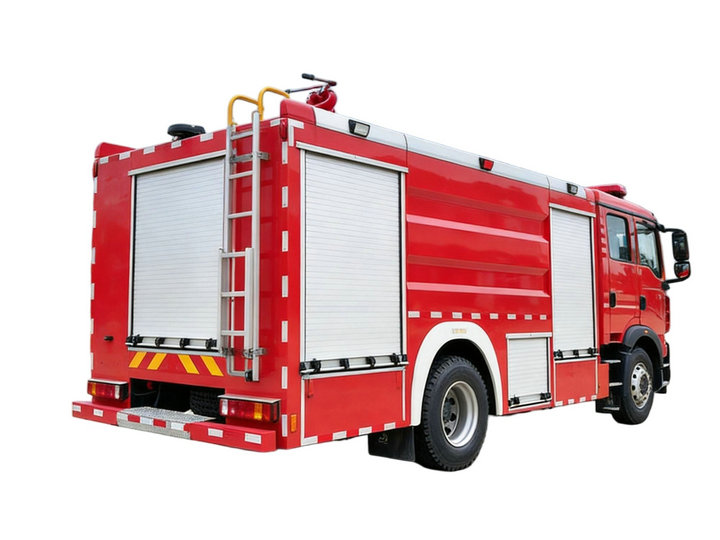

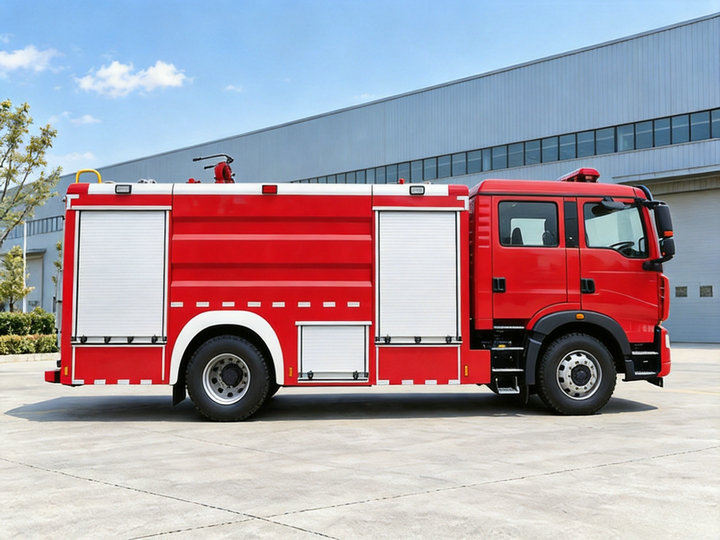

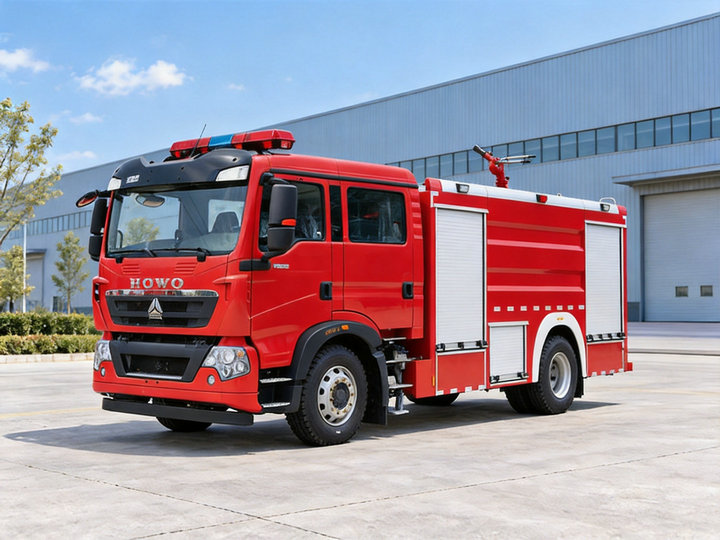

HOWO 6 CBM water fire truck is designed for fire suppression and emergency water delivery in city districts and industrial zones. This HOWO 350HP fire fighting vehicle is equipped with a 6,000L water tank, a CB10/60-RS pump delivering 60 L/s at 1.0 MPa, and a PS8/40W roof monitor with a 65m water range.
The vehicle comes with a complete set of firefighting accessories, including hoses, suction lines, couplings, and a water gun. It performs effectively on Class A fires involving wood, paper, and fabrics. It is well suited for firefighting operations at factories, warehouses, residential communities, and airport facilities.s.
Working Capacity | Engine Model | Wheelbase | HOWO 6000 Liters Municipal Fire Water Tender Superstructure |
6000L water | 350 HP/ MC07H.35-60 | 4700 mm | ★ Water tank, carbon steel, 6000L capacity ★ CB10/60-RS fire pump, 60 L/s flow at 1.0 MPa ★ PS8/40W roof monitor, 40 L/s flow with water range ≥65 m ★ 2026 year brand new |
» Ⅰ. Main Features :
★ MC07H.35-60 diesel engine delivering 350 HP for municipal firefighting and rapid emergency water delivery
★ HOWO 4×2 chassis equipped with a 6000L carbon steel water tank and CB10/60-RS pump rated at 60 L/s and 1.0 MPa
★ PS8/40W roof monitor producing 40 L/s flow with water range reaching 65 meters for effective long-distance attack
Full set of standard accessories supplied, including fire hoses, suction lines, couplings, and water gun for Class A fire suppression
» Ⅱ.Product Parameter :
6 Ton Water Fire Truck HOWO | |||
General | Work capacity | 6000L water tank | |
Truck chassis | HOWO 4x2 | ||
Engine Power | 350 HP/ MC07H.35-60 | ||
Fire pump | CB10/60-RS | ||
Fire Monitor | PS8/40W | ||
Maximum Speed | 100 km/h | ||

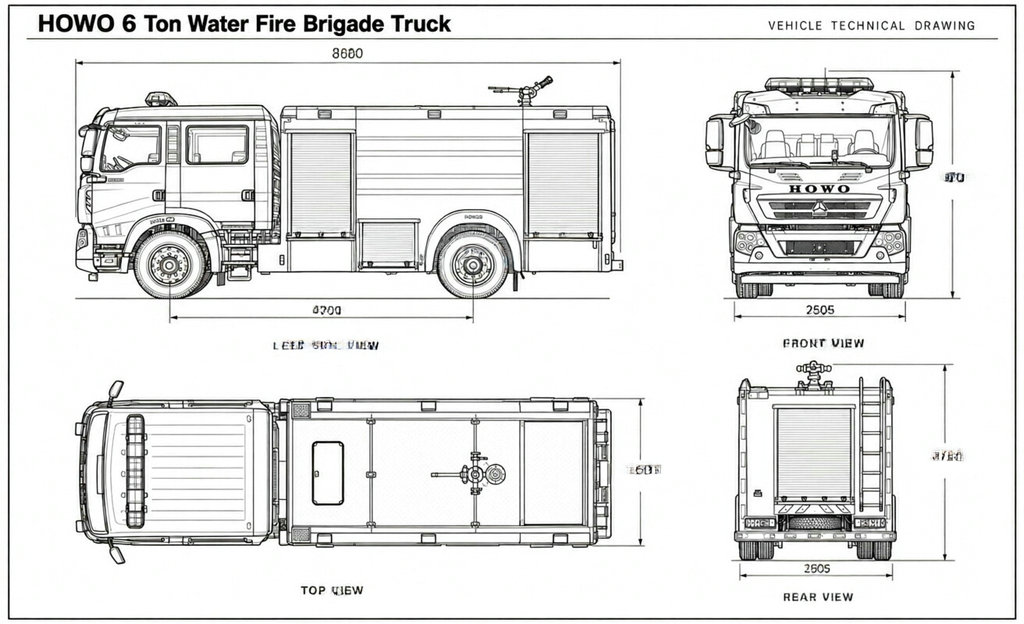

Overall Dimensions L*W*H | 8680*2505*3700 mm | ||
Gross Vehicle Weight | 20100 kg | ||
Curb Weight | 6600 kg | ||
Engine | Engine Model | MC07H.35-60 | |
Fuel Type | Diesel | ||
Power | 350 HP（257KW） | ||
Emission Standard | Euro VI | ||
Displacement | 7360 ml | ||
Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
Chassis | Drive Type | 4x2 | |
Wheelbase | 4700 mm | ||
Tire | 295/80R22.5 | ||
Tire No. | 6 tires and 1 spare tire | ||
Fire Pump | Model | CB10/60-RS | |
Flux | 60L/s | ||
Pressure | 1MPa | ||
Max working pressure | 1.082MPa | ||
Max allowable inlet pressure | 0.4MPa | ||
Max suction height | 7m | ||
Rated speed | 3200±50r/min | ||
Speed ratio | 1:1.440 | ||
Water diversion time | ≤50s | ||
Fire Monitor | Model | PS8/40W | |
Flow | 40L/s | ||
Rated working pressure | 0.8MPa | ||
Max working pressure | 1.6 MPa | ||
Range | Water | ≥65m | |
Pitch rotation | -30°～+70° | ||
Horizontal rotation | 0～360° | ||
Standard Configuration | All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual…… | ||
» Ⅲ.Products Description :
1. Chassis & Powertrain
♦ Chassis: HOWO 4×2, 4700 mm wheelbase, engineered for stable handling and durability on urban roads and industrial sites
♦ Engine: MC07H.35-60 turbo diesel, 350 HP (257 kW), strong low-end torque for continuous pump drive and emergency response
♦ Transmission: Manual transmission, smooth shifting for both highway and on-site operations
2. Fire Suppression System
♦ Tank: 6000L water, carbon steel construction, corrosion-resistant
♦ Pump: CB10/60-RS, 60 L/s @ 1.0 MPa, PTO-driven
♦ Fire Monitor: PS8/40W roof monitor, water range ≥65m, 360° horizontal rotation, -30° to +70° vertical pitch
♦ Suction System: 7m max suction height, ≤50s priming time for quick water intake
» Ⅳ.Working Principle of Fire Truck :
Fire Truck Operating Procedure:
★ Step 1: After the fire truck is parked, start the engine, place the transmission in neutral, depress the clutch for 2-3 seconds, then press the power take-off switch, slowly release the clutch, and run the water pump at low speed.
★ Step 2: When drafting water for firefighting, connect the suction hose, open the required outlet valve, and turn on the vacuum pump button switch, slowly press the accelerator to the required pressure, and use a water nozzle or fire monitor to extinguish the fire.
★ Step 3: When using water from the tank for firefighting, omit step 2, open the rear water inlet valve, open the required outlet valve, slowly press the accelerator to the required pressure, and use a water nozzle or fire monitor to extinguish the fire.

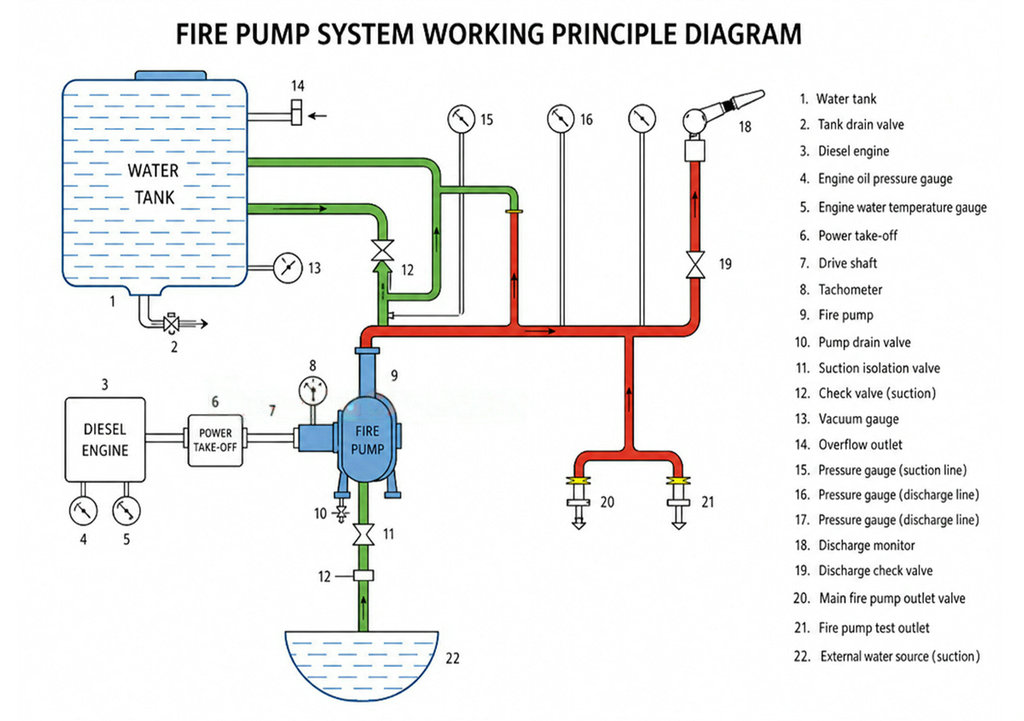

» Ⅴ.Fire Pump System :
Fire Pump:
A CB10/60-RS fire pump with a rated flow of 60 L/s at 1.0 MPa is installed in the rear pump room. This pump is built for reliable performance, providing steady water pressure to ensure fire hoses can deliver water effectively over long distances for fire suppression.
Fire Pump Model | Flow | Pressure | Max Working Pressure | Max Allowable Inlet Pressure |
CB10/60-RS | 60L/s | 1.0MPa | 1.082MPa | 0.4MPa |
Control panel:
Includes operating instructions, tank piping diagram, pressure gauge, water level gauge, emergency stop, PTO control, main power switch, pump controls, and compartment lighting. All controls are clearly marked for straightforward operation.

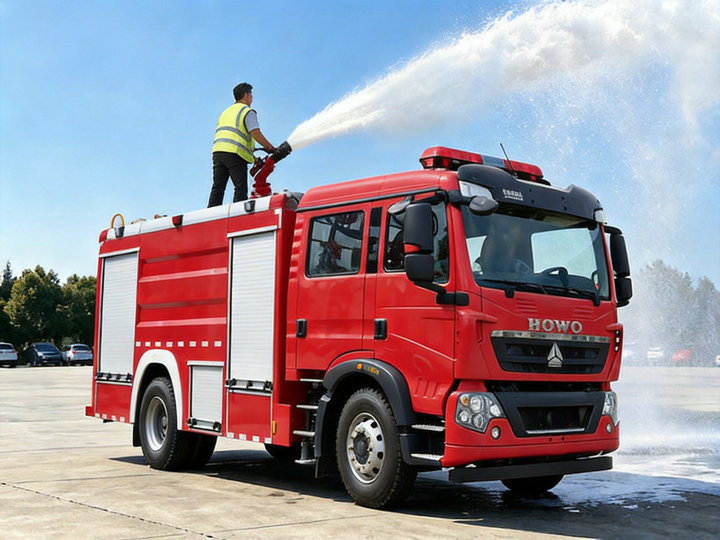

» Ⅵ.Fire Monitor System :

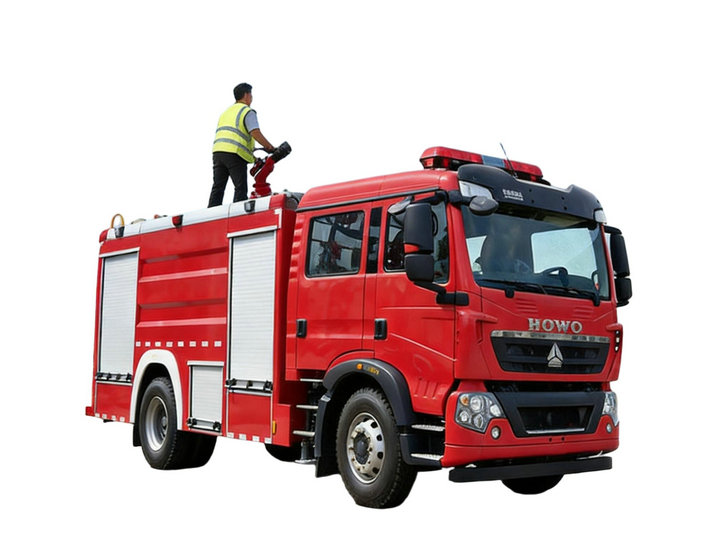

The PS8/40W fire monitor is mounted on the cab roof. It delivers a flow rate of 60 L/s with a water range of ≥65 m. The monitor supports both straight stream and spray patterns for flexible firefighting operations.
Fire Monitor Model | Flow | Range | Rated Pressure | Pitch Rotation | Horizontal rotation |
PS8/40 | 40L/s | Water≥65m | 1.0MPa | -35°～+70° | 0～360° |
» Ⅶ.Firefighting Equipment :
• Equipment Room
Located on both sides of the vehicle, these compartments are equipped with equipment racks and storage trays. The racks keep fire hoses, suction tubes, and water/foam guns neatly organized. The storage trays provide quick access to tools like wrenches, axes, and crowbars, improving rescue efficiency.

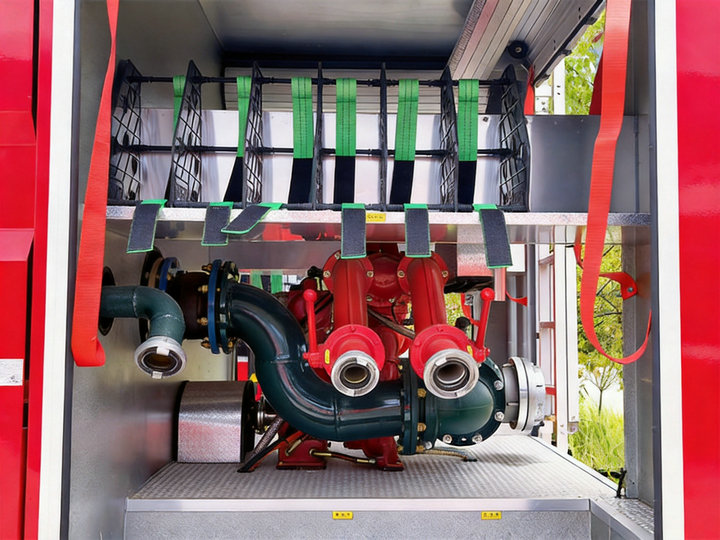

• Pump Room: Equipped with fire hoses, water collectors, filters, fire nozzles, foam guns, suction hose wrenches, reducers, etc.
» Ⅷ.Pre-shipment Test :
Before delivering the HOWO 6000L water bowser pumper fire truck from our factory, we carried out a full inspection, including a water spray test for sealing, performance testing of the fire pump and monitor, and final checks on welding quality, paint finish, and all installed equipment.
HOWO 6 CBM water fire brigade truck runs on a 350 HP MC07H.35-60 engine with a 4×2 chassis designed for stable urban response. Water tank capacity is 6,000L. The CB10/60-RS pump delivers 60 L/s at 1.0 MPa, while the roof-mounted PS8/40W monitor reaches 65m with water. Comes standard with hoses, suction line, fittings, and tool kit. Built for municipal firefighting, industrial facility protection, and emergency water supply where standard fire trucks cannot meet the flow demand.
HOWO water fire fighting truck for sale
The main application scope of a HOWO fire truck is to carry out fire suppression in various fire scenarios, implement emergency rescue and disaster relief tasks, and provide on-site support for public safety incidents: including building fires, industrial fires, traffic accident rescues, and disposal of hazardous material leaks.
HOWO Water Fire Engine | 4x2/4x4 | 6x4/6x6 | 8x4/8x8 |
Capacity | 2,000L~8,000L | 8,000L~12,000L | 12,000L~25,000L |
Fire pump | CB10/40 | CB10/60-CB10/80 | CB10/120 |
Pump flow | 40L/S | 60L/S | 120L/S |
Fire monitor | PS30W | PS50W | PS70W |
Monitor flow | 30L/S | 50L/S | 80L/S |
Monitor range | ≥ 60 meters | ≥ 70 meters | ≥ 85 meters |
