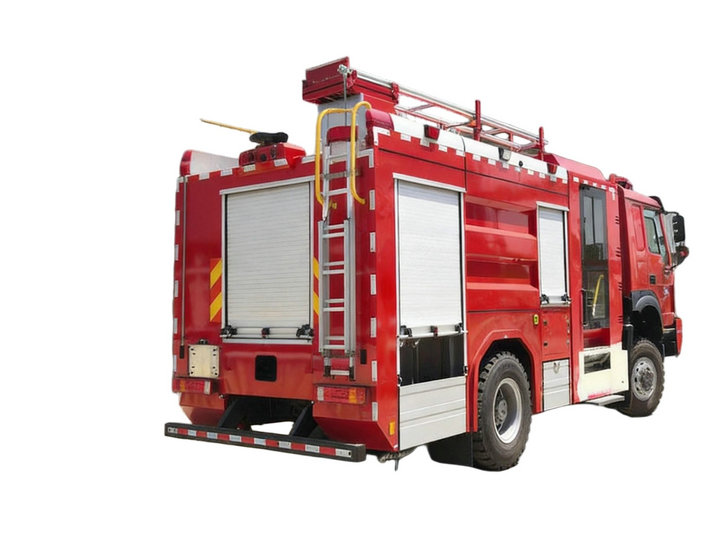

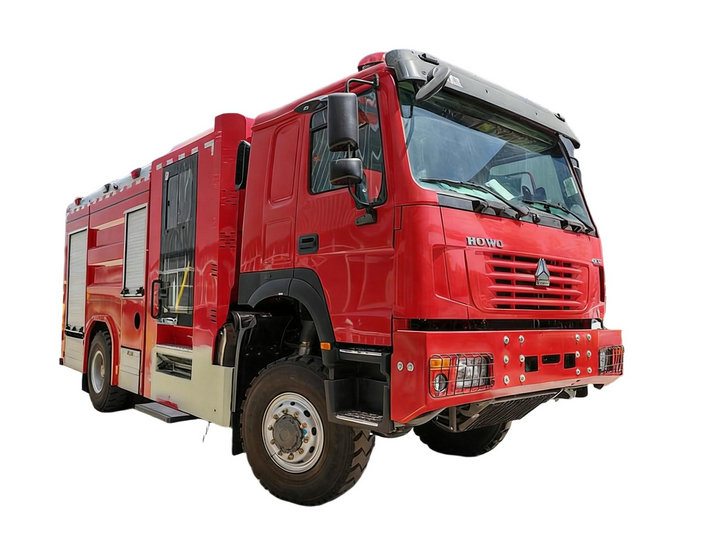

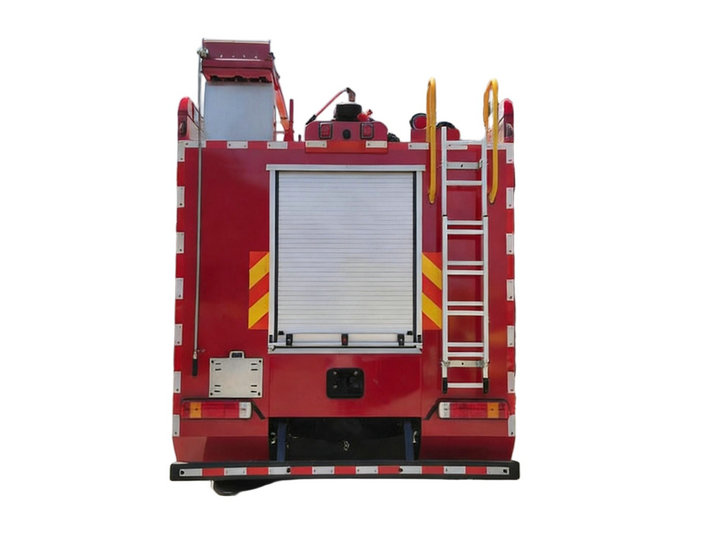

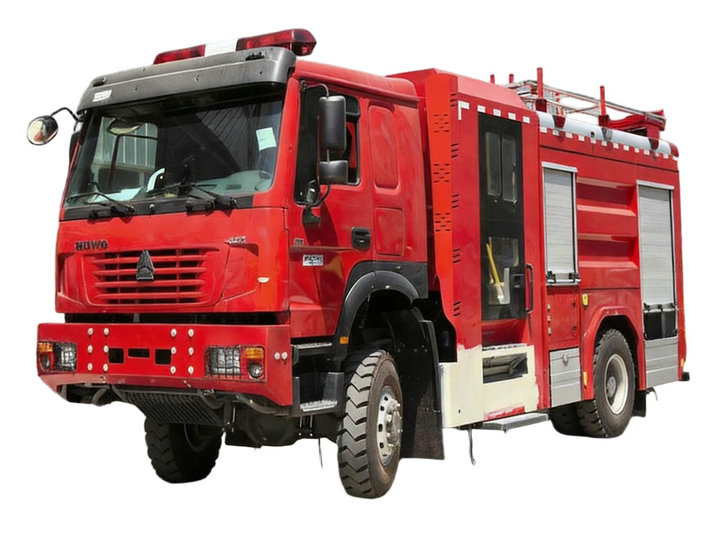

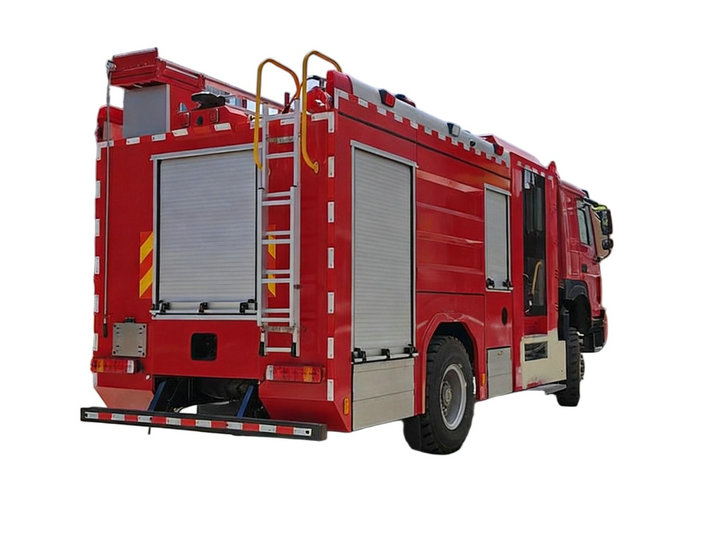

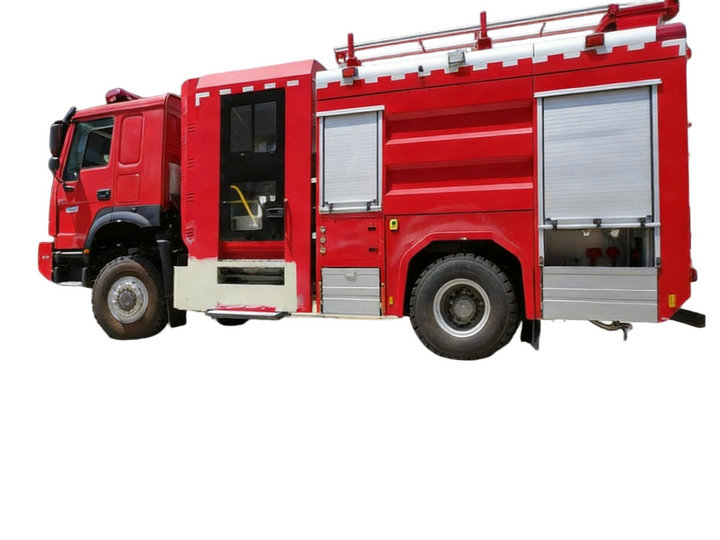

HOWO 4×4 AWD Fire Fighting Truck 3600L Water + 1100L Foam

HOWO 4×4 AWD Fire Fighting Truck
Tanker Capacity:3600L water + 1100L foam (4700L total)
Engine : 400 HP
Fire Pump: CB10/60-RS
Pump Flow:60 L/s
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
Price: $ 109000
Discount Price: $ 103000
Availability:
Quantity:

  • 5170GXFPM50/Z6CSC

  • DRZ

  • 8705309000

HOWO 4×4 AWD Fire Fighting Truck 3600L Water + 1100L Foam

Truck Chassis: 4x4 HOWO ZZ2167、ZZ2182
Tanker Capacity: 3600L water +1100L foam
Engine Power: 380 HP -400HP
Fire Pump: CB10/60, 60L/s
Pump Flow: 60L/s
Work Pressure: 1.0 Mpa
Fire Monitor: China PL8/48
Monitor Flow: 48 L/s
Monitor Range:

Water≥70 m;foam≥60m

HOWO water fire fighting truck for sale

The main application scope of a HOWO fire truck is to carry out fire suppression in various fire scenarios, implement emergency rescue and disaster relief tasks, and provide on-site support for public safety incidents: including building fires, industrial fires, traffic accident rescues, and disposal of hazardous material leaks.


HOWO Water Fire Engine

4x2/4x4

6x4/6x6

8x4/8x8

Capacity

2,000L~10,000L

10,000L~16,000L

16,000L~35,000L

Fire pump

CB10/40

CB10/60-CB10/80

CB10/120

Pump flow

40L/S

60L/S

120L/S

Fire monitor

PS30W

PS50W

PS70W

Monitor flow

30L/S

50L/S

80L/S

Monitor range

≥ 60 meters

≥ 70 meters

≥ 85 meters

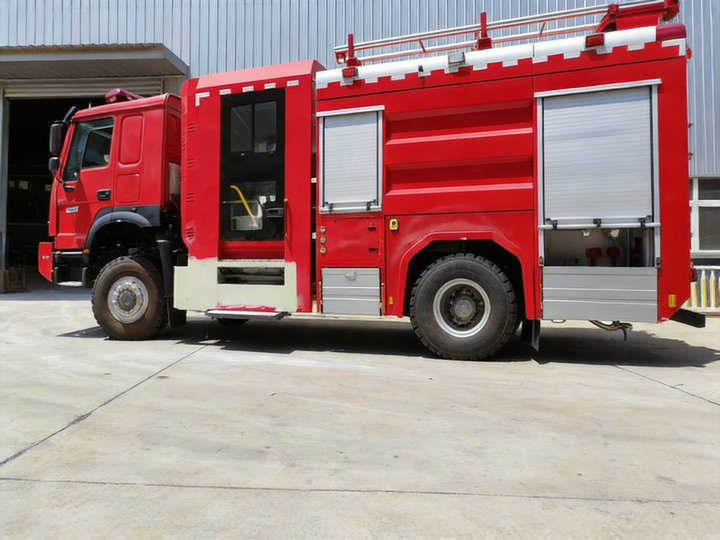

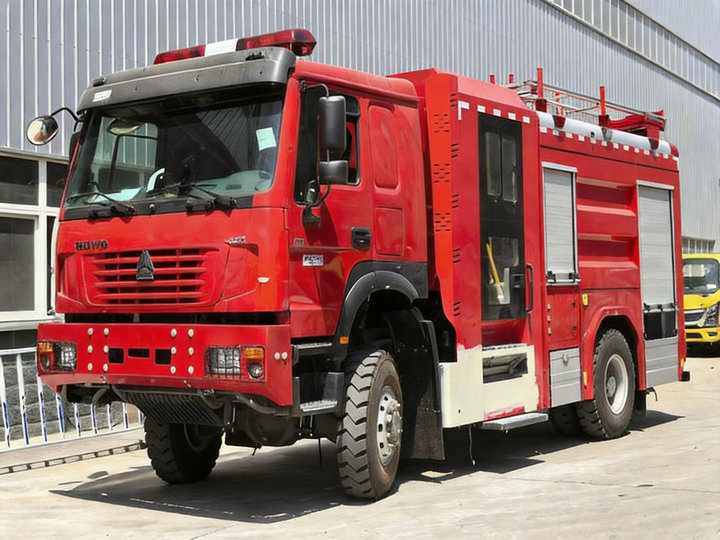

HOWO 4×4 AWD Fire Fighting Trucks 5000L Water 2000L Foam (10)HOWO 4×4 AWD Fire Fighting Trucks 5000L Water 2000L Foam (13)

HOWO 4×4 Fire Tanker Truck is an off-road firefighting vehicle built on SINOTRUK HOWO 4×4 chassis. It consists of several core components: a high-performance chassis, an independent crew cabin, a 6-cubic-meter steel water tank, a 2-cubic-meter stainless steel foam tank, a CB10/60 fire pump, a PL8/48 fire monitor, and a modular equipment compartment.

A standout feature of this HOWO 4×4 off-road fire engine is its integration of superior firefighting capabilities and off-road performance. Its fire monitor can jet water over 70 meters and supports firefighting while on the move. It is designed not only to meet the firefighting demands of specialized industries such as forestry, petroleum, and geological exploration


HOWO 4WD water&foam fire truck




» Ⅰ.Product Introduction:

1. Truck Chassis: 4×4 drive, with excellent off-road performance

2. Tank material: carbon steel water tank and stainless steel foam tank, 4mm thickness

3. Tanker body: Tank capacity can be desinged as required, dry powder tank is optional

4. Fire Pump: CB10/60 centrifugal fire pump, flow rate 60L/s, working pressure 1.0Mpa
                       PL8/48W fire monitor, 360° rotation, water range is up to 70m

5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m

                               Optional equipped CAFS foam system and Dry Powder system

HOWO 4×4 Firefighting Truck is a specialized fire rescue vehicle with off-road capabilities, built on the SINOTRUK HOWO 4WD chassis. It is equipped with a high-power fire pump, water tank, foam tank, fire monitor, and modular rescue equipment. This vehicle is suitable for various scenarios including forest firefighting, petroleum exploration, geological disaster rescue operations, and fire suppression in narrow urban areas.


» Ⅱ.Product Parameter :


Nigeria HOWO 4x4 wildland fire engine

Overall dimension

8620×2550×3620(mm)

GVW

22000kg

Chassis brand

SINOTRUCK HOWO

Traction type

4×4, left hand drive

Chassis description

Chassis model

ZZ2167;ZZ2182V4327F1

Wheelbase

4600mm

Tire specification

12.00R20 18PR

Tire quantity

6+1

Engine

Engine model

WP10.380E32/ZZ2182V4327F1

Emission level

Euro 3 /Euro6

Displacement/output

9726ml/280kw

Horse power

380hp/400HP

Gear box

Model

HW19710

Number of gears

10 forward gears& 2 reverse

Axle

Front

HF-7T

Rear

ST-16T

Fuel tanker

Capacity

400L

Upper-body description

Crew cabin

Type

Independent crew cabin at rear

Number of seats

6

Tanker capacity

Water tanker

3.6CBM (3600 liters), carbon steel

Foam tanker

1.1 CBM (1100 liters), stainless steel

Fire pump

Model

CB10/60

Flow

60L/S

Pressure

1.0Mpa

Suction depth

7m

Fire monitor

Model

PL8/48

Flow

48L/S

Pressure

0.8Mpa

Range

Water ≥70m; Foam ≥60m

Rotation angle

Horizontal 360°
Pitch -45°~+70°

Hose reel

Model

JPSC1.6

Inner diameter

32mm

Hose length

30m

Inlet pressure

1.6Mpa

Flow of gun

≥120 L/min

Other configurations

Equipped with sandwich PTO, pipeline system;
Equipped with equipment compartment and pump room;
Equipped with flip pedal and electric system.
Other fire equipment.


-----Tanker material: Carbon steel, stainless steel, aluminum alloy, PP material

-----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand

-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)


» Ⅲ.Product Details :


1. SINOTRUK HOWO Chassis

HOWO HW76 cabin, with A/C, power assisted, central lock, power window and doors, multifunctional steel wheel, Multifunctional LCD instrument panel, ect

2. Independent crew cabin

With an independent crew cabin, can accommodate up to eight firefighters.

3. Rear SCBA seat

The crew cabin with all seats equipped with seat belts. The rear seats are detachable and include brackets for breathing apparatus.

4. Pump room with control panel

Pump room at the rear of the vehicle, with aluminum alloy roller shutters on both sides and the rear. With interior lighting, storage space for commonly used equipment.

5. Firefighting hose reel

The truck is equipped with hose reel with 30m length and 32mm diameter, and the flow is up to 120L/min.

6. Fire truck tanker body with full sets fire fighting tools

R03 RAL3000 painting, Aluminium alloy decoration for fire fighting toosl convenient storage, LED light for red blue and white color

1.we can do the designs for howo 4x2, 4x4, 6x4, 6x6, 8x4,8x8 drive fire fighting truck

2. Optional equipped CAFS foam system and Dry Powder system

3. stainless steel water tank, aluminum alloy or PP tank can be customized

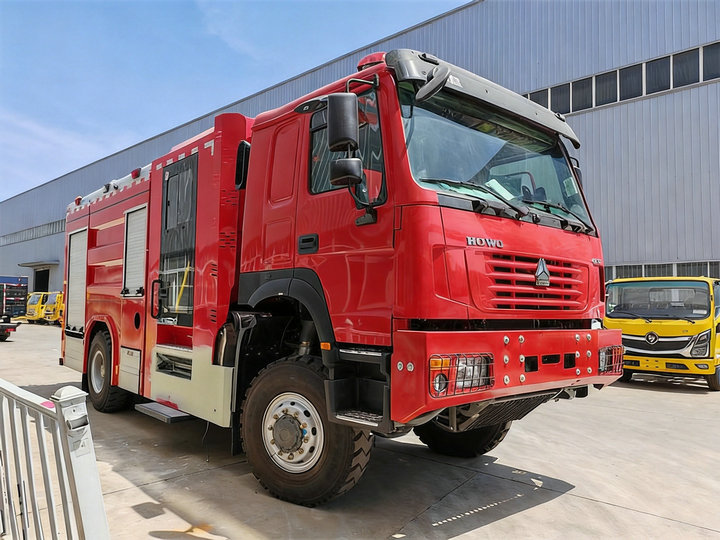

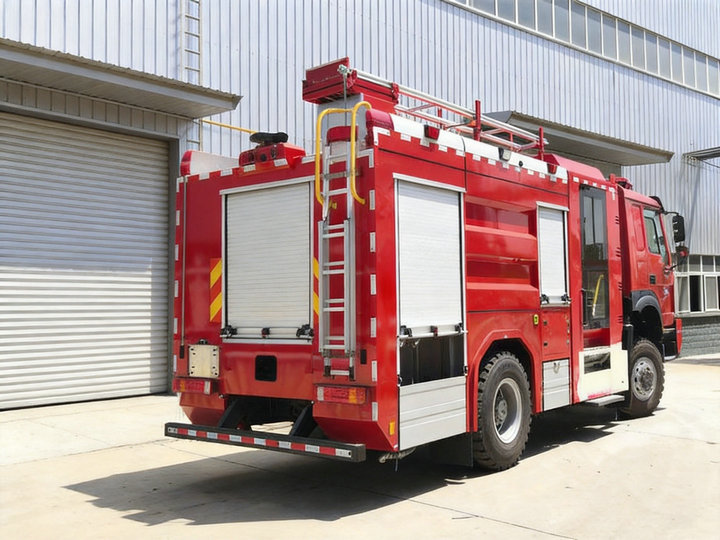

HOWO 4×4 AWD Fire Fighting Trucks 5000L Water 2000L Foam (14)HOWO 4×4 AWD Fire Fighting Trucks 5000L Water 2000L Foam (9)

Technical Parameters

Item

Specification

Item

Specification

Overall Dimensions

8570×2530×3660 (mm)



GVW

17,460 kg

Curb Weight

12,110 kg

Rated Payload

4,750 kg



Approach/Departure Angle

31°/11°

Front/Rear Overhang

1602/2368 (mm)

Fuel Type

Diesel

Emission Standard

China VI

Axle Load

6800/10660 (kg)

Wheelbase

3800 / 4300 / 4600 / 5200 / 5800 (mm)

Number of Axles

2

Max. Speed

85 km/h

Number of Tires

6

Tire

11.00-20 18PR, 11.00R20 18PR, 12.00-20 16PR/18PR/20PR, 12.00R20 16PR/18PR/20PR

Leaf Spring

4/9+6, 9/9+6, 9/9+7

Front Track

2041 / 2022 (mm)

Rear Track

1850 (mm)

Steering

Steering wheel

VIN

LJVA8JDL×××××××××



Fuel Parameters

Item

Specification

Fuel Type

Diesel

Applicable Standard

GB 17691-2018 (China VI)

Reflective Markings

Item

Details

Supplier

3M (Minnesota Mining & Manufacturing, Shanghai)

Brand

3M

Model

983D

Tank Configuration

Tank

Capacity

Dimensions (mm)

Total

4.750 m³

—

Water Tank

3.640 m³

1280×2380×1250

Foam Concentrate Tank

1.110 m³

700×1300×1250

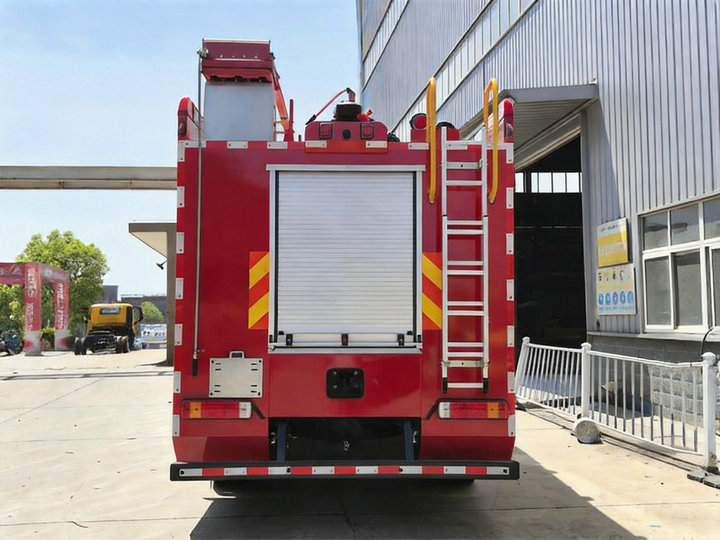

HOWO 4×4 AWD Fire Fighting Trucks 5000L Water 2000L Foam (12)


HOWO Foam fire tender truck in promotion

The main application scope of a HOWO fire truck is to carry out fire suppression in various fire scenarios, implement emergency rescue and disaster relief tasks, and provide on-site support for public safety incidents: including building fires, industrial fires, traffic accident rescues, and disposal of hazardous material leaks.


HOWO Foam Fire Vehicle

4x2/4x4

6x4/6x6

8x4

Capacity

2,000L~5,000L Water

500L~2,000L Foam

4,000L~10,000L Water

2,000L~5,000L Foam

12,000L~20,000L Water

3,000L~8,000L Foam

Fire pump

CB10/60

CB10/80

CB10/120

Pump flow

60L/S

60L/S

120L/S

Fire monitor

PL8/48

PL8/64

PL8/80

Monitor flow

48L/S

64L/S

80L/S

Monitor range

≥ 70 meters Water

≥ 60 meters Foam

≥ 75 meters Water

≥ 70 meters Foam

≥ 85 meters Water

≥ 80 meters Foam


Applications

The HOWO 460HP fire truck is engineered for diverse and demanding emergency environments. Its robust capabilities make it an essential asset for:

- Urban and Industrial Safety: Providing rapid response for city infrastructure and manufacturing facilities.

- Class B Fire Suppression: Specialized effectiveness in extinguishing oil and chemical fires.

- Fire Rescue Operations: Integrating rescue tools for comprehensive emergency management.

- Chemical Plant Emergency Response: Handling hazardous material incidents with specialized decontamination systems.

- Port and Dock Fire Protection: Ensuring safety in maritime and logistics hubs.

Full specifications are listed below:

NO

Item

Unit

1

Water Suction Pipe (Suction hose Ø 125 mm, length: 4 m)

2 PC

2

Water strainer (Ø 125)

1 PC

3

Water segregator (Ø 80-65-65 mm)

1 PC

4

Water collector (Ø 125-65-65 mm)

1 PC

5

Soft-wall fire hose (Water hose Ø 65 mm, length: 20 m)

6 SET

6

Soft-wall fire hose (Water hose Ø 80 mm, length: 20 m)

4 SET

7

Fast conversion joint (80X65 mm)

2 PC

8

Hose protector

4 PC

9

Hose Hoist

4 PC

10

Ground Hydrant-wrench

1 PC

11

Underground Hydrant-wrench

1 PC

12

Suction Wrench

2 PC

13

Dry Powder Extinguisher

1 PC

14

Fire Fighting Barrel

1 PC

15

Straight flow switch water gun (Ø 65 mm)

1 PC

16

Multi-purpose switch water gun

1 PC

17

Fire Fighting Axe

1 PC

18

Fire Fighting Shovel/Spade

1 PC

19

Fire Axe

1 PC

20

4M Aluminum Ladder (Optional 10M Aluminum Ladder)

1 PC

21

Original Chassis Tools

1 PC

22

Protective (safety) spectacles

1 PC
