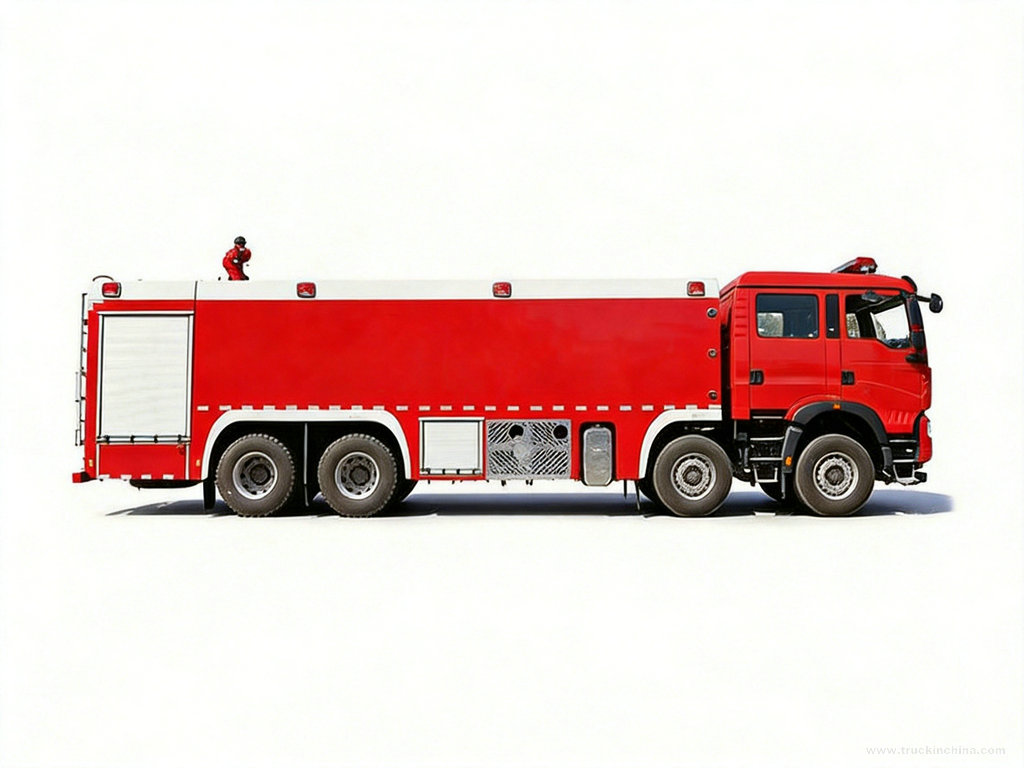

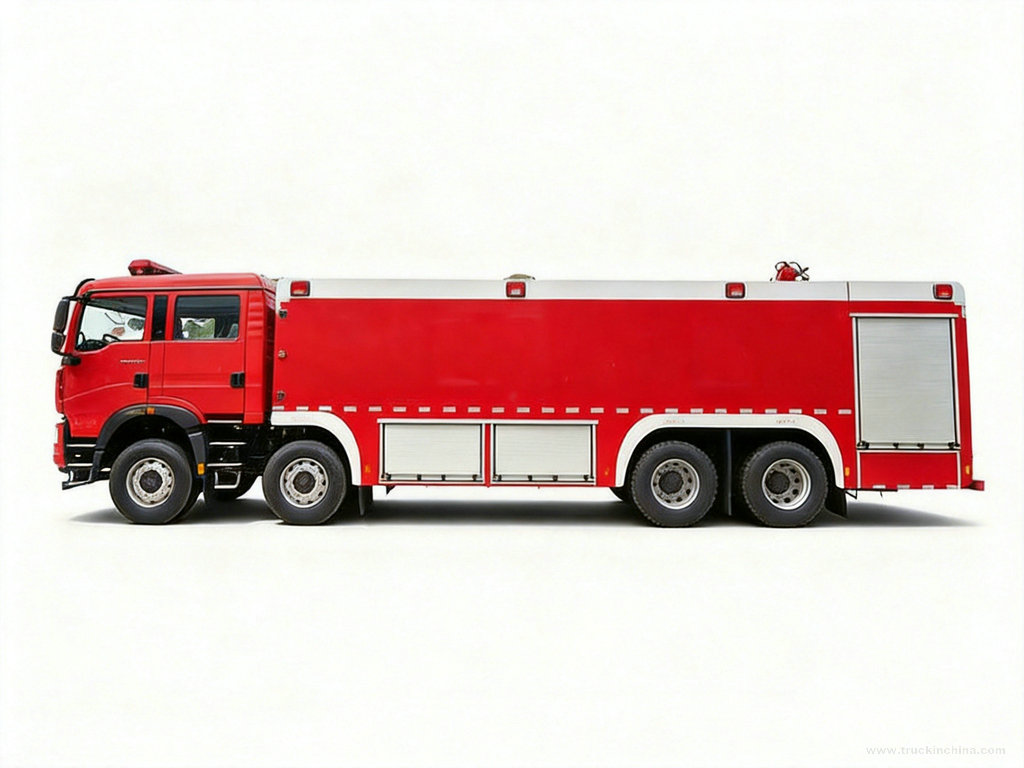

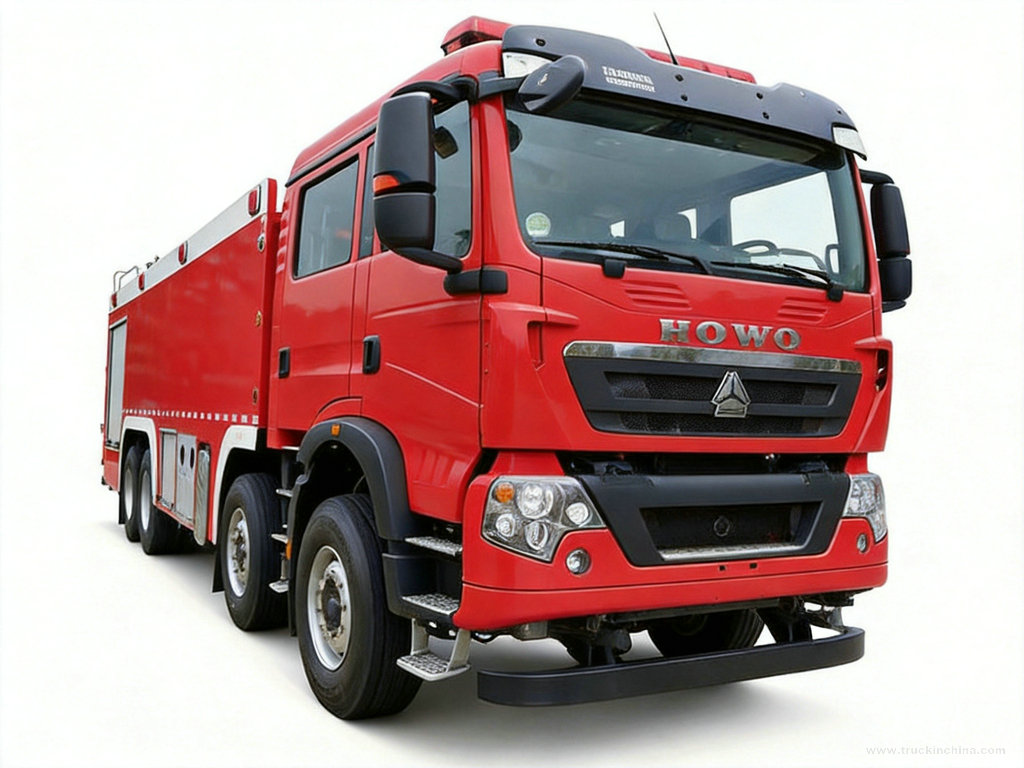

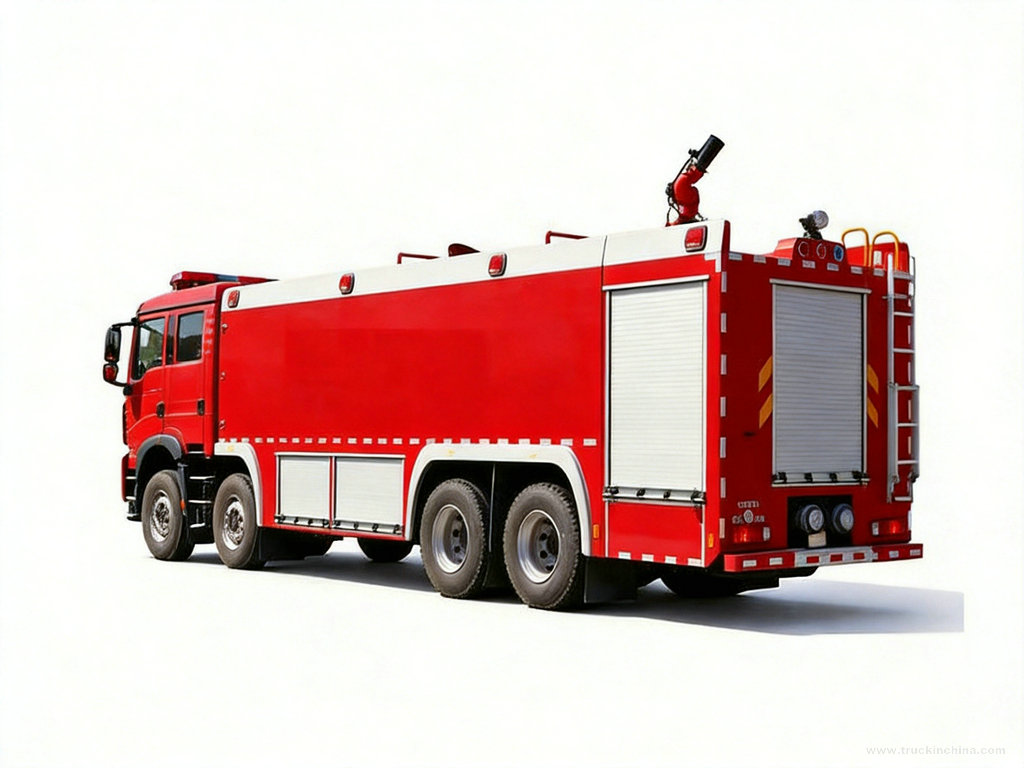

HOWO 25 T Fire Tender Fire Fighting Truck 20000L Water + 5000L Foam
Tanker Capacity:20000L water +5000L foam (225000L total)
Engine : 460 HP (338 kW) / MC11.46-60
Fire Pump: CB10/120
Pump Flow: 120 L/s
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
| Quantity: | |
|---|---|
|
| |
-
DRZ5318XFZZ8
-
DRZ
-
8705309000
HOWO 25 T Fire Tender Fire Fighting Truck 20000L Water + 5000L Foam
| Truck Chassis: | SINOTRUK HOWO 8x4 |
| Tanker Capacity: | 20000L water + 5000L foam (25000L total) |
| Engine Power: | 460 HP (338 kW) / MC11.46 -60 |
| Fire Pump: | CB10/120 |
| Pump Flow: | 120 L/s |
| Work Pressure: | 1.0 MPa |
| Fire Monitor: | PL8/64 |
| Monitor Flow: | 64 L/s |
| Monitor Range: | Water ≥70 m , Foam ≥65 m |
HOWO 460HP 8x4 water foam fire truck features a 20000L water tank, a 5000L foam tank, a CB10/120 fire pump (120 L/s at 1.0 MPa), and a roof mounted PL8/64 fire monitor with 70m water range and 65m foam range.
This fire truck carries a full set of standard firefighting equipment including hoses, suction tubes, couplings, and a foam gun. It works well for Class B fires involving oil, gasoline, and chemicals. It suits firefighting tasks at oil depots, chemical plants, refineries, airports, and large industrial facilities.
HOWO 8X4 25CBM Foam Fire Fighting vehicle
Working Capacity | Engine Model | Wheelbase | Superstructure |
20000L water + 5000L foam | 460 HP / MC11.46-60 | 1950+4600+1400 mm | ★ Tank carbon steel, 25000L capacity ★ CB10/120 fire pump, 120 L/s flow at 1.0 MPa ★ PL8/64 roof monitor, 64 L/s flow with water ≥70 m, foam ≥65 m ★ Roof emergency lights, reflective markings, reverse camera, PTO control switch |
» Ⅰ.Main Features :
★ MC11.46-60 engine rated at 460 HP for large-scale foam fire suppression and industrial emergency response
★ HOWO TX 8×4 chassis with 20000L water tank, 5000L foam tank, and CB10/120 fire pump (120 L/s at 1.0 MPa)
★ Roof mounted PL8/64 monitor with 64 L/s flow, water range ≥70 m, and foam range ≥65 m for long distance fire attack
★ Complete equipment including monitor control system, liquid level gauge, pressure gauge, emergency lighting, reverse camera, fire extinguisher, grounding device, and PTO control switch
Full fire fighting equipment including hoses, nozzles, foam gun, and basic tool kit for Class B fire fighting
» Ⅱ.Product Parameter :
HOWO TX Fire Tender With CB10/120 Fire Pump | |||
General | Work Capacity | 20000L water tank+5000L foam tank | |
Truck Chassis | SINOTRUK HOWO TX 8x4 | ||
Engine Power | 460 HP/ MC11.46-60 | ||
Fire Pump | CB10/120 | ||
Fire Monitor | PL8/64 | ||
Maximum Speed | 95 km/h | ||
Overall Dimensions L*W*H | 12000*2540*3750 mm | ||
Gross Vehicle Weight | 44000 kg | ||
Curb Weight | 17000 kg | ||
Engine | Engine Model | MC11.46-60 | |
Fuel Type | Diesel | ||
Power | 460 HP（338KW） | ||
Emission Standard | Euro 6 | ||
Displacement | 10518ml | ||
Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
Chassis | Drive Type | 8X4 | |
Wheelbase | 1950+4600+1400mm | ||
Tire | 12.00R20 | ||
Tire No. | 12 tires and 1 spare tire | ||
Fire pump | Model | CB10/120 | |
Flux | 120L/s | ||
Pressure | 1MPa | ||
Max Working Pressure | 1.251MPa | ||
Max Allowable Inlet Pressure | 0.4MPa | ||
Max Suction Height | 3m | ||
Rated Speed | 3916±50r/min | ||
Speed Ratio | 1:1.4 | ||
Water Diversion Time | ≤50s | ||
Fire Monitor | Model | PL8/64 | |
Flow | 64L/s | ||
Rated Working Pressure | 1MPa | ||
Max Working Pressure | 1.2MPa | ||
Range | Water | ≥70m | |
Foam | ≥65m | ||
Pitch Rotation | - 35～+70° | ||
Horizontal Rotation | 0～360° | ||
Standard Configuration | All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual. | ||
» Ⅲ.Products Description :
1. Chassis & Powertrain

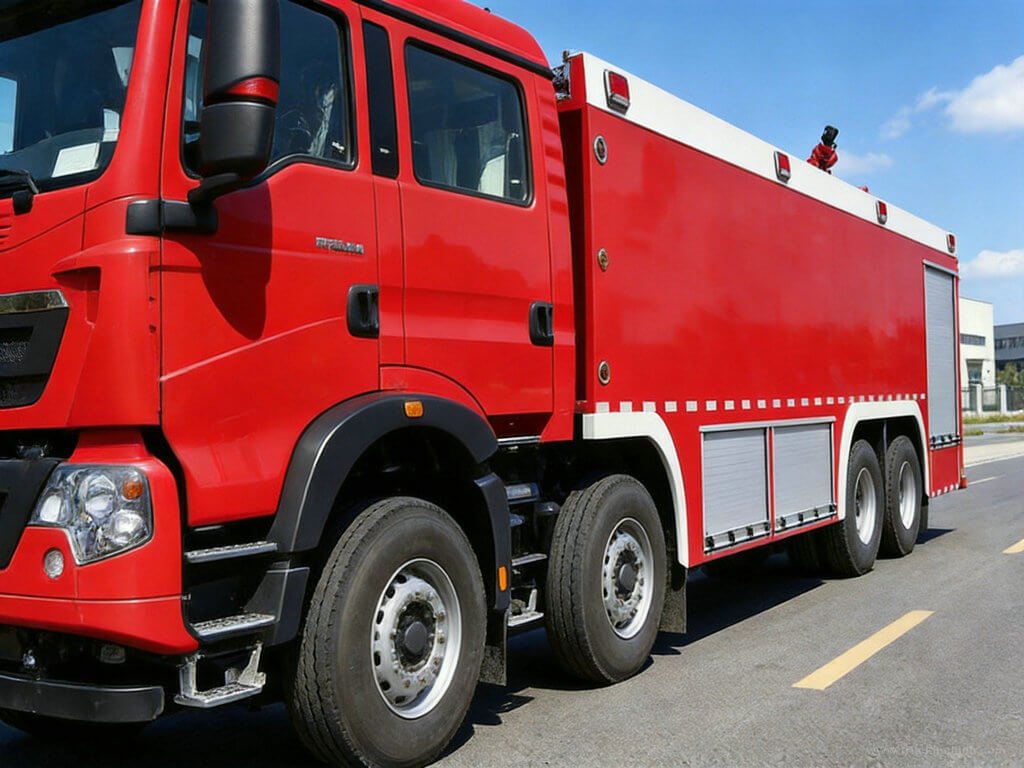

♦ SINOTRUK HOWO TX 8×4 chassis with 1950+4600+1400 mm wheelbase, designed for stable operation on heavy load conditions, industrial sites, and rough terrain.
♦ MC11.46-60 diesel engine, rated at 460 HP, delivering reliable torque for quick response, continuous pump operation, and long-duration large-scale foam fire suppression.
♦ Manual transmission for straightforward operation and easy maintenance in remote and demanding environments.
2. Fire Suppression & Safety System
♦ 20000L water tank and 5000L foam tank, carbon steel construction with internal baffles to reduce liquid surge on rough roads.
♦ CB10/120 fire pump, 120 L/s flow at 1.0 MPa, PTO driven, 3m suction height, ≤50s priming time.
♦ PL8/64 roof monitor, 64 L/s flow, water range ≥70 m, foam range ≥65 m, horizontal 360° rotation, pitch -35° to +70°.

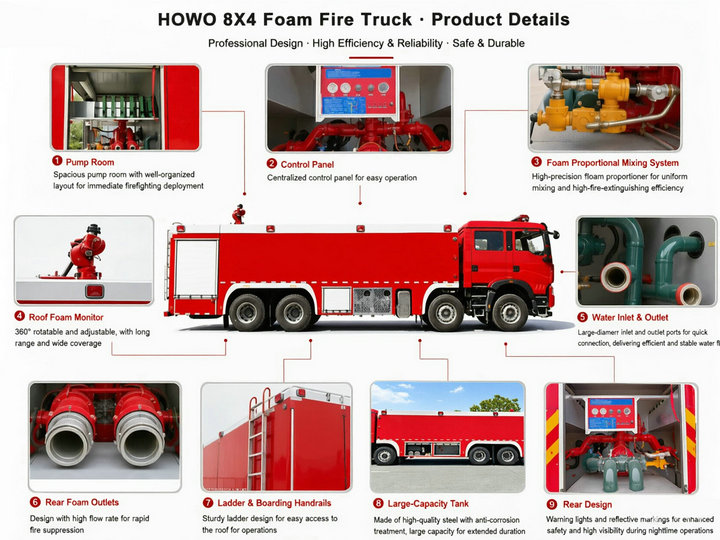

» Ⅳ.Product Details :
» Ⅴ.Fire Pump System :
Fire Pump:

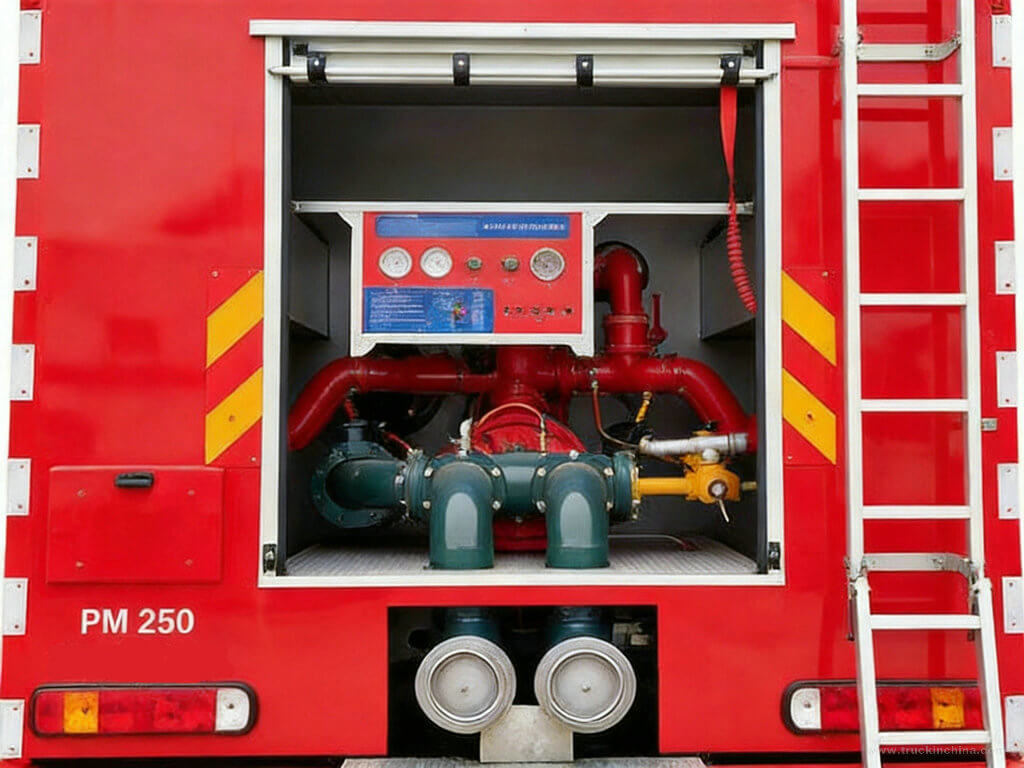

CB10/120 fire pump with a rated flow of 120 L/s at 1.0 MPa is installed in the rear pump room. This pump is built for reliable performance, providing steady water pressure to ensure fire hoses and monitors can deliver water or foam effectively over long distances for large-scale fire suppression.
Fire Pump Model | Flow | Pressure | Max Working Pressure | Max Allowable Inlet Pressure |
CB10/120 | 120L/s | 1.0MPa | 1.251 MPa | 0.4MPa |
Control panel:Includes operating instructions, tank piping diagram, pressure gauge, water level gauge, foam level gauge, emergency stop, PTO control, main power switch, pump controls, monitor controls, and compartment lighting. All controls are clearly marked for straightforward operation.
» Ⅵ.Fire Monitor System :

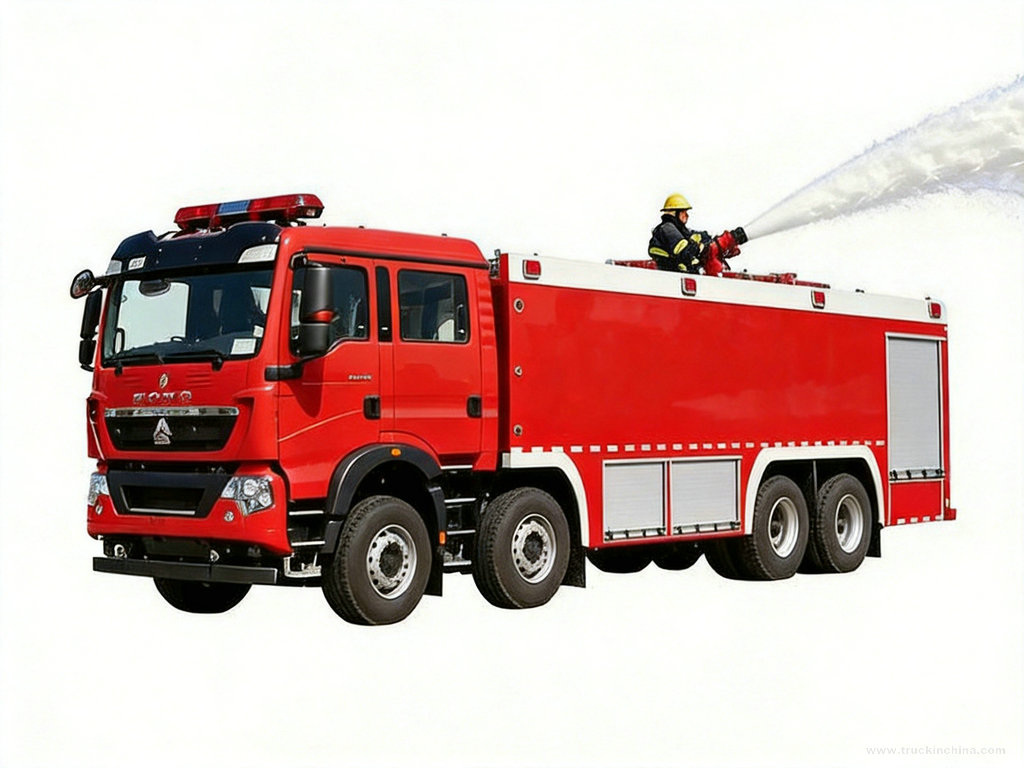

The PL8/64 fire monitor is mounted on the cab roof. It delivers a flow rate of 64 L/s with a water range of ≥70 m and a foam range of ≥65 m. The monitor supports both straight stream and spray patterns for flexible firefighting operations.
Fire Monitor Model | Flow | Range | Rated Pressure | Pitch Rotation | Horizontal rotation |
PL8/64 | 64L/s | Water≥70m Foam ≥65 m | 1.0MPa | -35°～+70° | 0～360° |
» Ⅶ.Firefighting Equipment :
• Equipment Room

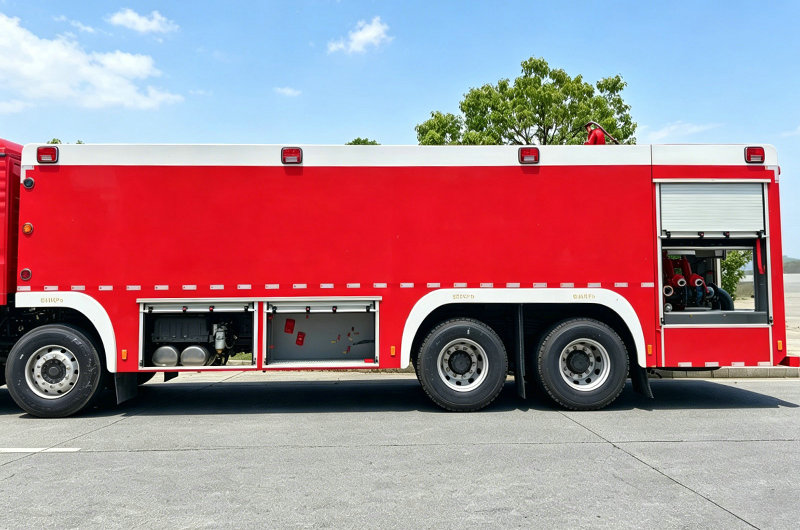

Located on both sides of the vehicle, these compartments are equipped with equipment racks and storage trays. The racks keep fire hoses, suction tubes, and foam guns neatly organized. The storage trays provide quick access to tools like wrenches, axes, and crowbars, improving rescue efficiency.
• Pump Room: Equipped with fire hoses, water collectors, filters, fire nozzles, foam guns, suction hose wrenches, reducers, etc.

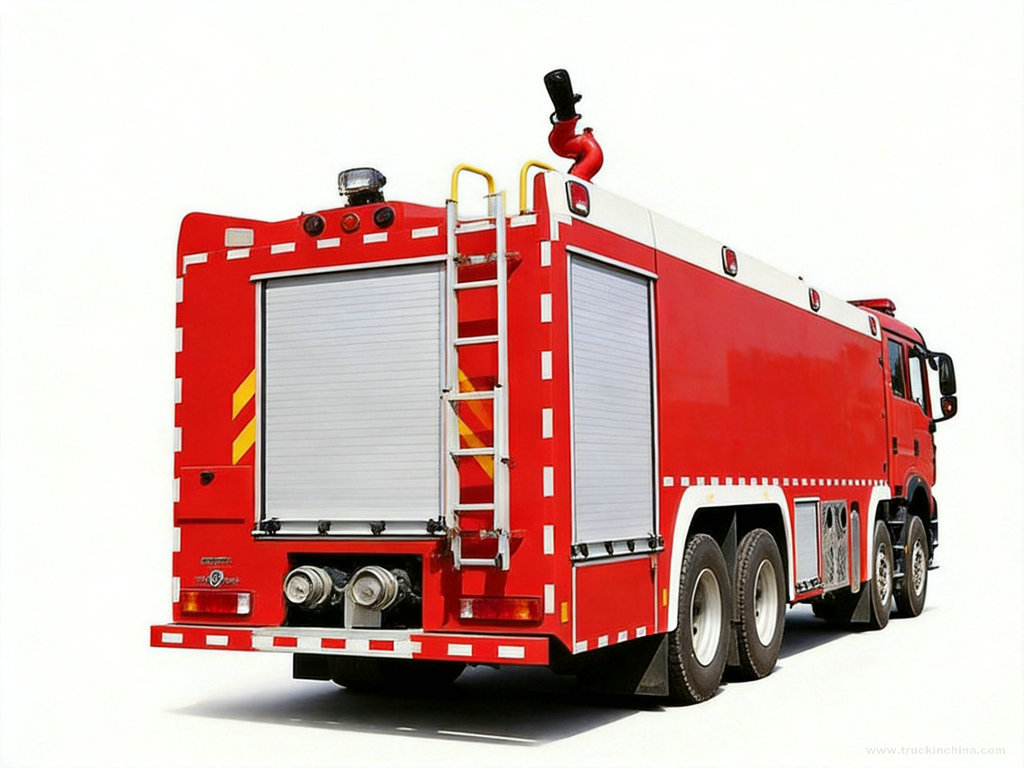

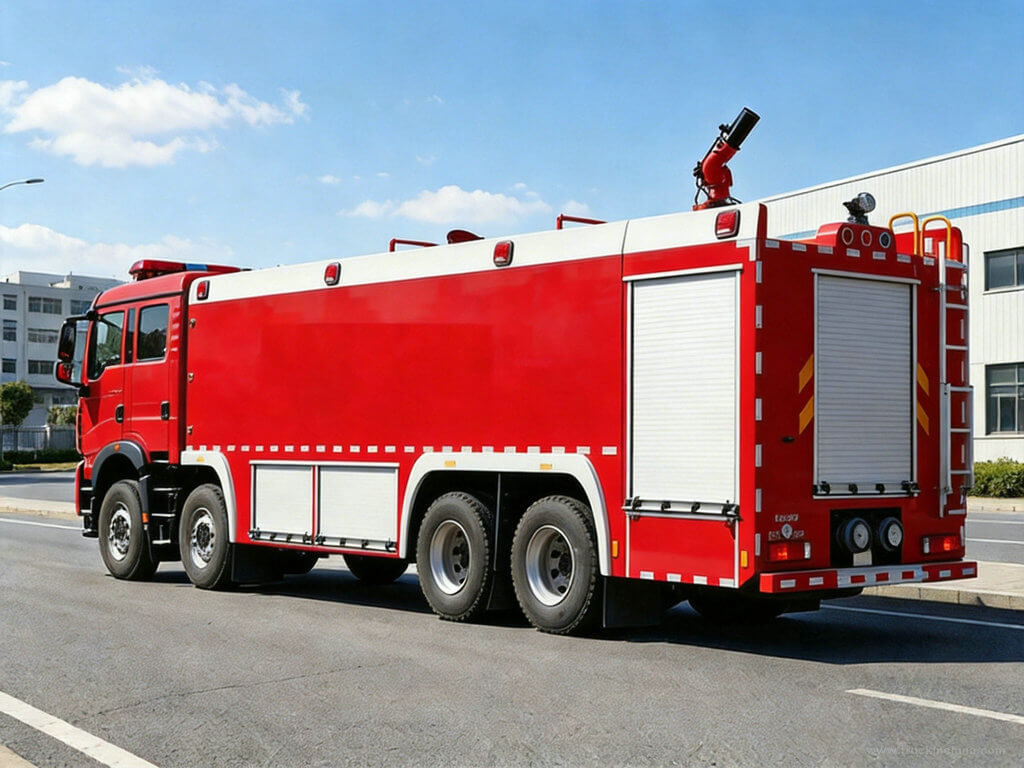

The HOWO TX foam fire tender comes with a rear-mounted CB10/120 fire pump and a cab roof mounted PL8/64 monitor. The water tank holds 20,000 liters, and the foam tank holds 5,000 liters, sitting on a sturdy HOWO TX 8×4 chassis powered by a 460 HP MC11.46-60 engine. Standard gear includes fire hoses, suction tubes, couplings, a foam gun, and a complete tool kit. Additional equipment includes monitor control system, liquid level gauge, pressure gauge, emergency lighting, reverse camera, fire extinguisher, grounding device, and PTO control switch
Full specifications are listed below:
NO | Item | Unit |
1 | Water Suction Pipe (Suction hose Ø 125 mm, length: 4 m) | 2 PC |
2 | Water strainer (Ø 125) | 1 PC |
3 | Water segregator (Ø 80-65-65 mm) | 1 PC |
4 | Water collector (Ø 125-65-65 mm) | 1 PC |
5 | Soft-wall fire hose (Water hose Ø 65 mm, length: 20 m) | 6 SET |
6 | Soft-wall fire hose (Water hose Ø 80 mm, length: 20 m) | 4 SET |
7 | Fast conversion joint (80X65 mm) | 2 PC |
8 | Hose protector | 4 PC |
9 | Hose Hoist | 4 PC |
10 | Ground Hydrant-wrench | 1 PC |
11 | Underground Hydrant-wrench | 1 PC |
12 | Suction Wrench | 2 PC |
13 | Dry Powder Extinguisher | 1 PC |
14 | Fire Fighting Barrel | 1 PC |
15 | Straight flow switch water gun (Ø 65 mm) | 1 PC |
16 | Multi-purpose switch water gun | 1 PC |
17 | Fire Fighting Axe | 1 PC |
18 | Fire Fighting Shovel/Spade | 1 PC |
19 | Fire Axe | 1 PC |
20 | 4M Aluminum Ladder (Optional 10M Aluminum Ladder) | 1 PC |
21 | Original Chassis Tools | 1 PC |
22 | Protective (safety) spectacles | 1 PC |
