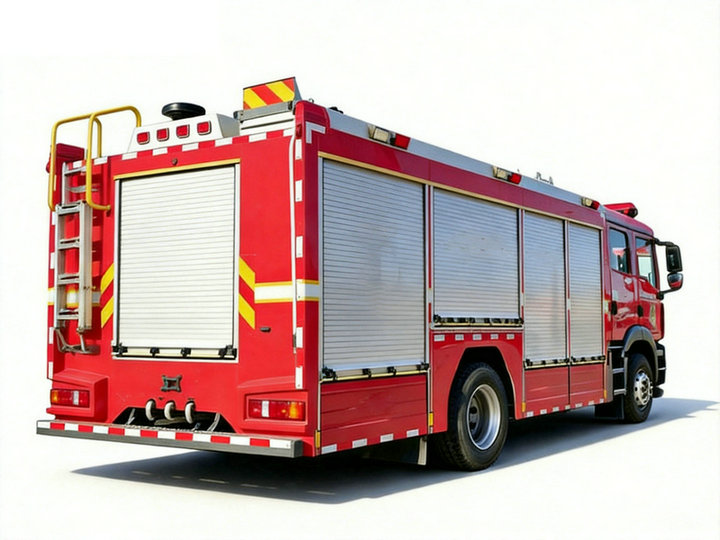

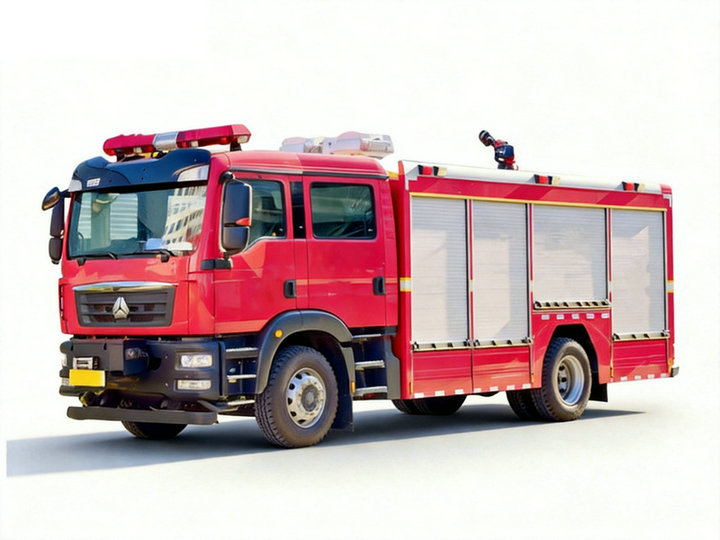

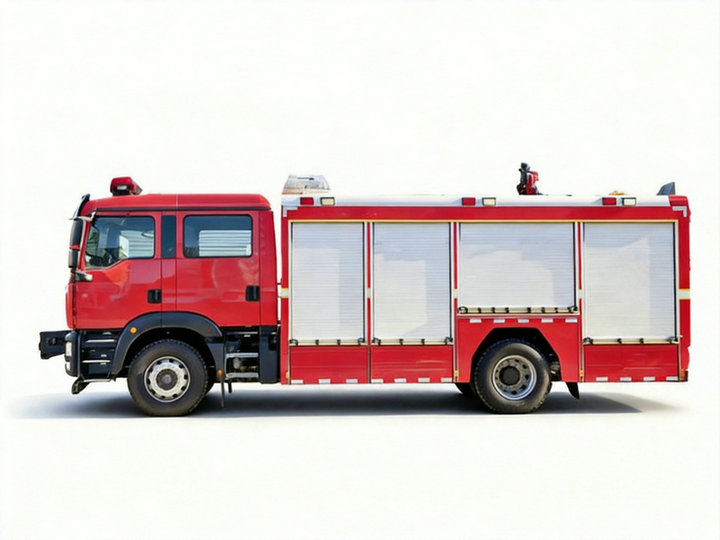

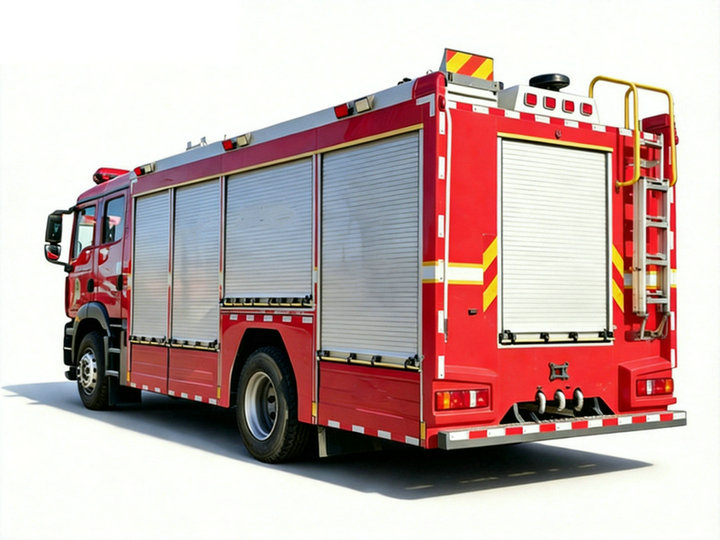

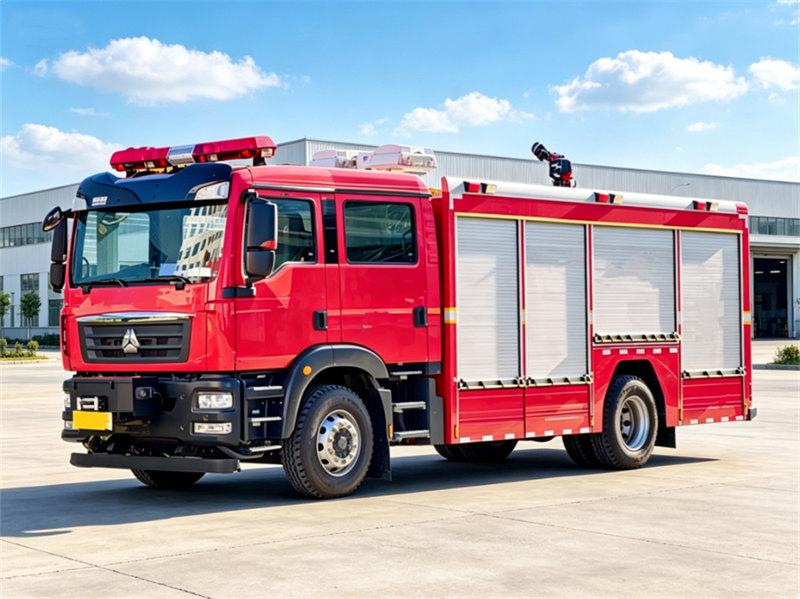

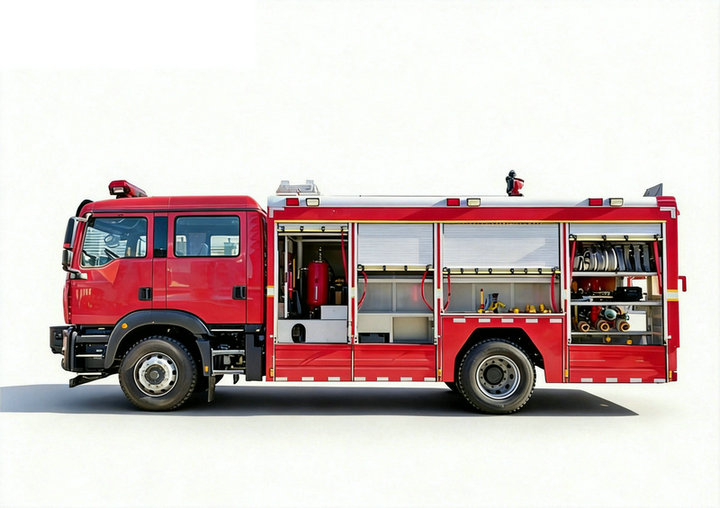

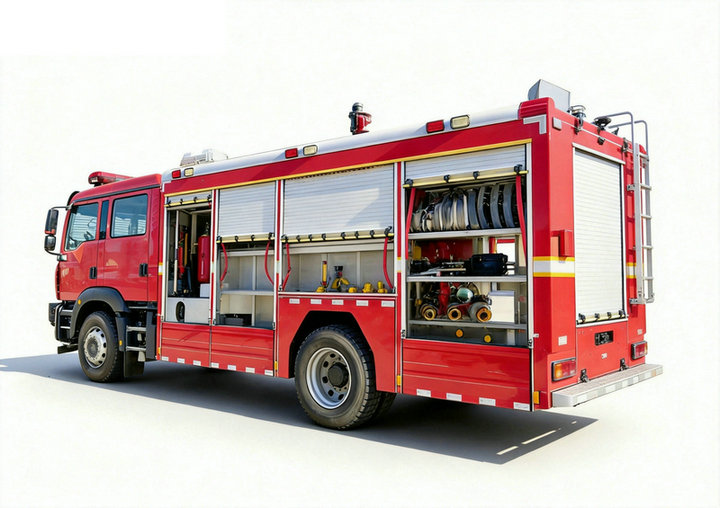

HOWO TX 4x2 CAFS Fire Fighting Truck 4000L Water + 2000L Foam
Tanker Capacity:4000L water + 2000L foam (6000L total)
Engine : 350 HP (257 kW) / MC07H.35-60
Fire Pump: CB10/60
Pump Flow: 60 L/s
Monitor Range:Water ≥70 m , Foam ≥60 m
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
| Quantity: | |
|---|---|
|
| |
-
DRZ5180XFZZ
-
DRZ
-
8705309000
HOWO TX 4x2 CAFS Fire Fighting Truck 4000L Water + 2000L Foam
| Truck Chassis: | HOWO TX 4x2 |
| Tanker Capacity: | 4000L water + 2000L foam (6000L total) |
| Engine Power: | 350 HP (257 kW) / MC07H.35-60 |
| Fire Pump: | CB10/60-RS |
| Pump Flow: | 60 L/s |
| Work Pressure: | 1.0 MPa |
| Fire Monitor: | PS60 |
| Monitor Flow: | 60 L/s |
| Monitor Range: | Water 270 m , Foam 265 m |
| Foam Proportioner: PH64, 3% -6% mixing ratio, 64 L/s max flow | |
SINOTRUK HOWO TX CAFS Fire Tanker
Working Capacity | Engine Model | Wheelbase | Superstructure |
4000L water + 2000L foam | 350 HP / MC07H.35-60 | 4700 mm | ★ Tank carbon steel, 6000L capacity ★ CB10/60-RS fire pump, 60 L/s flow at 1.0 MPa ★ PS60 roof monitor, 60 L/s flow with water ≥70 m, foam ≥65 m ★ PH64 foam proportioner, 3%-6% mixing ratio, 64 L/s max flow |
» Ⅰ.Main Features :
1. Truck Chassis: Sinotruk HOWO truck chassis, 4X2,4x4 model
MC model with 350HP and Euro 2,3
2. Tank material: 4-6mm thick stainless steel for prolonged service lier
carbon steel, aluminum alloy or PP material can be choose
3. Tanker body: Customized for Water + Foam + Dry Powder fire agent
4. Fire Pump: CB10/40 centrifugal fire pump, flow rate 40L/s, working distance over 55m
Optional CB10/40, CB10/60 also available Darley fire pump
5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m
Optional equipped CAFS foam system and Dry Powder system
Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue
» Ⅱ.Product Parameter :
HOWO 4x2 heavy fire foam truck | |||
General | Vehicle Brand | DONG RUNZE | |
Chassis Brand | HOWO | ||

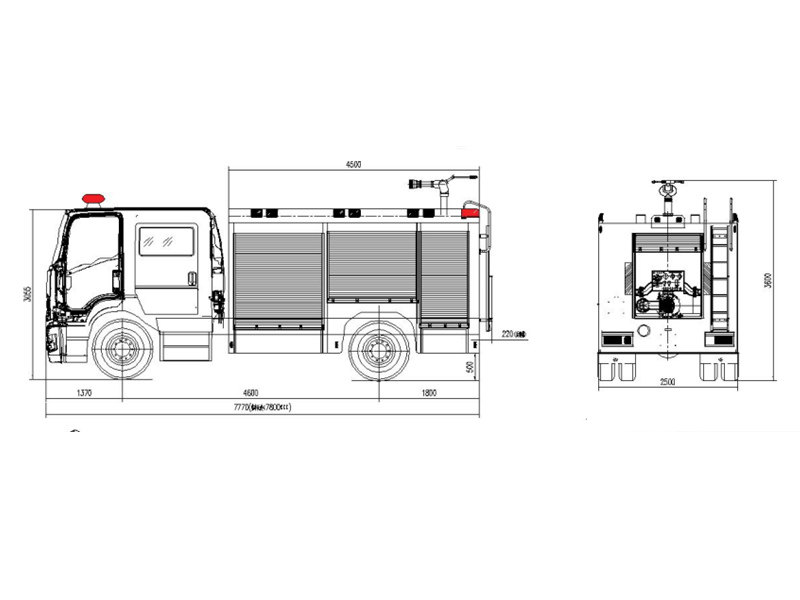

Overall Dimension | 8300*2570*3350mm | ||
GWW/ Kerb Weight | 22,000kg/11,820kg | ||
Cab | Cab Capacity | 2+4 persons allowed | |
Air Conditioner | air conditioner | ||
Engine | Fuel Type | Diesel | |
Engine Brand | MC07H.35-60 | ||
Power | 350HP | ||
Displacement | 7.36L | ||
Emission Standard | Euro 5 | ||
Chassis | DriveType | 4X2,left hand drive | |
Transmission | HW 10 speed forward, 2 reverse | ||
Wheelbase/No.of axle | 4600 mm | ||
Tyre Specification | 295/80R22.5 | ||
Tyre Number | 6 tyres and 1 spare tyre | ||
Max Speed | 95km/h | ||
Paint | Metallic paint | ||
Water Tank Capacity | 4,000 Liters | ||
Tank Material | carbon steel | ||
Foam Tank Capacity | 2,000 Liters | ||
Fire Pump | Brand | China TOP brand | |
Drive mode | PTO | ||
Priming Manner | Automatic | ||
Pressure range | 1.6-2.5 MPa | ||
Flow rate | 45L / s | ||
Suction Height | 9m | ||
Fire Cannon | Flow speed | 45L /s | |
Range | 65 m | ||
Superstructure Electric Appliance | Warning Light and Siren | Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin. | |
Strobe Light | Mounted on the both sides of the compartment | ||
External Lighting | LED lights are mounted on the both sides of the compartment | ||
Roof Lighting | LED lights are mounted on the inside of the roof | ||
Side Indicator Light | Inline yellow warning light is mounted on the side of the compartment and pedals | ||
All standard accessories.Typical modern fire apparatu scarries equipment for a wide range of fire fighting and rescue tasks.These include shovel,pike poles,axes and cutting equipment, halligan bars... | |||
Optional | ** Back alarm and Camera can be equipped ** Standard carbon steel, stainless steel optional ** USA or Germany fire pump can be optional | ||
» Ⅲ.Products Advantage :
1. Chassis & Powertrain
♦ Engine and Powertrain The Howo C5H is equipped with an MC07H.35-60 diesel engine, delivering a maximum power of 350 HP and a torque of 1230 N·m.
♦ Equipped with heavy-duty 295/80R22.5 tires, it offers a minimum turning radius of ≤12 meters and a wading depth of ≥800 mm, making it suitable for complex terrain and adverse weather conditions.
2. Structural Design
♦ The chassis adopts a high-strength carbon steel frame, anti-twisting box structure, and the external rolling door design facilitates quick access to rescue tools.
♦ The interior is equipped with adjustable aluminum alloy storage racks and rotating trailers to optimize space utilization.
» Ⅳ.CAFS Foam System :
The CAFS (Combined Firefighting System) firefighting process can be summarized in three key steps, corresponding to its 3 core systems:
✦Proportional Mixing:
The vehicle's water tank provides water.
The vehicle's foam tank provides foam concentrate.
A precise electronic or mechanical proportioner precisely mixes the water and foam concentrate at a preset ratio (typically 0.1% to 6%) to form a "foam solution."
✦Air Injection:
The vehicle's air compressor starts working, generating high-pressure air.
The high-pressure air is injected into the pipeline containing the freshly mixed "foam solution.
✦Fogging and Spraying:
The water, foam concentrate, and compressed air undergo turbulence and mixing in the pipeline, ultimately reacting fully in the foam generator (such as a water gun) at the end of the fire hose, producing extremely fine and uniform compressed air foam.
Firefighters spray this high-quality foam onto the fire scene using water guns.

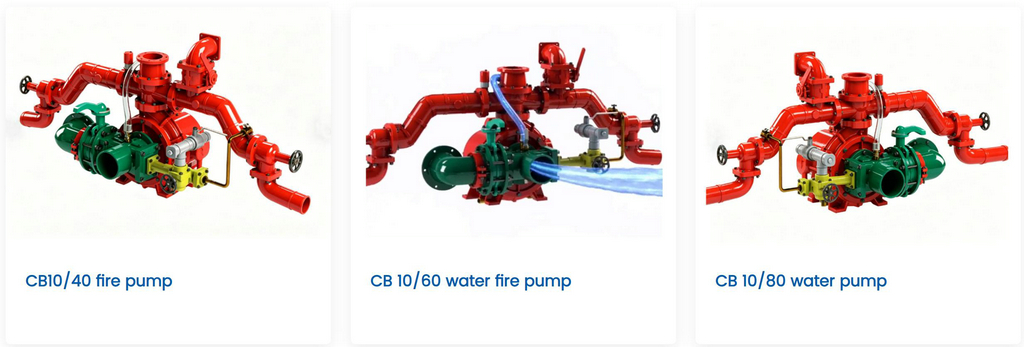

» Ⅴ.Fire Pump System :
Fire Pump:

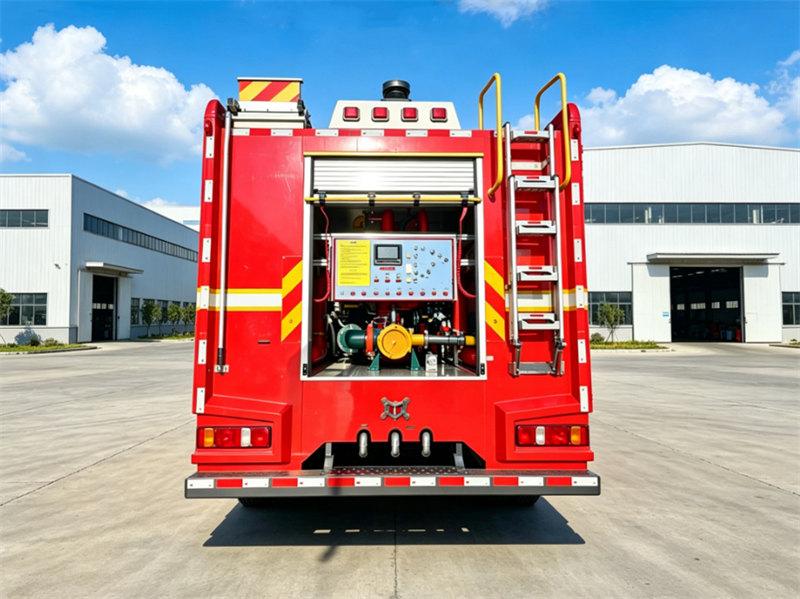

A CB10/60-RS fire pump with a rated flow of 60 L/s at 1.0 MPa is installed in the rear pump room. This pump is built for reliable performance, providing steady water pressure to ensure fire hoses and monitors can deliver water or foam effectively over long distances for fire suppression.
Fire Pump Model | Flow | Pressure | Max Working Pressure | Max Allowable Inlet Pressure |
CB10/60 | 60 L/s | 1.0MPa | 1.251 MPa | 0.4MPa |
» Ⅵ.Fire Monitor System :
The PS60 fire monitor is mounted on the cab roof. It delivers a flow rate of 60 L/s with a water range of ≥70 m and a foam range of ≥65 m. The monitor supports both straight stream and spray patterns for flexible firefighting operations.
Fire Monitor Model | Flow | Range | Rated Pressure | Pitch Rotation | Horizontal rotation |
PS60 | 60L/s | Water≥70m Foam ≥65 m | 0.8MPa | -35°～+70° | 0～360° |
» Ⅶ.Rescue Equipment :

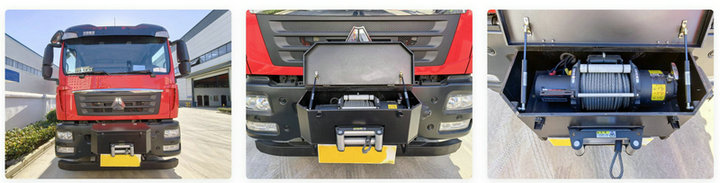

Electric Winch | |
Control type | Electric control box |
Distance | 35m |
Capacity | 2 tons |

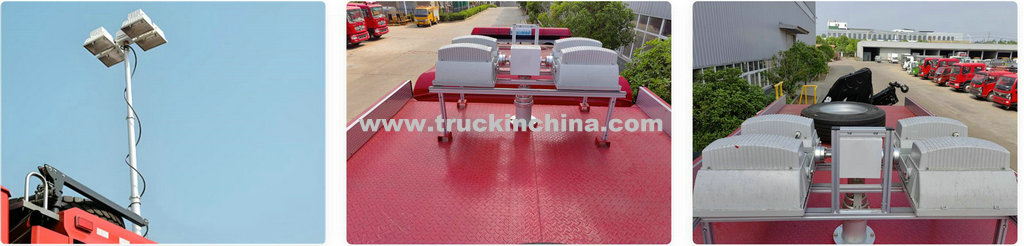

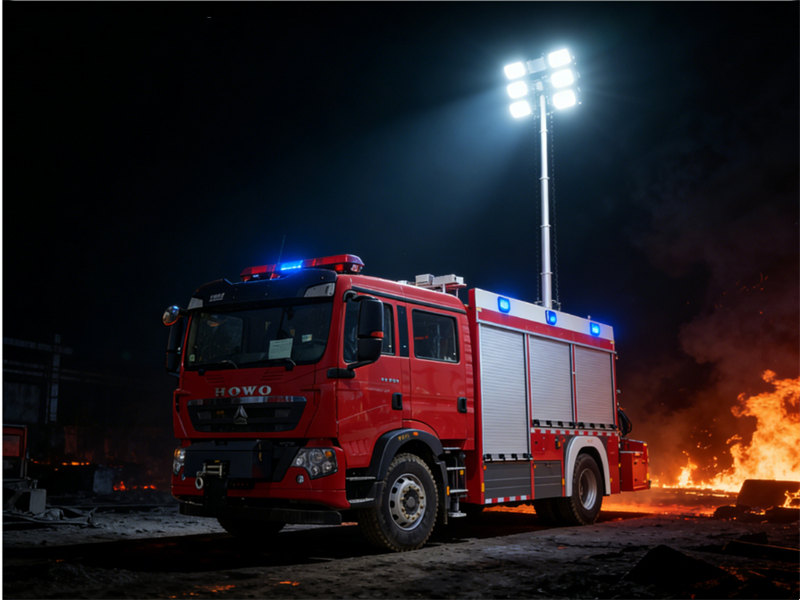

Lighting Mast | Height : 5 m |
telescope operated pneumatic | |
integrated gasoline engine electrical generator |
Full specifications are listed below:
NO | Item | Unit |
1 | Water Suction Pipe (Suction hose Ø 125 mm, length: 4 m) | 2 PC |
2 | Water strainer (Ø 125) | 1 PC |
3 | Water segregator (Ø 80-65-65 mm) | 1 PC |
4 | Water collector (Ø 125-65-65 mm) | 1 PC |
5 | Soft-wall fire hose (Water hose Ø 65 mm, length: 20 m) | 6 SET |
6 | Soft-wall fire hose (Water hose Ø 80 mm, length: 20 m) | 4 SET |
7 | Fast conversion joint (80X65 mm) | 2 PC |
8 | Hose protector | 4 PC |
9 | Hose Hoist | 4 PC |
10 | Ground Hydrant-wrench | 1 PC |
11 | Underground Hydrant-wrench | 1 PC |
12 | Suction Wrench | 2 PC |
13 | Dry Powder Extinguisher | 1 PC |
14 | Fire Fighting Barrel | 1 PC |
15 | Straight flow switch water gun (Ø 65 mm) | 1 PC |
16 | Multi-purpose switch water gun | 1 PC |
17 | Fire Fighting Axe | 1 PC |
18 | Fire Fighting Shovel/Spade | 1 PC |
19 | Fire Axe | 1 PC |
20 | 4M Aluminum Ladder (Optional 10M Aluminum Ladder) | 1 PC |
21 | Original Chassis Tools | 1 PC |
22 | Protective (safety) spectacles | 1 PC |
Isuzu firefighting trucks list
Model | Engine model | Water | Foam | Fire Pump | Fire Monitor |
Isuzu Pick Up | 4KH1CT6H1 / 143HP | 500L | 100L | Independent Fire Pump | PL8/20W |
Isuzu mini ELF / NKR / 100P | 4KH1CN6LB / 120HP 4KB1-TCG61 / 130HP | 1000L 2000L | 1000L 500L | CB10/20 (20L/s) CB10/30 (30L/s) | PL8/24W (24L/S) |
Isuzu NPR / ELF | 4KH1N6MD / 140 HP 4KH1N6HD / 150HP | 2000L | 1000L |
CB10/30 (30L/s) | PL8/24W (24L/S) |
Isuzu ELF / 700P | 4HK1-TCG61 / 190HP 4HK1-TCG60 / 205HP | 3000L 4000L | 1500L 500L | CB10/30 (30L/s) CB10/40 (40L/s) | PL8/24W (24L/S) PL8/32W (32L/S) |
Isuzu GIGA 4X | 4HK1-TCG60 / 205HP | 5000L | 1000L | CB10/40 (40L/s) | PL8/32W (32L/S) |
Isuzu GIGA 5X | 6HK1-TCG61 / 240HP 6HK1-TCG60 / 300HP | 5000L 6500L | 1000L 500L | CB10/40 (40L/s) CB10/60 (60L/s) | PL8/32W (32L/S) PL8/48W (48L/S) |
Isuzu GIGA (4x2) | 6UZ1-TCG61 / 350HP 6UZ1-TCG60 / 380HP 6WG1-TCG61 / 460HP | 5000L 5000L 6000L | 1000L 2000L 2000L | CB10/60 (60L/s) CB10/80 (80L/s) CB10/100 (100L/s) | PL8/48W (48L/S) PL8/64W (64L/S) PL8/80W (80L/S) |
Isuzu GIGA (6x4) | 6UZ1-TCG61 / 350HP 6UZ1-TCG60 / 380HP 6WG1-TCG60 / 420HP 6WG1-TCG61 / 460HP 6WG1-TCG62 / 520HP | 9000L 10000L 12000L | 1000L 2000L 2000L | CB10/60 (60L/s) CB10/80 (80L/s) CB10/100 (100L/s) | PL8/48W (48L/S) PL8/64W (64L/S) PL8/80W (80L/S) |
Isuzu GIGA (8x4) | 6WG1-TCG60 / 420HP 6WG1-TCG61 / 460HP 6WG1-TCG62 / 520HP | 10000L 12000L 14000L | 4000L 4000L 2000L | CB10/60 (60L/s) CB10/80 (80L/s) CB10/100 (100L/s) | PL8/48W (48L/S) PL8/64W (64L/S) PL8/80W (80L/S) |
ISUZU Chassis list:
Chassis Model | Horsepower | Wheelbase | Engine Model | Transmission Option | Cab Configuration |
ISUZU FVR (4x2) | 240 HP | 4500/5550/5800 /6300/7150 | 6HK1-TCG61 | FAST 8-speed Transmission | New ISUZU VC61 Series Cab |
ISUZU FVZ (4x2 /6x4) | 300 HP | 4500/ 7150 4350+1370/4650+1370 5100+1370/5800+1370 1850+2980+1370 1850+4575+1370 | 6HK1-TCG60 | FAST 9-speed Transmission | New ISUZU VC61 Series Cab |
ISUZU VC66 Series 6x4 | 350 HP | 1850+4575+1370 | 6UZ1-TCG61 | ZF 8-speed (ZF8) / FAST 12-speed | New ISUZU VC61 Series Cab |
ISUZU VC66 Series (4x2 /6x4/8x4) | 380 HP | 3900/4600/5600 3900+1370 3985+1370 4600+1370 1850+3000+1370 1850+2980+1370 | 6UZ1-TCG61 | ZF 8-speed (ZF8) / FAST 12-speed | New ISUZU VC61 Series Cab |
ISUZU VC66 Series(6x4 ) | 420 HP | 4800+1370 5200+1370 | 6WG1-TCG60 | ZF 8-speed (ZF8) / FAST 12-speed | New ISUZU VC61 Series Cab |
ISUZU VC66 Series | 460 HP | 4600 4600+1370 4800+1370 5200+1370 5400+1370 2100+4325+1370 1850+4575+1370 | 6WG1-TCG61 | ZF 8-speed (ZF8) / FAST 12-speed | New ISUZU VC61 Series Cab |
ISUZU VC66 Series( 6x4/8x4) | 520 HP | 4800+1370 5400+1370 2100+4325+1370 | 6WG1-TCG62 | ZF 8-speed (ZF8) / FAST 12-speed | New ISUZU VC61 Series Cab |
