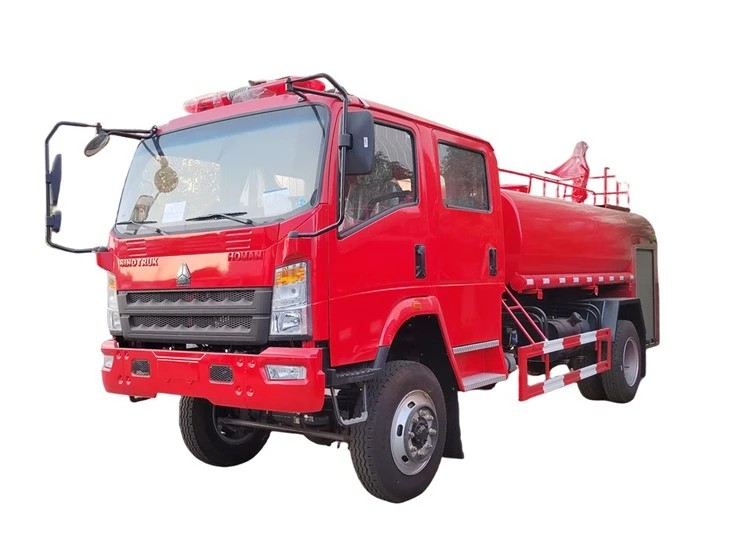

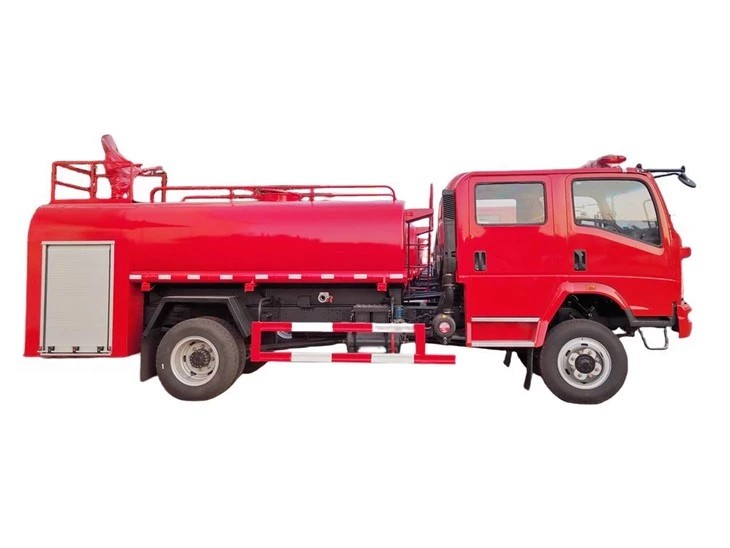

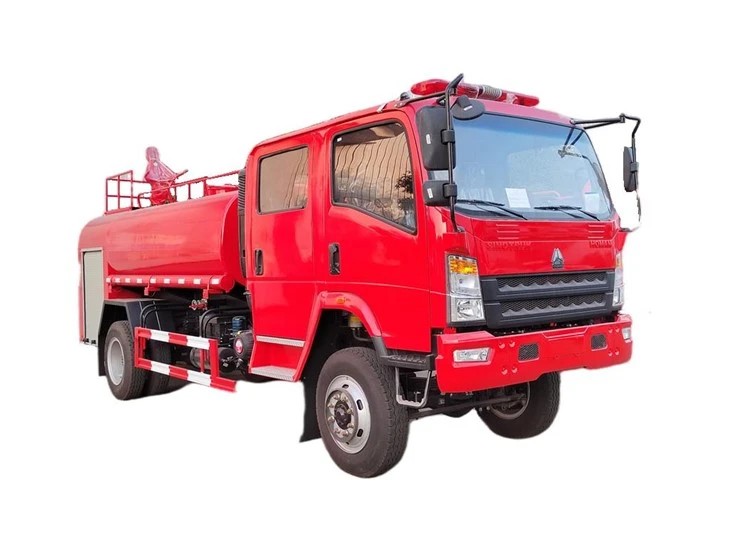

HOWO 4x4 AWD 6000L Water Tanker Fire Truck

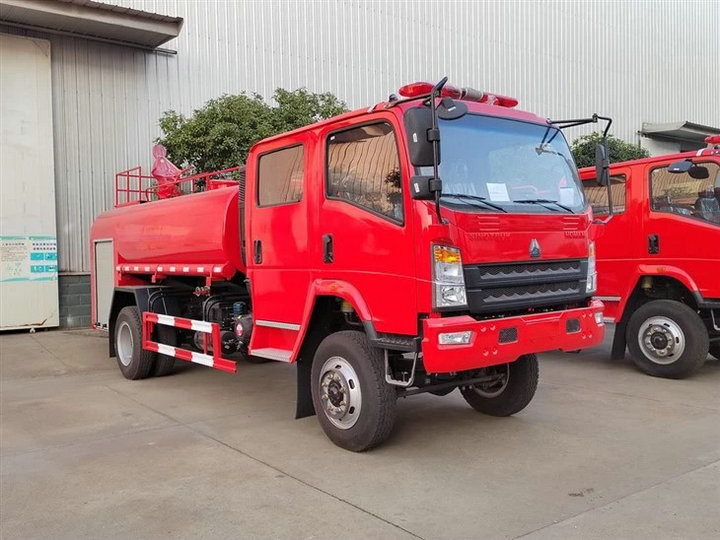

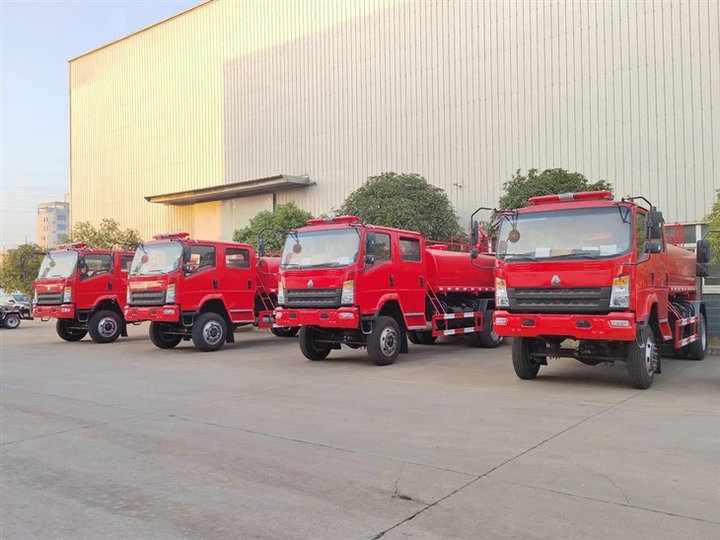

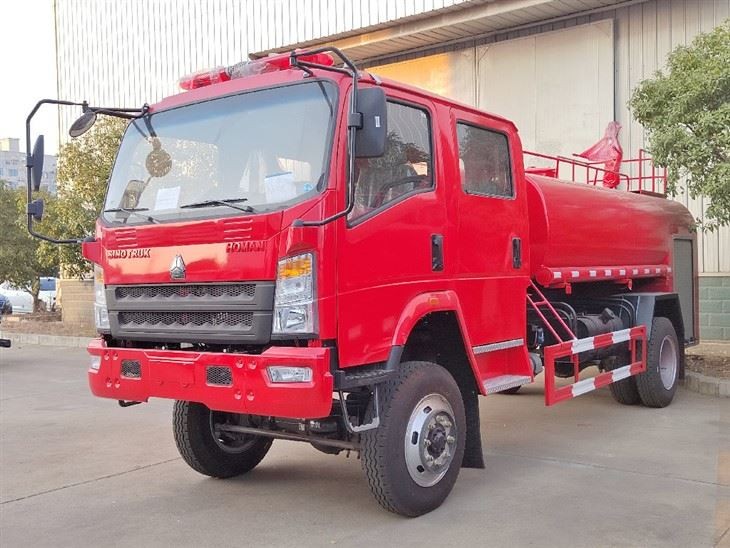

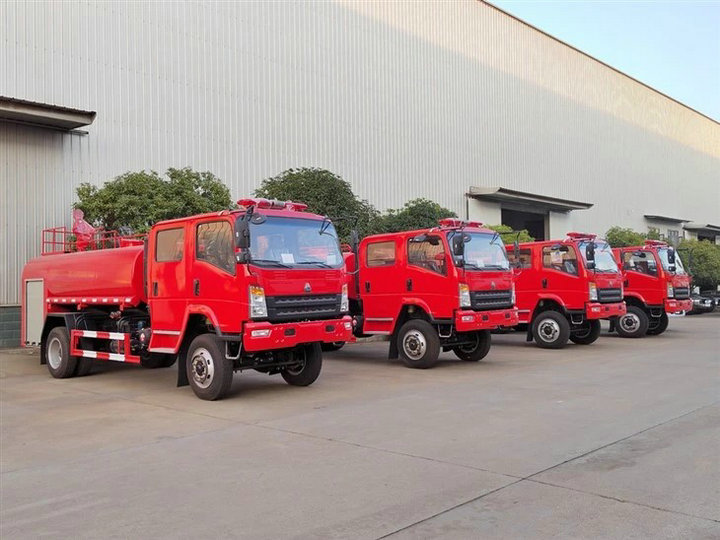

HOWO 4x4 Tanker Fire Truck
Sinotruk 4WD wildland fire engine 6000liters truck fire extinguisher
The fire tender designed to fully rely on the advantages of the original HOWO 4x4 LHD chassis, fully consider the product's convenience and reliability. The water tanker material is international stainless steel, which can be durable and service for a long time. As for tank capacity, this can be up to 6 CBM, equipped with Liquidometer, middle climbing ladder, side & rear guard plate and front, side and rear spraying nozzle, top fire monitor to help better use of the trucks. Also have rear working platform and top working platform for easy operation. Therefore, the vehicle is an ideal Water Fire Truck mainly for water transportation & water spraying, and firefighting work.
Model: DRZ5110GXFZZ
Capacity: 6000 liters
Drive: 4×4
Engine power: 154 HP
Engine type: CUMMINS
Technical Parameters
The HOWO 4x4 tanker fire truck mainly used for water spraying and fire extinguisher. So the water tender is a specialist fire appliance with the primary purpose of transporting large amounts of water to the fire area to make it available for extinguishing operations. These are especially useful in rural areas where fire hydrants are not readily available and natural water resources are insufficient or difficult to exploit. Most tankers have an on-board pumping system. This pump is often not of sufficient power to fight fires (as it is designed to be attached to a fire engine), but is more often used to draw water into the tender from hydrants or other water sources. Many tankers are equipped with fast-drain valves on the sides and back of the truck. This allows firefighters to empty thousands of gallons of water into a portable water tank in just a few seconds.
Most Sinotruk HOWO fire rescue water tenders are designed to carry loads of 5,000–12,000 litres (1,100–2,600 imp gal).
Items | 6 CBM HOWO Water Tanker Fire Truck | |
SIZE | Outer Dimension(L×W×H)(mm) | 7150*2200*3200 |
Wheelbase (mm) | 3800 | |
Kerb Weight(kg) | 10000 | |
GEAR | Gearbox brand | WLY |
Model | 6-shift gearbox | |
Type | Manual | |
Cab capacity(includes driver) | 2+4 with double cabin | |
E N G I N | Model | American CUMMINS ISF3.8S3154 |
Type | Four cylinder inline, four stroke, turbocharged Inter-cooling, diesel | |
Rating Power(kW/HP) | 113 / 154 | |
Emission Standard | Euro 3 | |
Note: 1.The vehicle height includes Top Fire Monitor.
2. We keep the right to revise the parameters on the list above.
Water Tanker basic parameter list
Items | Parameter | ||||||
Water tanker | Capacity (CBM) | 6 | |||||
Material | High Strength Carbon Steel | ||||||
Painting | Red painting with standard logo | ||||||
Special Equipment | Liquidometer | Equipped on side of tank | |||||
Valves | Equipped on side & rear of tank | ||||||
Climbing Ladder | Equipped at middle of tank | ||||||
Water Pump | Brand | YIFENG | |||||
Model | 65QZ50/110N | ||||||
Water Flow Rate | m³/h | 50 | |||||
l/min | 833 | ||||||
Lifting (m) | 110 | ||||||
Self-Suction Height (m) | 6.5 | ||||||
Self-Suction Capacity (min/4m) | 1.5 | ||||||
Rated Power (kw) | 24 | ||||||
More details for Water Pump showing as below | |||||||
Fire Pump | Brand | XIONGZHEN | |||||
Model | CB10/40-XZ | ||||||
Water Inlet Diameter | φ125 | ||||||
Water Outlet Diameter | φ80 | ||||||
Maximum Vacuum | ≥80 Kpa | ||||||
7m depth suction time | ≤35 s | ||||||
Working Model | 1 | 2 | 3 | ||||
Flow Rate (L/S) | 40 | 28 | 20 | ||||
Outlet Pressure (Mpa) | 1.00 | 1.30 | 1.00 | ||||
Rated Rotation Speed (r/min) | 3135±50 | 3390±50 | 3010±50 | ||||
Shaft Power (kw) | 60 | 61 | 39 | ||||
Suction Depth (m) | 3 | 3 | 7 | ||||
HOWO 4×4 Tanker Fire Truck
Product Overview
The HOWO 4×4 tanker fire truck is a specialist water tender designed primarily for water transport and fire extinguishing operations. Its core function is to deliver large volumes of water to the fire scene—making it especially valuable in rural areas where fire hydrants are unavailable and natural water sources are insufficient or difficult to access.
Most tankers are fitted with an on-board pumping system. While this pump is typically not powerful enough for direct fire suppression (it is designed to work in conjunction with a dedicated fire engine), it excels at drawing water from hydrants or other sources into the tanker's tank. Many tankers also feature fast-drain valves on the sides and rear, allowing firefighters to discharge thousands of gallons into a portable water tank in just seconds.
Sinotruk HOWO fire rescue water tenders are generally designed to carry between 5,000 and 12,000 litres (1,100–2,600 imp gal) of water.
Key Technologies

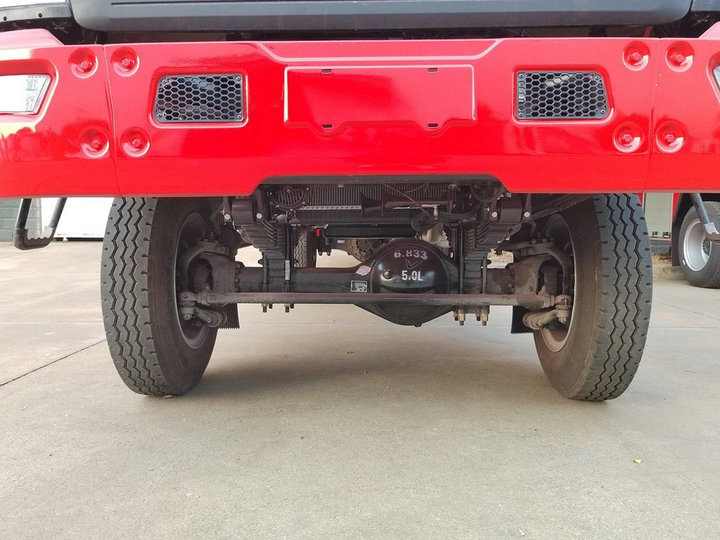

01 | HOWO 4×4 Off-Road 4WD Truck Chassis
A 4×4 vehicle—also known as four-wheel drive (4WD)—uses a system in which the engine powers all four wheels simultaneously. The HOWO 4×4 off-road water tanker fire truck is built on a 4×4 truck chassis that delivers exceptional power and high ground clearance, enabling it to navigate a wide range of terrain and rough road conditions.

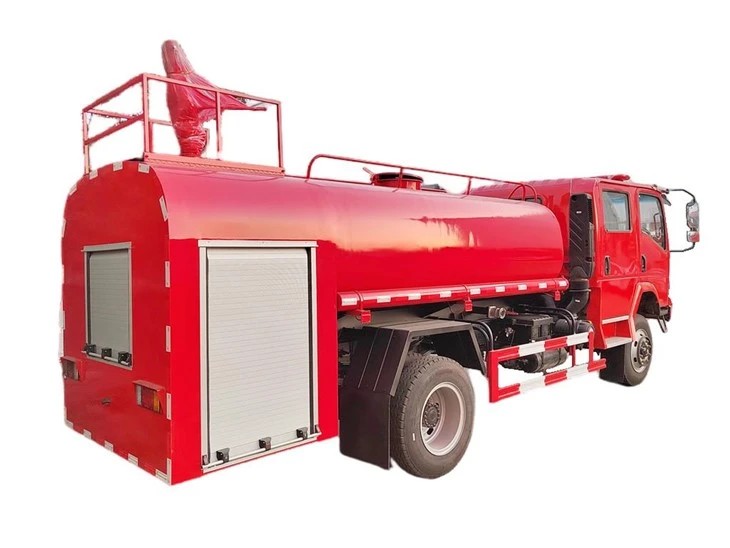

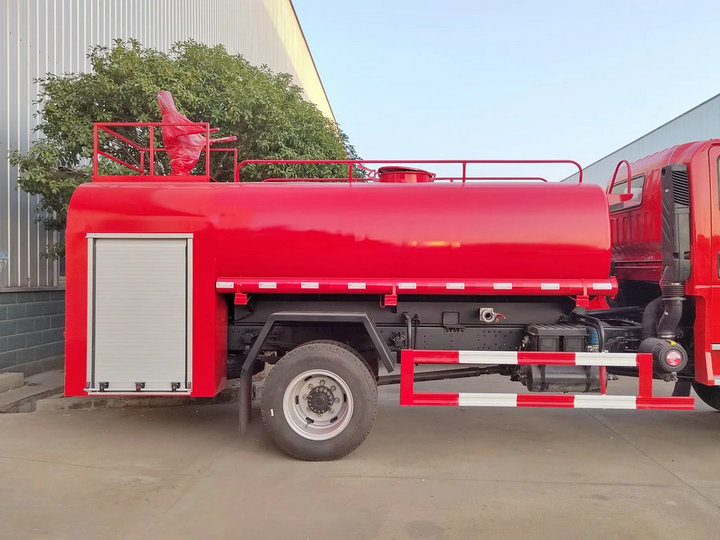

02 | 6,000-Litre Water Tanker and Fire Pump System
The water tanker is constructed from high-strength carbon steel with a capacity of 6,000 litres. A DN500 manhole on top provides access for water filling and routine maintenance. The rear houses a dedicated fire pump room equipped with a CB10/40 fire pump, while a PS30 water fire monitor is mounted on top.
Standard fire-fighting equipment includes: fire gun, hose reel, pipeline hose, fire extinguisher, rope, fire axe, and more. The vehicle features a customized red paint finish for high-visibility fire rescue warning.
XIONGZHEN Fire Pump (CB10/40-XZ)
What Is the XIONGZHEN Fire Pump?
XIONGZHEN is one of China's leading fire pump brands. The HOWO 4×4 water fire truck is equipped with the CB10/40-XZ model—a newly developed, nationally patented product that incorporates the advantages of German, Austrian, and American fire pump technology, combined with years of in-house research, development, and manufacturing expertise. The pump complies with Chinese national standard GB6245-2006 and offers a simple structure, smooth operation, high efficiency, and reliable quality.
Key Components of the CB10/40-XZ Fire Pump:
Water Inlet Four-Way Valve
Front Cover
Pump Shell
Rear Cover
Bearing House
Connecting Shaft Flange
Belt Roller
Electro-magnetic Clutch
Piston Primer Pump
Water Inlet Valve
Check Valve
Water Outlet Valve
Why Choose the XIONGZHEN Fire Pump?
The XIONGZHEN CB10/40-XZ is a purpose-built fire pump widely used in light-, medium-, and heavy-duty water tanker fire trucks, foam fire trucks, water-foam fire trucks, and water-foam-powder fire trucks. It outperforms comparable products in its class.
Operation and Maintenance
Before Operating the Pump:
Close all water outlet valves on the fire pump.
For foam fire trucks: close the foam ball valve and foam proportioner.
Open the water inlet valve on the fire pump.
Close the water injection valve.
Note: Running the pump without water may cause damage (safe dry-run time ≤ 1 minute).
After Using the Pump:
Open all water outlet valves on the pump and pipeline to drain all water from the truck, then close all valves.
Check the bearing shaft oil level; it is recommended to change the shaft oil every two years.
Troubleshooting:
| Malfunction | Possible Cause | Solution |
|---|---|---|
| Pump cannot start | Pump not engaged; impeller jammed; pump frozen | Engage the pump; clean or replace the impeller; carefully thaw the pump |
| Water diversion not working | Suction depth too great (>7 m); electromagnetic clutch damaged or no power; outlet valve pressure ≥0.2 MPa; drive belt slipping; pressure switch blocked; piston ring damaged; inlet/outlet air valve damaged; inlet pipeline or gasket damaged; outlet valve not closed or leaking; air suction valve not open | Reduce suction depth (≤7 m); replace clutch or restore power; reduce valve pressure to <0.2 MPa; replace belt; clean or replace pressure switch; replace piston ring; replace air valves; replace pipeline or gasket; close or replace outlet valve; open air suction valve |
| Bearing or gearbox overheating | Oil level too high or too low; bearing shaft damaged | Drain excess oil or add oil as needed; replace bearing shaft |
| Excessive pump noise | Suction depth too great (>7 m); vapor lock in pump; pump bracket loose; shaft bearing damaged | Reduce suction depth (≤7 m); reduce pump speed and jet flow; tighten pump bracket; replace shaft bearing |
| Poor pump performance | Water filter or suction nozzle filter blocked; insufficient engine power; outlet valve not fully open; rear water injection valve not closed | Clean all filters; check engine; fully open outlet valve; close water injection valve |
Technical Specifications
| Parameter | Specification |
|---|---|
| Chassis | HOWO 4×4 off-road 4WD truck chassis |
| Water Tank Capacity | 6,000 L (range across HOWO tender models: 5,000–12,000 L / 1,100–2,600 imp gal) |
| Tank Material | High-strength carbon steel |
| Manhole | DN500 (top-mounted, for water inlet and maintenance) |
| Fire Pump | XIONGZHEN CB10/40-XZ, compliant with GB6245-2006 |
| Fire Monitor | PS30 water fire monitor (top-mounted) |
| Standard Equipment | Fire gun, hose reel, pipeline hose, fire extinguisher, rope, fire axe, etc. |
| Paint Finish | Customized red (fire rescue warning) |
Notes:
Vehicle height includes the top-mounted fire monitor.
Parameters are subject to revision without prior notice.
