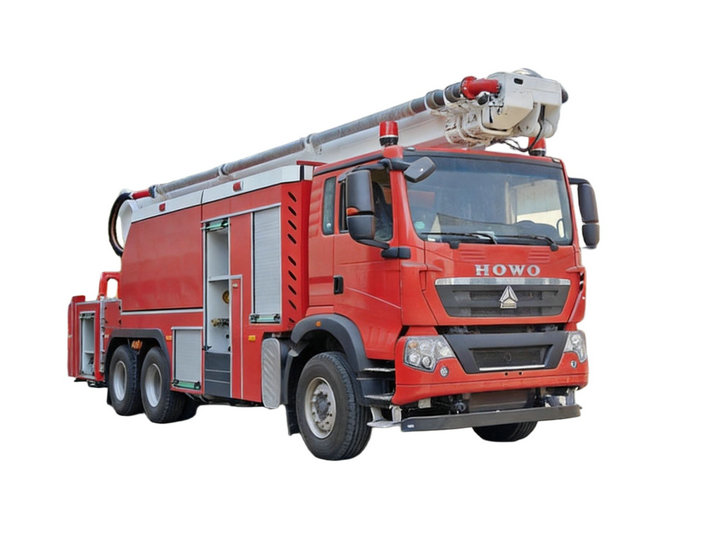

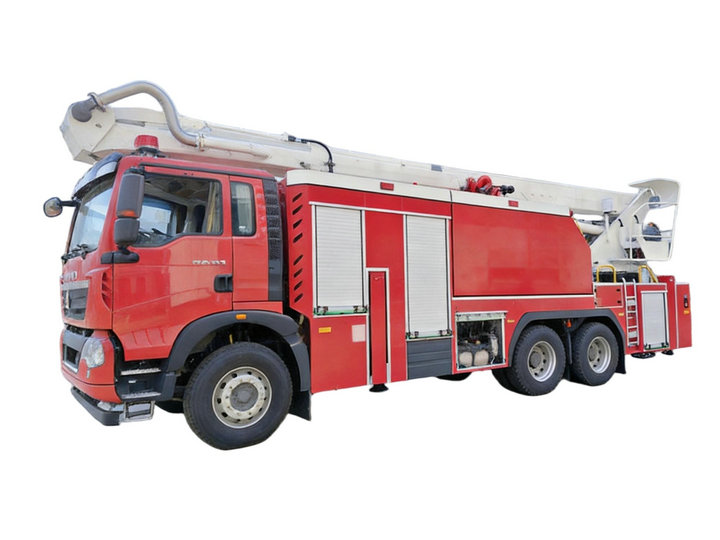

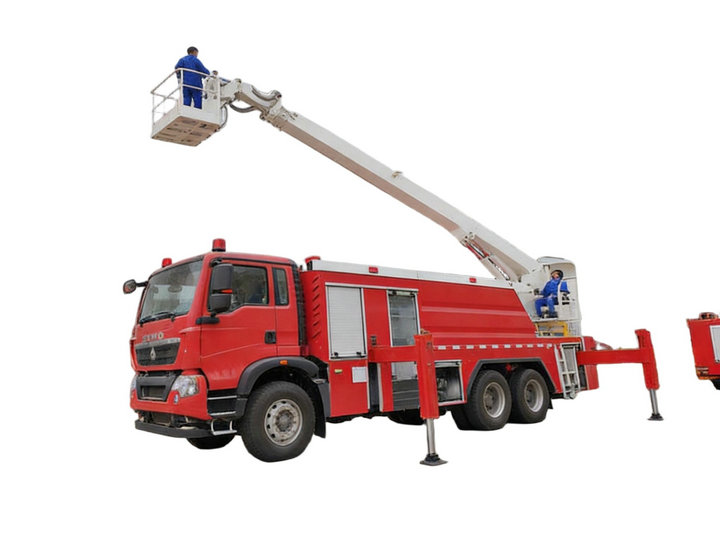

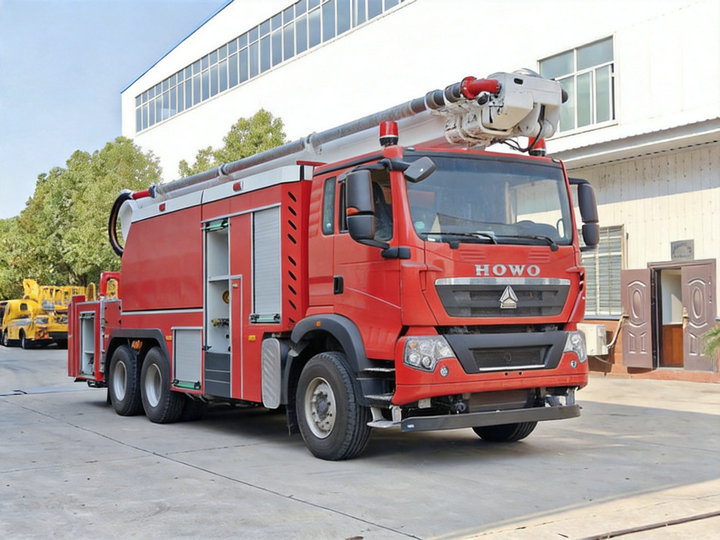

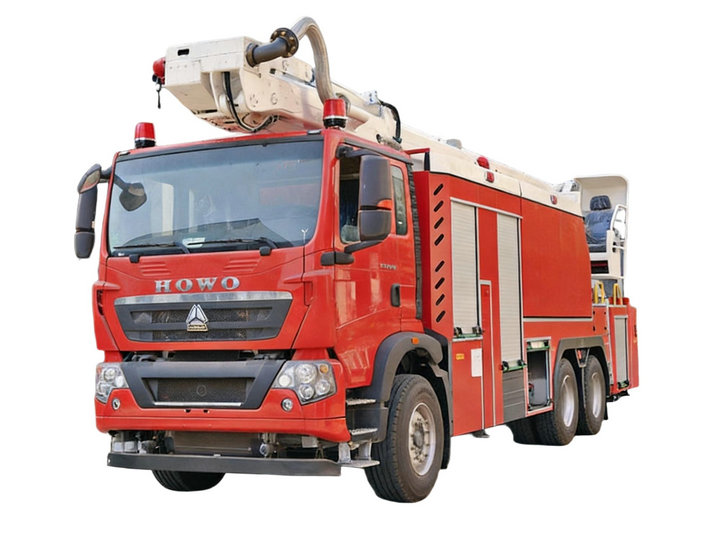

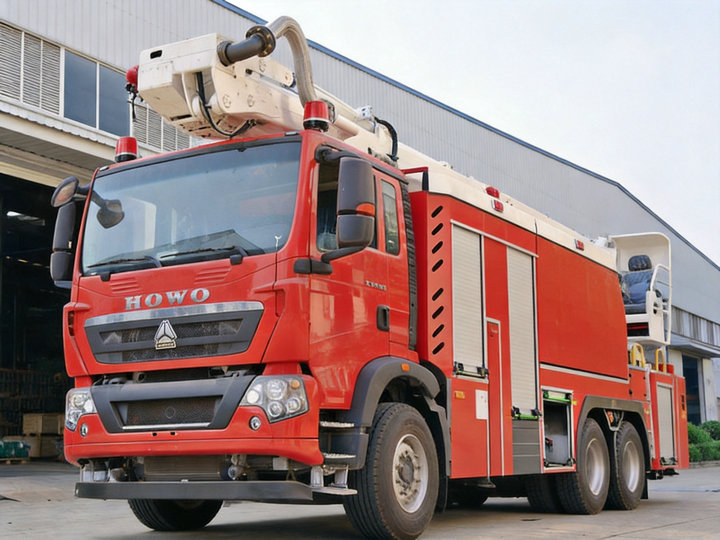

Howo 32m High Jet Fire Water Truck 7000L Water + 2000 L Foam

 Howo 32m High Jet Fire Water Truck  7000L Water + 2000 L Foam

Main Advantage Of The Howo 32m High Reach Fire Water Truck « « «

1. Howo fire truck with high reach extendable turret has the function of high spray fire extinguishing, the outrigger and boom move smoothly and quickly, and can reach the working state faster.

2. The Howo high-lift fire water truck adopts high-performance electro-hydraulic proportional control technology and hydraulic transmission, which is stable, reliable and easy to operate.

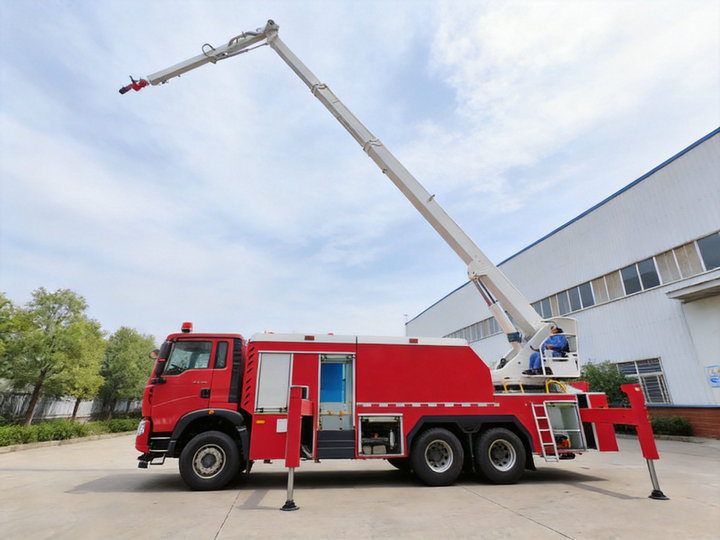

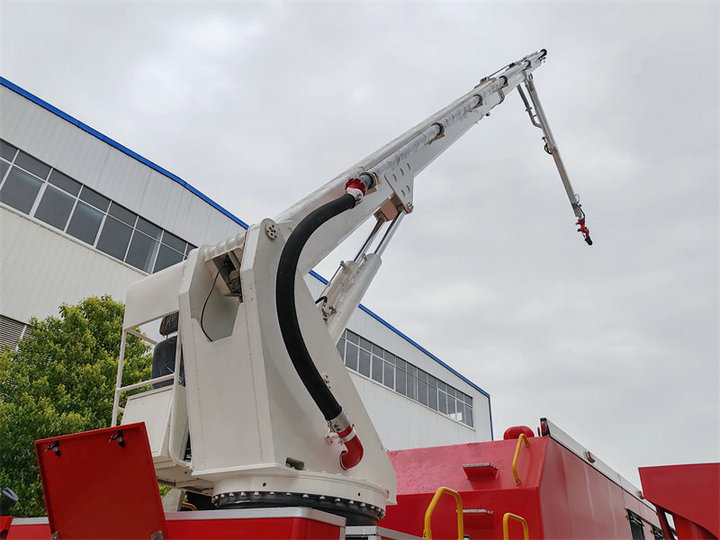

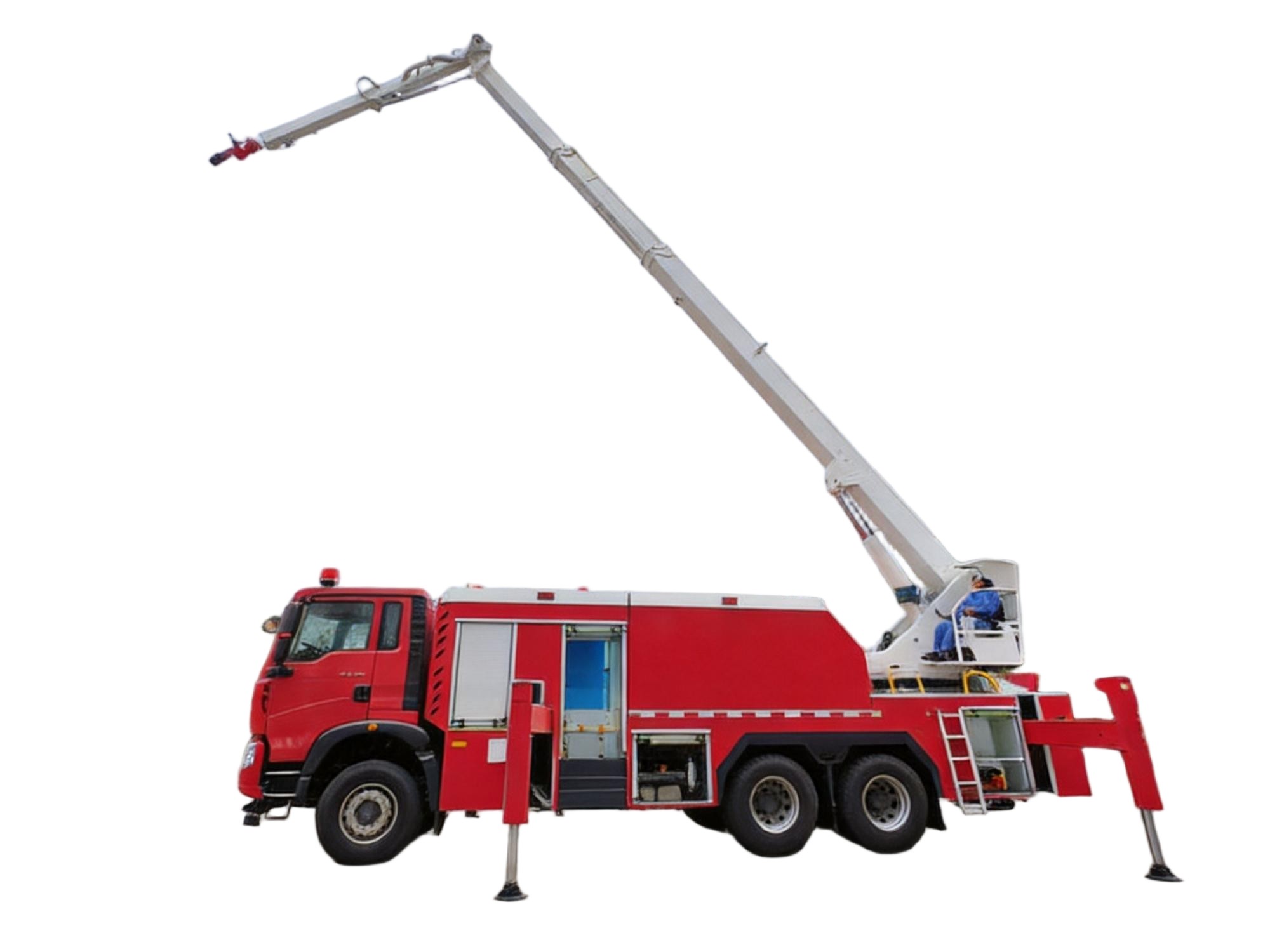

3. The Howo fire truck adopts a folding arm structure. The lower arm can be lifted within 80°, and the lower arm and upper arm can be lifted within 150°. The cross-section of the boom adopts a quadrilateral box-type structure, which is welded with high-strength steel.

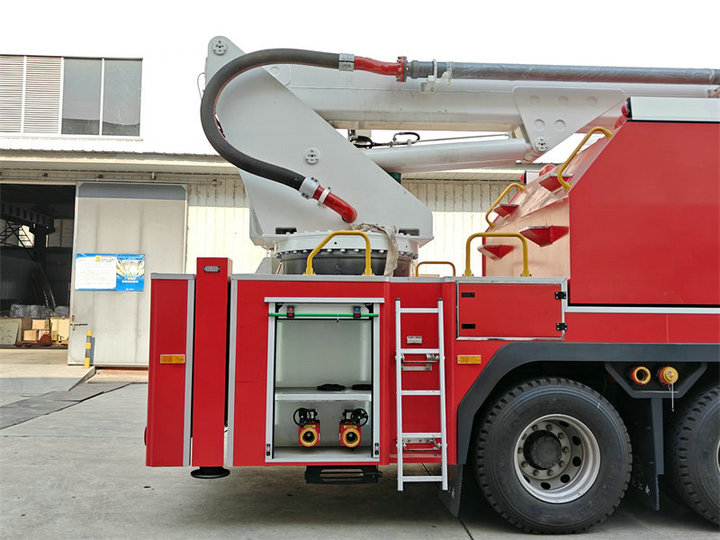

4. The boom rotation has a buffer function, the boom rotation mechanism adopts a worm gear structure, and the hydraulic system is equipped with a buffer valve, which can achieve smooth and reliable starting and braking, and has good micro-motion performance.

extendable turret is an important firefighting equipment for high-altitude rescue and firefighting. Safety devices are very important. CS trucks group a fire truck manufacturer with many years of experience, The Howo high reach fire water truck has the following safety protection functions:

1. It is controlled by electrical system and hydraulic system. When the electrical system fails, the hydraulic control system can ensure the normal use of the boom in a safe area.

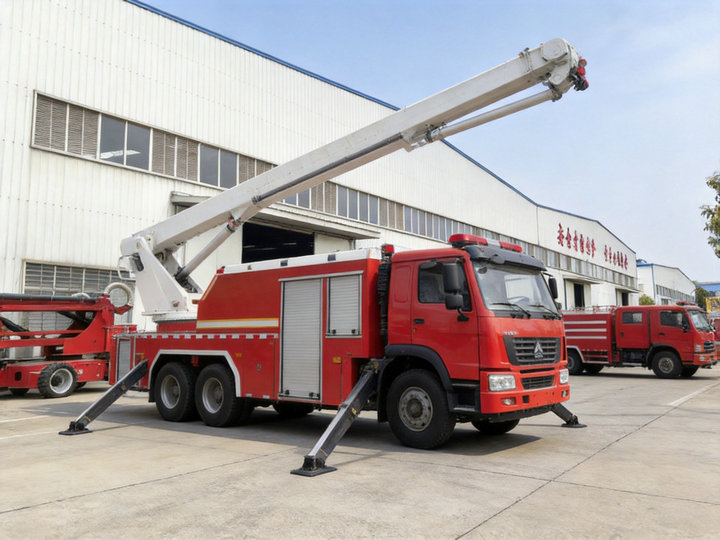

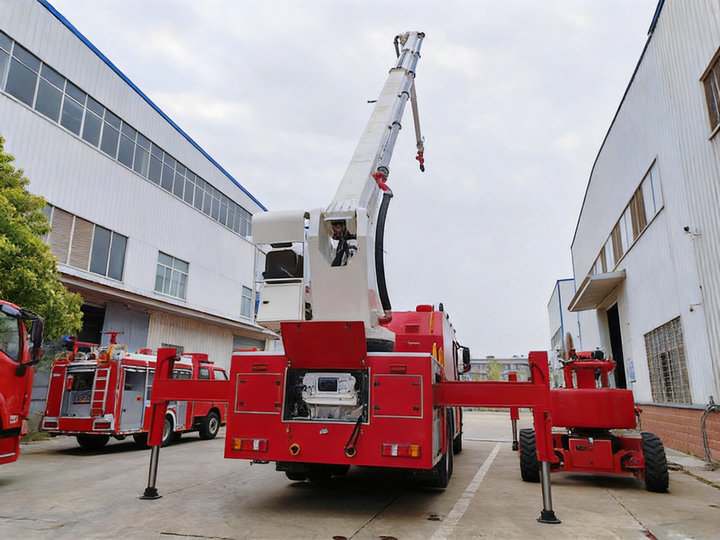

2. It has the function of getting on and off the vehicle interlocking. The outriggers are not unfolded and the boom cannot move. The outriggers cannot move when the boom leaves the bracket.

3. It has the function of emergency vehicle retraction. All hydraulic valves are equipped with emergency mechanical operation. The system is equipped with an emergency power unit. When the engine or oil pump fails, it is used to retract the boom and outriggers.

4. It has an auxiliary power device. In the case of normal power loss, the boom can be retracted to the driving state.

5. The upper body is anti-collision. When the boom rotates at a small amplitude angle, in order to prevent the boom from colliding with the vehicle body, it automatically stops rotating in the dangerous direction when it rotates to a certain position.

6. Equipment box door is not closed reminder. If the equipment box door is not closed, the sound and light will automatically alarm to prevent accidents during driving.

7. Automatic charging device is installed for the self-discharge of the battery system of the howo high-lift fire truck that has been parked for a long time, so that it can still perform tasks in an emergency.

Electronic And Hydraulic Operating System

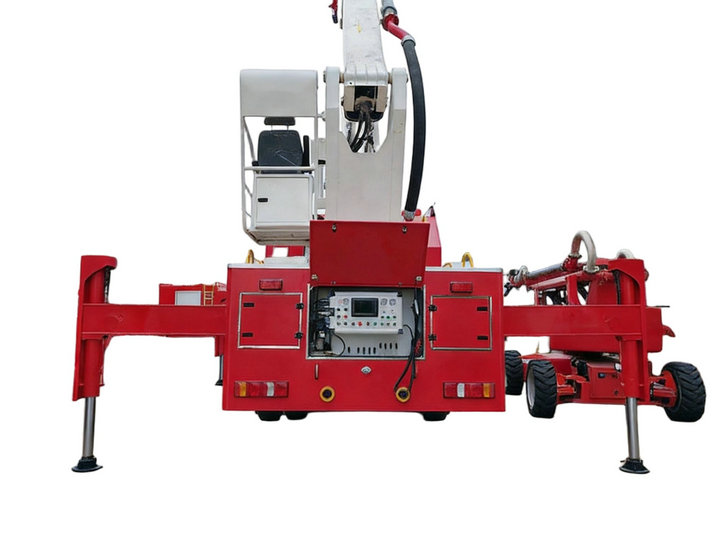

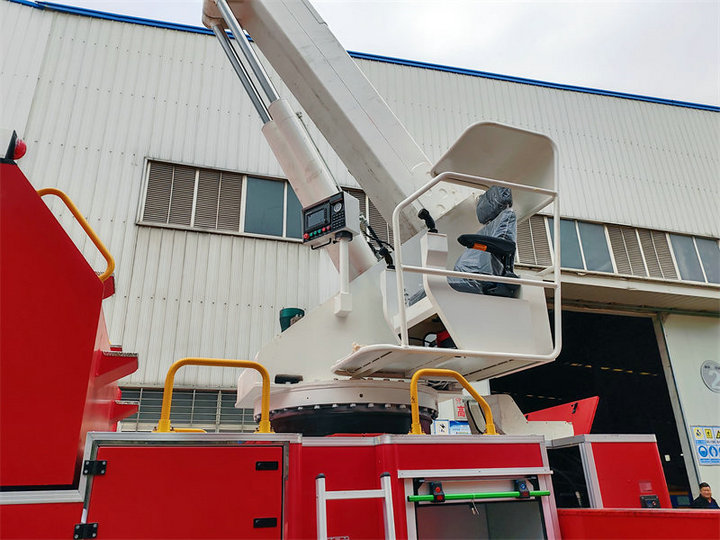

Howo 32m high-lifter fire water truck has two operating points: one at the rear control panel of the fire truck , the other for plugging in wired remote control.

1. The main functions of the fire truck's rear control panel include:

--- Leg deployment and retraction

--- Engine start/stop, throttle adjustment

--- Water pump start/stop, foam system, water pump speed

--- Water line pressure, hydraulic pressure, water tank level

--- Foam tank level, water flow, foam mix ratio, water consumption, foam usage, etc.

2. Wired remote control operation is mainly used for the control of the truck boom, the 3 operating modes of the Howo fire fighting truck:

♦ Electronic control operation: Under normal circumstances, all actions of the Howo high-lift fire water truck are realized by operating the electronic control handle to ensure the safety and reliability of the boom operation.

♦ Hydraulic control operation: When the electronic control system of the Howo high reach fire water truck fails, the hydraulic handle can be directly operated to ensure the normal function of the fire truck in the safe area.

♦ Emergency standby power unit operation: The gasoline engine drives the gear pump structure to ensure the reliability of the Howo

Fire Truck JP32 multi-functional water and foam tower fire trucks

1.The JP32 water tower fire truck is a main battle vehicle that combines the functions of a water tanker, a foam vehicle, and a water tower truck. It is widely used in fire protection and rescue work of middle and high buildings such as towns, mines, oil fields and factories. It is the first choice for extinguishing fires in high and medium-rise buildings, rescue personnel in distress and rescue property.

2.It adopts SINOTRUK Chassis, which has a large carrying capacity, strong power and flexible maneuver. It has two power output units (PTO), one to drive the pump and the other to drive the pump. It adopts electro-hydraulic proportional and computer centralized control technology and is a fully hydraulically driven, 360° rotation, and three-section folding arm. The vehicle comes with US Darley company's water pump and 3480 +5178 + 738 fire water monitor. The maximum flow rate of fire fighting system can reach 80L/S, the effective range of water spray is greater than or equal to 75 meters. The large flow rate and large rush-saving radius can satisfy most of Class A and B fires.

3.It is equipped with a 40-meter cable remote control operating system, which is more suitable for extinguishing dangerous places such as oil tanks. At the same time, the vehicle comes with a water tank and a foam tank. The whole vehicle is equipped with a large-capacity fire-fighting liquid tank capable of carrying 8.6Kg, and can independently complete the fire fighting operation at a position far from the water source. This greatly enhances the fire fighting efficiency and provides powerful high-end fire fighting equipment for fighting fires.

32m high-lift fire water truck under various fault conditions.
