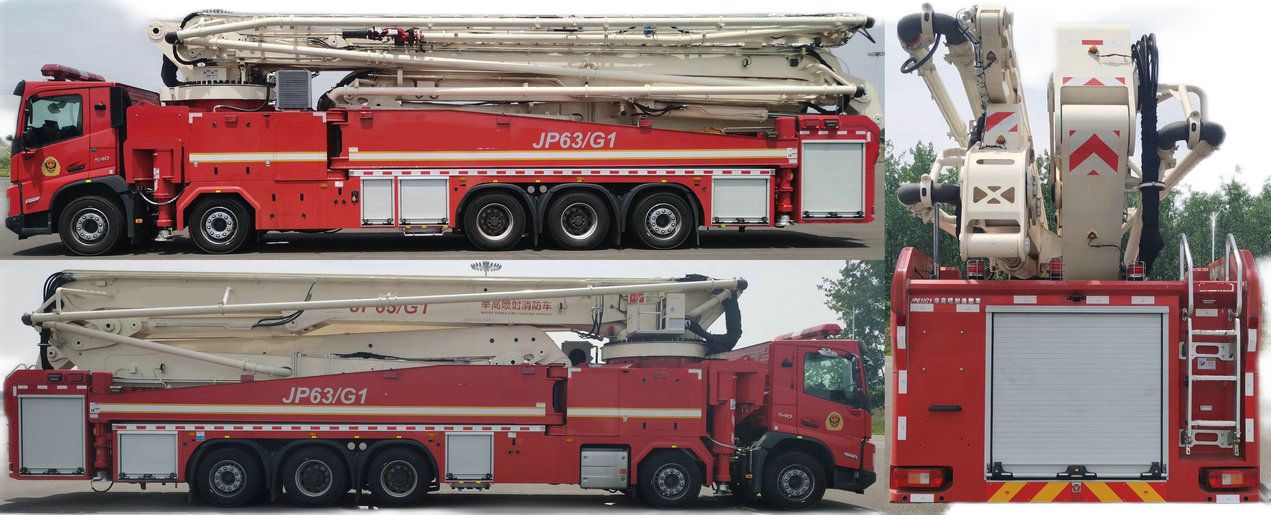

Volvo 14 Wheels 63m Water Foam Tower Fire Fighting Vehicle 63JP
water tank : 2.65m3, foam tank : 1.5m3
25m boom , fire monitor >80m,≥120L/S . Water pump ≥100 L/s
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
ZLF5410JXFJP50
-
DONG RUN ZE
-
8705301000
Volvo 14 Wheels 63m Water Foam Tower Fire Fighting Vehicle 63JP
water tank : 2.65m3, foam tank : 1.5m3
25m boom , fire monitor >80m,≥120L/S . Water pump ≥100 L/s
Main technical parameters
Overall dimensions: | 14590×2530×3930(mm) | Fuel Type: | Diesel oil |
Total mass: | 49250(Kg) | ||
Net | 45000(Kg) | Rated load mass: | 4100(Kg) |
Approach Angle/Departure Angle: | 13/7 (°) | Front/rear overhang: | 1520/3475(mm) |
Axle Load: | 8060/8610/12220/11840/8520 | Wheelbase: | 1995+4405+1370+1380(mm) |
Number of shafts: | 5 | Maximum speed: | 89(km/h) |
Number of tires: | 14(PCS) | Tire Specifications: | 385/55R22.5/385/55R22.5/315/70R22.5/315/70R22.5/385/55R22.5 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/3/-/-/- |
Front wheel base: | 2109/2109(mm) | Rear wheel base: | 1837/1837/2111(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
D13K540 EU6; D13K540E | Volvo Powertrains; Volvo Power Train Volvo Power Train | 12777; 12777 | 406; 406 |
This model is a special operation vehicle for fire fighting. Total tank volume :4.1m3, water tank volume :2.6m3, foam tank volume :1.5m3, Integral side and rear protection structure, rear protection height :462mm. Optional vehicle logo, strobe light color, side and rear top styling color. | |||
