SINOTRUCK HOWO 32M ,34M Aerial Platform Fire Truck

Share to:

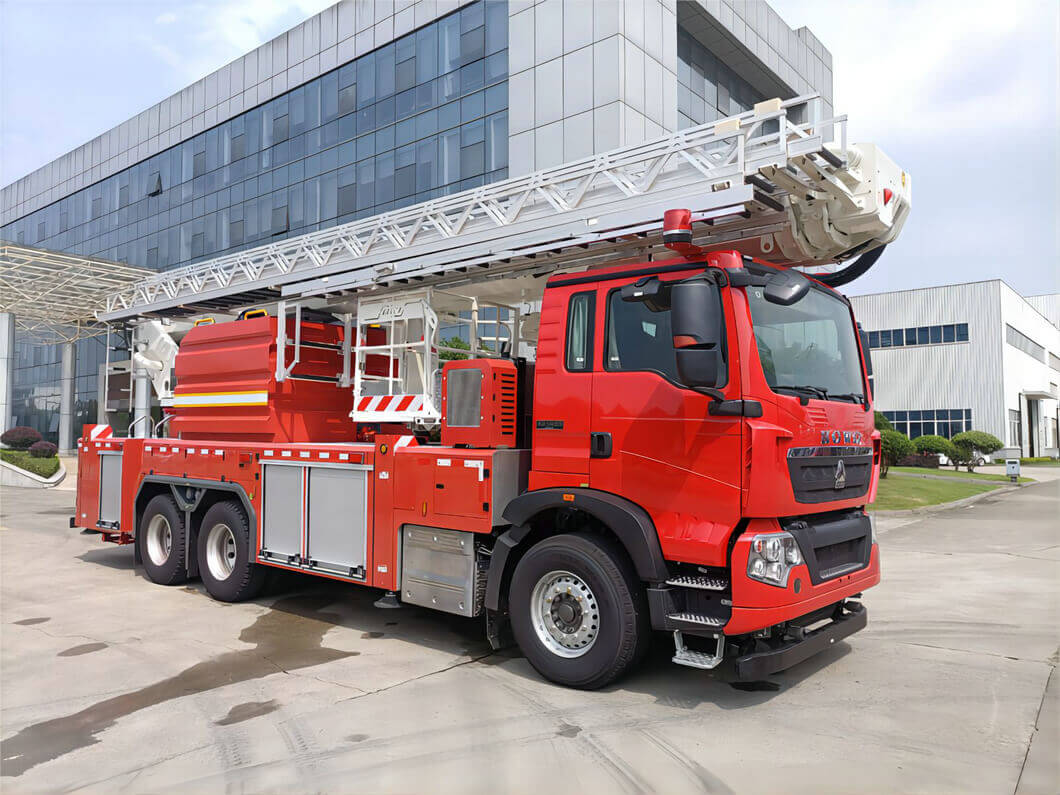

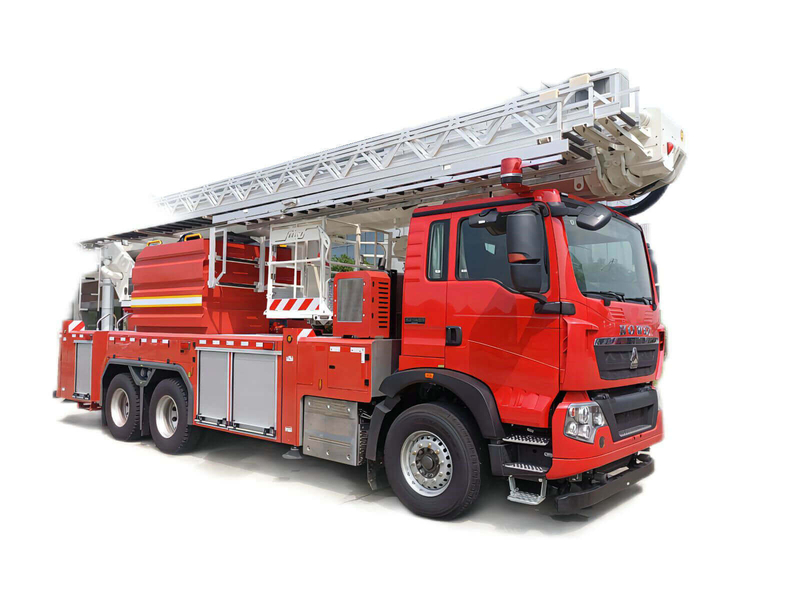

SINOTRUCK HOWO 32M ,34M Aerial Platform Fire Truck

SINOTRUCK HOWO 6x4 Aerial Platform Fire Truck 32M ,34 m
Water Tank 4000L, Foam Tank 2000L, Fire cannon 32m Ladder
Price for refer only. Final Price Offer Discount.

Price: $ 368000

Discount Price: $ 363000

Availability:

Quantity:

Model:
ZLF5321JXFDG34,SXT5285JXFDG32,SXT5332JXFYT32,ZLF5311JXFDG32
Brand:
DONG RUN ZE
Code:
8705301000

Product Description

SINOTRUCK HOWO 6x4 Aerial Platform Fire Truck 45 m

Water Tank 3000L, Foam Tank 1000L, Fire cannon 45m Ladder

Chassis :ZZ5357TXFV464MF1 ,

Overall dimensions:	10510×2540×3750(mm) 10670×2530×3825(mm)	Fuel Type:	Diesel oil
Total mass:	31750(Kg)
Net	25600(Kg)	Rated load mass:	6000(Kg)
Approach Angle/Departure Angle:	13/10 (°)	Front/rear overhang:	1500/2670(mm)
Axle Load:	8300/11730/11720	Wheelbase:	4300+1400,4325+1350,4600+1400,4625+1350,4800+1400,4825+1350,5200+1400,5225+1350,5800+1400,5825+1350,4925+1350,4900+1400(mm)
Number of Axle:	3	Maximum speed:	90(km/h)
Nuber of tires:	10(PCS)	Tire Specifications:	385/65R22.5/315/80R22.5 18PR,385/65R22.5/12.00R20 18PR
Fuel consumption:	(L/100Km)	Number of spring pieces:	10/12,4/12,4/5,4/-/-,11/12
Front wheel base:	2110(mm)	Rear wheel base:	1830/1830,1850/1850(mm)

Engine type

Engine manufacturer

Volume (ml)

Power (kw)

MC13.48-60; MC13H.57-61; MC13.50-61; MC11.46-61; MC11.43-61; MC13H.60-61; MC13.50-60; MC11.44-60; MC11.40-60; MC13.54-61; MC11.40-61; WP10.5 H430E62; WP10.5 H460E62; MC11H.46-61; MC11H.49-61; WP12.460 E62

China Heavy Duty Automobile Group Co., LTD.;

Weichai Power Co., LTD.

12419; 13020; 12419; 10518; 10518; 13020; 12419; 10518; 10518; 12419; 10518; 10520; 10520; 11050; 11050; 11596

356; 422; 371; 341; 319; 444; 371; 327; 297; 400; 297; 316; 338; 341; 363; 338

Total tank volume :6.0 cubic meters, water tank volume :4.0 cubic meters, water tank size :1340×2300×1340mm, foam tank volume :2.0 cubic meters, foam tank size :670×2300×1340mm. Integral side protection structure, rear protection device material :Q345B, section size :140×58mm, connection with the vehicle: bolt connection, rear protection height from the ground :467mm, forward extension :340mm. The ABS manufacturer is WABCO (Shanghai) Management Co., LTD.,. The main special devices are boom and fire cannon.

aerial ladder platform fire truck (94)

Performance	Unit	Parameter
Chassis model	-	Sinotruk HOWOZZ5357TXF464MF1 6×4
Maximum engine power	kW/rpm	327
Number of passengers	People	2
Maximum travel speed	km/h	95
Specific Power	kW/t	10
Outline ruler×W×H	mm	10500×2540×3750
Total mass	kg	32000
Wheelbase	mm	4900+1400
Ladder frame action time	s	≤120
Tank volume	kg	4000(Water)+2000(Foam)
Fire pump flow	L/min@MPa	5400@1.0
Fire monitor flow	L/min	4800
Fire cannon range	m	70
Rated load of working bucket	kg	500( not spray water)/150(Spray water)
Number of ladder sections	Section	3-section telescopic boom+1 crank arm+1 section of flying arm

Chassis :ZZ5357TXFV464ME1 Euro 5

Total tank volume :5.471 cubic meters, tank volume :4.000 cubic meters, tank size :1260×2245×1466mm, foam tank volume :1.471 cubic meters, foam tank size :458×2245× 1466mm. Integrated side and rear protection structure, rear protection height from the ground :450mm. Reach :115mm. ABS WABCO .The main special devices are boom and fire cannon.keystone Vessel Industrial Gas Cylinders| ISO Tank| Pressure Vessel| UN Portable Tanks- Dong Runze Special Vehicle
