SXT5215JXFDG32 , SYM5210JXFDG35
-
DONG RUN ZE
-
8705301000

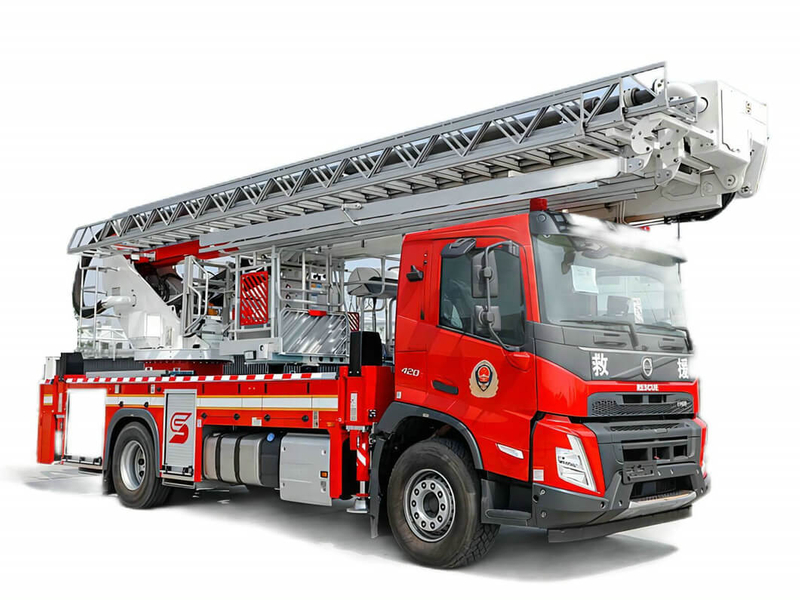

Volvo Aerial Elevated 32m 35m Platform Fire Truck
32m/35m Ladder
Chassis Volvo FM420
Overall dimensions: | 9990×2550×3950(mm) 9800×2540×3710(mm) | Fuel Type: | Diesel oil |
Total mass: | 20600(Kg) | ||
Net | 20450(Kg) | Rated load mass: | (Kg) |
Approach Angle/Departure Angle: | 18/8 (°) | Front/rear overhang: | 1520/2860(mm) |
Axle Load: | 7900/12700 | Wheelbase: | 4900(mm) |
Number of shafts: | 2 | Maximum speed: | 85(km/h) |
Number of tires: | 6(PCS) | Tire Specifications: | 385/65 r22. 5/315/80 r22. 5 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/3 |
Front wheel base: | 2109(mm) | Rear wheel base: | 1837(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
D13K420 EU6; D13K420E | Volvo Power Train; Volvo Power Train; Volvo Power Train Volvo Power Train | 12777; 12777 | 316; 316 |
Integrated rear protection structure, rear protection from the ground height :400mm. Material of side protection device: aluminum alloy, composed of plane and cross bar, cross bar section height :105mm, cross bar spacing :180mm, and vehicle connection: bolt connection. Front extension :620mm, back extension 90mm. The ABS manufacturer is KNORR, model EBS7 ECU. The main special devices are boom and fire cannon. The working lights on the side and rear of the car body are only turned on during operation, and cannot be turned on during driving. Engine optional with chassis. | |||
Keystone Vessel Industrial Gas Cylinders| ISO Tank| Pressure Vessel| UN Portable Tanks- Dong Runze Special Vehicle

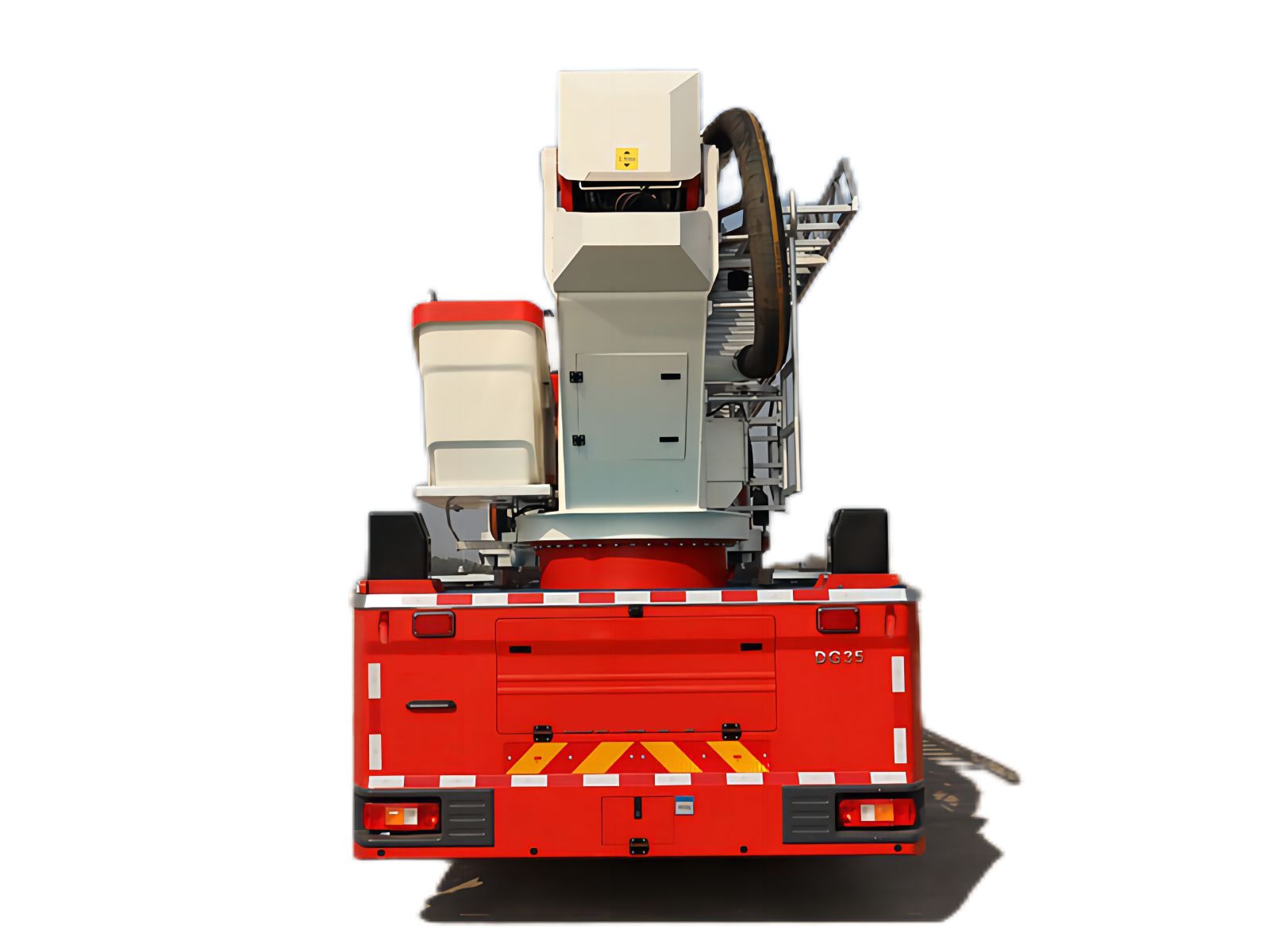

Volvo Aerial Elevated 32m 35m Platform Fire Truck
