ZXF5190JXFDG27/ST6,ZXF5190JXFDG22/ST6
-
DONG RUN ZE
-
8705301000

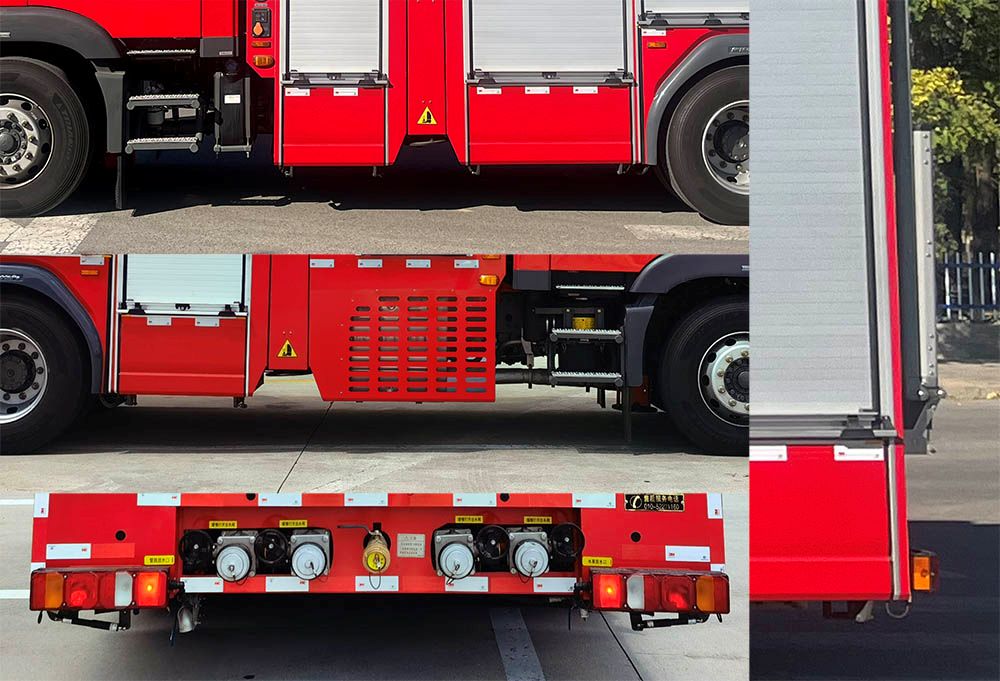

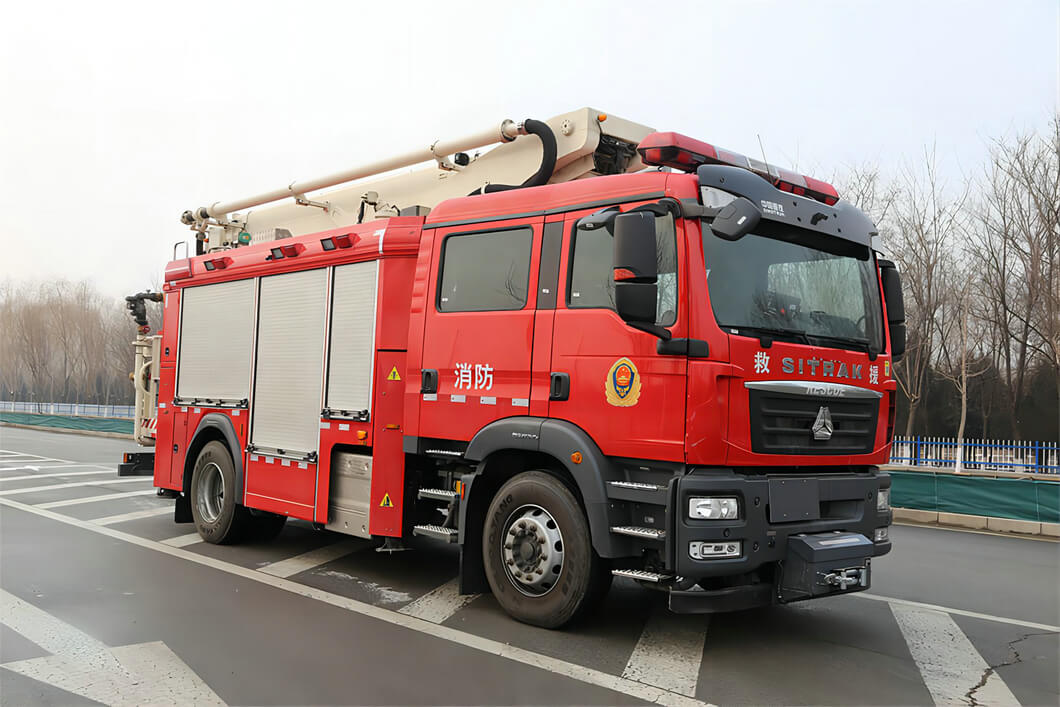

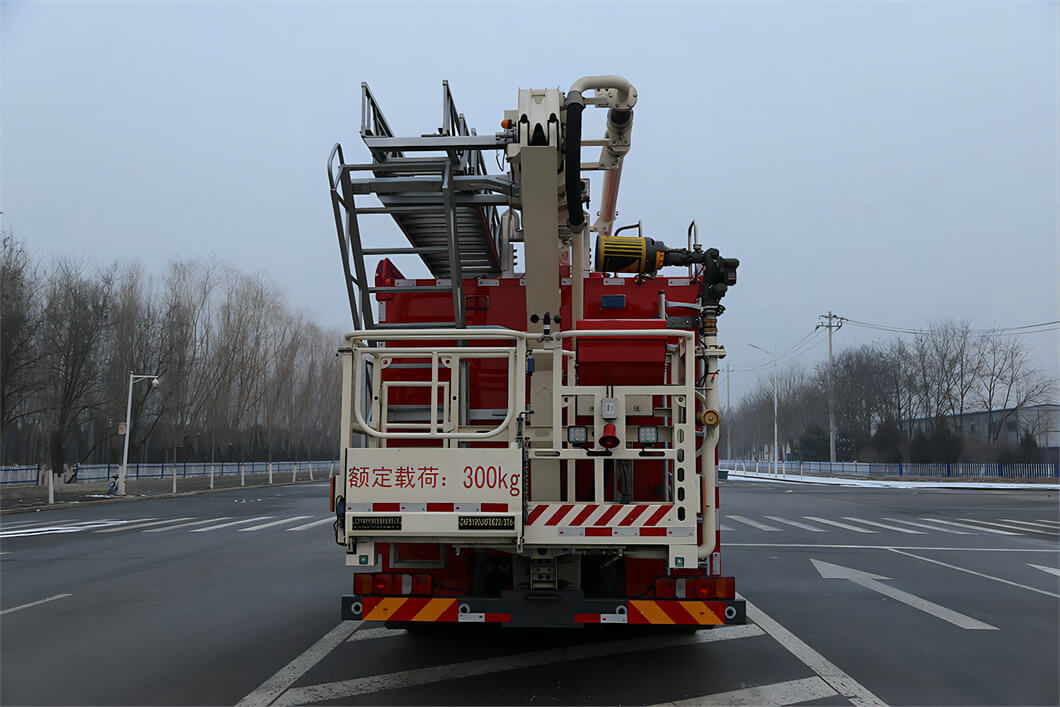

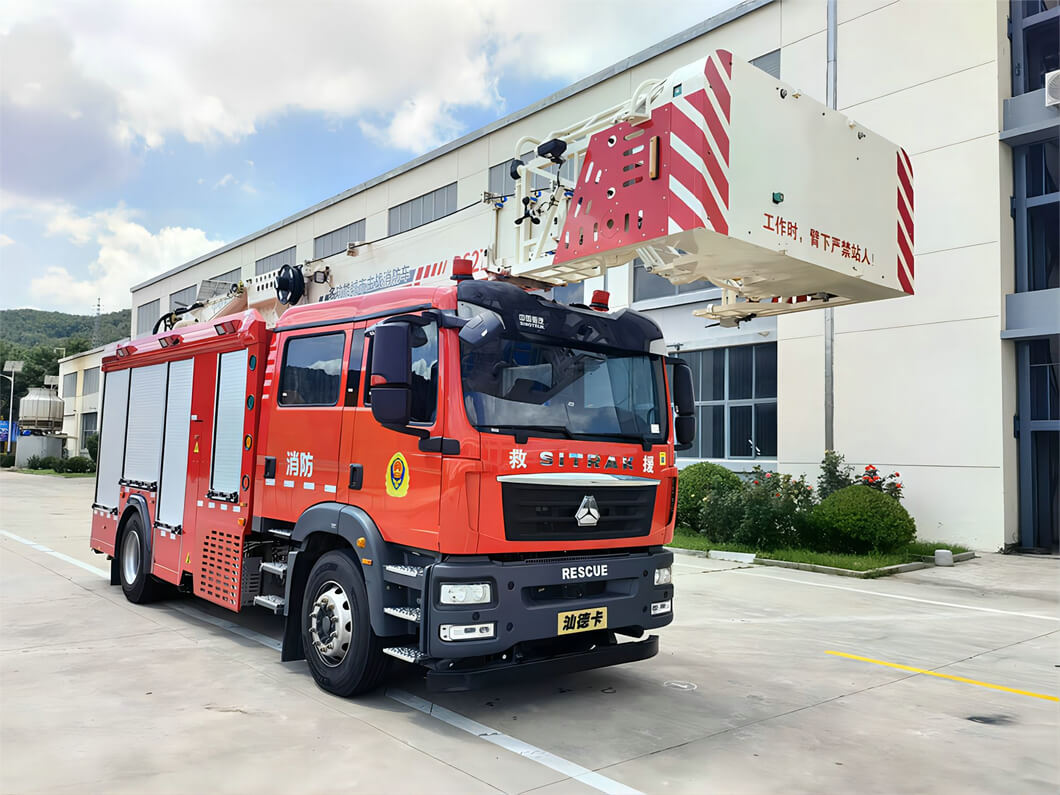

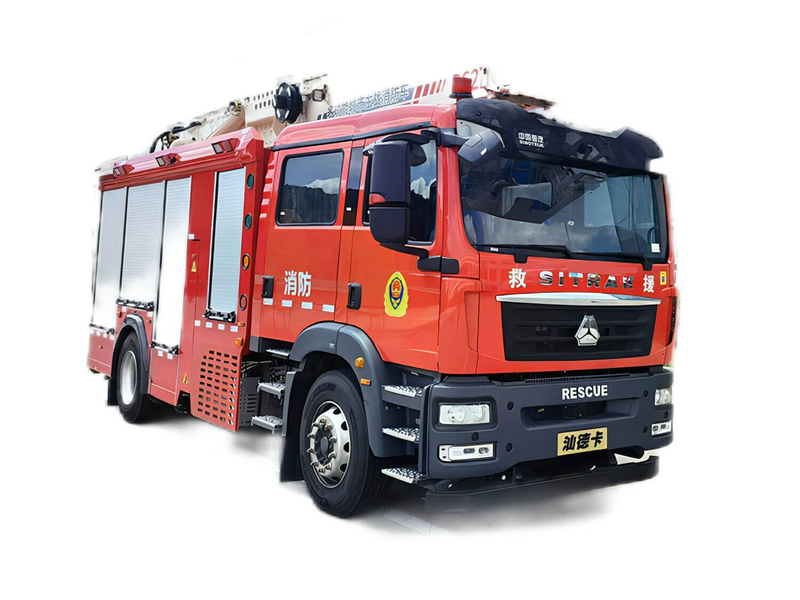

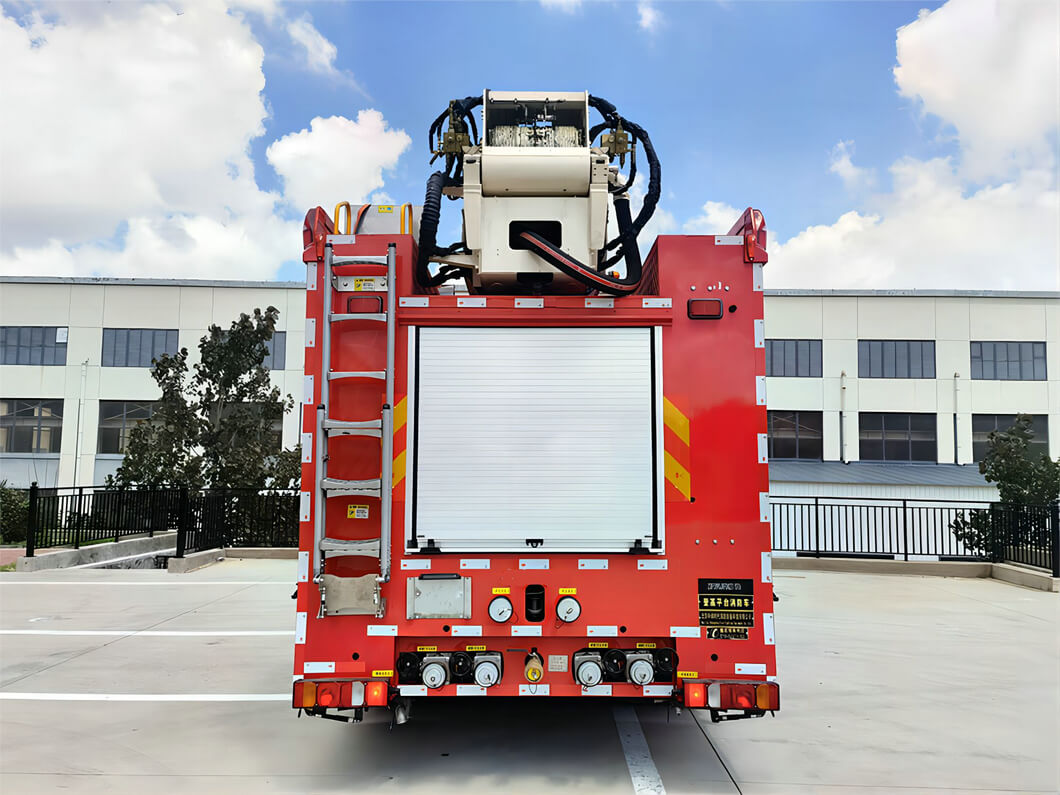

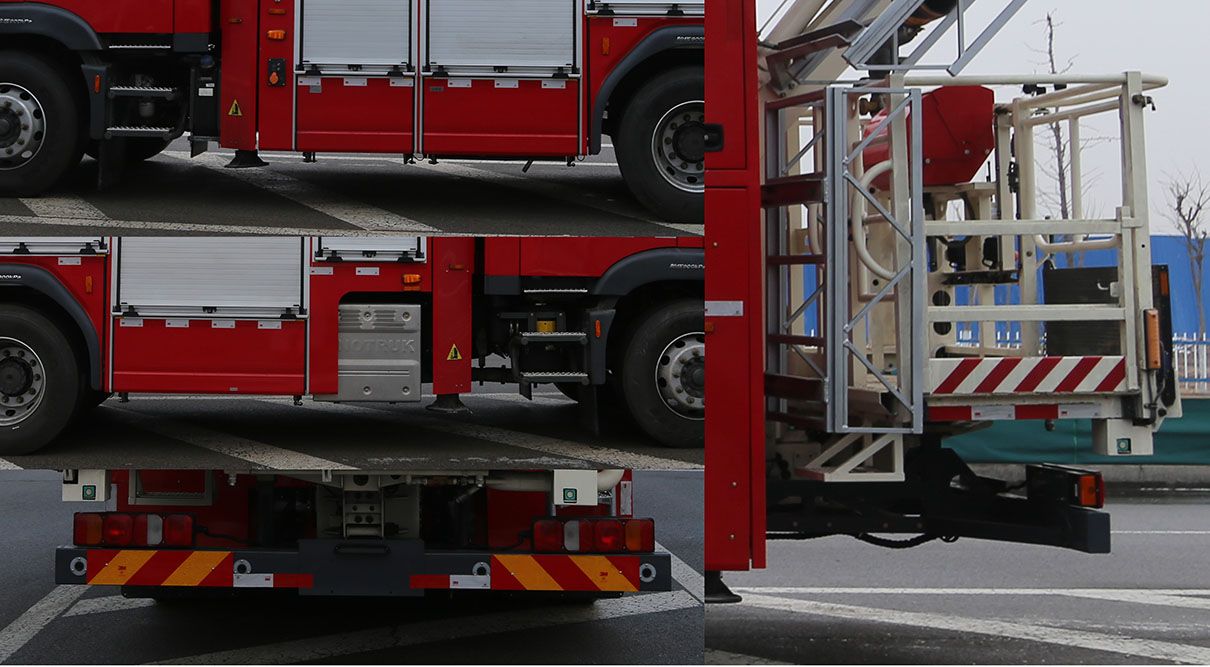

SITRAK Aerial Elevated 27M Platform Fire Truck
Water Tank 1800L, Foam Tank 200L, Fire Pump, 27m Ladder
Chassis SITRAK : ZZ5206N471GF5
Overall dimensions: | 9960×2540×3750(mm) 9500×2540×3750(mm) | Fuel Type: | Diesel oil |
Total mass: | 19490(Kg) | ||
Net | 17040(Kg) | Rated load mass: | 2000(Kg) |
Approach Angle/Departure Angle: | 12/12 (°) | Front/rear overhang: | 1450/1915(mm) |
Axle Load: | 7090/12400 | Wheelbase: | 4500,4700,4200,5000,5200,5600,5800,3900,6000(mm) |
Number of shafts: | 2 | Maximum speed: | 95(km/h) |
Number of tires: | 6(PCS) | Tire Specifications: | 315/80R22.5,295/80R22.5,12R22.5,12.00R20,11.00R20 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 2/3+2,3/3+2,3/9+8,11/9+8,4/5 |
Front wheel base: | 1998203 5 (mm) | Rear wheel base: | 1850(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
MC07H.33-60; WP8.350 E61. MC11.40-60; MC07.34-60; MC07.31-60; MC07.27-60; MC07H.29-60; MC07.33-60; WP7.300 E61. MC07H.35-60; WP7.270 E61. MC11.40-61; WP7H320E62; MC07H.31-61; MC07H.35-61; WP8.350 E62 | China Heavy Duty Automobile Group Co., LTD.; Weichai Power Co., LTD. | 7360; 7800; 10518; 6870; 6870; 6870; 7360; 6870; 7470; 7360; 7470; 10518; 6800; 7360; 7360; 7800 | 240; 257; 297; 251; 228; 202; 213; 240; 220; 257; 199; 297; 235; 228; 254; 257 |
A , Total tank volume :2.000 cubic meters, tank volume :1.800 cubic meters, tank size :1560×1200×1000mm, foam tank volume :0.200 cubic meters, foam tank size :495×1200×350mm. Integrated side and rear protection structure, rear protection height from the ground :457mm. Front extension :1760mm, back extension :135mm. The ABS manufacturer is ZF Commercial Vehicle Systems (Qingdao) Co., LTD. The main special devices are boom and fire cannon. B；Total tank volume :2.000 cubic meters, tank volume :1.800 cubic meters, tank size :1040×1250×1450mm, foam tank volume :0.200 cubic meters, foam tank size :800×650×400mm. Integral side protection structure, rear protection device material :Q235A, section size (width × height):80×140mm, connection with the vehicle: bolt connection, rear protection height :480mm, front extension :280mm, rear extension :370mm. EBS is manufactured by ZF Commercial Vehicle Systems (Qingdao) Co., LTD. The model is EBS3. The main special devices are boom and fire cannon. | |||
