ZLF5342JXFDG45
-
DONG RUN ZE
-
8705301000

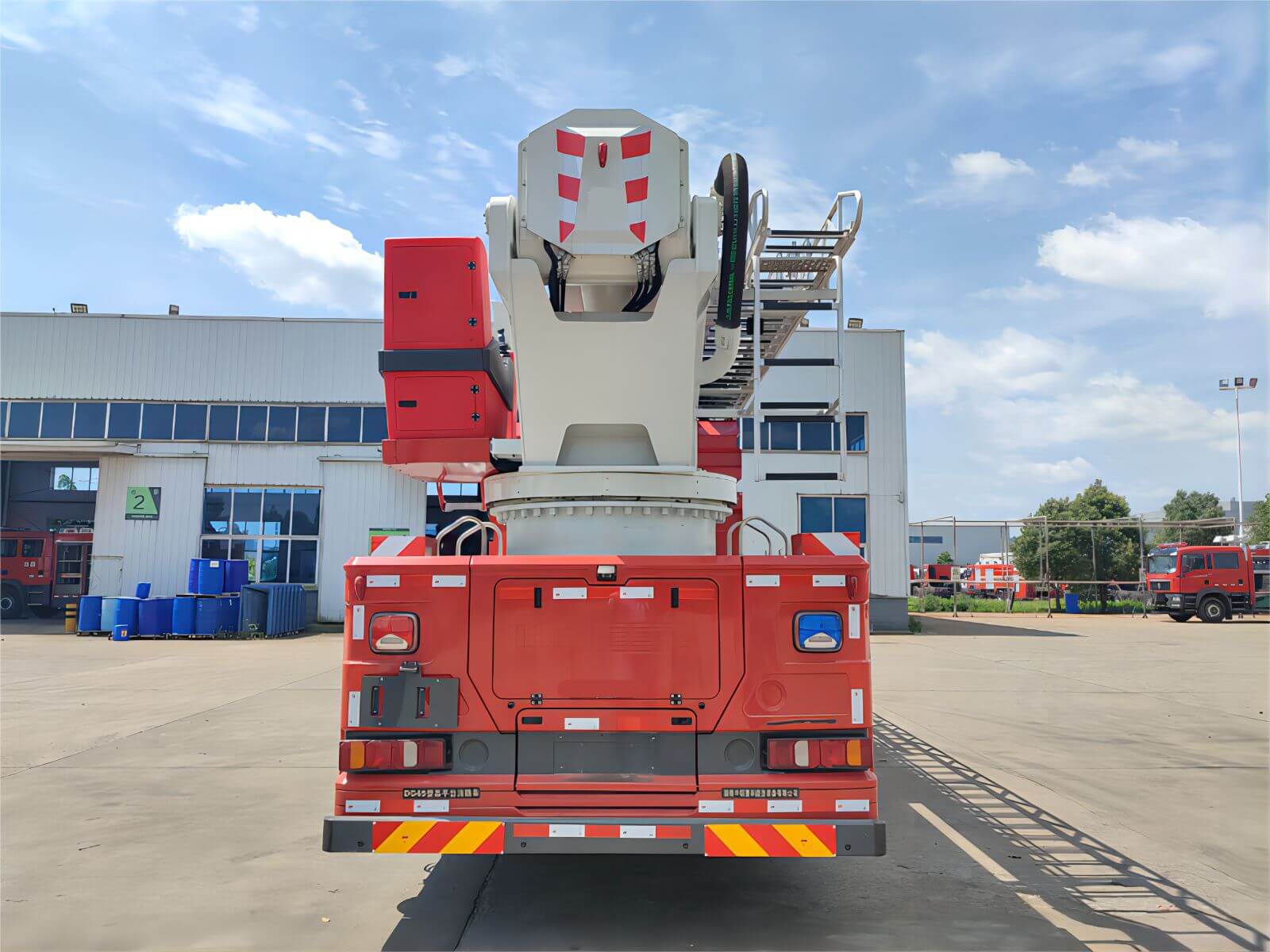

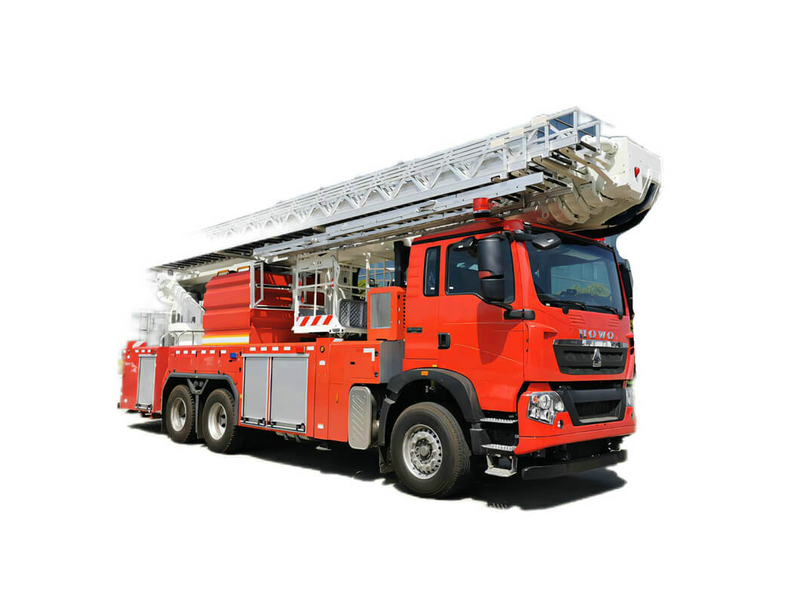

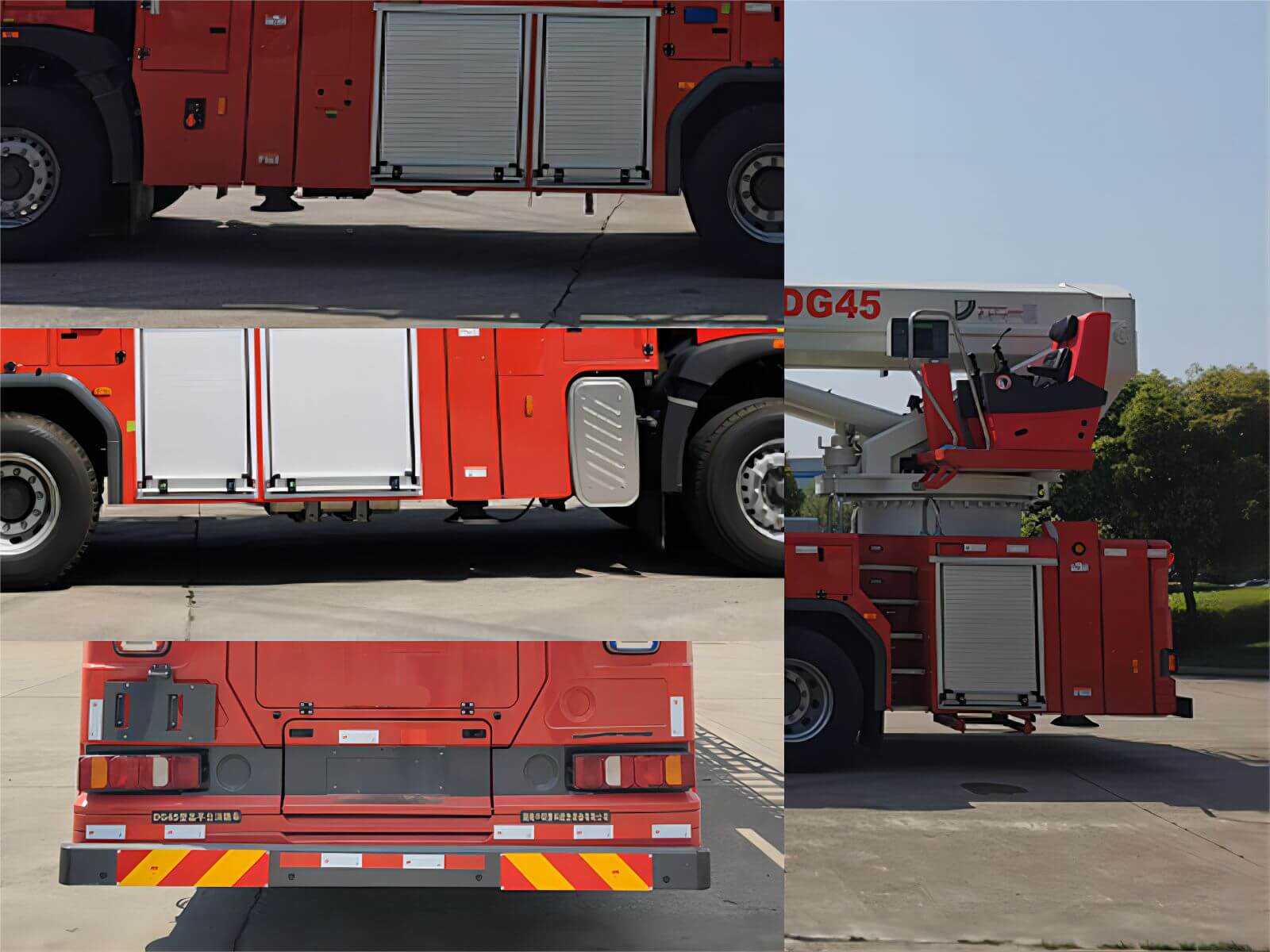

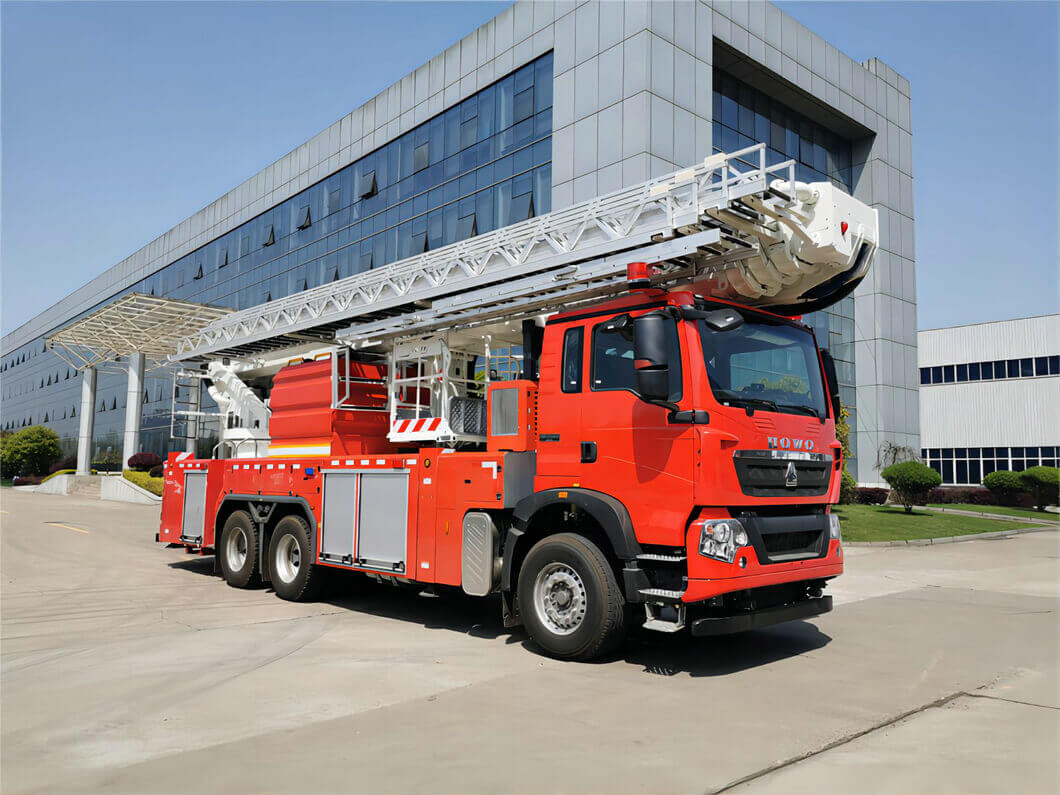

SINOTRUCK HOWO 6x4 Aerial Platform Fire Truck 45 m
Water Tank 3000L, Foam Tank 1000L, Fire cannon 45m Ladder
Chassis :ZZ5357TXFV464MF1
Overall dimensions: | 10980×2530×3910(mm) | Fuel Type: | Diesel oil |
Total mass: | 33950(Kg) | ||
Net | 29800(Kg) | Rated load mass: | 4000(Kg) |
Approach Angle/Departure Angle: | 19/9 (°) | Front/rear overhang: | 1500/2900(mm) |
Axle Load: | 8350/12800/12800 | Wheelbase: | 4300 + 1400432 + 1350460 + 1400462 1350480 0 + 5 + 5 + 1350520 + 1400522 + 1350580 1400482 0 + 5 + 5 + 1350492 1400582 1350490 0 + 1400 ( mm) |
Number of shafts: | 3 | Maximum speed: | 100(km/h) |
Number of tires: | 10(PCS) | Tire Specifications: | 385/65 r22. 5/315/80 r22. 18 pr 5, r22 385/65. 5/12.00 R20 18 pr |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 10/12, 4/12, 4, 5, 4 / - / - 11/12 |
Front wheel base: | 2110(mm) | Rear wheel base: | 1830/1830185 0/1850 (mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
MC13.48-60; MC13H.57-61; MC13.50-61; MC11.46-61; MC11.43-61; MC13H.60-61; MC13.50-60; MC11.44-60; MC11.40-60; MC13.54-61; MC11.40-61; WP10.5 H430E62; WP10.5 H460E62; MC11H.46-61; MC11H.49-61; WP12.460 E62; WP10H400E62 | China Heavy Duty Automobile Group Co., LTD.; Weichai Power Co., Ltd. | 12419; 13020; 12419; 10518; 10518; 13020; 12419; 10518; 10518; 12419; 10518; 10520; 10520; 11050; 11050; 11596; 9500 | 356; 422; 371; 341; 319; 444; 371; 327; 297; 400; 297; 316; 338; 341; 363; 338; 294 |
Total tank volume :4.000 cubic meters, tank volume :3.000 cubic meters, tank size :2880×780×1380mm, foam tank volume :1.000 cubic meters, foam tank size :960×780×1380mm. Integral side protection structure, rear protection device material :Q345B, section size (width × height):58×140mm, connection with the vehicle: bolt connection, rear protection height :453mm, front extension :485mm, rear extension :95mm. ABS WABCO . The main special devices are boom and fire cannon. | |||
