XGF5331JXFDG34/G5 , XZJ5331JXFDG34/G3,ZLF5322JXFDG34
-
DONG RUN ZE
-
8705301000

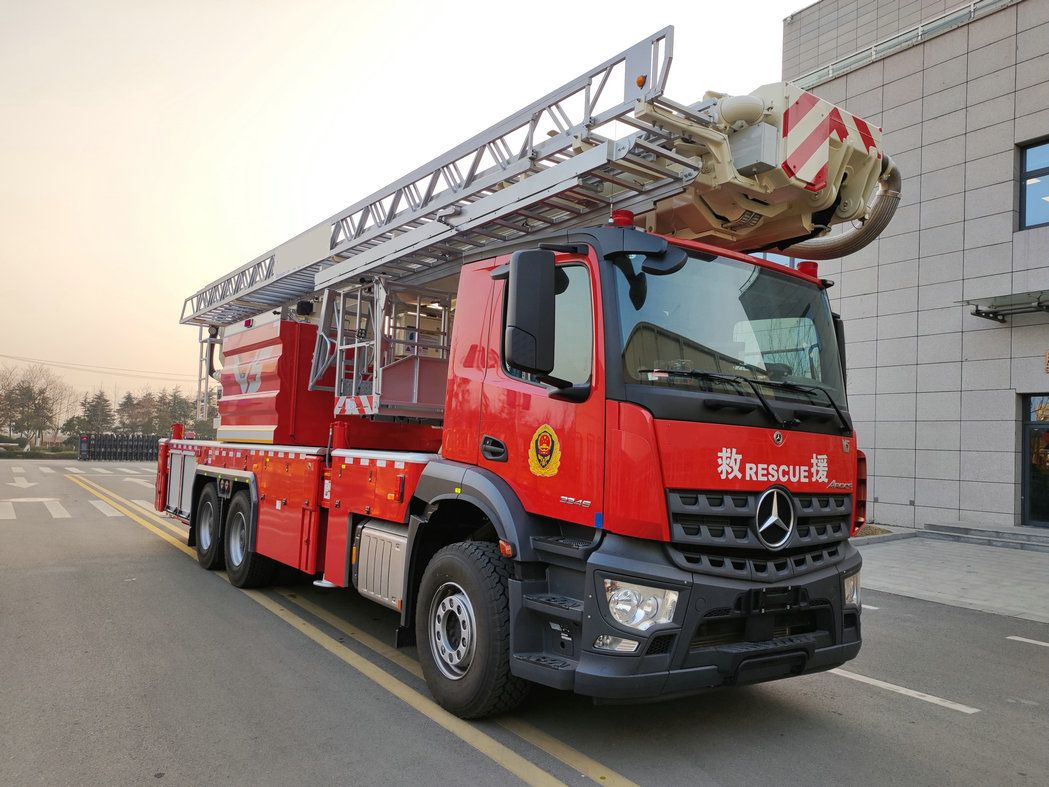

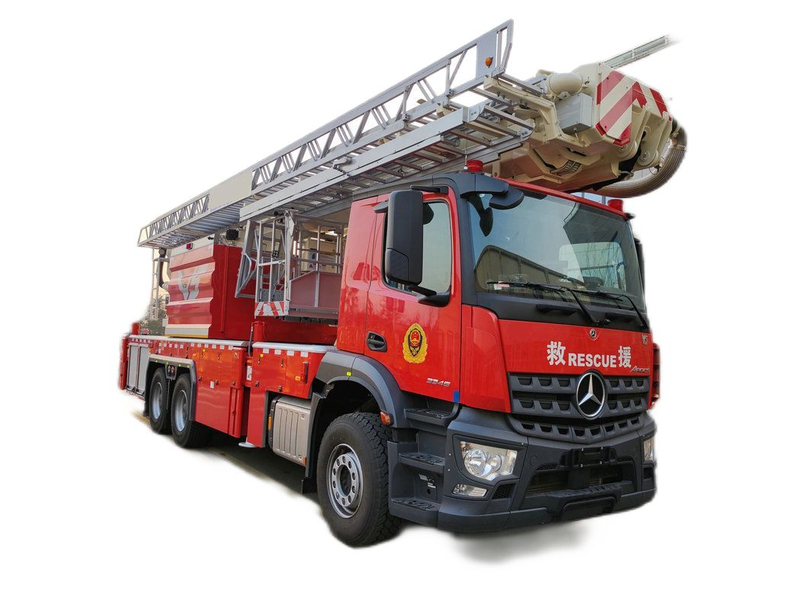

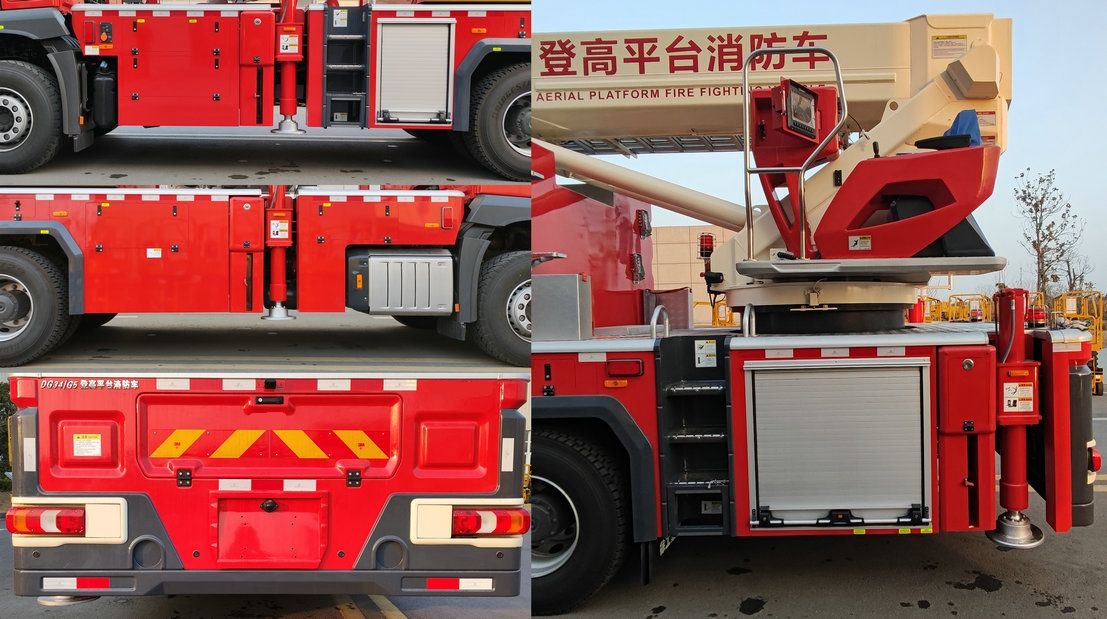

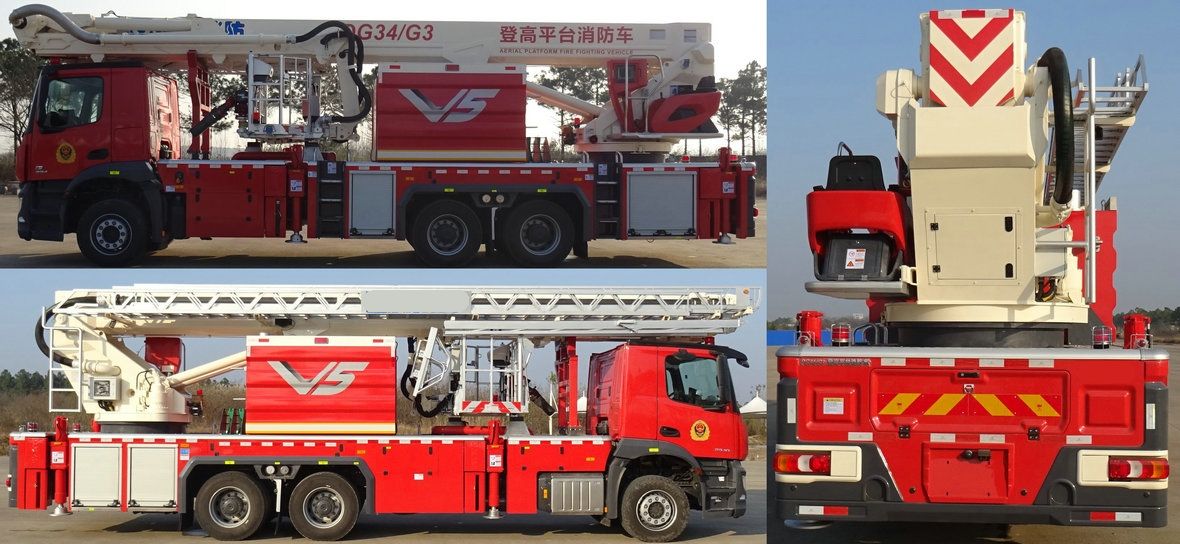

Arocs 34m Platform Fire FightingTruck
Water Tank 5000L, Foam Tank 1400L, Fire Pump, 34m Ladder
Water Tank 4000L, Foam Tank 2000L,
Overall dimensions: | 11000×2550×3900(mm) 10560×2530×3760(mm) | Fuel Type: | Diesel oil |
Total mass: | 32550(Kg) | ||
Net | 26000(Kg) | Rated load mass: | 6400(Kg) |
Approach Angle/Departure Angle: | 17/8 (°) | Front/rear overhang: | 1500/3230(mm) |
Axle Load: | 7250/12700/12600 | Wheelbase: | 4800+1350(mm) |
Number of shafts: | 3 | Maximum speed: | 90(km/h) |
Number of tires: | 10(PCS) | Tire Specifications: | 385/65 r22. 5/315/80 r22. 5385/55 r22. 5/315/70 r22. 5 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 4/4 |
Front wheel base: | 2140(mm) | Rear wheel base: | 1804/1804(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
OM470LA.6-56 | Daimler Trucks AG | 10677 | 336 |
A, Total tank volume :6.400 cubic meters, tank volume :5.000 cubic meters, "L" shaped tank, tank front size :785×1260×1250mm, tank back size :1315×2440×1250mm, tank front side is foam tank, foam tank volume :1.400 cubic meters, foam tank size :9 95×1180×1250mm. Integrated side and rear protection structure, rear protection height from ground :470mm, forward :120mm.EBS manufacturer is WABCO, model EBS4+. The main special devices are boom, fire pump, fire cannon. The engine has a maximum net power of 335kW. B,Total tank volume: 6.000 cubic meters, tank volume: 4.000 cubic meters, is "L" shape, tank front size: 2290× 955× 1400mm, tank back size: 950× 740× 1400mm, foam tank volume :2.000 cubic meters, foam tank size: 1550× 950× 1400mm. Integral side protection structure, rear protection installation material: Q345B, section length (width × height) : 58× 140mm, connected with the car: bolt, rear protection off the ground height: 495mm, rear extension: 45mm. EBS manufacturer is WABCO, model EBS4+. The main special devices are boom and fire cannon. | |||
