ZLF5430JXFDG55，SXT5420JXFDG55,SXT5426JXFDG54 ,SYM5342JXFDG55
-
DONG RUN ZE
-
8705301000

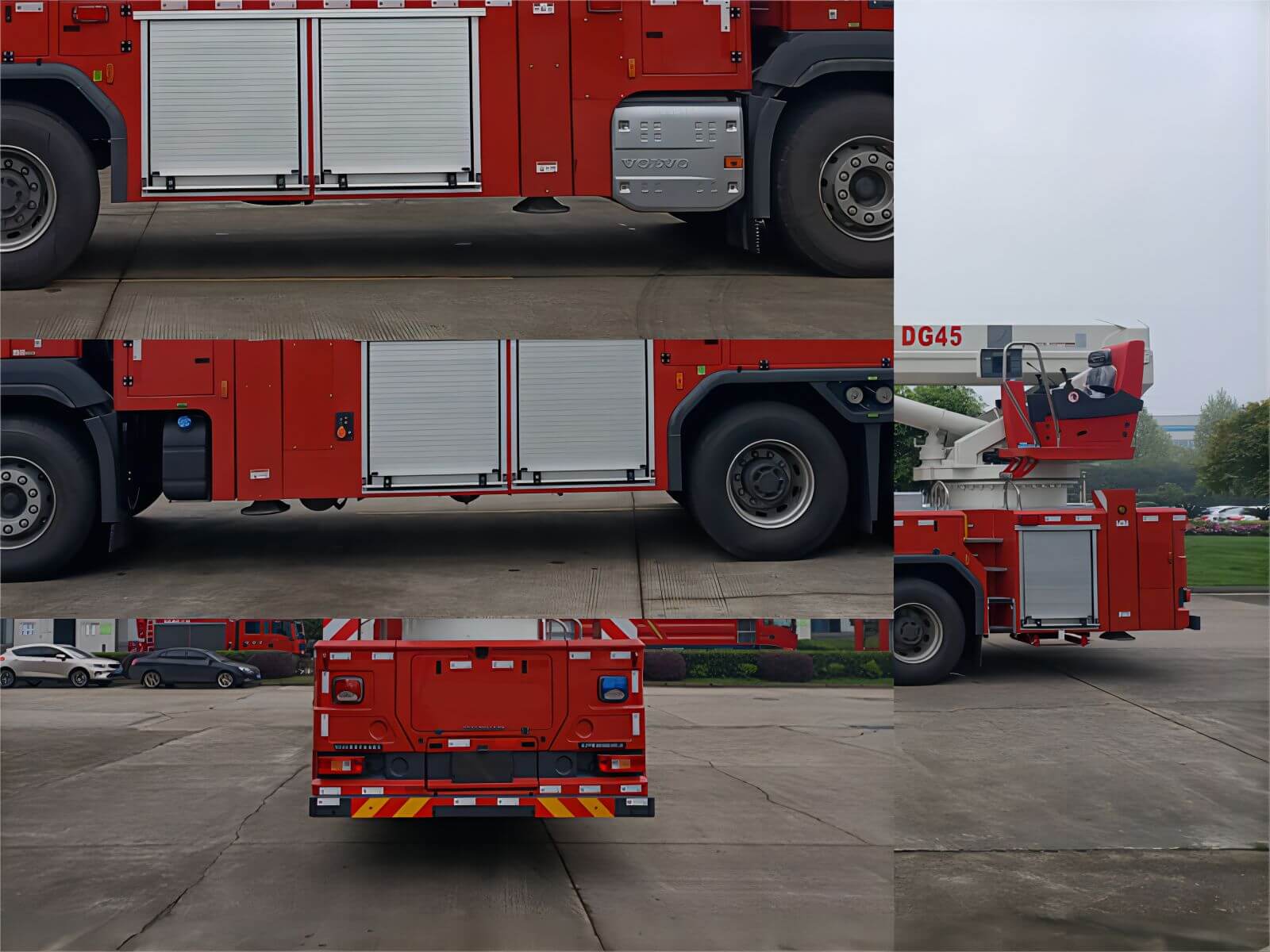

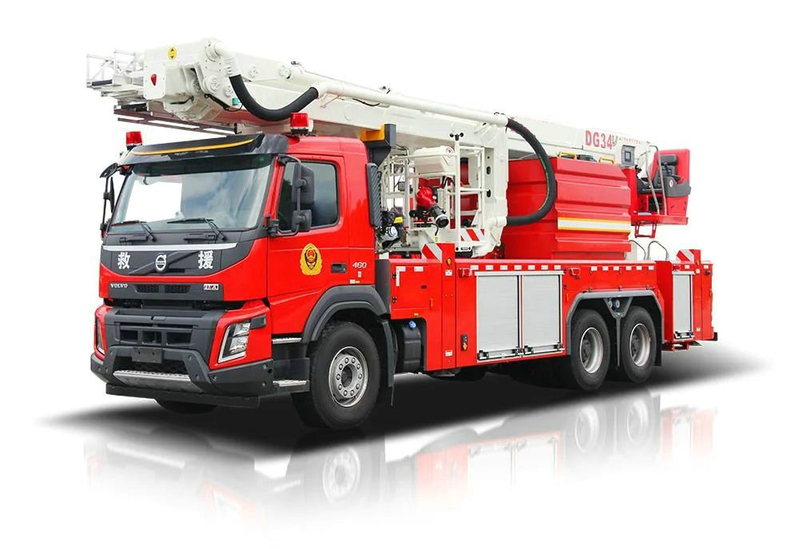

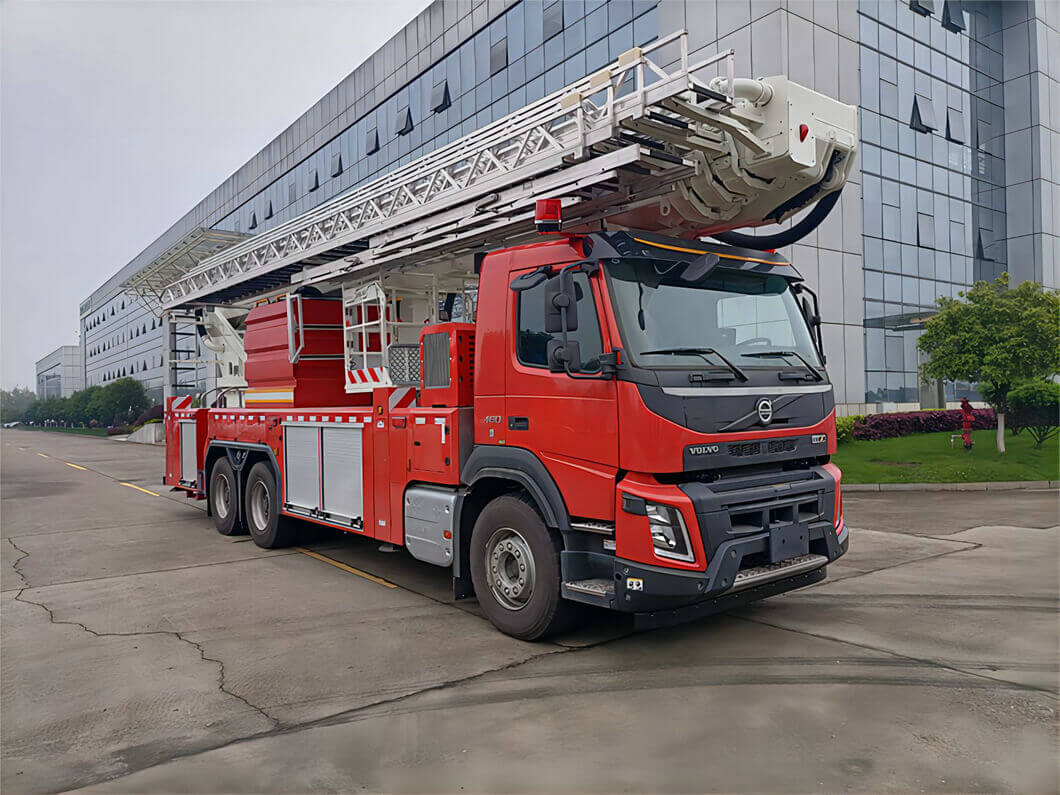

Volvo 10 Wheels Aerial 55m Platform Fire Truck
Water Tank 3500L/4000L , Foam Tank 2000L, Fire cannon ,54m,55m Platform
Chassis FM540
Main technical parameters
Overall dimensions: | 11900×2530×4000(mm) 11920×2500×4000(mm) 12775×2505×3970(mm)12000×2550×3980(mm) | Fuel Type: | Diesel oil |
Total mass: | 42650(Kg) | ||
Net | 33750(Kg) 35600(Kg) 36500(Kg) 38450(Kg) | Rated load mass: | 6000(Kg) |
Approach Angle/Departure Angle: | 16/10 (°) | Front/rear overhang: | 1500/2720(mm) |
Axle Load: | 8150/8500/13000/13000 | Wheelbase: | 1995+4205+1370(mm) |
Number of shafts: | 4 | Maximum speed: | 90(km/h) |
Number of tires: | 12(PCS) | Tire Specifications: | 385/65 r22. 5/315/80 r22. 5 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/3/3 |
Front wheel base: | 2109/2109(mm) | Rear wheel base: | 1837/1837(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
D13K460 EU6 D13K540 EU6; D13K540E | Volvo Power Train; Volvo Power Train; Volvo Power Train Volvo Power Train | 12777; 12777 | 346；406; 406 |
A：Total tank volume :6.000 cubic meters, tank volume :4.000 cubic meters, tank size :1280×2200×1465mm, foam tank volume :2.000 cubic meters, foam tank size :640×2200×1465mm. Integrated side and rear protection structure, rear protection height from the ground :438mm. Reach forward :100mm, reach back :10mm. EBS is produced by KNORR, model EBS7 ECU. The main special devices are boom, fire pump, fire cannon. B: Total tank volume :3.5 cubic meters, water tank volume :1.950 cubic meters, water tank size :745×2420×1120mm, foam tank volume :1.550 cubic meters, foam tank size :595×2420×1120mm. Integrated side and rear protection structure, rear protection height from the ground :470mm, forward :85mm, rear :125mm.EBS manufacturer is KNORR, model EBS7 ECU. The main special devices are boom, fire pump, fire cannon. | |||
Performance | Unit | Parameter |
Chassis model | / | VolvoFM540 84R B |
Maximum travel speed | km/h | 90 |
Obstacle crossing distance | m | 11 |
Overall dimensionsL xWxH | mm | 12000x2530x3950 |
Maximum working height | m | 55 |
Maximum operating range | m | 24 |
Combined action time | s | ≤145 |
Fire pump flow | L/min@MPa | 5400@1.0 |
Fire monitor flow | L/min | ≥4200 |
Fire cannon range | m | 67 |
Maximum fire extinguishing radius | m | ≥90 |
Tank volume | L | 6000 |
