ZXF5320JXFDG32/ST6,XZJ5333JXFDG34/G2
-
DONG RUN ZE
-
8705301000

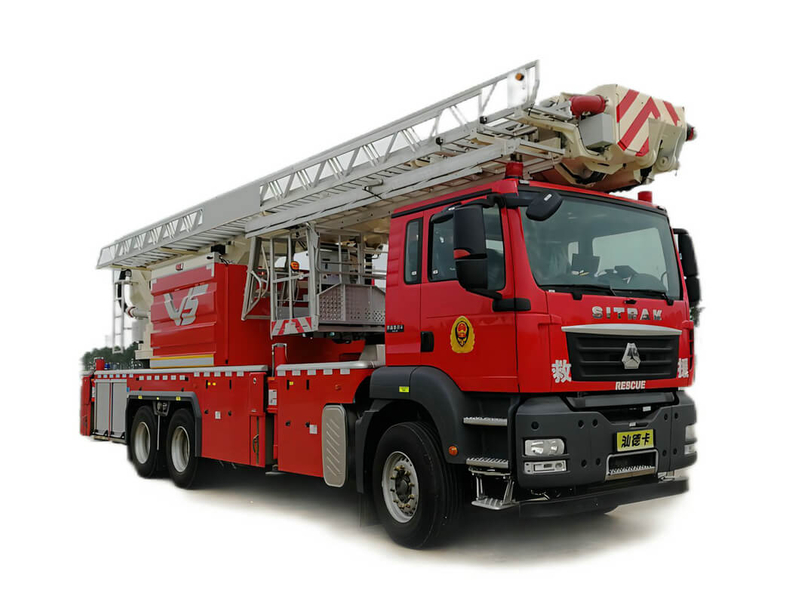

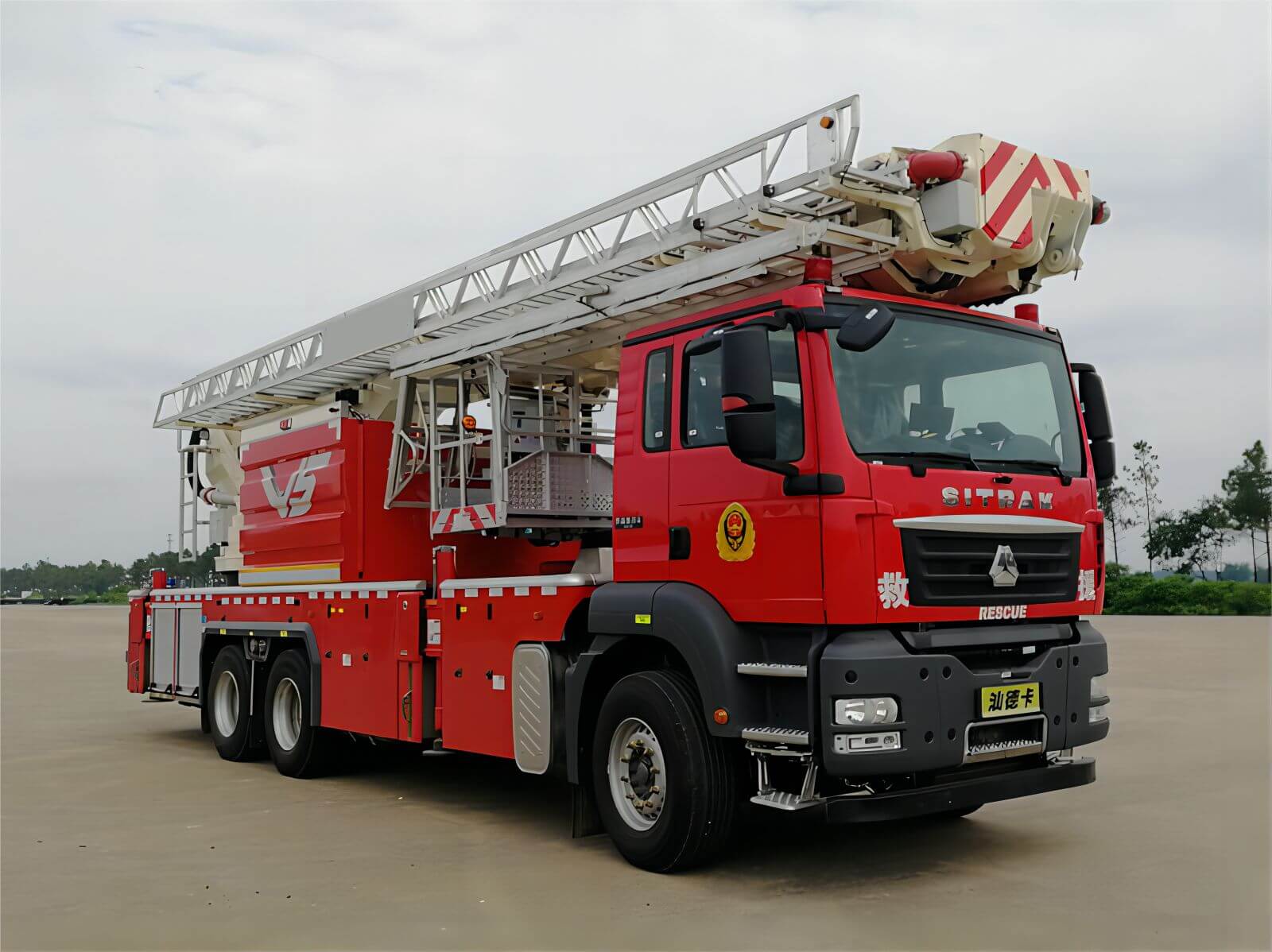

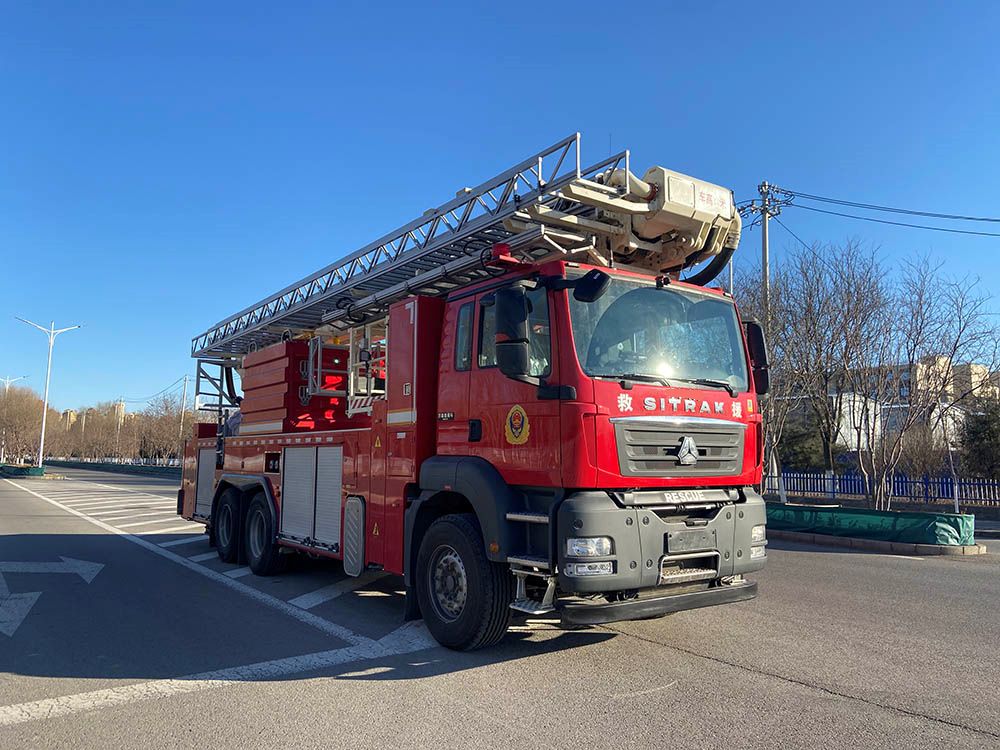

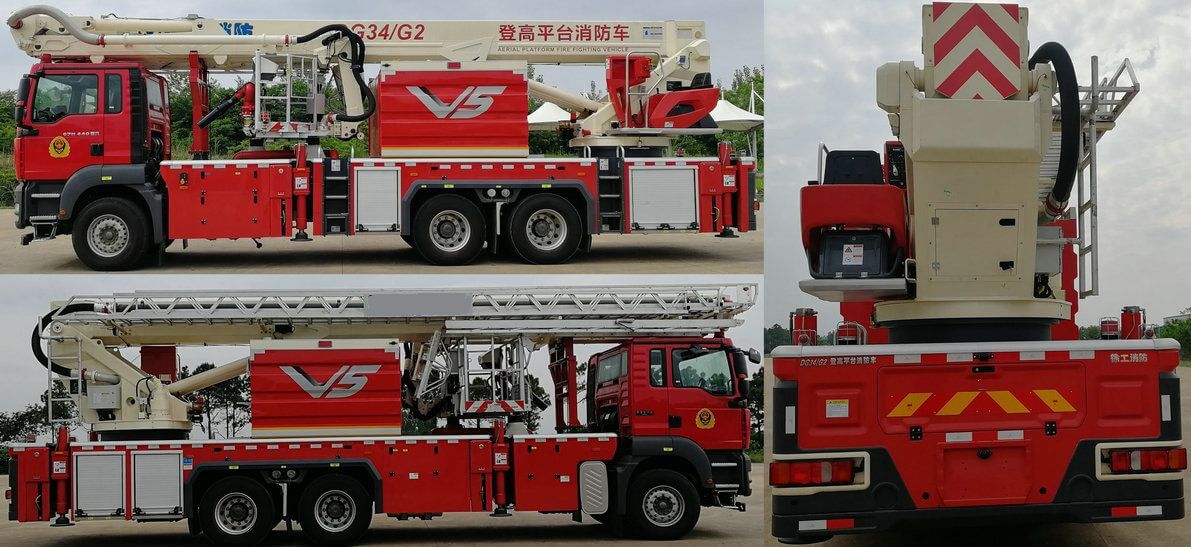

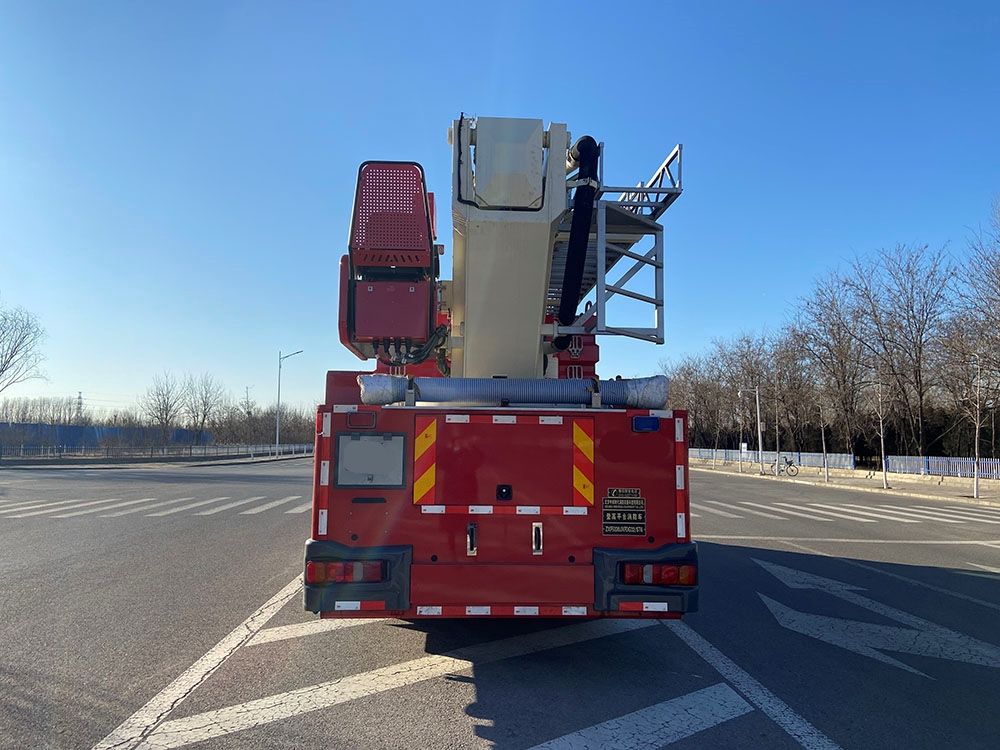

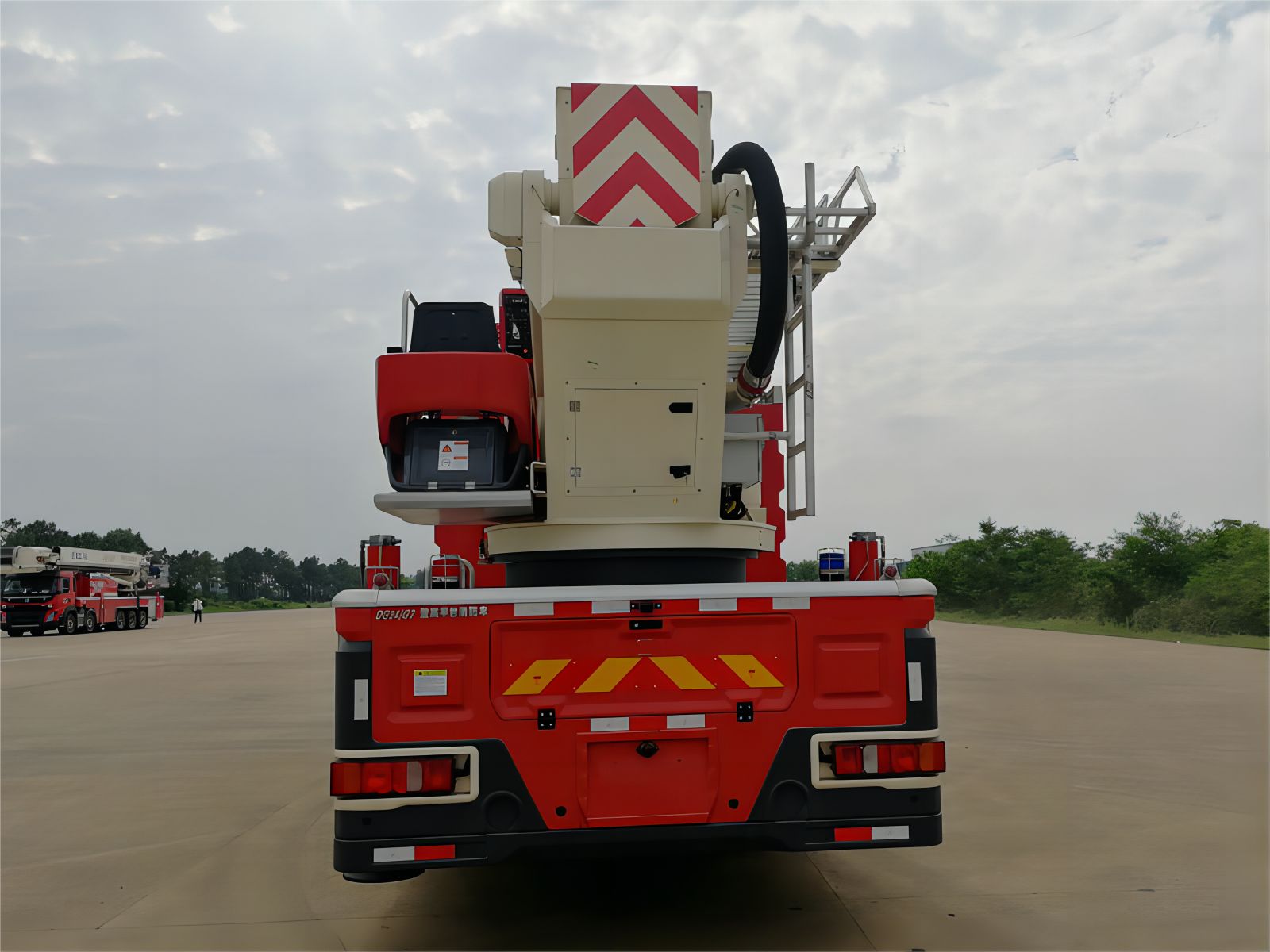

SITRAK 10 Wheels 32M 34M Aerial Platform Fire Resuce Truck
Water Tank 4000L - 5300L, Foam Tank 1000L, Fire cannon
Chassis :ZZ5206N501GF1
Main technical parameters
Overall dimensions: | 10500×2550×3780(mm) 11040×2550×3860(mm) | Fuel Type: | Diesel oil |
Total mass: | 31200(Kg) 33400(Kg) |
| |
Net | 26050(Kg) 26950(Kg) | Rated load mass: | 5000(Kg) 6300(Kg) |
Approach Angle/Departure Angle: | 19/11 (°) | Front/rear overhang: | 1475/2735(mm) |
Axle Load: | 7800/11700/11700 | Wheelbase: | 4325+1350,4300+1400,4625+1350,4600+1400,4675+1350,4650+1400,4825+1350,4800+1400,5025+1350,5000+1400,5200+1400,5525+1350,5500+1400,5800+1400,6000+1400(mm) |
Number of shafts: | 3 | Maximum speed: | 85(km/h) |
Number of tires: | 10(PCS) | Tire | 385/65R22.5/315/80R22.5,385/65R22.5/12.00R20 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 4/5,10/12 |
Front wheel base: | 2130(mm) | Rear wheel base: | 1850/1850(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
MC11.40-50 | China Heavy Duty Automobile Group Co., LTD | 10518 | 297 |
A : Total tank volume :4.980 cubic meters, tank volume :4.000 cubic meters, tank size :1245×2400×1400mm, foam tank volume :0.980 cubic meters, foam tank size :730×1000×1400mm. Integrated side and rear protection structure, rear protection height from the ground :490mm, forward :60mm, back :230mm. ABS WABCO . The main special devices are boom and fire cannon. B: This model is a special operation vehicle for fire fighting. Total tank volume :6.300 cubic meters, water tank volume :5.300 cubic meters, as a special tank, front-end size :830×1260×1250mm, back-end size :1390×2440×1250mm, foam tank volume :1.000 cubic meters, foam tank size :710×1180×1250mm. Integrated side and rear protection structure, rear protection height from the ground :475mm, front :140mm. ABS WABCO . The main special devices are boom, fire pump, fire cannon. A chassis with a wheelbase of 4800+1400mm is selected. Optional strobe light color, vehicle logo. | |||
