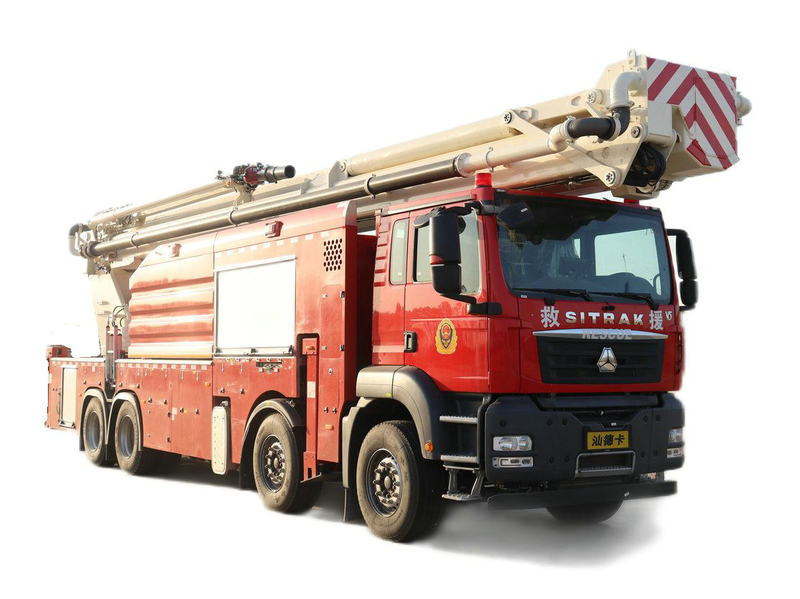

HOWO SITRAK 62M Jib Tower Water Foam Fire Fighting Truck JP62
water tank : 4m3, foam tank : 3 m3

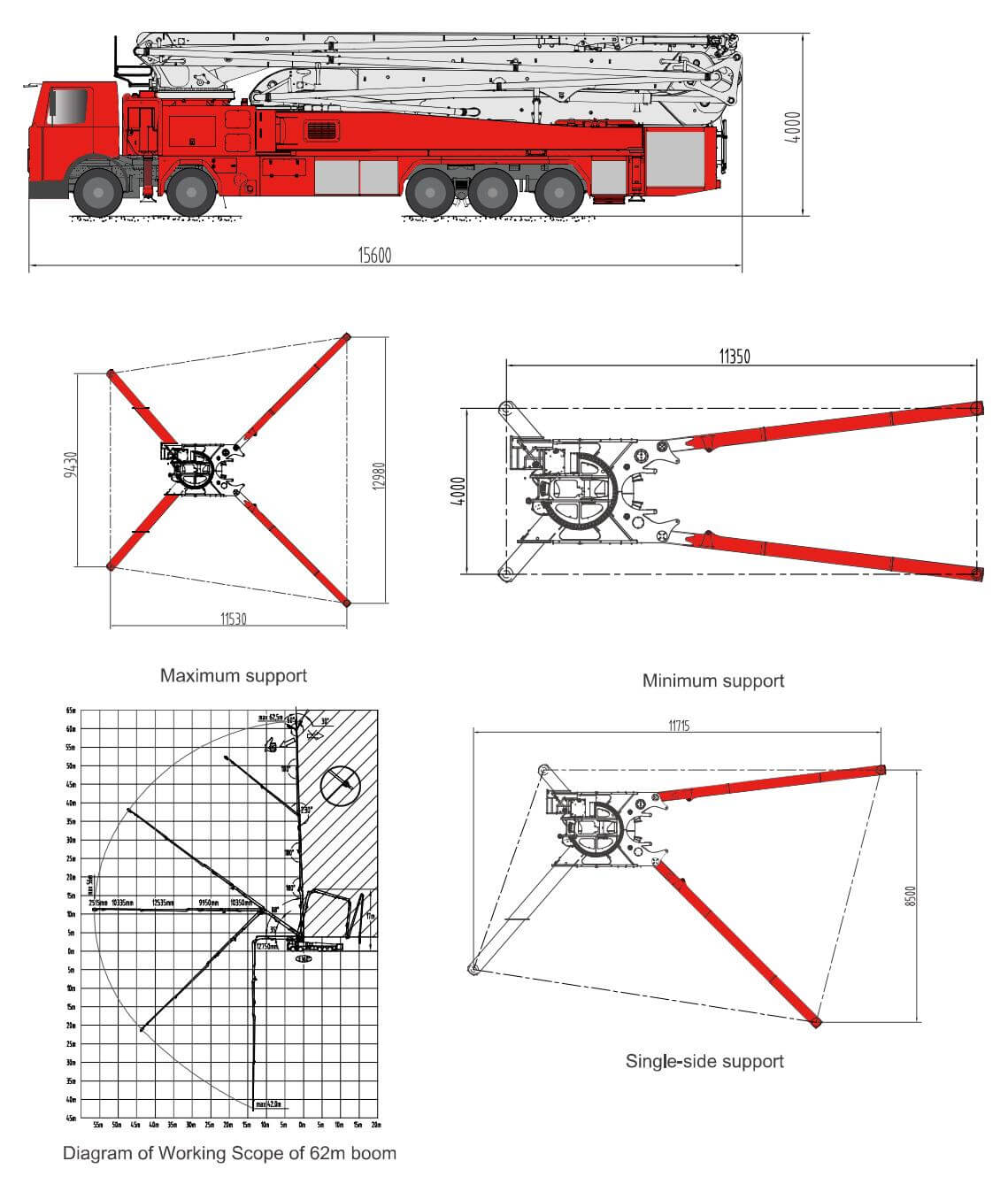

62m boom , fire monitor >80m,≥120L/S . Water pump ≥100 L/s
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
XZJ5431JXFJP62/S2，XGF5434JXFJP66/G2
-
DONG RUN ZE
-
8705301000
HOWO SITRAK 62M Jib Tower Water Foam Fire Fighting Truck JP62
water tank : 4m3, foam tank : 3 m3
62m boom , fire monitor >80m,≥120L/S . Water pump ≥100 L/s
HOWO Chassis ZZ5447TXFV466ME1 Main technical parameters
Overall dimensions: | 12780×2500×3930(mm) | Fuel Type: | Diesel oil |
Total mass: | 42750(Kg) | ||
Net | 34400(Kg) | Rated load mass: | 8200(Kg) |
Approach Angle/Departure Angle: | 18/12 (°) | Front/rear overhang: | 1500/2530(mm) |
Axle Load: | 9000/8750/12500/12500 | Wheelbase: | 1950+4600+1400,1950+4625+1350(mm) |
Number of shafts: | 4 | Maximum speed: | 95(km/h) |
Number of tires: | 12(PCS) | Tire Specifications: | 385/65R22.5/315/80R22.5,385/65R22.5/12.00R20 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 4/4/5,11/11/5,11/11/12 |
Front wheel base: | 2110/2110(mm) | Rear wheel base: | 1830/1830(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
MC11.36-50 | China Heavy Duty Automobile Group Co., LTD | 10518 | 268 |
The total volume of the tank 8.1 cubic meters, Water tank is 4.2 cubic meters; Water tank size :1390×2460×1280mm, Foam tank volume :3.9 cubic meters, foam tank size :1300×2460×1280mm; wheelbase 1950+4600+1400mm. Front extension :680mm, rear extension :120mm. Integrated side and rear protection structure, rear protection height :500mm. Special equipment for the boom, fire cannon. | |||
Water Foam Fire Fighting Truck JP62 (1).jpg
SITRAK Chassis ZZ5446V516MF1 Main technical parameters
Overall dimensions: | 13110×2530×4000(mm) | Fuel Type: | Diesel oil |
Total mass: | 42600(Kg) | ||
Net | 35450(Kg) | Rated load mass: | 7000(Kg) |
Approach Angle/Departure Angle: | 19/10 (°) | Front/rear overhang: | 1492/2988(mm) |
Axle Load: | 8100/8700/12900/12900 | Wheelbase: | 1950+4400+1400,1950+4425+1350,1950+4500+1400,1950+4525+1350,1950+4600+1400,1950+4625+1350,1950+4800+1400,1950+4825+1350,1950+5100+1400,1950+5125+1350,1950+5400+1400,1950+5425+1350,1950+3825+1350,1950+5725+1350,2100+4300+1400,2100+4600+1400(mm) |
Number of shafts: | 4 | Maximum speed: | 90(km/h) |
Number of tires: | 12(PCS) | Tire Specifications: | 385/65R22.5/315/80R22.5,385/65R22.5/12.00R20 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 4/4/5,11/11/5,11/11/12 |
Front wheel base: | 2110/2110(mm) | Rear wheel base: | 1850/1850(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) | |
WP10.5 H430E62; MC11.46-61; MC11.43-61; MC11.40-61; MC13H.60-61; MC13H.57-61; MC13.54-61; MC13.50-60; MC13.48-60; MC11.44-60; MC11.40-60; WP10.5 H460E62; MC13.50-61; MC13.46-61; MC13H.51-61; MC13H.54-61; MC11H.46-61; MC11H.49-61; WP12.460 E62; WP13.510 E62; WP13.550 E62; WP13.580 E | Weichai Power Co., LTD. China Heavy Duty Automobile Group Co., LTD.; | 10520; 10518; 10518; 10518; 13020; 13020; 12419; 12419; 12419; 10518; 10518; 10520; 12419; 12419; 13020; 13020; 11050; 11050; 11596; 12540; 12540; 12540 | 316; 341; 319; 297; 444; 422; 400; 371; 356; 327; 297; 338; 371; 341; 378; 400; 341; 363; 338; 375; 405; 426 | |
This model is a special operation vehicle for fire fighting. Total tank volume :7.000 cubic meters, Water tank volume :4.000 cubic meters, tank size :1370×2490×1230, Foam tank volume :3.000 cubic meters, foam tank size :1020×2490×1230mm, I ntegral side and rear protection structure, rear protection height :470mm. The main special devices are boom, fire pump, fire cannon. wheelbase 2100+4300+1400mm | ||||
