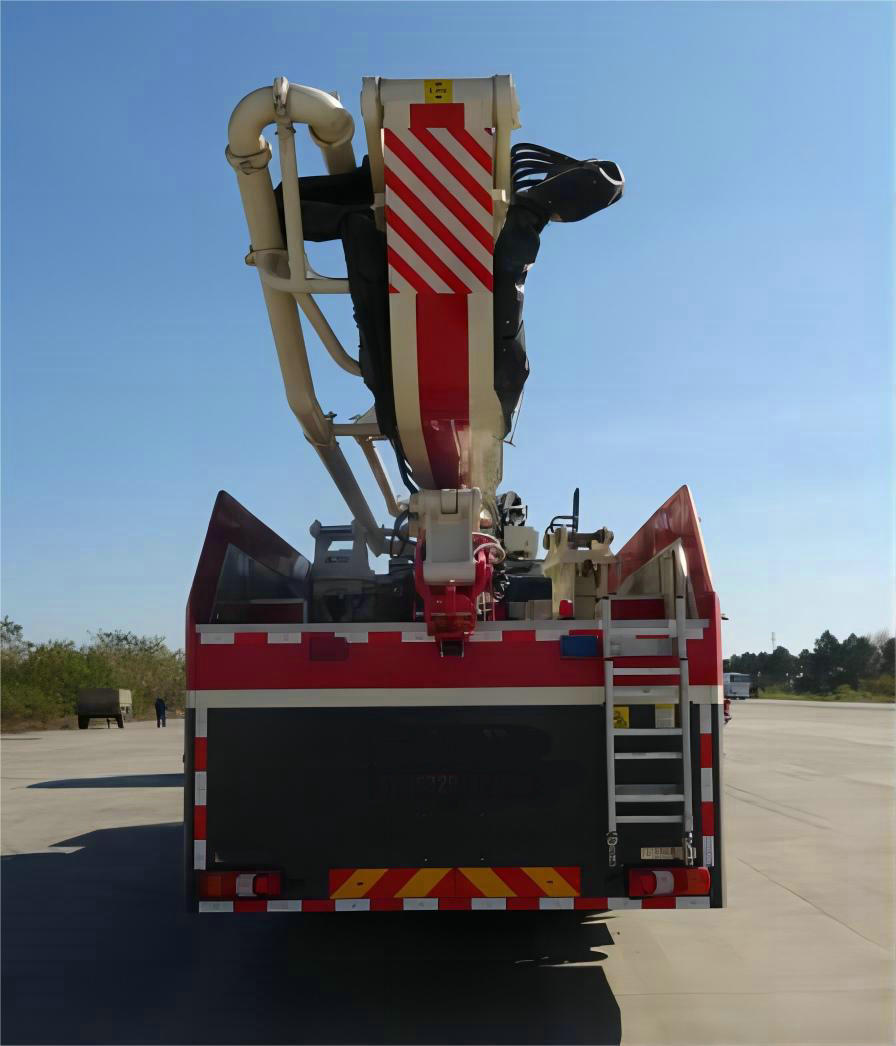

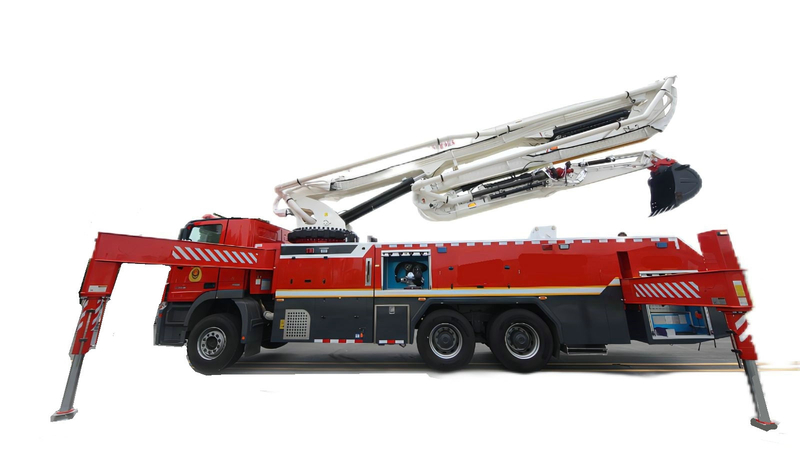

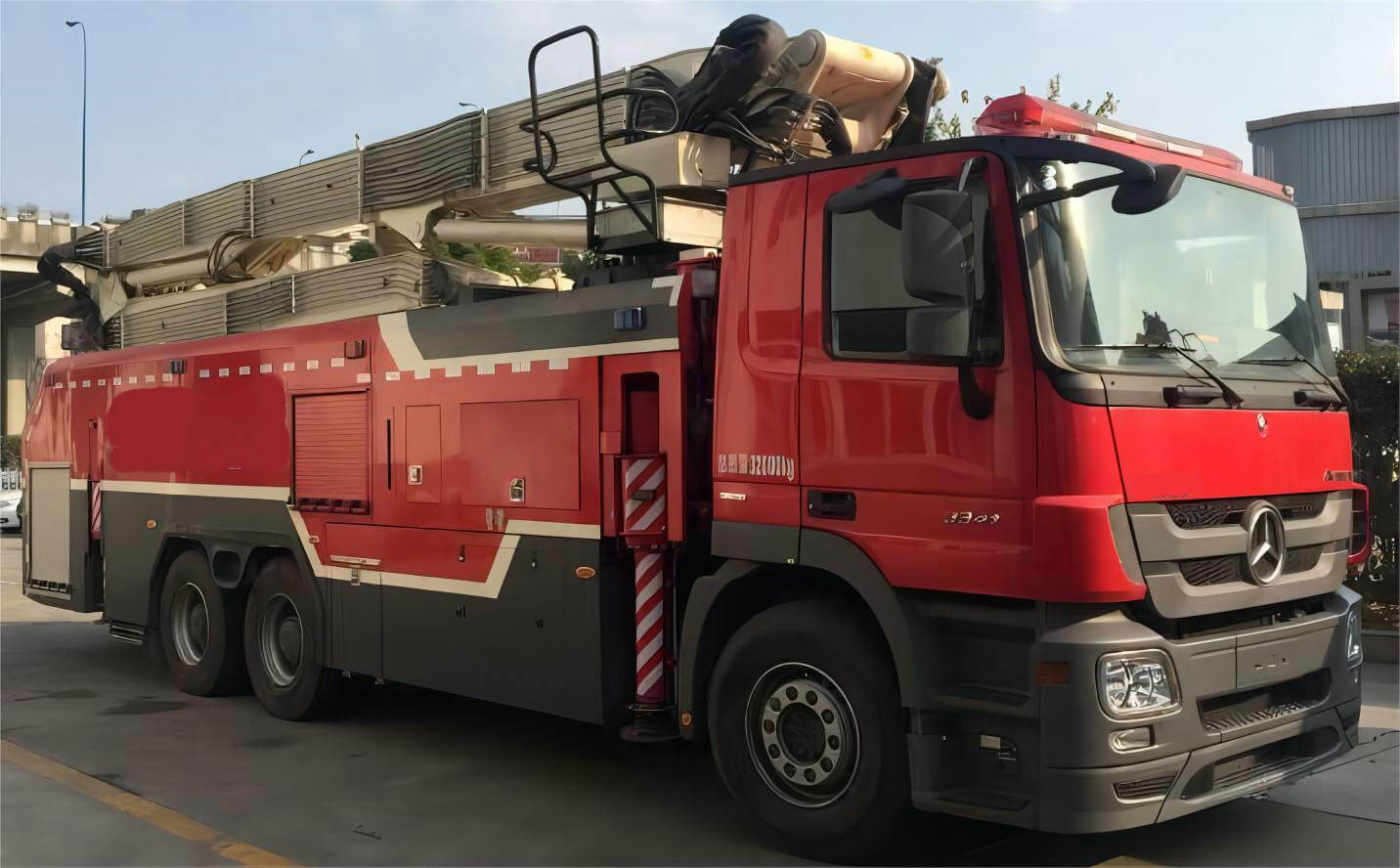

JP23 Water Tower Fire Truck With Hydraulic Forcible Entry System
23m boom, fire pump, fire cannon, breaking device
Powerful demolition Forcible Entry Fire Truck
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
SYM5320JXFJP23
-
DONG RUN ZE
-
8705301000
JP23 Water Tower Fire Truck With Hydraulic Demolition System
Powerful demolition Forcible Entry Fire Truck
The professional fire control forcible entry equipment can provide a complete set of solution about forcible entry, fire extinguishment and rescue.
Solve pain points of traditional forcible entry equipment such as slow police speed,slow forcible entry speed and small forcible entry power, and open the fire extinguishing and rescue channels rapidly targeting enclosed buildings such as shopping mall and warehouse.
Basic Information | |||
Usage | Fire Extinguishing Truck | ||
Fuel Type | Diesel | ||
Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
Length | 11910mm | ||
Width | 2530mm | ||
Height | 3990mm | ||
Curb Weight | 31850kg | ||
Gross Weight | 32000kg | ||
Seats | 2 | ||
Max Speed | 90km/h | ||
Chassis | |||
Chassis Model | Actros 3341E5 | ||
Front/Rear Overhang | 1440/3440mm | ||
Number of Leaf Springs | 3/4 | ||
Number of Axles | 3 | ||
Wheelbase | 4500+1350mm | ||
Front Wheel Track | 2096mm | ||
Rear Wheel Track | 1804mm | ||
Tire | |||
Number of Tires | 10 | ||
Tire | 385/65R22.5 20PR/315/80R22.5 18PR | ||
Engine | |||
Model | Brand | Power | Displacement |
OM501LA.V/3 | Daimler AG | 305kW | 11946ml |
Technical parameters | |
Product model | 5321JXFJP23 |
Chassis parameters | Bentz 3344 (320kW) |
Outline of whole vehicle (m) | 12 x2.53x 3.98 |
Full-load mass (kg) | 32100 |
Span of support leg | |
(front width xrear width mm) | 6100 x 6100 |
boom mode | Four-section folding + telescopic water gun |
Maximum working height/amplitude | 23m/1 8m |
Forcible entry time of single time | 7s |
Time of the boom rotates for 90° and lifts | 75s |
to the highest position. | |
Configuration of hydraulic system | Pump + gun |
Hydraulic parameters | Flow 70L/s, jetting range 75m |
Anti-smash heat insulation protection of the third | |
Whole vehicle protection | and the fourth booms, three -boom spraying self- protection |
Video monitoring | Integrated wireless video of remote controller |
Quantity of accessories mounted on vehicle | 3 |
Replacement time of accessories | 4 minutes and 30 seconds |
Hydraulic hammer | Impact energy 1,200 joule (standard configuration) |
Hydraulic shear | Shearing force 120t (standard configuration) |
Bucket | Volume 0.38 m3 (standard configuration) |
Hydraulic grab | Grasping force 2t (optional configuration) |
Rotary shovel bucket | Volume 0.38 m3 (optional configuration) |
