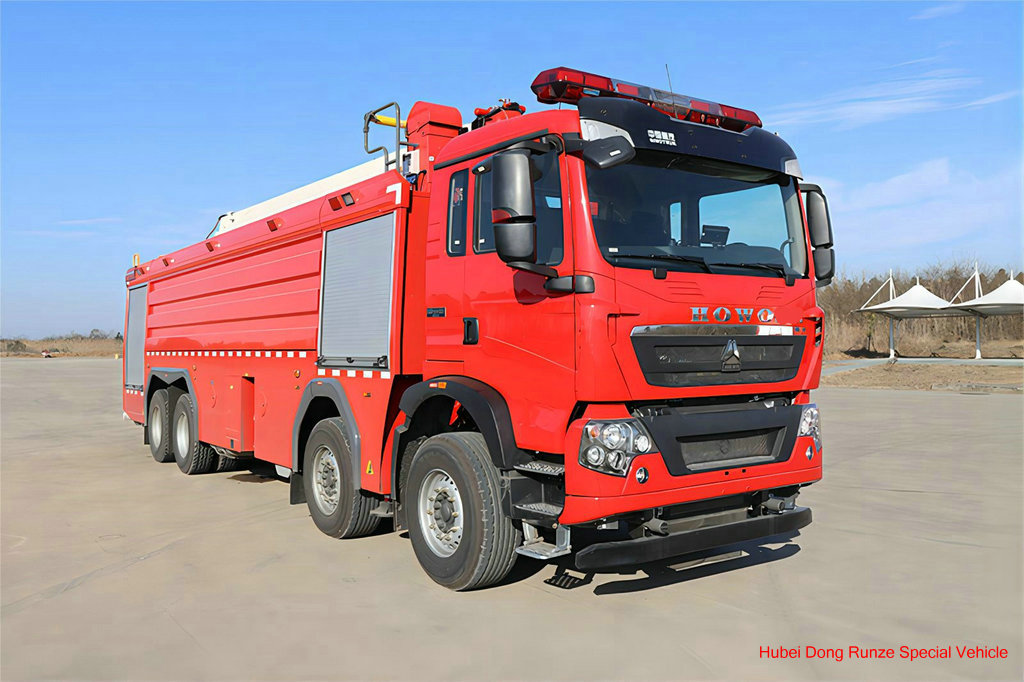

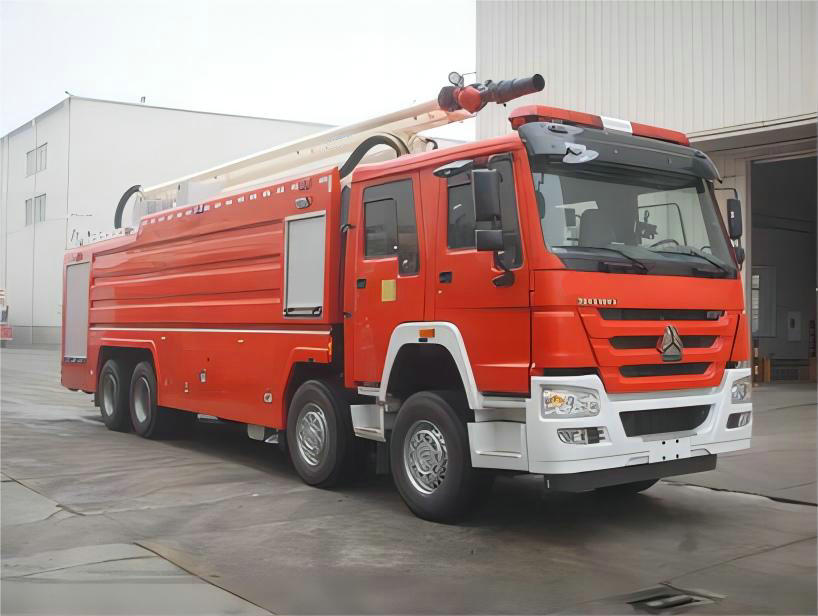

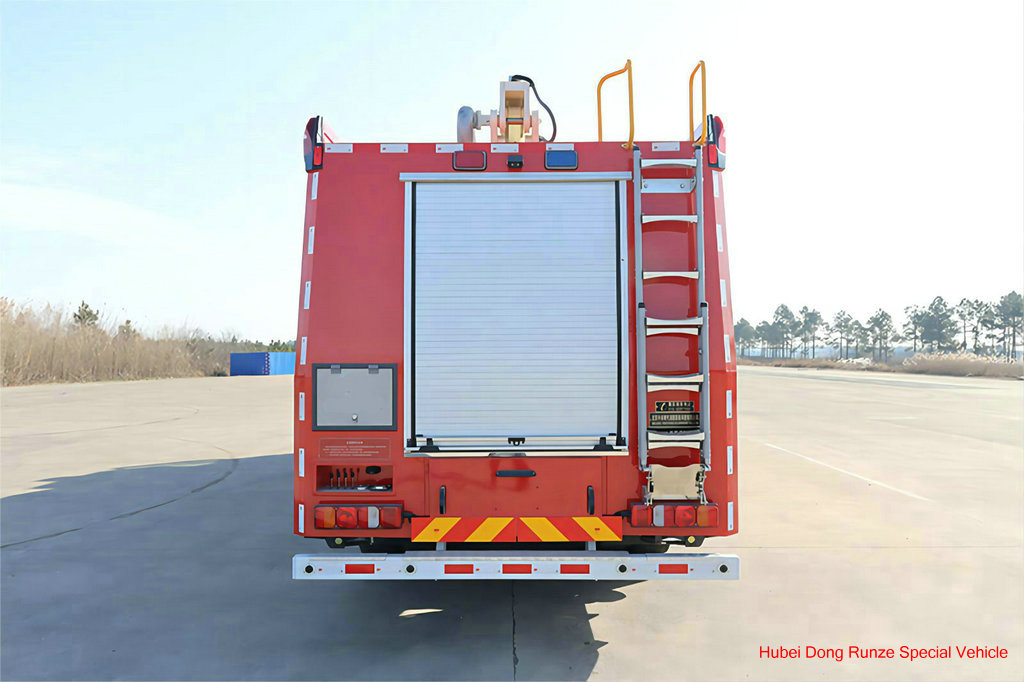

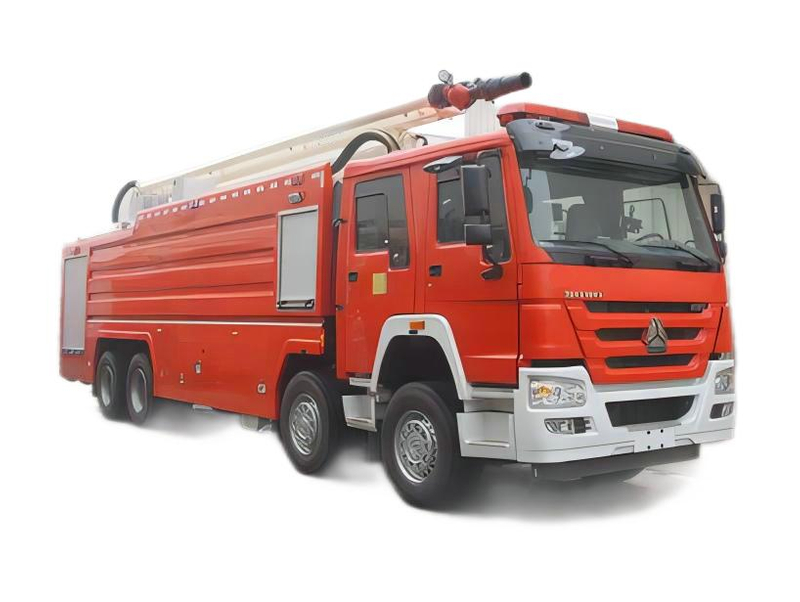

HOWO 20T Water and Foam High Jet Fire Engine JP20
water tank : 14.5 m3, foam tank : 5.3 m3
20m boom , fire monitor >80m,≥120L/S . Water pump ≥100 L/s
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
XZJ5413JXFJP20/C4
-
DONG RUN ZE
-
8705301000
HOWO 20T Water and Foam High Jet Fire Engine JP20
water tank : 14.5 m3, foam tank : 5.3 m3
20m boom , fire monitor >80m,≥120L/S . Water pump ≥100 L/s
Main technical parameters
Overall dimensions: | 11990×2500×3830(mm) | Fuel Type: | Diesel oil |
Total mass: | 41200(Kg) | ||
Net | 20750(Kg) | Rated load mass: | 20000(Kg) |
Approach Angle/Departure Angle: | 14/11 (°) | Front/rear overhang: | 1500/2640(mm) |
Axle Load: | 7100/8100/13000/13000 | Wheelbase: | 1800+4600+1350,1800+4575+1400,2150+4300+1350,2150+4275+1400(mm) |
Number of shafts: | 4 | Maximum speed: | 90(km/h) |
Number of tires: | 12(PCS) | Tire Specifications: | 385/65R22.5/315/80R22.5,385/65R22.5/12.00R20,385/65R22.5/12.00-20 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 11/11/12, 14/ 13/ 14/13/12 |
Front wheel base: | 2022/2022(mm) | Rear wheel base: | 1830/1830(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
D10.34-50 | China Heavy Duty Automobile Group Co., LTD | 9726 | 249 |
The total volume of the tank 19.892 m3, water tank 14.5m3; Tank size :4420×2460×1400mm, foam tank :5.3m3, foam tank size :1640×2460×1400mm; Integrated side and rear protection structure, rear protection height from the ground :480mm, The main special devices are boom, fire pump, fire cannon. | |||
