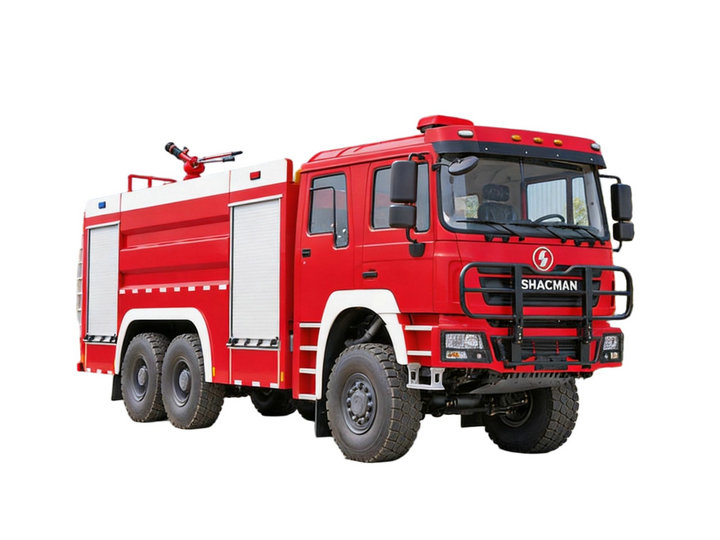

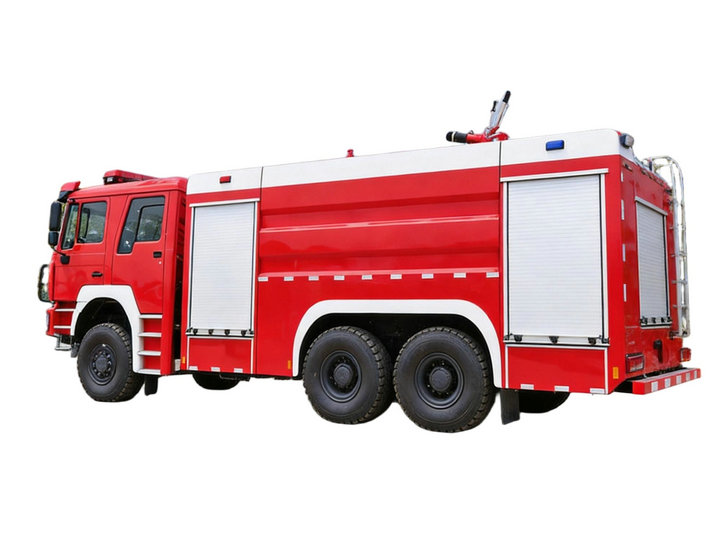

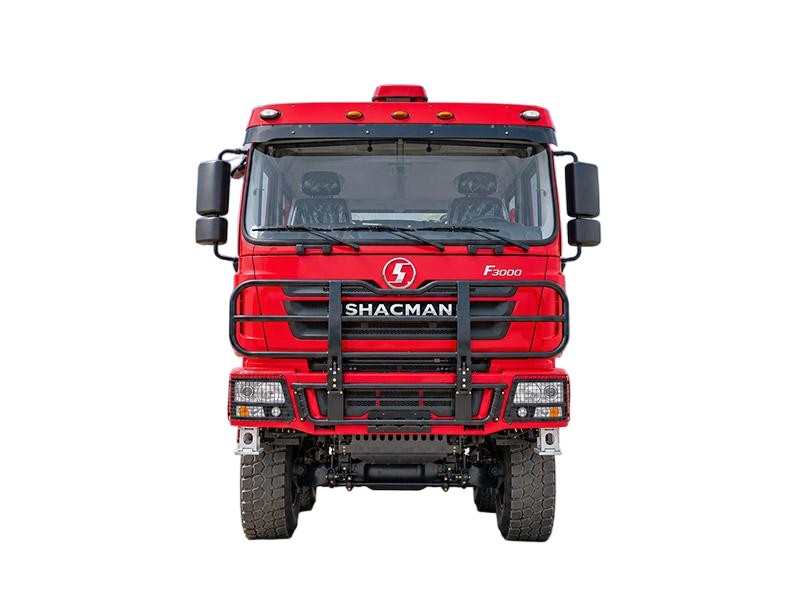

Shacman 6x6 Foam Fire Fighting Trucks 8000L Water + 4000L Foam
Tanker Capacity:8000L water + 4000L foam (12000L total)
Engine :340 HP (250 kW) / WP10.340
Fire Pump: CB10/60
Pump Flow: 60 L/s
Monitor Range:Water ≥70 m , Foam ≥60 m
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
| Quantity: | |
|---|---|
|
| |
-
DRZ5280XFSX
-
DRZ
-
8705309000

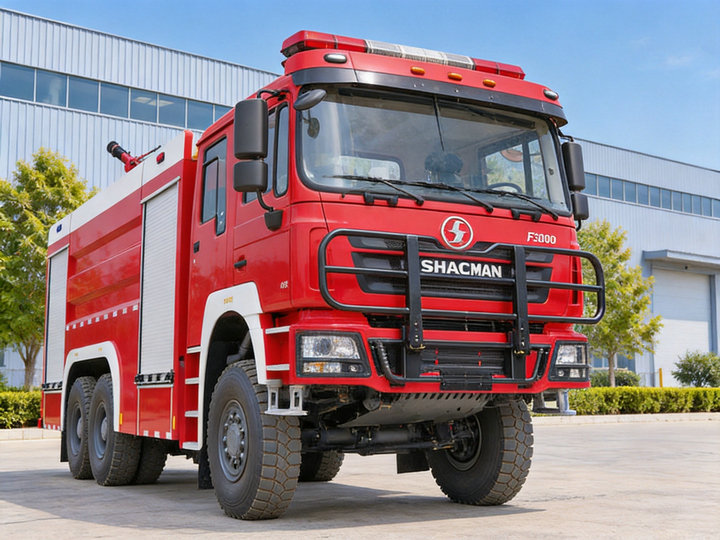

Shacman 6x6 Fire Fighting Trucks 8000L Water + 4000L Foam
SHACMAN 6×6 foam fire emergency truck is engineered for fire suppression and emergency foam delivery. This SHACMAN 340HP 6x6 foam fire truck comes with an 8000L water tank, a 4000L foam tank, a CB10/60 fire pump rated at 60 L/s and 1.0 MPa, and a roof-mounted PL8/48 monitor reaching 70 meters with water and 60 meters with foam.
The vehicle is supplied with a complete set of standard firefighting accessories, including hoses, suction tubes, couplings, and a foam gun. It performs effectively on Class B fires involving oil, gasoline, and chemicals. It is suitable for firefighting operations at oil fields, chemical plants, industrial facilities, and remote sites.
Working Capacity | Engine Model | Wheelbase |
Superstructure SHACMAN 6x6 12 CBM Foam Fire Emergency Truck |
8000L water + 4000L foam | 340 HP / WP10.340E32 | 4575 + 1400 mm | ★ CB10/60 fire pump, 60 L/s flow at 1.0 MPa ★ PL8/48 roof monitor, 48 L/s flow with water ≥70 m, foam ≥60 m ★ Full set of national standard firefighting equipment |
» Ⅰ.Main Features :
➤ WP10.340E32 engine rated at 340 HP for foam fire suppression and emergency response
➤ SHACMAN 6×6 chassis with 8000L water tank, 4000L foam tank, and CB10/60 fire pump (60 L/s at 1.0 MPa)
➤ Roof mounted PL8/48 monitor with 48 L/s flow, water range ≥70 m, and foam range ≥60 m for long distance fire attack
➤ 35000 kg GVW with reinforced 6×6 drivetrain for stable and powerful operation on rough terrain
➤ Full firefighting equipment including hoses, nozzles, foam gun, and basic tool kit for Class B fire fighting
·
» Ⅱ.Product Parameter :
6x6 Fire Emergency Trucks Shacman | |||
General | Work capacity | 8000L water + 4000L foam | |
Truck chassis | SHACMAN 6x6 | ||
Engine Power | 340 HP/ WP10.340E32 | ||
Fire pump | CB10/60 | ||
Fire Monitor | PL8/48 | ||
Maximum Speed | 95 km/h | ||

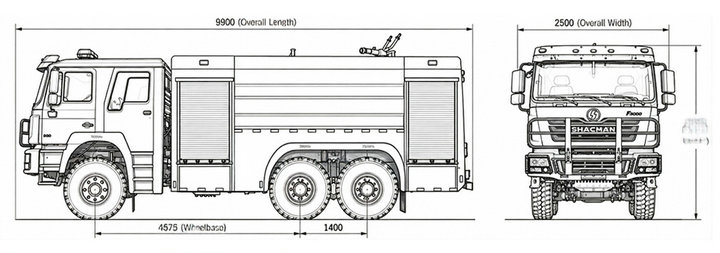

Overall Dimensions L*W*H | 9900*2500*3500 mm | ||
Gross Vehicle Weight | 35000 kg | ||
Curb Weight | 13500 kg | ||
Engine | Engine Model | WP10.340E32 | |
Fuel Type | Diesel | ||
Power | 340 HP（250KW） | ||
Emission Standard | Euro 6 | ||
Displacement | 9726 ml | ||
Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
Chassis | Drive Type | 6x6 | |
Wheelbase | 4575 + 1400 mm | ||
Tire | 14.00R20 | ||
Tire No. | 10 tires and 1 spare tire | ||
Fire Pump | Model | CB10/60 | |
Flux | 60L/s | ||
Pressure | 1MPa | ||
Max working pressure | 1.45MPa | ||
Max allowable inlet pressure | 0.4MPa | ||
Max suction height | 7m | ||
Rated speed | 3450±50r/min | ||
Fire Monitor | Model | PL8/48 | |
Flow | 48L/s | ||
Rated working pressure | 0.8MPa | ||
Max working pressure | 1.2MPa | ||
Range | Water | ≥70m | |
Foam | ≥60m | ||
Pitch rotation | - 35～+70° | ||
Horizontal rotation | 0～360° | ||
Standard Configuration | All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual…… | ||
» Ⅲ.Products Description :
1. Chassis & Powertrain
♦ SHACMAN 6×6 chassis with 4575 + 1400 mm wheelbase, designed for dependable traction across rough terrain, construction sites, and isolated fire scenes.
♦ WP10.340E32 diesel engine, rated at 340 HP, producing stable torque for rugged deployment, uninterrupted pump operation, and extended foam delivery missions.
♦ Manual transmission for direct control and convenient on-site maintenance.
2. Fire Suppression System
♦ 8000L water tank and 4000L foam tank, carbon steel construction with internal baffles to minimize liquid movement on uneven surfaces.
♦ CB10/60 fire pump, 60 L/s flow at 1.0 MPa, PTO driven, 7m suction height, ≤50s priming time.
♦ PL8/48 roof monitor, 48 L/s flow, water range ≥70 m, foam range ≥60 m, horizontal 360° rotation, pitch -35° to +70°.
» Ⅳ.Fire Pump System :
Fire Pump:

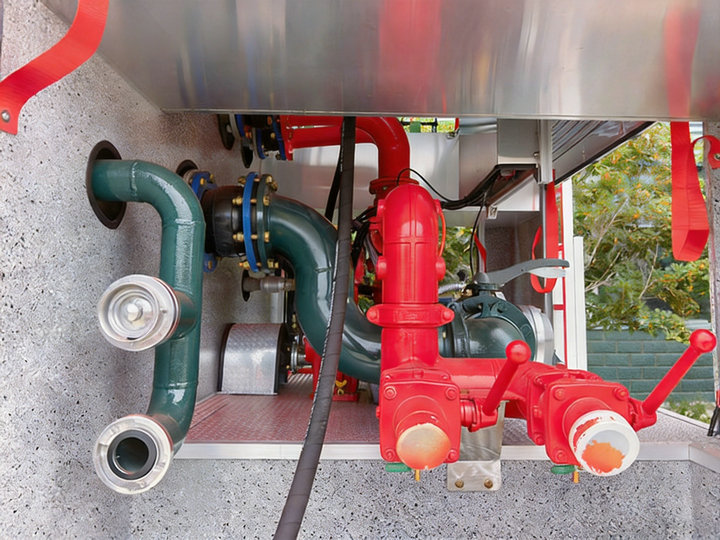

A CB10/60 fire pump with a rated flow of 60 L/s at 1.0 MPa is mounted in the rear pump compartment. This unit is engineered for stable performance, providing steady pressure to fire hoses and the roof monitor for effective long-range delivery during fire suppression tasks.
Fire Pump Model | Flow | Pressure | Max Working Pressure | Max Allowable Inlet Pressure |
CB10/60 | 60 L/s | 1.0MPa | 1.45 MPa | 0.4MPa |

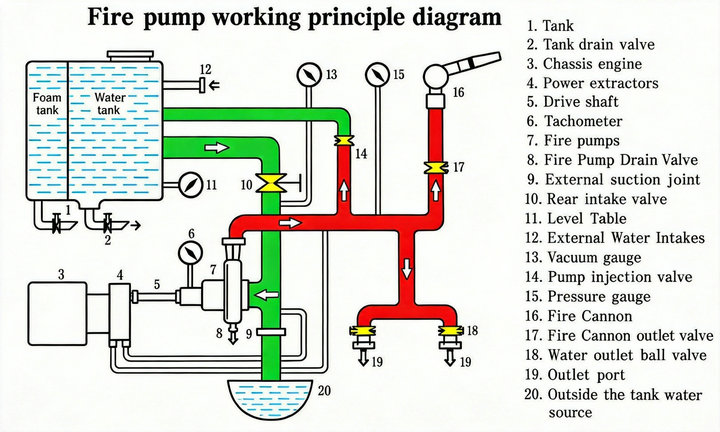

How to Operate Fire Truck Fire Pump:
» Ⅴ.Fire Monitor System :
The PL8/48 fire monitor is positioned on the cab roof. It produces a flow rate of 48 L/s with a water range of ≥70 m and a foam range of ≥60 m. The unit offers both straight stream and spray modes for adaptable firefighting operations.
Fire Monitor Model | Flow | Range | Rated Pressure | Pitch Rotation | Horizontal rotation |
PL8/48 | 48L/s | Water≥70m Foam ≥60m | 0.8MPa | -35°～+70° | 0～360° |
How to Operate Fire Truck Fire Monitor:
1. Ensure the water tank and pipeline are pressurized.
2. Adjust the fire monitor to the required elevation angle, then open the monitor valve.
3. Use the control handle to adjust the nozzle and control water discharge.
» Ⅵ.Firefighting Equipment :

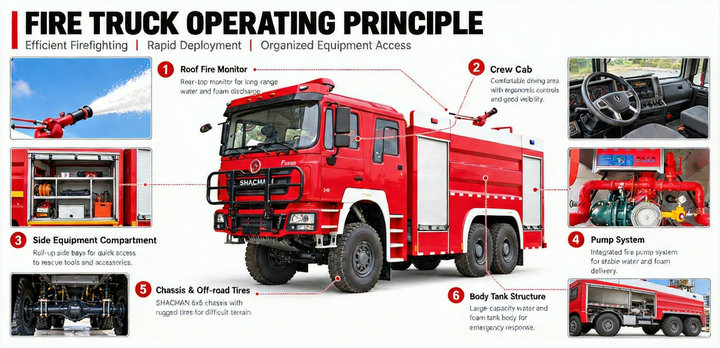

• Equipment Room
Located on both sides of the vehicle, these compartments are equipped with equipment racks and storage trays. The racks keep fire hoses, suction tubes, and foam guns neatly organized. The storage trays provide quick access to tools like wrenches, axes, and crowbars, improving rescue efficiency.
The SHACMAN 6×6 foam fire emergency truck features a rear-installed CB10/60 fire pump and a cab roof mounted PL8/48 monitor. It carries an 8,000L water tank and a 4,000L foam tank on a heavy-duty SHACMAN 6×6 chassis, powered by a 340 HP WP10.340E32 engine. Standard supply includes fire hoses, suction tubes, couplings, a foam gun, and a complete tool kit. With a 35000 kg GVW, it is built for sustained foam firefighting operations.
Full specifications are listed below:
NO | Item | Unit |
1 | Water Suction Pipe (Suction hose Ø 125 mm, length: 4 m) | 2 PC |
2 | Water strainer (Ø 125) | 1 PC |
3 | Water segregator (Ø 80-65-65 mm) | 1 PC |
4 | Water collector (Ø 125-65-65 mm) | 1 PC |
5 | Soft-wall fire hose (Water hose Ø 65 mm, length: 20 m) | 6 SET |
6 | Soft-wall fire hose (Water hose Ø 80 mm, length: 20 m) | 4 SET |
7 | Fast conversion joint (80X65 mm) | 2 PC |
8 | Hose protector | 4 PC |
9 | Hose Hoist | 4 PC |
10 | Ground Hydrant-wrench | 1 PC |
11 | Underground Hydrant-wrench | 1 PC |
12 | Suction Wrench | 2 PC |
13 | Dry Powder Extinguisher | 1 PC |
14 | Fire Fighting Barrel | 1 PC |
15 | Straight flow switch water gun (Ø 65 mm) | 1 PC |
16 | Multi-purpose switch water gun | 1 PC |
17 | Fire Fighting Axe | 1 PC |
18 | Fire Fighting Shovel/Spade | 1 PC |
19 | Fire Axe | 1 PC |
20 | 4M Aluminum Ladder (Optional 10M Aluminum Ladder) | 1 PC |
21 | Original Chassis Tools | 1 PC |
22 | Protective (safety) spectacles | 1 PC |
