HOWO Off Road AWD 6X6 Maintenance Workshop Lube Service Truck
with Separated Diesel Engine Compressor, Separated Hydraulic Oil, Engine Oil, Transmission Oil, Gear Oil, Grease Tank
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
| Quantity: | |
|---|---|
-
8705909990
-
Shanghai, China
-
1000
-
T/T

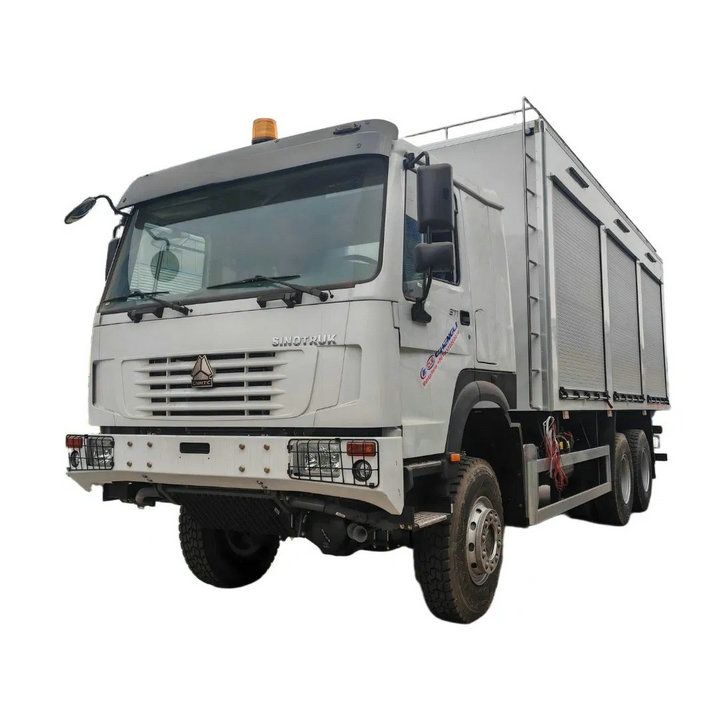

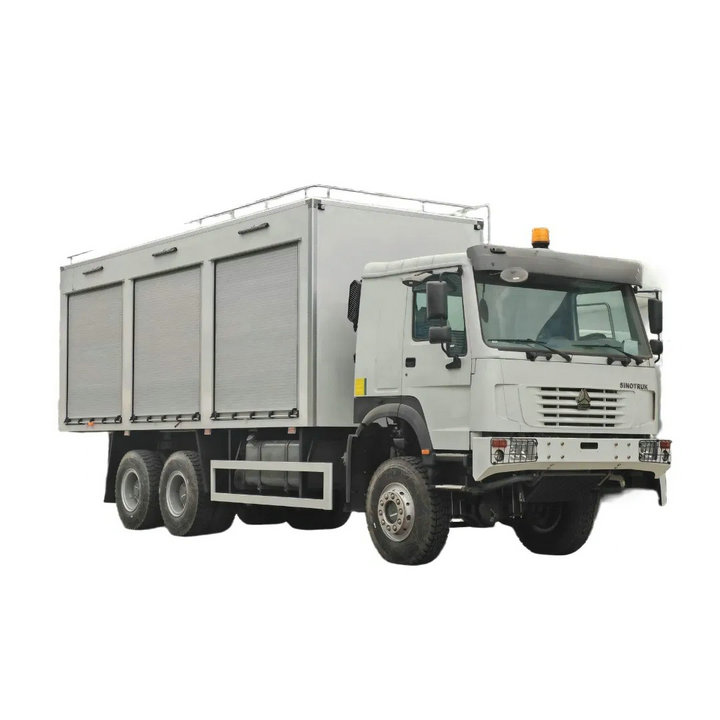

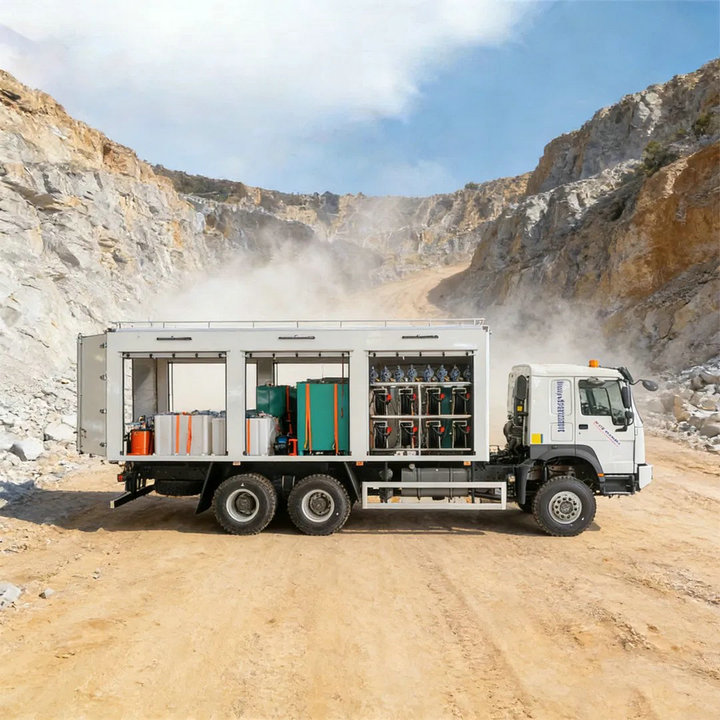

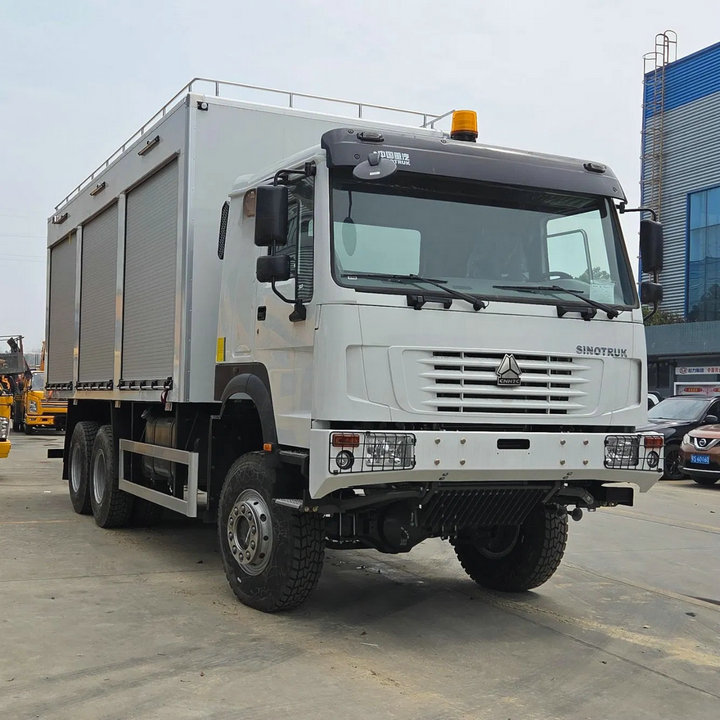

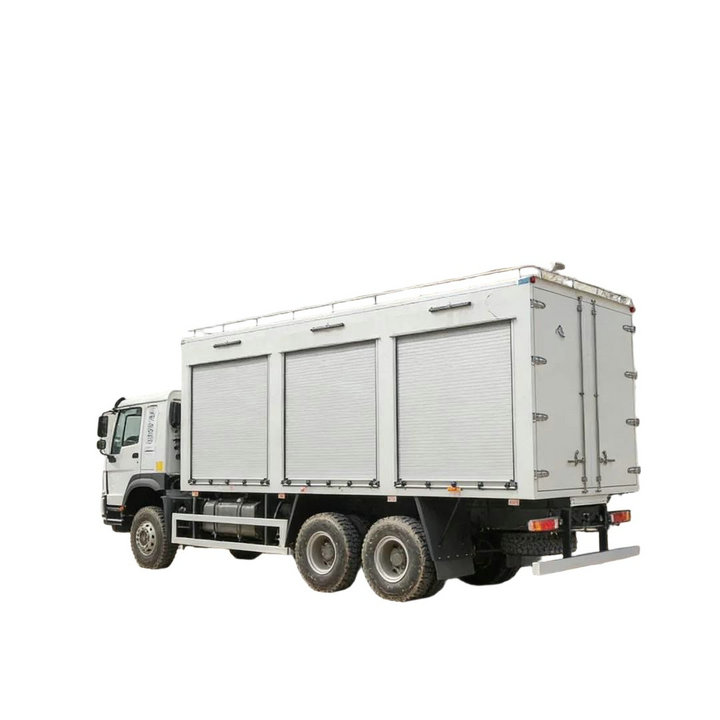

HOWO Off Road AWD 6X6 Maintenance Workshop Lube Service Truck

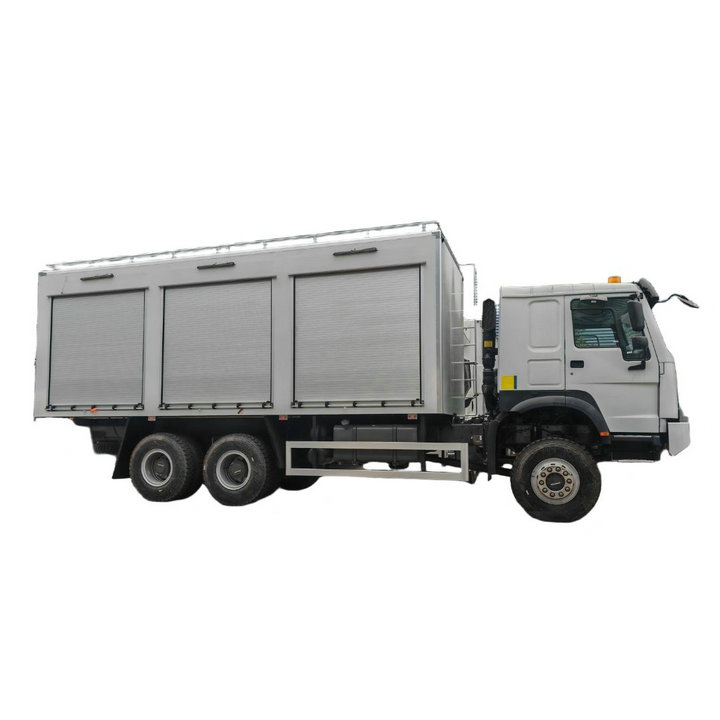

HOWO Off-Road Heavy Duty 6X6 Maintenance Van / Lube Service Truck
Customized Emergency Repair Workshop Rescue Truck for Mining Areas — with Separated Diesel Engine Compressor, Hydraulic Oil, Engine Oil, Transmission Oil, Gear Oil and Grease Tanks. Equipped with Diesel Engine Heater.
Product Highlights
Heavy-Duty Off-Road Platform: 6X4 (front dual steering + rear dual drive), 25-ton GVM, 28° approach / 25° departure angle, 280mm ground clearance — built for mining, oilfield and cross-country emergency repair.
All-in-One Lube & Maintenance: Separated storage for diesel (2000L), engine oil (750L), hydraulic oil (500L), grease (500kg), gear oil (750L), coolant (500L), waste oil & waste water — with anti cross-contamination pneumatic filling system.
Self-Sufficient Power: 30KW Weichai diesel generator (220V/380V) + 17.5KW air compressor (1.05 m³/min, 1.25MPa).
Mobile Workshop: 1500kg electric crane, tool cabinets, operating platform with vise & drill, DC welding machine, high-pressure washer — a full repair shop on wheels.
Customizable: Rated load 12–15 tons, box dimensions, body material (cold-rolled steel / stainless steel / aluminum alloy) all adjustable to your spec.
TECHNICAL SPECIFICATIONS
| Category | Parameter |
|---|---|
| Model | ZZ2257 HOWO 6X6 Off-road Box Van |
| Overall Dimensions (L×W×H) | 8600 × 2500 × 3200 mm |
| Maximum Permissible Total Mass | 25 tons |
| Curb Weight | 11.3 tons |
| Rated Load Capacity | 12–15 tons (Customizable Upgrade) |
| Drive Form | 6X6 (Front Dual Steering + Rear Dual Drive) |
| Top Speed | ≤ 100 km/h |
| Emission Standards | Euro IV / Euro II (Optional) |
| Standard Configuration | Central Lock, Power Windows, ABS Anti-lock System |
| Optional Configuration | Differential Lock, Upgraded Air Conditioner, GPS, Reverse Camera |
| Engine | Weichai WP12 Series (400–430 HP) |
| Engine Model | WP12.400E201 / WP12.430E201 |
| Displacement | 11.596 L |
| Max Power | 294 kW / 317 kW (corresponding HP) |
| Max Torque | 1900 N·m / 2000 N·m |
| Gearbox | SINOTRUK HW19710 / HW19712 |
| Gear | 10F+2R / 12F+2R |
| Clutch | 430 mm Diaphragm Spring Clutch |
| Front Axle | HF9 Axle, 9-ton Load Capacity |
| Rear Axle | HC16 Axle, 16-ton per axle ×2, with Differential Lock |
| Wheelbase | 4600+1350 mm (Off-road Customized) |
| Fuel Tank | 400 L Aluminum Alloy Fuel Tank |
| Driver's Cab | HW76/HW79 High-roof Double Sleeper Cab |
| Cab Configuration | 4-point Airbag Suspension, Air Conditioner, Power Windows |
| Box Dimensions (L×W×H) | 5600 × 2300 × 1800 mm (Adjustable Customization) |
| Body Material | Cold-rolled Steel / Stainless Steel / Aluminum Alloy (Optional) |
| Approach Angle | 28° (Off-road Enhanced) |
| Departure Angle | 25° (Off-road Enhanced) |
| Min. Ground Clearance | 280 mm (Off-road Exclusive) |
| Tire Specifications | 12.00R20 / 315/80R22.5 Off-road Tire |
| Chassis Frame | 300×80×8 mm High-strength Ladder Frame |
| Front Suspension | 10-leaf Semi-elliptic Leaf Spring + Hydraulic Shock Absorber |
| Rear Suspension | 12-leaf Semi-elliptic Leaf Spring + Stabilizer Bar |
| Service Brakes | Dual-circuit Pneumatic Brake |
| Parking Brake | Spring-energized Parking Brake |
| Assist Braking | Engine Exhaust Brake |
| Steering System | ZF8118 Hydraulic Power Steering |
MAINTENANCE SERVICE — UPPER CONFIGURATION
I. Body & Foundation Structure
| Item | Description |
|---|---|
| Cargo Box Structure | Outer carbon steel plate + steel frame; overall electrophoretic coating followed by painting; internal sound insulation cotton + aluminum alloy checkered plate |

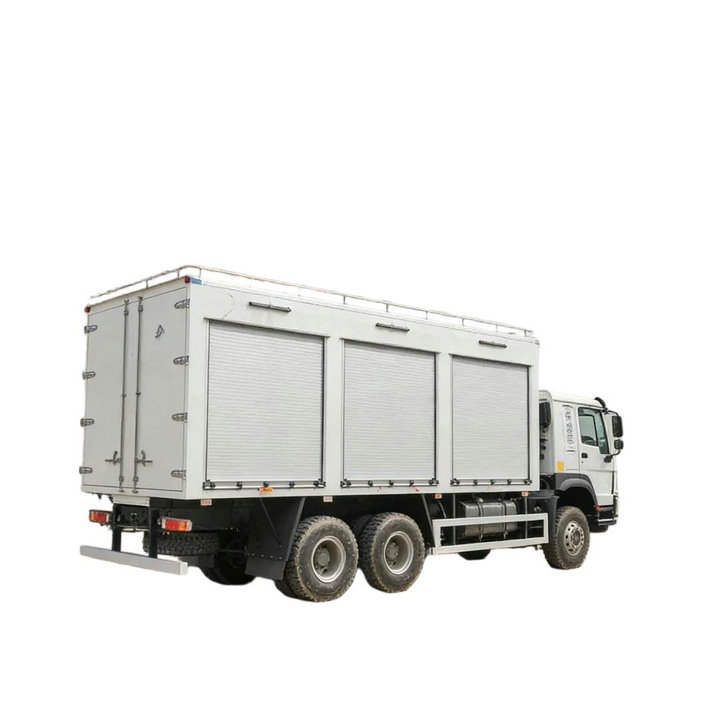

| Side Doors & Lighting | 3 roller shutter doors on each side with LED lights above; rear door light; top marker light; rear strobe light |
| Sub-beams & Protection | Electrophoretic coating process for sub-beams; aluminum alloy side protection; rear access ladder |

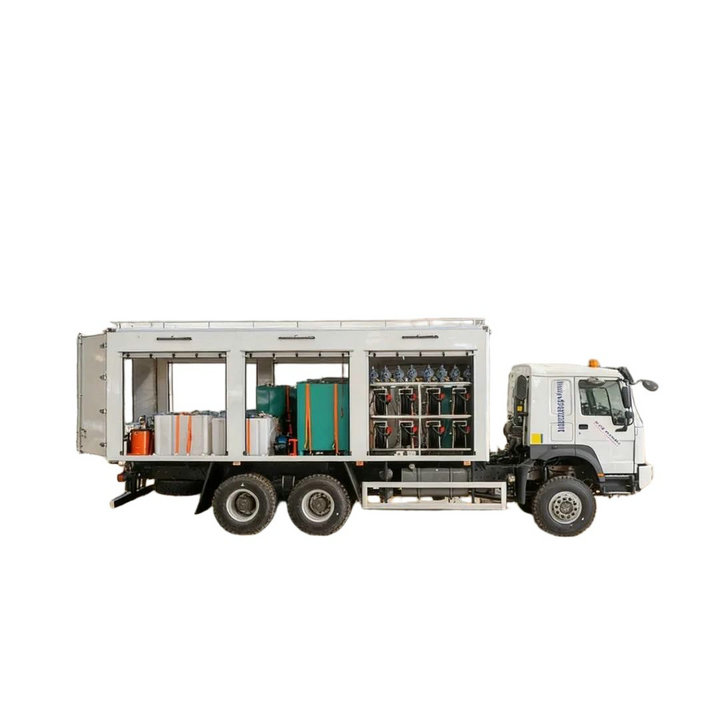

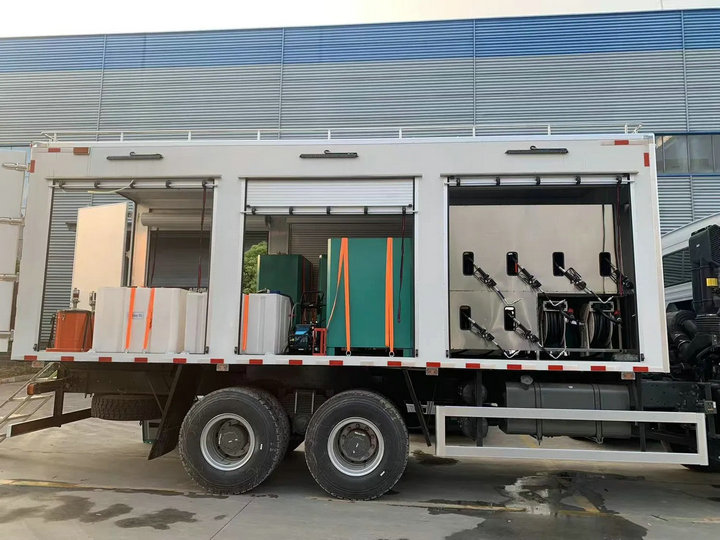

II. Liquid Storage Tank System
| Tank | Capacity | Remarks |
|---|---|---|
| Diesel Tank | 2000 L | × 1 |
| Engine Oil Tank | 750 L | × 1 (SAE50) |
| Hydraulic Oil Tank | 500 L | × 1 (plastic-lined) |
| Grease Tank | 500 kg | × 1 |
| Gear Oil Tank | 750 L | × 1 (SAE90) |
| Coolant Tank | 500 L | × 1 (plastic-lined) |
| Waste Oil Tank | 500 L | × 1 (plastic-lined) |
| Waste Water Tank | 500 L | × 1 |
III. Filling & Recovery System
| Item | Description |
|---|---|
| Pneumatic Filling Pump Set | Pneumatic pump on every tank + high-pressure hose reel + filling gun (anti cross-contamination design) |
| Cleaning System | Mini high-pressure car washer (hose reel + water gun) |
TOOL VEHICLES (EQUIPMENT LIST)
| Item | Description | Parameters | Qty |
|---|---|---|---|
| Van Assembly | Customized; approx. 5500×2500 mm; 3mm patterned board bottom + 1.5mm corrugated board; LED lights, sockets, circuit. Generator compartment front / work compartment rear, separated by corrugated board with 600mm working door; single-sided rear-opening doors on generator compartment sides; pair of rear-opening doors + 2 sliding windows each side on work compartment; double rear doors; all doors sealed with locks; top pole-style small doors on each side | Customized | 1 |
| Electric Generating Unit | Diesel, Weichai engine; pure copper brushless silent motor | 220V/380V, 30KW | 1 |

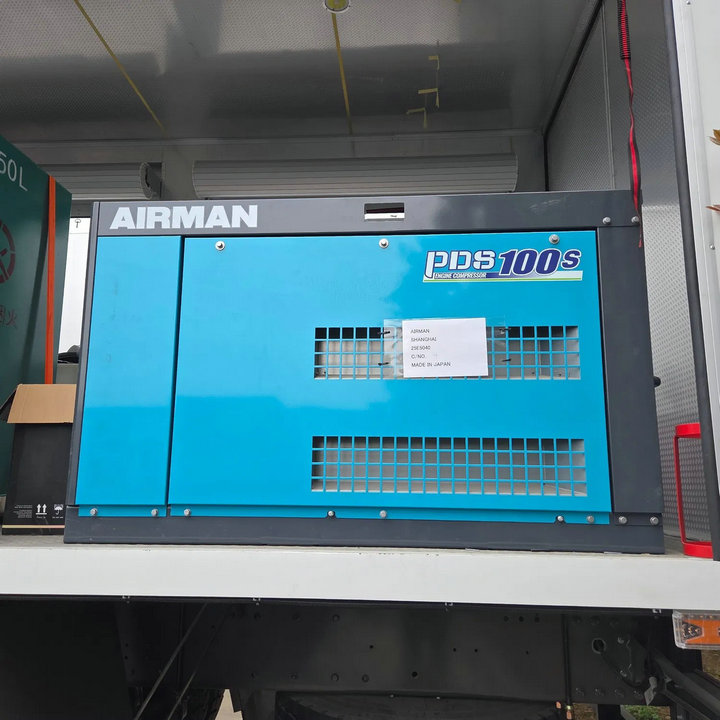

| Air Compressor | — | Air displacement 1.05 m³/min; air source 1.25MPa | 1 |
| Crane | Electric motor lifting, manual control | 17.5KW, 1500 kg | 1 |
| Customized Tool Cabinet | 4-layer storage for tools & accessories | Customized | 1 |
| Operating Platform (with drawers) | Vise, drill, hanging board, bending mechanism | Customized | 1 |
| Lubricant Filling Pump (Pneumatic) | 3:1 ratio pneumatic pump; inlet joint G1/4; oil delivery 15 L/min | Pneumatic | 4 |
| Lubricant Roller | High-pressure steel wire pipe, 15 m | 15 m | 4 |
| Lubricant Fixed Oil Tank | Fixed welding; 200 L per box for oil storage | Customized | 4 |
| Refueling Gun with Flow Counting | Oil gauge gun with scroll tube | — | 1 |
| DC Welding Machine | Three-phase 380V high-power pure copper module IGBT inverter | DC | 1 |
| Oil Basin | Large metal oil basin | Large | 1 |
| Big Wind Cannon | THDW-3SB3O pneumatic impact wrench (Gale Cannon) | Pneumatic | 1 |
| Small Wind Cannon | Shida 1/2" head | 1/2" | 1 |
| Mobile Tool Cart | 5-layer drawer tool cart | — | 1 |
| High-Pressure Washer | Roll-tube gun | — | 1 |
| Water Tank | Metal frame tank | 500 L | 1 |
| Power Management | Lighting & circuit switches | Customized | 1 |
| Wire Reel | Power supply transmission | 50 m manual contraction | 1 |
| Air Drum | Air source delivery | 10 m self-contraction | 1 |
| Fixed Strap-Lock | High-strength, wear-resistant | — | 4 |
| Tool Kit | — | — | 1 |
| Rechargeable Electric Wrench | — | — | 1 |
| Rechargeable Polishing Machine | — | — | 1 |
| Rechargeable Cobalt Flashlight | — | — | 1 |
