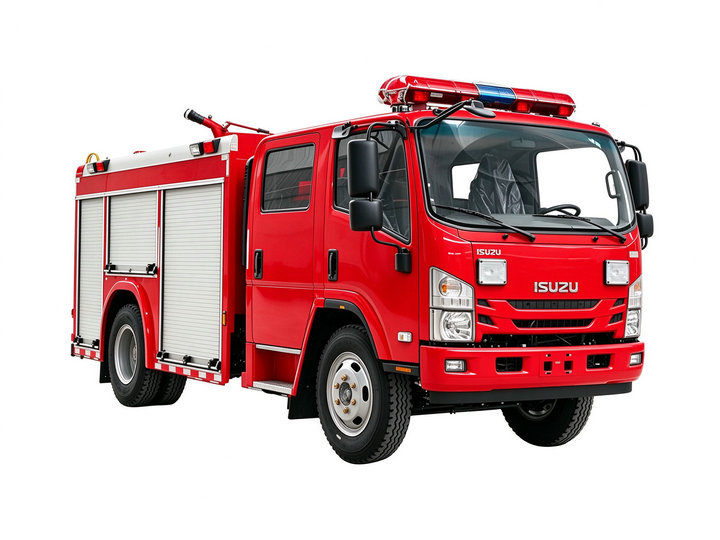

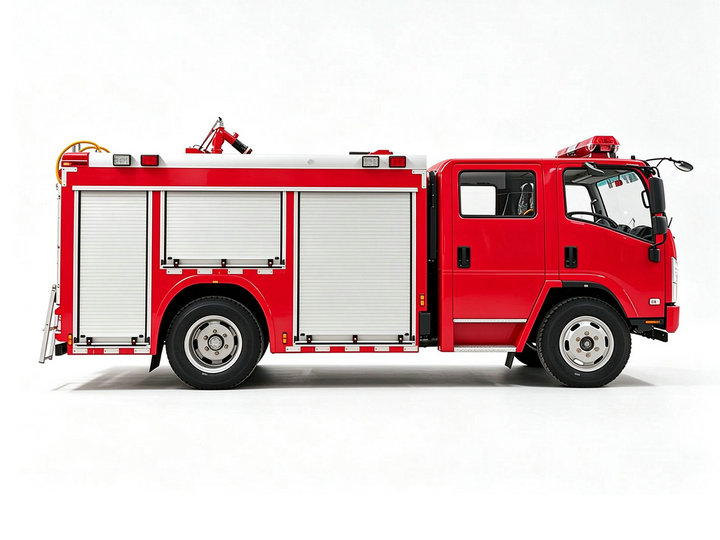

ISUZU NPR ATM 189HP Water Foam Fire Fighting Truck 2500L Water + 1000L Foam
Water ≥60 m, Foam ≥48 m
Allison Automatic Transmission
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
| Quantity: | |
|---|---|
|
| |
-
DRZ5110XFQL
-
DRZ
-
8705309000
ISUZU NPR ATM 189HP Water Foam Fire Fighting Truck 2500L Water + 1000L Foam
| Truck Chassis: | ISUZU NPR ATM 4x2 |
| Tanker Capacity: | 2500L water + 1000L foam |
| Engine Power: | 189 HP (139 kw) / 4HK1-TCG61 |
| Fire Pump: | CB10/ 40 |
| Pump Flow: | 40 L/s |
| Work Pressure: | 1.0 Mpa |
| Fire Monitor: | PL8/32 |
| Monitor Flow: | 32 L/s |
| Monitor Range: | Water ≥60 m, Foam ≥48 m |
ISUZU 189HP foam water truck features a 2500L water tank, a 1000L foam tank, a CB10/40 fire pump (40 L/s at 1.0 MPa), and a roof mounted PL8/32 fire monitor with 60m water range and 48m foam range.
This fire truck carries a full set of standard firefighting equipment including hoses, suction tubes, couplings, and a foam gun. This ISUZU foam water truck works well for Class B fires involving oil, gasoline, and chemicals. It suits firefighting tasks at oil depots, chemical plants, airports, and industrial facilities.
Working Capacity | Engine Model | Wheelbase | Superstructure |
2500L water + 1000L foam | 189 HP / 4HK1-TCG61 | 3360mm 3815 mm | ★ Tank carbon steel, 3500L capacity ★ CB10/40 fire pump, 40 L/s flow at 1.0 MPa ★ PL8/32 roof monitor, 32 L/s flow with water ≥60 m, foam ≥48 m ★ Transmission: ATM Allison Automatic |
» Ⅰ. Main Features :
★ 4HK1-TCG61 engine rated at 189 HP for foam fire suppression and emergency response
★ ISUZU 4×2 chassis with 2500L water tank, 1000L foam tank, and CB10/40 fire pump (40 L/s at 1.0 MPa)
★ Roof mounted PL8/32 monitor with 32 L/s flow, water range ≥60 m, and foam range ≥48 m for long distance fire attack
★ Allison automatic transmission for smooth operation in city traffic
★ Complete standard equipment including fire hoses, suction tubes, couplings, and foam gun for Class B fire fighting
» Ⅱ.Product Parameter :
ISUZU NPR ATM Foam Fire Truck Philippines | |||
General | Work capacity | 2500L water + 1000L foam | |
Truck chassis | ISUZU ATM 4x2 | ||
Engine Power | 189 HP/ 4HK1-TCG61 | ||
Fire pump | CB10/40 | ||
Fire Monitor | PL8/32 | ||
Maximum Speed | 110 km/h | ||
Overall Dimensions LxWxH | 6945x2250x3130 mm | ||
Gross Vehicle Weight | 10550 kg | ||
Curb Weight | 5850 kg | ||
Engine | Engine Model | 4HK1-TCG61 | |
Fuel Type | Diesel | ||
Power | 189 HP（139KW） | ||
Emission Standard | Euro 6 | ||
Displacement | 5193 ml | ||
Engine Type | 4 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
Chassis | Drive Type | 4x2 | |
Wheelbase | 3360mm;3815 mm | ||
Tire | 235/75R17.5 16PR | ||
Tire No. | 6 tires and 1 spare tire | ||
Model | CB10/40 | ||
Flux | 40L/s | ||
Pressure | 1MPa | ||
Fire Pump | Max working pressure | 1.251MPa | |
Max allowable inlet pressure | 0.4MPa | ||
Max suction height | 3m | ||
Rated speed | 3916±50r/min | ||
Speed ratio | 1:1.4 | ||
Water diversion time | ≤50s | ||
Fire Monitor | Model | PL8/32 | |
Flow | 32L/s | ||
Rated working pressure | 0.8MPa | ||
Max working pressure | 1.2MPa | ||
Range | Water | ≥60m | |
Foam | ≥48m | ||
Pitch rotation | - 35～+70° | ||
Horizontal rotation | 0～360° | ||
Standard Configuration | All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual…… | ||
» Ⅲ.Products Description :
1. Chassis & Powertrain
♦ ISUZU 4×2 chassis with 3360mm or 3815 mm wheelbase, designed for stable urban operation and reliable maneuverability in city streets.
♦ 4HK1-TCG61 diesel engine, rated at 189 HP, delivering strong torque for quick response, continuous pump operation, and long-duration foam fire suppression.
♦Allison automatic transmission for smooth acceleration and easy driving in congested traffic.
2. Fire Suppression System
♦ 2500L water tank and 1000L foam tank, carbon steel construction with internal baffles to reduce liquid surge.
♦ CB10/40 fire pump, 40 L/s flow at 1.0 MPa, PTO driven, 3m suction height, ≤50s priming time.
♦ PL8/32 roof monitor, 32 L/s flow, water range ≥60 m, foam range ≥48 m, horizontal 360° rotation, pitch -35° to +70°.
» Ⅳ.Fire Pump System :
Fire Pump:

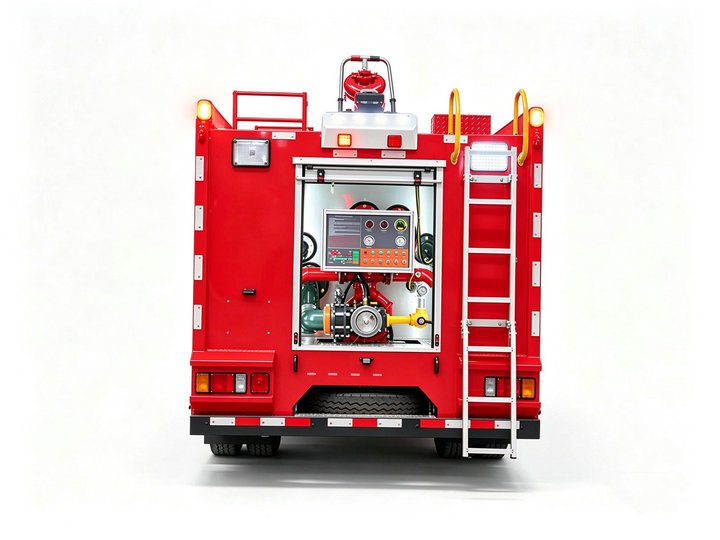

A CB10/40 fire pump with a rated flow of 40 L/s at 1.0 MPa is installed in the rear pump room. This pump is built for reliable performance, providing steady water pressure to ensure fire hoses and monitors can deliver water or foam effectively over long distances for fire suppression.
Fire Pump Model | Flow | Pressure | Max Working Pressure | Max Allowable Inlet Pressure |
CB10/40 | 40L/s | 1.0MPa | 1.251 MPa | 0.4MPa |
Control panel:
Includes operating instructions, tank piping diagram, pressure gauge, water level gauge, foam level gauge, emergency stop, PTO control, main power switch, pump controls, and compartment lighting. All controls are clearly marked for straightforward operation.
» Ⅴ.Fire Monitor System :

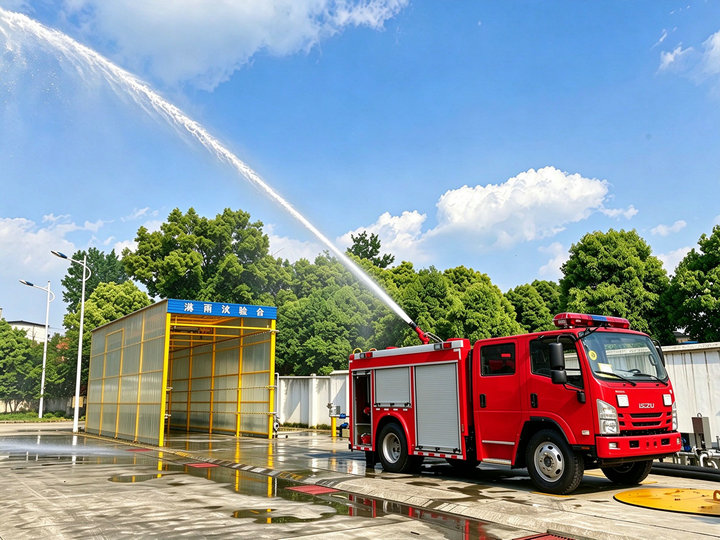

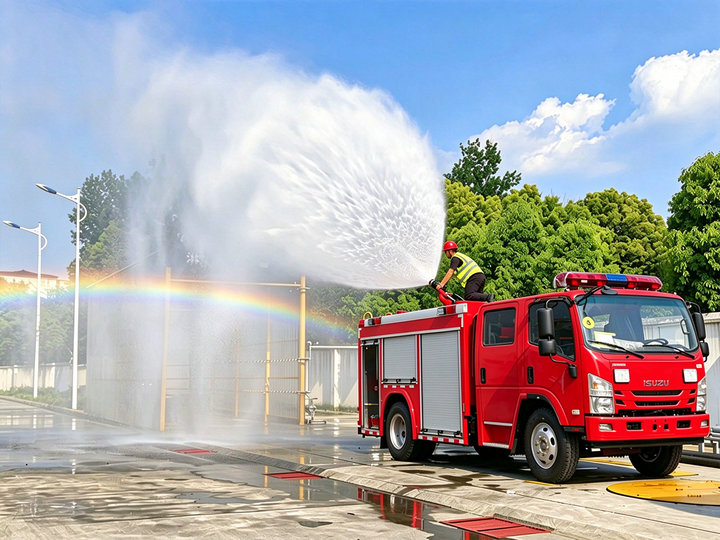

The PL8/32 fire monitor is mounted on the cab roof. It delivers a flow rate of 32 L/s with a water range of ≥60 m and a foam range of ≥48 m. The monitor supports both straight stream and spray patterns for flexible firefighting operations.
Fire Monitor Model | Flow | Range | Rated Pressure | Pitch Rotation | Horizontal rotation |
PL8/32 | 32L/s | Water≥60m Foam ≥48m | 0.8MPa | -35°～+70° | 0～360° |
» Ⅵ.Firefighting Equipment :

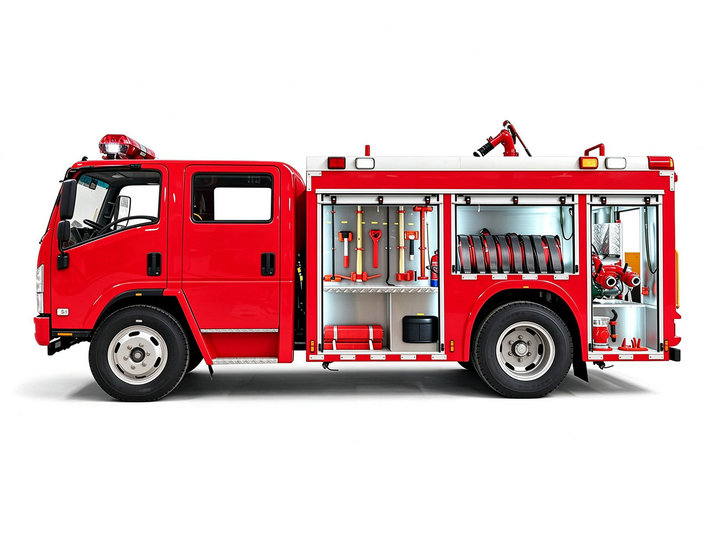

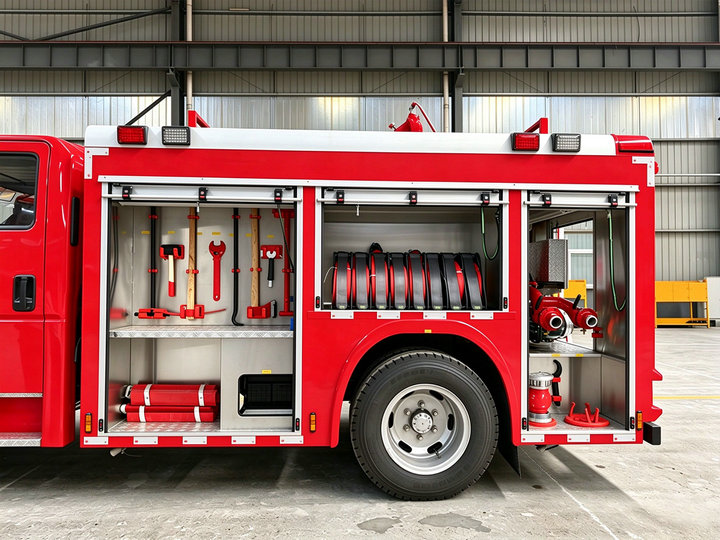

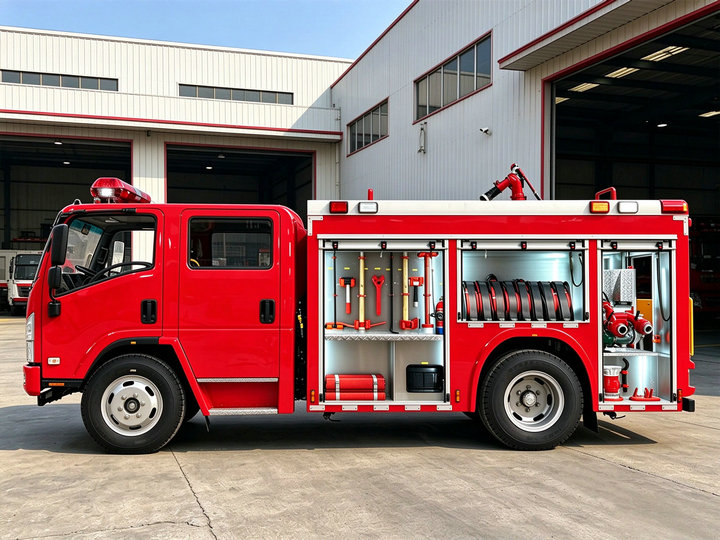

• Equipment Room

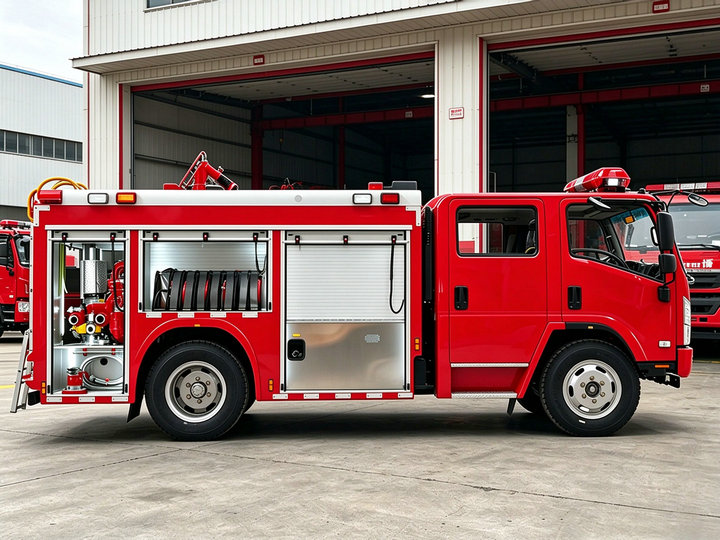

Located on both sides of the vehicle, these compartments are equipped with equipment racks and storage trays. The racks keep fire hoses, suction tubes, and foam guns neatly organized. The storage trays provide quick access to tools like wrenches, axes, and crowbars, improving rescue efficiency.

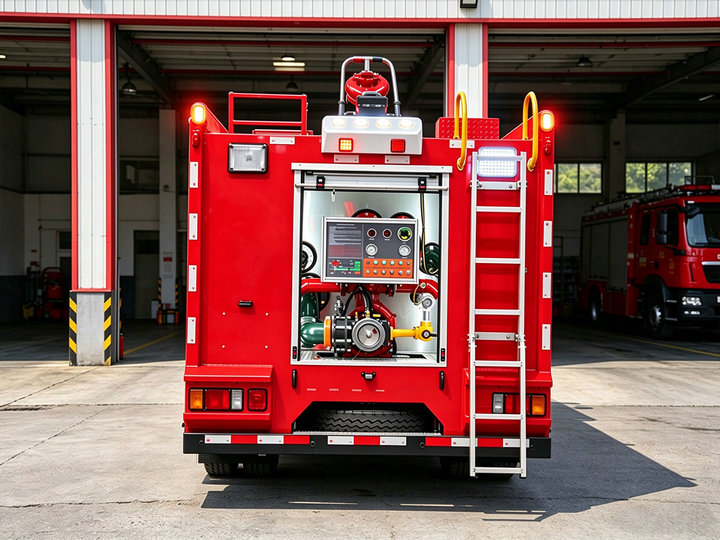

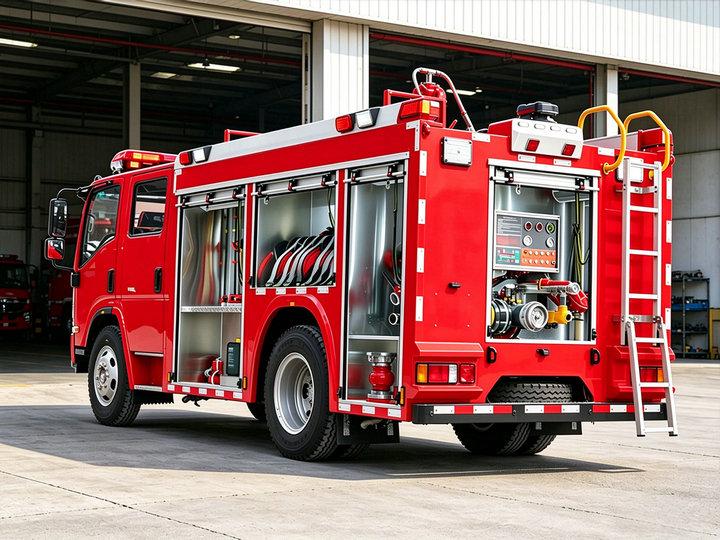

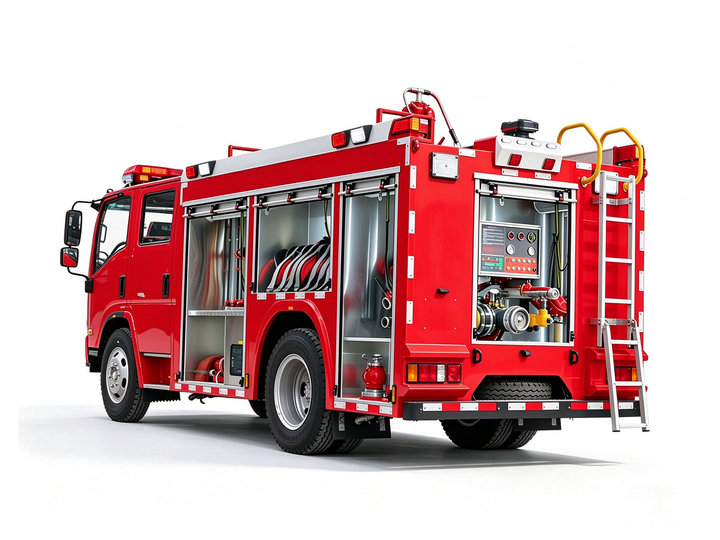

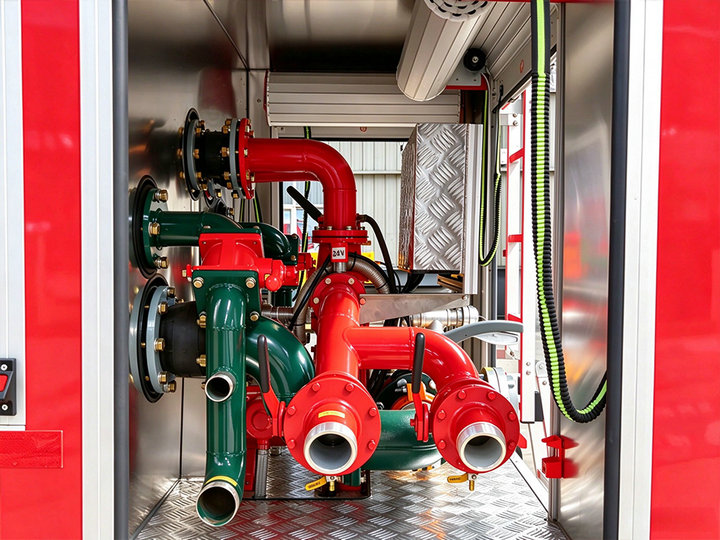

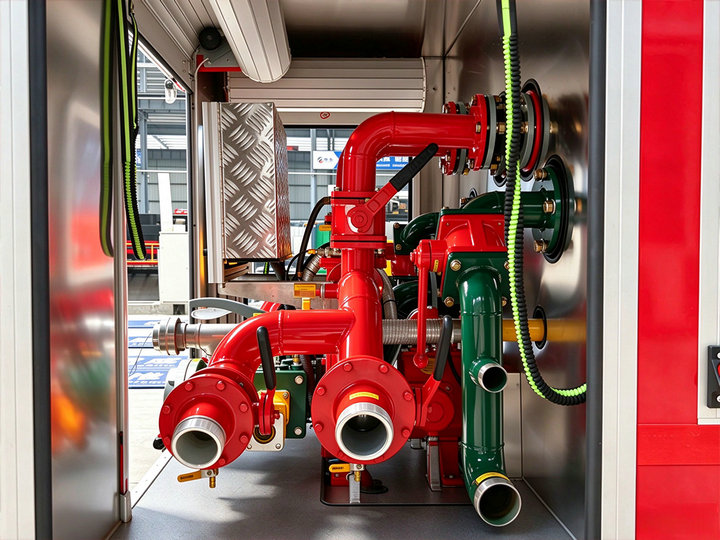

• Pump Room: Equipped with CB10/40 fire pump, control panel, pressure gauge, vacuum gauge, and lighting system. Accessories include fire hoses, suction hoses, collectors, strainers, fire nozzles, foam guns, suction hose wrenches, and reducers.
The ISUZU NPR foam fire truck comes with a rear-mounted CB10/40 fire pump and a cab top PL8/32 monitor. The water tank holds 2,500 liters, and the foam tank holds 1,000 liters, sitting on a sturdy ISUZU 4×2 chassis powered by a 189 HP 4HK1-TCG61 engine with Allison automatic transmission. Standard gear includes fire hoses, suction tubes, couplings, a foam gun, and a complete tool kit. Full specifications are listed below:
Full specifications are listed below:
NO | Item | Unit |
1 | Water Suction Pipe (Suction hose Ø 125 mm, length: 4 m) | 2 PC |
2 | Water strainer (Ø 125) | 1 PC |
3 | Water segregator (Ø 80-65-65 mm) | 1 PC |
4 | Water collector (Ø 125-65-65 mm) | 1 PC |
5 | Soft-wall fire hose (Water hose Ø 65 mm, length: 20 m) | 6 SET |
6 | Soft-wall fire hose (Water hose Ø 80 mm, length: 20 m) | 4 SET |
7 | Fast conversion joint (80X65 mm) | 2 PC |
8 | Hose protector | 4 PC |
9 | Hose Hoist | 4 PC |
10 | Ground Hydrant-wrench | 1 PC |
11 | Underground Hydrant-wrench | 1 PC |
12 | Suction Wrench | 2 PC |
13 | Dry Powder Extinguisher | 1 PC |
14 | Fire Fighting Barrel | 1 PC |
15 | Straight flow switch water gun (Ø 65 mm) | 1 PC |
16 | Multi-purpose switch water gun | 1 PC |
17 | Fire Fighting Axe | 1 PC |
18 | Fire Fighting Shovel/Spade | 1 PC |
19 | Fire Axe | 1 PC |
20 | 4M Aluminum Ladder (Optional 10M Aluminum Ladder) | 1 PC |
21 | Original Chassis Tools | 1 PC |
22 | Protective (safety) spectacles | 1 PC |
Isuzu firefighting trucks list
Model | Engine model | Water | Foam | Fire Pump | Fire Monitor |
Isuzu Pick Up | 4KH1CT6H1 / 143HP | 500L | 100L | Independent Fire Pump | PL8/20W |
Isuzu mini ELF / NKR / 100P | 4KH1CN6LB / 120HP 4KB1-TCG61 / 130HP | 1000L 2000L | 1000L 500L | CB10/20 (20L/s) CB10/30 (30L/s) | PL8/24W (24L/S) |
Isuzu NPR / ELF | 4KH1N6MD / 140 HP 4KH1N6HD / 150HP | 2000L | 1000L |
CB10/30 (30L/s) | PL8/24W (24L/S) |
Isuzu ELF / 700P | 4HK1-TCG61 / 190HP 4HK1-TCG60 / 205HP | 3000L 4000L | 1500L 500L | CB10/30 (30L/s) CB10/40 (40L/s) | PL8/24W (24L/S) PL8/32W (32L/S) |
Isuzu GIGA 4X | 4HK1-TCG60 / 205HP | 5000L | 1000L | CB10/40 (40L/s) | PL8/32W (32L/S) |
Isuzu GIGA 5X | 6HK1-TCG61 / 240HP 6HK1-TCG60 / 300HP | 5000L 6500L | 1000L 500L | CB10/40 (40L/s) CB10/60 (60L/s) | PL8/32W (32L/S) PL8/48W (48L/S) |
Isuzu GIGA (4x2) | 6UZ1-TCG61 / 350HP 6UZ1-TCG60 / 380HP 6WG1-TCG61 / 460HP | 5000L 5000L 6000L | 1000L 2000L 2000L | CB10/60 (60L/s) CB10/80 (80L/s) CB10/100 (100L/s) | PL8/48W (48L/S) PL8/64W (64L/S) PL8/80W (80L/S) |
Isuzu GIGA (6x4) | 6UZ1-TCG61 / 350HP 6UZ1-TCG60 / 380HP 6WG1-TCG60 / 420HP 6WG1-TCG61 / 460HP 6WG1-TCG62 / 520HP | 9000L 10000L 12000L | 1000L 2000L 2000L | CB10/60 (60L/s) CB10/80 (80L/s) CB10/100 (100L/s) | PL8/48W (48L/S) PL8/64W (64L/S) PL8/80W (80L/S) |
Isuzu GIGA (8x4) | 6WG1-TCG60 / 420HP 6WG1-TCG61 / 460HP 6WG1-TCG62 / 520HP | 10000L 12000L 14000L | 4000L 4000L 2000L | CB10/60 (60L/s) CB10/80 (80L/s) CB10/100 (100L/s) | PL8/48W (48L/S) PL8/64W (64L/S) PL8/80W (80L/S) |
ISUZU Chassis list:
Chassis Model | Horsepower | Wheelbase | Engine Model | Transmission Option | Cab Configuration |
ISUZU FVR (4x2) | 240 HP | 4500/5550/5800 /6300/7150 | 6HK1-TCG61 | FAST 8-speed Transmission | New ISUZU VC61 Series Cab |
ISUZU FVZ (4x2 /6x4) | 300 HP | 4500/ 7150 4350+1370/4650+1370 5100+1370/5800+1370 1850+2980+1370 1850+4575+1370 | 6HK1-TCG60 | FAST 9-speed Transmission | New ISUZU VC61 Series Cab |
ISUZU VC66 Series 6x4 | 350 HP | 1850+4575+1370 | 6UZ1-TCG61 | ZF 8-speed (ZF8) / FAST 12-speed | New ISUZU VC61 Series Cab |
ISUZU VC66 Series (4x2 /6x4/8x4) | 380 HP | 3900/4600/5600 3900+1370 3985+1370 4600+1370 1850+3000+1370 1850+2980+1370 | 6UZ1-TCG61 | ZF 8-speed (ZF8) / FAST 12-speed | New ISUZU VC61 Series Cab |
ISUZU VC66 Series(6x4 ) | 420 HP | 4800+1370 5200+1370 | 6WG1-TCG60 | ZF 8-speed (ZF8) / FAST 12-speed | New ISUZU VC61 Series Cab |
ISUZU VC66 Series | 460 HP | 4600 4600+1370 4800+1370 5200+1370 5400+1370 2100+4325+1370 1850+4575+1370 | 6WG1-TCG61 | ZF 8-speed (ZF8) / FAST 12-speed | New ISUZU VC61 Series Cab |
ISUZU VC66 Series( 6x4/8x4) | 520 HP | 4800+1370 5400+1370 2100+4325+1370 | 6WG1-TCG62 | ZF 8-speed (ZF8) / FAST 12-speed | New ISUZU VC61 Series Cab |
