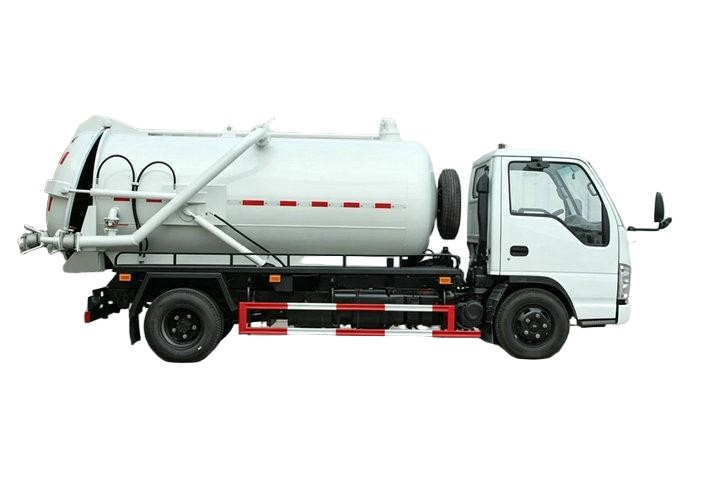

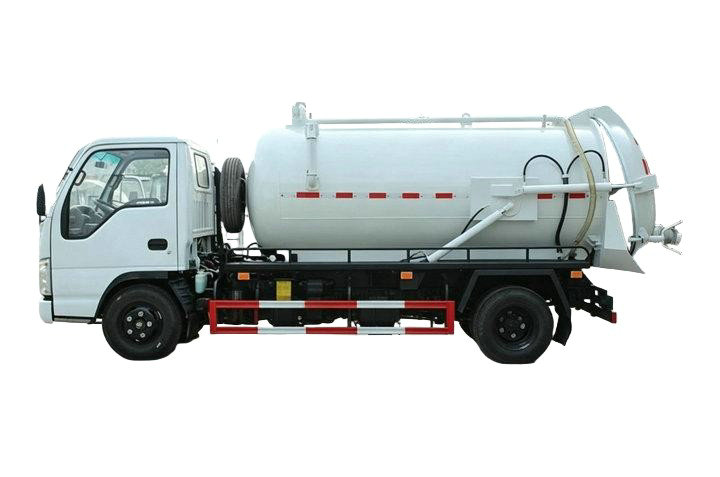

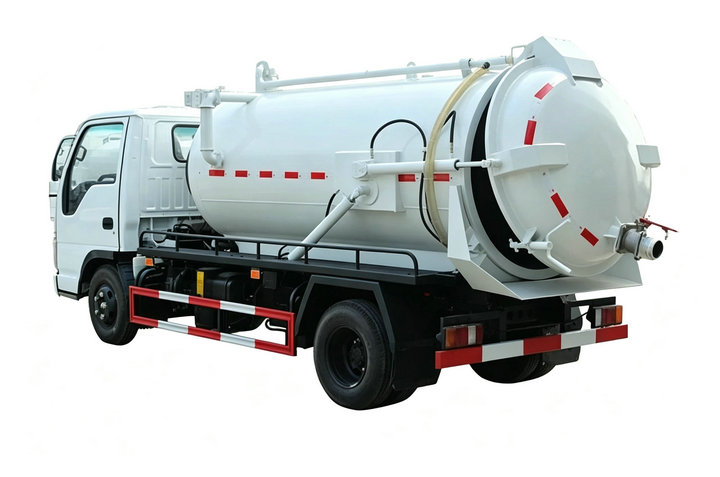

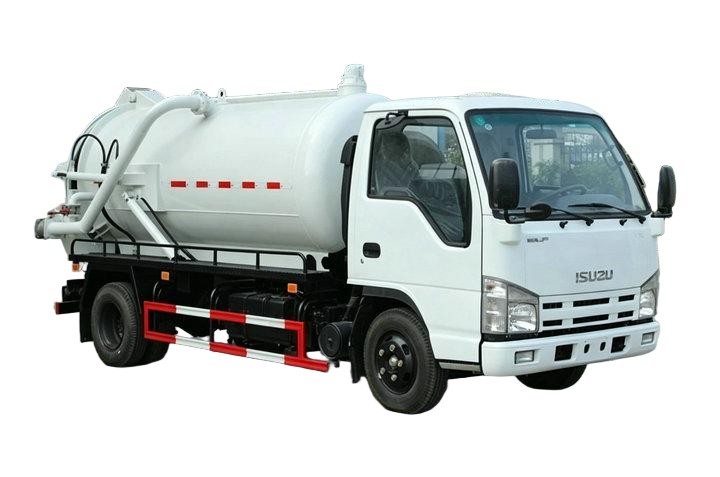

Isuzu NPR Vacuum 3KL Cesspit Emptier Tank Truck

Isuzu NPR Vacuum 3KL Cesspit Emptier Tank Truck
Tank capacity can be customized 2KL- 3KL
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
Price: $ 22800
Discount Price: $ 21800
Availability:
Quantity:

  • DRZ5030XWQL

  • DRZ

  • 8705909990

 Isuzu NPR Vacuum 3KL Cesspit Emptier Tank Truck

Customized Isuzu NKR Vacuum Suction Truck built on authentic Isuzu NKR light-duty chassis, also available on Isuzu FTR, NPR, ELF platforms. Our Isuzu sewage suction tanker is equipped with high-performance industrial vacuum pump for suction of sewage, sludge, fecal waste, slurry and semi-solid waste from sewer pipelines, septic tanks, sewage stations and construction sites.
The vacuum suction truck assembly consists of a carbon steel sewage storage tank, heavy-duty vacuum pump set, hydraulic rear cover system, suction hoses and complete filtering accessories. The vacuum pump generates stable negative pressure to draw waste materials into the sealed tank for centralized transportation and safe discharge.
We provide flexible customization: tank capacity ranges from 2 CBM up to 18 CBM. Besides Isuzu chassis, alternative chassis brands include Sinotruk Howo, Foton, Dongfeng and FAW. Vacuum pumps can be fitted with domestic Weilong pumps or imported Jurop vacuum pumps according to client demand.

【Key Features】

✅ Built on Isuzu NKR light truck chassis, flexible operation, ideal for narrow urban roads and construction zones

✅ Reliable Isuzu diesel engine, strong power, low fuel consumption

✅ Premium Chinese Weilong vacuum pump system, cost-effective with stable suction performance

✅ Complete auxiliary system: water-gas separator, oil-gas separator, anti-overflow valve, floating ball level alarm, pressure gauge

✅ Hydraulic controlled rear tank cover with manual locking device

✅ 12-month warranty for spare parts; one-year quality guarantee on core components (engine, gearbox, axle, tank body, vacuum pump)

✅ Overseas on-site technical training service available for foreign customers

【Technical Specification】

Chassis Information Isuzu 4KH1CN6LB Euro 6 emission engine, rated power 120 HP (88 kW), matched with Isuzu MSB 5-speed manual transmission.

Cab Configuration: factory air conditioner, hydraulic power steering, central locking, electric windows, multi-function LCD instrument panel.

Axle Capacity: Front axle load: 2–2.5 tons; Rear axle load: 4–4.8 tons, ABS braking system as standard.

Tire Specification: Standard tires: 700R16. Models with 2490 wheelbase for blue plate license adopt 700R15 tires.

Brake System: Hydraulic brake or air brake optional based on different chassis models.

Cab Type: Single-row cab is tiltable; double-row cab is non-tiltable.

Remark: Green painted vehicles are equipped with Isuzu 4KK1N6LB engine, 120 HP, displacement 2.5 L.

  • Model: Isuzu NKR Light-duty Truck

  • Drive Mode: 4×2, left-hand drive

  • Overall Dimension (L×W×H): 5970 x 2500 x 3400 mm

  • Wheelbase: 3360 mm

  • Wheel Track (Front/Rear): 2022 / 1830 mm

  • Approach / Departure Angle: 16° / 18°

  • Curb Weight: 7300 KG

  • Rated Payload: 5000 KG

  • Front Axle Load: 2500 KG; Rear Axle Load: 4800 KG

  • Max Driving Speed: 90 km/h

  • Engine Model: 4-stroke inline 4-cylinder turbocharged intercooled diesel engine

  • Horsepower: 120 HP; Emission Standard: Euro  5/6

    Item

    Specification

    Engine Model

    4KH1CN6LB (Euro 6), 120 HP / 88 kW

    4KK1N6LB, 120 HP, 2.5L

    Gearbox

    Isuzu MSB 5-speed manual

    Cab Features

    A/C, power steering, central lock, electric windows, multi-function LCD dashboard

    Axle Rating

    Front axle: 2–2.5 t; Rear axle: 4–4.8 t, ABS standard

    Tyres

    Standard:700R16;2490wb blue-plate model:700R15

    Brake

    Hydraulic brake / Air brake optional (depends on chassis model)

    Cab

    Single row: tiltable; Double row: non-tiltable

Sewage Vacuum Tank
  • Effective Volume: 3000 L (3 CBM)

  • Tank Material: Carbon Steel Q235-B

  • Thickness: Tank shell 4 mm, end sealing plate 5 mm

  • Color: Customizable

  • Installation requirement: Front high & rear low; tank without lifting function

  • Outlet: DN100 ball valve at tank tail

Vacuum Pump Assembly (Weilong Brand)
  • Model: 65QZXDG-68/400

  • Rotation Speed: 500 r/min

  • Absolute Working Pressure: 400 Pa (Vacuum rate 99.6%)

  • Suction Flow: 68 L/s

  • Exhaust Diameter: 65 mm

  • Rated Power: 5 Kw, 2 sets equipped

Suction Pipeline
  • Length: 6 m per pipe

  • Quantity: 2 pcs

Standard Equipped Accessories

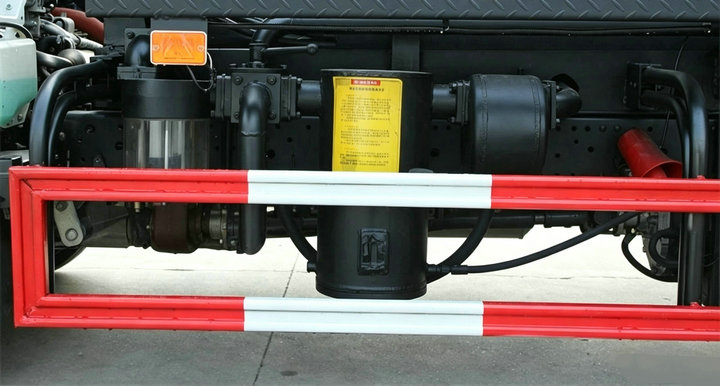

  1. Water-gas separator

  2. Oil-gas separator

  3. Tank body with pipeline storage boxes on both sides

  4. Side safety protective nets

  5. Multi-way hydraulic valve

  6. Anti-overflow valve

  7. Pressure gauge

  8. Floating ball overflow alarm

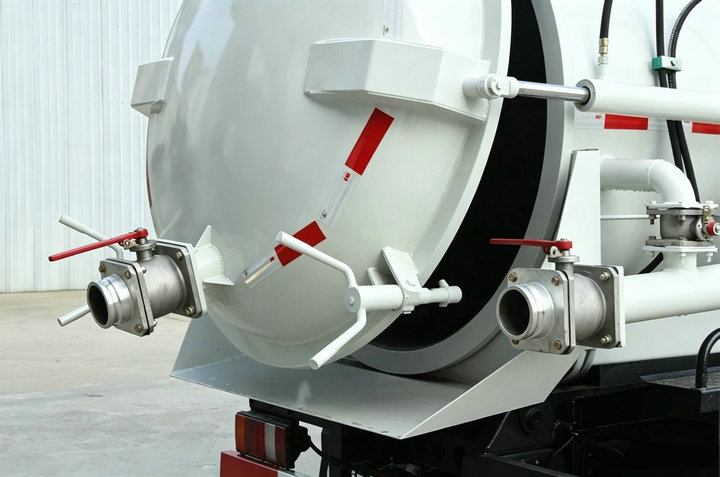

  9. Hydraulic rear cover with manual locking mechanism

  10. DN100 ball valve at tank end

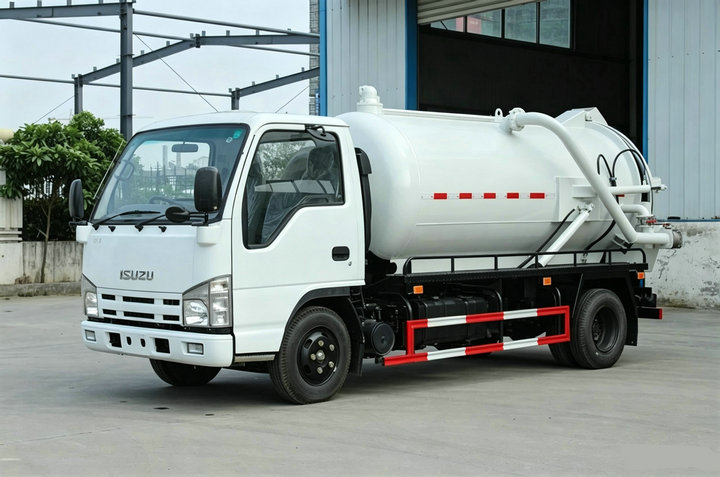

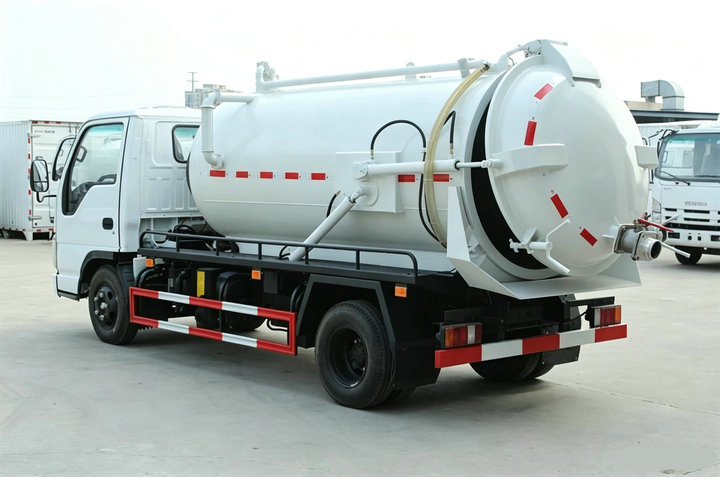

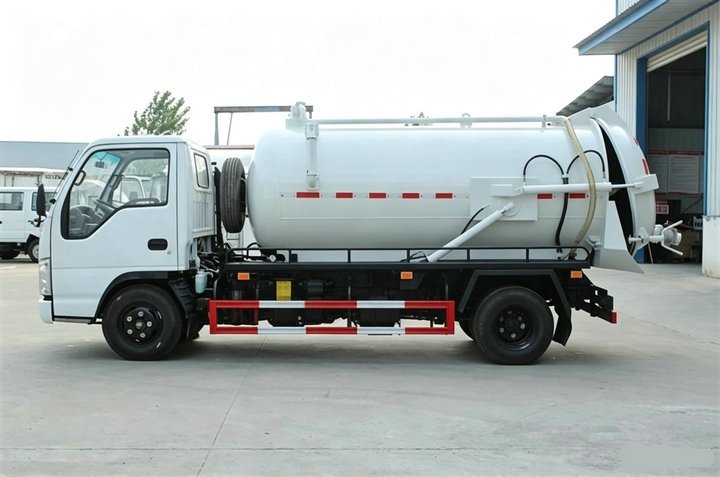

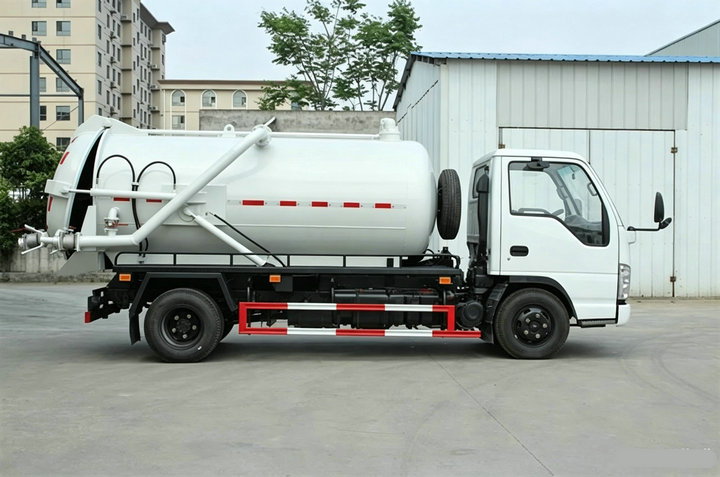

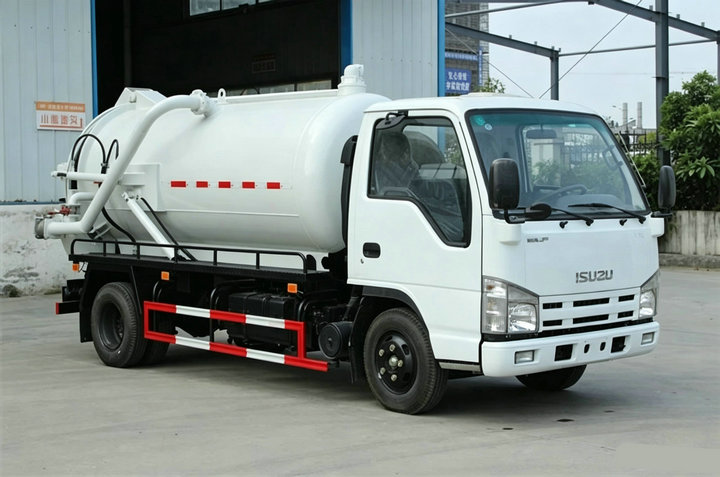

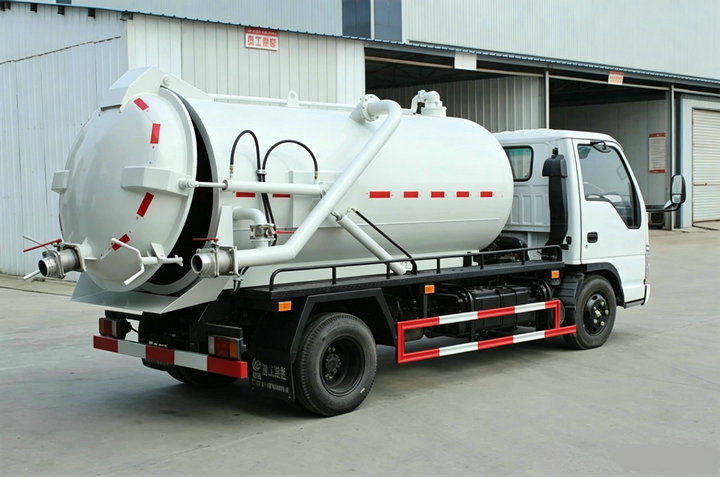

  Isuzu NKR Vacuum Suction Truck 3KL Cesspit Tank Truck (12) Isuzu NKR Vacuum Suction Truck 3KL Cesspit Tank Truck (1) Isuzu NKR Vacuum Suction Truck 3KL Cesspit Tank Truck (3) Isuzu NKR Vacuum Suction Truck 3KL Cesspit Tank Truck (13) Isuzu NKR Vacuum Suction Truck 3KL Cesspit Tank Truck (7) Isuzu NKR Vacuum Suction Truck 3KL Cesspit Tank Truck (14) Isuzu NKR Vacuum Suction Truck 3KL Cesspit Tank Truck (4) Isuzu NKR Vacuum Suction Truck 3KL Cesspit Tank Truck (8)

Classification of Vacuum Sewage Suction Trucks

  1. High Pressure Jetting & Suction Truck

    Used for sewer cleaning, road washing, mud, oil stain and solid waste removal with matched high-pressure water pump.

  2. Dry Waste Suction Truck

    Specially designed for collection of solid garbage, suitable for waste bins and urban waste transfer.

  3. Standard Sewage Suction Truck

    Mainly for sewage and wastewater transportation, widely used in sewage pipe maintenance and sewage treatment stations.

  4. Oil & Chemical Sewage Suction Truck

    Equipped with separation device for leaked crude oil, chemical liquid; applicable for oil depot emergency treatment.

  5. High Vacuum Sludge Suction Truck

    Adopts heavy-duty high vacuum pump, suitable for high-concentration sludge, sand and gravel collection on construction sites.
