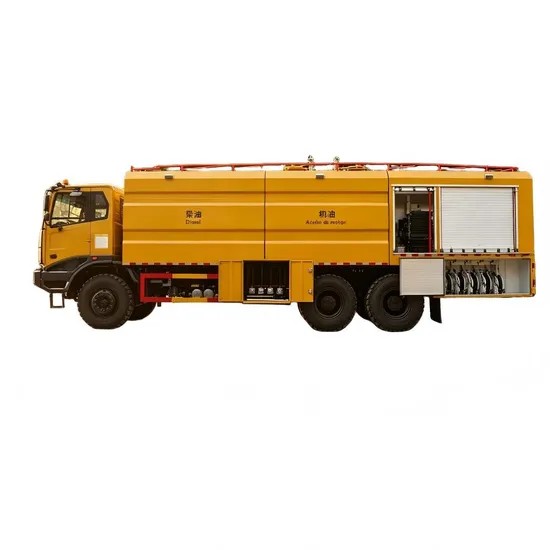

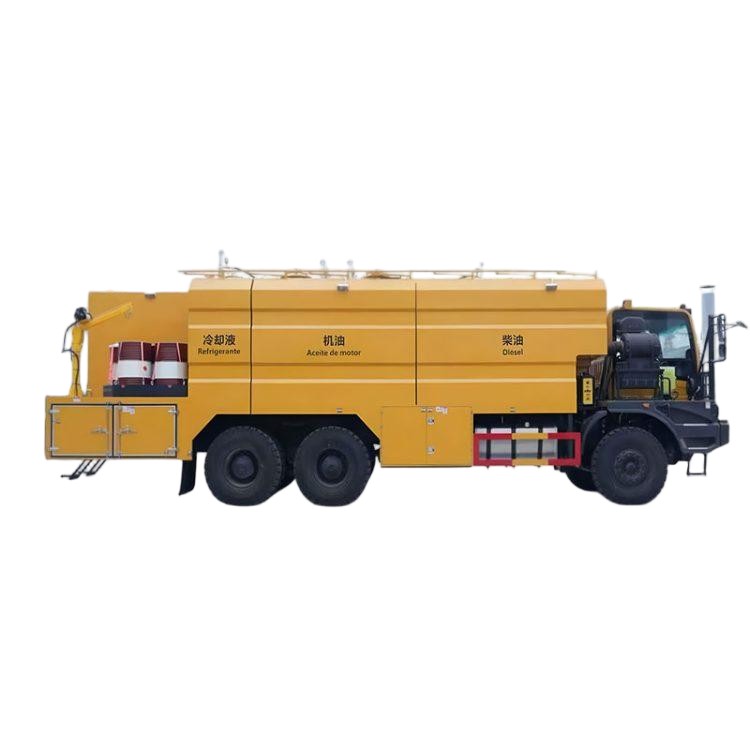

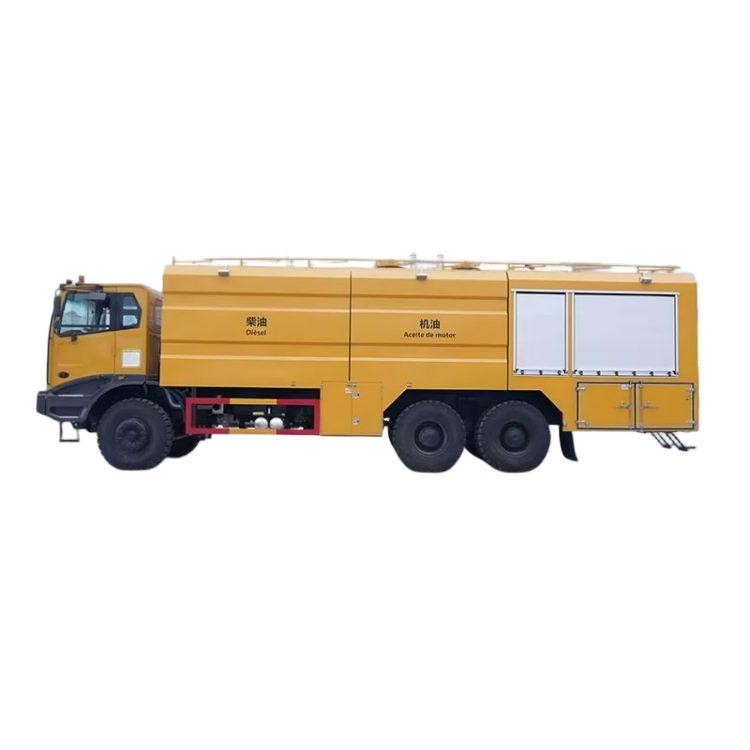

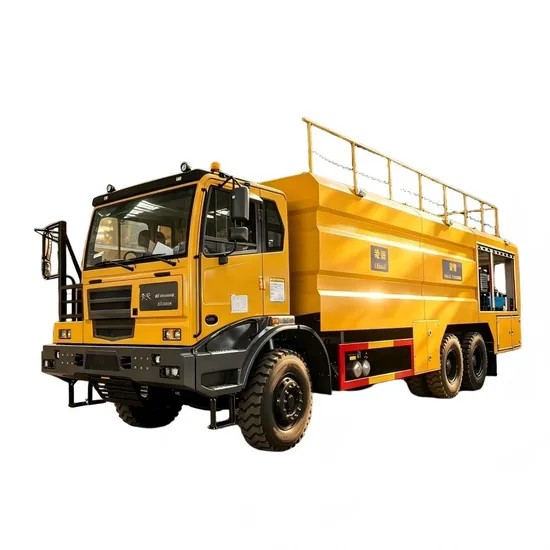

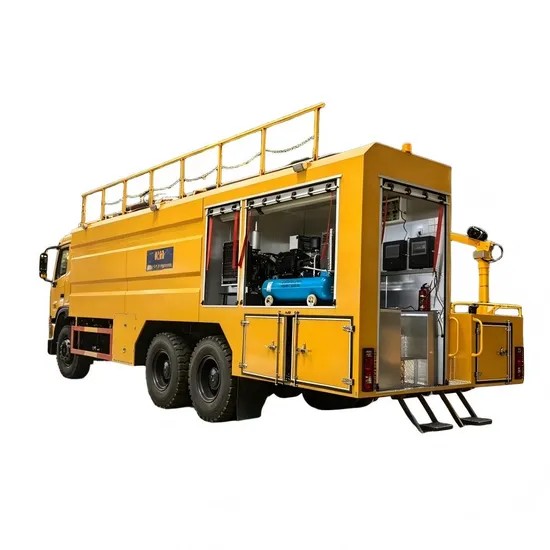

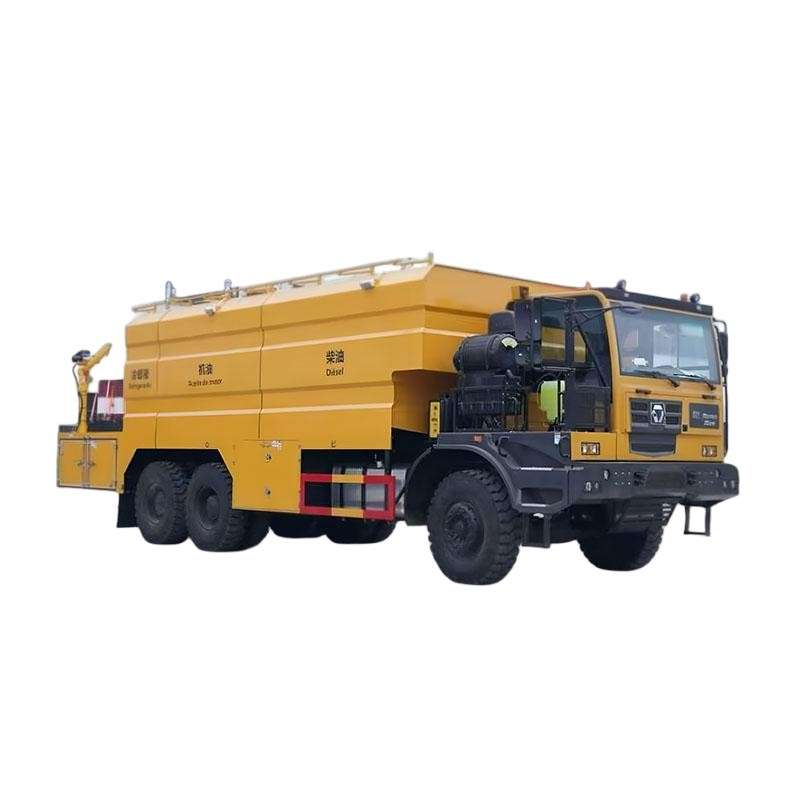

HANWO Mobile Lube Truck for Mining Area Service

HANWO Mobile Lube Truck for Mining Area Service
with Separated Diesel Engine Compressor, Separated Hydraulic Oil, Engine Oil, Transmission Oil, Gear Oil, Grease Tank
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
Availability:
Quantity:
  • 5955D3T

  • 8705909990

  • Shanghai, China

  • 1000

  • T/T

 HANWO Mobile Lube Truck for Mining Area Service

Customize  Emergency Repair Workshop Rescue Trucks
Mining Area Service With Separated Diesel Engine Compressor,Separated Hydraulic Oil,Engine Oil ,Transmission Oil,Gear Oil,Grease Tank

LUBE TRUCK engine heater by diesel.
Oil box inside heater
Hydraulic oil tank 4000L
Engine oil tank 1000L
Transmission oil tank 500 L
Gear Oil tank 500 L
Grease tank 1 1000 L (with heater)
Grease tank 2 200 L



/Vehicle model 5955D3T

/Mass parameter
/Curb weight 33000kg
/Load capacity 62000kg
/GCW 95000kg




/Performance
/Max. speed 48km/h

/Min. turning diameter

11.5m

(≥)/Grade ability 37%
/Fuel tank 700L









/Dimensions


/Dimensions
/Length 9045mm
/Width 3460mm
/Height 4050mm
(mm)/Wheelbase 3800+1600

/Wheel track
/Front tire 2800mm
/Rear tire 2526mm
/Min.clearance 380mm
/Approach angle 28°
/Departure angle 42°
/Front overhang 1755mm
/Rear overhang 1890mm
(mm)/Cargo size 5900×3200×1650
/Cab /Model HANWO P9 L/RHD
/Passengers 1
/Engine /Model WP12G530E310

/Displacement 12.54L
/Output power 390kW/(r/min)
/Max. torque speed 2300N ·m/(r/min)

/Clutch
/Model Φ430 /Ceramic clutch
/Operation /Hydraulic manual




/Transmission
/Model
FC6A250
/PTO
AQH70
/Operation /Flexible shaft
/Forward ratio
4.4-0.61
/Reverse ratio
3.97



/Driven axle
/Model 35  /35T PENGXIANG
35  /35T HANDE


/Main Reducer Ratio
15.66()/16.086()
/Brake type /Drum
/Differential lock /Inter-axle differential lock


/Front axle
/Model 25  /20T PENGXIANG
25  /20T HANDE

/Brake type /Drum

/Wheel
/Rim 10.00W-24
/Tire 14.00R25


/Frame
/Model Box beam
/HxW-t 480mm
/Frame Width 1150mm




/Suspension

/Front
/Type /Leafspring
/Leaf springs
15


/Rear
/Type /Leafspring
/Leaf springs
15




/Steering
/Model
/Circulating ball type hydraulic power
/Steering ration 23.04

/Max pressure of pump

17MPa






/Brake System
/Rated pressure 1MPa

/Service brake system

/Dual circuit pneumatic braking

/Parking brake system

/Spring energy storage air brake

/Auxiliary braking system
+()
/Engine exhaust brake+
(Optional  :Retarder)



/Electrical system
/Voltage 24V
/Generator power 70A
/
/Battery voltage/capacitance

2×12V/165Ah

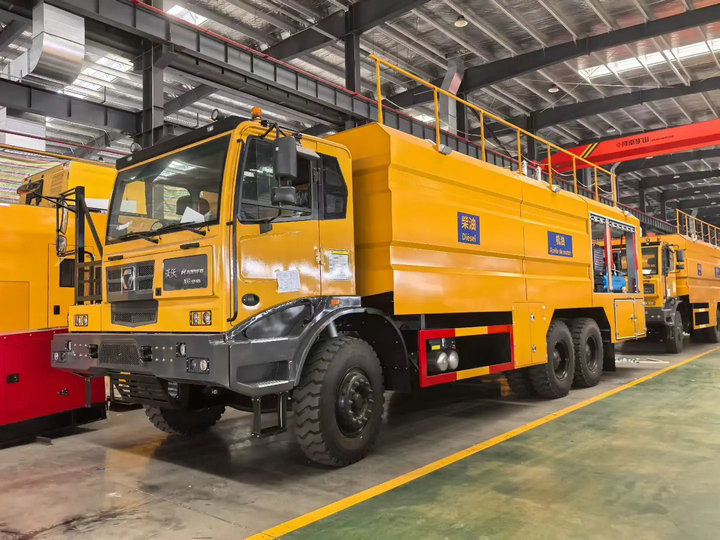

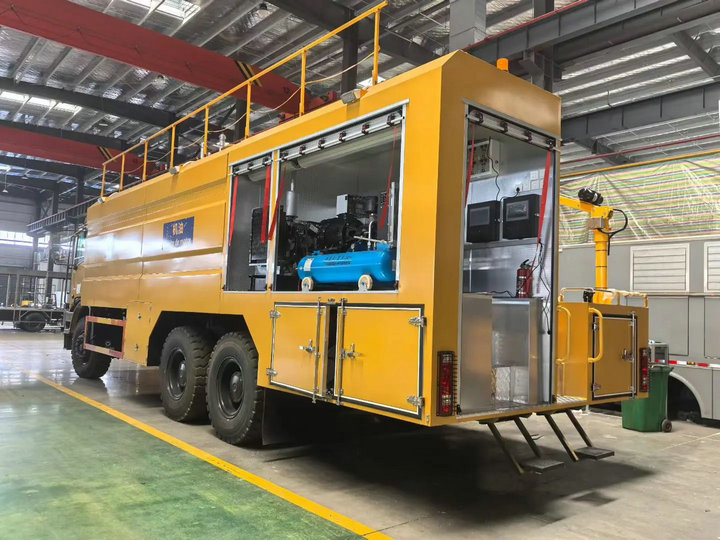

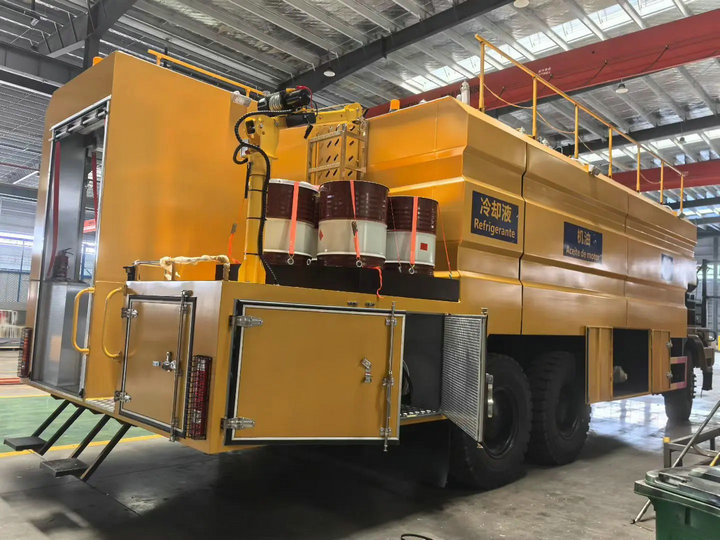

HANWO Mobile Lube Truck for Mining Area Service (3)HANWO Mobile Lube Truck for Mining Area Service (2)HANWO Mobile Lube Truck for Mining Area Service (1)
