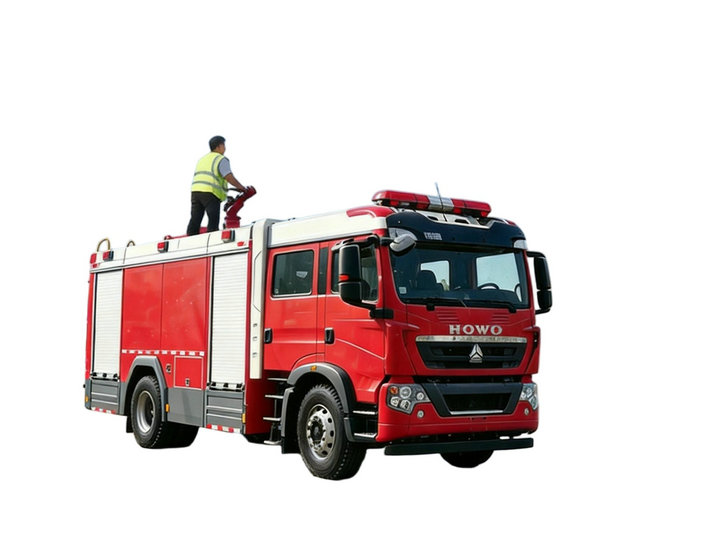

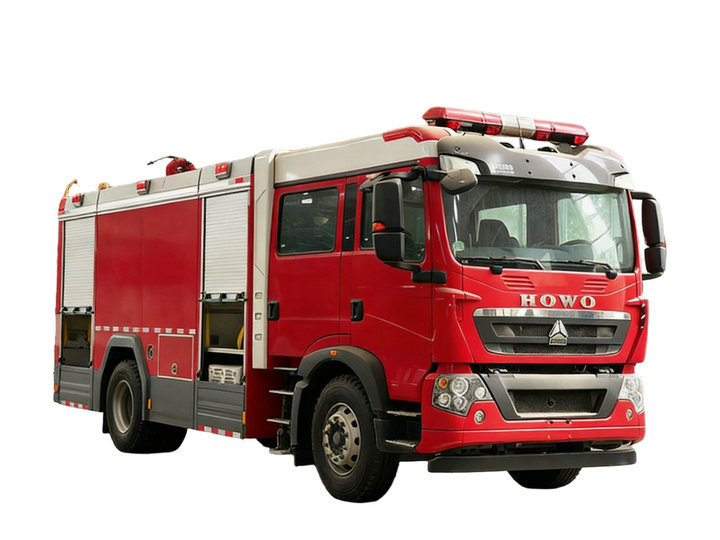

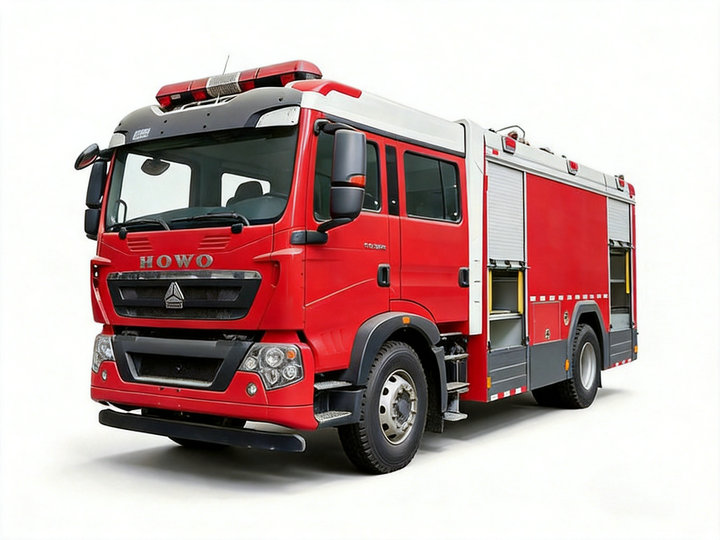

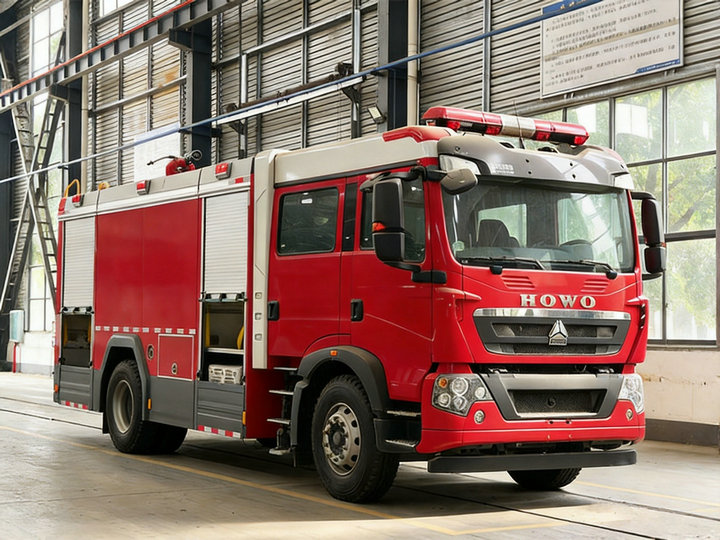

HOWO 5000 Liters Water Rescue Fire Truck
| Truck Chassis: | SINOTRUK HOWO TX 350 、4x2 |
| Tanker Capacity: | 5000L water tank |
| Engine Power: | 350 HP/ MC07H.35-60 |
| Fire Pump: | CB10/60-RS |
| Pump Flow: | 60L/s |
| Work Pressure: | 1.0 Mpa |
| Fire Monitor: | PS60 |
| Monitor Flow: | 60L/s |
| Monitor Range: | ≥60m |
HOWO 5000L water bowser pumper fire truck is built on a HOWO TX 350 4×2 chassis with a 4700 mm wheelbase. It is powered by a MC07H.35-60 engine rated at 350 HP and paired with a manual transmission. The vehicle carries a 5000L water tank. A CB10/60-RS fire pump (60 L/s at 1.0 MPa) and a roof mounted PS60 monitor (60 L/s, ≥60 m range) handle fire suppression. Standard equipment includes fire hoses, suction tubes, couplings, water/foam gun, and basic tool kit.
HOWO 5000L water bowser pumper fire truck is built for firefighting and emergency response in municipal and industrial settings. This HOWO 350HP fire water tanker truck'smain components are a 5000 liter water tank, a CB10/60-RS fire pump (60 L/s at 1.0 MPa), and a roof mounted PS60 fire monitor with 60 meter range.
The truck carries a full set of standard firefighting equipment including hoses, suction tubes, couplings, and a water/foam gun. This truck works well for Class A fires involving wood, paper, and textiles. It suits firefighting tasks at factories, warehouses, residential areas, and airports.
Working Capacity | Engine Model | Wheelbase | HOWO 5000 Liters Water Fire Truck Superstructure |
6000L water | 350 HP/ MC07H.35-60 | 4700 mm | ★ Water tank carbon steel, 5000L capacity ★ CB10/60-RS fire pump, 60 L/s flow at 1.0 MPa ★ PS60 roof monitor, 60 L/s flow with ≥60 m range ★ 2026 year brand new |
» Ⅰ. Main Features :
★ MC07H.35-60 engine rated at 350 HP for fire suppression and emergency response
★ HOWO TX 350 4×2 chassis with 6000L water tank and CB10/60-RS fire pump (60 L/s at 1.0 MPa)
★ Roof mounted PS60 monitor with 60 L/s flow and ≥60 meter range for long distance fire attack
★ Complete standard equipment including fire hoses, suction tubes, couplings, and water/foam gun for Class A fire fighting
» Ⅱ.Product Parameter :
HOWO 5000 Liters Water Bowser Pumper Fire Truck | |||
General | Work capacity | 5000L water tank | |
Truck chassis | HOWO TX 350 4x2 | ||
Engine Power | 350 HP/ MC07H.35-60 | ||
Fire pump | CB10/60-RS | ||
Fire Monitor | PS60 | ||
Maximum Speed | 100 km/h | ||
Overall Dimensions L*W*H | 8680*2505*3700 mm | ||
Gross Vehicle Weight | 20100 kg | ||
Curb Weight | 6600 kg | ||
Engine | Engine Model | MC07H.35-60 | |
Fuel Type | Diesel | ||
Power | 350 HP（257KW） | ||
Emission Standard | Euro VI | ||
Displacement | 7360 ml | ||
Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
Chassis | Drive Type | 4x2 | |
Wheelbase | 4700 mm | ||
Tire | 12.00R20 | ||
Tire No. | 6 tires and 1 spare tire | ||
Model | CB10/60-RS | ||
Flux | 60L/s | ||
Pressure | 1MPa | ||
Fire Pump | Max working pressure | 1.082MPa | |
Max allowable inlet pressure | 0.4MPa | ||
Max suction height | 7m | ||
Rated speed | 3200±50r/min | ||
Speed ratio | 1:1.440 | ||
Water diversion time | ≤50s | ||
Fire Monitor | Model | PS8/40W | |
Flow | 60L/s | ||
Rated working pressure | 1MPa | ||
Range | Water | ≥60m | |
Pitch rotation | - 35～+70° | ||
Horizontal rotation | 0～360° | ||
Standard Configuration | All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual…… | ||
» Ⅲ.Products Description :
1. Chassis & Powertrain
♦ HOWO TX 350 4×2 chassis with 4700 mm wheelbase, built for stable handling on urban roads and industrial sites.
♦ MC07H.35-60 diesel engine, 350 hp output with high torque, reliable for quick response, continuous pump operation, and emergency dispatch.
2.Fire Suppression System
♦ 6000L carbon steel water tank with CB10/60-RS fire pump, 60 L/s flow at 1.0 MPa, PTO driven, 7m suction height, ≤50s priming time.
♦ Roof mounted PS60 monitor delivers 60 L/s flow with ≥60 m range, allowing safe distance fire attack for Class A fires.
♦ Long row warning light and siren on cab roof, strobe lights and LED lights on compartment sides for night safety.
♦ Full standard firefighting equipment including hoses, suction tubes, couplings, water/foam gun, and basic tool kit.
» Ⅳ.Fire Pump System :
Fire Pump:

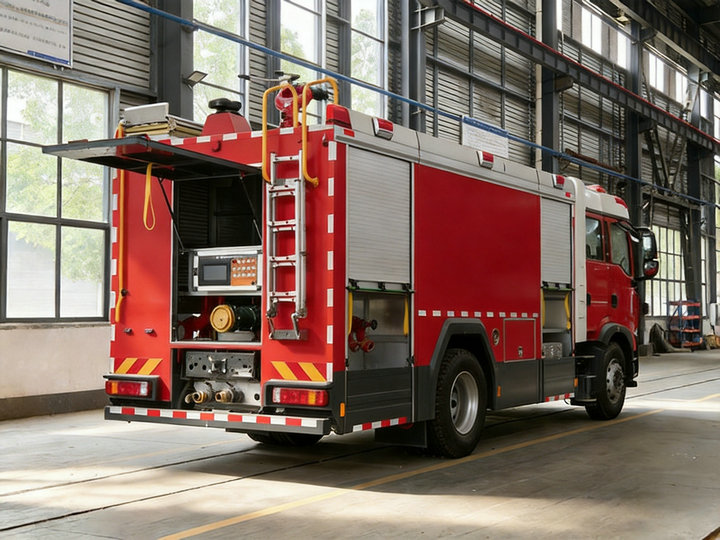

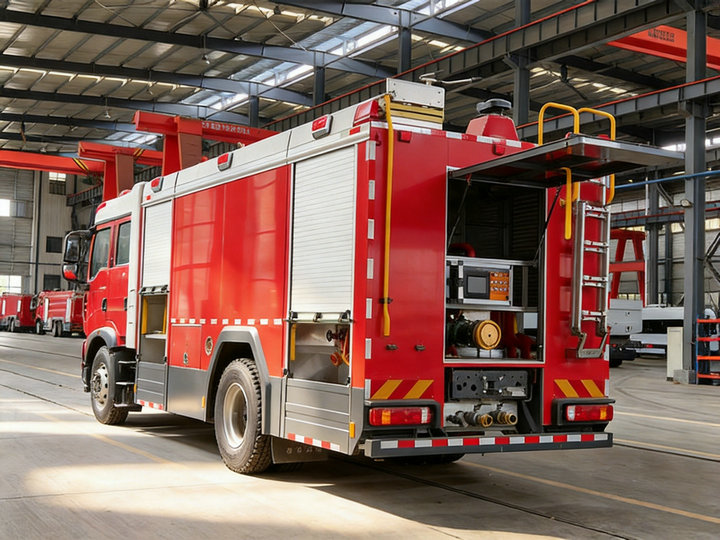

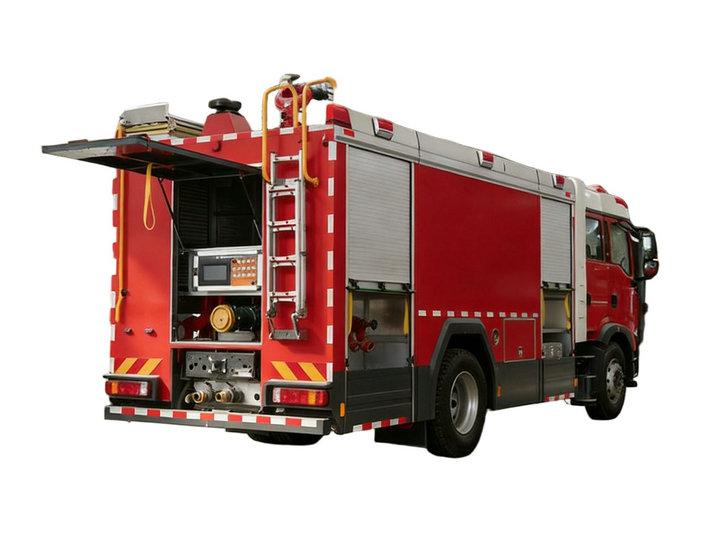

A CB10/60-RS fire pump with a rated flow of 60 L/s at 1.0 MPa is installed in the rear pump room. This pump is built for reliable performance, providing steady water pressure to ensure fire hoses can deliver water effectively over long distances for fire suppression.
Fire Pump Model | Flow | Pressure | Max Working Pressure | Max Allowable Inlet Pressure |
CB10/60-RS | 60L/s | 1.0MPa | 1.082MPa | 0.4MPa |
Control panel:
Includes operating instructions, tank piping diagram, pressure gauge, water level gauge, emergency stop, PTO control, main power switch, pump controls, and compartment lighting. All controls are clearly marked for straightforward operation.
» Ⅴ.Fire Monitor System :

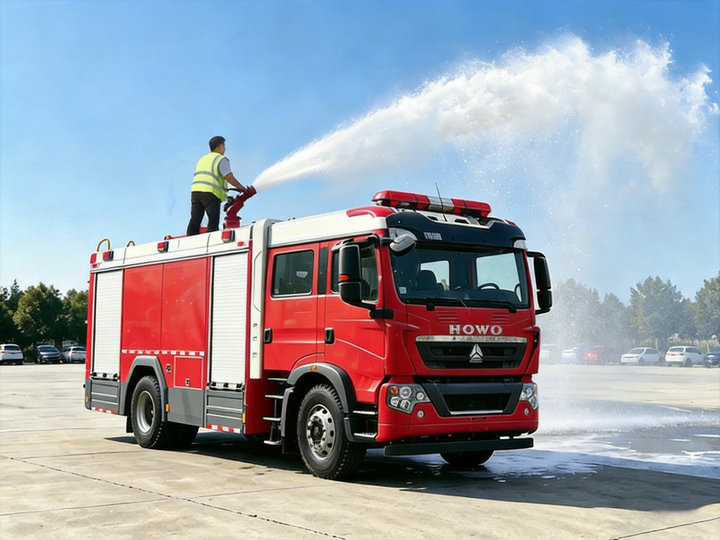

The PS8/40W fire monitor is mounted on the cab roof. It delivers a flow rate of 60 L/s with a water range of ≥60 m. The monitor supports both straight stream and spray patterns for flexible firefighting operations.
Fire Monitor Model | Flow | Range | Rated Pressure | Pitch Rotation | Horizontal rotation |
PS8/40 | 60L/s | Water≥60m | 1.0MPa | -35°～+70° | 0～360° |
» Ⅵ.Firefighting Equipment :

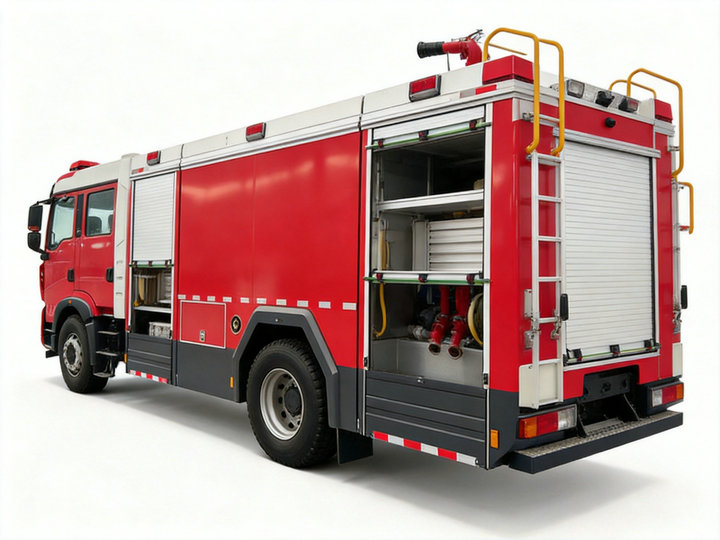

• Equipment Room
Located on both sides of the vehicle, these compartments are equipped with equipment racks and storage trays. The racks keep fire hoses, suction tubes, and water/foam guns neatly organized. The storage trays provide quick access to tools like wrenches, axes, and crowbars, improving rescue efficiency.
• Pump Room: Equipped with fire hoses, water collectors, filters, fire nozzles, foam guns, suction hose wrenches, reducers, etc.
The HOWO 5000L water bowser pumper fire truck comes with a rear-mounted CB10/60-RS fire pump and a cab top PS60 monitor. The water tank holds 5,000 liters, all sitting on a sturdy HOWO TX 350 4×2 chassis powered by a 350 HP MC07H.35-60 engine. Standard gear includes fire hoses, suction tubes, couplings, a water/foam gun, and a complete tool kit. Full specifications are listed below:
» Ⅶ.Pre-shipment Test :
Before delivering the HOWO 6000L water bowser pumper fire truck from our factory, we carried out a full inspection, including a water spray test for sealing, performance testing of the fire pump and monitor, and final checks on welding quality, paint finish, and all installed equipment.
HOWO water fire fighting truck for sale
The main application scope of a HOWO fire truck is to carry out fire suppression in various fire scenarios, implement emergency rescue and disaster relief tasks, and provide on-site support for public safety incidents: including building fires, industrial fires, traffic accident rescues, and disposal of hazardous material leaks.
HOWO Water Fire Engine | 4x2/4x4 | 6x4/6x6 | 8x4/8x8 |
Capacity | 2,000L~8,000L | 8,000L~12,000L | 12,000L~25,000L |
Fire pump | CB10/40 | CB10/60-CB10/80 | CB10/120 |
Pump flow | 40L/S | 60L/S | 120L/S |
Fire monitor | PS30W | PS50W | PS70W |
Monitor flow | 30L/S | 50L/S | 80L/S |
Monitor range | ≥ 60 meters | ≥ 70 meters | ≥ 85 meters |
