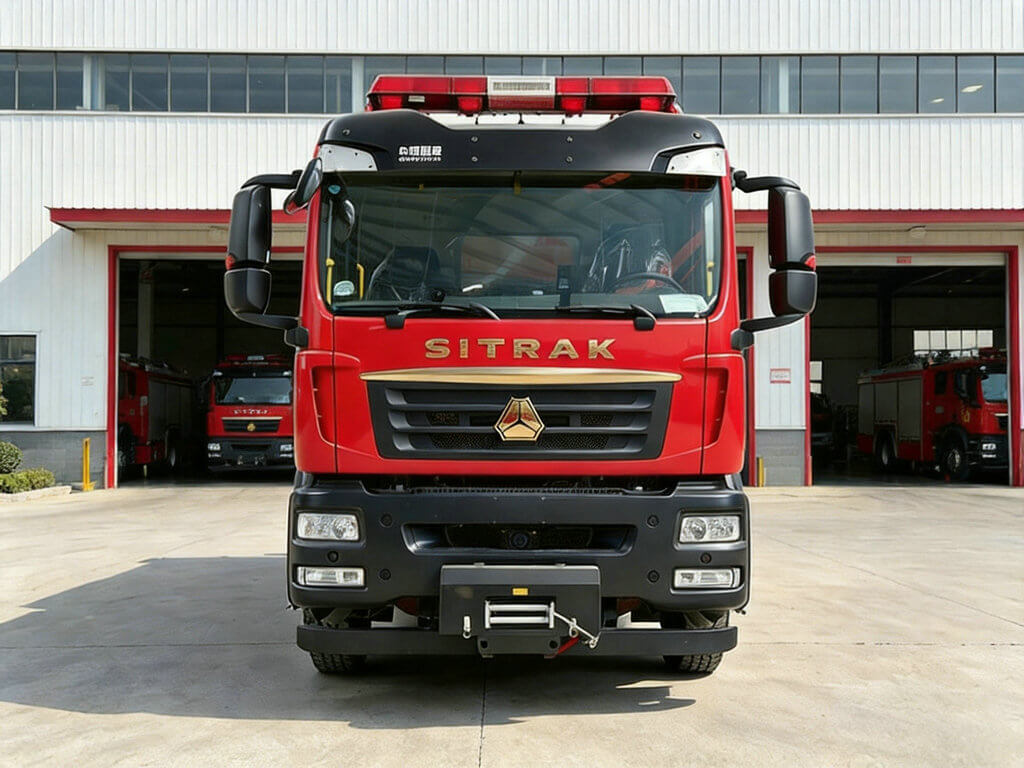

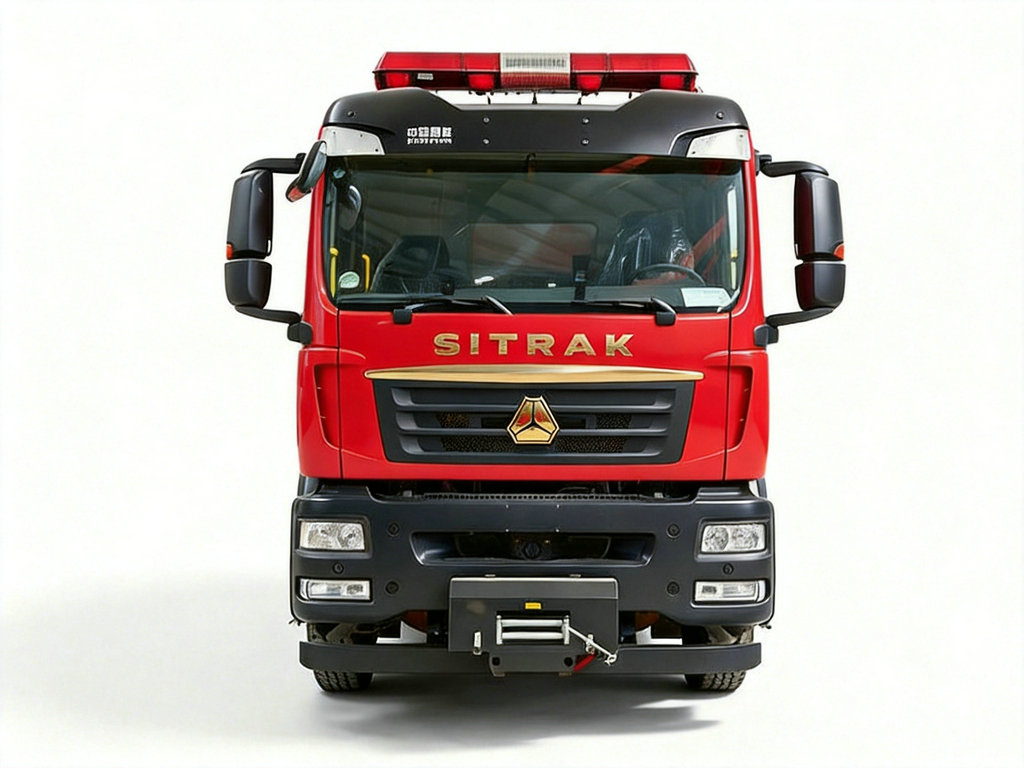

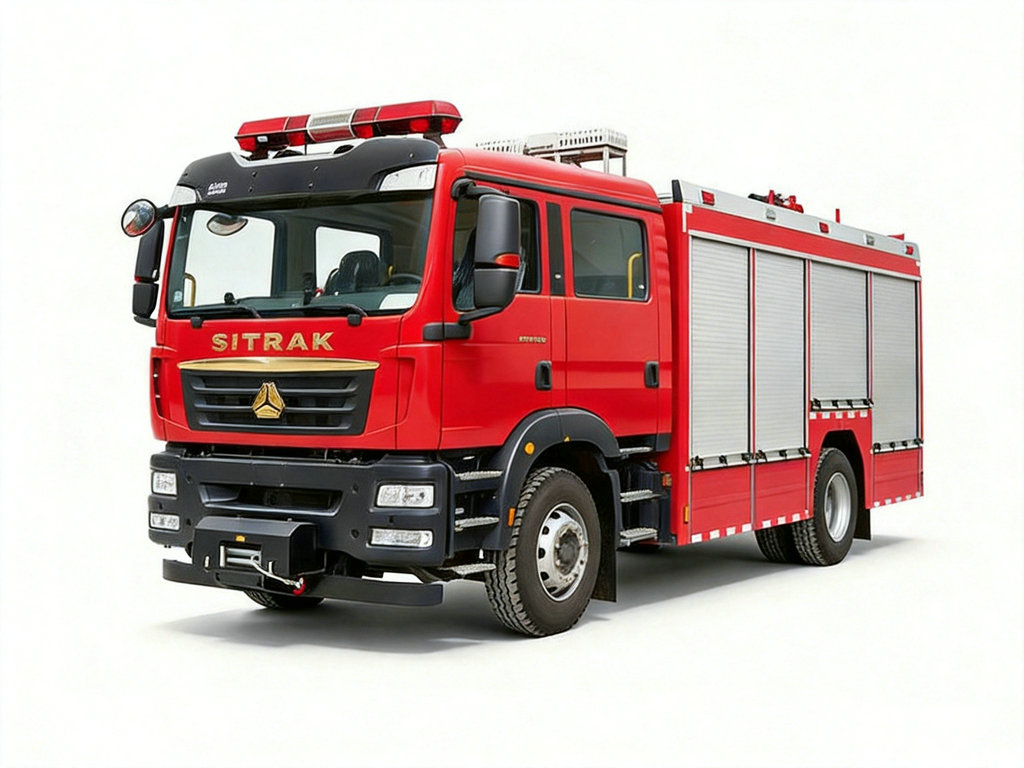

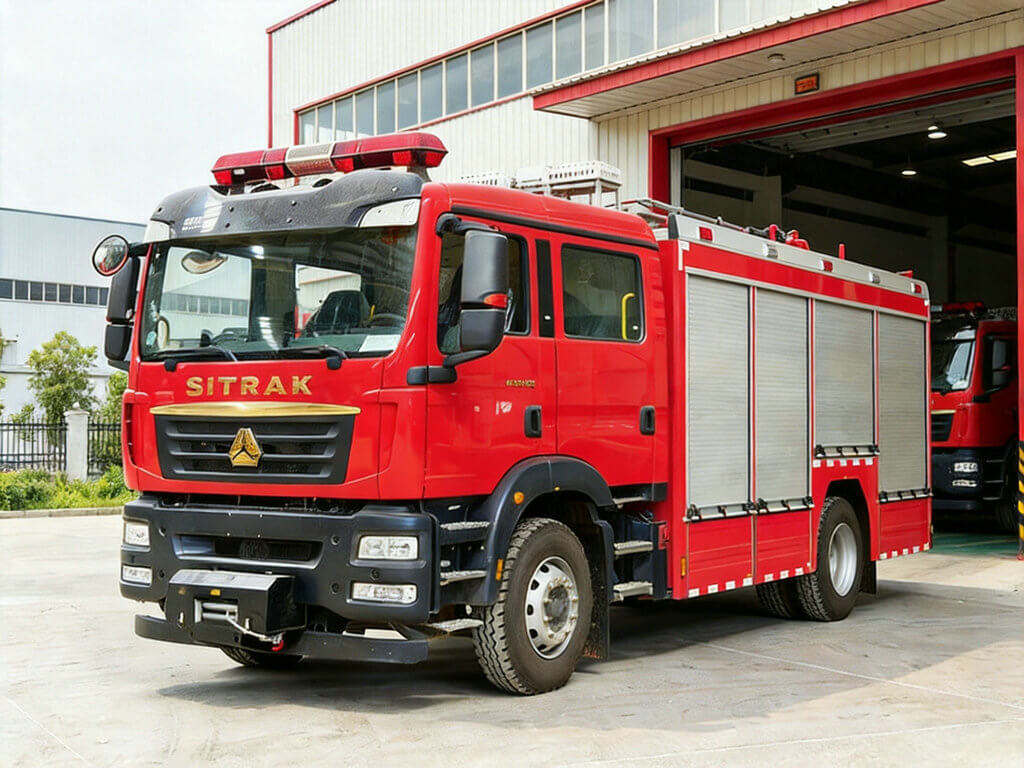

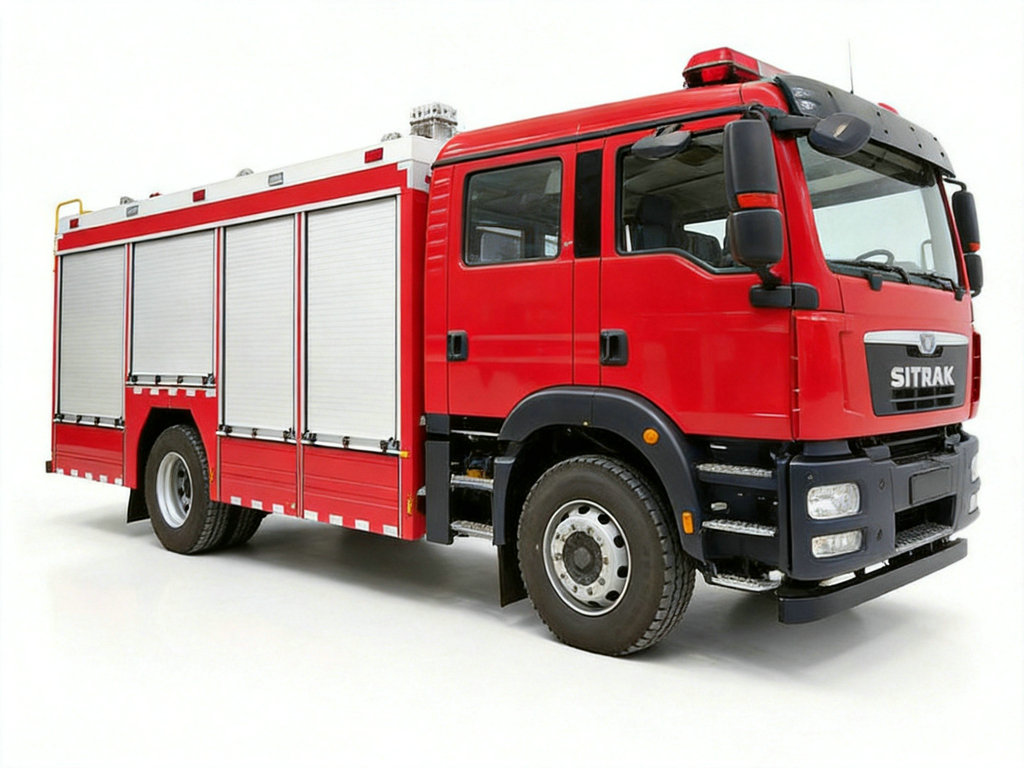

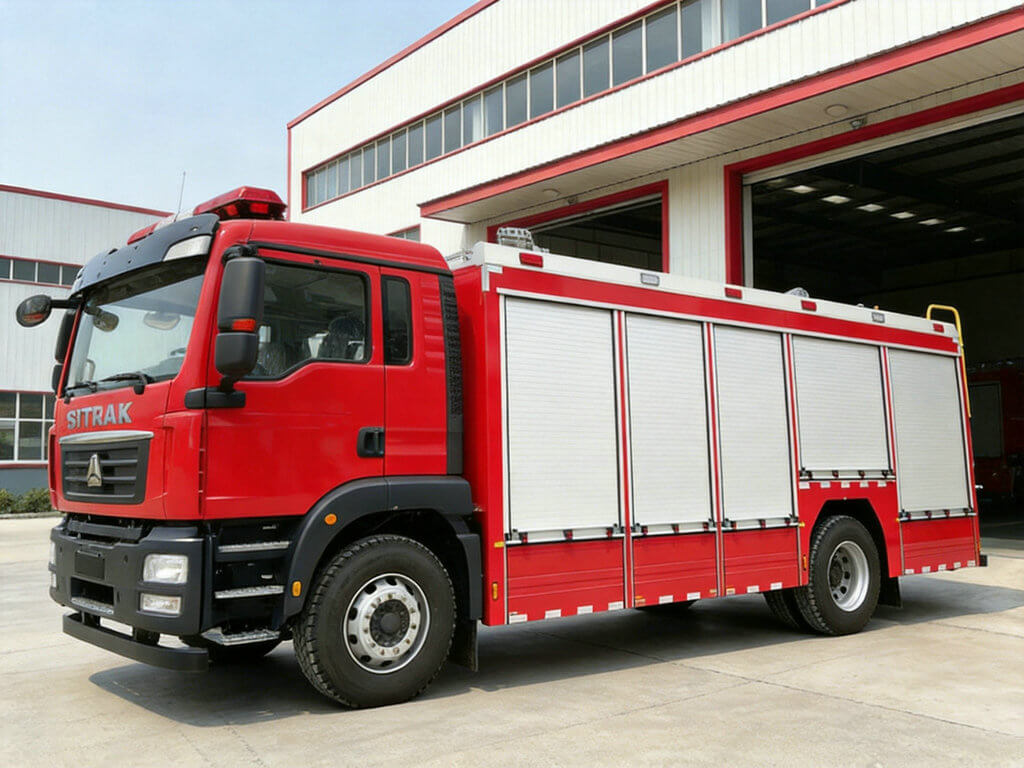

HOWO SITRAK Emergency Lighting Rescue Fire Truck 4500L Water + 1600L Foam
Tanker Capacity:4500L water + 1600L foam (6100L total)
Engine :350 HP (257 kW) / MC07H.35-6
Fire Pump: CB10/100
Pump Flow:100 L/s
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
| Quantity: | |
|---|---|
|
| |
-
DRZ5190XFZZ7
-
DRZ
-
8705309000

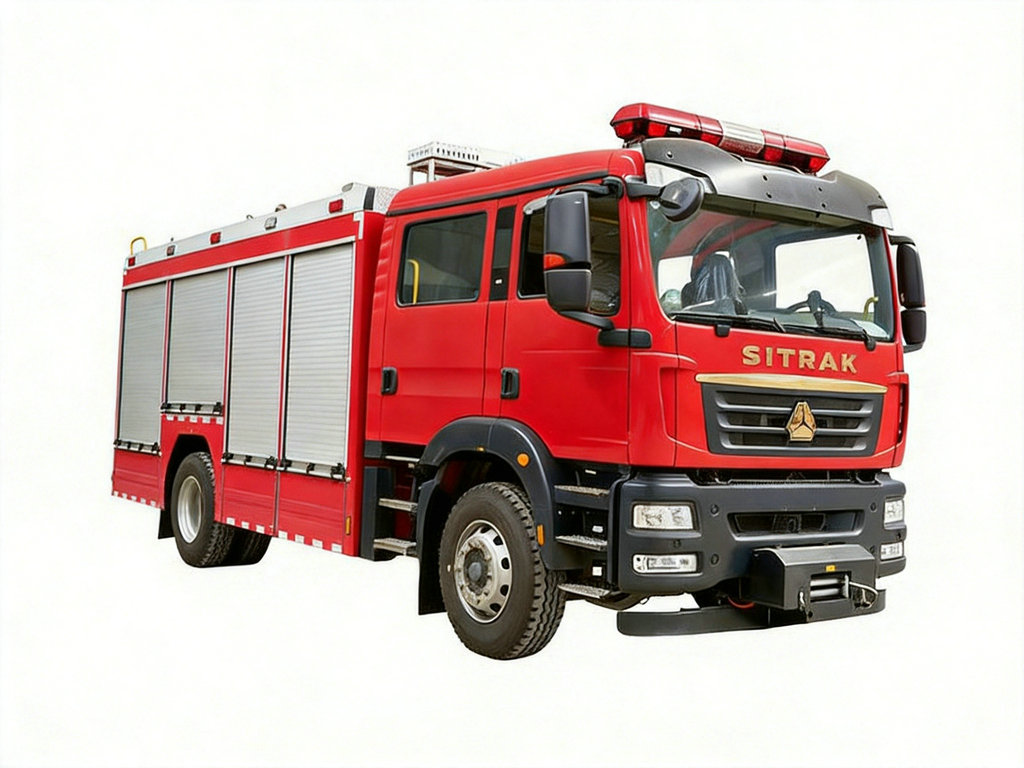

HOWO SITRAK Emergency Lighting Rescue Fire Truck 4500L Water + 1600L Foam
SITRAK 4x2 350HP foam water rescue truck with night lighting is powered by a 350 HP MC07H.35-61 engine on a 4×2 chassis. It features a 7000 kg front winch, a 4500L water tank, a 1600L foam tank, a CB10/60 pump (60 L/s), and a PLDK8/48 monitor (48 L/s, water ≥70m, foam ≥60m). An 8m mast with 2×1000W LED lights and a 15kVA generator supports night operations. SITRAK foam water rescue truck with night lighting is built on a 4×2 chassis with a 350HP MC07H.35-61 engine. This emergency lighting rescue fire truck features a 7000 kg front winch, a 4500L water tank, and a 1600L foam tank. A CB10/60 pump (60 L/s) and a PLDK8/48 monitor (48 L/s, water ≥70m, foam ≥60m) handle fire suppression. Standard gear includes roll-up aluminum doors, LED lights, fold-down steps, and an 8m mast lighting system with 2×1000W LED—a solid choice for night rescue and industrial fire fighting.
SITRAK Emergency Lighting Rescue Fire Truck | |
Winch System | |
Drive Type | Electric control |
Max Tension | ≥7000 kg |
Wire Rope Dia. | ≥11.5 mm |
Wire Rope Length | ≥36 m |
Installation | Front of vehicle, with 4 pads |
Equipment box | |
Material | Oxidized aluminum frame & cover; baffle & profile structure |
Roller Shutter | 3 per side, lockable, with linked LED strips |
Roof Guard | Integrated aluminum extrusion; exterior flashing lights, interior LED strips |
Fold-down Step | Aluminum extrusion, anti-slip, load ≥150kg, double locking |

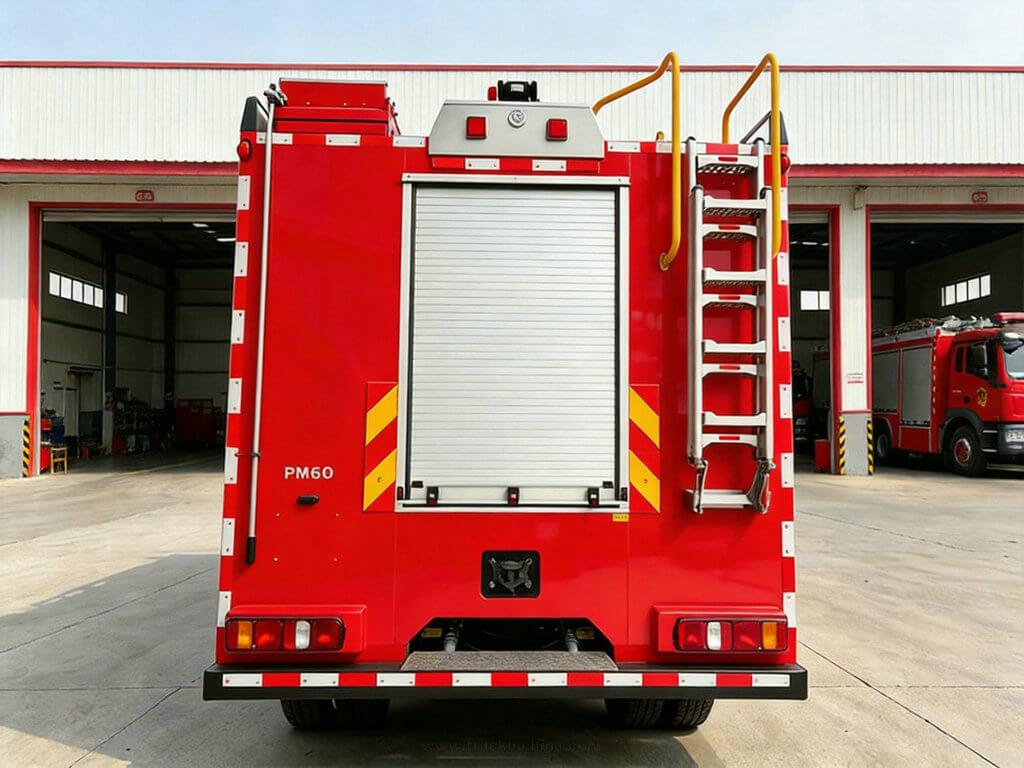

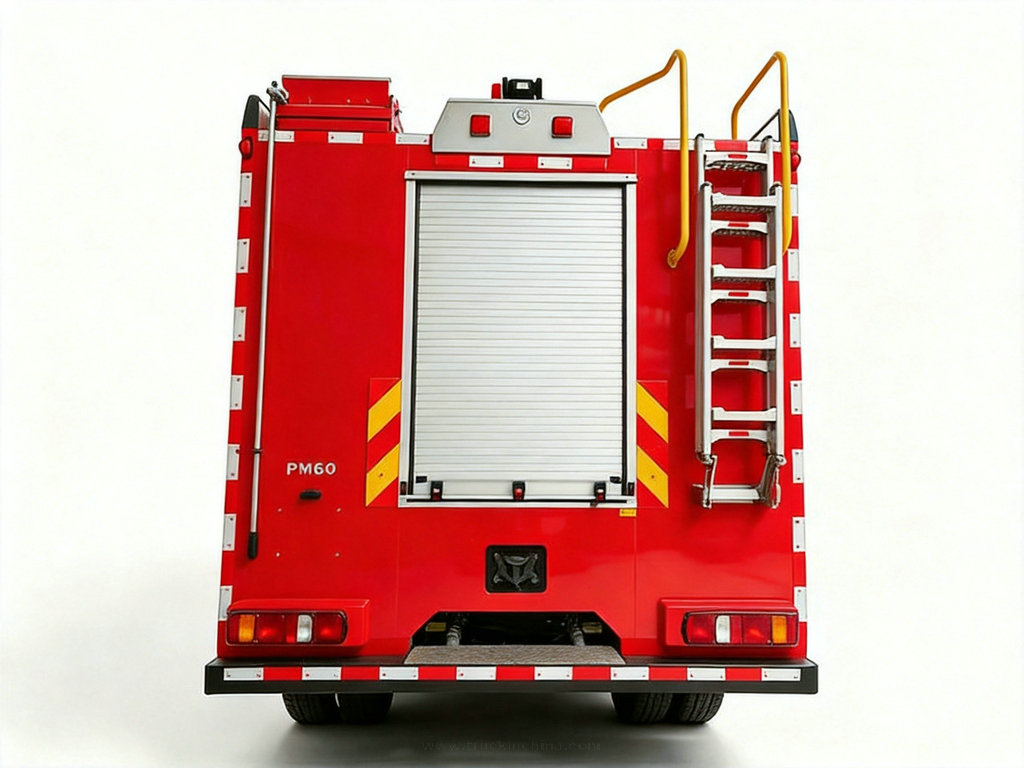

Rear Ladder | Aluminum ladder on the right side for roof access |
Mast Lighting System | |
Generator | ≥15 kVA, 50Hz, 220V/380V, electric start, gasoline, V-twin |
Mast | Aluminum alloy, max height ≥8 m |
Lighting | 4×500W LED |
Rotation | Horizontal ≥420°, tilt ≥420° |
Control | Panel + wired (5m) + wireless (≥50m), one-key auto-reset |
Position | Front of the equipment box |
Decontamination System | |
Main Equipment | Mobile high-pressure cleaner, hot water decontamination unit, flow rate ≥10 L/min |
System Components | Each includes one set of: public decontamination tent, manual diaphragm suction pump, electric inflator/air pump, decontamination sewage pump, mobile high-pressure cleaner, high-pressure hot water cleaner, warm air generator (with temperature control), decontamination solution mixing tank, water storage bag, contamination collection bag, oil protective cover, absorbent pad, toxic substance sealing barrel |

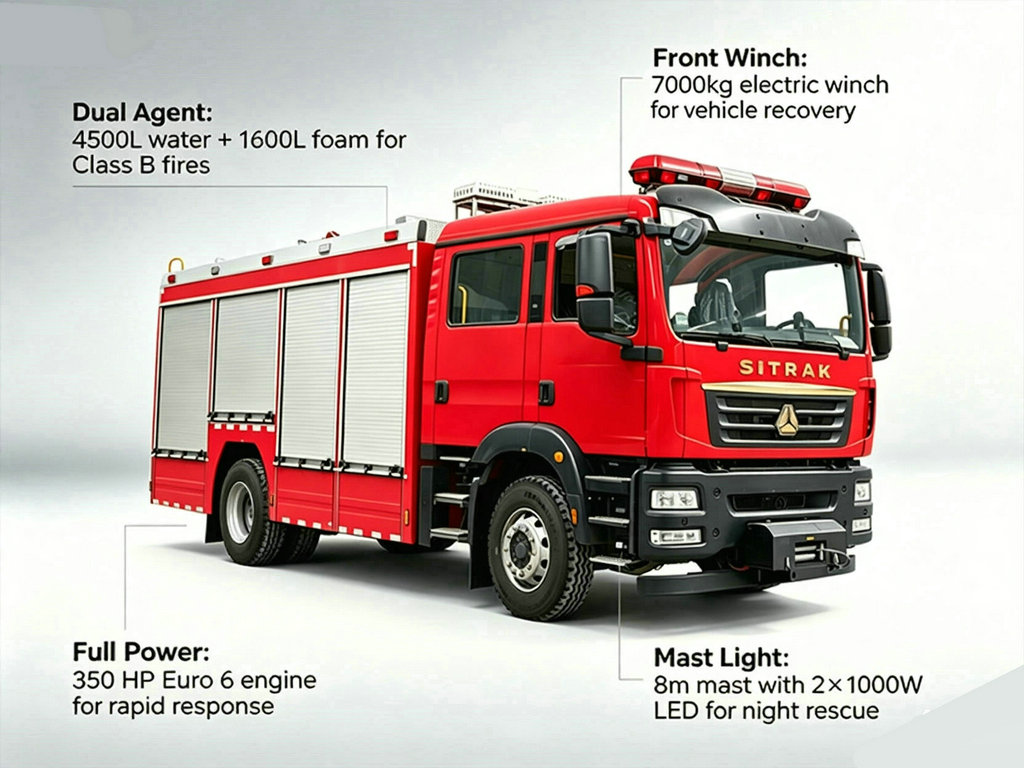

»Ⅰ. Main Features :
★ MC07H.35-61 engine, 350 HP for night rescue and industrial fire fighting operations
★ SITRAK 4×2 chassis with front winch (7000 kg), 4500L water tank, and 1600L foam tank for dual-agent suppression
★ CB10/60 fire pump (60 L/s) + PLDK8/48 monitor (48 L/s, water ≥70m, foam ≥60m) for fire suppression
★ 8m mast lighting system with 2×1000W LED + 15kVA generator for night operations
★ Full firefighting equipment, including hoses, nozzles, foam gun, and basic tool kit for Class B fire fighting
» Ⅱ.Product Parameter :
HOWO SITRAK Emergency Lighting Rescue Fire Truck | |||
General | Work capacity | 4500L water + 1600L foam | |
Truck chassis | SINOTRUK SITRAK 4x2 | ||
Engine Power | 350 HP(257 kW) / MC07H.35-61 | ||
Fire pump | CB10/60 | ||
Fire Monitor | PLDK8/48 | ||
Maximum Speed | 100 km/h | ||
Overall Dimensions L*W*H | 9200*2520*3600 mm | ||
Gross Vehicle Weight | 20100 kg | ||
Curb Weight | 6480 kg | ||
Engine | Engine Model | MC07H.35-60 | |
Fuel Type | Diesel | ||
Power | 350 HP(257KW) | ||
Emission Standard | Euro 6 | ||
Displacement | 7360 ml | ||
Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
Chassis | Drive Type | 4x2 | |
Wheelbase | 4700 mm | ||
Tire | 315/80R22.5 | ||
Tire No. | 6 tires and 1 spare tire | ||
Fire Pump | Model | CB10/60 | |
Flux | 60L/s | ||
Pressure | 1MPa | ||
Max working pressure | 1.251MPa | ||
Max allowable inlet pressure | 0.4MPa | ||
Max suction height | 3m | ||
Rated speed | 3916±50r/min | ||
Speed ratio | 1:1.4 | ||
Water diversion time | ≤50s | ||
Fire Monitor | Model | PLDK8/48 | |
Flow | 48L/s | ||
Rated working pressure | 0.8MPa | ||
Max working pressure | 1.2MPa | ||
Range | Water | ≥70m | |
Foam | ≥60m | ||
Pitch rotation | - 35～+70° | ||
Horizontal rotation | 0～360° | ||
Standard Configuration | All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual…… | ||

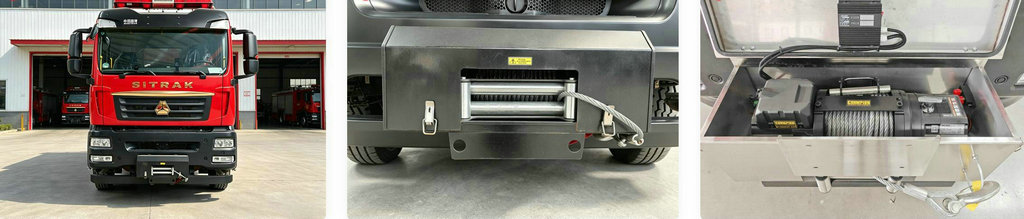

» Ⅲ.Front Towing Winch System :
★ Front-mounted towing winch with 75 kN max pull, 38m × φ13mm wire rope, 8° vertical angle and 5° horizontal angle for complex terrain
★ 12V/24V DC power, 430:1 dual-stage planetary gear reduction (spur gear + planetary), high-strength powder metallurgy gears for heavy-duty reliability
★ Series-wound motor drive with reliable braking system and manual rope release via clutch—easy operation and safe control
★ Compact design with strong load capacity, simple installation, and durable construction for demanding rescue operations
Towing Capacity： | 16800lbs (7938 kgs) |
Motor： | 5.4kW/7.1hp(12v);6.0kW/7.9hp(24v) |
Reduction Ratio： | 430:1 |
Steel Rope Size： | Φ15/32"*87'(Φ12mm*26.5m) |
Roller Size： | Φ3.5"*8.6"(Φ89mm*219mm) |
Overall Dimension： | 24.4"*8.4"*11.4"(620mm*214mm*290mm) |
Installation Dimension： | 10"*4.5"(254mm*114.3mm) |
Kure Weight： | 147.7Ibs(67kgs) |

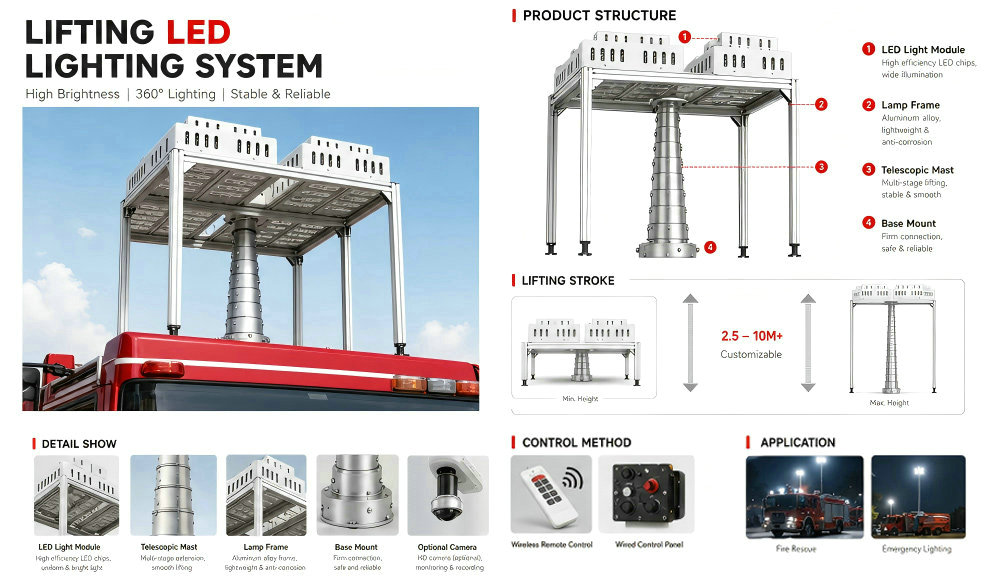

» Ⅳ.Mast Lighting System :
▶ 8m telescopic mast with maximum extended height of 8 meters, constructed from high-strength aluminum alloy for lightweight durability and stable elevation.
▶ Equipped with 2×1000W LED lamps, delivering powerful 360° illumination for night rescue and emergency scene lighting.
▶ Continuous rotation with horizontal angle ≥420° and tilt angle ≥420° allows flexible positioning; mast can be raised, lowered, and rotated smoothly with electric control.
▶ Powered by a 15kVA gasoline generator (220V/380V, 50Hz), supporting both panel and wireless remote control (≥50m range) with one-key auto-reset function.
» Ⅴ.Product Details :

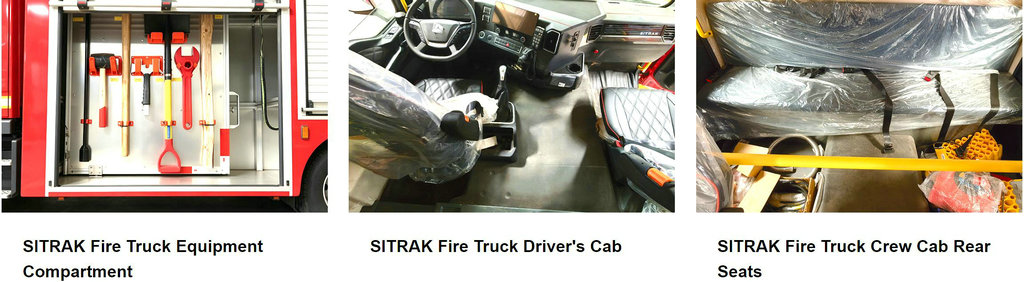

SITRAK Fire Truck Equipment Compartment
SITRAK Fire Truck Driver's Cab
SITRAK Fire Truck Crew Cab Rear Seats

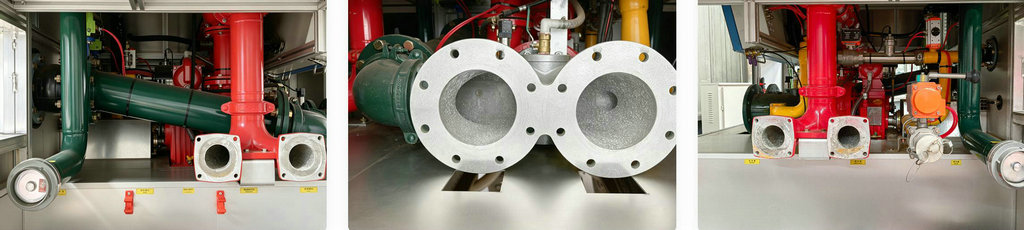

» Ⅵ.Fire Pump System :
Fire Pump:
A CB10/60 fire pump with a rated flow of 60 L/s at 1.0 MPa is installed in the rear pump room. This pump is built for reliable performance, providing steady water pressure to ensure fire hoses and monitors can deliver water or foam effectively over long distances for fire suppression.
Fire Pump Model | Flow | Pressure | Max Working Pressure | Max Allowable Inlet Pressure |
CB10/60 | 60L/s | 1.0MPa | 1.251 MPa | 0.4MPa |
Control panel:
Includes operating instructions, tank piping diagram, pressure gauge, water level gauge, foam level gauge, emergency stop, PTO control, main power switch, pump controls, ladder controls, and compartment lighting. All controls are clearly marked for straightforward operation.
» Ⅶ.Fire Monitor System :
The PLDK8/48 fire monitor is mounted on the front of the superstructure. It delivers a flow rate of 48 L/s with a water range of ≥70 m and a foam range of ≥60 m. The monitor supports both straight stream and spray patterns for flexible firefighting operations.
Fire Monitor Model | Flow | Range | Rated Pressure | Pitch Rotation | Horizontal rotation |
PLDK8/48 | 48L/s | Water≥70m Foam ≥60 m | 1.0MPa | -35°～+70° | 0～360° |
» Ⅷ.Firefighting Equipment :

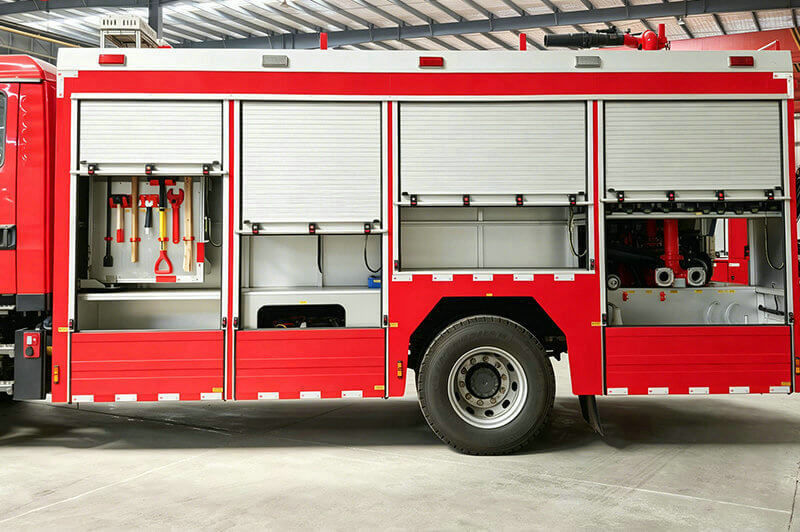

• Equipment Room
Located on both sides of the vehicle, these compartments are equipped with equipment racks and storage trays. The racks keep fire hoses, suction tubes, and foam guns neatly organized. The storage trays provide quick access to tools like wrenches, axes, and crowbars, improving rescue efficiency.
Pump Room: Equipped with fire hoses, water collectors, filters, fire nozzles, foam guns, suction hose wrenches, reducers, etc.
HOWO SITRAK emergency lighting rescue fire truck comes with a rear-mounted CB10/60 fire pump and a superstructure front mounted PLDK8/48 monitor. The water tank holds 4,500 liters, and the foam tank holds 1,600 liters, sitting on a sturdy SITRAK 4×2 chassis powered by a 350 HP MC07H.35-61 engine. Standard gear includes fire hoses, suction tubes, couplings, a foam gun, and a complete tool kit.
Full specifications are listed below:
NO | Item | Unit |
1 | Water Suction Pipe (Suction hose Ø 125 mm, length: 4 m) | 2 PC |
2 | Water strainer (Ø 125) | 1 PC |
3 | Water segregator (Ø 80-65-65 mm) | 1 PC |
4 | Water collector (Ø 125-65-65 mm) | 1 PC |
5 | Soft-wall fire hose (Water hose Ø 65 mm, length: 20 m) | 6 SET |
6 | Soft-wall fire hose (Water hose Ø 80 mm, length: 20 m) | 4 SET |
7 | Fast conversion joint (80X65 mm) | 2 PC |
8 | Hose protector | 4 PC |
9 | Hose Hoist | 4 PC |
10 | Ground Hydrant-wrench | 1 PC |
11 | Underground Hydrant-wrench | 1 PC |
12 | Suction Wrench | 2 PC |
13 | Dry Powder Extinguisher | 1 PC |
14 | Fire Fighting Barrel | 1 PC |
15 | Straight flow switch water gun (Ø 65 mm) | 1 PC |
16 | Multi-purpose switch water gun | 1 PC |
17 | Fire Fighting Axe | 1 PC |
18 | Fire Fighting Shovel/Spade | 1 PC |
19 | Fire Axe | 1 PC |
20 | 4M Aluminum Ladder (Optional 10M Aluminum Ladder) | 1 PC |
21 | Original Chassis Tools | 1 PC |
22 | Protective (safety) spectacles | 1 PC |
