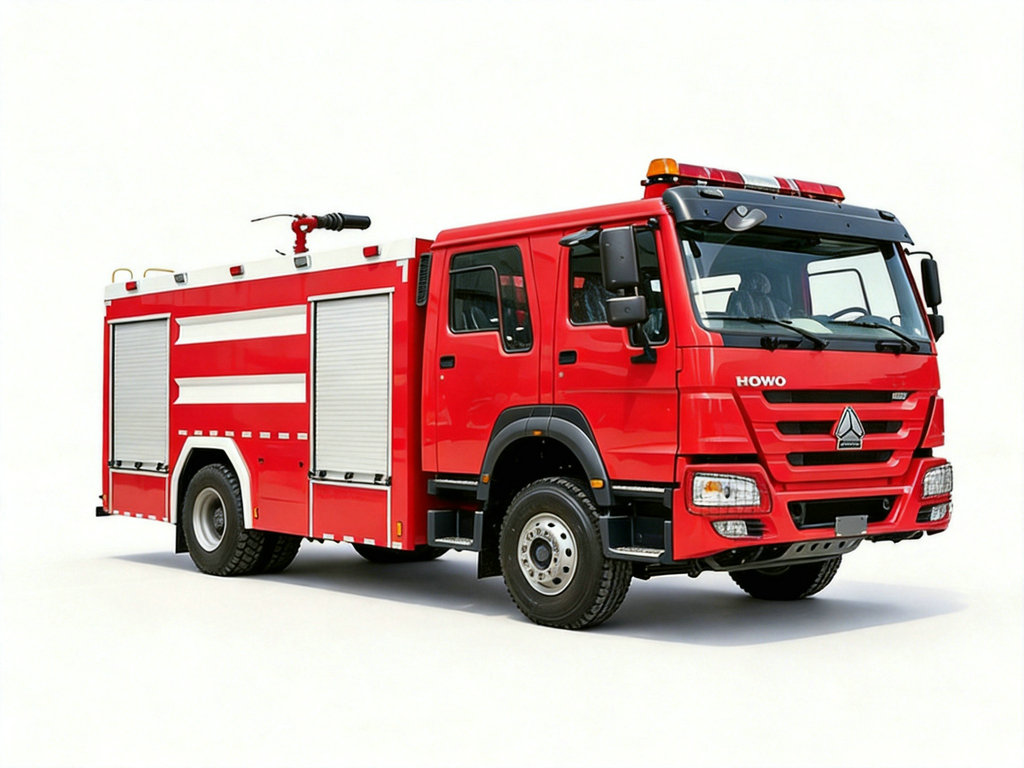

SINOTRUK HOWO 4x2 Foam Fire Fighting Truck 6000L Water + 2000L Foam
Tanker Capacity:6000L water + 2000L foam (8000L total)
Engine :300 HP (220 kW) / WD615.92
Fire Pump: CB10/60
Pump Flow: 60 L/s
Monitor Range:Water ≥70 m , Foam ≥60 m
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
| Quantity: | |
|---|---|
|
| |
-
DRZ5180XFZZ8
-
DRZ
-
8705309000
SINOTRUK HOWO 4x2 Foam Fire Fighting Truck 6000L Water + 2000L Foam

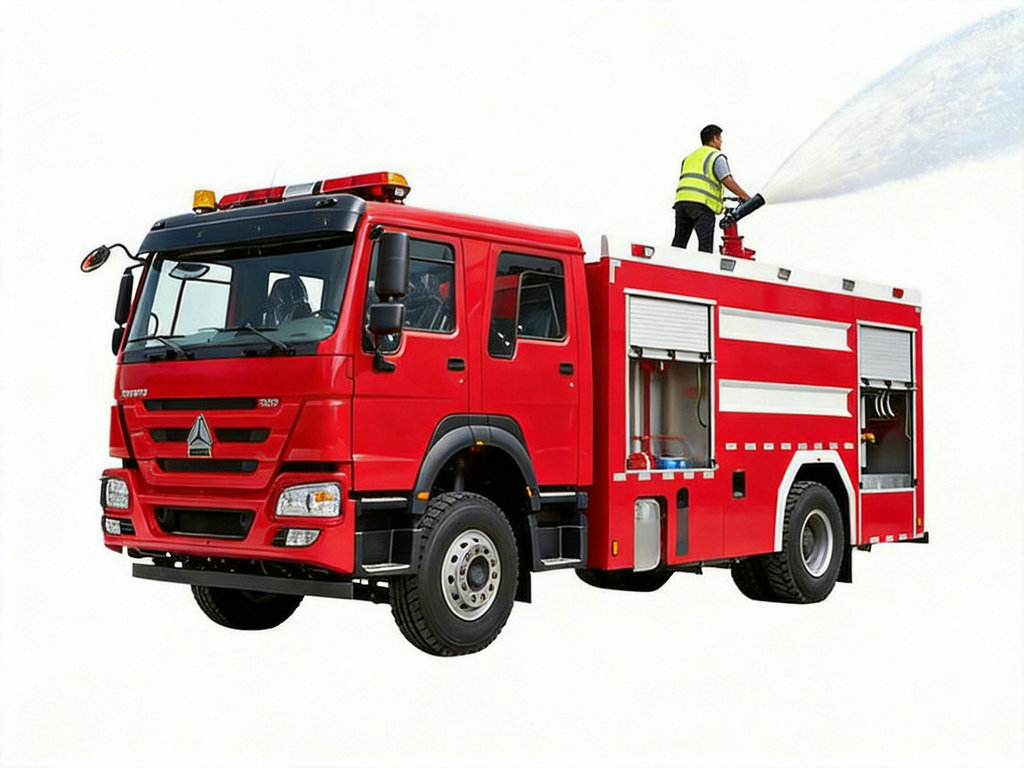

HOWO high pressure foam fire truck is built for firefighting and emergency response. This HOWO 300HP 4x2 foam fire truck features a 6000L water tank, a 2000L foam tank, a CB10/60 fire pump (60 L/s at 1.0 MPa), and a roof mounted PL8/48 fire monitor with 65m water range and 60m foam range.
This fire truck carries a full set of standard firefighting equipment including hoses, suction tubes, couplings, and a foam gun. It works well for Class B fires involving oil, gasoline, and chemicals. It suits firefighting tasks at oil depots, chemical plants, airports, and industrial facilities.
HOWO 4X2 8CBM Foam Fire Fighting vehicle
Working Capacity | Engine Model | Wheelbase | Superstructure |
6000L water + 2000L foam | 300 HP / WD615.92 | 4600 mm 4700 mm 5200 mm | ★ Tank carbon steel, 8000L capacity ★ CB10/60 fire pump, 60 L/s flow at 1.0 MPa ★ PL8/48 roof monitor, 48 L/s flow with water ≥65 m, foam ≥60 m ★ 2026 year brand new |
» Ⅰ.Main Features :
★ WD615.92 engine rated at 300 HP for high pressure foam fire suppression and emergency response
★ HOWO 4×2 chassis with 6000L water tank, 2000L foam tank, and CB10/60 fire pump (60 L/s at 1.0 MPa)
★ Roof mounted PL8/48 monitor with 48 L/s flow, water range ≥65 m, and foam range ≥60 m for long distance fire attack
★12R22.5、 315/80R22.5 tires and 4600 mm wheelbase for stable handling on various road conditions
★ Full firefighting equipment including hoses, nozzles, foam gun, and basic tool kit for Class B fire fighting
» Ⅱ.Product Parameter :
High Pressure Foam Fire Truck HOWO | |||
General | Work capacity | 6000L water+2000L foam | |
Truck chassis | SINOTRUK HOWO 4x2 | ||
Engine power | 300 HP/ WD615.92 | ||
Fire pump | CB10/60 | ||
Fire monitor | PL8/48 | ||
Maximum speed | 95 km/h | ||

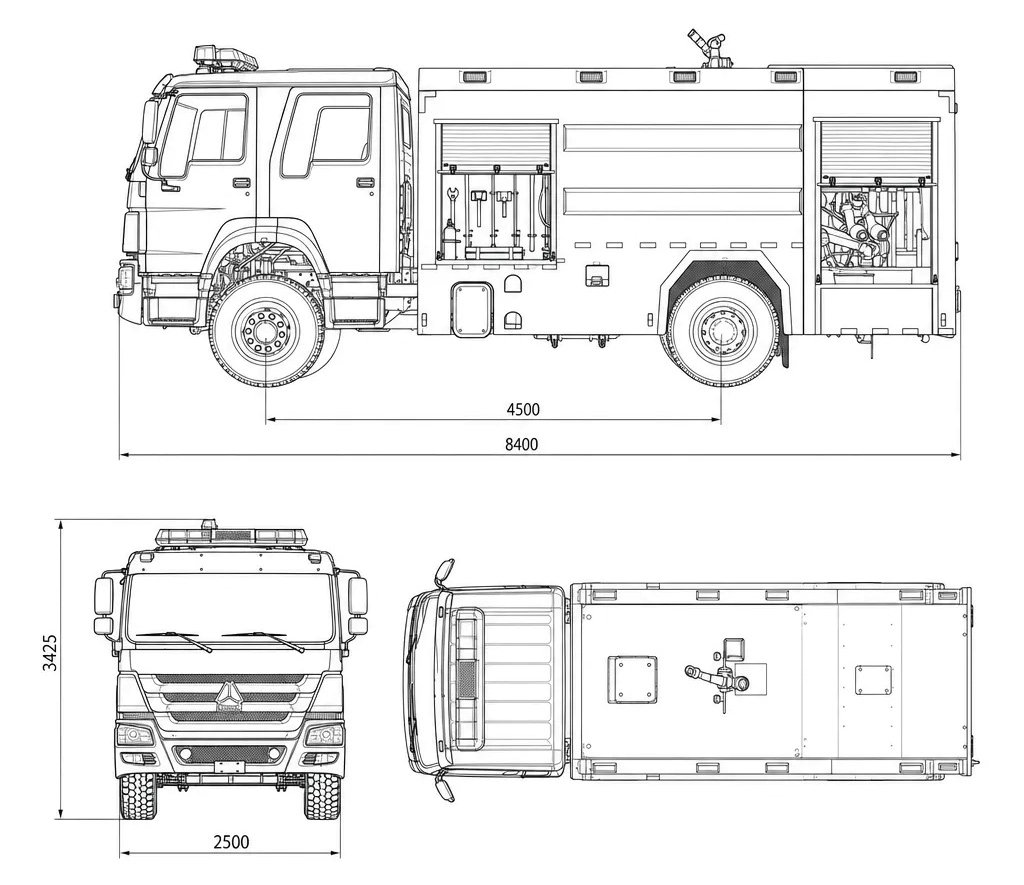

Overall dimensions L*W*H | 8400*2500*3425 mm | ||
Gross vehicle weight | 9900 kg | ||
Curb weight | 5850 kg | ||
Engine | Engine model | WD615.92 | |
Fuel type | Diesel | ||
Power | 300 HP（220KW） | ||
Emission standard | Euro 2-6 | ||
Displacement | 9726 ml | ||
Engine type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
Chassis | Drive type | 4x2 | |
Wheelbase | 4600 mm 4700 mm 5200 mm | ||
Tire | 12R22.5 ；315/80R22.5 | ||
Tire No. | 6 tires and 1 spare tire | ||
Fire Pump | Model | CB10/60 | |
Flux | 60L/s | ||
Pressure | 1MPa | ||
Max working pressure | 1.251MPa | ||
Max allowable inlet pressure | 0.4MPa | ||
Max suction height | 3m | ||
Rated speed | 3916±50r/min | ||
Speed ratio | 1:1.4 | ||
Water diversion time | ≤50s | ||
Fire Monitor | Model | PL8/48 | |
Flow | 48L/s | ||
Rated working pressure | 1MPa | ||
Max working pressure | 1.2MPa | ||
Range | Water | ≥65m | |
Foam | ≥60m | ||
Pitch rotation | - 35～+70° | ||
Horizontal rotation | 0～360° | ||
Standard Configuration | All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual…… | ||
» Ⅲ.Products Description :
1. Chassis & Powertrain
♦ SINOTRUK HOWO 4×2 chassis with 4600 mm wheelbase, designed for stable operation on urban roads and industrial sites.
♦ WD615.92 diesel engine, rated at 300 HP, delivering reliable torque for quick response, continuous pump operation, and long-duration foam fire suppression.
♦ Manual transmission for straightforward operation and easy maintenance.
2. Fire Suppression & Lighting System
♦ 6000L water tank and 2000L foam tank, carbon steel construction with internal baffles to reduce liquid surge.
♦ CB10/60 fire pump, 60 L/s flow at 1.0 MPa, PTO driven, 3m suction height, ≤50s priming time.
♦ PL8/48 roof monitor, 48 L/s flow, water range ≥65 m, foam range ≥60 m, horizontal 360° rotation, pitch -35° to +70°.
» Ⅳ.Product Details :
» Ⅴ.Fire Pump System :
Fire Pump:

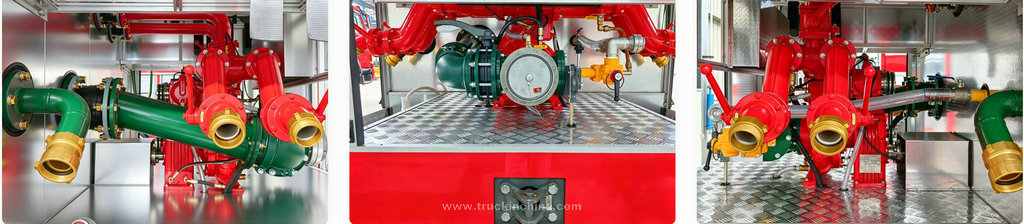

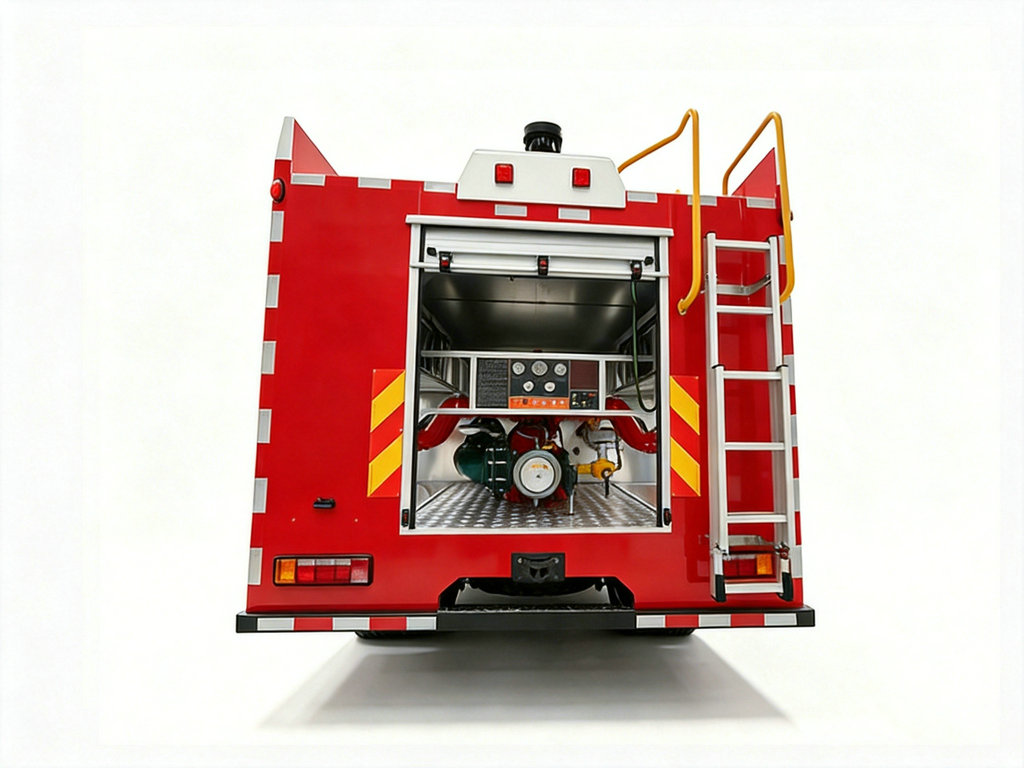

A CB10/60 fire pump with a rated flow of 60 L/s at 1.0 MPa is installed in the rear pump room. This pump is built for reliable performance, providing steady water pressure to ensure fire hoses and monitors can deliver water or foam effectively over long distances for fire suppression.
Fire Pump Model | Flow | Pressure | Max Working Pressure | Max Allowable Inlet Pressure |
CB10/60 | 60L/s | 1.0MPa | 1.251 MPa | 0.4MPa |
Control panel: Includes operating instructions, tank piping diagram, pressure gauge, water level gauge, foam level gauge, emergency stop, PTO control, main power switch, pump controls, ladder controls, and compartment lighting. All controls are clearly marked for straightforward operation.
» Ⅵ.Fire Monitor System :

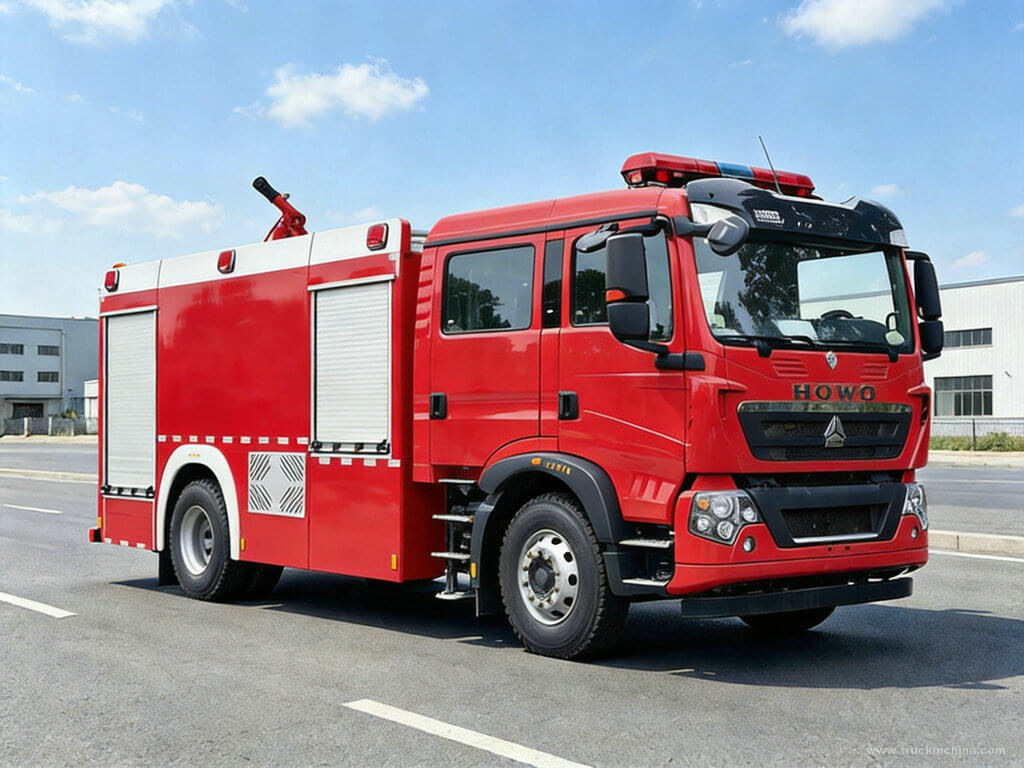

The PL8/48 fire monitor is mounted on the cab roof. It delivers a flow rate of 48 L/s with a water range of ≥65 m and a foam range of ≥60 m. The monitor supports both straight stream and spray patterns for flexible firefighting operations.
Fire Monitor Model | Flow | Range | Rated Pressure | Pitch Rotation | Horizontal rotation |
PL8/48 | 48L/s | Water≥65m Foam ≥60 m | 1.0MPa | -35°～+70° | 0～360° |
» Ⅶ.Firefighting Equipment :

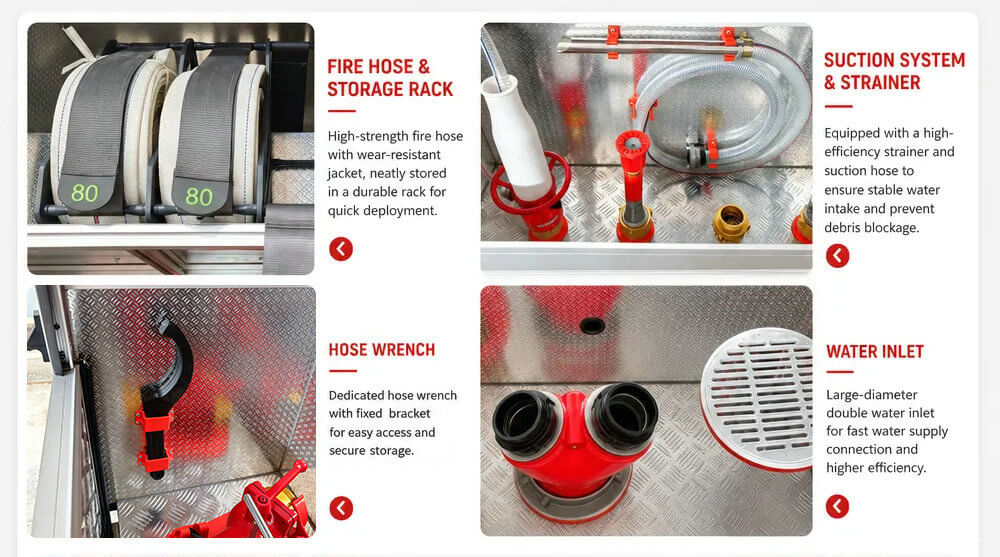

• Equipment Room

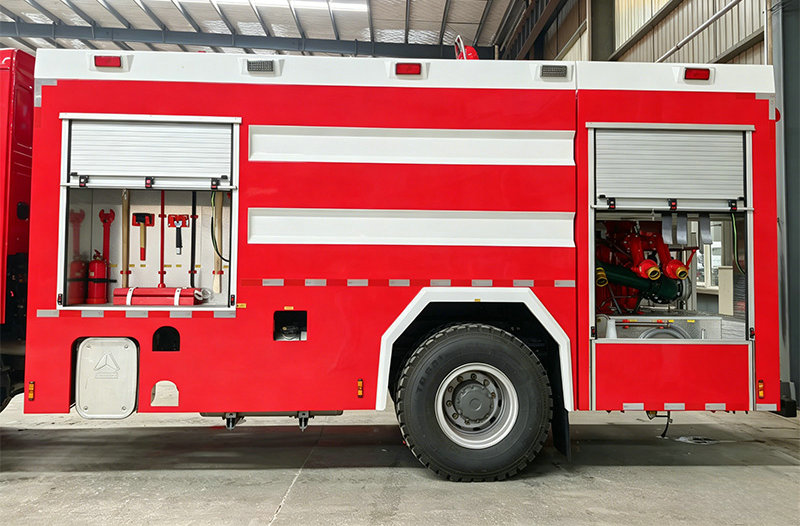

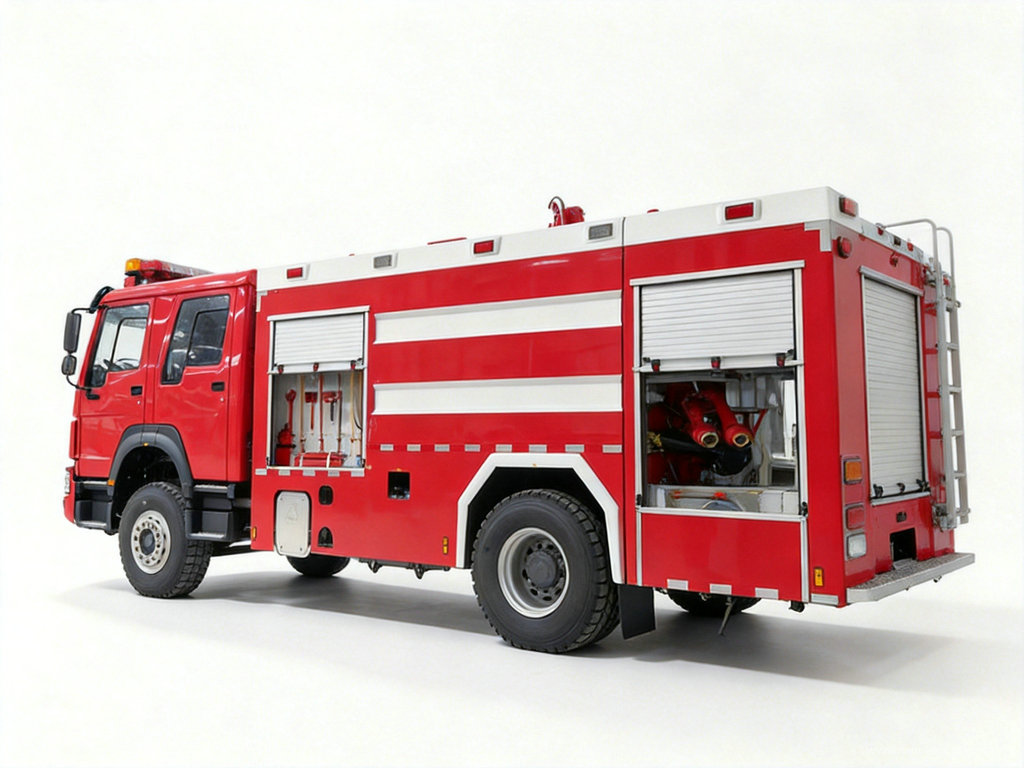

Located on both sides of the vehicle, these compartments are equipped with equipment racks and storage trays. The racks keep fire hoses, suction tubes, and foam guns neatly organized. The storage trays provide quick access to tools like wrenches, axes, and crowbars, improving rescue efficiency.
Pump Room: Equipped with fire hoses, water collectors, filters, fire nozzles, foam guns, suction hose wrenches, reducers, etc.
HOWO high pressure foam fire truck comes with a rear-mounted CB10/60 fire pump and a cab roof mounted PL8/48 monitor. The water tank holds 6,000 liters, and the foam tank holds 2,000 liters, sitting on a sturdy HOWO 4×2 chassis powered by a 300 HP WD615.92 engine. Standard gear includes fire hoses, suction tubes, couplings, a foam gun, and a complete tool kit.
Full specifications are listed below:
NO | Item | Unit |
1 | Water Suction Pipe (Suction hose Ø 125 mm, length: 4 m) | 2 PC |
2 | Water strainer (Ø 125) | 1 PC |
3 | Water segregator (Ø 80-65-65 mm) | 1 PC |
4 | Water collector (Ø 125-65-65 mm) | 1 PC |
5 | Soft-wall fire hose (Water hose Ø 65 mm, length: 20 m) | 6 SET |
6 | Soft-wall fire hose (Water hose Ø 80 mm, length: 20 m) | 4 SET |
7 | Fast conversion joint (80X65 mm) | 2 PC |
8 | Hose protector | 4 PC |
9 | Hose Hoist | 4 PC |
10 | Ground Hydrant-wrench | 1 PC |
11 | Underground Hydrant-wrench | 1 PC |
12 | Suction Wrench | 2 PC |
13 | Dry Powder Extinguisher | 1 PC |
14 | Fire Fighting Barrel | 1 PC |
15 | Straight flow switch water gun (Ø 65 mm) | 1 PC |
16 | Multi-purpose switch water gun | 1 PC |
17 | Fire Fighting Axe | 1 PC |
18 | Fire Fighting Shovel/Spade | 1 PC |
19 | Fire Axe | 1 PC |
20 | 4M Aluminum Ladder (Optional 10M Aluminum Ladder) | 1 PC |
21 | Original Chassis Tools | 1 PC |
22 | Protective (safety) spectacles | 1 PC |
