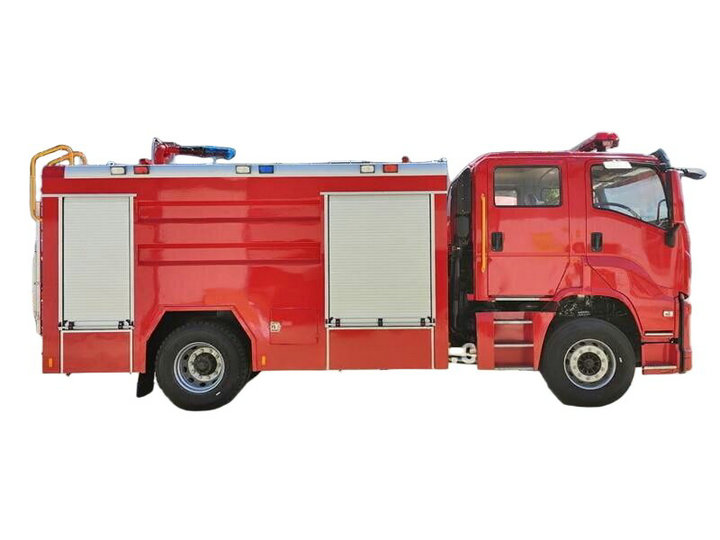

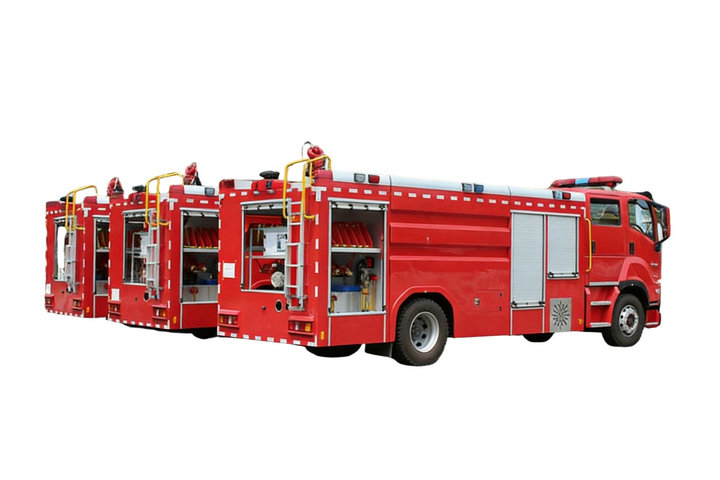

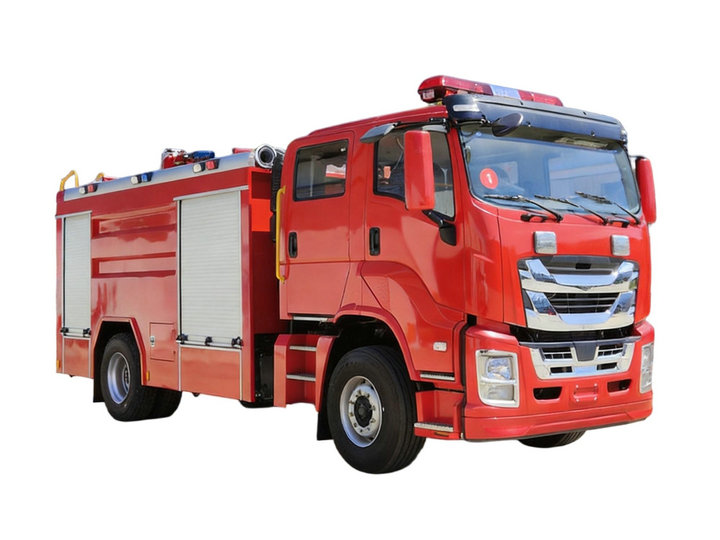

Isuzu Fire Engine 4500L Foam Fire Fighting Truck
Tanker Capacity:4000L water +500L foam
Engine :380 HP/ 6UZ1-TCG
Fire Pump:CB10/60-RS
Pump Flow: 100 L/s
Monitor Range:Water ≥70 m , Foam ≥60 m
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
| Quantity: | |
|---|---|
|
| |
-
DRZ51880XFQL
-
DRZ
-
8705309000

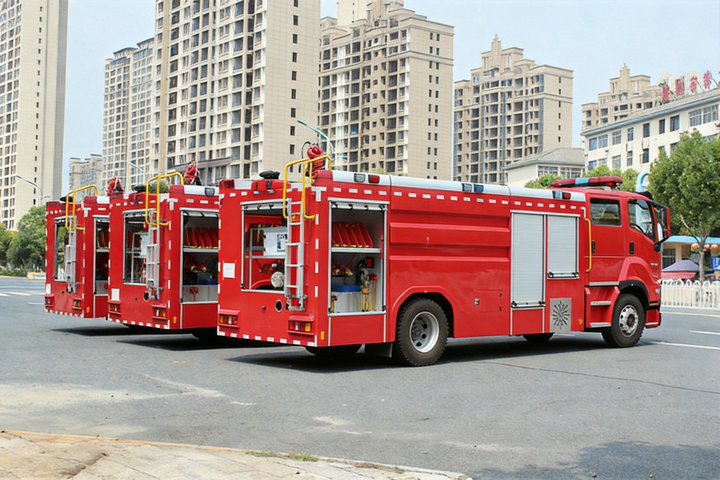

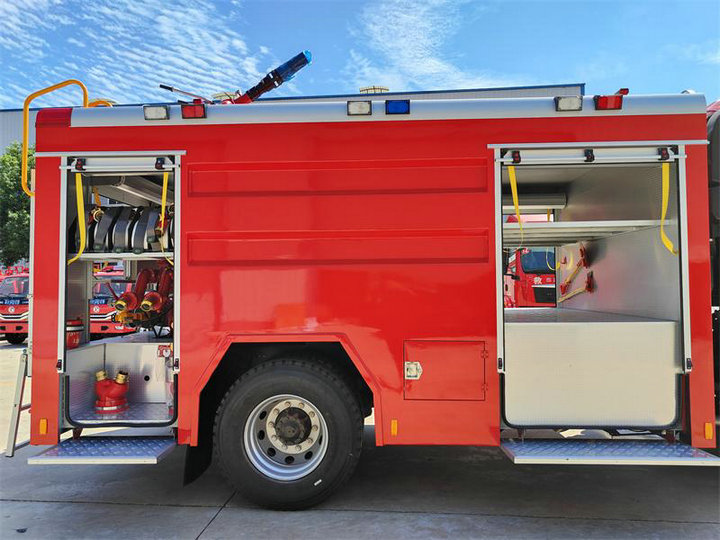

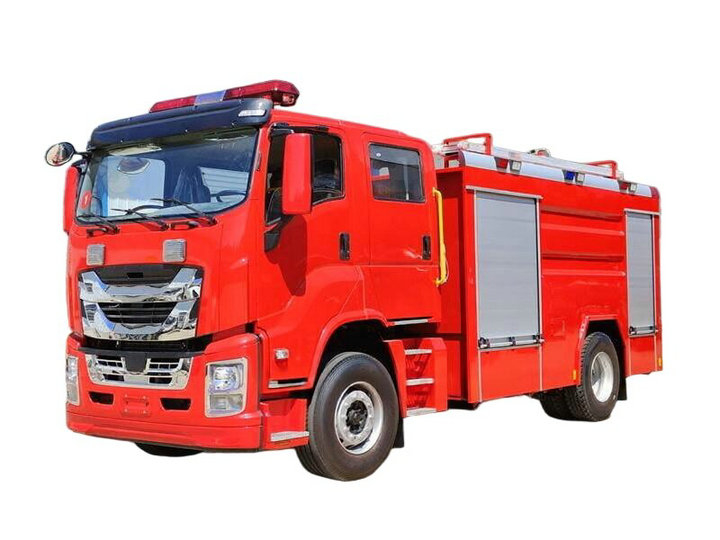

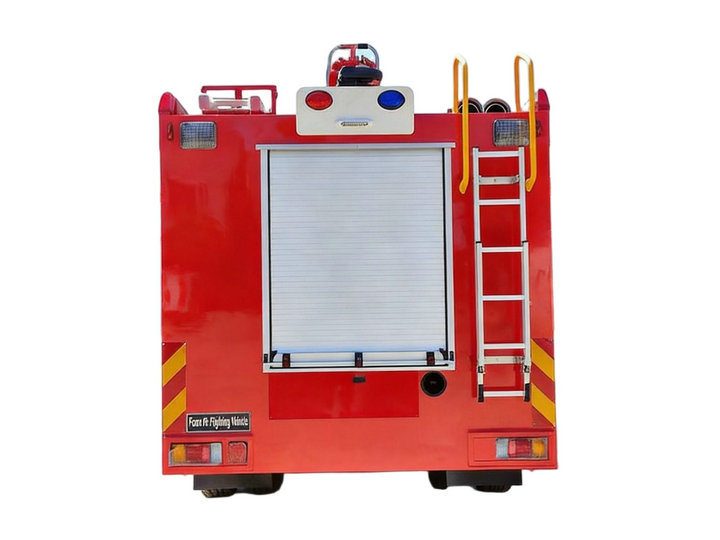

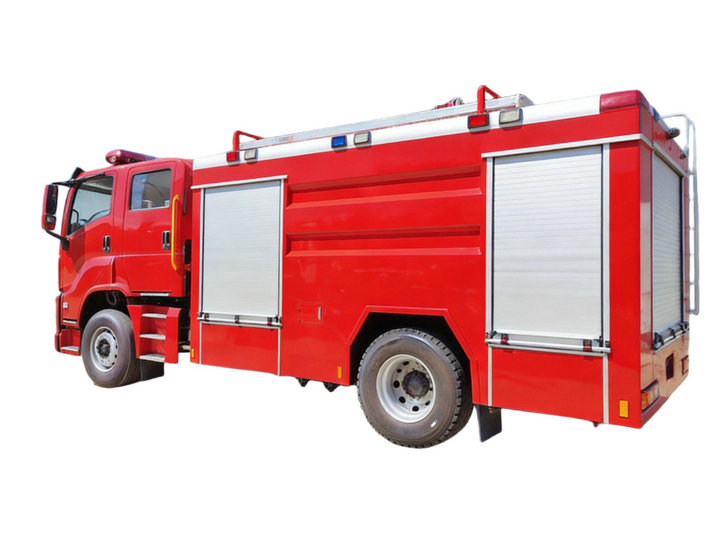

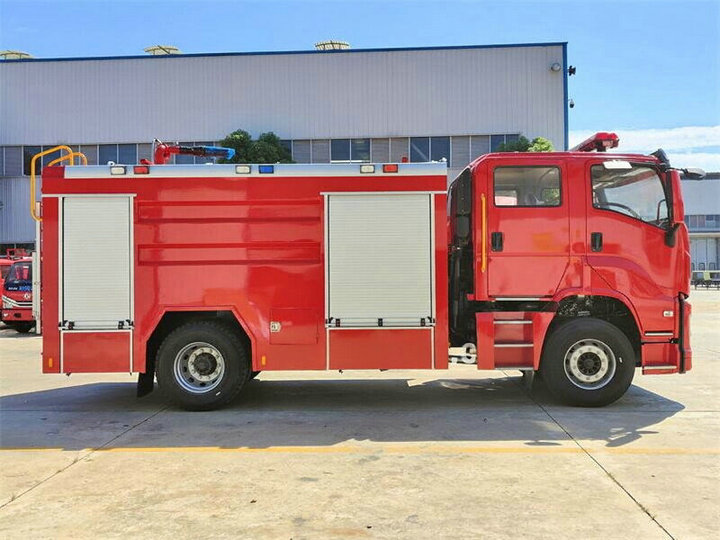

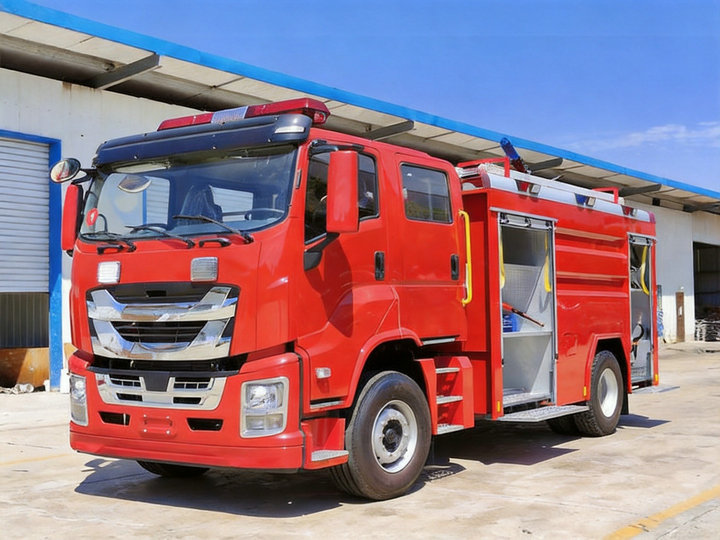

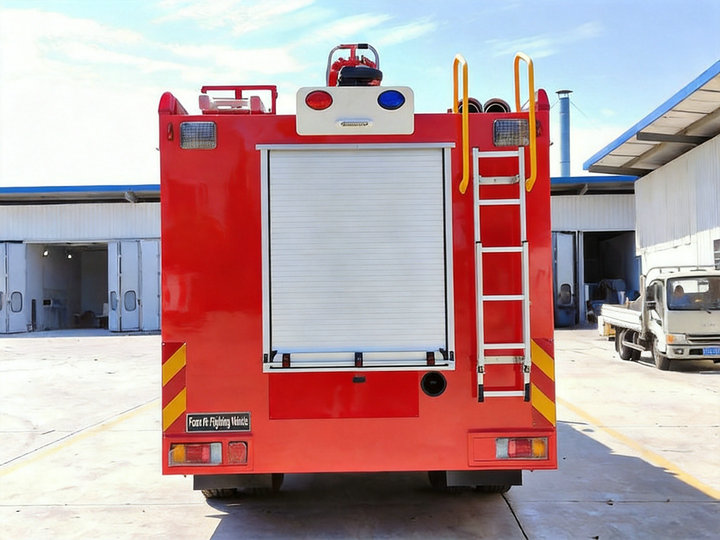

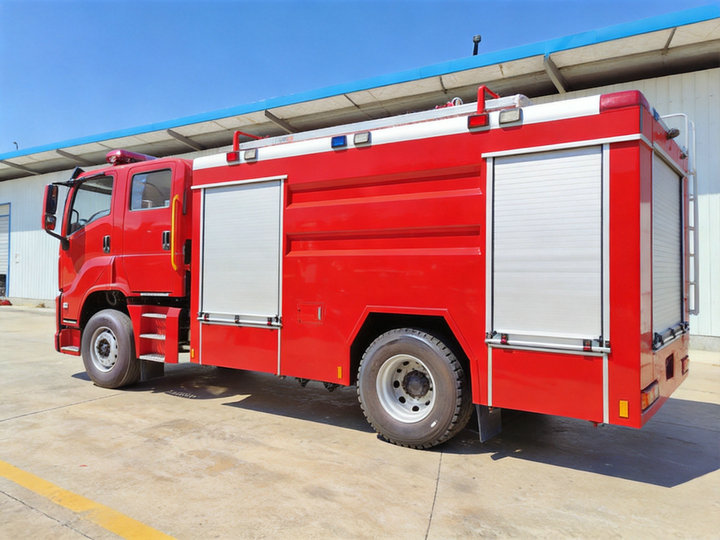

Isuzu Fire Engine 4500L Foam Fire Fighting Truck

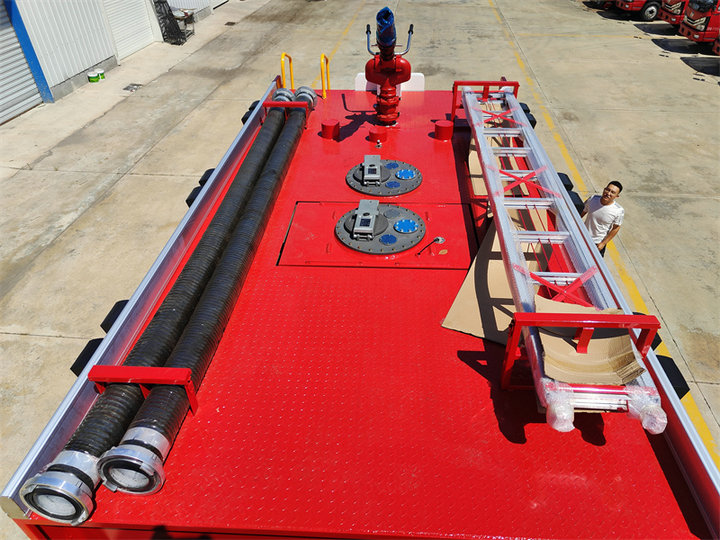

isuzu water fire fighting truck is specifically designed for efficient firefighting and emergency response in Guatemala. Its core features include a 4-cubic-meter carbon steel water tank, a 500-liter stainless steel foam tank, and an integrated CB10/60 fire pump and a roof-mounted PL8/48 fire monitor.
4500L Police Fire Engine Isuzu combines water and foam firefighting methods and is particularly effective at extinguishing Class B fires involving oil and chemicals. It is an ideal piece of equipment for handling initial fires in urban areas, factories, and major transportation routes.
4500L Police Fire Engine Isuzu
Working Capacity | Engine Model | Wheelbase | Superstructure |
4000L water+500L foam | 6UZ1/ 380HP | 4600 mm | ★Water tank carbon steel ★Foam tank stainless Steel, SS 304 ★China famous CB10/60-RS fire pump ★ China famous PL8/48 Fire monitor |
»Ⅰ. Main Features :
★ Isuzu 380 HP powerful engine, 100,000 Km without prblem.
★ Isuzu new model GIGA cabin, Europen design
★ China famous CB10/60 pump, super reliable
★ Tank capacity can be customized
» Ⅱ.Product Parameter :
ISUZU GIGA 4500L foam water fire truck | |||
General | Work capacity | 4000L water tank,500L foam tank | |
Truck chassis | Isuzu GIGA | ||
Engine Power | 380 HP/ Isuzu 6UZ1-TCG | ||
Fire pump | CB10/60-RS | ||
Chassis | Drive Type | 4X2 | |
Transmission | FAST 12-shift, manual | ||
Wheelbase | 4600mm | ||
Tire | 295/80R22.5 18PR,6+1wheel | ||
Fire pump | Model | CB10/60-RS | |
Pressure | 1MPa | ||
Max working pressure | 1.082MPa | ||
Max allowable inlet pressure | 0.4MPa | ||
Flux | 60L/s | ||
Max suction height | 7m | ||
Rated speed | 3200±50r/min | ||
Speed Ratio | 1:1.440 | ||
Water diversion time | ≤50s | ||
Foam Water Proportioning Mixer | Model | PH64-RS | |
Mixing ratio | 6% | ||
Work pressure range | 0.6～1.4MPa | ||
Flow range | 16～64L/s | ||
Suitable foaming liquid categories | Category B | ||
Fire monitor | Model | PL8/48 | |
Flow | 48L/s | ||
Rated working pressure | 0.8MPa | ||
Max working pressure | 1.0MPa | ||
Range | Water | ≥70m | |
Foam | ≥60m | ||
Pitch rotation | - 45～+70° | ||
Horizontal rotation | 0～360° | ||
Electronic alarm | Electronic alarm | LY CJB-100-C24 / 1.2 m long | |
Standard configuration | All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual…… | ||
-----Tanker material: Carbon steel, stainless steel, aluminum alloy, PP material
-----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand
-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)
Chassis:
Type: Isuzu GIGA 4x2 Class II chassis for fire trucks
Wheelbase: 4600mm
Engine: Isuzu 6UZ1-TCG, 380HP/278Kw, 1800N.m max torque, 9.839L displacement, Euro 6 emission standard
Transmission: Fast 12-speed, 12 forward gears, 2 reverse gears
Tires: 295/80R22.5, 6+1
Cabin: Double row, 2+3 seats, with A/C, USB, power steering

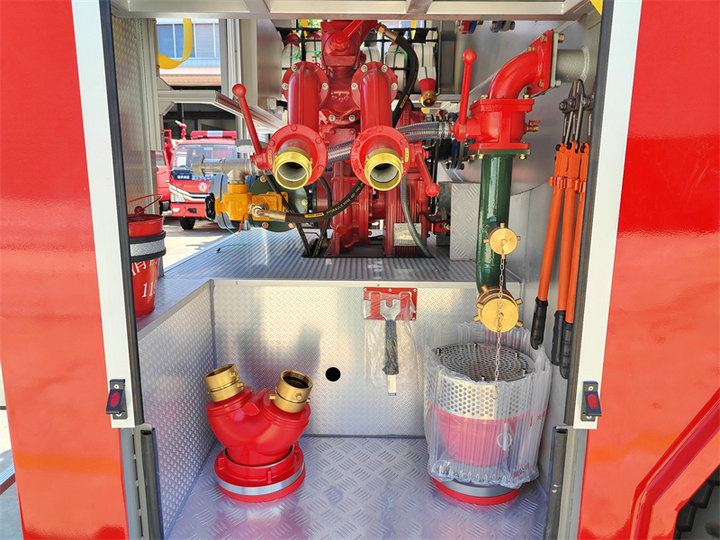

» Ⅲ. Fire Pump system :
Fire Pump Model | Pressure | Max Working Pressure | Max Allowable Inlet Pressure | Max vacuum | Speed Ratio |
CB10/60-RS | 1.0MPa | 1.082MPa | 0.4MPa | ≥85kPa | 1:1.440 |
Work Conditions | Flow(L/s) | Pressure(MPa) | Pump shaft speed(r/min) | Power(Kw) | Suction depth |
1 | 60 | 1.0 | 3200±50r/min | 99.71 | 3 |
2 | 42 | 1.3 | 3528±50r/min | 109.18 | |
3 | 30 | 1.0 | 3326±50r/min | 7 |
Control panel: Centrally installed pressure gauge, vacuum gauge, tachometer, water level gauge, foam level gauge, control lights, emergency brake light and buttons, operating instructions, tank piping diagram, etc.
» Ⅳ. Fire Monitor system :
Fire Monitor Model | Flow | Range | Rated Pressure | Pitch Rotation | Horizontal rotation | Weight |
PL8/48 | 48L/s | water ≥70m, foam ≥60m | 0.80MPa | -45°～+70° | 0～360° | 27kg |
» Ⅴ.Technical Design:
POWERSTAR R & D Department for design:

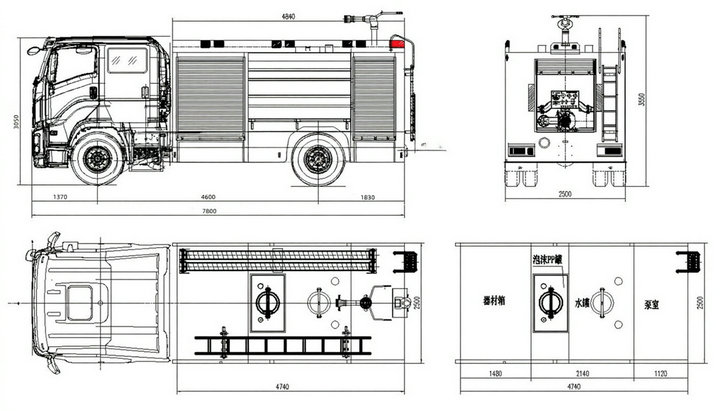

100% customized appearance, design the water + foam tanker capacity, fire fighting tools storage box, also the whole truck size can be customized.
» Ⅵ.Preshippment Test:

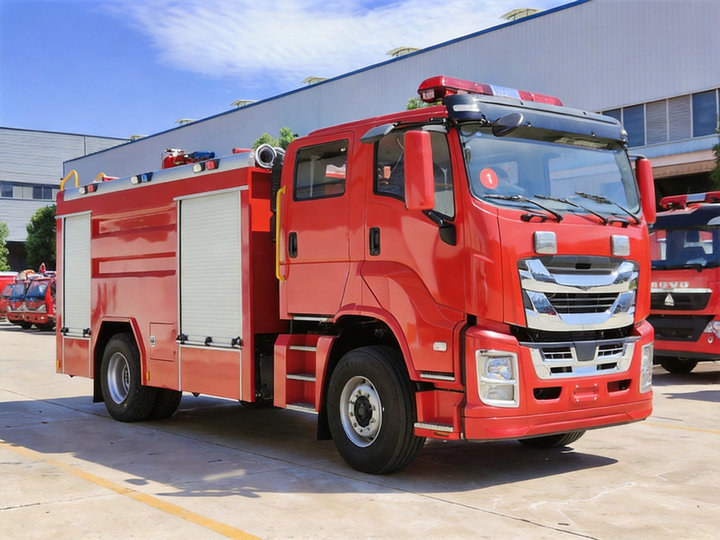

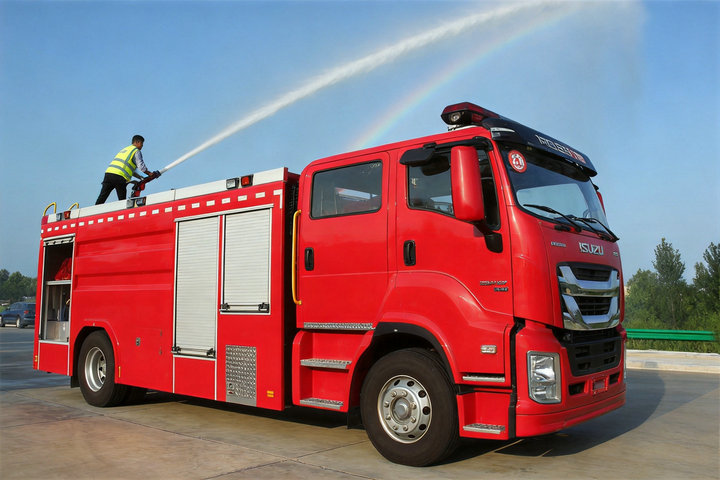

Before delivering the Isuzu GIGA 4X2 4500L foam fire truck from our factory, we conducted a factory inspection of the fire truck, which included rain testing, performance testing of the fire pump and fire monitor, as well as final inspection of welding process, painting and other aspects.
ISUZU GIGA VC66 4x2 LHD 5000L foam tanker fire truck Specification
ISUZU GIGA VC66 4x2 LHD 5000L foam tanker fire truck Specification | ||
Truck Model | DRZ5250GXFPM | |
Cab | Double rows cab,with air conditioner,power assistance | |
Driving Type | 4x2 Left hand driving | |
Overall Dimension (mm) | Approx. 8200×2500×3650 | |
GVW (kg) | Approx. 22000 | |
Curb Weight (kg) | Approx. 11500 | |
Wheelbase (mm) | 4600 | |
Tire | Type | 315/80R22.5 |
Nos | Total 7, including 1 spare tire | |
Gear box | Brand | FAST 12-speed,manual |
Axle | Front axle loading capacity (kg) | 9000 |
Rear axle loading capacity (kg) | 13000 | |
Engine | Brand | lSUZU |
Model | 6UZ1-TCG61 | |
Emission Standard | EURO 6 (Optional to remove the DPF and ADBlue device to make truck working as EURO 4) | |
Fuel Type | Diesel fuel | |
Air Intake Form | In-line 6 cylinders, water cooling, turbocharging and intercooling | |
Output Power (kw) | 279 | |
Exhaust(ml) | 9839 | |
Max output power (hp) | 380 | |
Max torque (N.M) | 1800N.M | |
Braking System | Automatically air-cut brake, with ABS for safety | |
Electric system | 24V | |
Special Function | |||
Tank | Water Tank | Capacity | 4000L |
Material | SS #304 stainless steel material | ||
Configuration | 1. Welding, there is clapboard inner. 2. Water level indicator 3. One manhole, With quick locking and opening device 4. One overflow valve device 5. One drain outlet 6. One air breather valve | ||
Foam Tank | Capacity | 1000L | |
Material | SS #304 stainless steel material | ||
Fire Pump | Type | Normal pressure fire pump | |
Model | CB10/60 | ||
Flux | 60l/s@1MPa | ||
Pressure | 1.0Mpa | ||
Suction port | Φ150mm | ||
Outlet | Two Φ80mm outlets, and two Φ65mm outlets | ||
Water Monitor | Model | PL48 | |
Flow | 48L/S | ||
Covering range | ≥ 60m | ||
Working Pressure Range | ≤1 MPA | ||
Pitching Rotation Angle | -35°~ 75° | ||
Horizontal Swing Angle | 0 ~360° | ||
PTO | Use sandwich PTO, splashing-type lubricate, can put out fire when driving. | ||
Carriage | Carriage is made of high-quality steel and Aluminum embossed sheet | ||
Pump room | On the rear or central of truck, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch. | ||
Rolling Shutter Door | Light and high-quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock. | ||
Color | Red color R03 model | ||
Technical Requirement | 1.Fire fighting vehicle is accord with GB7965 Performance requirements and test methods for fire fighting vehicle. | ||
-----Tanker material: Carbon steel, stainless steel, aluminum alloy, PP material
-----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand
-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)

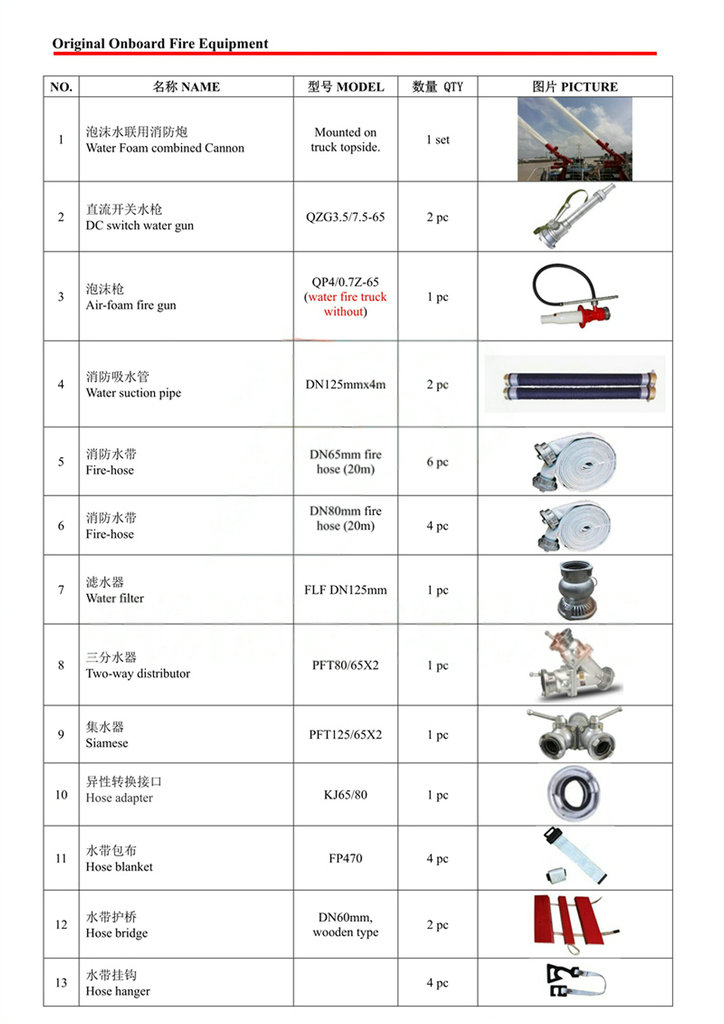

Full Fire extinguishing tools and equipment listed below:
Isuzu firefighting trucks list
Model | Engine model | Water | Foam | Fire Pump | Fire Monitor |
Isuzu Pick Up | 4KH1CT6H1 / 143HP | 500L | 100L | Independent Fire Pump | PL8/20W |
Isuzu mini ELF / NKR / 100P | 4KH1CN6LB / 120HP 4KB1-TCG61 / 130HP | 1000L 2000L | 1000L 500L | CB10/20 (20L/s) CB10/30 (30L/s) | PL8/24W (24L/S) |
Isuzu NPR / ELF | 4KH1N6MD / 140 HP 4KH1N6HD / 150HP | 2000L | 1000L | CB10/30 (30L/s) | PL8/24W (24L/S) |
Isuzu ELF / 700P | 4HK1-TCG61 / 190HP 4HK1-TCG60 / 205HP | 3000L 4000L | 1500L 500L | CB10/30 (30L/s) CB10/40 (40L/s) | PL8/24W (24L/S) PL8/32W (32L/S) |
Isuzu GIGA 4X | 4HK1-TCG60 / 205HP | 5000L | 1000L | CB10/40 (40L/s) | PL8/32W (32L/S) |
Isuzu GIGA 5X | 6HK1-TCG61 / 240HP 6HK1-TCG60 / 300HP | 5000L 6500L | 1000L 500L | CB10/40 (40L/s) CB10/60 (60L/s) | PL8/32W (32L/S) PL8/48W (48L/S) |
Isuzu GIGA (4x2) | 6UZ1-TCG61 / 350HP 6UZ1-TCG60 / 380HP 6WG1-TCG61 / 460HP | 5000L 5000L 6000L | 1000L 2000L 2000L | CB10/60 (60L/s) CB10/80 (80L/s) CB10/100 (100L/s) | PL8/48W (48L/S) PL8/64W (64L/S) PL8/80W (80L/S) |
Isuzu GIGA (6x4) | 6UZ1-TCG61 / 350HP 6UZ1-TCG60 / 380HP 6WG1-TCG60 / 420HP 6WG1-TCG61 / 460HP 6WG1-TCG62 / 520HP | 9000L 10000L 12000L | 1000L 2000L 2000L | CB10/60 (60L/s) CB10/80 (80L/s) CB10/100 (100L/s) | PL8/48W (48L/S) PL8/64W (64L/S) PL8/80W (80L/S) |
Isuzu GIGA (8x4) | 6WG1-TCG60 / 420HP 6WG1-TCG61 / 460HP 6WG1-TCG62 / 520HP | 10000L 12000L 14000L | 4000L 4000L 2000L | CB10/60 (60L/s) CB10/80 (80L/s) CB10/100 (100L/s) | PL8/48W (48L/S) PL8/64W (64L/S) PL8/80W (80L/S) |
ISUZU Chassis list:
Chassis Model | Horsepower | Wheelbase | Engine Model | Transmission Option | Cab Configuration |
ISUZU FVR (4x2) | 240 HP | 4500/5550/5800 /6300/7150 | 6HK1-TCG61 | FAST 8-speed Transmission | New ISUZU VC61 Series Cab |
ISUZU FVZ (4x2 /6x4) | 300 HP | 4500/ 7150 4350+1370/4650+1370 5100+1370/5800+1370 1850+2980+1370 1850+4575+1370 | 6HK1-TCG60 | FAST 9-speed Transmission | New ISUZU VC61 Series Cab |
ISUZU VC66 Series 6x4 | 350 HP | 1850+4575+1370 | 6UZ1-TCG61 | ZF 8-speed (ZF8) / FAST 12-speed | New ISUZU VC61 Series Cab |
ISUZU VC66 Series (4x2 /6x4/8x4) | 380 HP | 3900/4600/5600 3900+1370 3985+1370 4600+1370 1850+3000+1370 1850+2980+1370 | 6UZ1-TCG61 | ZF 8-speed (ZF8) / FAST 12-speed | New ISUZU VC61 Series Cab |
ISUZU VC66 Series(6x4 ) | 420 HP | 4800+1370 5200+1370 | 6WG1-TCG60 | ZF 8-speed (ZF8) / FAST 12-speed | New ISUZU VC61 Series Cab |
ISUZU VC66 Series | 460 HP | 4600 4600+1370 4800+1370 5200+1370 5400+1370 2100+4325+1370 1850+4575+1370 | 6WG1-TCG61 | ZF 8-speed (ZF8) / FAST 12-speed | New ISUZU VC61 Series Cab |
ISUZU VC66 Series( 6x4/8x4) | 520 HP | 4800+1370 5400+1370 2100+4325+1370 | 6WG1-TCG62 | ZF 8-speed (ZF8) / FAST 12-speed | New ISUZU VC61 Series Cab |
