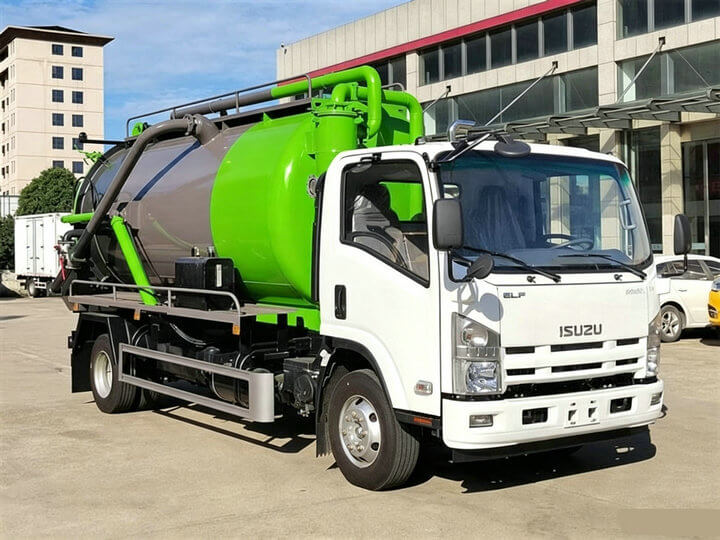

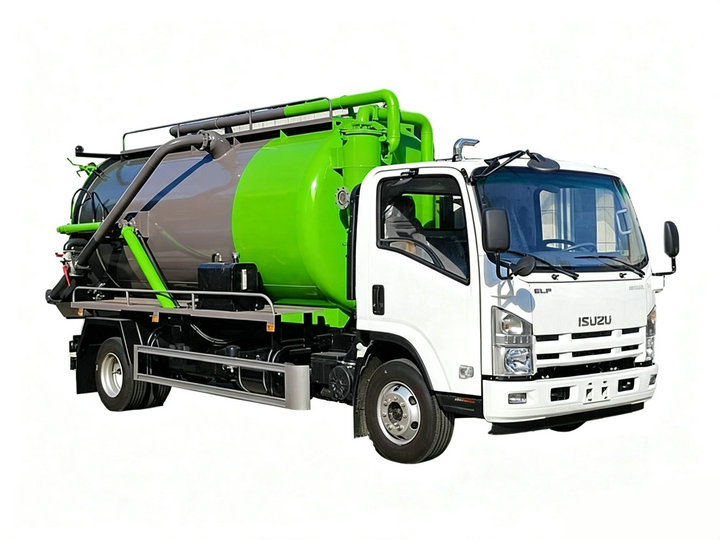

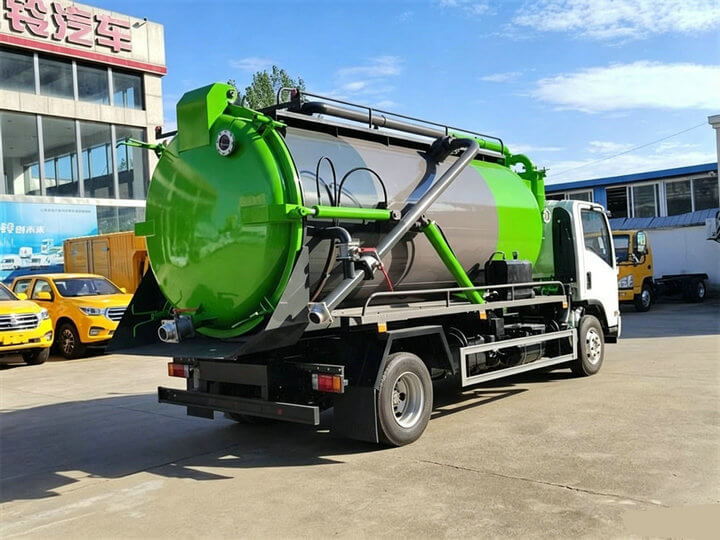

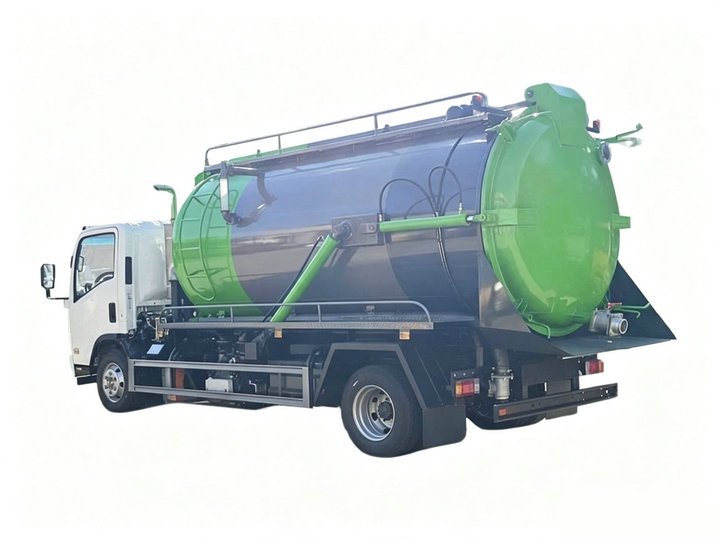

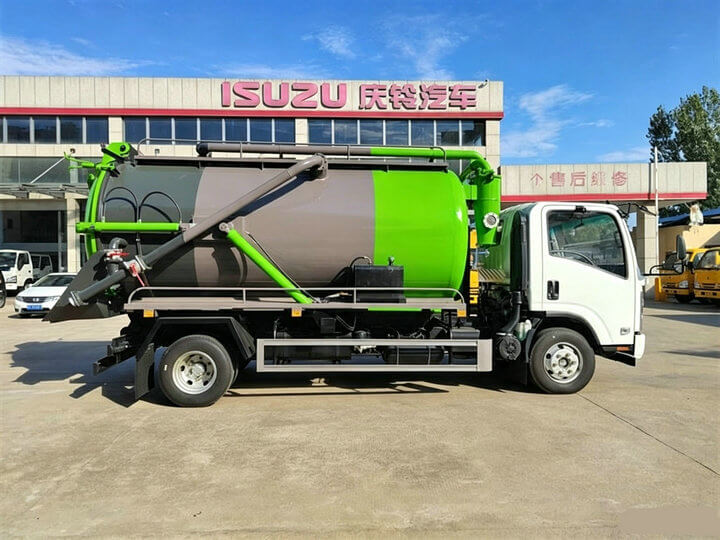

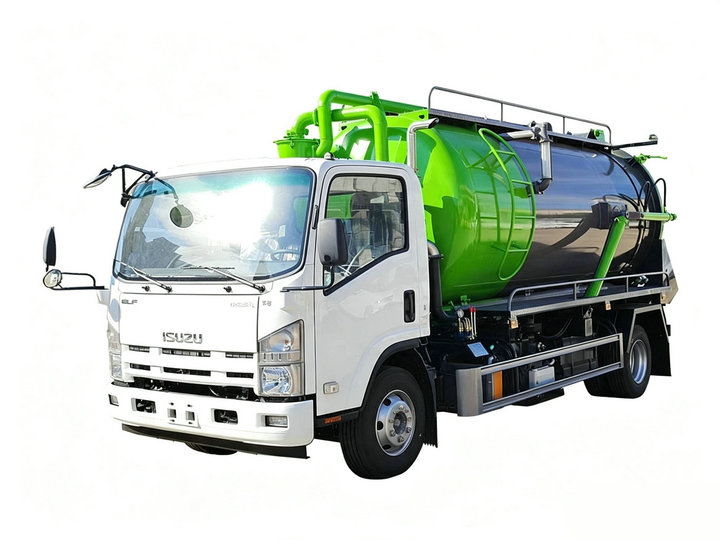

ISUZU Sewage Vacuum Pump Truck 8KL
8,000 Liters ISUZU Septic Pump Truck
The ISUZU septic pump truck is equipped with an 8000‑liter carbon‑steel tank and high‑quality PTO‑driven liquid‑ring vacuum pump, perfectly built for sewage collection, liquid waste transportation and septic waste management.
The vacuum tank is specially engineered for sewage storage, fitted with suction inlet, discharge outlet, liquid‑level sight glass, and secondary anti‑overflow protection device. The supporting vacuum pump comes with water‑gas separator and oil‑gas separator, effectively blocking sewage backflow and protecting pump core from contamination.
Model: DRZ5100GXWQLTank Capacity: 8000 litersDrive Mode: 4×2Engine Power: 190 HP / 139 kWEngine Model: 4HK1‑TC
Products Description
Vacuum tank trucks (also widely known as vacuum sewage trucks, cesspit emptier trucks) are essential sanitation special‑purpose vehicles for municipal and environmental sanitation work.
Common job scenarios include sewer sediment removal, septic tank cleaning, sewage suction & transfer, industrial liquid waste handling and environmental cleanup operations.
High‑pressure suction hoses are adopted for waste suction without damaging sewer pipelines or septic tank structures. The core component — vacuum pump, generates strong negative pressure to deliver powerful suction performance; higher pump power brings stronger suction capacity.
This ISUZU sewer vacuum tanker is most frequently deployed for septic tank cleaning and sewer line maintenance. It sucks out sludge and sediment inside sewer pipelines, keeps drainage systems running smoothly, and avoids sewer backflow and pipe blockages. Besides, it can empty portable public toilets and safely transport waste to designated discharge sites.
Products Specifications
| Item | Parameter |
|---|---|
| Product Name | ISUZU Sewer Vacuum Truck |
| Vehicle Overall Dimension(L×W×H) | 7800×2300×2650 mm |
| Curb Weight | 4900 Kg |
| Loading Weight | 6000 Kg |
| GVW | 11000 Kg |
| Wheelbase | 3815 mm,4175mm,4475mm |
| Drive Type | 4×2 optional 4x4 |
| Engine | ISUZU |
| Engine Model | 4HK1‑TC |
| Rated Power | 139 kW (190 HP) |
| Displacement | 5193 ml |
| Transmission | |
| Gearbox Model | MLD‑6Q |
| Forward / Reverse Gear | 6 forward + 1 reverse |
| Seating Capacity | 3 seats |
| Chassis | |
| Front / Rear Track | 1680 mm / 1650 mm |
| Axle Configuration | Double axles |
| Tire Spec | 7 pcs (including spare tire), 235/70R17.5, or 825R20 |
| Standard Factory Options | Power steering, Air‑conditioning, Retro‑reflective marking, ABS, Maintenance‑free battery, Radial tires, Air brake |
| Vacuum Tank | |
| Tank Material | Carbon steel |
| Effective Capacity | 5000L,6000L,7000L,8000 L |
| Tank Wall / Head Thickness | 6 mm / 6 mm |
| Design Pressure | Full vacuum |
| Working Negative Pressure | ‑0.98 bar |
| Tank Unloading | Front tipping cylinder, 45‑degree tipping discharge |
| Safety Device | Safety valve for tipping‑state operation |
| Liquid‑level Indicator | Rear‑mounted sight window, top‑bottom drain plugs for sludge cleaning |
| Over‑pressure Protection | Top‑mounted over‑pressure valve & vent valve for vacuum adjustment |
| Rear Discharge Gutter | Rear‑side gutter to keep vehicle rear clean |
| Rear Manhole Cover | |
| Operation Mode | Hydraulic opening & closing |
| Safety Feature | Hydraulic automatic check valve |
| Locking | Manual locking mechanism |
| Sealing | Neoprene rubber positive seal |
| Suction / Discharge Valve | DN100 mm / DN100 mm |
| Vacuum Pump Unit | |
| Pump Type | Water‑cooled liquid ring vacuum pump |
| Pump Model | 2BE1‑153 |
| Air Displacement | 800 m³/hr |
| Max Vacuum Rate | 98% |
| Required Power | 20 kW |
| Max Rotating Speed | 1500 rpm |
| Drive Form | PTO drive, cab‑controlled engage / disengage |
| Pump Protection | Built‑in venting ball valve, filter, automatic vacuum sniffer valve |
2BE Series Water‑Circulation Liquid‑Ring Vacuum Pump Parameters
2BE Series Water‑Circulation Liquid‑Ring Vacuum Pump Parameters| Model | Speed(r/min)(Drive Type) | Shaft Power(kW) | Motor Power(kW) | Ultimate Vacuum Degree | Max Pumping Ratem³/h m³/min | Pump Weight(kg) |
|---|---|---|---|---|---|---|
| 2BE1 102‑0 | 1450(direct) | 5.8 | 7.5 | 33 mbar(-0.098 MPa) | 235 3.9 | 311 |
| 1300(belt) | 5 | 7.5 | 210 3.5 | 295 | ||
| 1625(belt) | 6.8 | 7.5 | 270 4.5 | 311 | ||
| 1750(belt) | 8 | 11 | 290 4.8 | 346 | ||
| 2BE1 103‑0 | 1450(direct) | 8.2 | 11 | 33 mbar(-0.098 MPa) | 340 5.7 | 363 |
| 1300(belt) | 7 | 11 | 300 5 | 347 | ||
| 1625(belt) | 9.9 | 15 | 385 6.4 | 388 | ||
| 1750(belt) | 11.1 | 15 | 412 6.9 | 388 | ||
| 2BE1 151‑0 | 1450(direct) | 10.8 | 15 | 33 mbar(-0.098 MPa) | 405 6.8 | 469 |
| 1100(belt) | 7.2 | 11 | 300 5 | 428 | ||
| 1300(belt) | 9.2 | 11 | 360 6 | 444 | ||
| 1625(belt) | 13.2 | 15 | 445 7.4 | 469 | ||
| 1750(belt) | 14.8 | 18.5 | 470 7.8 | 503 | ||
| 2BE1 152‑0 | 1450(direct) | 12.5 | 15 | 33 mbar(-0.098 MPa) | 465 7.8 | 481 |
| 1100(belt) | 8.3 | 11 | 340 5.7 | 437 | ||
| 1300(belt) | 10.5 | 15 | 415 6.9 | 481 | ||
| 1625(belt) | 15 | 18.5 | 510 8.5 | 515 | ||
| 1750(belt) | 17.2 | 22 | 535 8.9 | 533 | ||
| 2BE1 153‑0 | 1450(direct) | 16.3 | 18.5 | 33 mbar(-0.098 MPa) | 600 10 | 533 |
| 1100(belt) | 10.6 | 15 | 445 7.4 | 480 | ||
| 1300(belt) | 13.6 | 18.5 | 540 9 | 533 | ||
| 1625(belt) | 19.6 | 22 | 660 11 | 551 | ||
| 1750(belt) | 22.3 | 30 | 700 11.7 | 601 | ||
| 2BE1 202‑0 | 970(direct) | 17 | 22 | 33 mbar(-0.098 MPa) | 760 12.7 | 875 |
| 790(belt) | 14 | 18.5 | 590 9.8 | 850 | ||
| 880(belt) | 16 | 18.5 | 670 11.2 | 850 | ||
| 1100(belt) | 22 | 30 | 850 14.2 | 940 | ||
| 1170(belt) | 25 | 30 | 890 14.8 | 945 | ||
| 1300(belt) | 30 | 37 | 950 15.8 | 995 | ||
| 2BE1 203‑0 | 970(direct) | 27 | 37 | 33 mbar(-0.098 MPa) | 1120 18.7 | 1065 |
| 790(belt) | 20 | 30 | 880 14.7 | 995 | ||
| 880(belt) | 23 | 30 | 1000 16.7 | 995 | ||
| 1100(belt) | 33 | 45 | 1270 21.2 | 1080 | ||
| 1170(belt) | 37 | 45 | 1320 22 | 1085 | ||
| 1300(belt) | 45 | 55 | 1400 23.3 | 1170 | ||
| 2BE1 252‑0 | 740(direct) | 38 | 45 | 33 mbar(-0.098 MPa) | 1700 28.3 | 1693 |
| 558(belt) | 26 | 30 | 1200 20 | 1460 | ||
| 660(belt) | 31.8 | 37 | 1500 25 | 1515 | ||
| 832(belt) | 49 | 55 | 1850 30.8 | 1645 | ||
| 885(belt) | 54 | 75 | 2000 33.3 | 1805 | ||
| 938(belt) | 60 | 75 | 2100 35 | 1805 | ||
| 2BE1 253‑0 | 740(direct) | 54 | 75 | 33 mbar(-0.098 MPa) | 2450 40.8 | 2215 |
| 560(belt) | 37 | 45 | 1750 29.2 | 1695 | ||
| 660(belt) | 45 | 55 | 2140 35.7 | 1785 | ||
| 740(belt) | 54 | 75 | 2450 40.8 | 1945 | ||
| 792(belt) | 60 | 75 | 2560 42.7 | 1945 | ||
| 833(belt) | 68 | 90 | 2700 45 | 2055 | ||
| 885(belt) | 77 | 90 | 2870 47.8 | 2060 | ||
| 938(belt) | 86 | 110 | 3020 50.3 | 2295 | ||
| 2BE1 303‑0 | 740(direct) | 98 | 110 | 33 mbar(-0.098 MPa) | 4000 66.7 | 3200 |
| 590(direct) | 65 | 75 | 3200 53.3 | 3200 | ||
| 466(belt) | 48 | 55 | 2500 41.7 | 2645 | ||
| 521(belt) | 54 | 75 | 2800 46.7 | 2805 | ||
| 583(belt) | 64 | 75 | 3100 51.7 | 2810 | ||
| 657(belt) | 78 | 90 | 3580 59.7 | 2925 | ||
| 743(belt) | 99 | 132 | 4000 66.7 | 3290 | ||
| 2BE1 305‑1 | 740(direct) | 102 | 132 | 160 mbar(-0.085 MPa) | 4650 77.5 | 3800 |
| 2BE1 306‑1 | 590(direct) | 70 | 90 | 160 mbar(-0.085 MPa) | 3750 62.5 | 3800 |
| 490(belt) | 55 | 75 | 3150 52.5 | 2950 | ||
| 521(belt) | 59 | 75 | 3320 55.3 | 3000 | ||
| 583(belt) | 68 | 90 | 3700 61.2 | 3100 | ||
| 657(belt) | 84 | 110 | 4130 68.8 | 3300 | ||
| 743(belt) | 103 | 132 | 4650 77.5 | 3450 | ||
| 2BE1 353‑0 | 590(direct) | 121 | 160 | 33 mbar(-0.098 MPa) | 5300 88.3 | 4750 |
| 390(belt) | 65 | 75 | 3580 59.7 | 3560 | ||
| 415(belt) | 70 | 90 | 3700 61.7 | 3665 | ||
| 464(belt) | 81 | 110 | 4100 68.3 | 3905 | ||
| 520(belt) | 97 | 132 | 4620 77 | 4040 | ||
| 585(belt) | 121 | 160 | 5200 86.7 | 4100 | ||
| 620(belt) | 133 | 160 | 5500 91.7 | 4100 | ||
| 660(belt) | 152 | 185 | 5850 97.5 | 4240 | ||
| 2BE1 355‑1 | 590(direct) | 130 | 160 | 160 mbar(-0.085 MPa) | 6200 103.3 | 5000 |
| 2BE1 356‑1 | 390(belt) | 75 | 90 | 160 mbar(-0.085 MPa) | 4180 69.7 | 3920 |
| 435(belt) | 86 | 110 | 4600 76.7 | 4150 | ||
| 464(belt) | 90 | 110 | 4850 80.8 | 4160 | ||
| 520(belt) | 102 | 132 | 5450 90.8 | 4290 | ||
| 555(belt) | 115 | 132 | 5800 98.3 | 4300 | ||
| 585(belt) | 130 | 160 | 6100 101.7 | 4350 | ||
| 620(belt) | 145 | 185 | 6350 105.8 | 4450 | ||
| 2BE1 403‑0 | 330(belt) | 97 | 132 | 33 mbar(-0.098 MPa) | 5160 86 | 5860 |
| 372(belt) | 110 | 132 | 5700 95 | 5870 | ||
| 420(belt) | 131 | 160 | 7380 107.8 | 5950 | ||
| 472(belt) | 160 | 200 | 8100 123 | 6190 | ||
| 530(belt) | 203 | 250 | 8600 135 | 6630 | ||
| 565(belt) | 234 | 280 | — 143.3 | 6800 | ||
| 2BE1 405‑1 | 330(belt) | 100 | 132 | 160 mbar(-0.085 MPa) | 6000 100 | 5980 |
| 2BE1 406‑1 | 372(belt) | 118 | 160 | 160 mbar(-0.085 MPa) | 6700 111.7 | 6070 |
| 420(belt) | 140 | 185 | 7500 125 | 6200 | ||
| 472(belt) | 170 | 200 | 8350 139.2 | 6310 | ||
| 530(belt) | 206 | 250 | 9450 157.5 | 6750 | ||
| 565(belt) | 235 | 280 | 10100 168.3 | 6920 |
| Product name | ISUZU sewer vacuum truck | |
| Vehicle Parameters | Overall Dimension(L×W×H) | 7800×2300×2650mm |
| Curb Weight: | 4900Kg | |
| Loading Weight: | 6000Kg | |
| GVW: | 11000Kg | |
| Wheelbase: | 3815mm | |
| Drive Type: | 4x2 | |
| Engine | Engine Model: | 4HK1-TCG61;4HK1-TCG60 |
| Engine Power: | 139(kw) | |
| Displacement: | 5193(ml) | |
| Horsepower: | 190HP,205HP | |
| Transmission | Transmission: | MLD-6Q |
| Forward Gear: | 6 Speed Gear | |
| Reverse Gear: | 1 Speed Gear | |
| Seats | Front Seat: | 3 |
| Chassis | Front Track: | 1680mm |
| Rear Track: | 1650mm | |
| Axle Loads: | Double Axles | |
| Tires: | 7 pcs (including spare tire) | |
| Tire Model: | 235/70R17.5 ;825R20 | |
| Configuration: | Power Steering | Standard |
| AC | Standard | |
| Retro-reflective Marking | Standard | |
| ABS | Standard | |
| Free Maintenance Battery | Standard | |
| Radial Tire | Standard | |
| Air brake | Standard | |
| Vacuum tank | Material | Carbon steel |
| Capacity | 8000L | |
| Wall thickness | 6mm | |
| Head thickness | 6mm | |
| Design pressure | full vacuum | |
| Working pressure | -0.98bar | |
| Tipping cylinder | Front tipping cylinder for tank unloading at 45 degree | |
| Safety support | Safety valve for easy working under a tipped tank | |
| Liquid level view window | Mounted at the rear of tank body. Plugs at the top and bottom of indicator for removing sludge | |
| Over pressure device | Over pressure valve at the top of tank | |
| Vent Valve | Mounted to control the vacuum inside the tank | |
| Discharge Gutter | At the rear of the tank in order to keep the rear of the vehicle clean | |
| Rear cover | Operation | Hydraulic operation |
| Safety | Hydraulic valve automatic check | |
| Locking mechanism | Manual | |
| Seal | Positive seal with rubber seal in neoprene | |
| Inlet valve | DN100mm | |
| Outlet valve | DN100mm | |
| Vacuum pump | Type | water-cooled liquid ring vacuum pumps |
| Model | 2BE1-153 | |
| Air flow | 800 m³/hr | |
| Max Vacuum | 98% | |
| Power requirement | 20 kW | |
| Speed | Max 1500 rpm | |
| Drive type | By PTO, engaged and disengaged in cab | |
| Pump protection | venting ball valve inside tank body | |
| filter | ||
| automatic vacuum sniffer valve | ||
