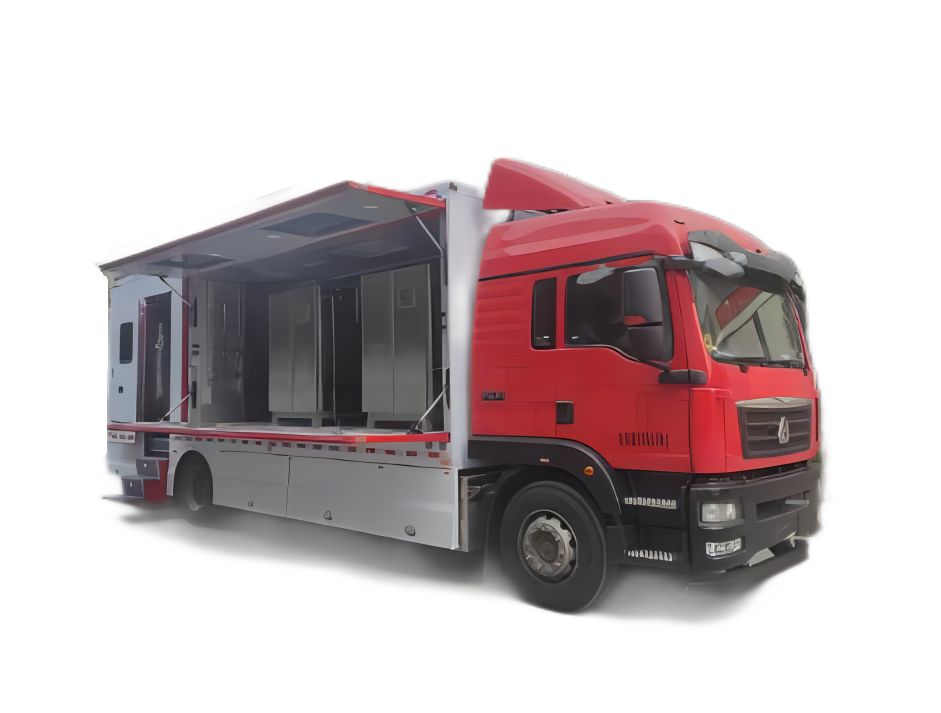

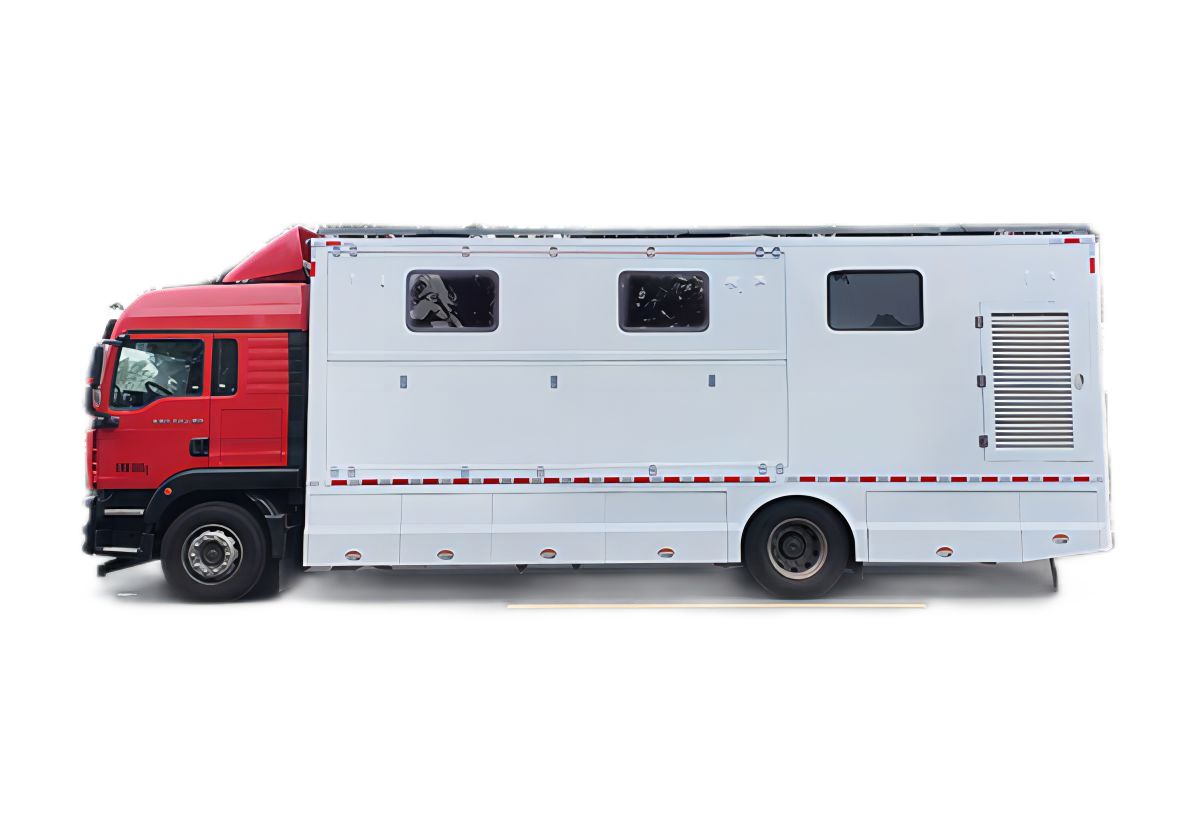

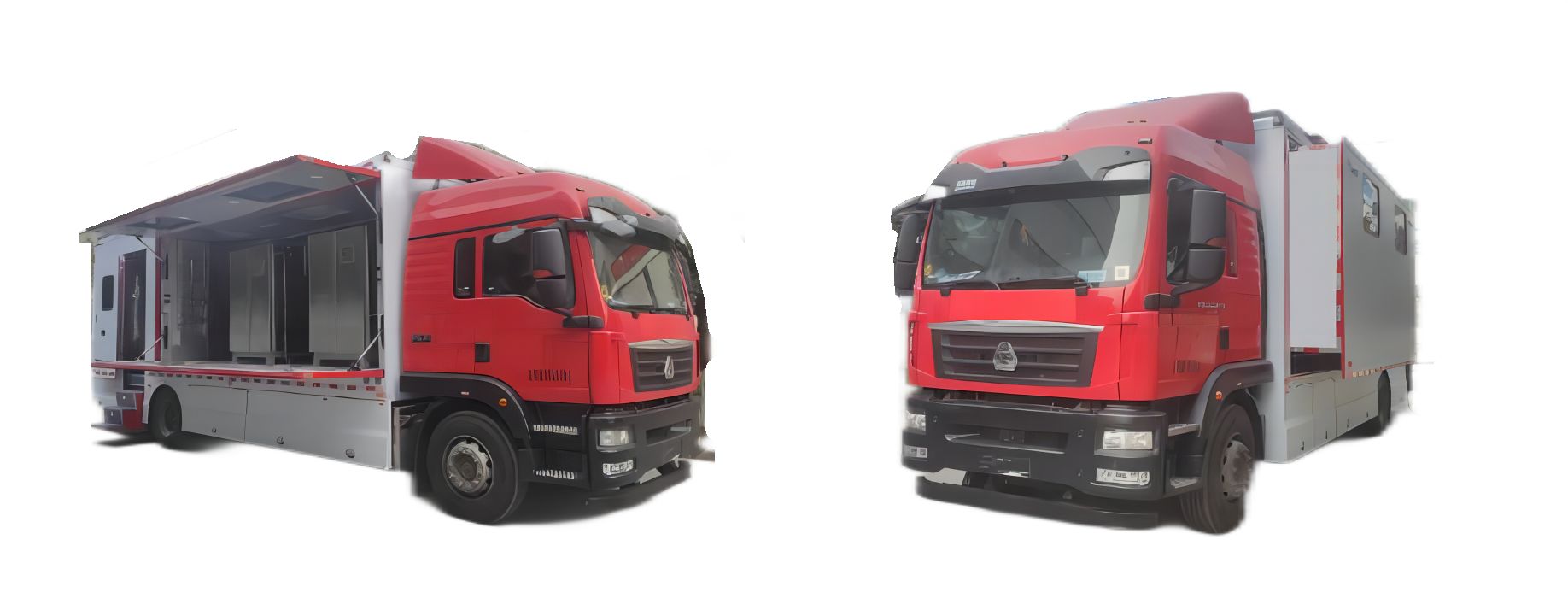

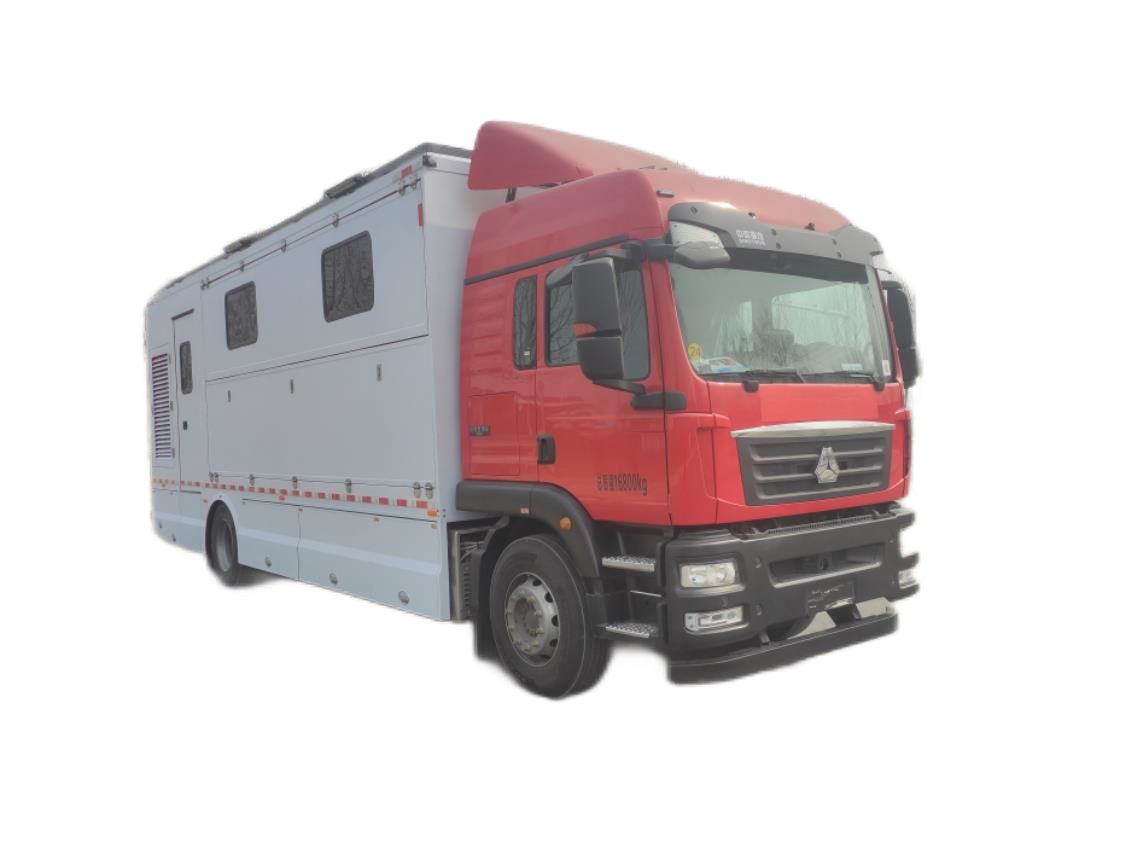

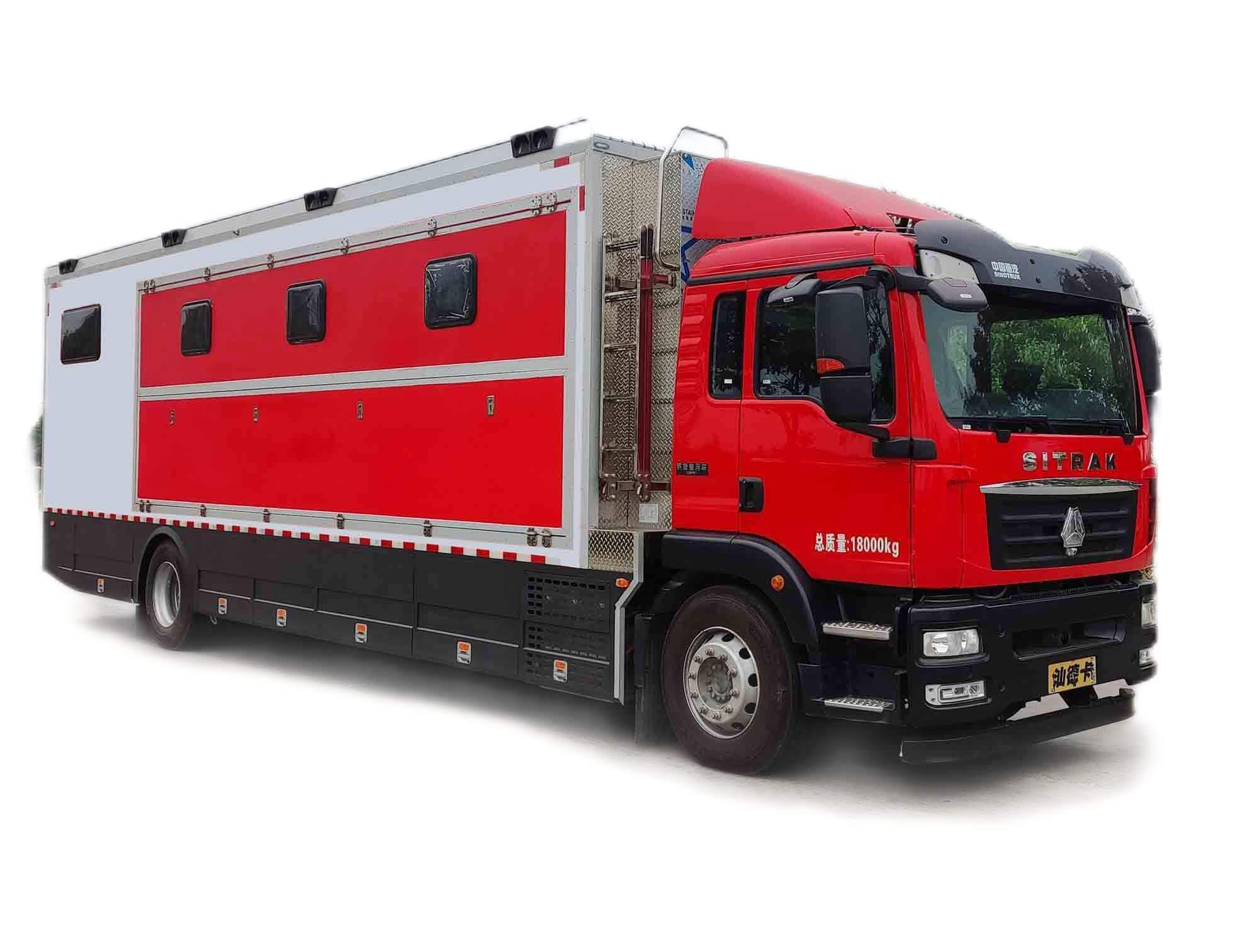

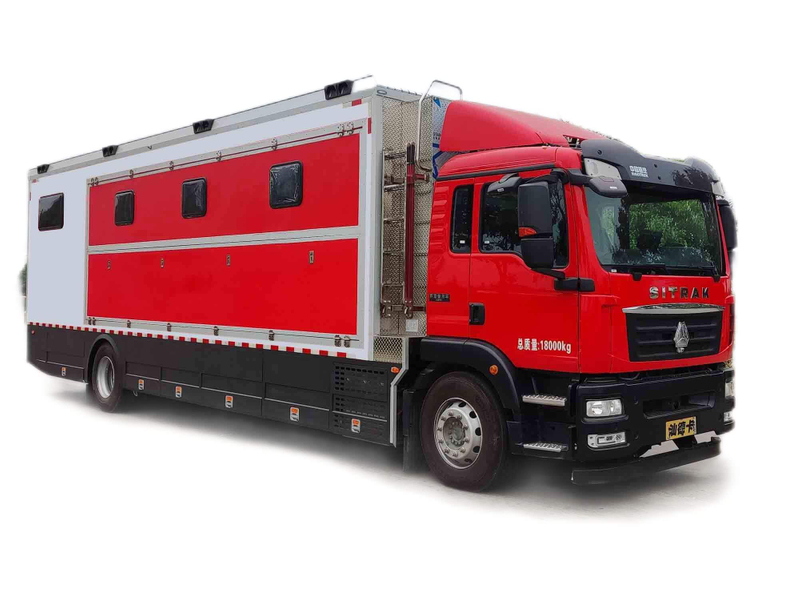

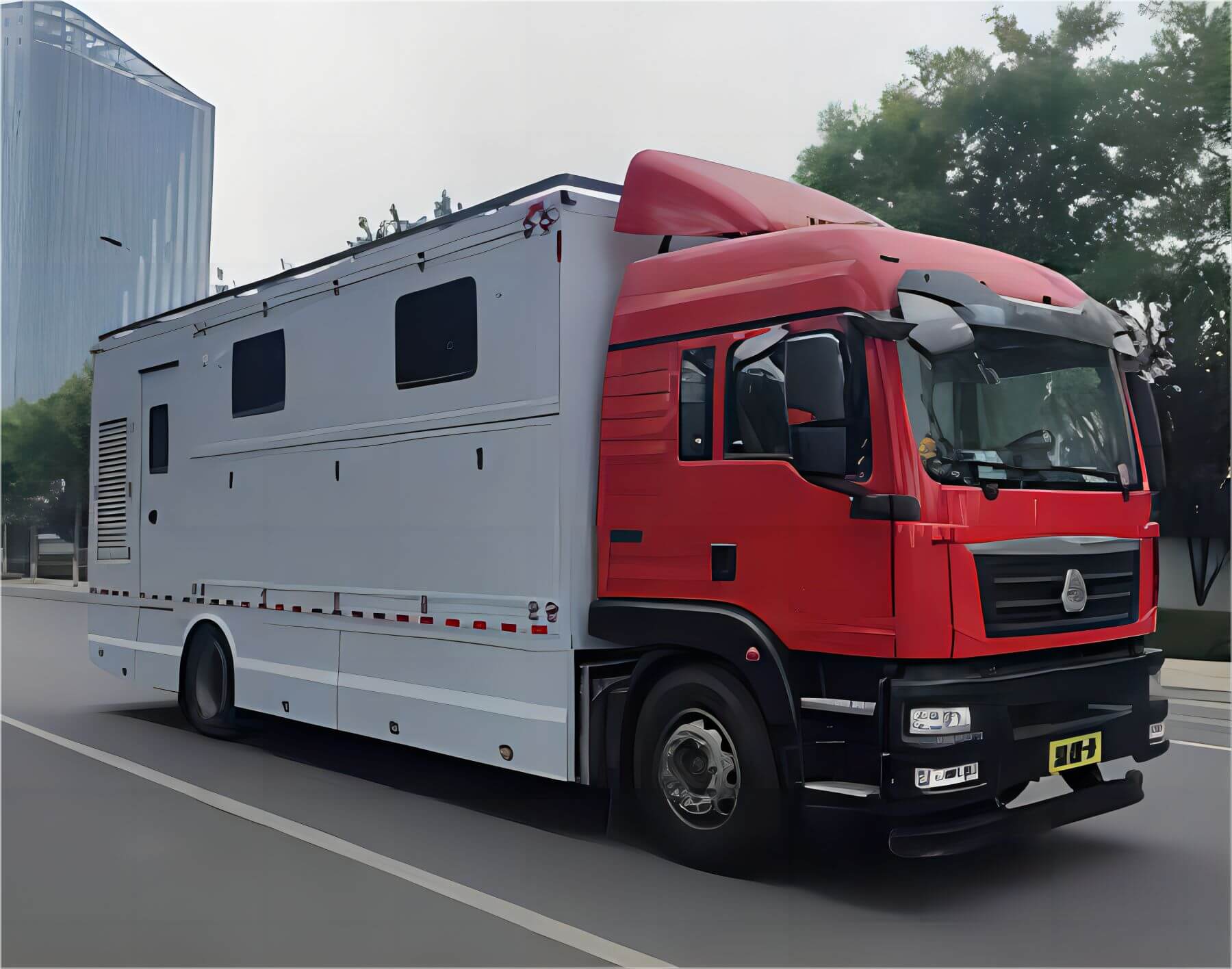

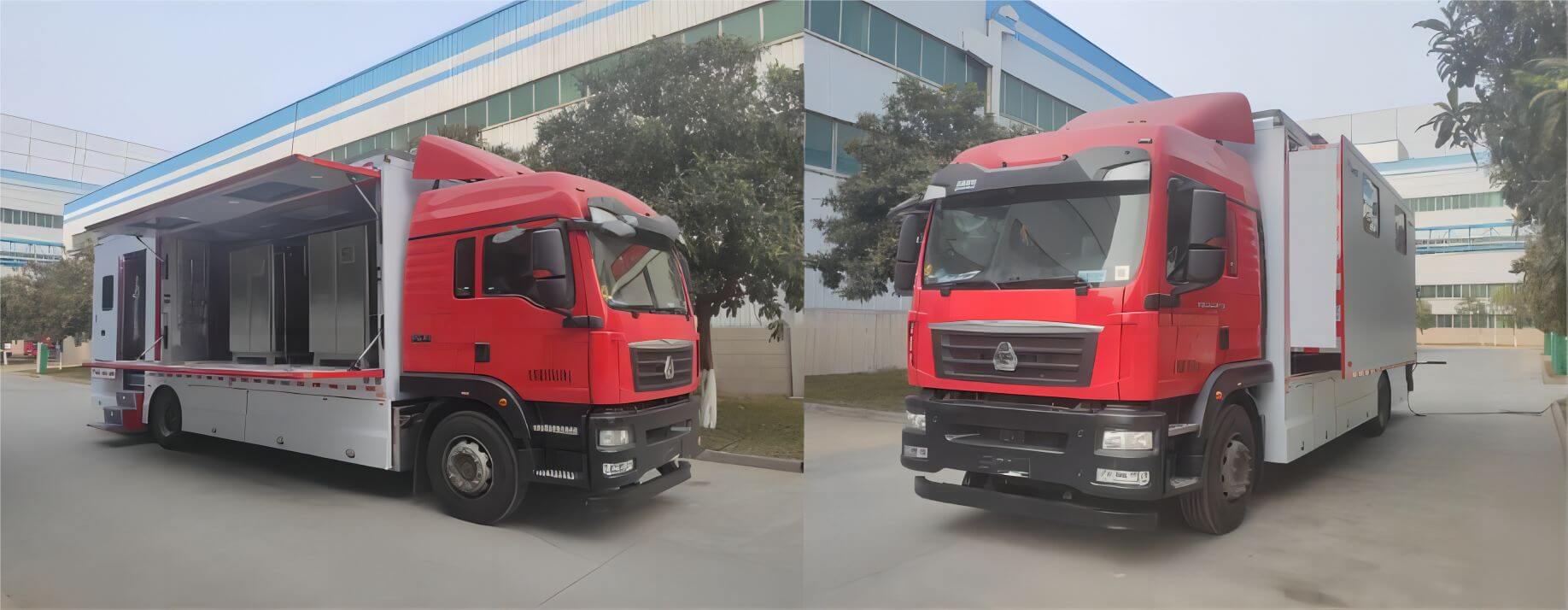

Customizing SITRAK Clothes Washing Truck
with washing and drying equipment
Price for refer only. Final Price Offer Discount.
| FOB: | |
|---|---|
| Quantity: | |
|
| |
-
5180XBX6ZZ
-
DONG RUN ZE
-
87059099900
Customizing Rolling Laundry Trucks Clothes Washing Truck
Chassis model: ZZ5186XXYN711GF1 used for washing clothes and bedding, with specialized devices such as washing machines
Van | size | Customizing |
Side protection material | Aluminium alloy | |
Rear guard material | Q235 | |
Function | Equipped with dryer | |
Equipped with washing machine | ||
Equipped with storage rack | ||
Equipped with vehicle-mounted power generation system | ||
Equipped with electrical control system | ||
Equipped with drainage system | ||
Main technical parameters
Overall dimensions: | 11830×2550×3860(mm) | HJZ-5180XBX6ZZ | |
Total mass: | 18000(Kg) | Net | 17280(Kg) |
Approach Angle/Departure Angle: | 16/9(°) | Front/rear overhang: | 1450/3280(mm) |
Axle Load: | 6500/11500 | Wheelbase: | 7100,5600(mm) |
Number of shafts: | 2 | Maximum speed: | 89,110(km/h) |
Number of tires: | 6(pcs) | Tire Specifications: | 295/80R22.5 18PR,12R22.5 18PR,11.00R20 18PR,10.00R20 18PR,275/80R22.5 18PR,295/60R22.5 18PR,315/60R22.5 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 2/3+2,3/3+2,3/9+8,11/9+8,3/-,-/-,3/4,7/7+6,2/3,3/7+3,3/7+6,7/7+3 |
Front wheel base: | 1998,2015,2035,1900,1950(mm) | Rear wheel base: | 1850(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
MC07.25-60; MC07.33-60; WP7.300 E61. WP7.270 E61. WP6H270E61; MC07H.35-60; MC07H.33-60; MC07H.29-60; MC07.29-60; MC05H.25-60; MC07.31-60; MC07.27-60; WP6H245E61; WP8.350 E61. WP7H245E62; WP7H270E62; WP7H300E62; WP7H320E62; MC07.25-61; MC07.27-61; MC07.29-61. | China Heavy Duty Automobile Group Co., LTD.; Weichai Power Co., LTD. | 6870; 6870; 7470; 7470; 6220; 7360; 7360; 7360; 6870; 4910; 6870; 6870; 6220; 7800; 6800; 6800; 6800; 6800; 6870; 6870; 6870 | 188; 240; 220; 199; 199; 257; 240; 213; 213; 180; 228; 202; 180; 257; 180; 199; 221; 235; 190; 202; 213 |

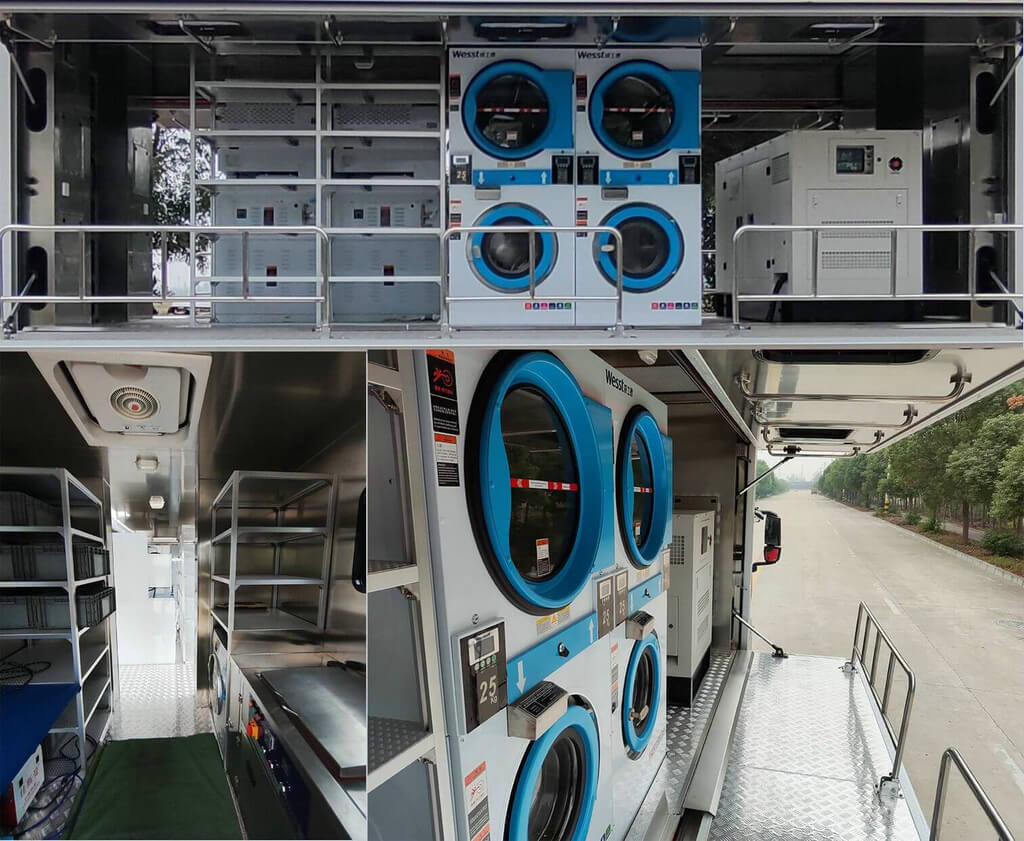

The vehicle is mainly used for clothing washing under field conditions, and the main special devices are dryers, washing machines, storage racks, etc.
Optional cab with chassis. ABS system controller manufacturer/model ZF Commercial Vehicle Systems (Qingdao) Co., LTD. /4460046300;

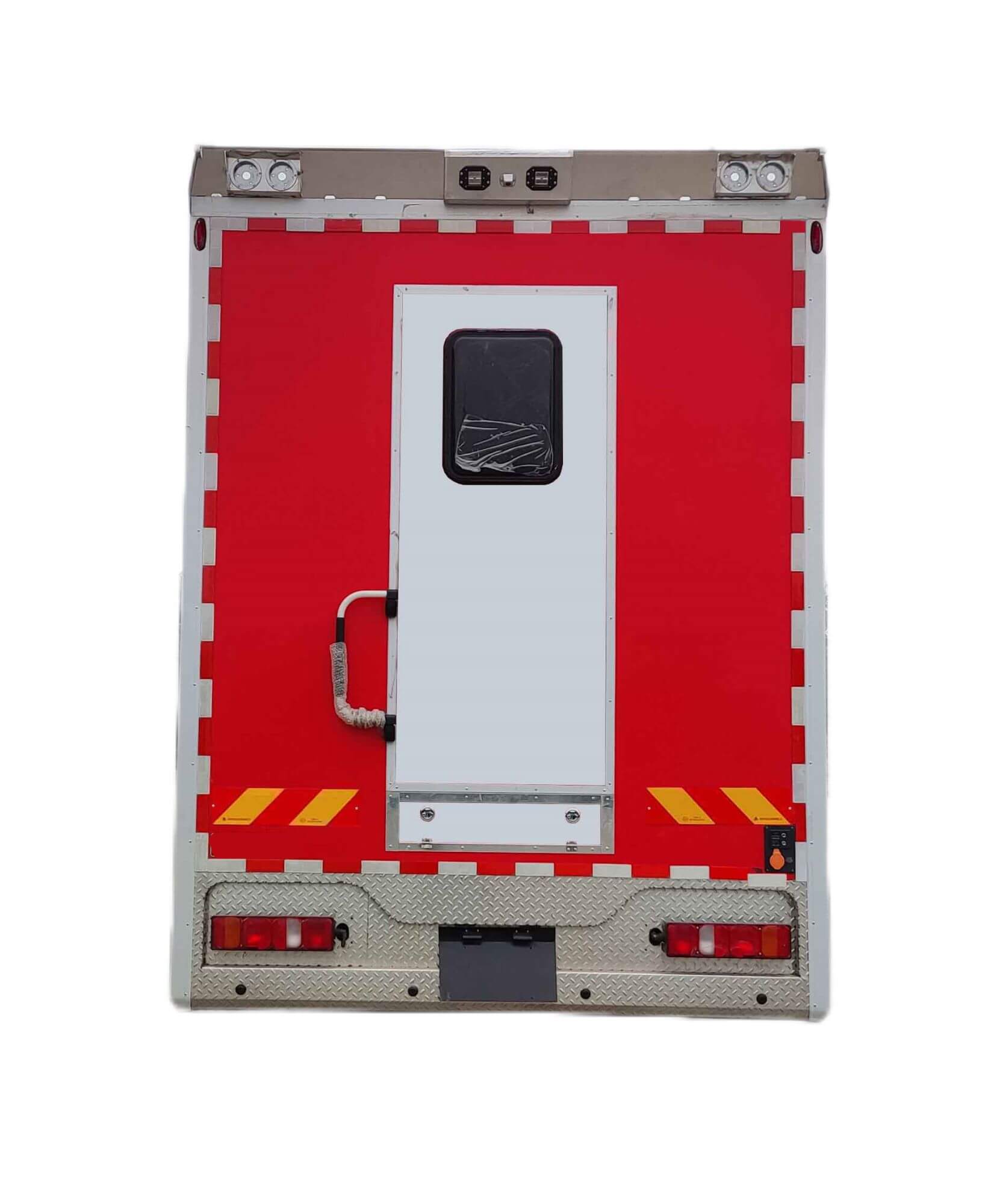

Optional EBS,EBS system controller manufacturer/model ZF Commercial Vehicle Systems (Qingdao) Co., LTD /EBS3; The side protection is skirt structure, and the rear protection adopts cold-formed steel /Q235, welded connection. The rear protection section height is 160mm, the section width is 50mm, and the lower edge is 490mm above the ground. Optional speed limiting device, speed limiting 89km/h. Only 7100mm wheelbase.
The luminaires on both sides and at the rear are operation lights, which are used for lighting during operation and are used when the vehicle is switched to the operation state.
