Customizing HOWO Laundry Truck
used for clothing washing , with special devices dryers, washing machines, storage racks, etc
Price for refer only. Final Price Offer Discount.
| FOB: | |
|---|---|
| Quantity: | |
|
| |
-
5160XBXZ6,5160XBX6BZ
-
DONG RUN ZE
-
87059099900
Customizing HOWO Mobile Laundry Truck
used for clothing washing , with special devices dryers, washing machines, storage racks, etc
Chassis model: ZZ1187N501GF1, with specialized devices such as washing machines
Van | size | Customizing |
Side protection material | Aluminium alloy | |
Rear guard material | Q235 | |
Function | Equipped with dryer | |
Equipped with washing machine | ||
Equipped with storage rack | ||
Equipped with vehicle-mounted power generation system | ||
Equipped with electrical control system | ||
Equipped with drainage system | ||
The main special devices of the vehicle are dryer, washing machine, storage rack, etc., which are mainly used for washing clothes under field conditions.
Overall dimensions: | 9260,10500×2510,2550×3700,3850(mm) 10470,9260,8500×2510,2500×3800,3700(mm) | ||
Total mass: | 16000(Kg) | Net | 15870(Kg) 16070,15380(Kg) |
Approach Angle/Departure Angle: | 19/10(°) | Front/rear overhang: | 1430/2630,1430/3020(mm) |
Axle Load: | 5750/10250 | Wheelbase: | 3800,4200,4500,4700,4800,4900,5000,5200,6050(mm) |
Number of shafts: | 2 | Maximum speed: | 89,101(km/h) |
Number of tires: | 6(pcs) | Tire Specifications: | 295/80R22.5 18PR,12R22.5 18PR,11.00R20 18PR,10.00R20 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 11/9+8,3/9+8,3/3+2,2/3+2,3/-,2/-,7/7+6,7/7+3,3/7+6,3/7+3,2/3 |
Front wheel base: | 1950,2035,2070(mm) | Rear wheel base: | 1848,1860(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
WP8.350 E61. MC07H.35-60; MC07H.33-60; MC07.33-60; MC07.31-60; MC07.27-60; MC07.34-60; MC07H.29-60; WP9H350E62; WP7H270E62; WP7H300E62; WP7H320E62; MC07.25-61; MC07.27-61; MC07.29-61; MC07H.33-61; MC07H.35-61; WP8.350 E62 | Weichai Power Co., LTD. China Heavy Duty Automobile Group Co., LTD.; | 7800; 7360; 7360; 6870; 6870; 6870; 6870; 7360; 8800; 6800; 6800; 6800; 6870; 6870; 6870; 7360; 7360; 7800 | 257; 257; 240; 240; 228; 202; 251; 213; 257; 199; 221; 235; 190; 202; 213; 240; 254; 257 |
The clothes washing vehicle mainly consists of the chassis, washing shelter, washing facilities, air conditioning system, water system, electrical system, etc. of the heavy-duty truck Class II. Equipped with complete sanitation facilities. Introduction to vehicle functions: Vehicle modification design: The vehicle modification design meets the relevant national requirements for vehicle design modification; On the premise of ensuring the safety of transportation vehicles, fully utilize the effective load and chassis size of the car chassis; It can meet the installation and operation of onboard equipment, as well as the work and daily needs of personnel. The whole vehicle is flexible, reliable, adaptable to the environment, and cost-effective.
The overall performance of the vehicle meets the requirements of "Technical Conditions for Motor Vehicle Operation Safety (GB7258-2017)", "Number, Position, and Color of External Lighting and Signal Devices for Motor Vehicles and Trailers (GB4785-84)", "General Specification for Box Vehicles (GJB79A-94)", "Limits of Vehicle Dimensions (GB1589-2016)", and GB 50054-95 "Design Specification for Low Voltage Power Distribution"; The overall dimensions, axle load, and mass of the vehicle should comply with the provisions of GB1589-2016 "Limits for Dimensions, Axle Load, and Mass of Road Vehicles";

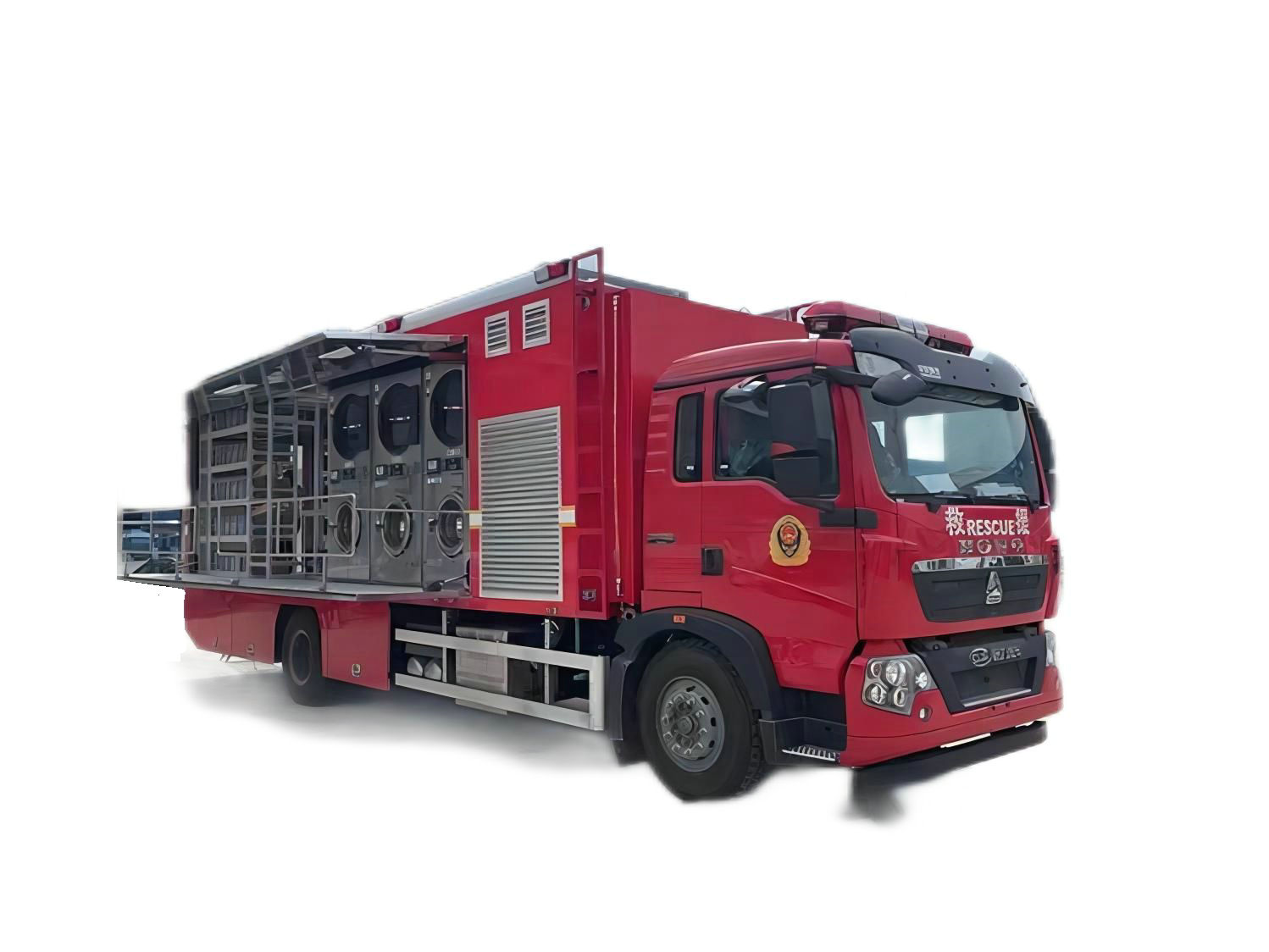

The fire rescue bedding washing truck integrates multiple functions such as washing, drying, and ironing. This type of equipment is easy to operate and use, with good maneuverability and high degree of automation, and can wash 50kg (50 sets) of dry weight bedding in one hour; Need to dry 50kg (50 sets) of dry weight bedding in 40-55 minutes.
This type of clothes washing vehicle consists of a shelter, laundry system, drying system, heat source system, water supply and drainage system, on-board power generation system, electrical control system, etc.
Name: Bedclothes washing truck
Overall size 10470 × two thousand five hundred and ten × 3800mm
Total mass 16200
Curb weight 16070
Engine rated power 228KW
High speed 101km/h
Wheelbase: mm 6050
Emission standard Euro 5-6
Number of passengers 2
Chassis model ZZ1187N501GF1
Chassis drive form 4 * 2
Number of tires 6
Steering wheel in steering form
Front suspension/rear suspension 1430/2500
The anti lock system has
Axle load 6500/11500
Chassis cab
The structure adopts a fully enclosed cab, with a welded steel frame and a safety locking device.
Number of drivers and passengers 2
The chassis is equipped with a fully steel structure for manual operation and an electrically flipped cab, which is a high-strength and safe cab with excellent suspension and can adapt to harsh terrain environments. The cab is equipped with built-in air conditioning and a radio.
In addition to the original vehicle equipment, the equipment is equipped with a 100W alarm, control switch and indicator light, strobe light switch, 7-inch LCD reverse display, and reverse radar. The alarm system is embedded in the driving work platform, with integrated alarm control. The driver's cab is reserved with power interfaces and installation positions for GPS satellite positioning system, computer, and on-board cluster radio.
Instrument vehicle speedometer, fuel gauge, tachometer, etc.
Overall layout of upper
The layout of the box body is made of polyurethane foam technology for insulation, with an outer skin made of 1.5mm thick rust resistant aluminum plate and an inner skin made of 2.0mm thick glass steel plate.
The inside of the box is the front generator compartment from front to back, with a 30KW diesel generator installed inside; 1200L water tank, one 50KG washing machine and clothing storage cabinet, and one dryer.
The rear of the carriage is equipped with a climbing pedal for easy maintenance of equipment on the top. The right side panel of the cabin adopts a double wing door, which can achieve deployment operation. After deployment, there are multiple support platforms below. At the same time, detachable handrails are installed on both sides of the downward flipping pedal to ensure the safety of operators while standing by the vehicle; The bottom of the carriage is equipped with a unified drainage interface and drainage hoses for centralized sewage discharge.
workmanship
The composite board of the box is required to use an outer aluminum skin and an inner fiberglass skin, with a metal skeleton structure in the middle, which not only ensures the strength of the box but also reduces the weight of the box. The composite board is filled with insulation material in the middle, which not only improves the overall strength of the box but also enhances the insulation effect, waterproofing, and moisture-proof.
Heavy Duty Truck Bedclothes Washing Vehicle - Standard Configuration Details
Vehicle parameters
1. Overall size 10470 × 2510× 3800mm
2 Drive types 4 * 2
3 Engine power kw 228
4 Engine displacement (ml) 6870
5 Total mass (kg) 16200
6 Emission standards GB3847-2005, GB17691-2018 National VI
7 engine models MC07.31-60
8 curb weight (kg) 16070
9 High speed (Km/h) 89
Chassis
1 heavy-duty truck 4 * 2 chassis, diesel, national VI emissions, 228KW, wheelbase: 6050mm, 1 heavy-duty truck
2 subframes are equipped with a dedicated car beam, and one set of anti-corrosion electrophoretic treatment is self-made
Compartment body
The outer part of the box is made of 1.5mm aluminum flat plates, the inner part is made of 2.0mm fiberglass steel plates, and the inner steel skeleton is filled with polyurethane. One side of the box can be unfolded or partially unfolded, and one set of self-made operations

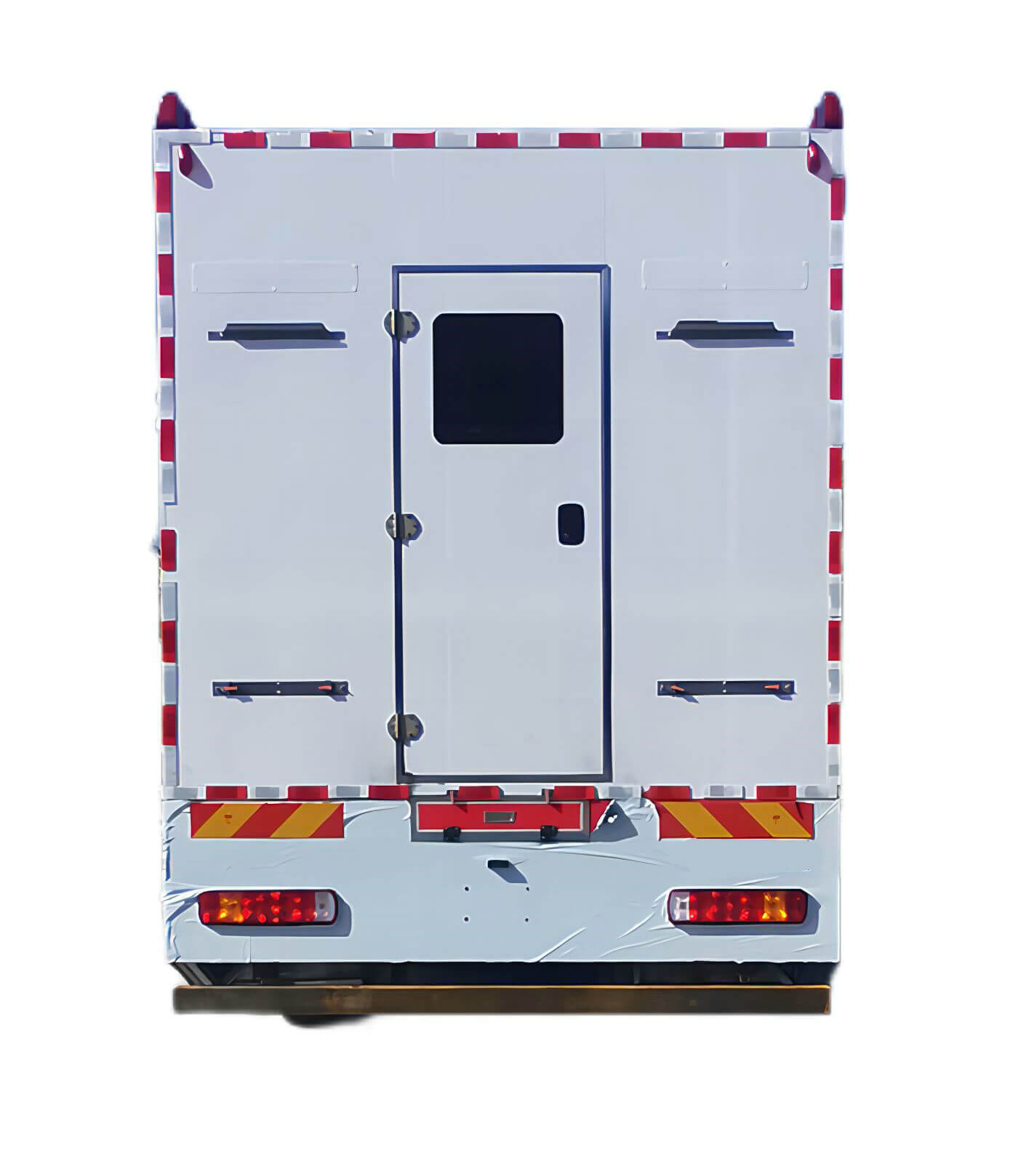

2 sets of self-made rear doors with observation windows
2 on each side of the flip panel on both sides of the 3 windows, 4 purchased externally
4 sets of skirts on both sides, one set on the left and one set on the left and one set made by ourselves
1 set of self-made aluminum alloy patterned plate with 5 floors oxidized
6 anti-skid floor mats, PVC material, self-made 1 set
2 sets of 7 dry powder fire extinguishers externally
8 Clean water tank 1200L (with liquid level display), self-made 1 set
9 stainless steel operation (storage) cabinet, 1 set made of stainless steel material
Electrical equipment
1 diesel generator standard silent generator 30KW, purchased 1 set
2 waterproof sockets, 1 set of industrial grade waterproof socket purchased externally
3 water pumps, 220V, purchased 1 set
30m 4-wire reel cable, including 1 set of self-made manual cable reel
5 field lighting lights (2 on both sides of the carriage) 100W, AC220V (embedded in the vehicle body), purchased as 4 sets

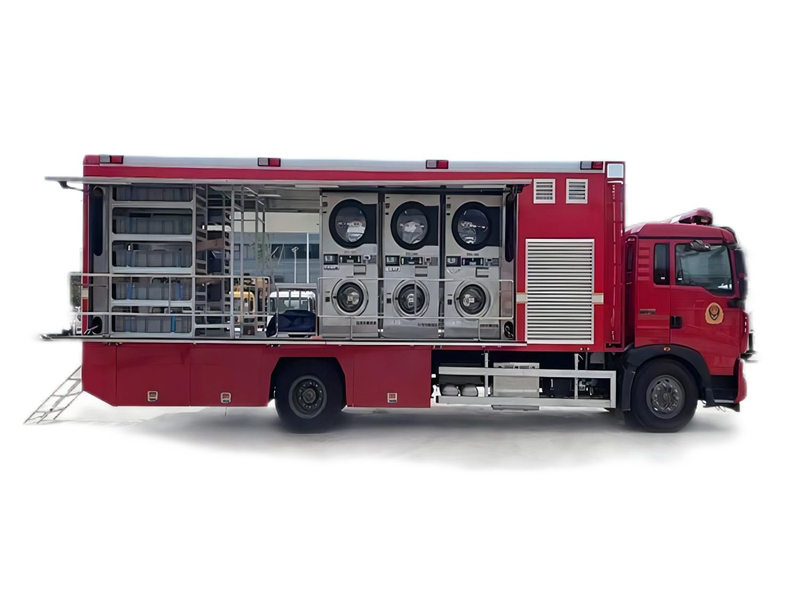

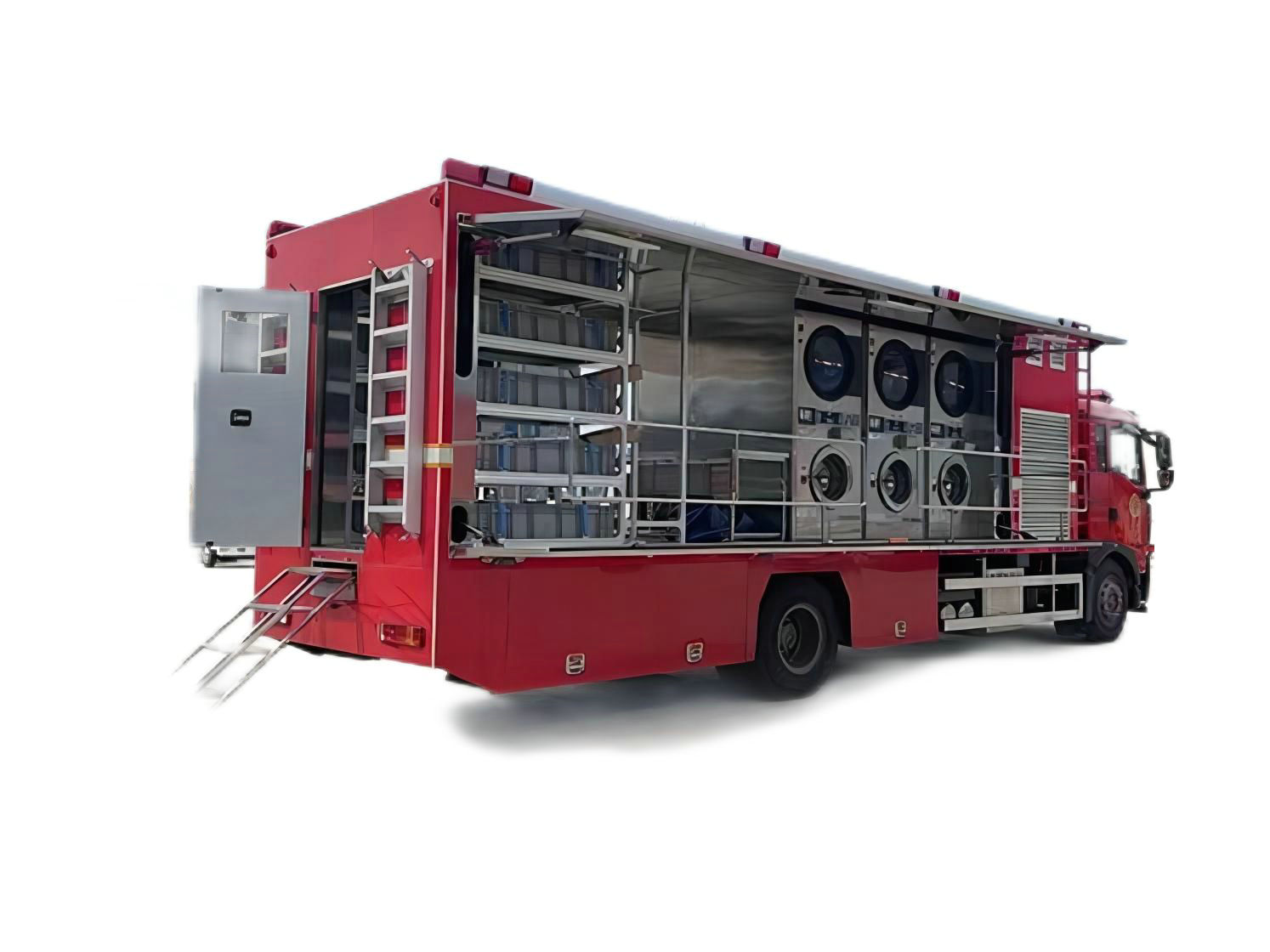

Washing equipment
1 set of self-made 50KG drum washing machine
2 drying machines, 50KG drum drying machine, customized 1 set
3 clothes hangers, stainless steel clothes hangers, self-made 100 pieces
Control system
1 set of self-made built-in control panel for water, electricity, and oil control system buttons
2 Hydraulic control system electromagnetic hydraulic valve (remote control) purchased 1 set
Purchase 4 hydraulic cylinders on the left and right sides externally
Other Part List
One side climbing ladder (with folding railing) is anti slip and anti collision; Homemade 2 sets
2 auxiliary fuel tanks 200L, self-made 1 set
3 hydraulic oil tanks, 40L, purchased 1 set
The reverse navigation monitoring system includes a camera, controller, and 7-inch display screen; Outsourcing 1 unit
charging inverter all-in-one machine 2KW, purchased 1 set externally
batteries Camel 200A Camel 2 pieces
