Mobile Purifying Drinking Water Vehicle
all wheels Drive offroad Logistic Support Special Vehicle
Emergency Water Purification Vehicle
| FOB: | |
|---|---|
| Quantity: | |
|
| |
-
5166XJS
-
DONG RUN ZE
-
8705909990
Mobile Purifying Drinking Water Vehicle

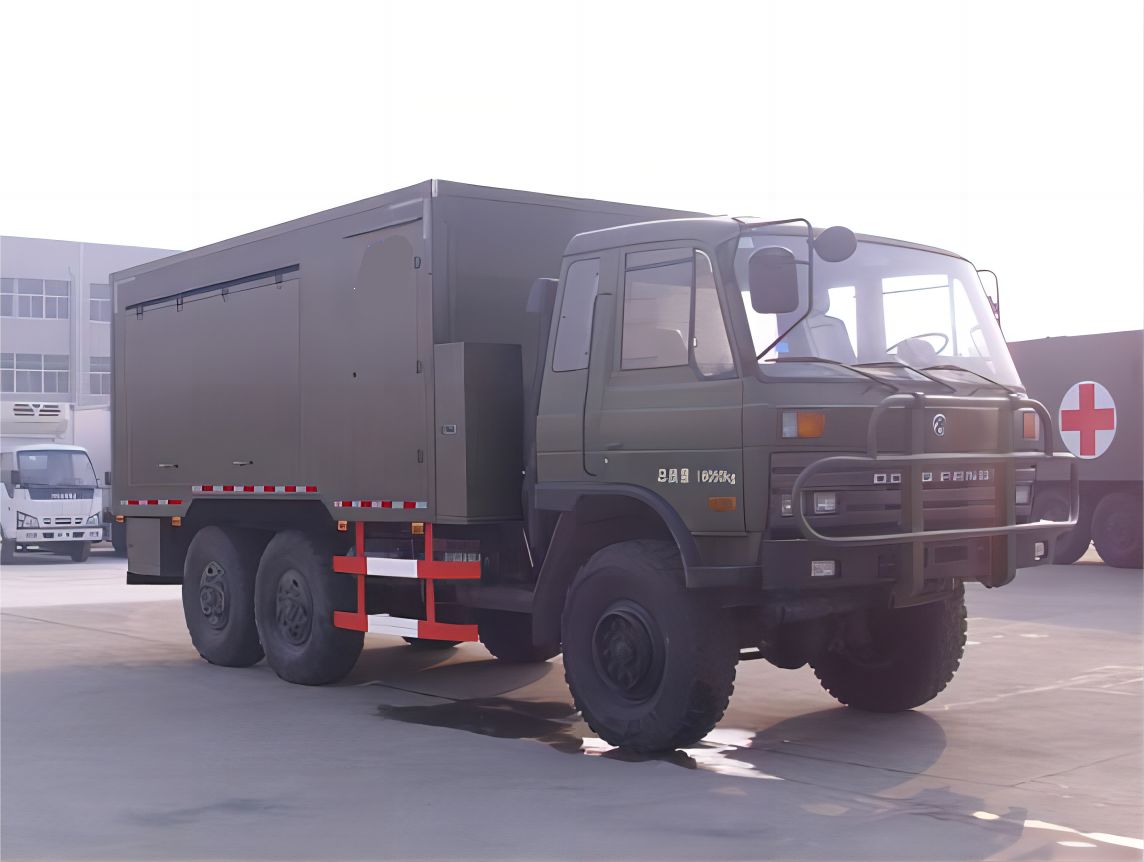

Water purification vehicles with All-wheel drive 6x6 allow a fast and efficient way of treatment and transport of water, with a capacity up to 1-3 cubic metres of treated water.
From a surface water spot, like a river, lake or pond, the water is carried and treated at the same time with a reduction process of suspended solids, oxidation of organic matter and final disinfection of treated water. This motor vehicle can reach remote areas or uneven ground which are difficult to access.
all wheels Drive offroad Logistic Support Special Vehicle
Chassis: | EQ2162GSJ | Fuel type: | diesel fuel |
Engine: | B190 33 | Rated capacity (kg): | 3855 |
Displacement (cc): | 5900 | Wheelbase (mm): | 3500+1250 |
Power (kW): | 140 | Dimensions (mm): | 7850 × 2540 × 3480/3530 |
Instant purified water from truck for drought, emergencies, disasters and militaries

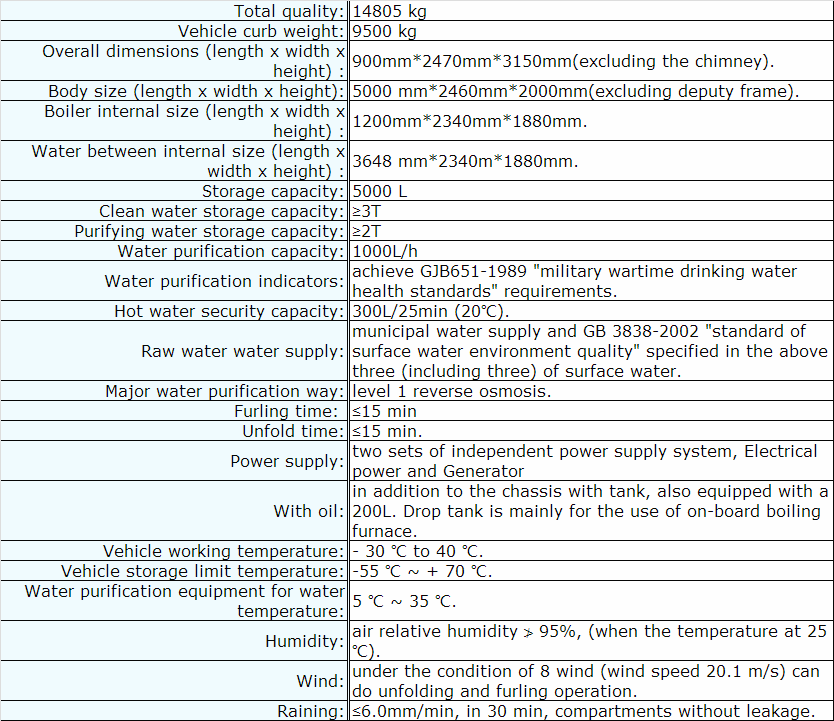

Main technical parameters
Overall dimensions: | 7850×2540×3480,3530(mm) | Cargo size: | ××(mm) |
Total mass: | 16050(Kg) | Net | 12000(Kg) |
Approach Angle/Departure Angle: | 35/33(°) | Front/rear overhang: | 1385/1715(mm) |
Axle Load: | 4040/12010( kgs) | Wheelbase: | 3500+1250(mm) |
Number of shafts: | 3 | Maximum speed: | 90(km/h) |
Number of tires: | 6(个) | Tire Specifications: | 12.5R20 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 10/12 |
Front wheel base: | 1876(mm) | Rear wheel base: | 1870/1870(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
B190 33 | Dongfeng Cummins Engine Co., LTD | 5900 | 140 |
Emergency Water Purification Vehicle
Security Vehicle of purifying the drinking water is a kind of equipment which can purify the worse water sources into the directly-drinking clean water in order to meet the requirements of the force executing assignments in the open air and providing drinking water, it is equipped with the functions of purifying the raw water, carrying clean water, purifying water and providing boiled water.
Structure and Function Characteristics
The vehicle acts as the security equipment of the special Vehicle for logistics drinking water, with good flexibility, strong specialty and natural-environmental suitability as well as the wide adaptability. The Vehicle adopts the Dongfeng second-class classis for refit. the modified chassis still keeps the same performance level of original chassis.The vehicle consisted of chassis,carriage, water purifying equipment, stainless steel insulation can, water boiler, control system, waterways system and lighting system.

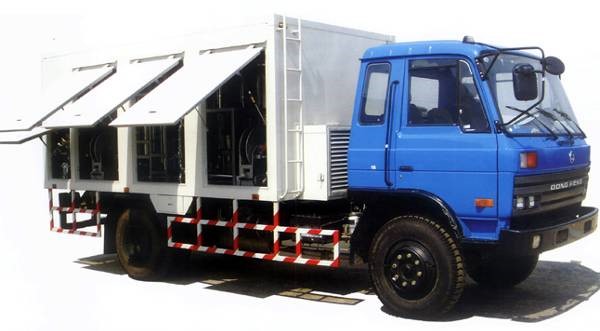

The body of the Vehicle is of light-type structure which is the adhesive type of heat insulation board and there is a set of HY-11-04-1000 water purifying units equipped inside it to purify the worse water sources in the open air and there is a set of CWNS0.07C-100-Y vehicle-mounted boiler equipped to provide boiled water and the cleaning water tank, purifying water tank, spare-parts case, waterway system and electrical system as well as the lighting system are equipped too. The water boiler can provide 300kg hot drinking water in 25 minutes.
Mobile Purifying Drinking Water Vehicle
Water purification vehicles with All-wheel drive 6x6 allow a fast and efficient way of treatment and transport of water, with a capacity up to 1-3 cubic metres of treated water.
From a surface water spot, like a river, lake or pond, the water is carried and treated at the same time with a reduction process of suspended solids, oxidation of organic matter and final disinfection of treated water. This motor vehicle can reach remote areas or uneven ground which are difficult to access.
all wheels Drive offroad Logistic Support Special Vehicle
Chassis: | EQ2162GSJ | Fuel type: | diesel fuel |
Engine: | B190 33 | Rated capacity (kg): | 3855 |
Displacement (cc): | 5900 | Wheelbase (mm): | 3500+1250 |
Power (kW): | 140 | Dimensions (mm): | 7850 × 2540 × 3480/3530 |
Instant purified water from truck for drought, emergencies, disasters and militaries
Main technical parameters
Overall dimensions: | 7850×2540×3480,3530(mm) | Cargo size: | ××(mm) |
Total mass: | 16050(Kg) | Net | 12000(Kg) |
Approach Angle/Departure Angle: | 35/33(°) | Front/rear overhang: | 1385/1715(mm) |
Axle Load: | 4040/12010( kgs) | Wheelbase: | 3500+1250(mm) |
Number of shafts: | 3 | Maximum speed: | 90(km/h) |
Number of tires: | 6(个) | Tire Specifications: | 12.5R20 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 10/12 |
Front wheel base: | 1876(mm) | Rear wheel base: | 1870/1870(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
B190 33 | Dongfeng Cummins Engine Co., LTD | 5900 | 140 |
Emergency Water Purification Vehicle
Security Vehicle of purifying the drinking water is a kind of equipment which can purify the worse water sources into the directly-drinking clean water in order to meet the requirements of the force executing assignments in the open air and providing drinking water, it is equipped with the functions of purifying the raw water, carrying clean water, purifying water and providing boiled water.
Structure and Function Characteristics
The vehicle acts as the security equipment of the special Vehicle for logistics drinking water, with good flexibility, strong specialty and natural-environmental suitability as well as the wide adaptability. The Vehicle adopts the Dongfeng second-class classis for refit. the modified chassis still keeps the same performance level of original chassis.The vehicle consisted of chassis,carriage, water purifying equipment, stainless steel insulation can, water boiler, control system, waterways system and lighting system.
The body of the Vehicle is of light-type structure which is the adhesive type of heat insulation board and there is a set of HY-11-04-1000 water purifying units equipped inside it to purify the worse water sources in the open air and there is a set of CWNS0.07C-100-Y vehicle-mounted boiler equipped to provide boiled water and the cleaning water tank, purifying water tank, spare-parts case, waterway system and electrical system as well as the lighting system are equipped too. The water boiler can provide 300kg hot drinking water in 25 minutes.
